1 Piece Dc Motor Gear 9 /11 /12/13/14/15/16 Teeth Electric Motor Gears for 10.8V / 12V / 14.4V / 16.8V / 18V / 21V /25V Motors
1 Piece Dc Motor Gear 9 /11 /12/13/14/15/16 Teeth Electric Motor Gears for 10.8V / 12V / 14.4V / 16.8V / 18V / 21V /25V Motors
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: None
Model Number: EPC_MTR_200
Origin: Mainland China
-

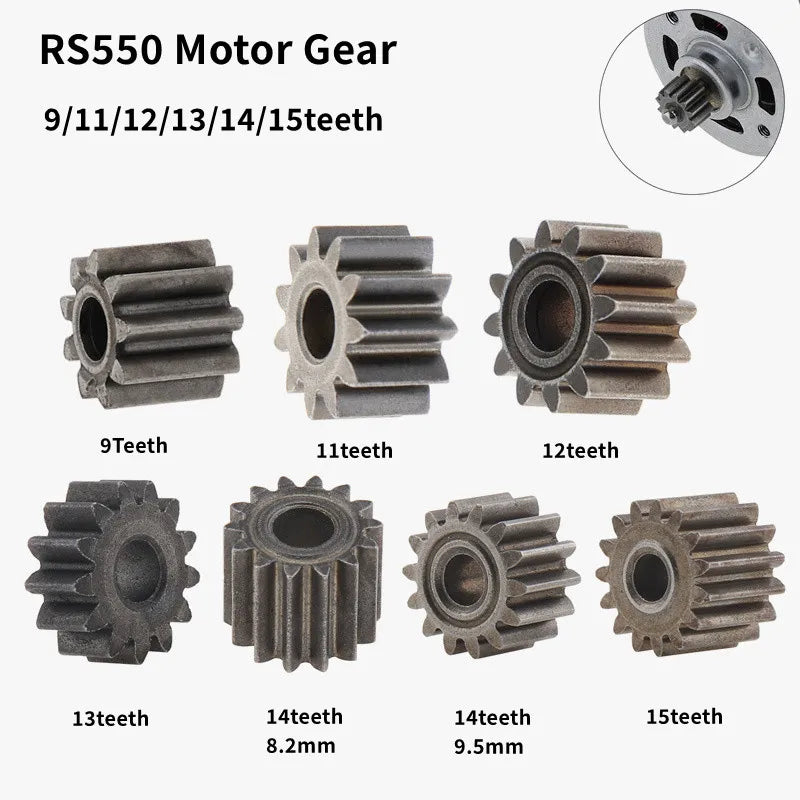

Name: 9/11/12/14/15/16 teeth rs550 Motor Gear,9 teeth d shaft motor gear,775,795,755 7teeth gears
Features:
-Work smoothly, structure is firm, and maintenance is simple.
-No processing, direct installation, convenient and quick.
-For 3mm rod motor shaft
- It is made by precision casting.
- Spur gear tooth profile.
- Standard spur gear.
Material: 45# Steel

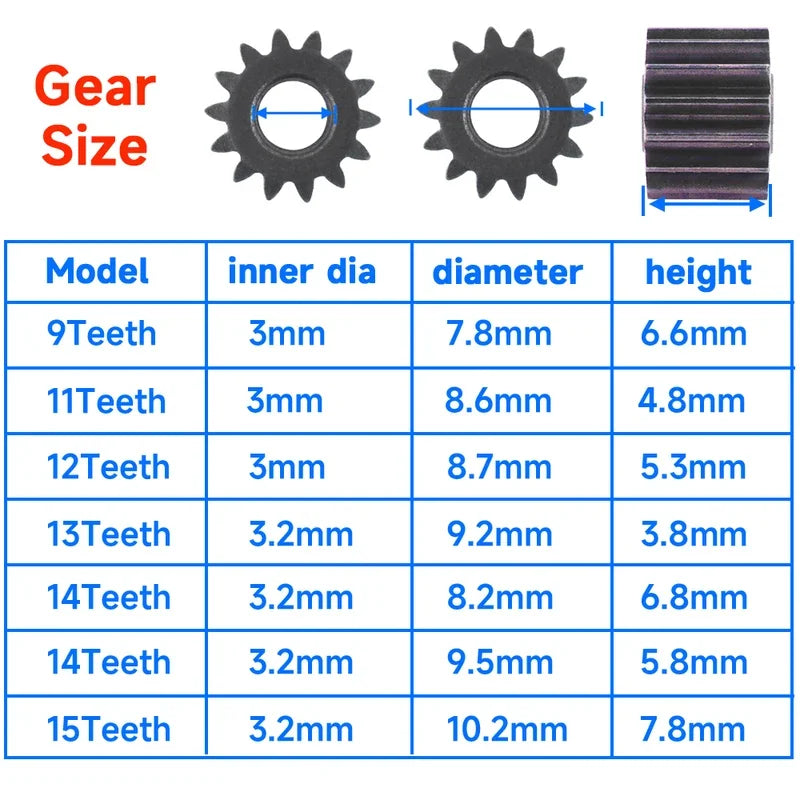

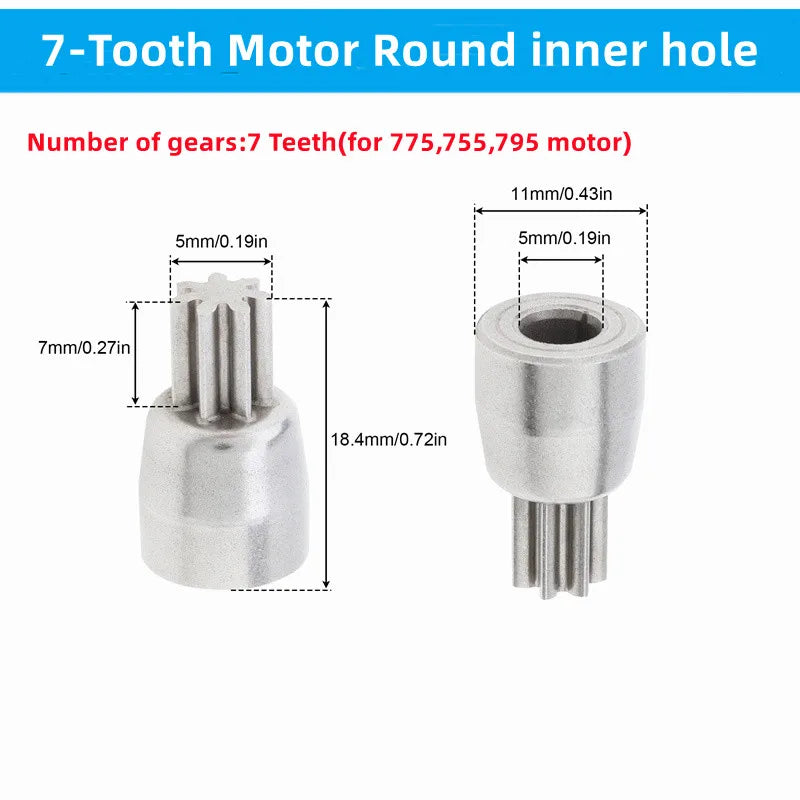

Tooth: 7 Teeth (for 775 795 755 DC Motor)
Tooth Diameter: Φ6mm
Inner Hole: Φ5(+0.01/-0.01)mm

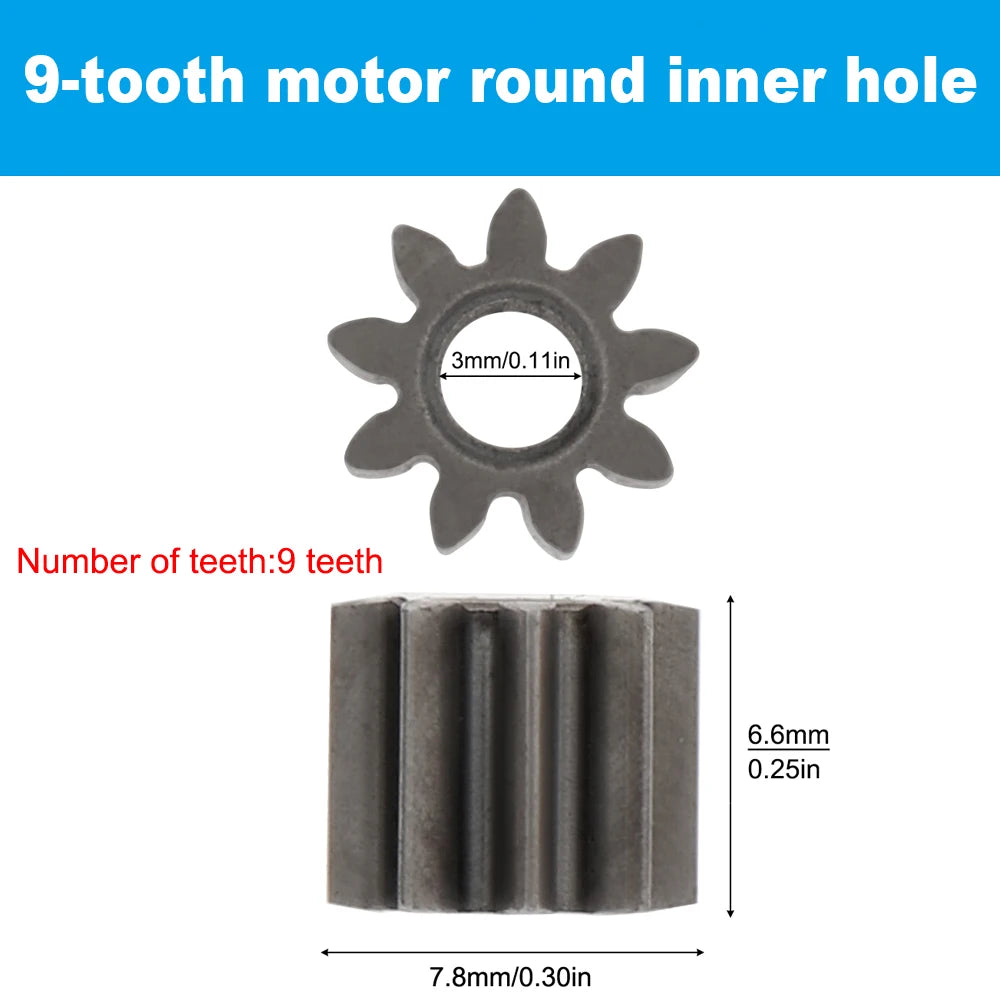

Tooth: 9 Teeth
Inner bore:Φ3(+0.01/-0.01)mm
Outside diameter:Φ7.8mm
Thickness :5.3mm

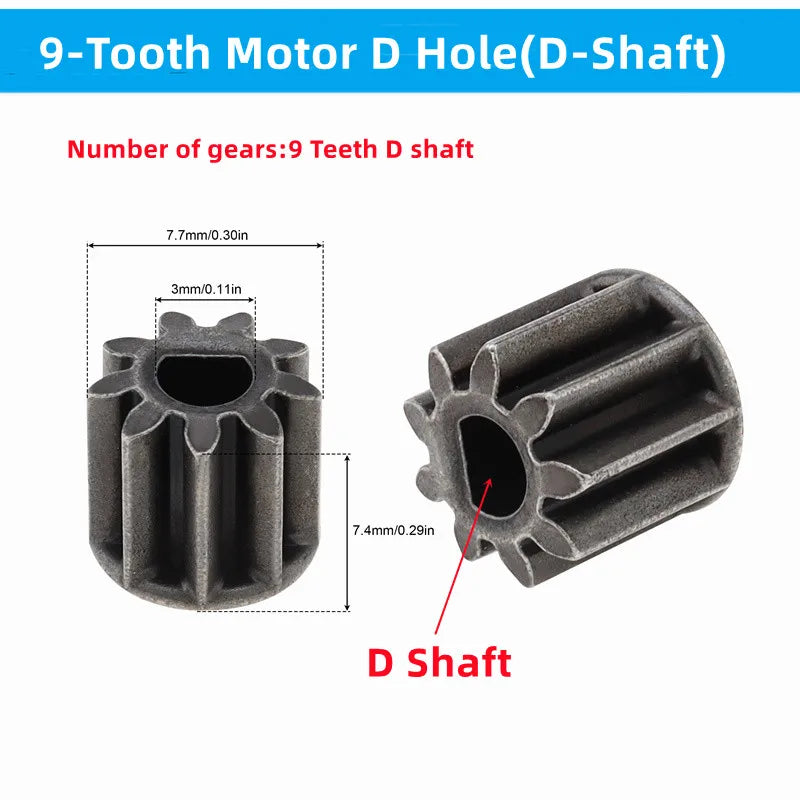

Tooth: 9 Teeth D Hole (for 3mm rod motor D shaft.)
Outside diameter:Φ8mm
Thickness :7mm

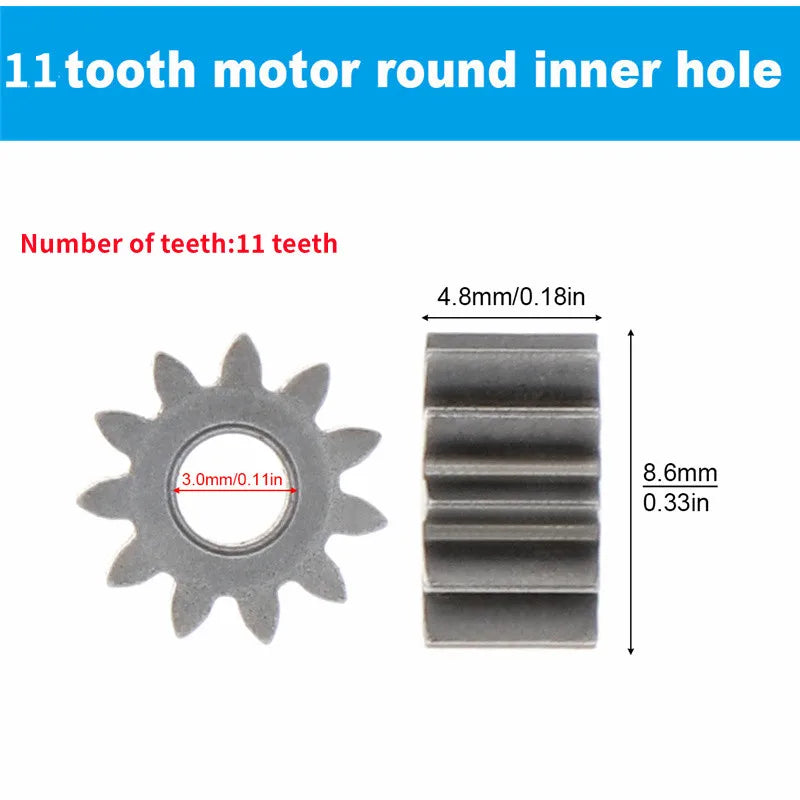

Tooth: 11 Tooth
Tooth Pitch: 3.14mm
Tooth Depth: 2.25mm
Inner Hole: Φ3.0(-0.01/-0.02)mm

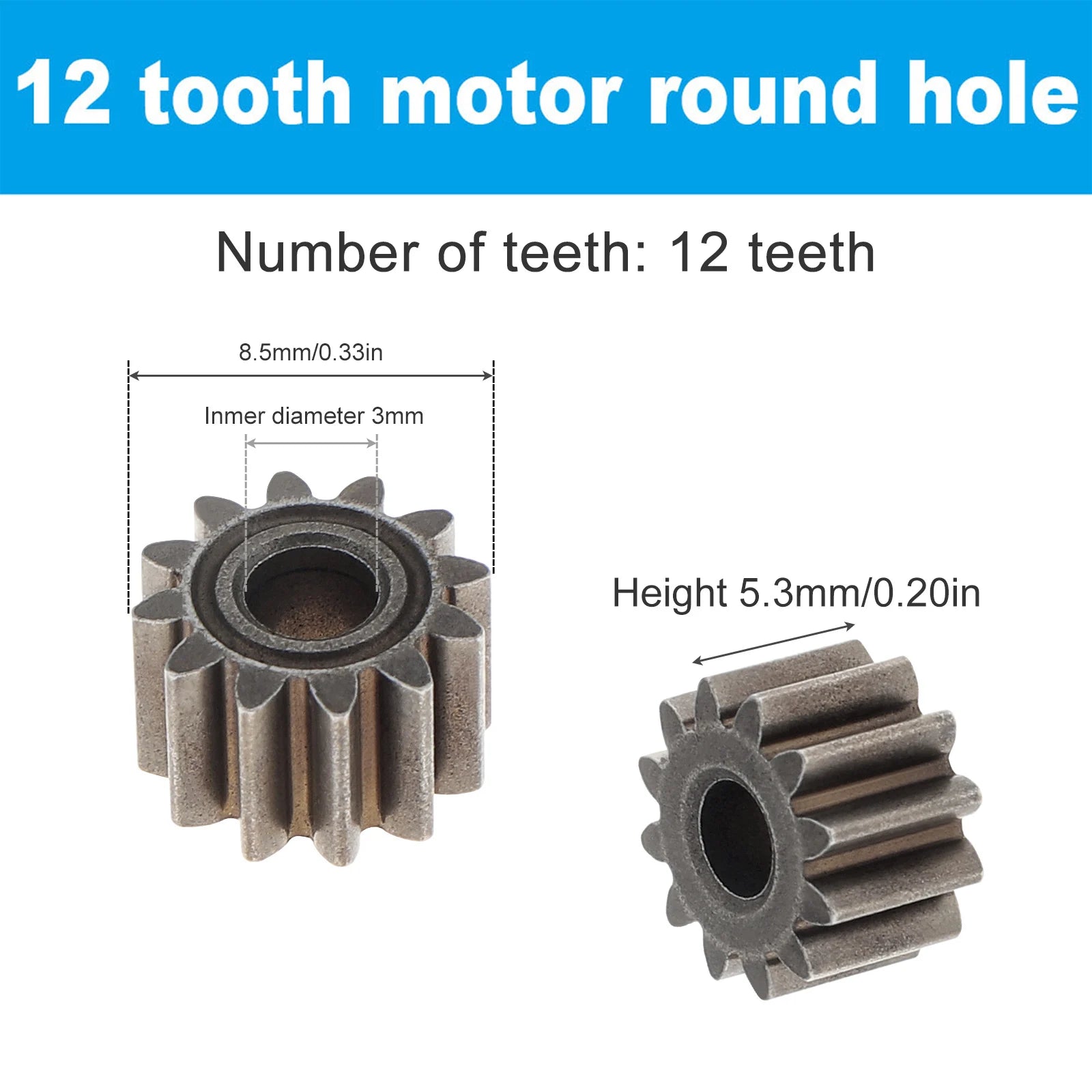

Tooth: 12 Teeth
Inner Bore: Φ3(+0.01/-0.01)mm
Outside Diameter: Φ8.7mm
Thickness: 6.7mm

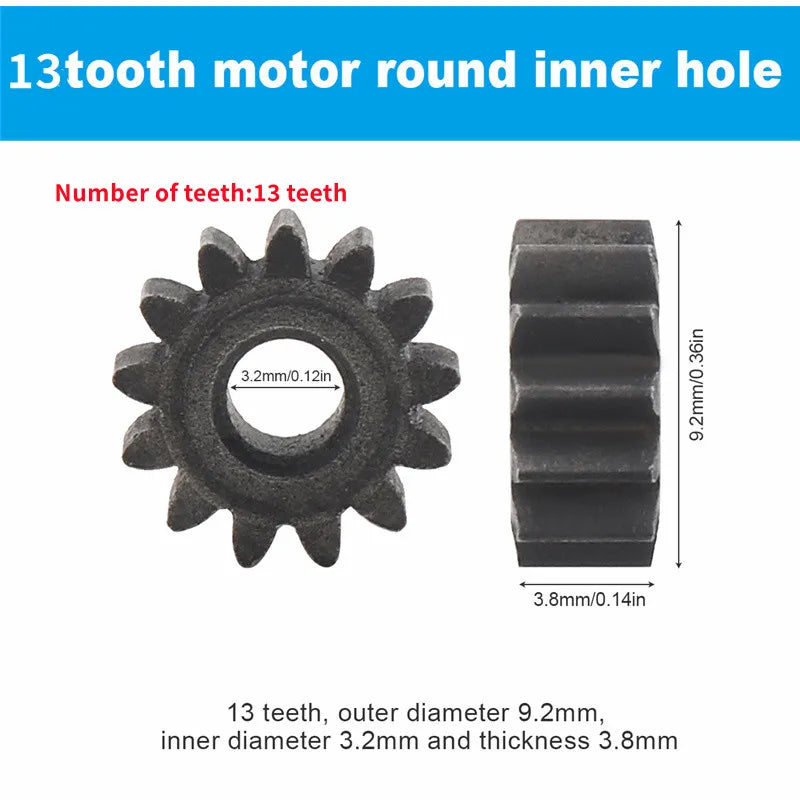

Tooth：13Teeth
Inner Bore: Φ3(+0.01/-0.01)mm
Outside Diameter: Φ9.2mm
Thickness: 3.8mm

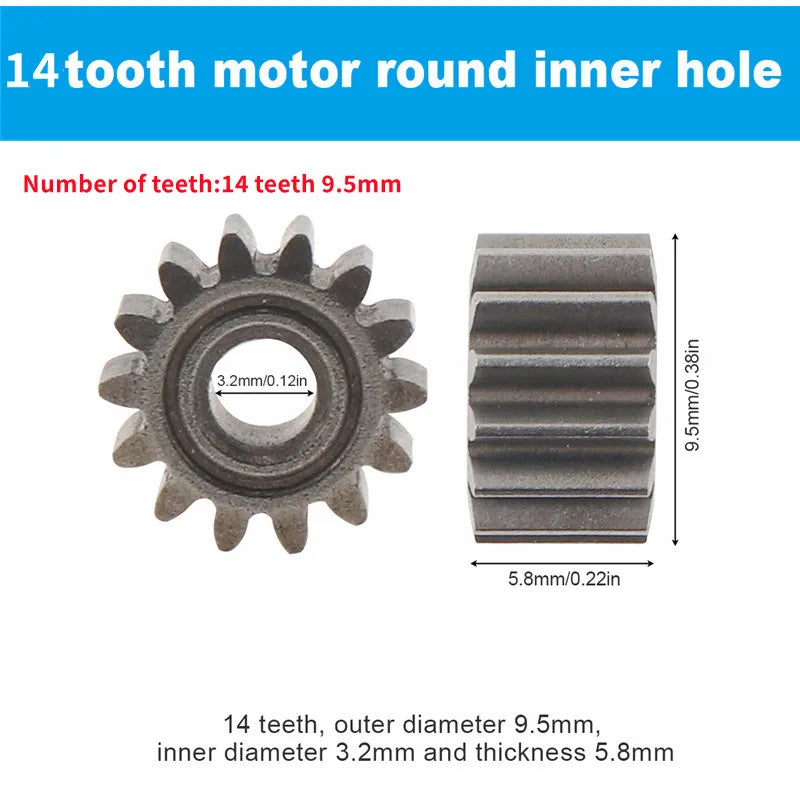

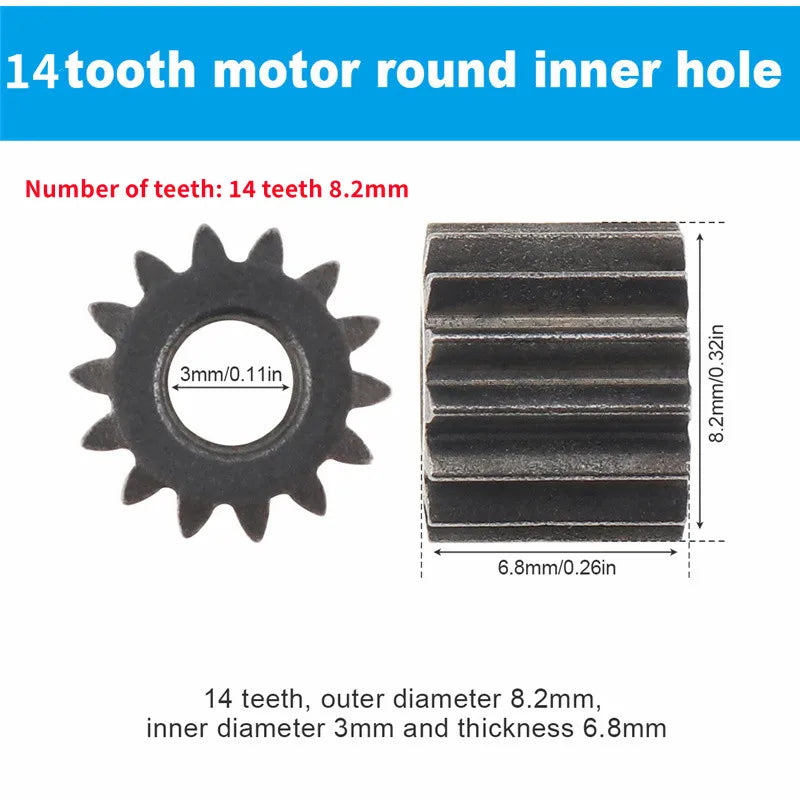

Tooth: 14 Teeth
Inner Bore: Φ3(+0.01/-0.01)mm
Outside Diameter: Φ8.2mm / Φ9.5mm
Thickness: 6.8mm/5.8mm

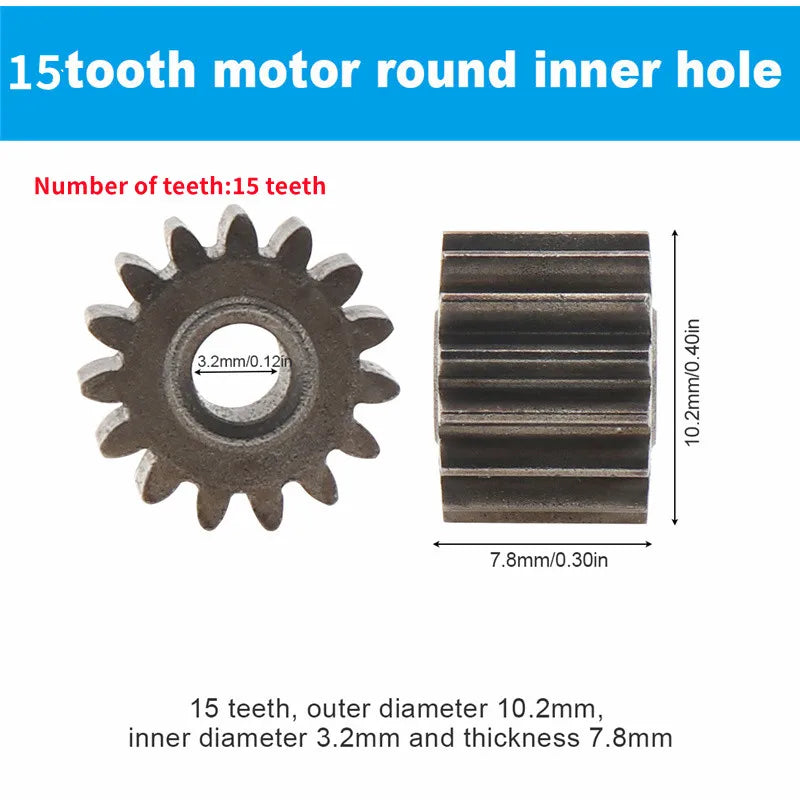

Tooth: 15 Teeth
Inner Bore: Φ3(+0.01/-0.01)mm
Outside Diameter: Φ10.2mm
Thickness: 7.8mm

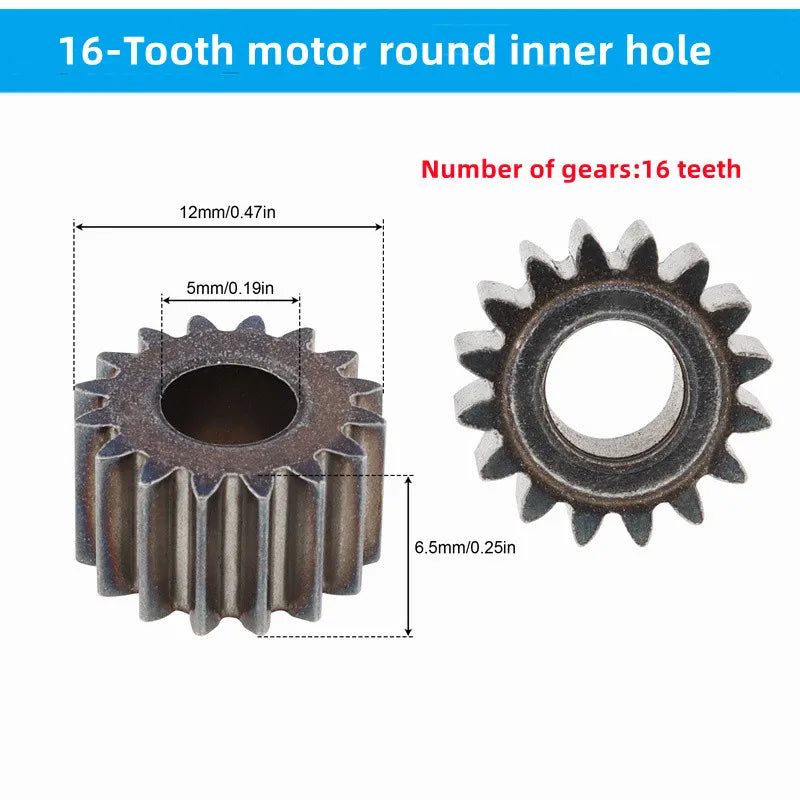

Tooth: 16 Teeth for 775 795 755
Inner Hole: Φ5(+0.01/-0.01)mm
Outside Diameter: Φ12mm
Thickness: 7mm

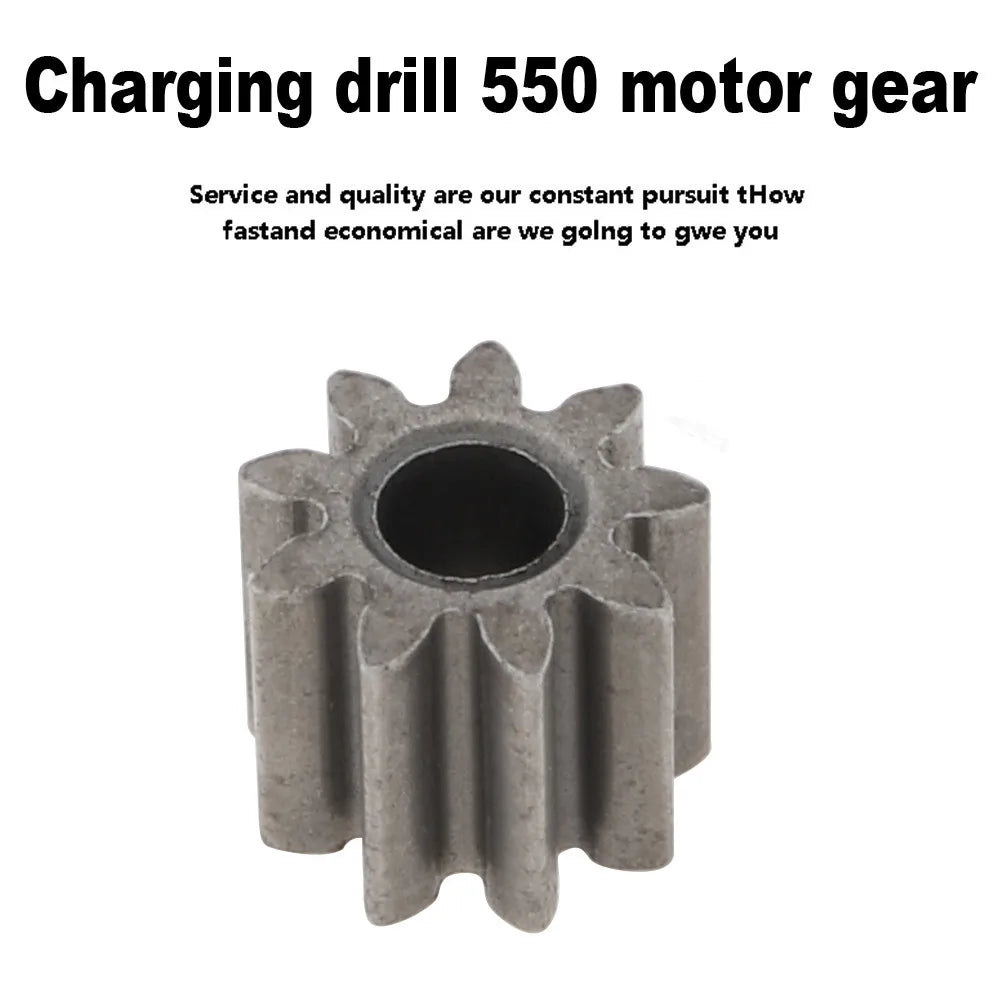

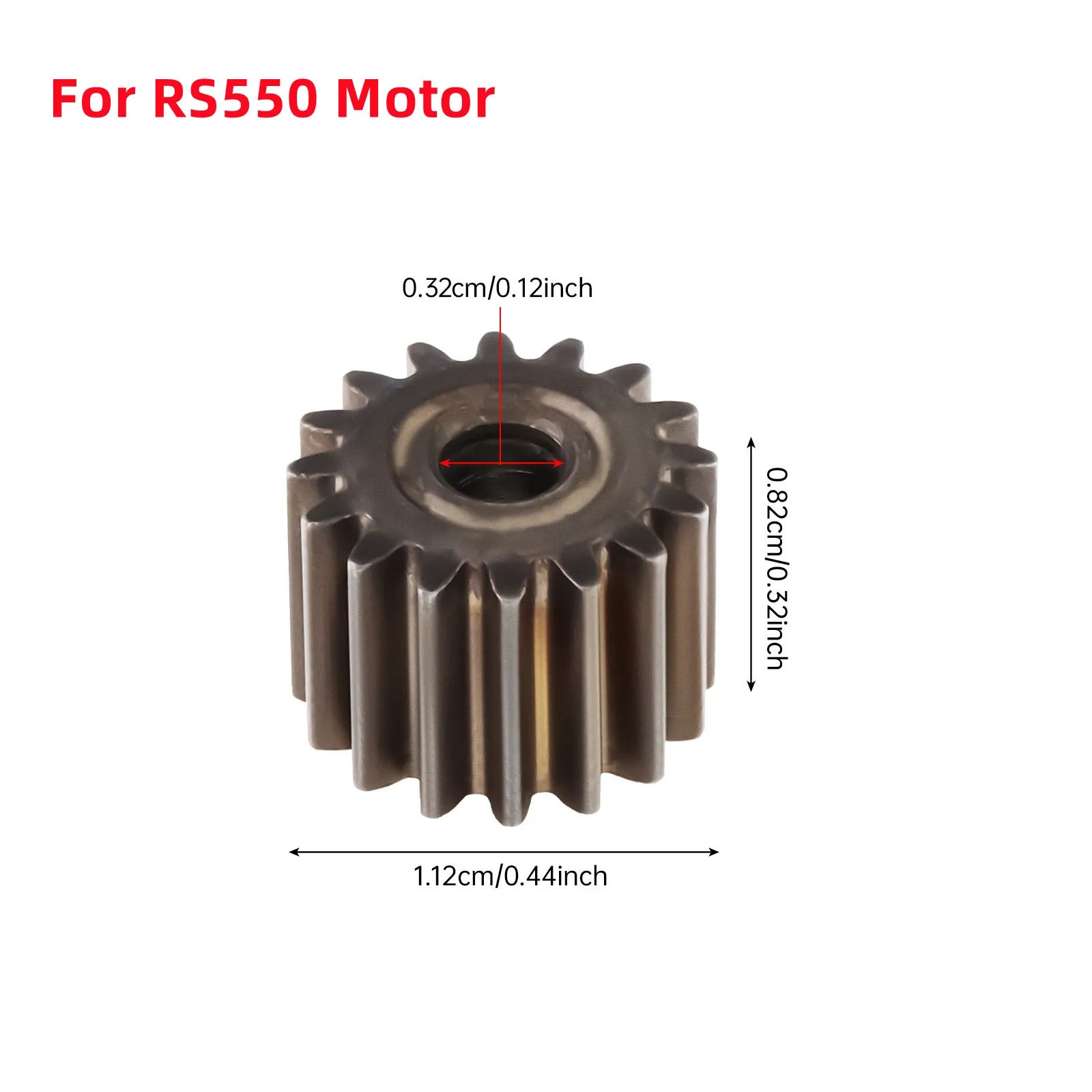

Tooth:16teeth for 550
Outside Diameter:11.2mm
1 x Motor Gear
