Product Name: 0.5-7.0mm Blades Range Measuring Tool

Material: Stainless Steel

Standards: Metric

Blade Quantity: 20 pcs

Features:
- Suitable for checking tool angles when cutting threads on metal lathes and checking the angle of thread cutting tools on the V gauge is V groove.

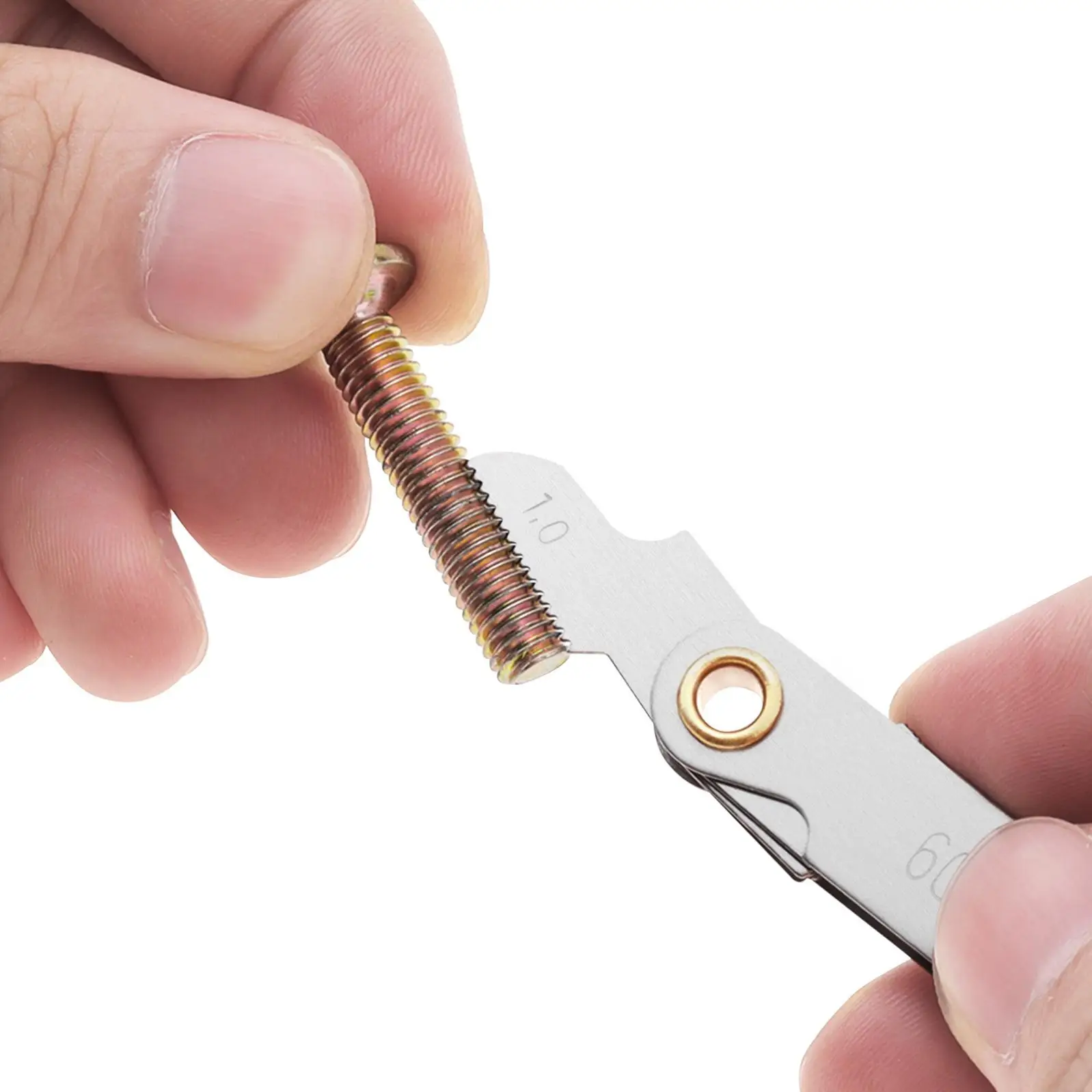

- Widely used for gauging both internal and external thread pitches.

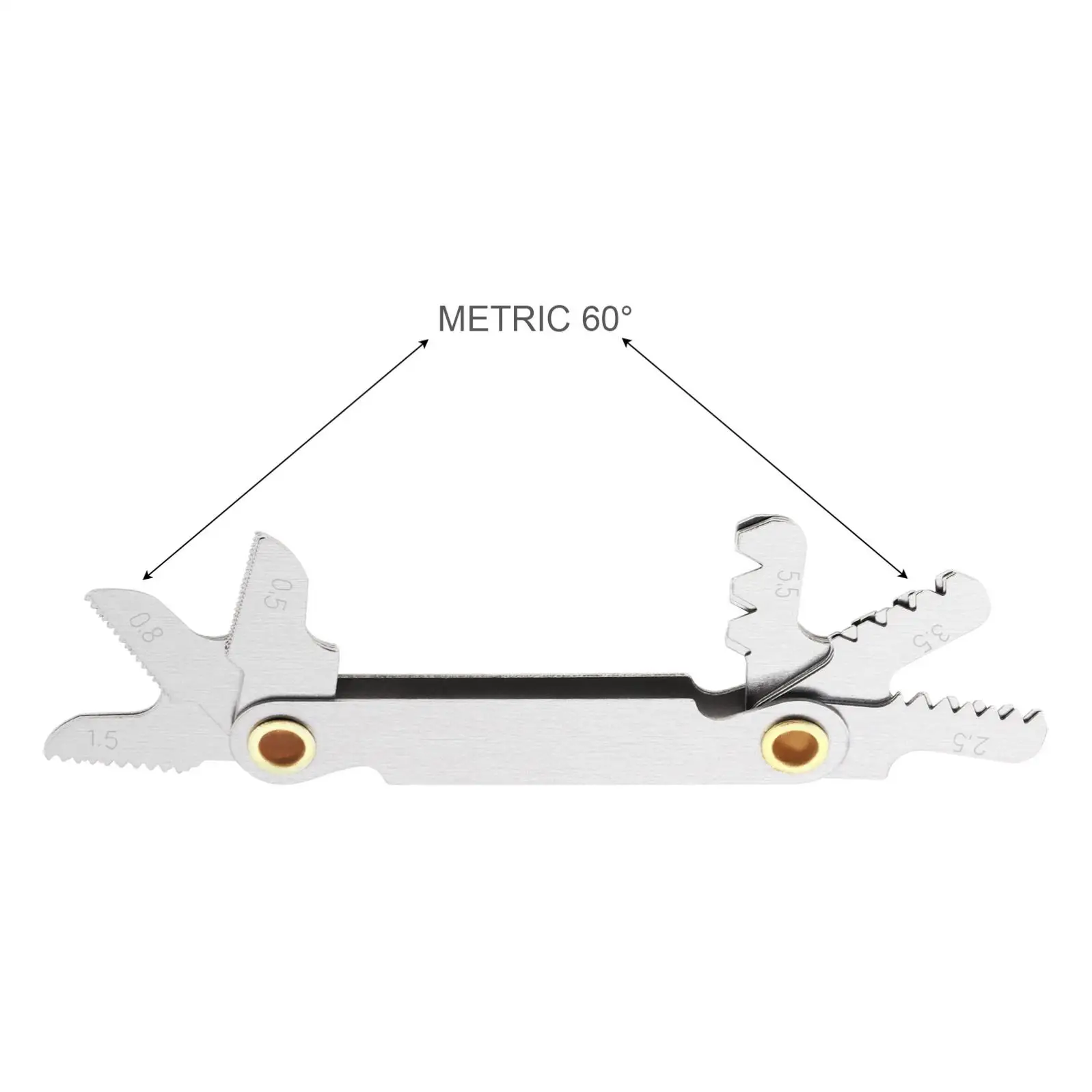

- It is pitch gauge gage with locking device / 60 degree thread.

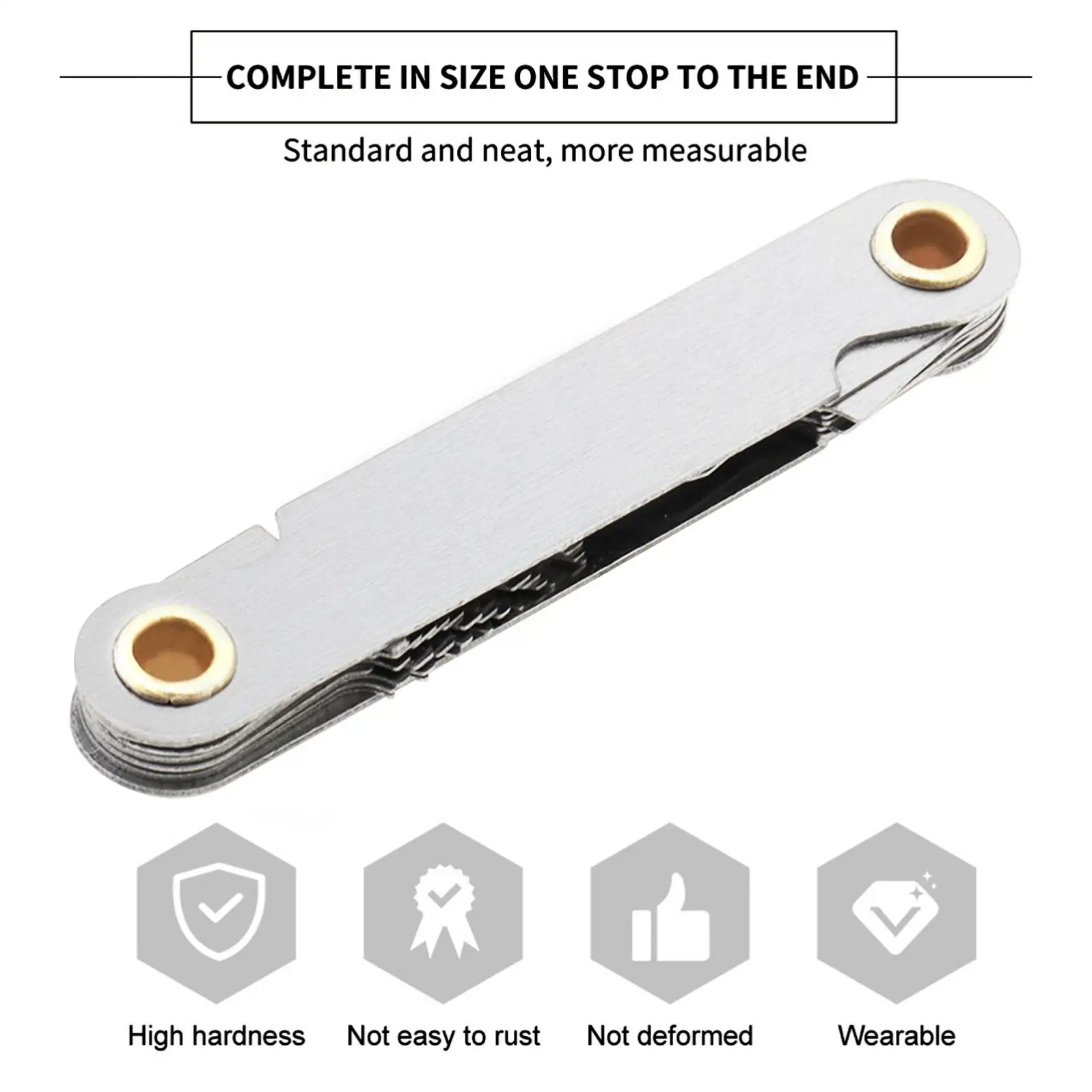

- The thread pitch gauge is made of 304 stainless steel for superior hardness, sturdy and wear-resistant, suitable for long time use.

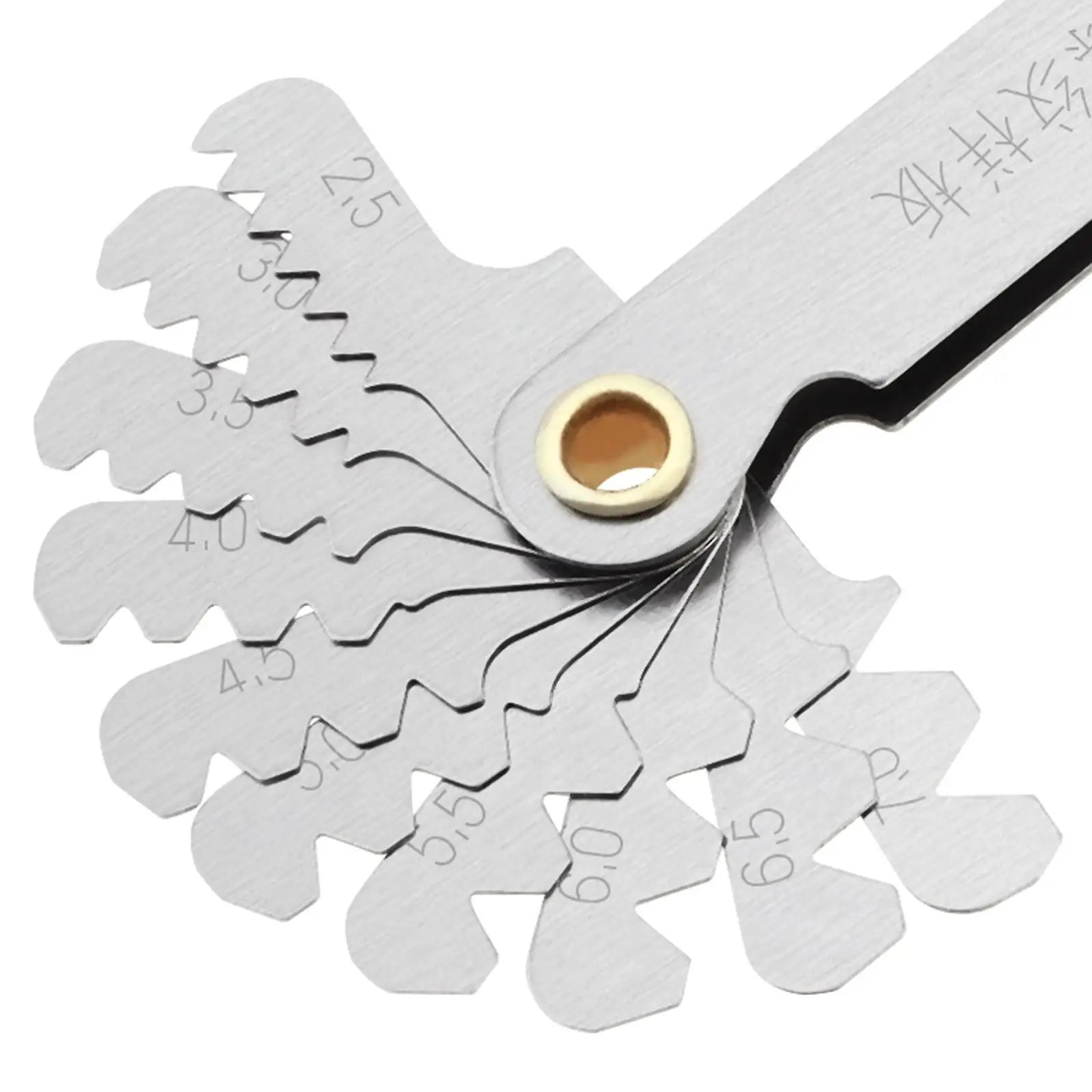

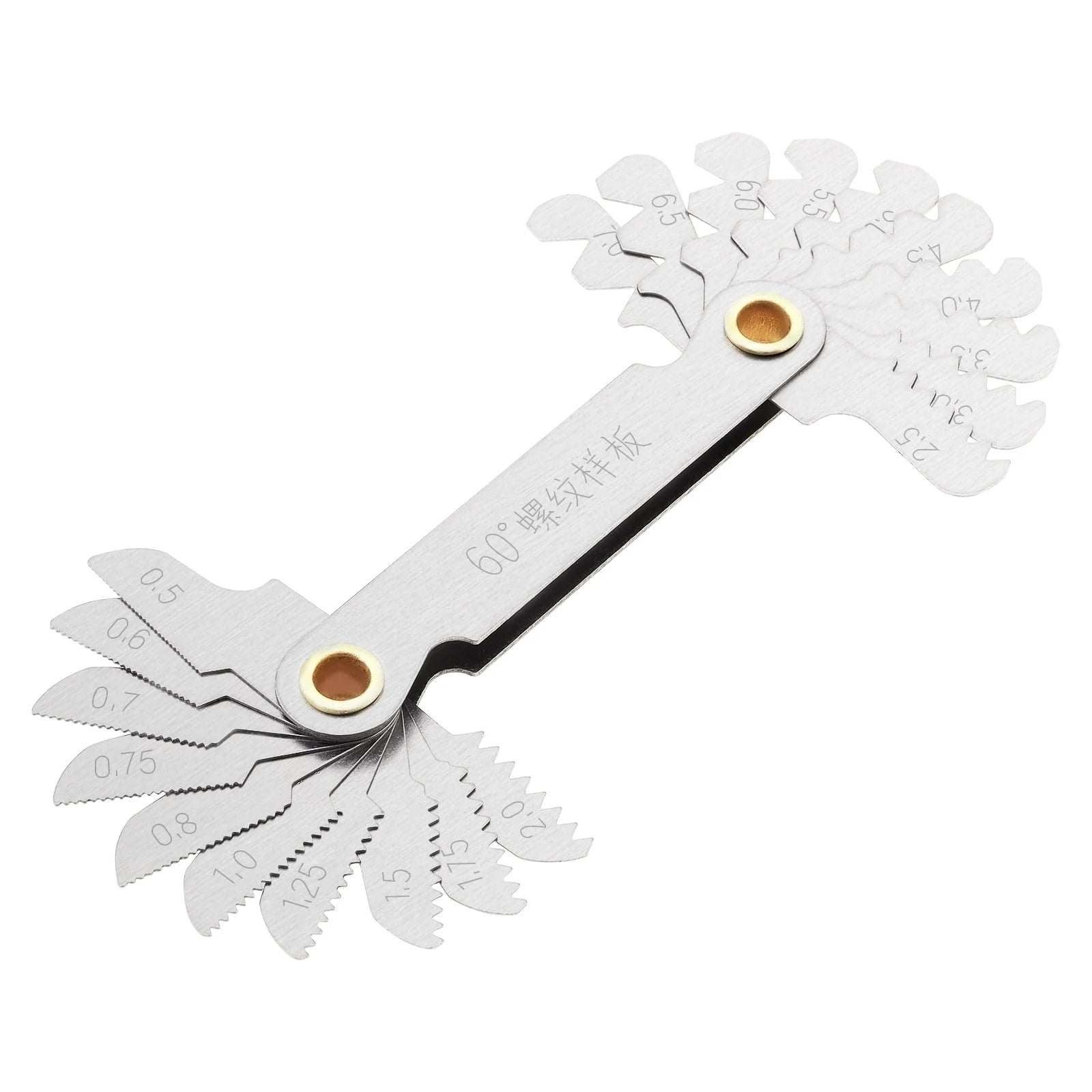

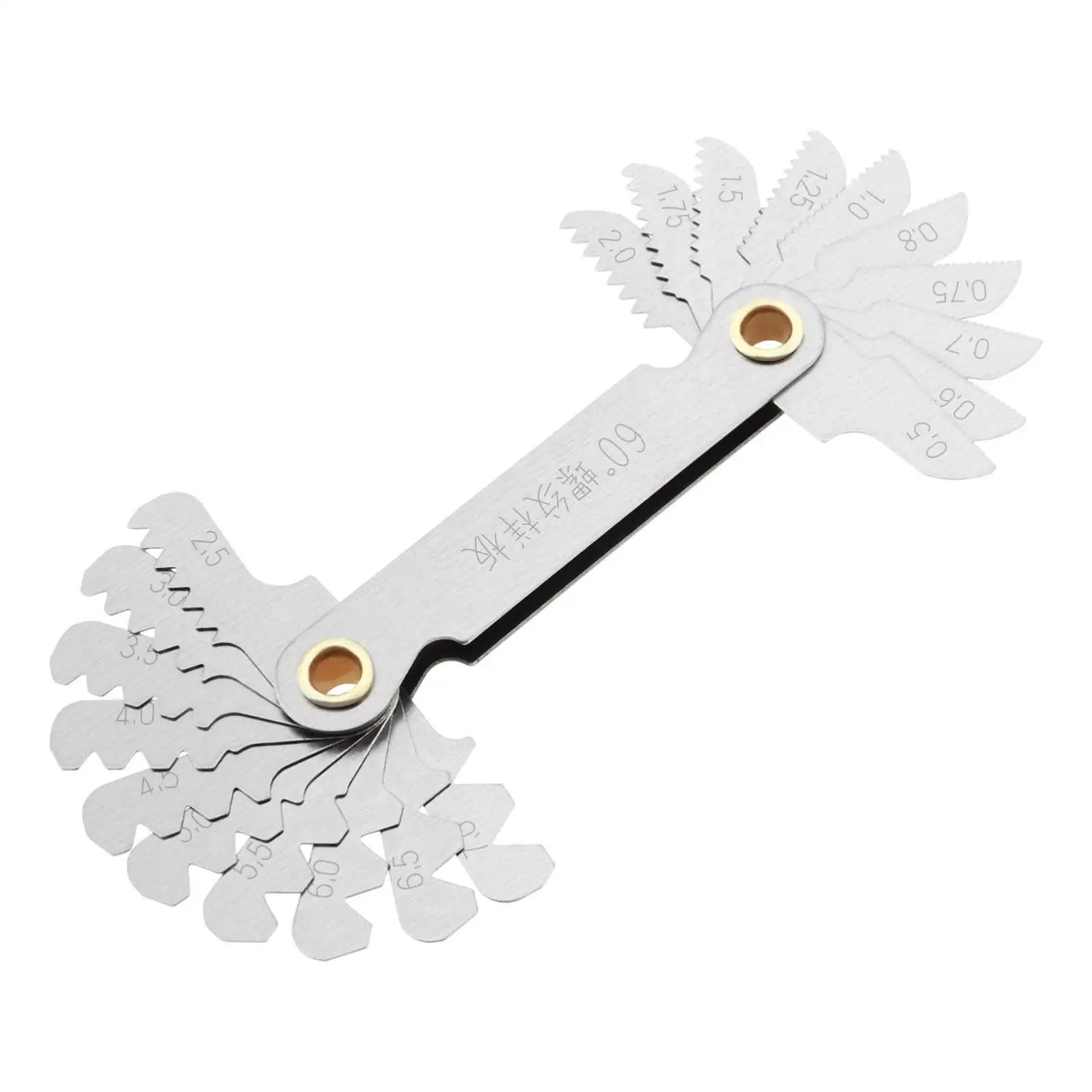

- Double head design, 10 leave per side and the total quantity is 20pcs metric blades, according to the number of pitches per piece, the pitch range is from 0.5mm to 7mm.

Type: Stainless Steel Thread gauge

Color: Silver

Blade Thickness: 5mm

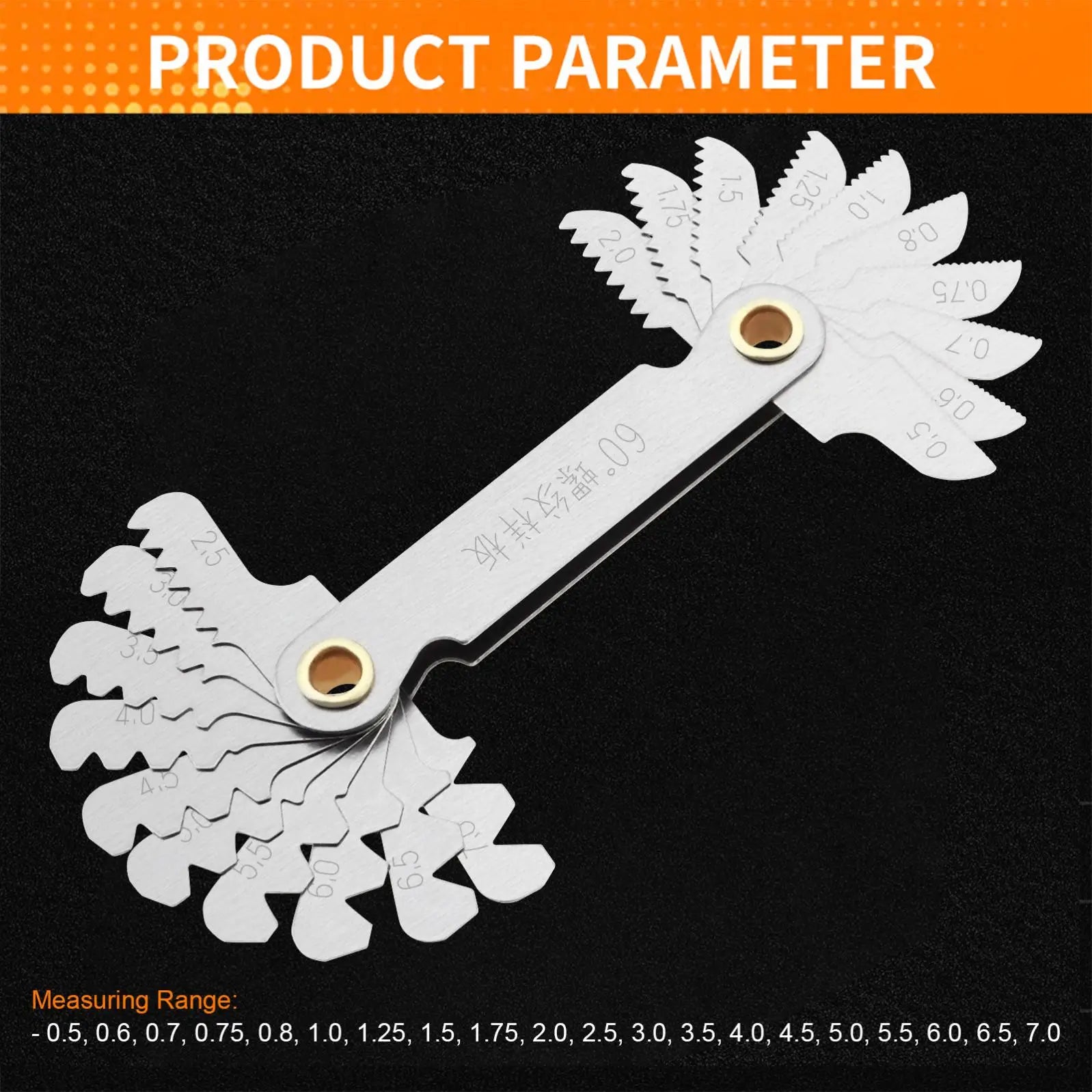

Measuring Range:

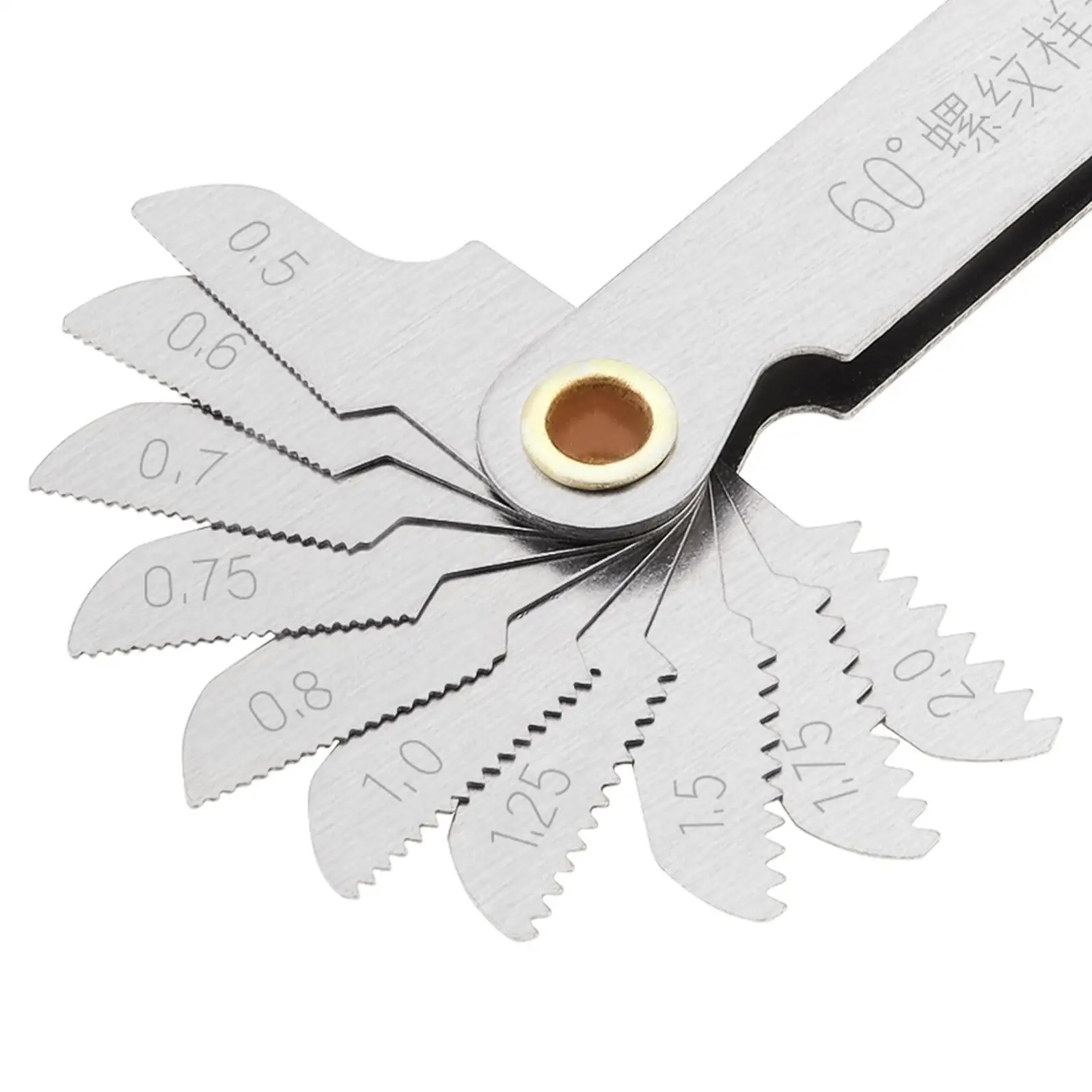

- 0.5, 0.6, 0.7, 0.75, 0.8, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0

Place of Application: Industrial Measurement, Widely used for gauging both internal and external thread pitches.

Product Weight: 17 G / 0.60 Ounces

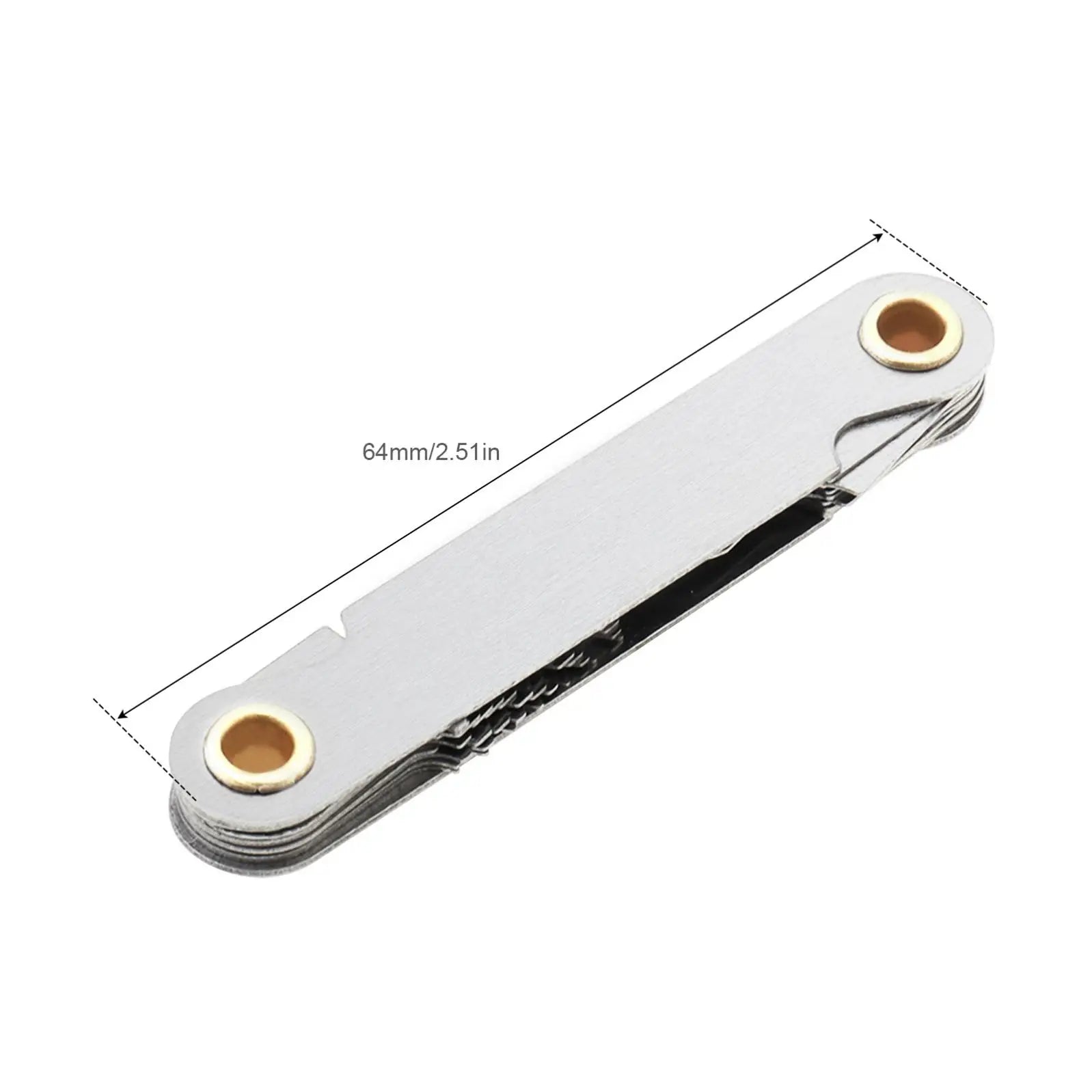

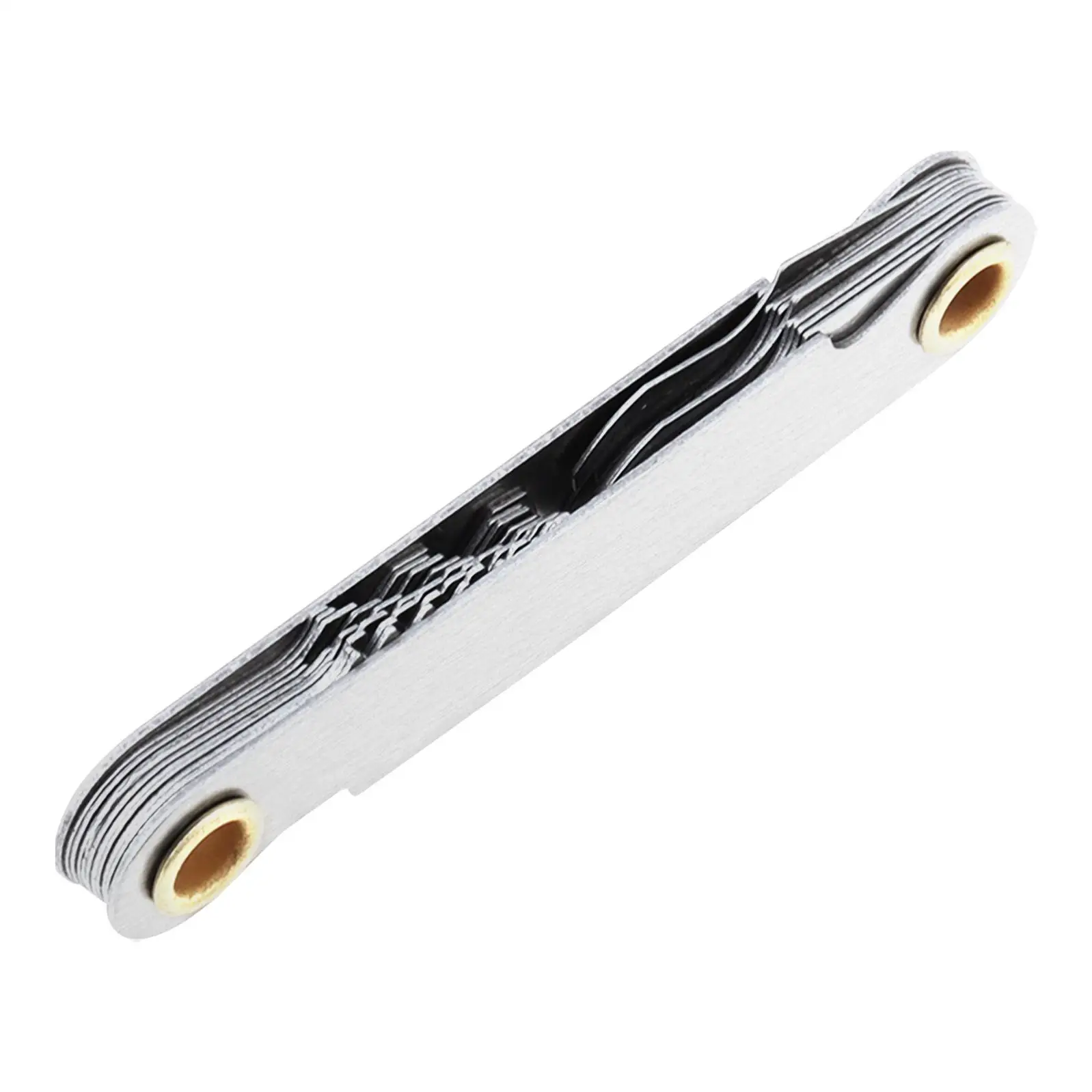

Product Dimensions (L*W*H): 105*35*5 MM / 4.13*1.38*0.20 Inches

Package Weight: 18.0 G / 0.63 Ounces

Package Dimensions (L*W*H): 110*40*6 MM / 4.33*1.57*0.24 Inches

Retail Packaging: Yes, General Box

1 x Screw Thread Pitch Gauge
