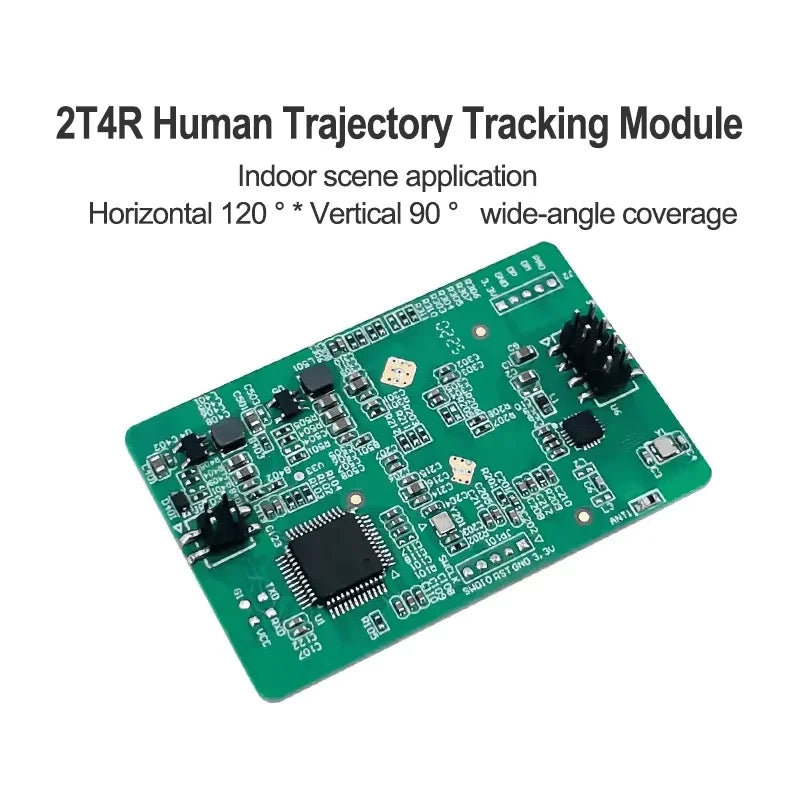

24G 2T4R LD2460 Smart Home Human Presence Distance Tracking Sensor Motion Module HLK-LD2460
24G 2T4R LD2460 Smart Home Human Presence Distance Tracking Sensor Motion Module HLK-LD2460
SPECIFICATIONS
Average current: 250mA
Brand Name: Hi-Link
Choice: yes
Default pins: GND, 5V, TX, RX
Detection: distance, angle, speed
EIRP: 13dBm
High-concerned chemical: None
Horizontal angle: 120°
Input voltage: 5V
Micro-motion distance: 6m
Model: HLK-LD2460
Origin: Mainland China
Size: 49.5*32mm
Standard: Based on CE FCC
Type: PLC Positioning Modules
Vertical angle: 90°
Work temperature: -40~85C
semi_Choice: yes
24G 2T4R LD2460 Smart Home Human Presence Distance Tracking Sensor Motion Module HLK-LD2460

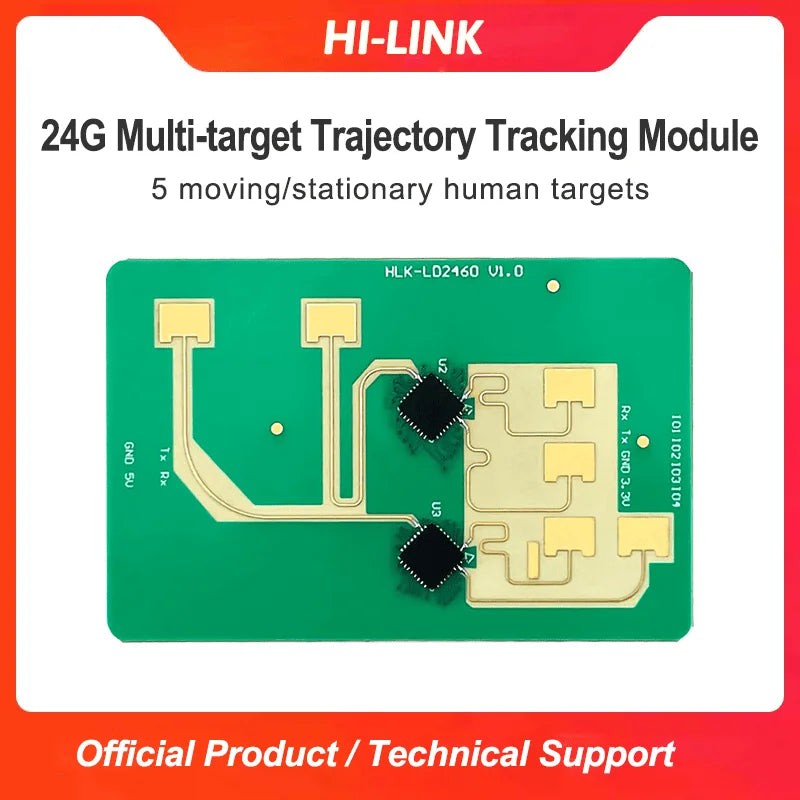

HLK-LD2460 is a 24GHz millimeter wave radar product for human perception, which is composed of two 1 transmit and 2 receive millimeter wave radar chips, high-performance microstrip antenna, high-performance MCU and peripheral auxiliary circuit. The operating band is 24.00GHz to 24.25GHz, which is the ISM band. The operating bandwidth is 250MHz. This product can be used in the home, office, hotel and other scenes, to achieve a number of motion, micromotion or static human precise sensing.
Module Features
* 24 GHz ISM band
* Integrated intelligent millimeter wave radar chip and intelligent algorithm firmware
* Precise motion target localization and tracking
* Longest detection range 6m
* Ultra-small module size: 32mm x 49.5mm
* Wall mounting
* Ranging accuracy: 0.3m
* Resolution: 0.75m
* Horizontal angle ±45°, vertical angle ±25°
* The ultimate cost-effective choice
* Multiple connection options with pin and socket interface
Wire connection
Work range
Application scenarios
The LD2460 motion target tracking sensor can accurately locate and track targets and is widely used in various AloT scenarios, covering the following types:
* Smart Home
Sensing the distance and angle of the human body, reporting the detection results for the main control module to intelligently control the operation of air conditioners, door lock, TV, fans and other home appliances.
* Smart Business
Position sensing, within the set position interval to identify the human body approaching or moving away, timely lighting or closing the screen.
* Bathroom
Smart toilet accurately controls the automatic opening and closing of the toilet lid.
* Smart Lighting
Identify and sense the human body, precise position detection, can be used in home lighting devices (sensor lamps, desk lamps, etc.).

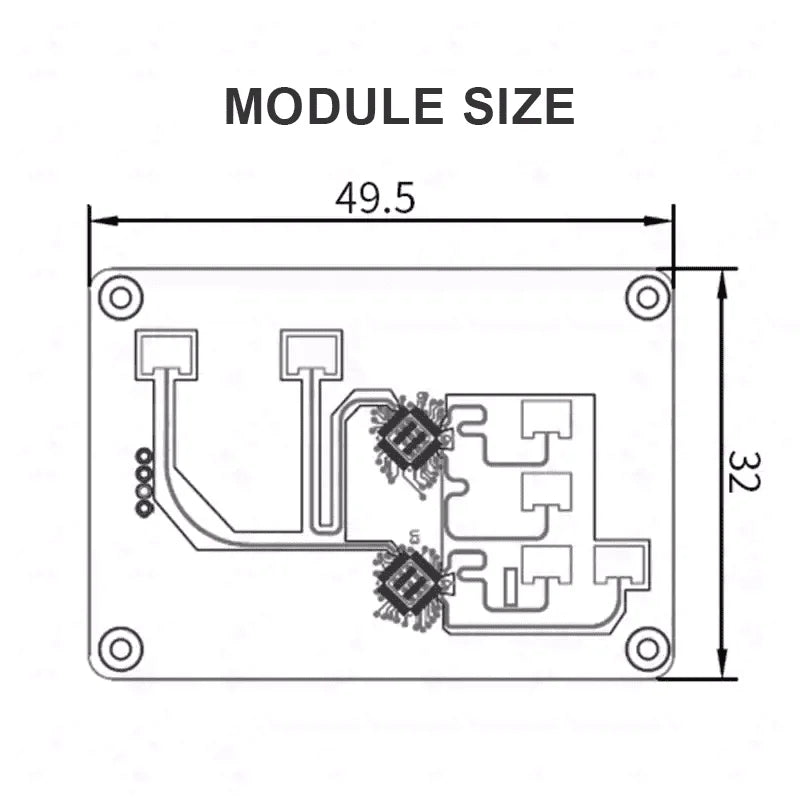

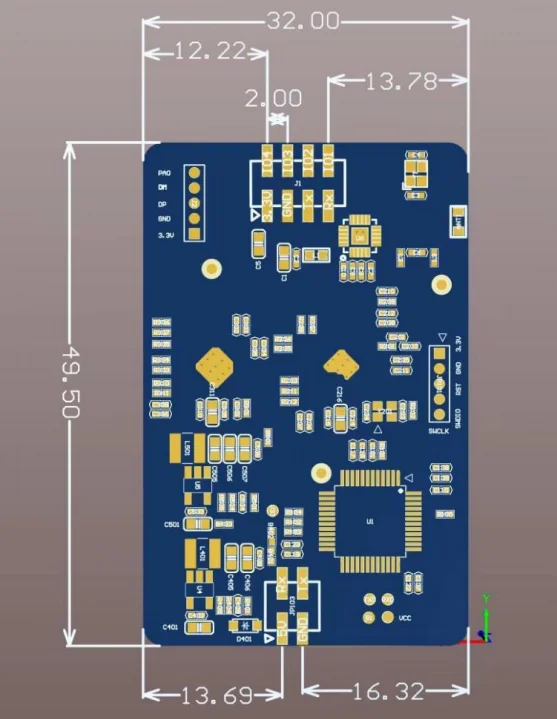

Dimension
