SPECIFICATIONS

Brand Name: maithoga

Compatible Brand/Model: None

High-concerned chemical: None

Model Number: /

Origin: Mainland China

Place of origin: Guangzhou, China

Resolution: 320*480

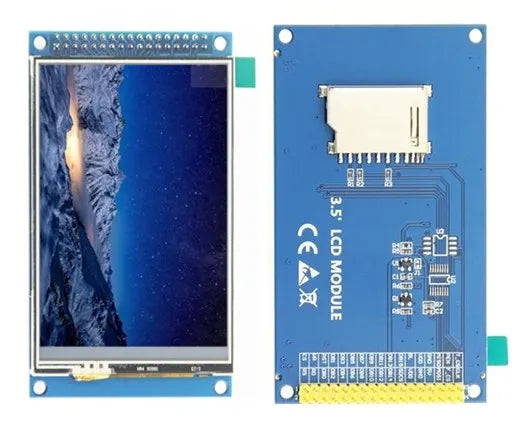

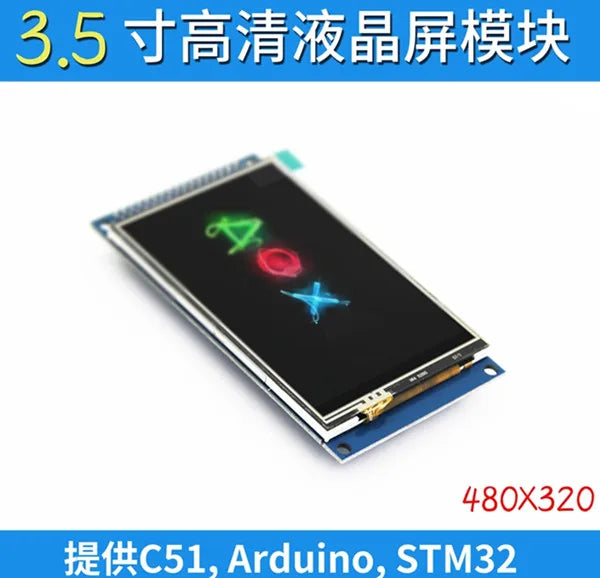

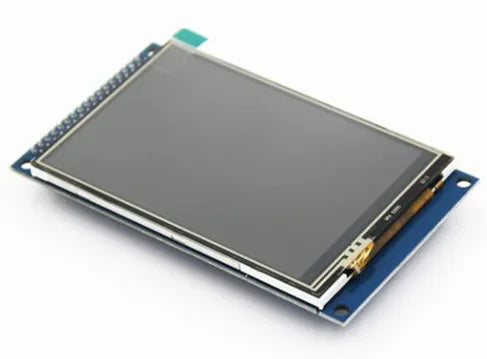

3.5 inch HD TFT LCD Module

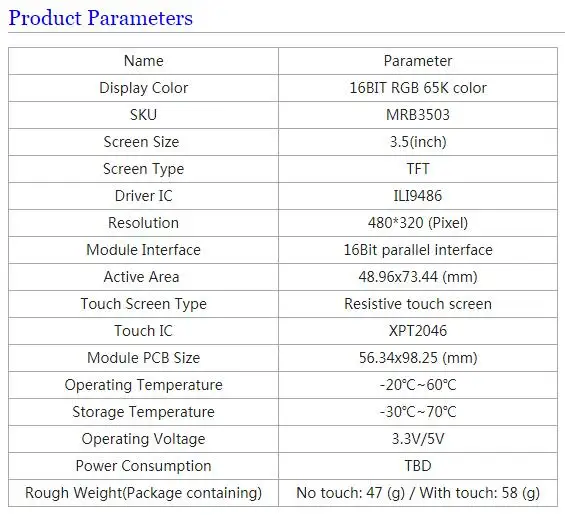

Specifications
Resolution: 320*480
Drive IC: ILI9486

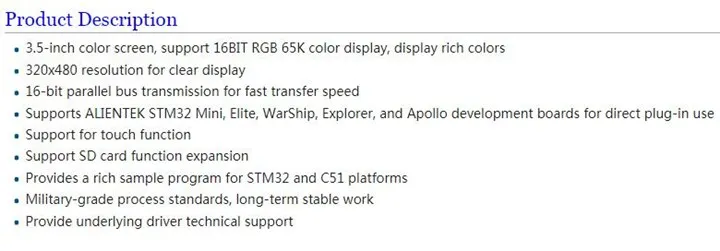

Characteristic
1 onboard low dropout voltage high current LDO, compatible with 5V and 3.3V power supply
2 onboard PWM backlight control circuit load, support for IO control and PWM dimming control
3 onboard XPT2046 touch chip, support for touch screen experiment
4 module with SD card, do the digital photo frame and other experimental
5 reserved SPI FLASH pad, can extend the welding font chip
6 module uses high-grade gold yellow double pin, better electrical performance
7 LCD driver to provide professional technology support
