SPECIFICATIONS

Brand Name: maithoga

Compatible Brand/Model: None

Dot: 320*(RGB)*480

High-concerned chemical: None

Model Number: /

Origin: Mainland China

Place of origin: Guangzhou, China

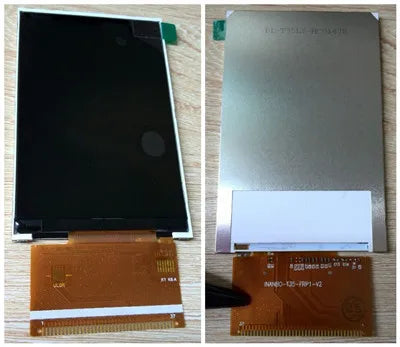

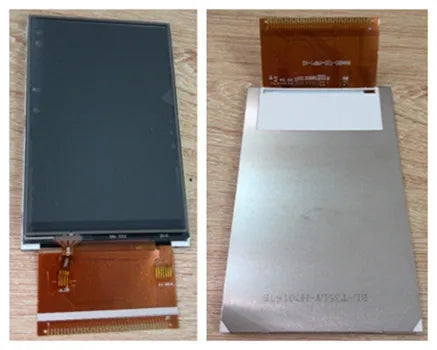

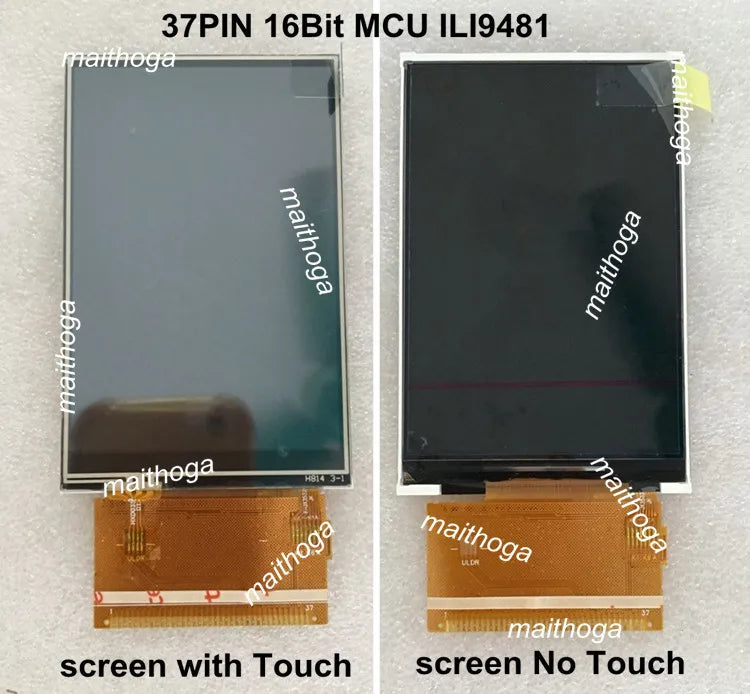

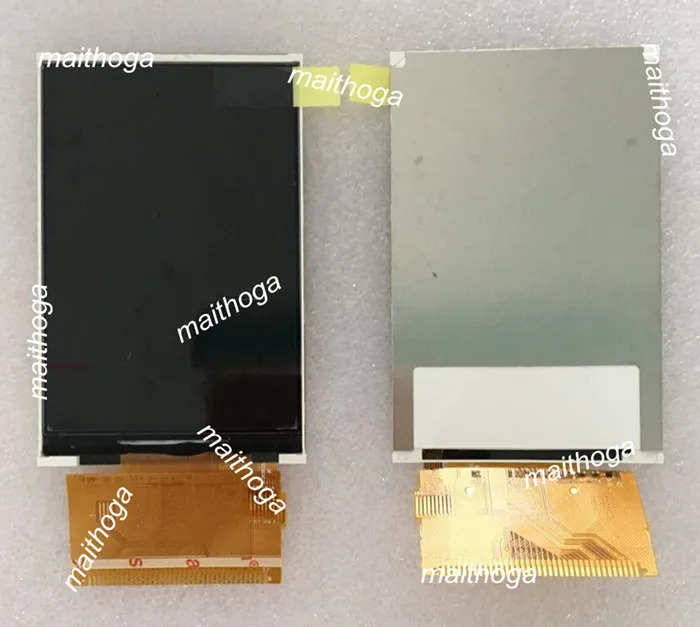

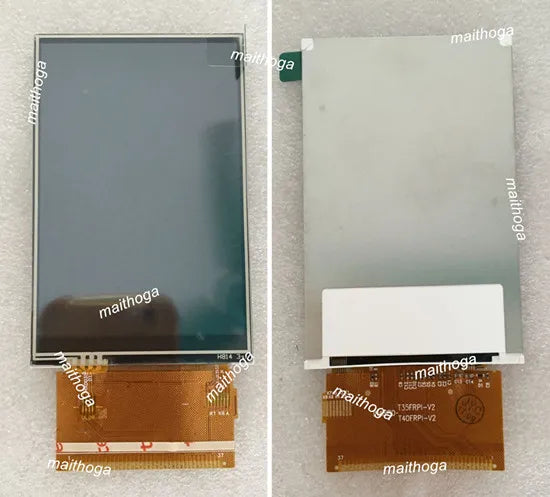

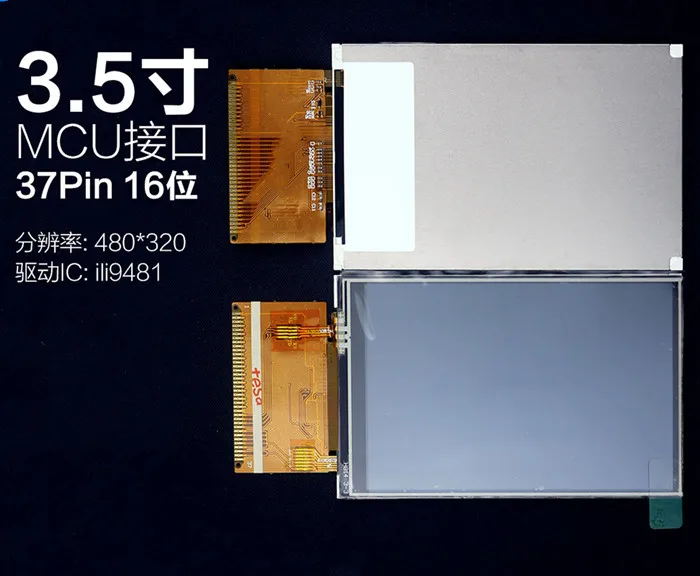

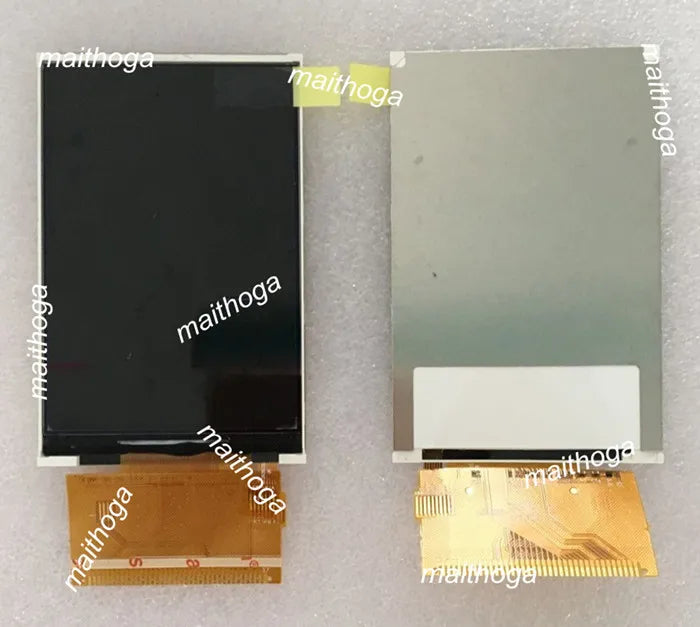

3.5 inch TFT LCD Screen

Size: 3.5 inch

LCD Type: TFT

Outline Dimensions: 54.5*83.0*2.1mm

Active Area: 48.96*81.44mm

Number of Dots: 320(RGB)*480

Controller: ILI9481

PINNO.: 37P

Display Color: 262K

Backlight: 6*White LED, Parallel

Polarizer Mode: Transmissive

Data Interface: MCU 16bit 80 Parallel interface

Pixel Pitch: 0.2025*0.2025mm

Glass Area: 52.96*81.44mm

Operating Temp.: -10 ~ 60 degree

Storage Temp.: -20 ~ 70 degree

Viewing Direction: 9O’clock
