SPECIFICATIONS

Battery Included: no

Brand Name: aoedro

Certification: CE,RoHS

Choice: yes

High-concerned chemical: None

Input voltage: 24VDC

Item name: linear scale linear ruler linear encoder

Magnetic sensor protection level: IP 67

Maximum speed: 5m/s

Model Number: S35-3A

Moving speed: Max3m/s

Origin: Mainland China

Resolution: 10um

Semi-finishedproduct: No

Working temperature: -20 ~ 85 °C

semi_Choice: yes

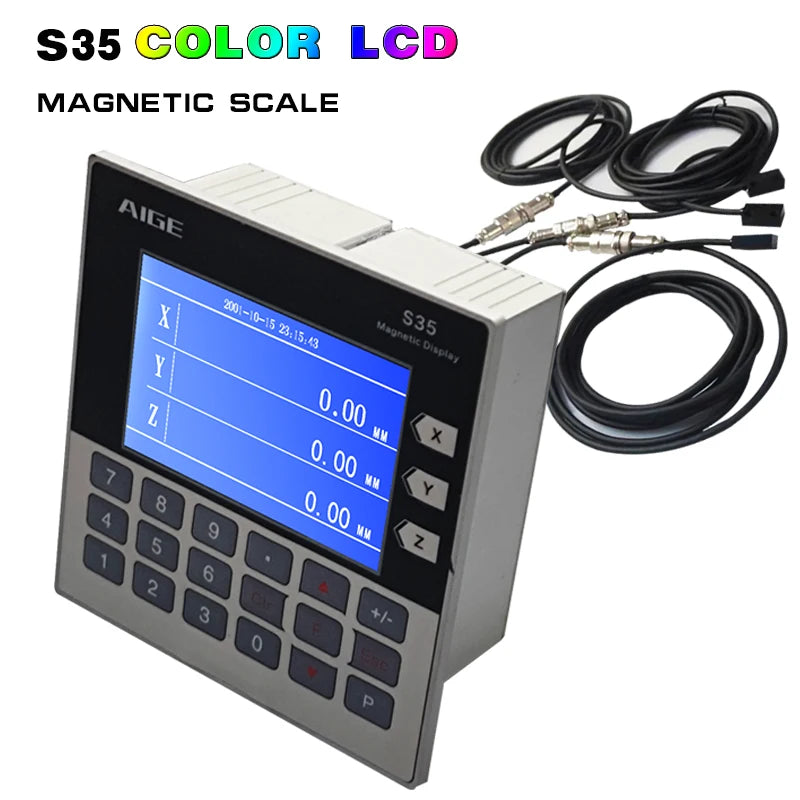

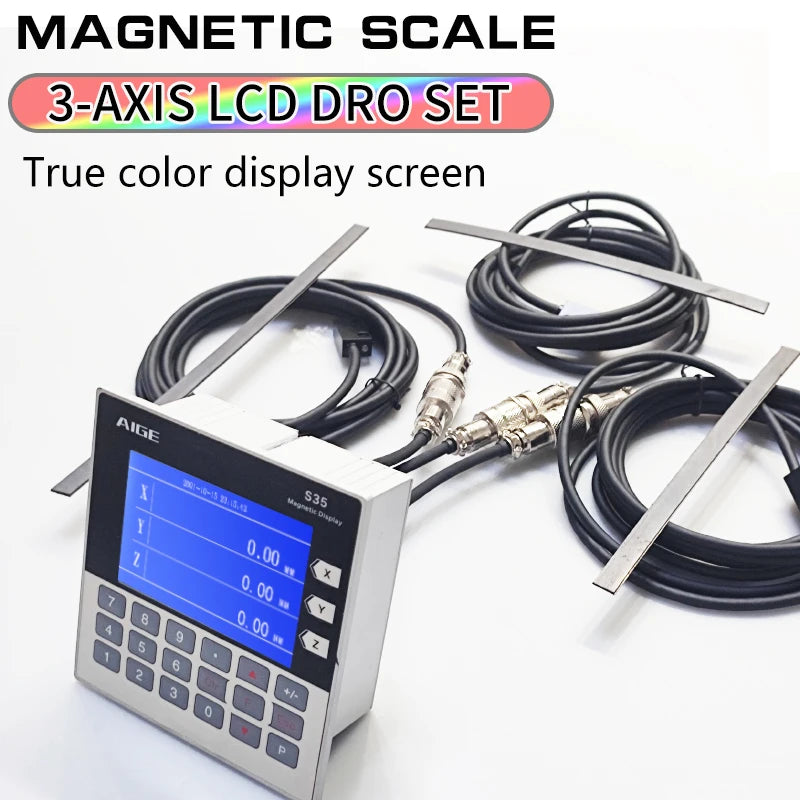

Three axis digital display

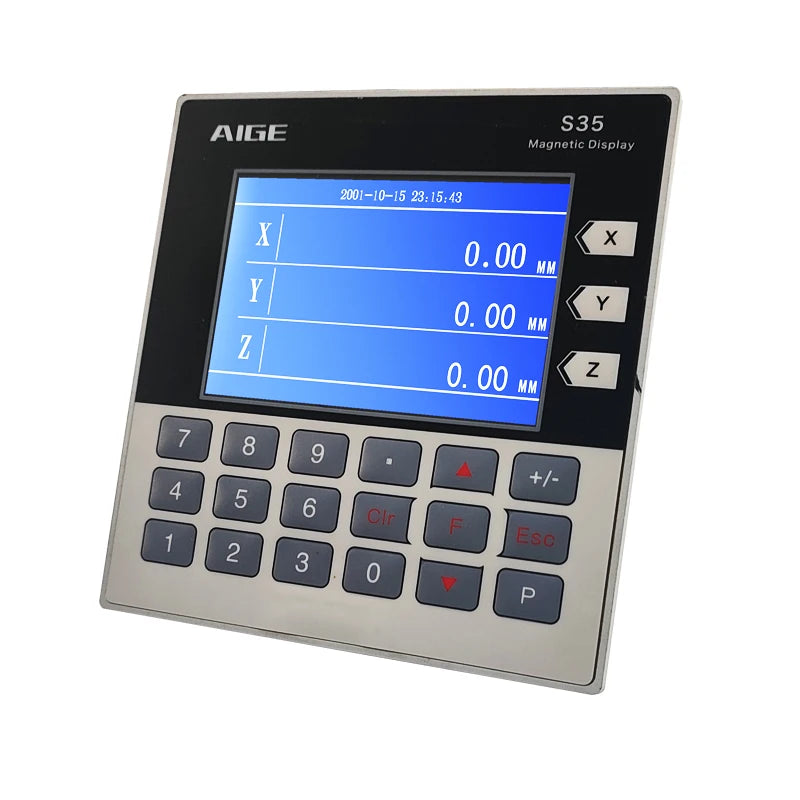

Full color LCD with built-in lithium battery

Length / angle, absolute / relative, mm / inch, multi gear adjustable

High precision all metal special reading head

Initial value customization function

Multistage linear compensation

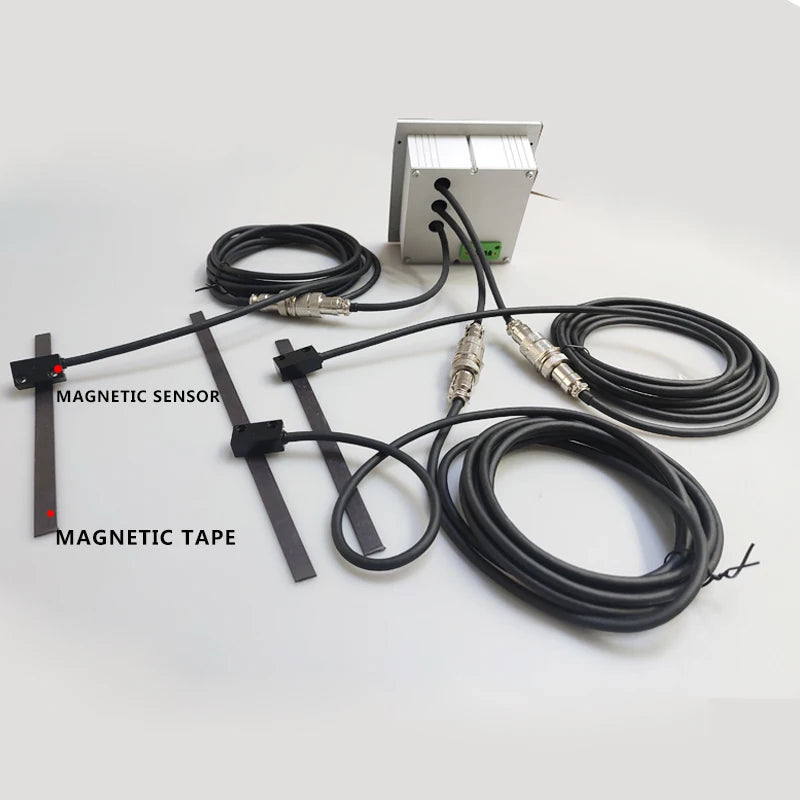

Non contact measurement, zero wear

Quasi absolute measurement (after power failure, the sensor can work normally and memorize the current position)

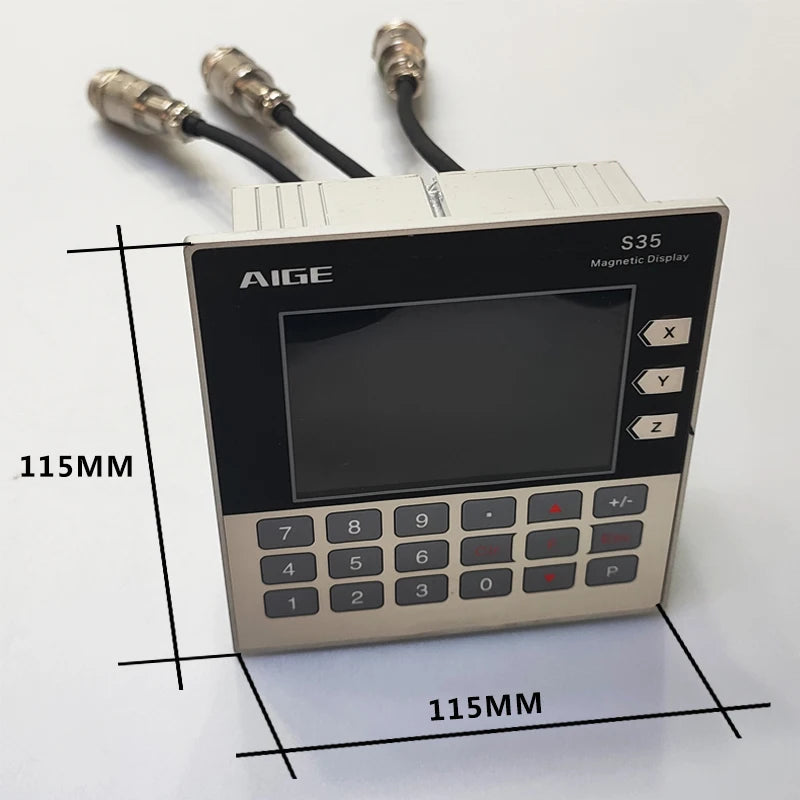

Shell structure, card shell, full-color LCD, built-in lithium battery

Working voltage AC 110-260v (DC12V version can leave us a message, and we will send 12V version)

Display resolution 1mm, 0.1mm, 0.01mm/

Display range - 999999 ··· 999999

Battery monitoring charge level indication

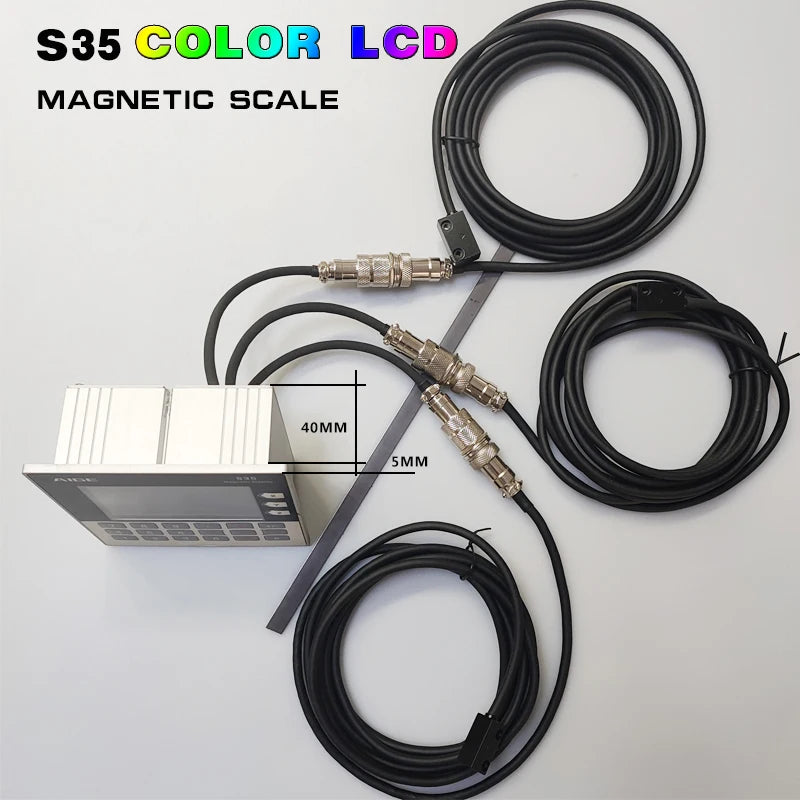

Connection mode: aviation plug

Weight Max 400g

System accuracy ± 0.05 + 0.01 * l) mm

Moving speed Max 3m / S

Repeatability Max ± 10um

Sensor gap Max 1.5mm

Operating temperature 0 "C ··· 60C

Storage temperature - 10C ··· 70c

Rh (relative humidity) ≤ 95%

Protection level digital display meter IP40, sensor IP67
