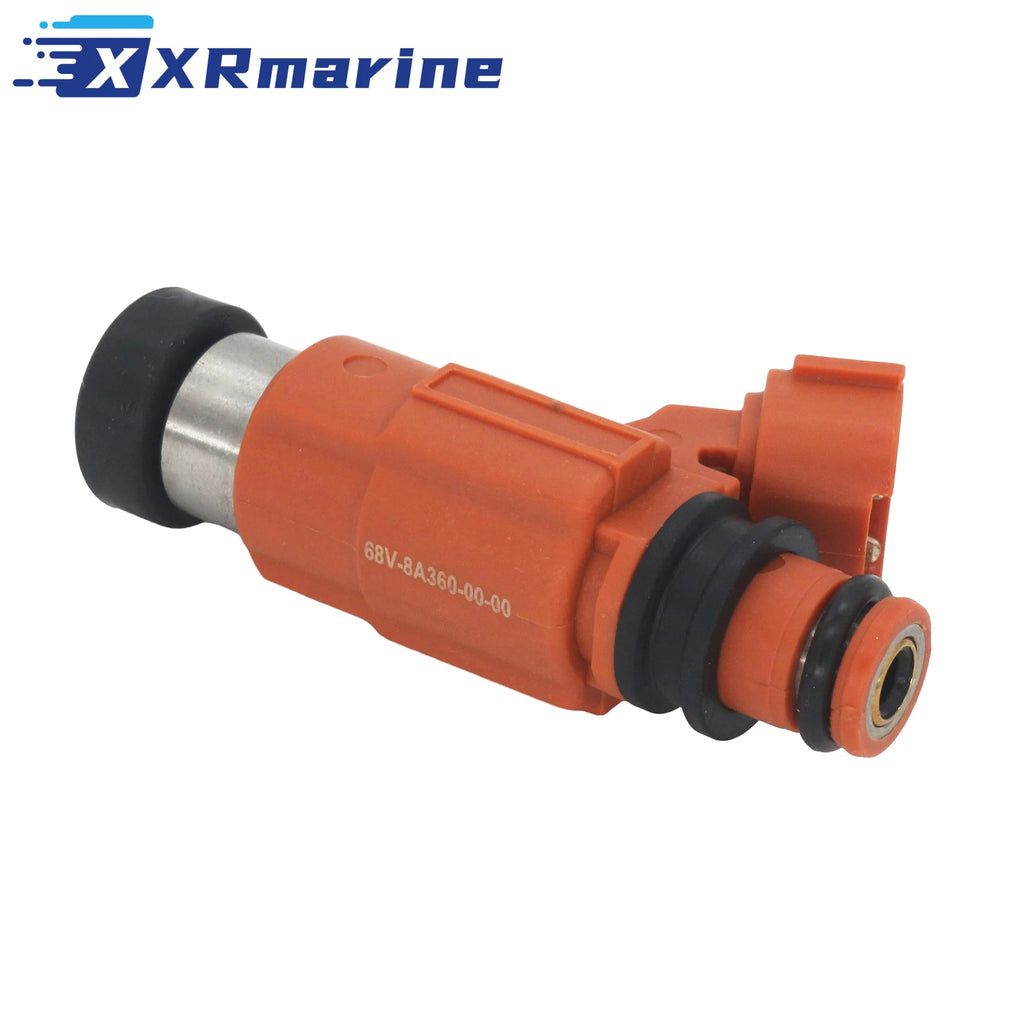

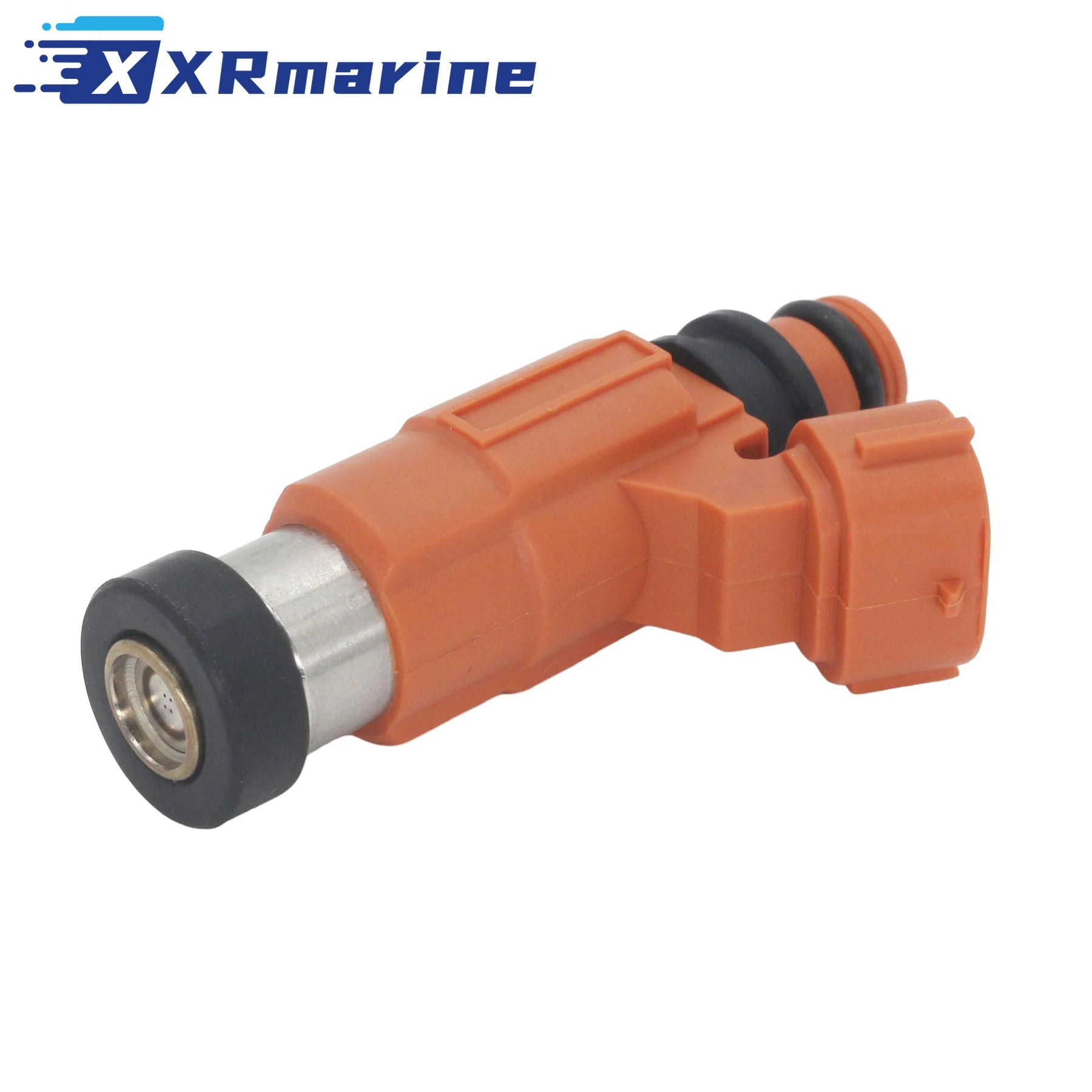

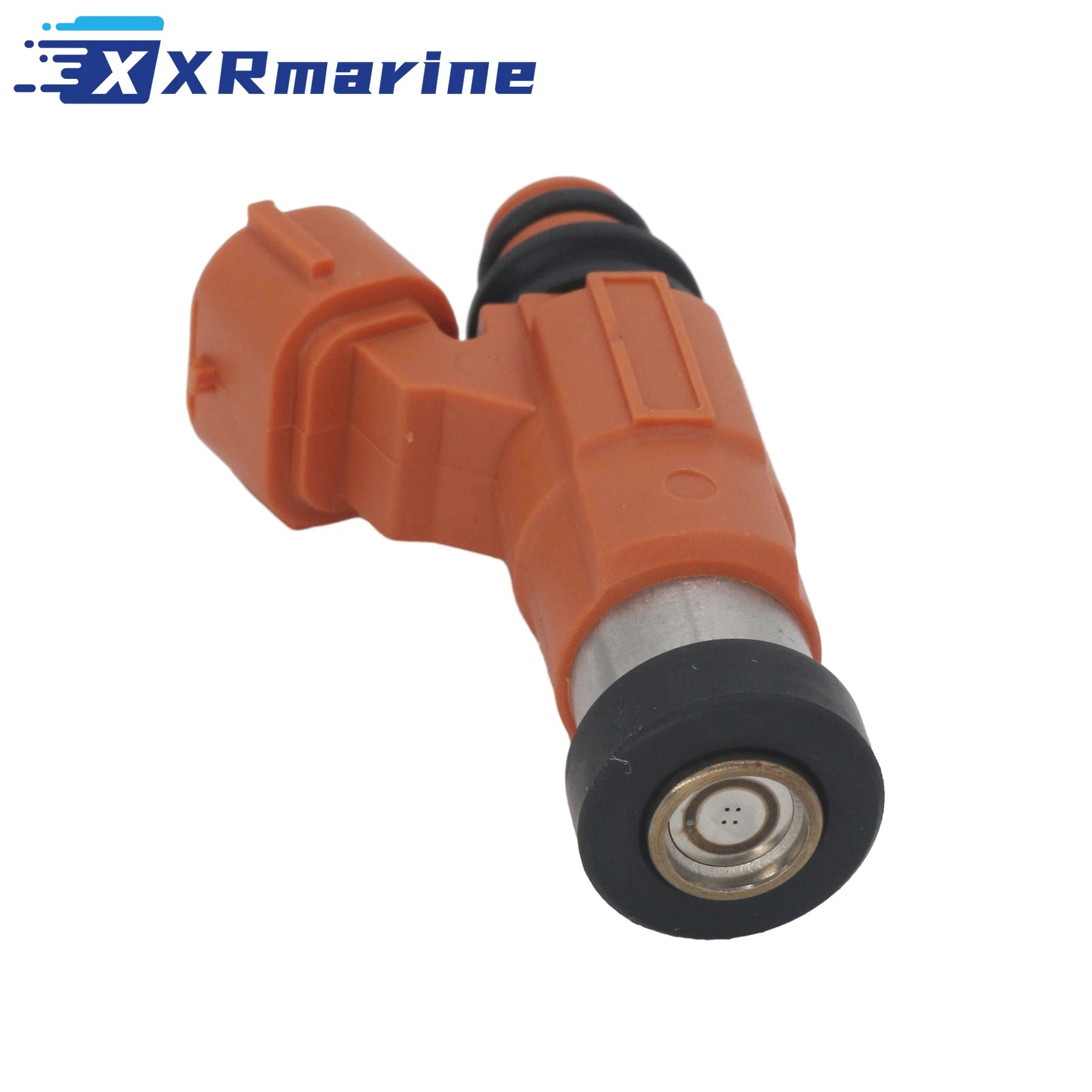

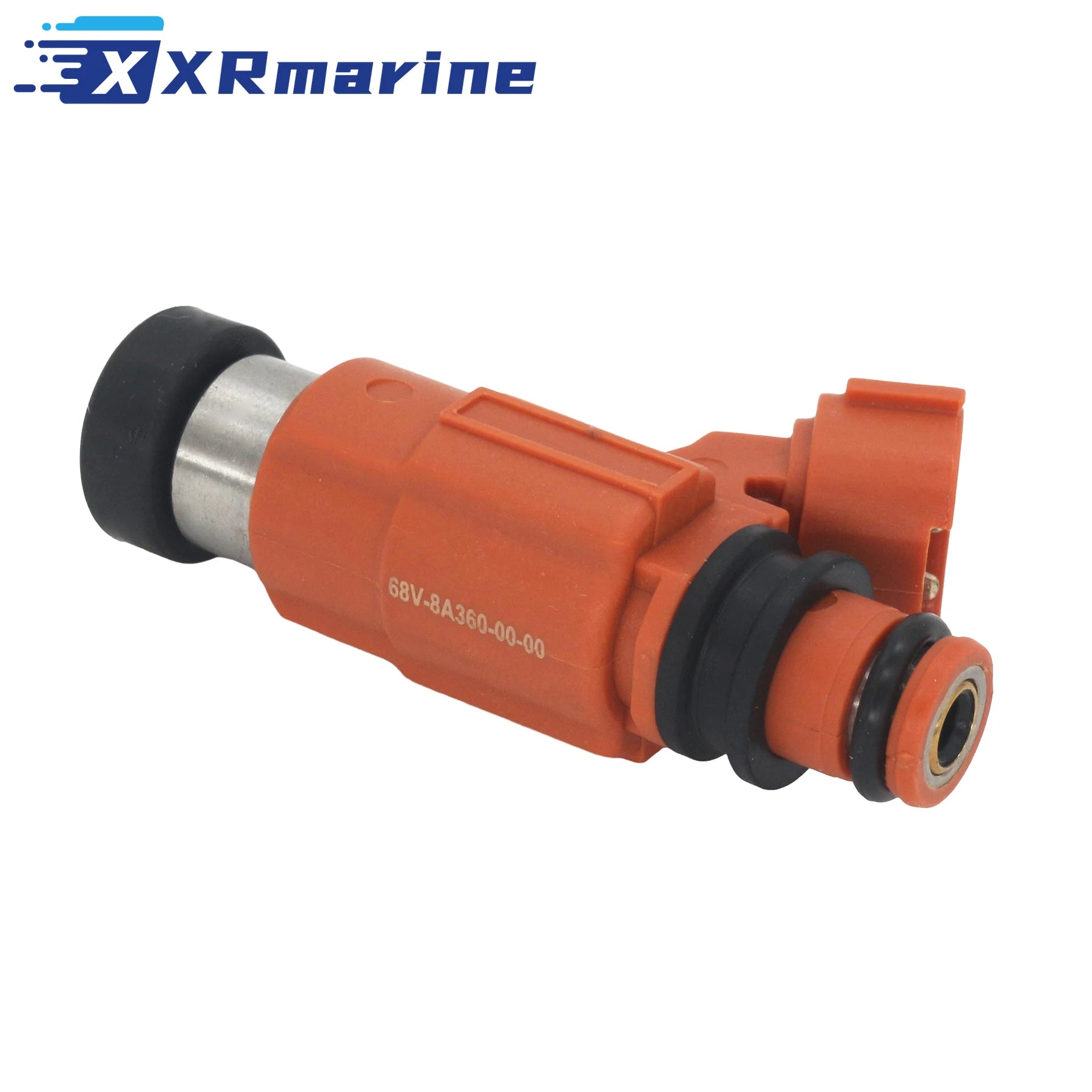

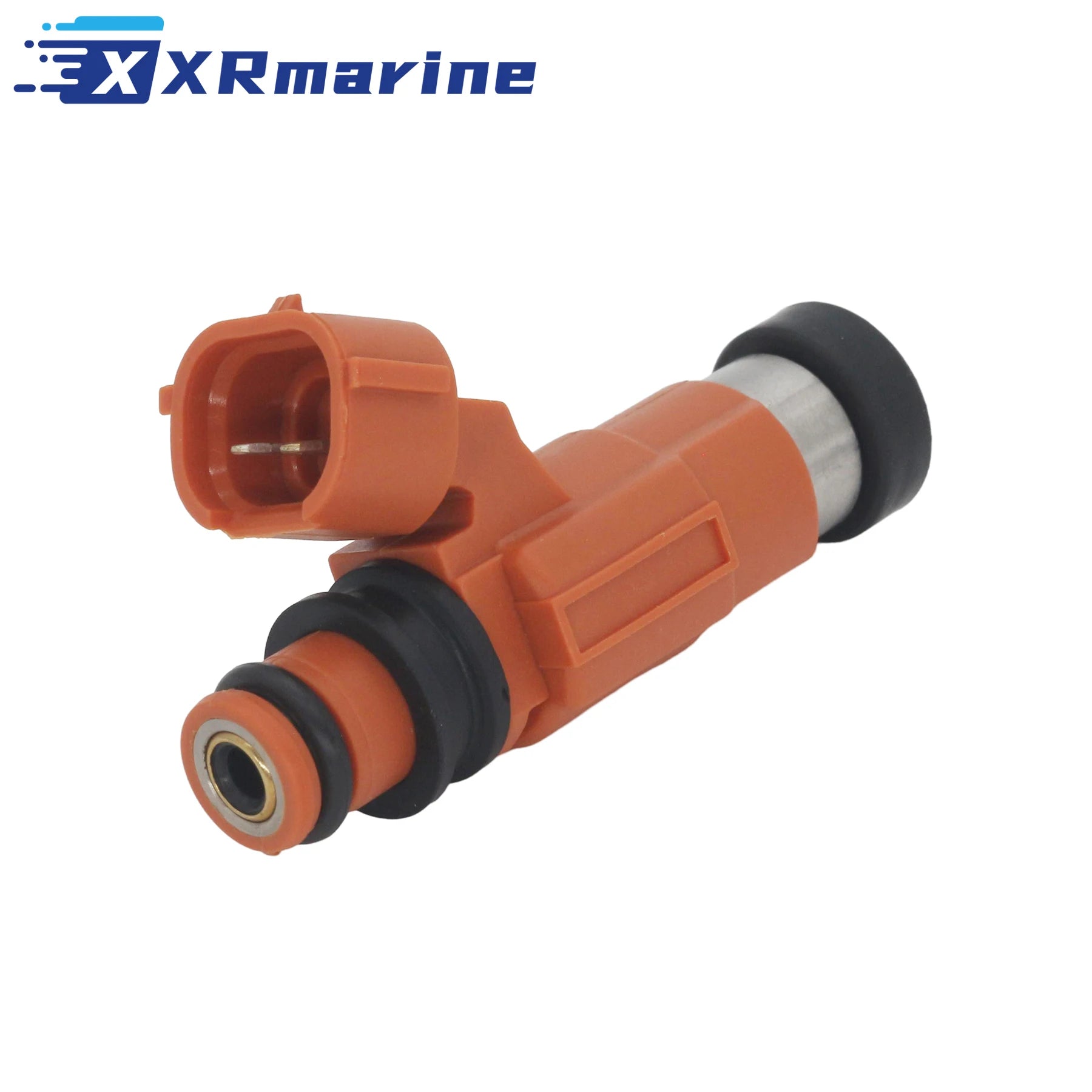

4 x Fuel Injector Nozzle Unit 68V-8A360-00 for Yamaha 4 Stroke 115HP F115 LF115 Outboard Engine 68V-8A360-00-00 68V-13761-00-00
68V-8A360 68V-13761
Prix promotionnel
$130.99
Prix régulier $182.99
Passer aux informations sur le produit
4 x Fuel Injector Nozzle Unit 68V-8A360-00 for Yamaha 4 Stroke 115HP F115 LF115 Outboard Engine 68V-8A360-00-00 68V-13761-00-00
Prix promotionnel
$130.99
Prix régulier $182.99
Expédition calculée lors du paiement.
SPECIFICATIONS
Brand Name: XRmarine
Condition: New
Engine: 4 Stroke
Engine Position: Outboard
Engine Type: 4-Stroke 115HP Outboard
Fit Brand: Yamaha
Fitment: F115TLR F115TJR F115TXR LF115TXR F115TXRC LF115TXRC F115TLRC F115TJRC
Fuel Type: Gasoline
High-concerned chemical: None
OEM Part #1: 68V-8A360-00-00
OEM Part #2: 68V-13761-00-00
Origin: Mainland China
Replace Johnson: 5033708
Replace Mercury: 880887T1
Replace Suzuki: 15710-65D00
Fuel Injector Nozzle Unit 68V-8A360-00 for Yamaha 4 Stroke 115HP F115 LF115 Outboard Engine
Installation Guide:
Safety First: Disconnect the battery and ensure the engine is cool.
Relieve Fuel Pressure: Safely relieve the pressure from the fuel system according to your engine's service manual to prevent spills.
Disconnect Components: Carefully unplug the electrical connectors from each fuel injector. Disconnect the fuel line from the fuel rail.
Remove Fuel Rail: Unbolt and remove the fuel rail assembly that holds the injectors in place.
Remove Old Injectors: Gently pull the old fuel injectors out of their ports. Note a small amount of fuel may leak out.
Prepare New Injectors: Lightly lubricate the new injector's O-rings with clean engine oil for easier installation and a better seal.
Install New Injectors: Press the new injectors firmly into the fuel rail, then install the assembly back onto the engine.
Reassemble: Secure the fuel rail mounting bolts to the manufacturer's specified torque. Reconnect fuel lines and electrical connectors.
Check for Leaks: Reconnect the battery. Prime the fuel system by turning the key to the "on" position (without starting) a few times. Inspect for any fuel leaks around the injectors and fuel rail.
Final Test: Once confirmed there are no leaks, start the engine and check for smooth operation.
Package Included:

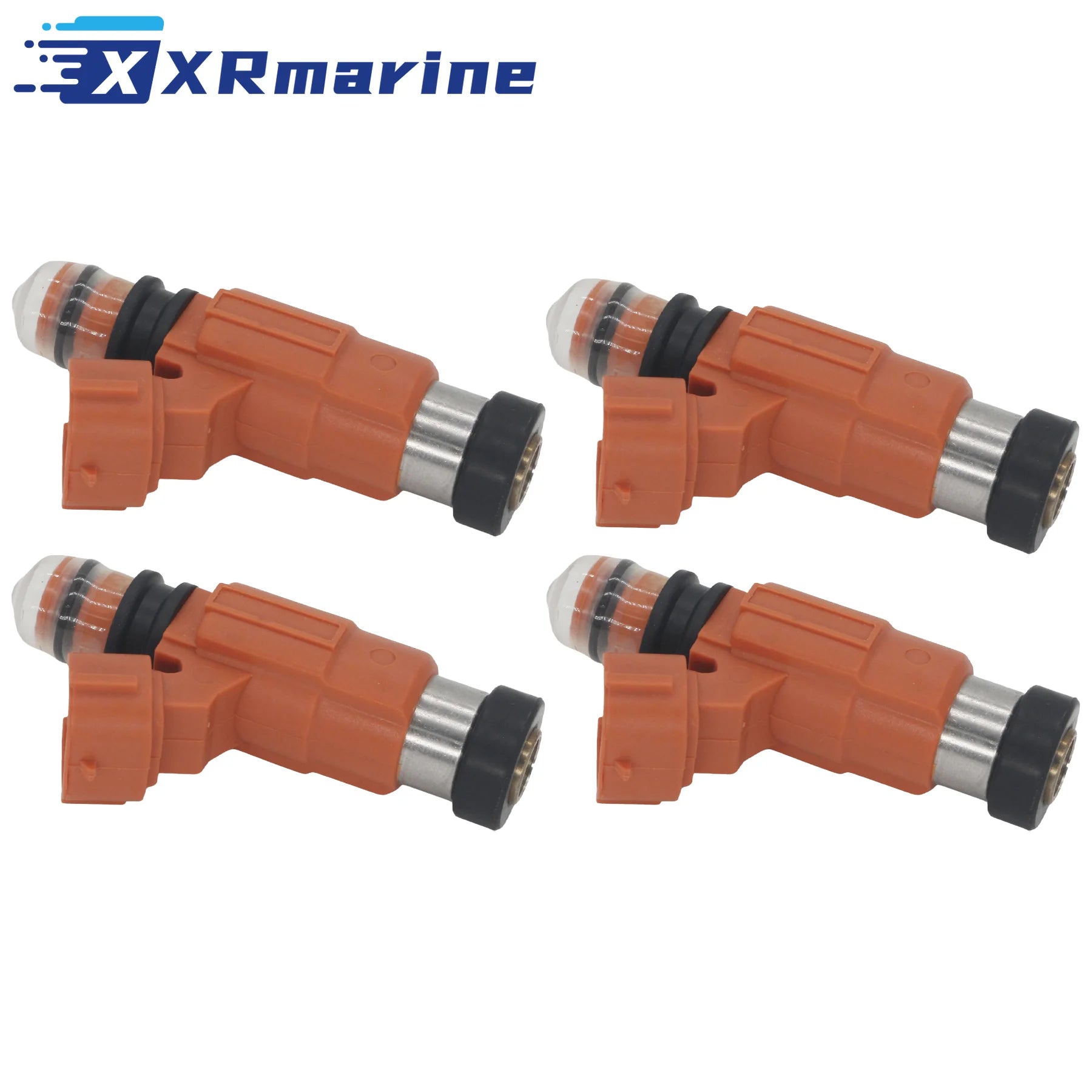

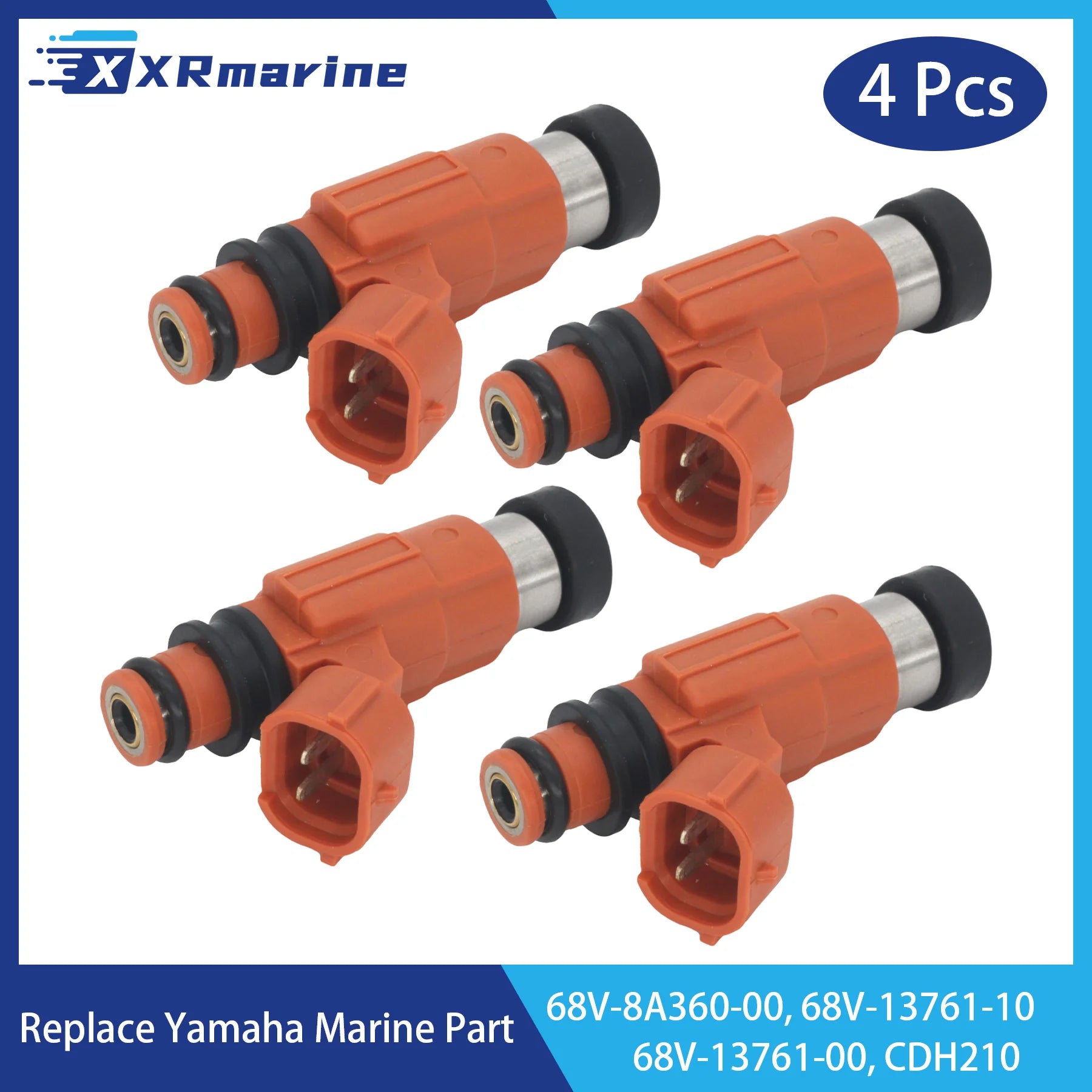

4 x Fuel Injector Nozzle Unit
Specifications:
Condition: Brand New
Replaces OEM Part #:
68V-8A360-00, 68V-8A360-00-00
68V-13761-00, 68V-13761-00-00
68V-8A360-00, 68V-8A360-00-00
68V-13761-00, 68V-13761-00-00
Replaces Mercury #: 880887T1
Replaces Suzuki/Johnson #: 15710-65D00 5033708
Replaces Suzuki/Johnson #: 15710-65D00 5033708
Fitment:
Fit following Yamaha Marine 4-Stroke Outboard Engine:
Fit following Yamaha Marine 4-Stroke Outboard Engine:
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F115TLR | 115 | 4-Stroke | 2000-2011 | 68V-8A360-00-00 | Also 68V-13761-00-00 |
| Yamaha | F115TJR | 115 | 4-Stroke | 2002-2010 | 68V-8A360-00-00 | Also 68V-13761-00-00 |
| Yamaha | F115TXR | 115 | 4-Stroke | 2000-2011 | 68V-8A360-00-00 | Also 68V-13761-00-00 |
| Yamaha | LF115TXR | 115 | 4-Stroke | 2000-2011 | 68V-8A360-00-00 | Also 68V-13761-00-00 |
| Yamaha | F115TXRC | 115 | 4-Stroke | 2004 | 68V-8A360-00-00 | Also 68V-13761-00-00 |
| Yamaha | LF115TXRC | 115 | 4-Stroke | 2004 | 68V-8A360-00-00 | Also 68V-13761-00-00 |
| Yamaha | F115TLRC | 115 | 4-Stroke | 2004 | 68V-8A360-00-00 | Also 68V-13761-00-00 |
| Yamaha | F115TJRC | 115 | 4-Stroke | 2004 | 68V-8A360-00-00 | Also 68V-13761-00-00 |
Installation Guide:
Safety First: Disconnect the battery and ensure the engine is cool.
Relieve Fuel Pressure: Safely relieve the pressure from the fuel system according to your engine's service manual to prevent spills.
Disconnect Components: Carefully unplug the electrical connectors from each fuel injector. Disconnect the fuel line from the fuel rail.
Remove Fuel Rail: Unbolt and remove the fuel rail assembly that holds the injectors in place.
Remove Old Injectors: Gently pull the old fuel injectors out of their ports. Note a small amount of fuel may leak out.
Prepare New Injectors: Lightly lubricate the new injector's O-rings with clean engine oil for easier installation and a better seal.
Install New Injectors: Press the new injectors firmly into the fuel rail, then install the assembly back onto the engine.
Reassemble: Secure the fuel rail mounting bolts to the manufacturer's specified torque. Reconnect fuel lines and electrical connectors.
Check for Leaks: Reconnect the battery. Prime the fuel system by turning the key to the "on" position (without starting) a few times. Inspect for any fuel leaks around the injectors and fuel rail.
Final Test: Once confirmed there are no leaks, start the engine and check for smooth operation.
