18V ETFE Monocrystalline Silicon Solar Panel Kit

ETFE Monocrystalline Silicon Solar Panel Outdoor RV Charging Panel Outdoor Energy Storage Solar Panel with Connectors, Carabiners Black

Features:

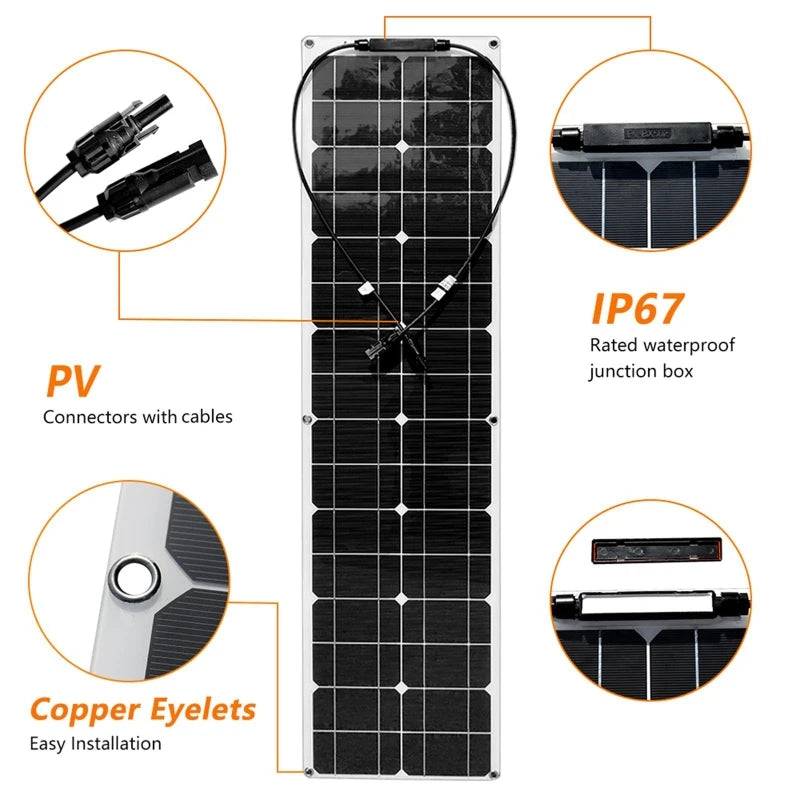

* The semi-flexible solar panel used is flexible and thin, with anti-penetration contour bending and customized quick installation.

* This product has excellent low-light performance. This power supply method is energy-saving and environmentally friendly, and is very suitable for outdoor work, travel or camping training.

* Color EVA light-conversion film, breaking through the color optical coating transmittance of 99%, making the color of the photovoltaic panel no longer monotonous.

* And at the same time, it has the same photoelectric conversion efficiency as the transparent high-transmittance EVA encapsulation film.

* Ultra-thin and ultra-light design: The flexible solar panels are lightweight and portable. The solar panels are easy to transport, install, hang, and remove.

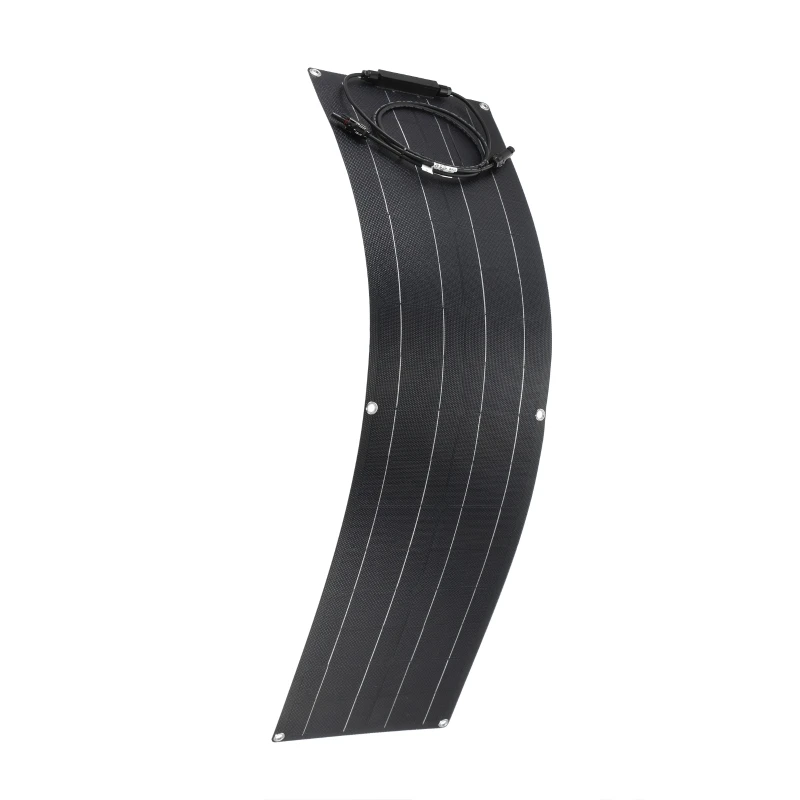

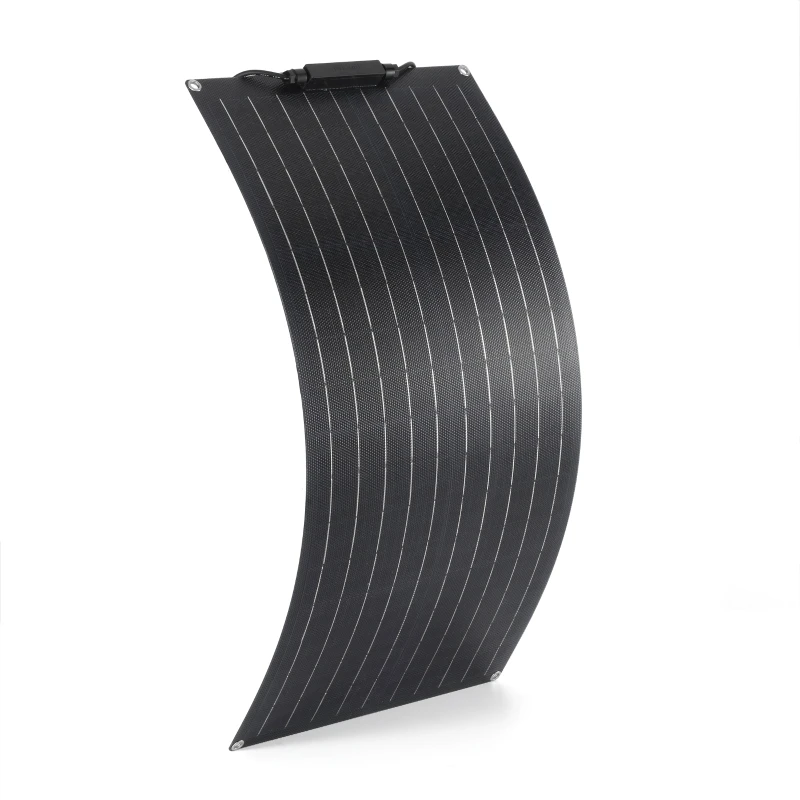

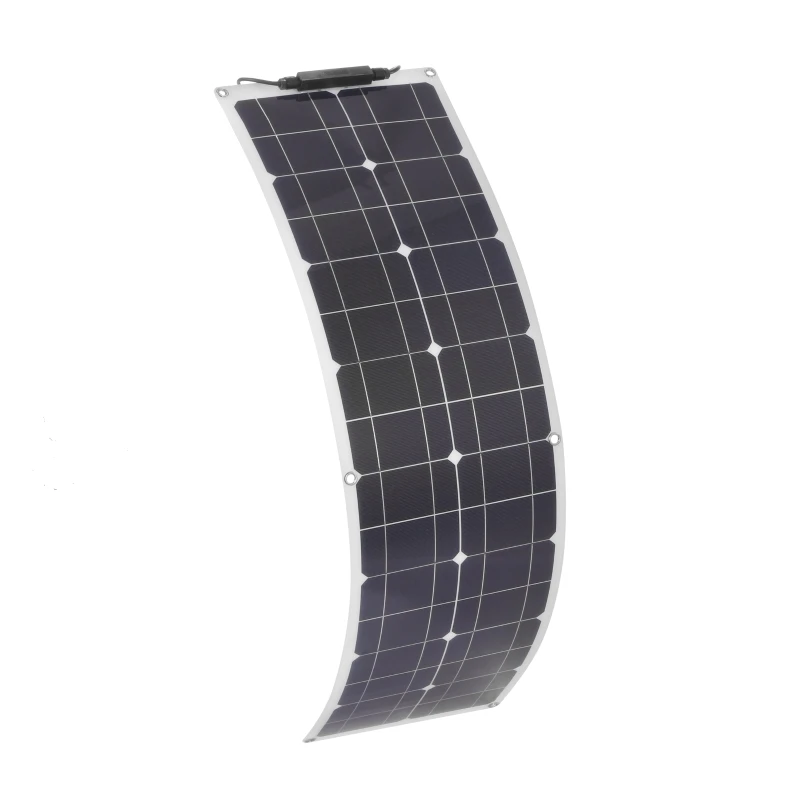

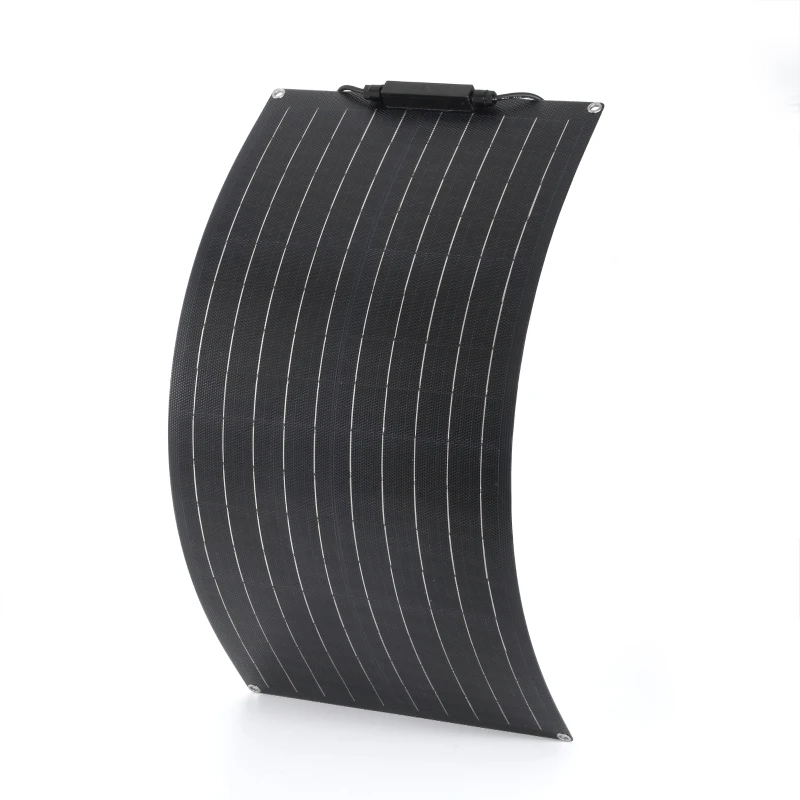

* Bendable and versatile: Flexible solar panels are bendable and can be molded into shapes that fit a variety of surfaces, which makes them a great choice for use on boats, RVs, trailers, and other vehicles.

* Easy to install: Flexible solar panels are easy to install and can be mounted using a variety of methods, including adhesive backings, grommets, and tie-downs. This makes them a great choice for DIY enthusiasts who want to install their own solar panels.

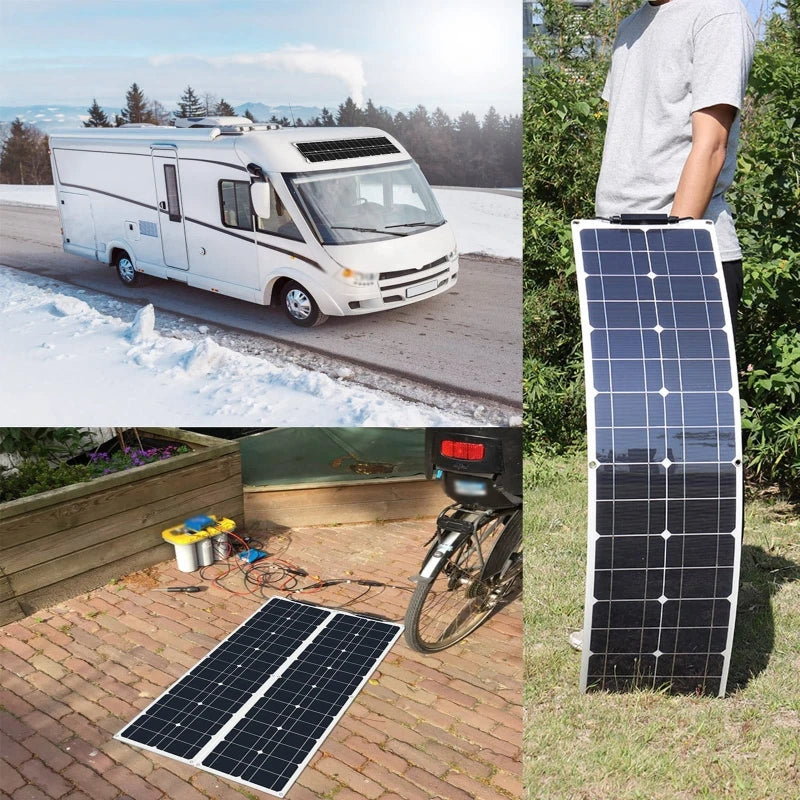

* This kind of solar panel can be widely used in electric golf carts, patrol cars, tourist cars, yachts, rooftop power generation, backpacks, tents and other fields.

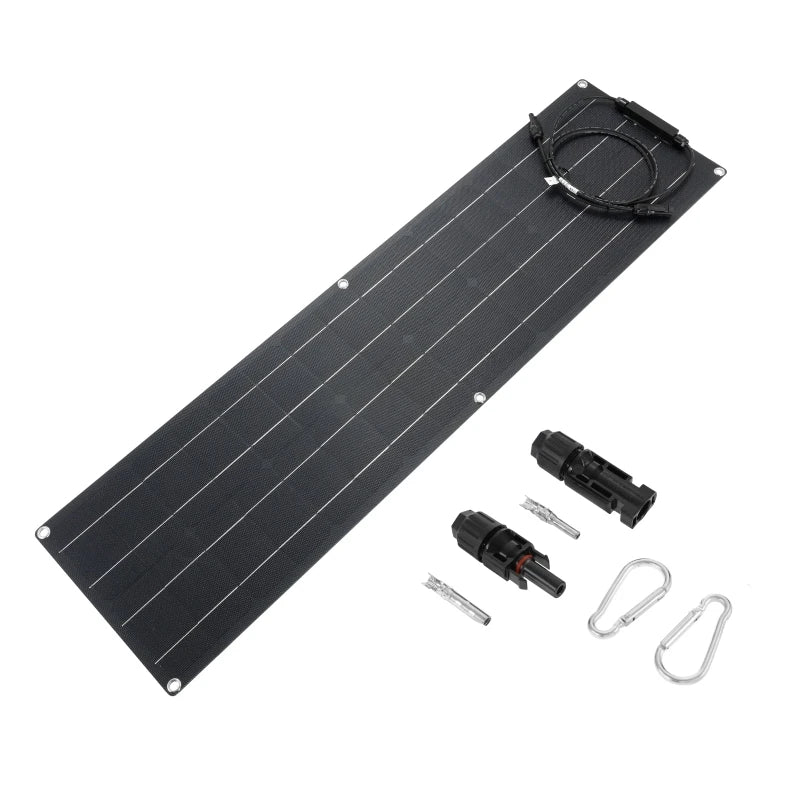

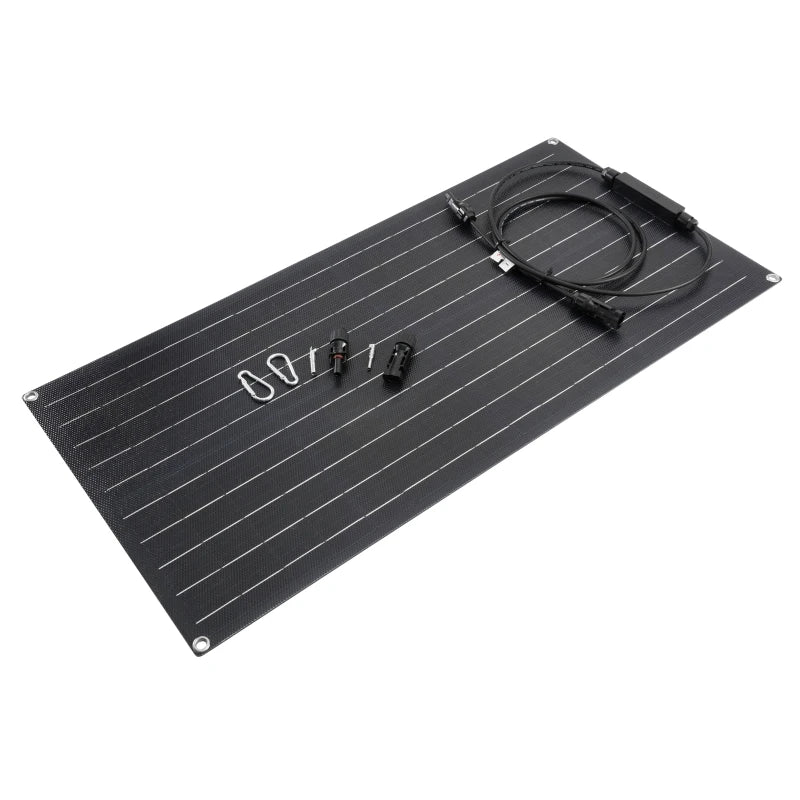

Packing included:

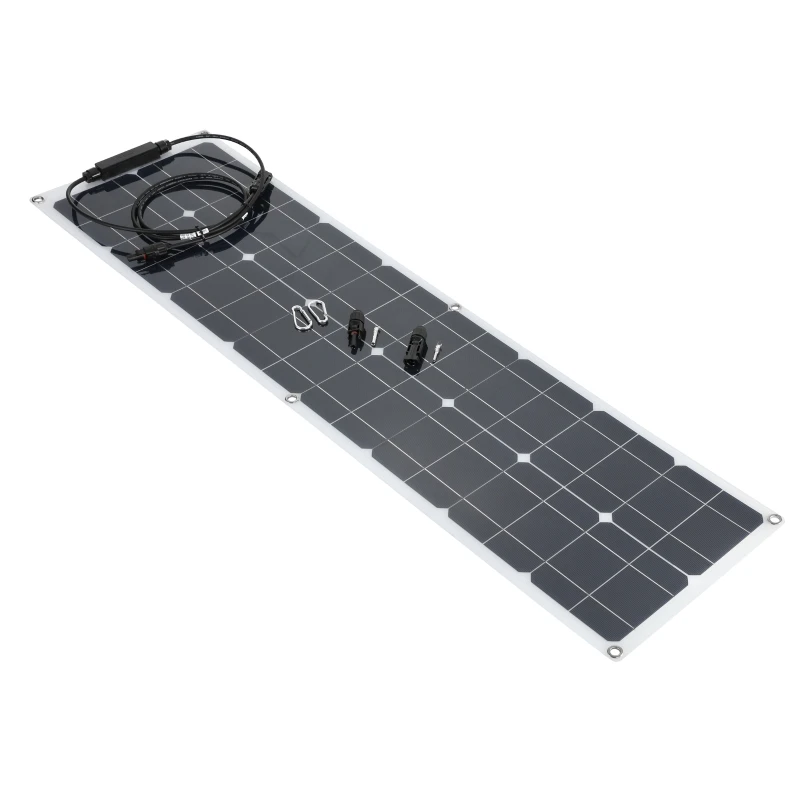

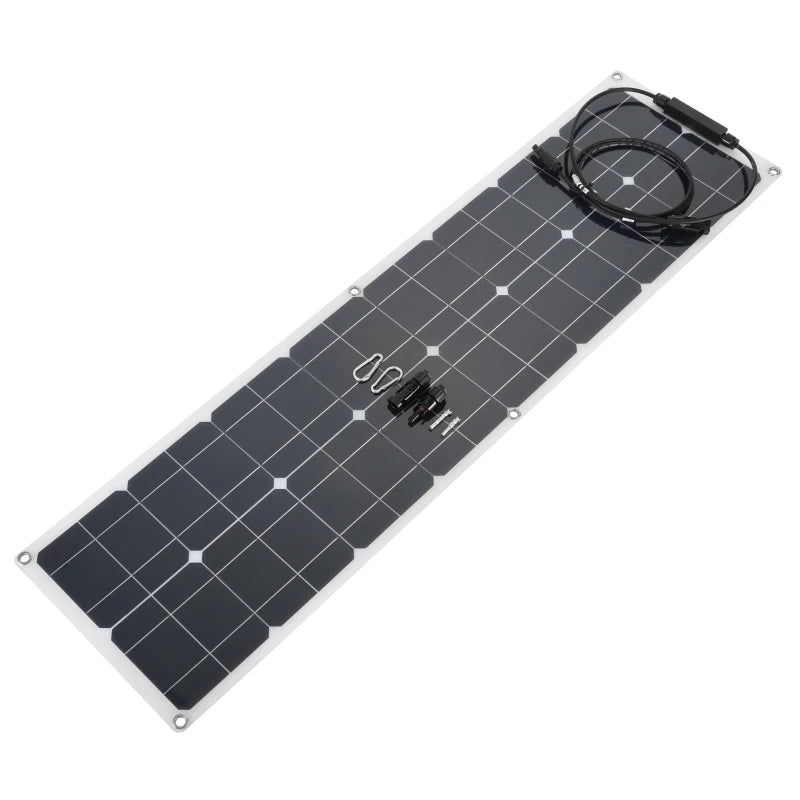

1 * Solar Panel

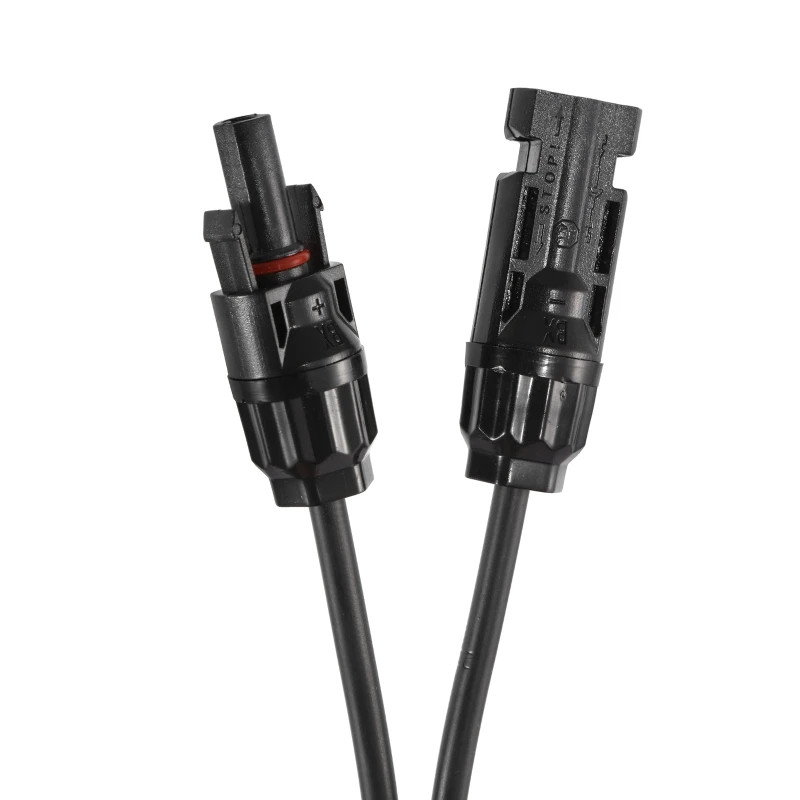

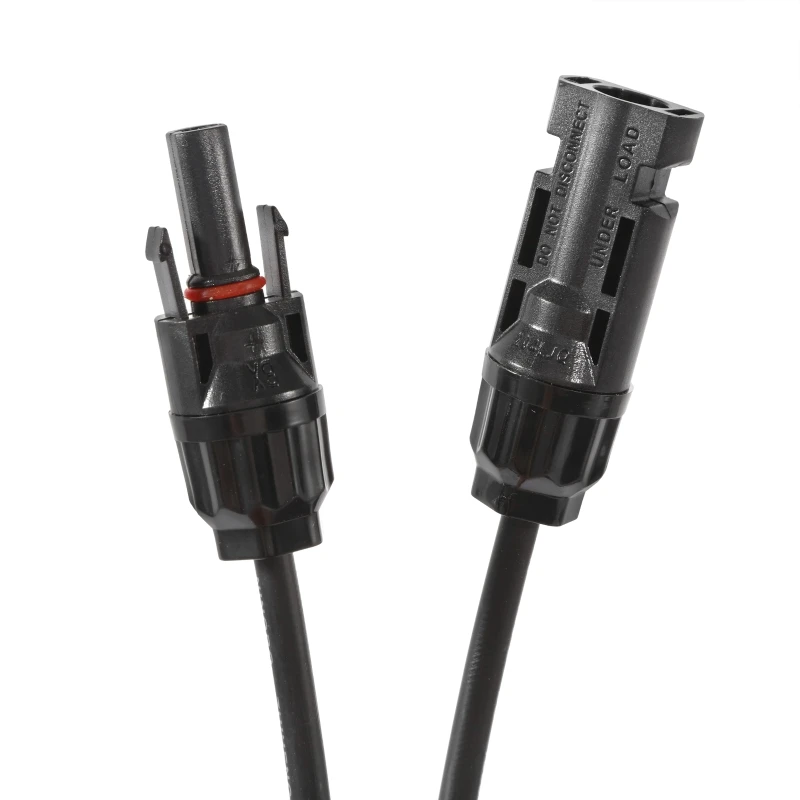

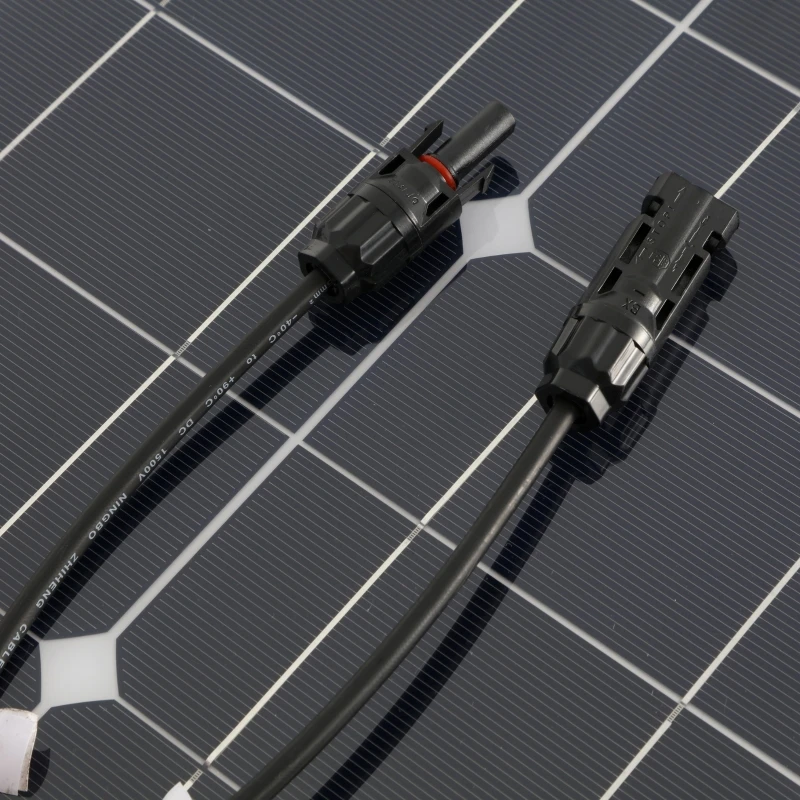

2 * Connectors

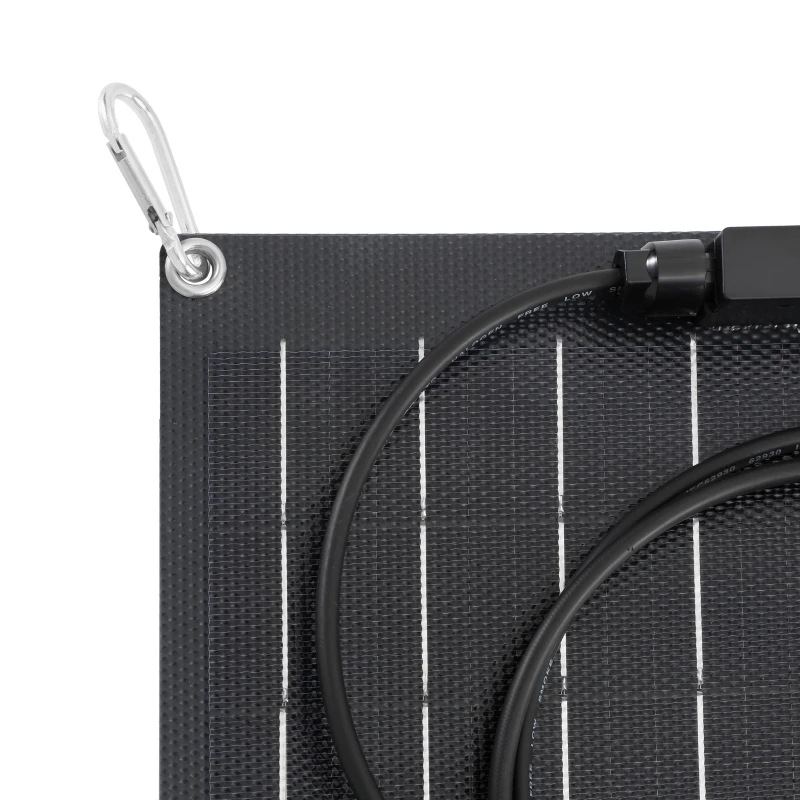

2 * Carabinerselds.

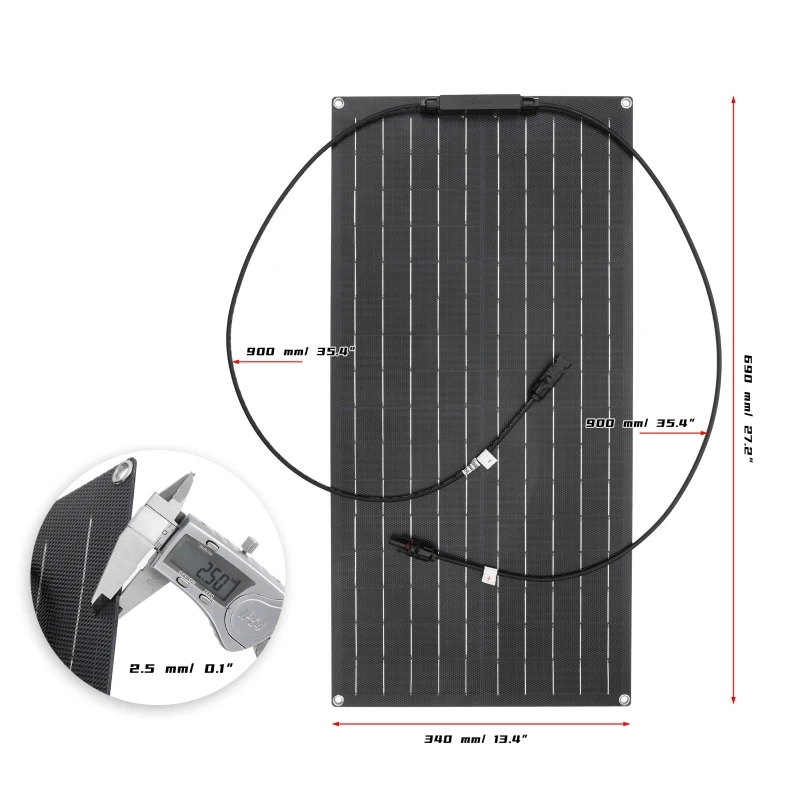

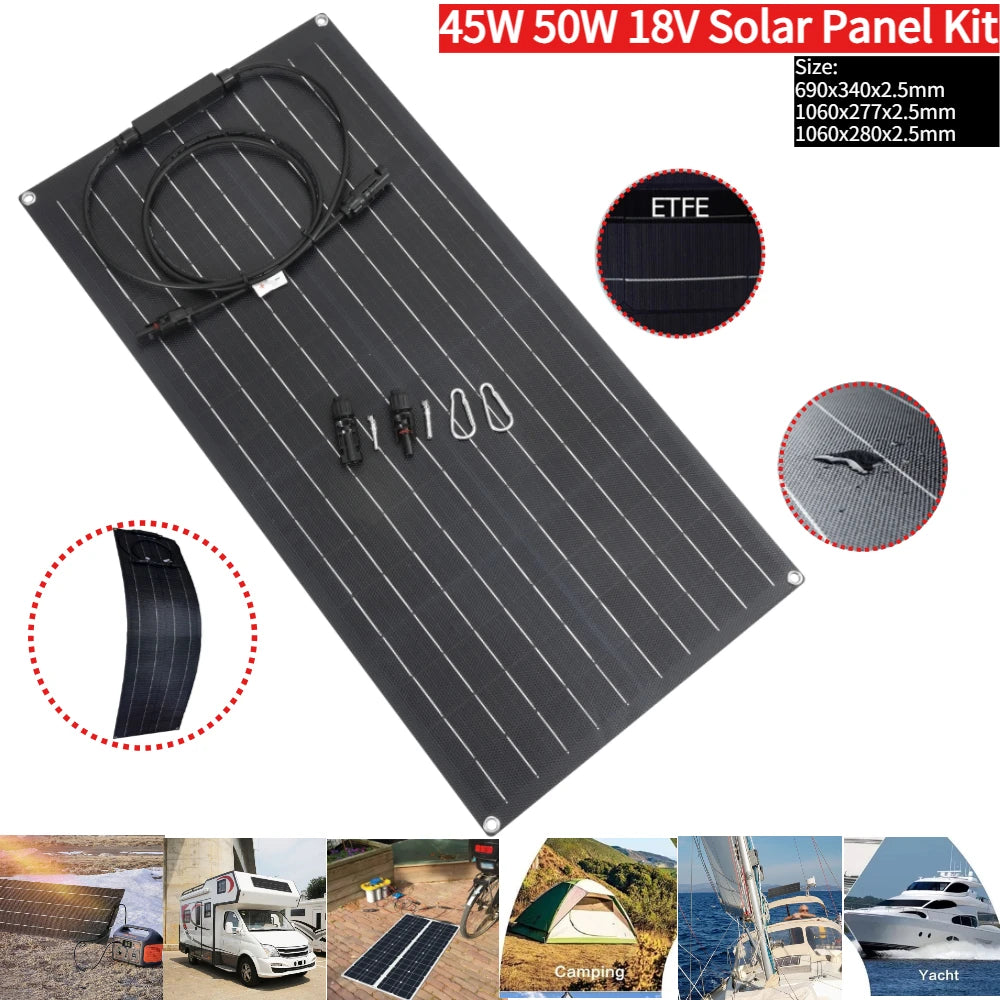

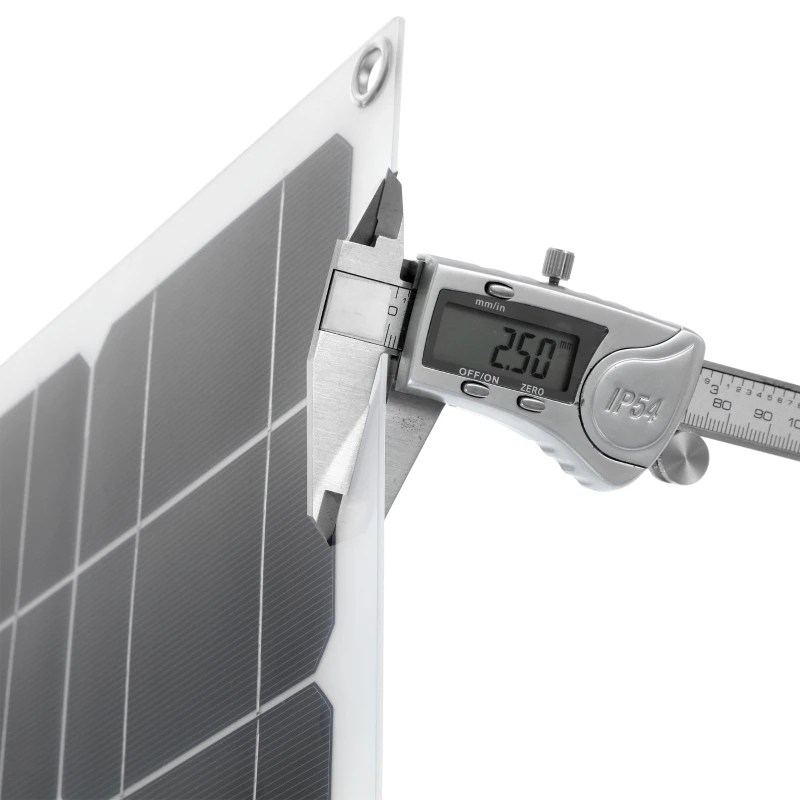

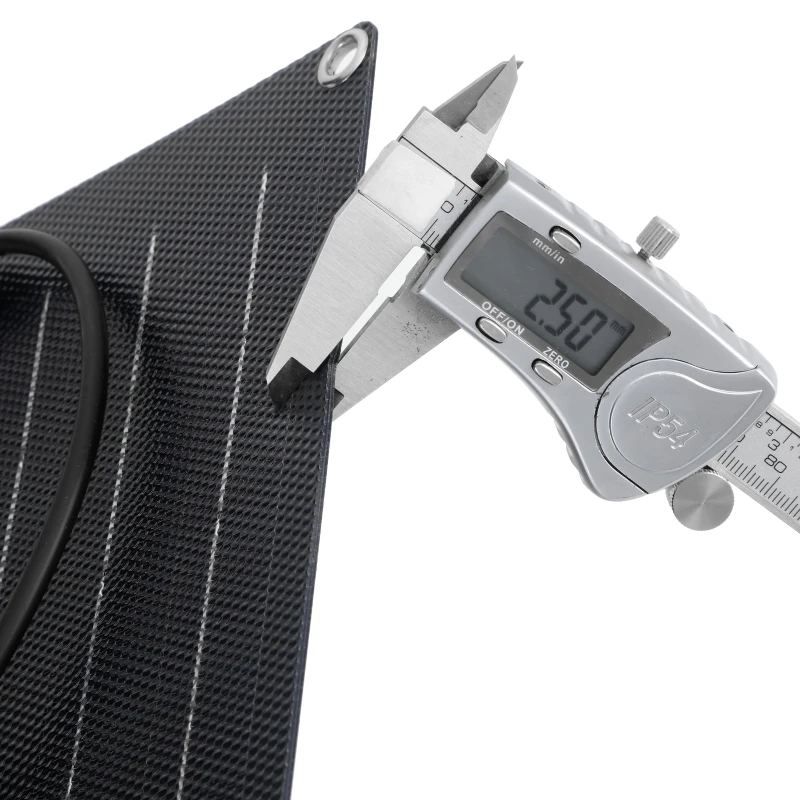

45W 690x340x2.5mm

* Power tolerance range (output power is within the positive and negative tolerance range of 5%)
* Able to withstand strong wind and snow loads The solar panel can withstand wind loads (1400 Pascal) and snow loads (2400 Pascal).

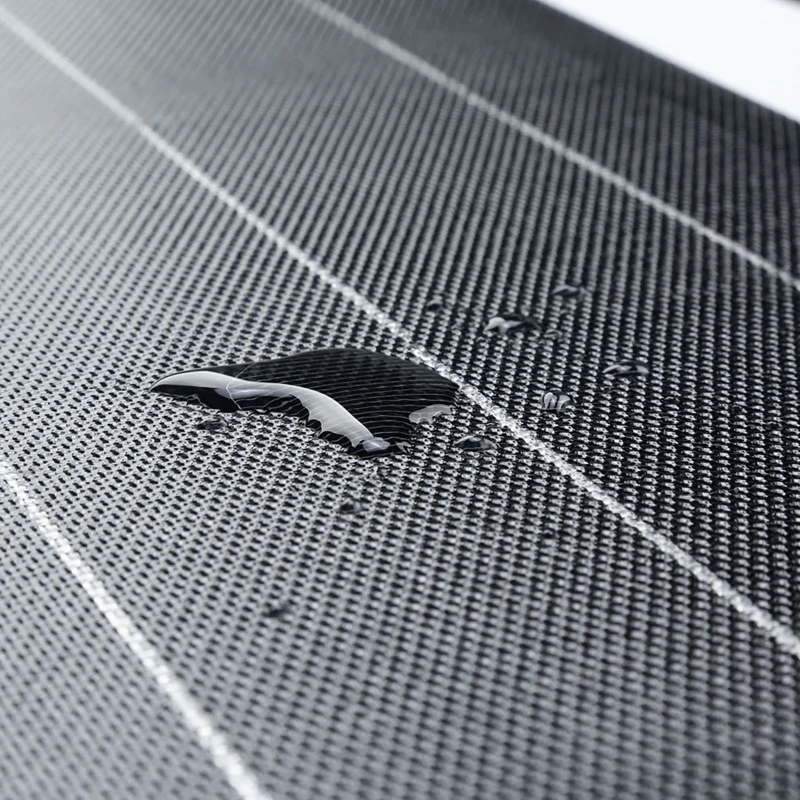

* The monocrystalline solar cell 158x158 used has high conversion efficiency, imported ETFE film, and EVA is encapsulated with a 25-year warranty for high transparency.

Material: ETFE + Aluminum + Monocrystalline Silicon

Pmax: 45W

VmP: 17.6V

Voc: 20.8V

ImP: 2.55A

Isc: 2.7A

Cell conversion efficiency: 22.5%

Solar panel working environment: -40℃~85℃

Maximum system voltage: 1000V

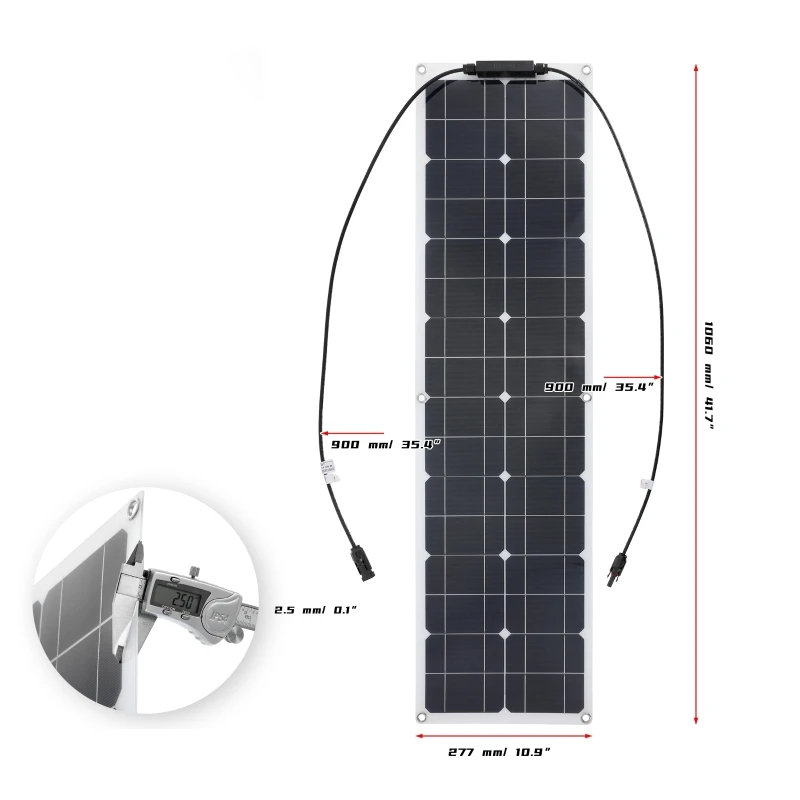

50W 1060*277*2.5mm

* High Efficiency: Monocrystalline solar cells. The solar panels offer high conversion efficiency up to 21%.
Rated Power: 50W

Module Efficiency: 21%

Number of Cells: 36Pcs

Power Tolerance: ±5W

Open Circuit Voltage: 20V

Short Circuit Current: 3A

Maximum Power Point Operating Voltage: 18V

Maximum Power Point Operating Current: 2.5A

Front Glass: ETFE

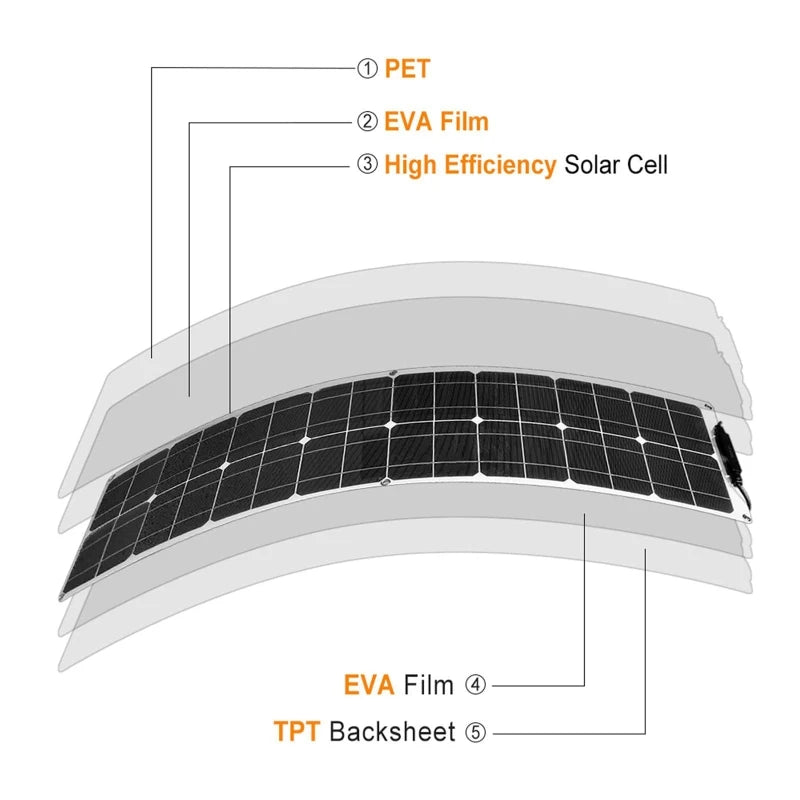

Packaging Material: PET+EVA+Cells+ETFE

Rear Glass: PET

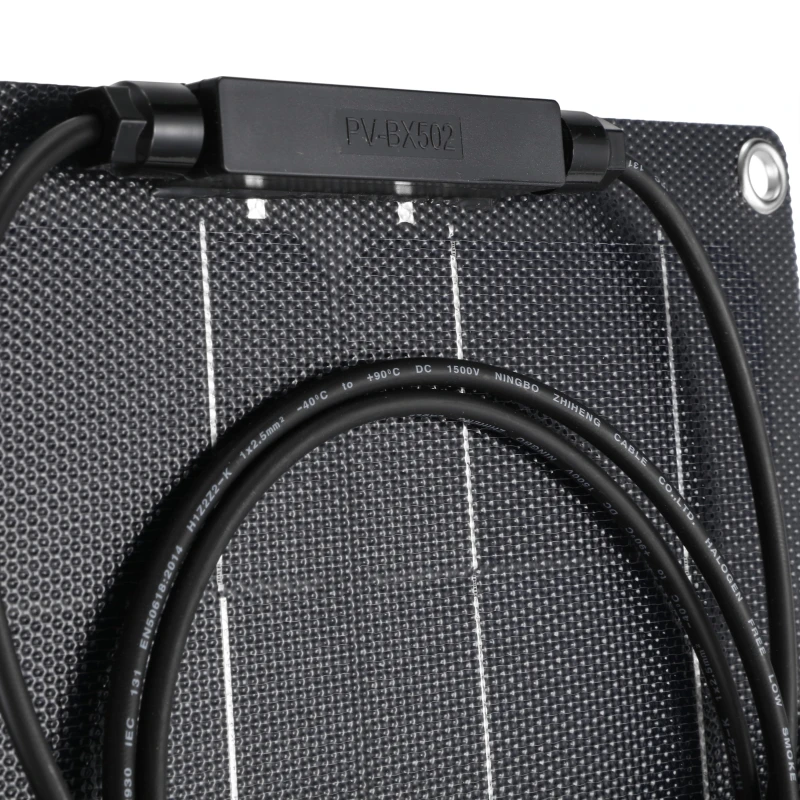

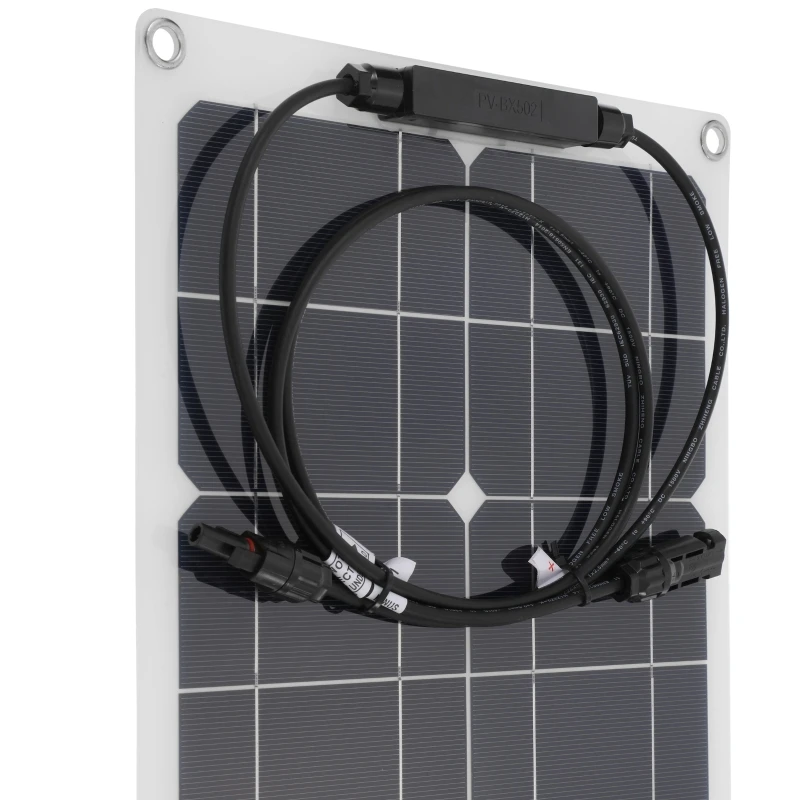

Junction Box: Long Strip Junction Box

Cable: Photovoltaic Cable

Service Life: 15 Years

Cable length: 90cm

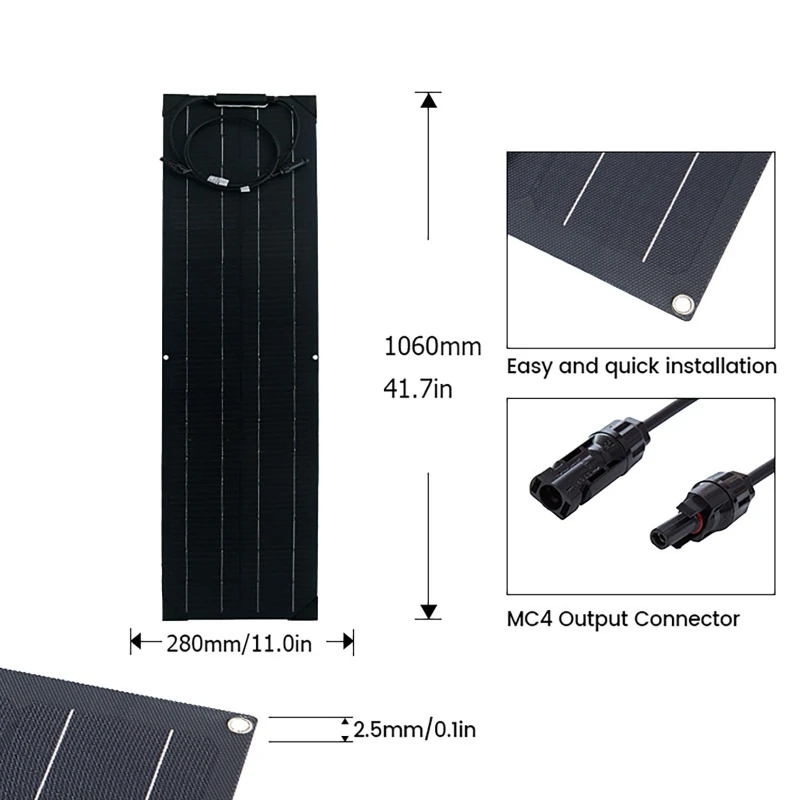

50W 1060*280*2.5mm

* High-efficiency bendable solar modules use the world's highest efficiency cells, with an efficiency of over 20%.

* Compared with traditional photovoltaic modules of the same size, the power generation capacity is increased by 25-30%.

Front glass: ETFE

Packaging material: PET+EVA+battery sheet+ETFE

Back glass: PET

Battery type: Monocrystalline silicon solar cell

Rated power: 50W

Number of cells: 36Pcs

Short circuit current: 3A

Maximum power point operating voltage: 18V

Maximum power point operating current: 2.5A

Open circuit voltage: 20V

Junction box: long strip junction box

Connection wire length: 90cm
