SPECIFICATIONS

Application: For iPod,Computer,Monitor,DVD Player,Projector,Television,TV box,Amplifier,MP3 / MP4 Player

Brand Name: TITAK

Certification: NONE

Connector A: HDMI-Compatible

Connector B: HDMI-Compatible

Feature: HDMI-Compatible1.4

Finish Type: Others

Gender: Female

High-concerned chemical: None

Model Number: HTA001QX

Origin: Mainland China

Outer Diameter: 18

Package: Yes,Carton Box

Shielding: Non-Shielded

Type: HDMI-Compatible Cables

There are 2 model:

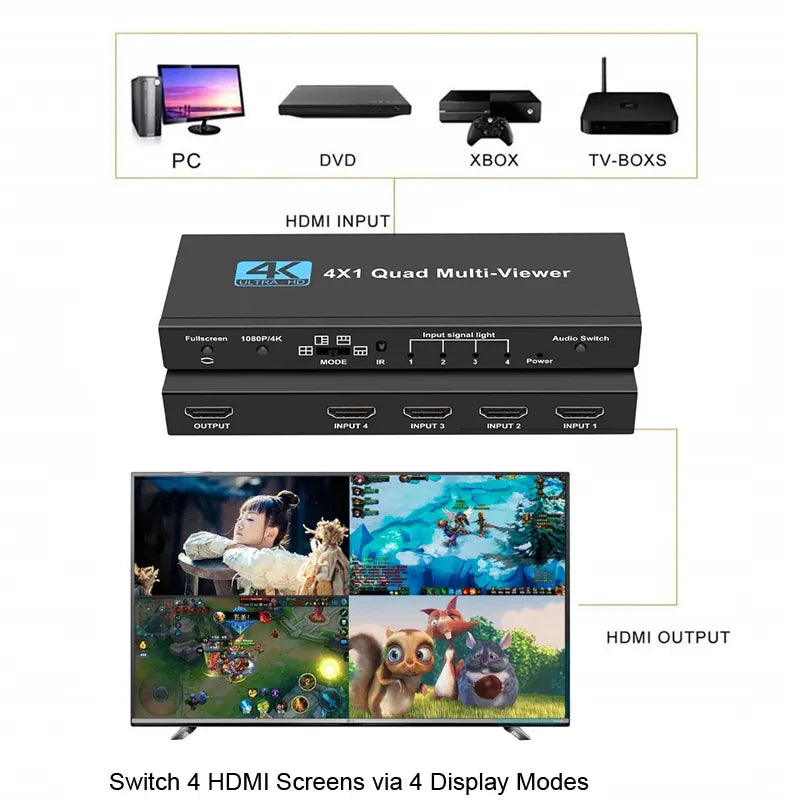

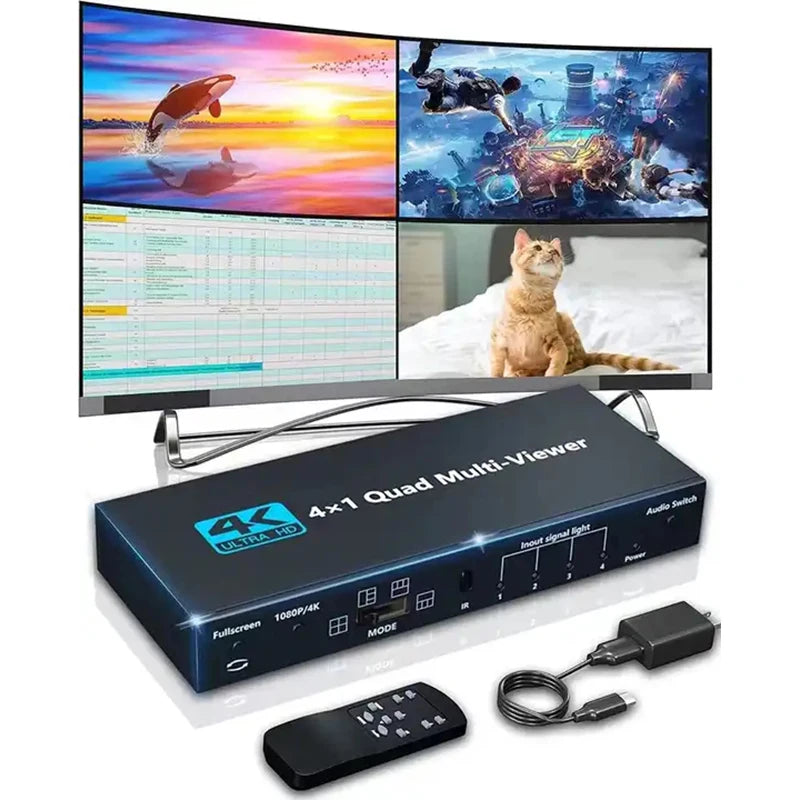

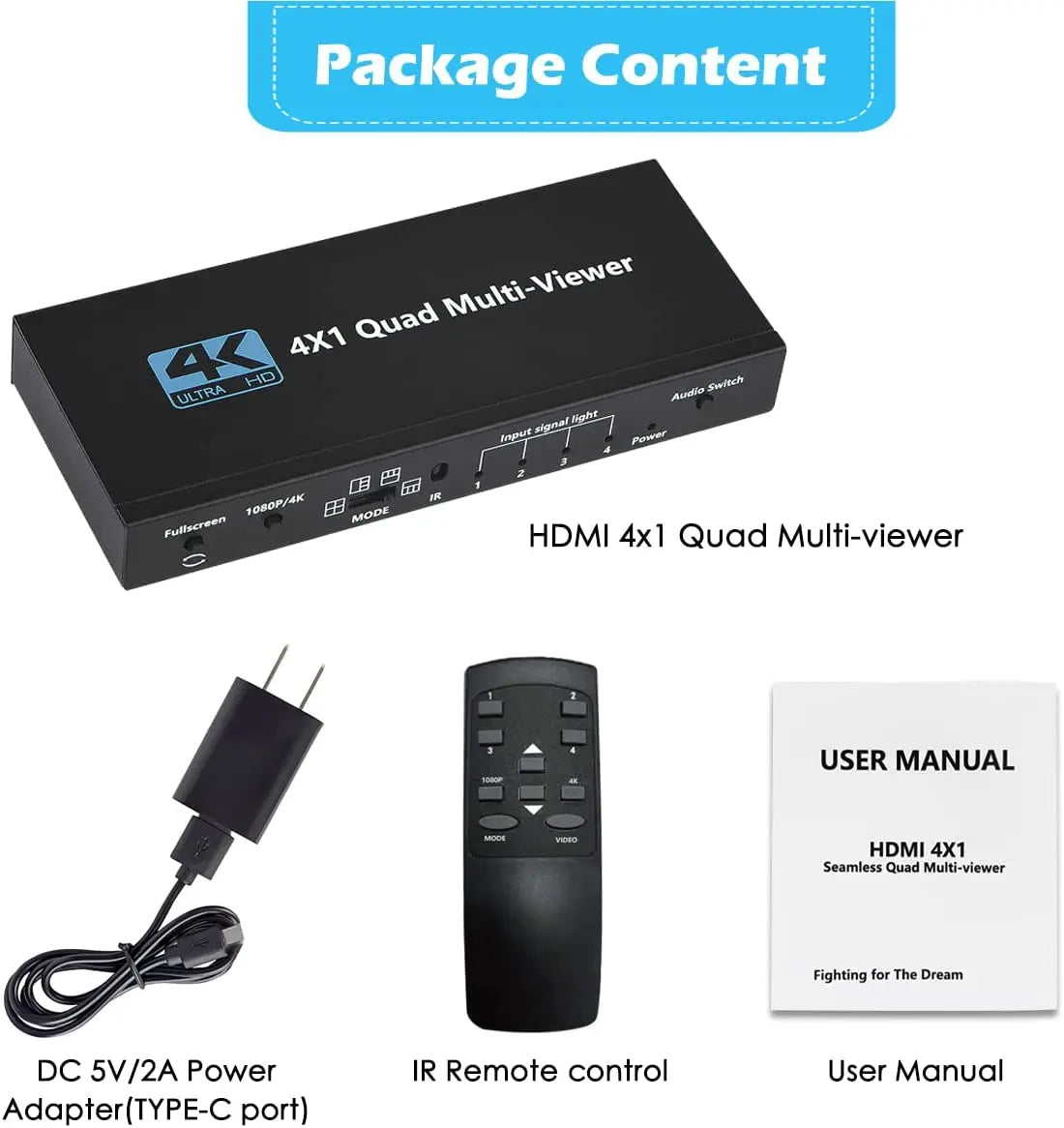

4X1 4 Screen Real Time Multi-viewer switcher
9X1 9 Screen Real Time Multi-viewer switcher
Please choose the right specification for your needs.

Description:

4K HDMI 9x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch. It can display 9 HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 9 HD input signal synchronously.
The control methods of the switch is flexible, it can be switched via button and IR control.It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.

Features:

4K 9x1 HDMI Quad Multi-viewer 4X1 1080P 60Hz HDMI Quad Screen Segmentation Multiviewer Multi Viewer Seamless HDMI Switch for PC to HDTV

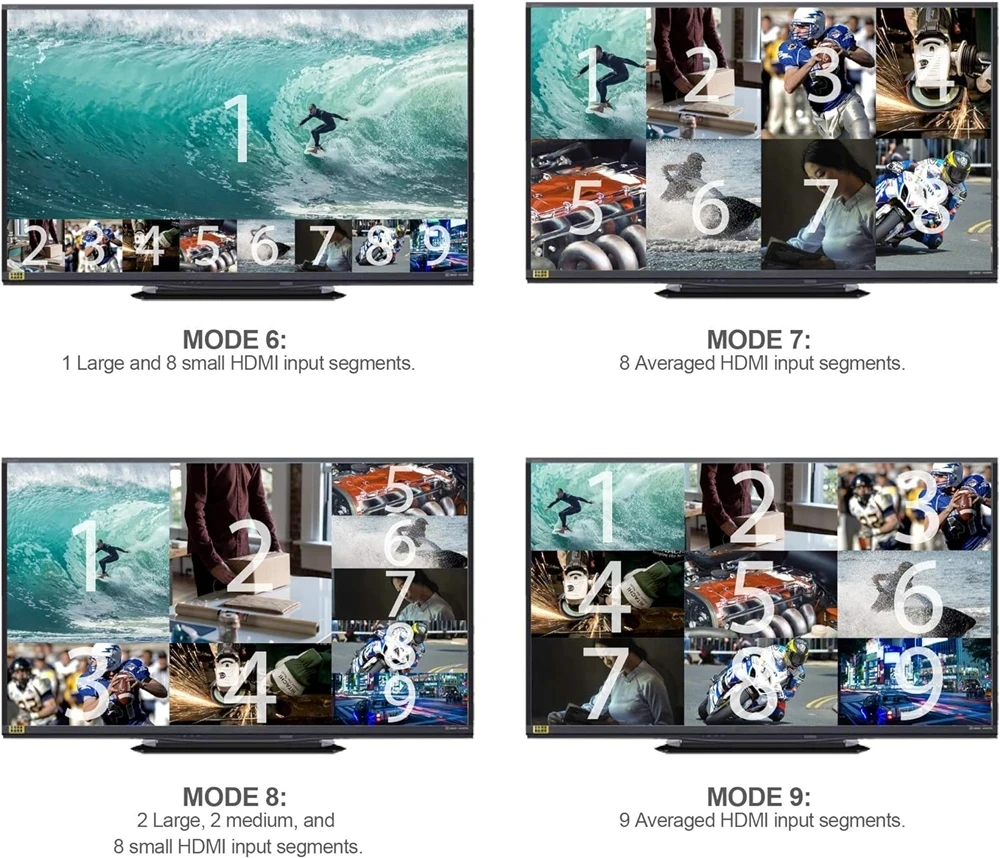

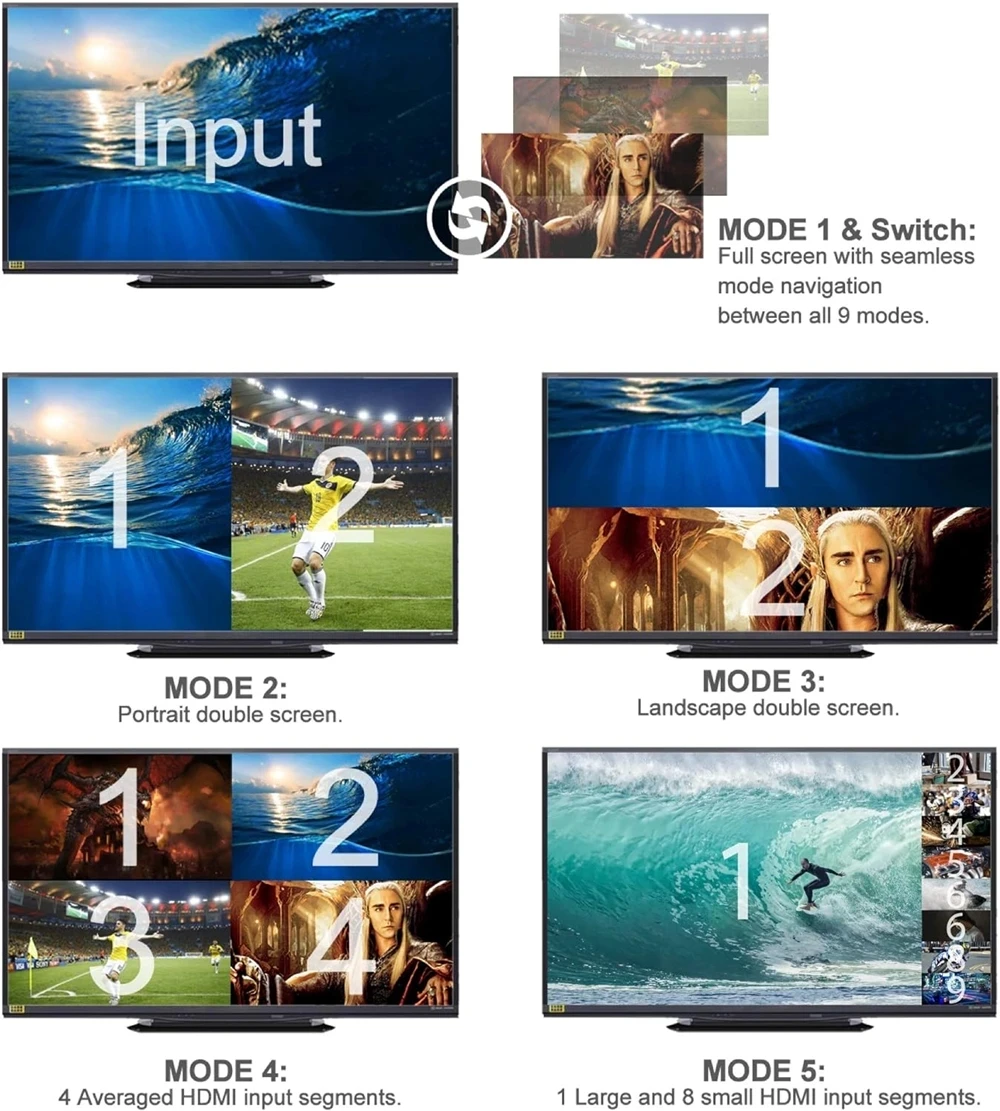

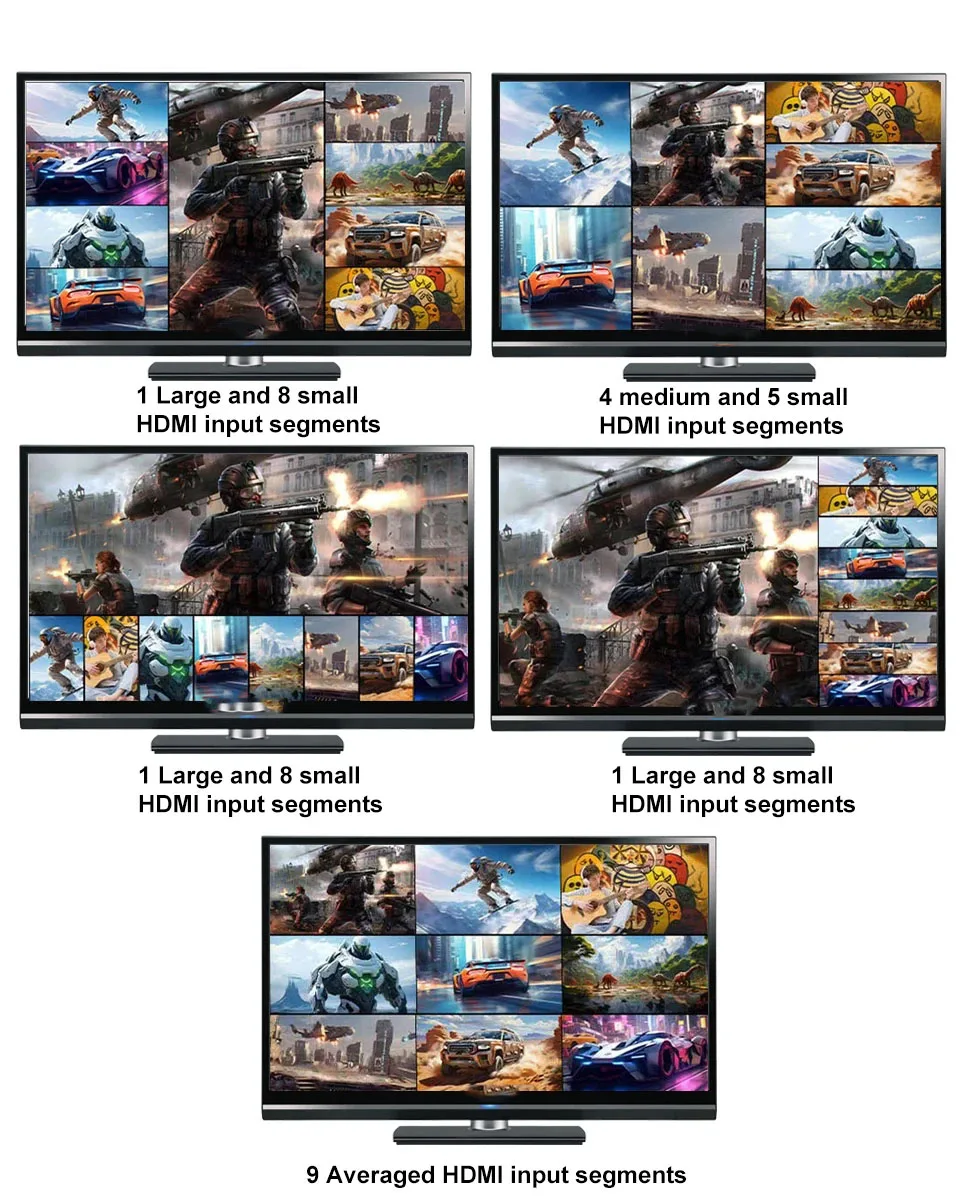

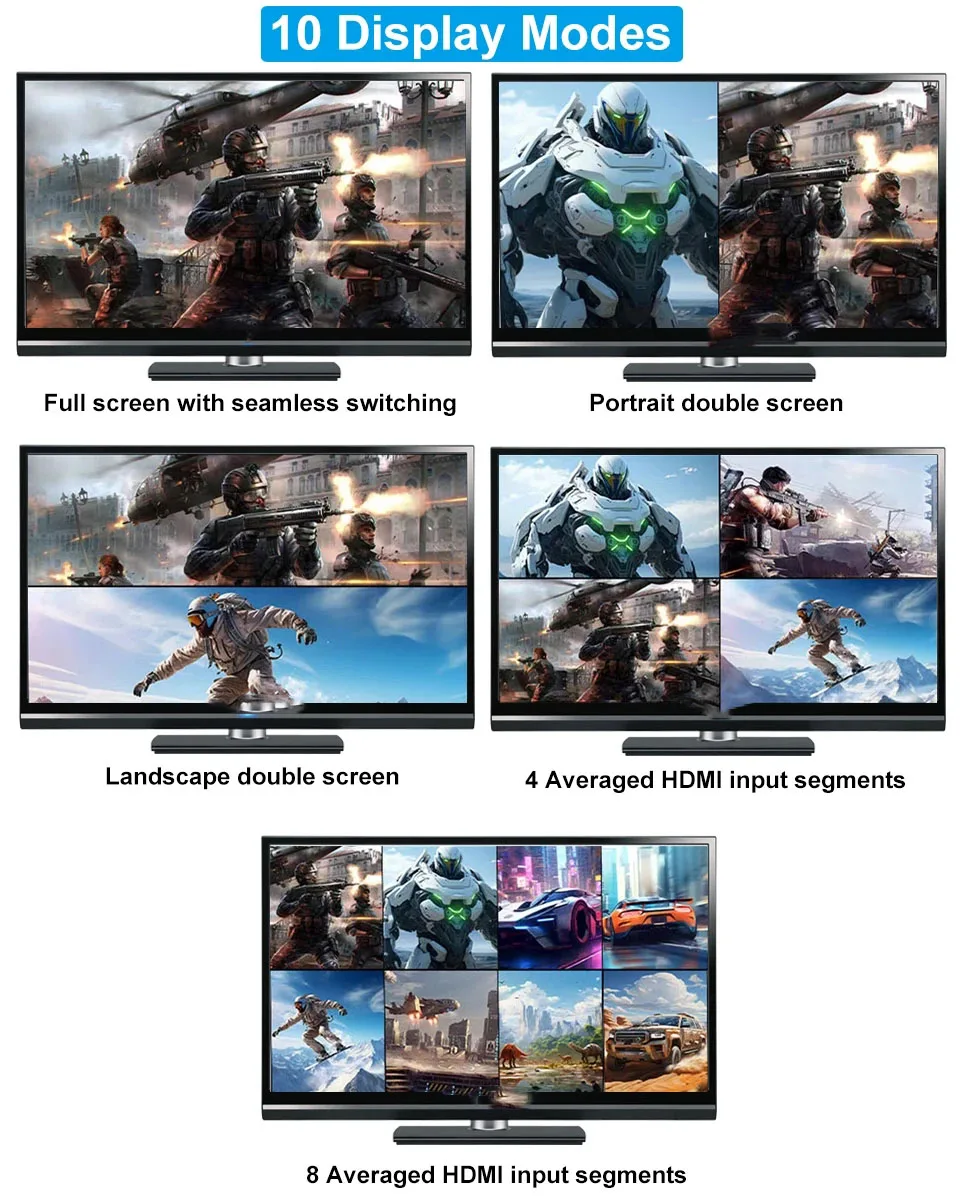

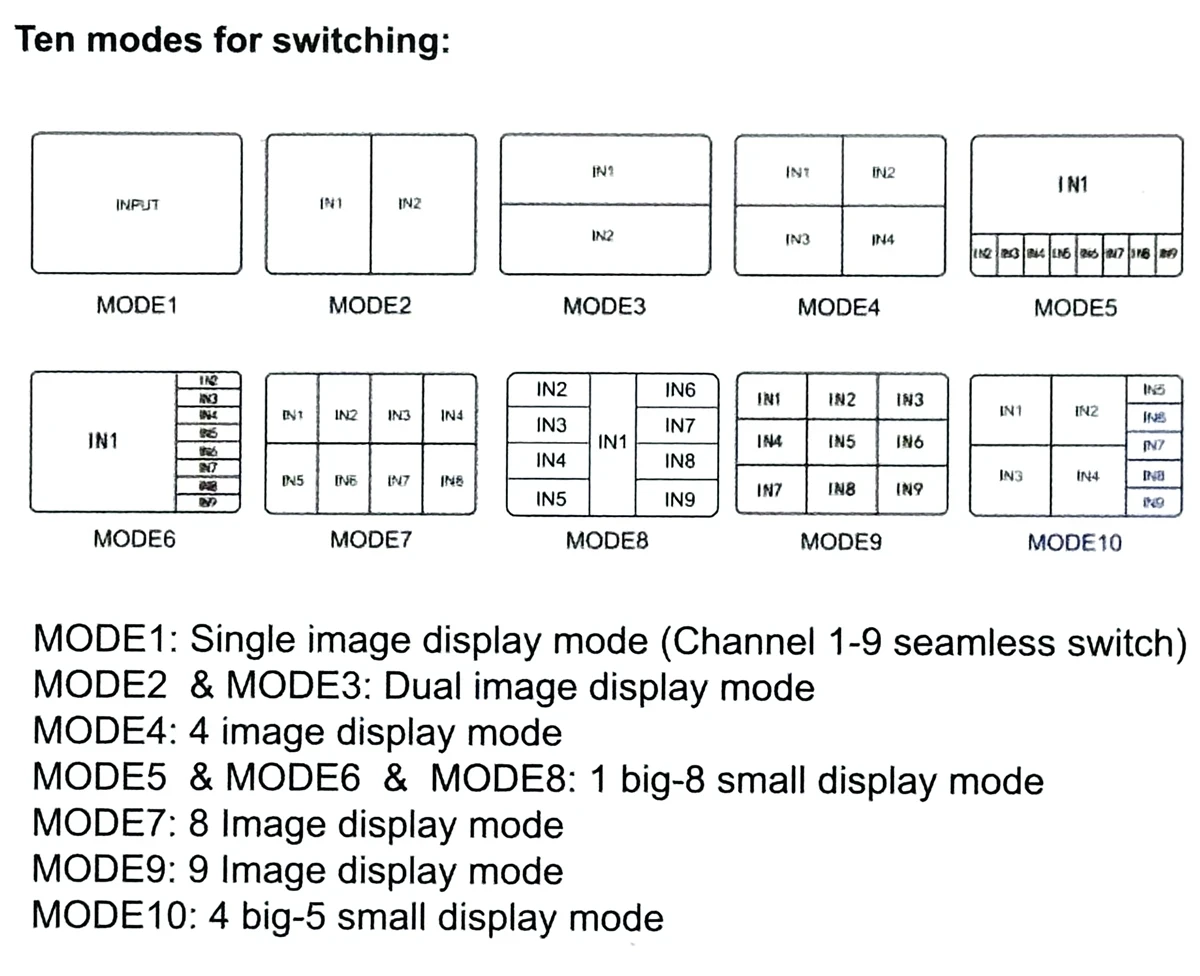

(1)10 Ways Viewing Screen： 9X1 Quad MultiView Selector support 10 viewing modes. You could see 9 HDMI input sources screen on one monitor by 10 ways, also can only see only one HDMI input source by full screen;

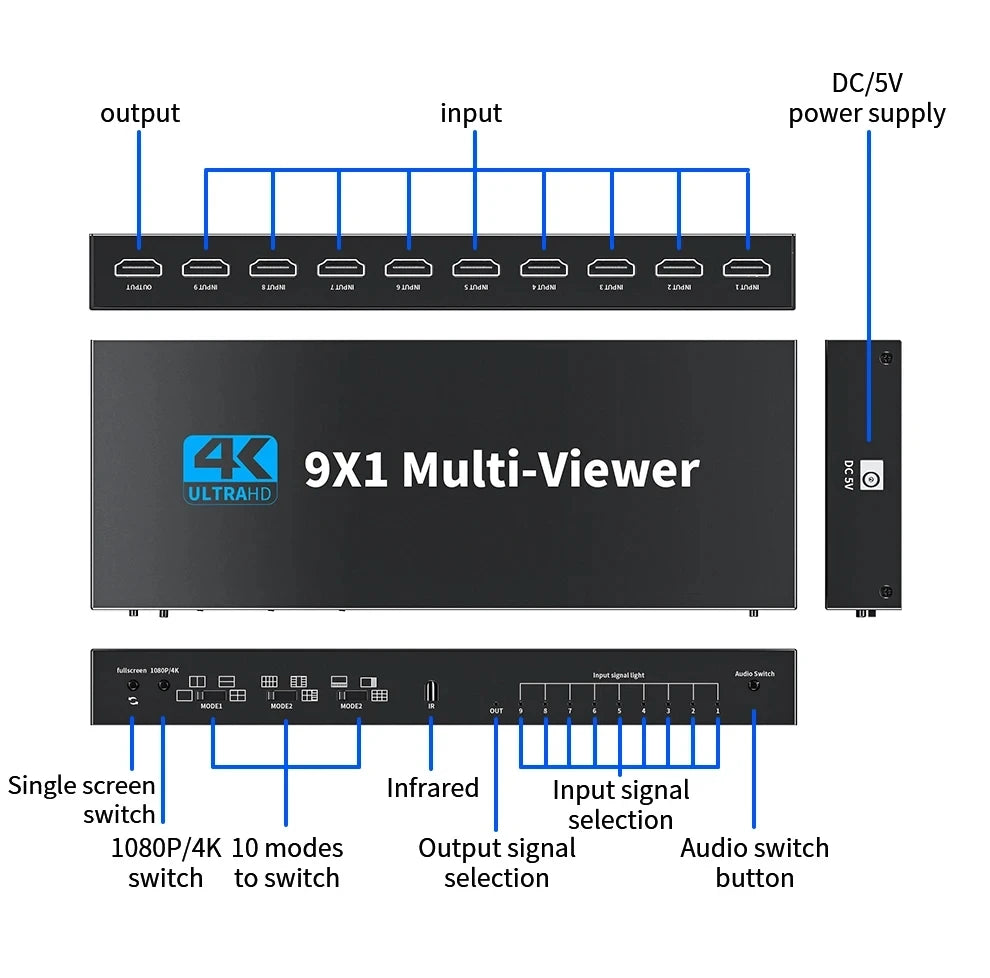

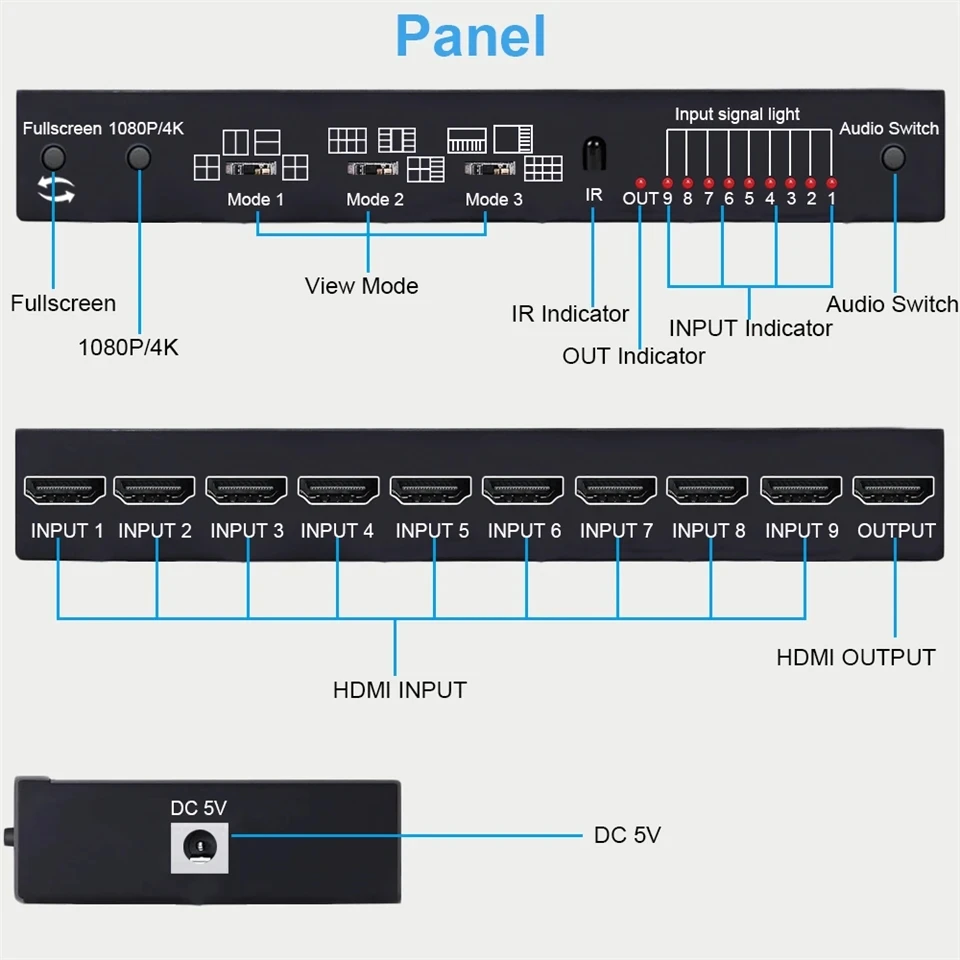

(2)HDMI Switch 9 in 1 out: 9 HDMI Input ports, 1 HDMI output port. Support Connect 9 HDMI input device and one HDMI Display device on Switch box, avoid frequently plugging and unplugging on HDMI Display device;

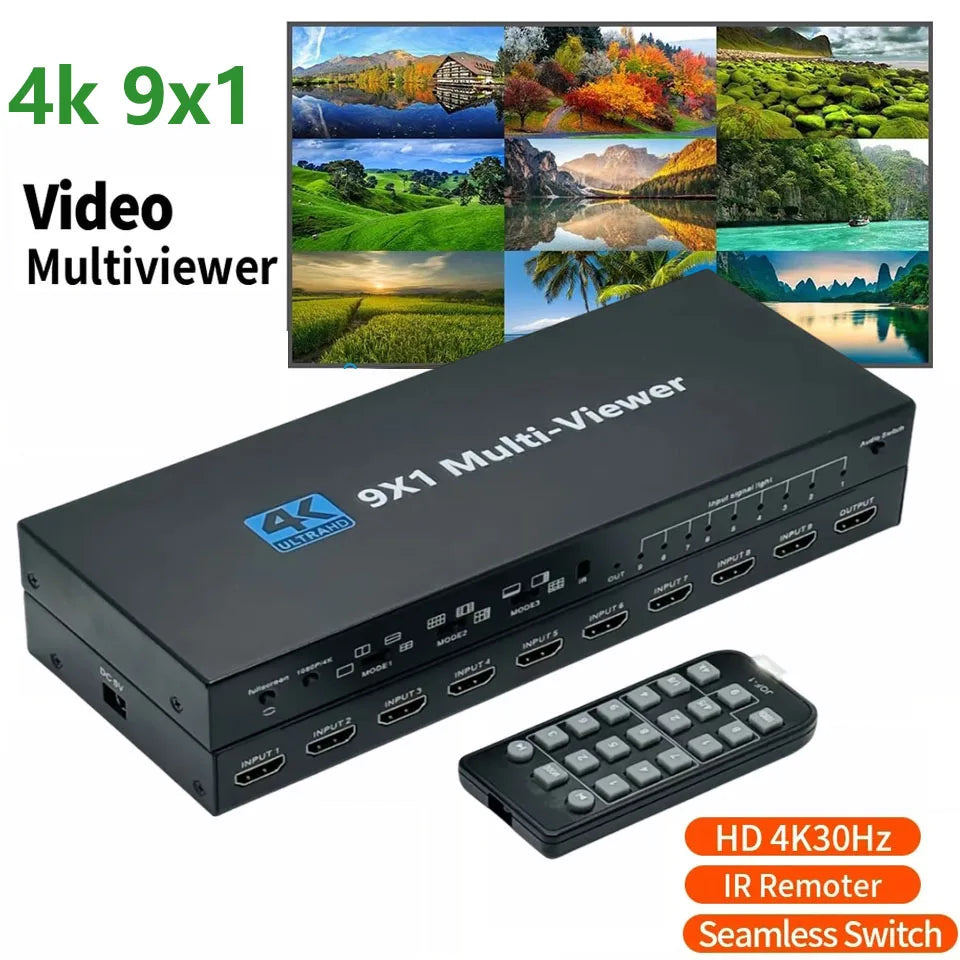

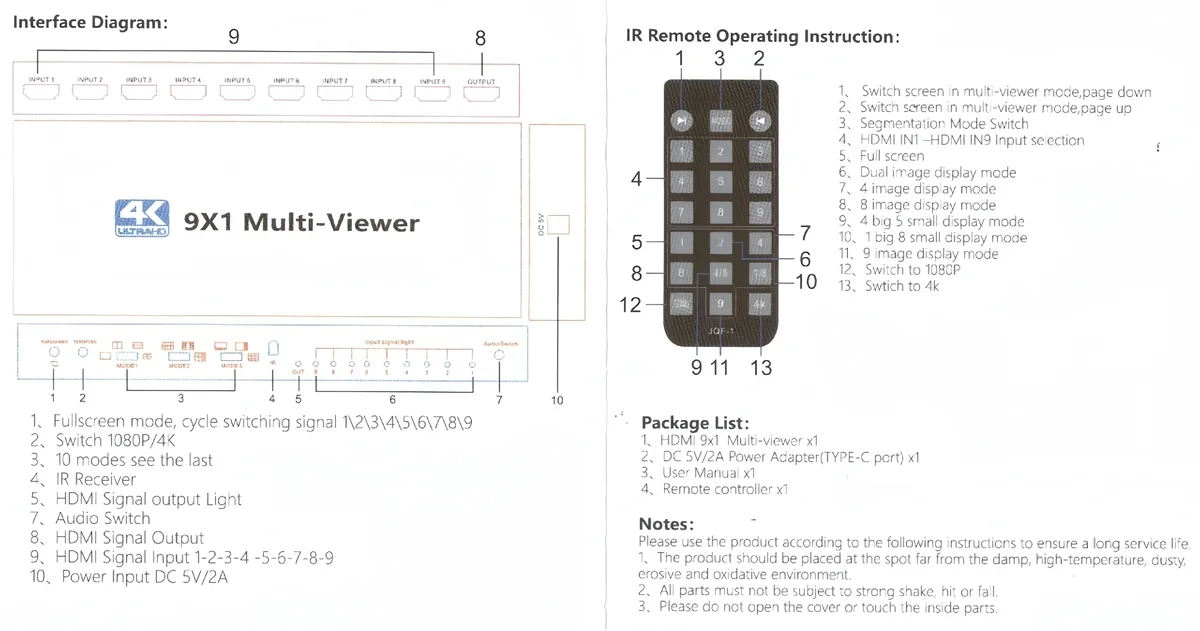

(3)Remote Control and Button Control: 9x1 Quad Multi-Viewer with function buttons and attached IR remote control. Manual button and remote control both support switching input source, selecting full screen mode or quad modes and switch input source's audio;
(4)Max up to 4K 30Hz Resolution: HDMI Multiple display Switch box support 3840x2160@30Hz, 1080P@60Hz,1080i,720p,567p,576i,480p,480i, bandrate max to 10.2Gbps, Support Color format 24 bit/30 bit/ 36bit;

Specifications:

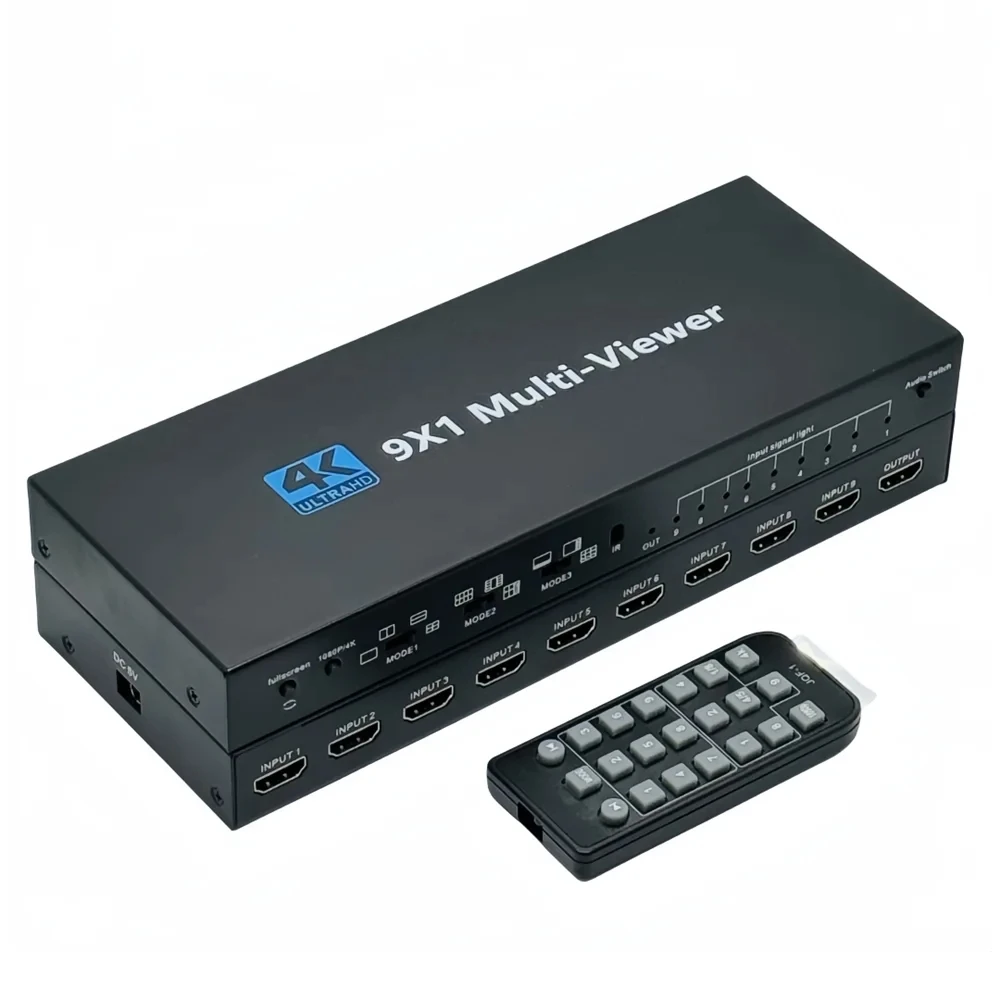

9x1 HDMI Seamless Multiviewer
Support 9 HDMI input, 1 HDMI output；
Support HDMI 1.4 and HDCP 1.4
Support 9 channels HDMI signal screen segmentation；
Support 9 channels HDMI signal seamless switching；
Support resolution up to 4K@30Hz/1080@60Hz；
Support IR control and Panel control；
Support HDMl resolution:24/50/60fs/4K30HZ/1080P/1080i/720p/576p/576i/480p/480i
Support video color format:24bit/30bit/36bit.
Support audio input format:DTS-HD/realHD/AC3/DSD
Support audio output format: LPCM,PCM2
Max bandwidth: 330Mhz
Max bandrate:10.2Gbps
Input/Output TMDS signal:0.5~1.5V p-p(TTL)
Input/Output DDC sianal: 5Volts p-p(TTL))
Input cable distance: <15m AWG24 HDMI standard cable
Outout cable distance: <24m AWG24 HDMI standard cable
Max working current: 5V/0.6A
Operating Temperature range: (-15~+55°C)
Operating Humidity range: 5-90%RH(No Condensation))
Dimension (LX Wx H): 148*63*23mm

Widely Compatible:

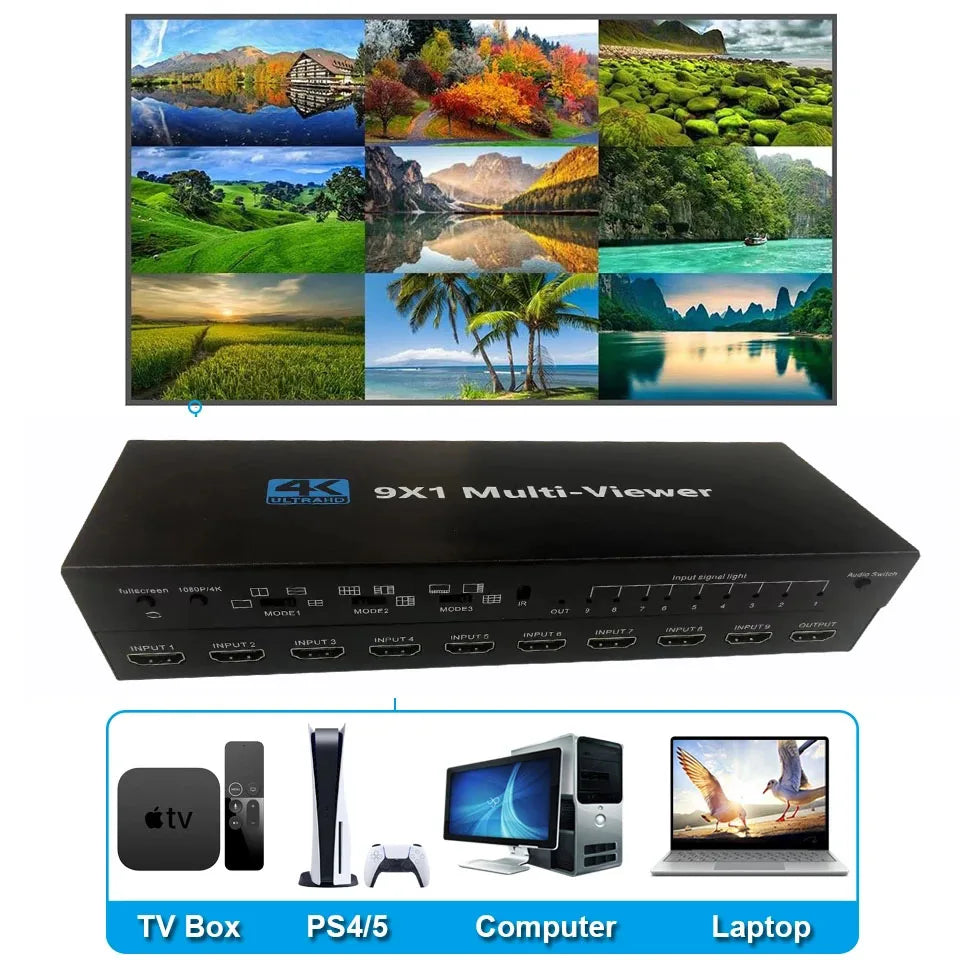

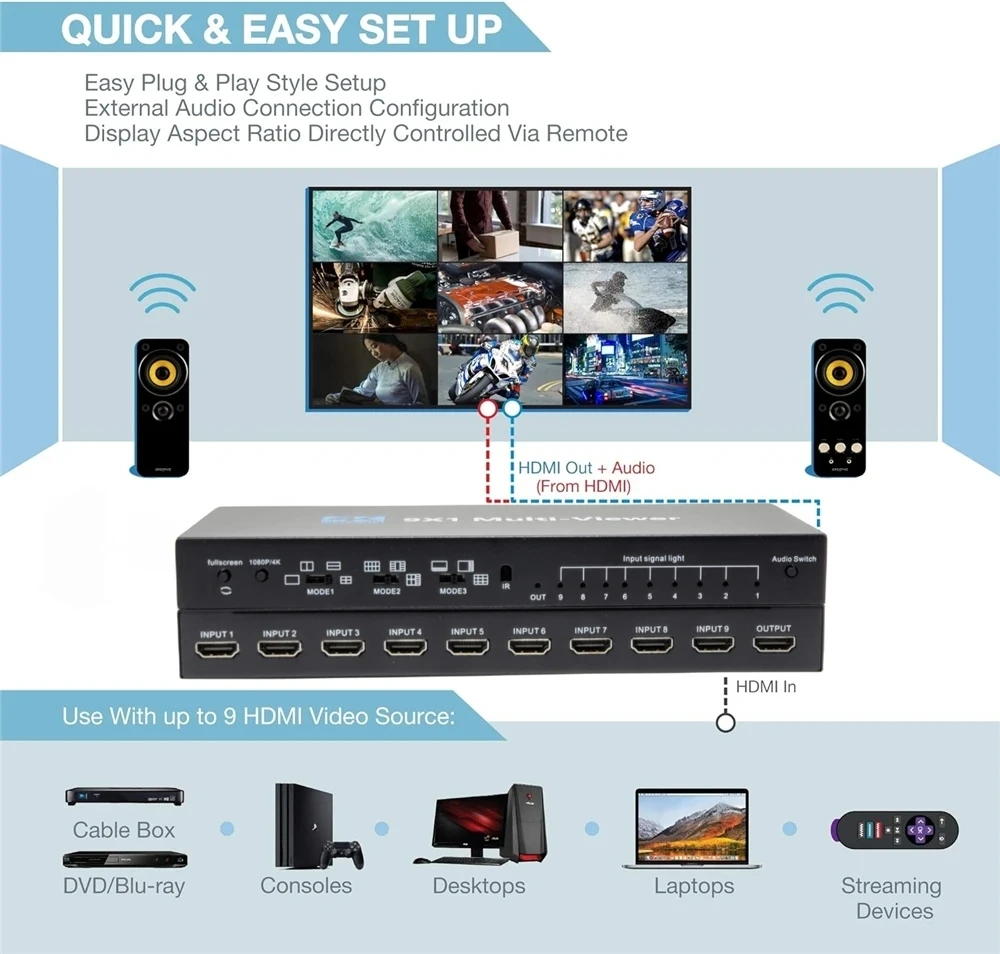

HDMI 9X1 Quad Multi-viewer support HDMI 1.4 and HDCP 1.4 and backward compatible. 9 HDMI input port support connecting DVD player, Apple TV, Blu-ray players, PS3/PS4, PS5, game console, fire stick, etc. HDMI output port support connecting various HDMI display device like monitor, HDTV, projector.
