50ml Threadlocker Screw Glue Anaerobic Threadlocker Screw Adhesive Glue Anti-loose Thread Locking Agent Anaerobic Adhesive Caulk
50ml Threadlocker Screw Glue Anaerobic Threadlocker Screw Adhesive Glue Anti-loose Thread Locking Agent Anaerobic Adhesive Caulk
SPECIFICATIONS
Application Materials: Metal
Brand Name: NONE
Choice: yes
High-concerned chemical: None
Origin: Mainland China
Type: Caulk
Color: red
Shelf life: one year
Characteristics: high strength, impact resistance, carry corrosion
Storage: 15-28 degrees in a cool place.
Packing list
1pc
Name: Thread Lock Anaerobic Adhesive
Pre-treatment to clean the surface of the assembly to ensure that there is no residual oil, grease, such as motor oil, rust oil, etc., most surfaces do not need to carry out special pre-treatment, for the bonding of the substrate, you need to cooperate with the accelerator pre-treatment. Gluing:Take appropriate amount of the product and apply it evenly on the threaded surface. Deglueing:The overflow of glue will not be cured, just wipe it off.
1、Disassembly with standard hand tools
2. In rare cases, it is impossible to disassemble the bolt and nut at room temperature due to the long length of the fit.
In rare cases where the length of the fit is so long that it cannot be dismantled at room temperature, the bolt and nut can be locally heated to 250°C and dismantled while still hot.
3. Locally heat the assembly to approx. 250*c and dismantle it while it is still hot. Cleaning method
Cleaning: For cured glue, soak it in solvent or use a pot brush or other tools for mechanical sanding.
For cured glue, it can be soaked in solvent or mechanically abraded with a pot brush or other tool.
Storage Method
Ideal storage conditions for this product are in a cool, dry place within the temperature range of 8°28°C, in the original packaging, if the product is stored at a temperature of 8~18°C conditions will be more ideal. To avoid contamination of unused adhesive, no adhesive should be poured back into the original packaging.

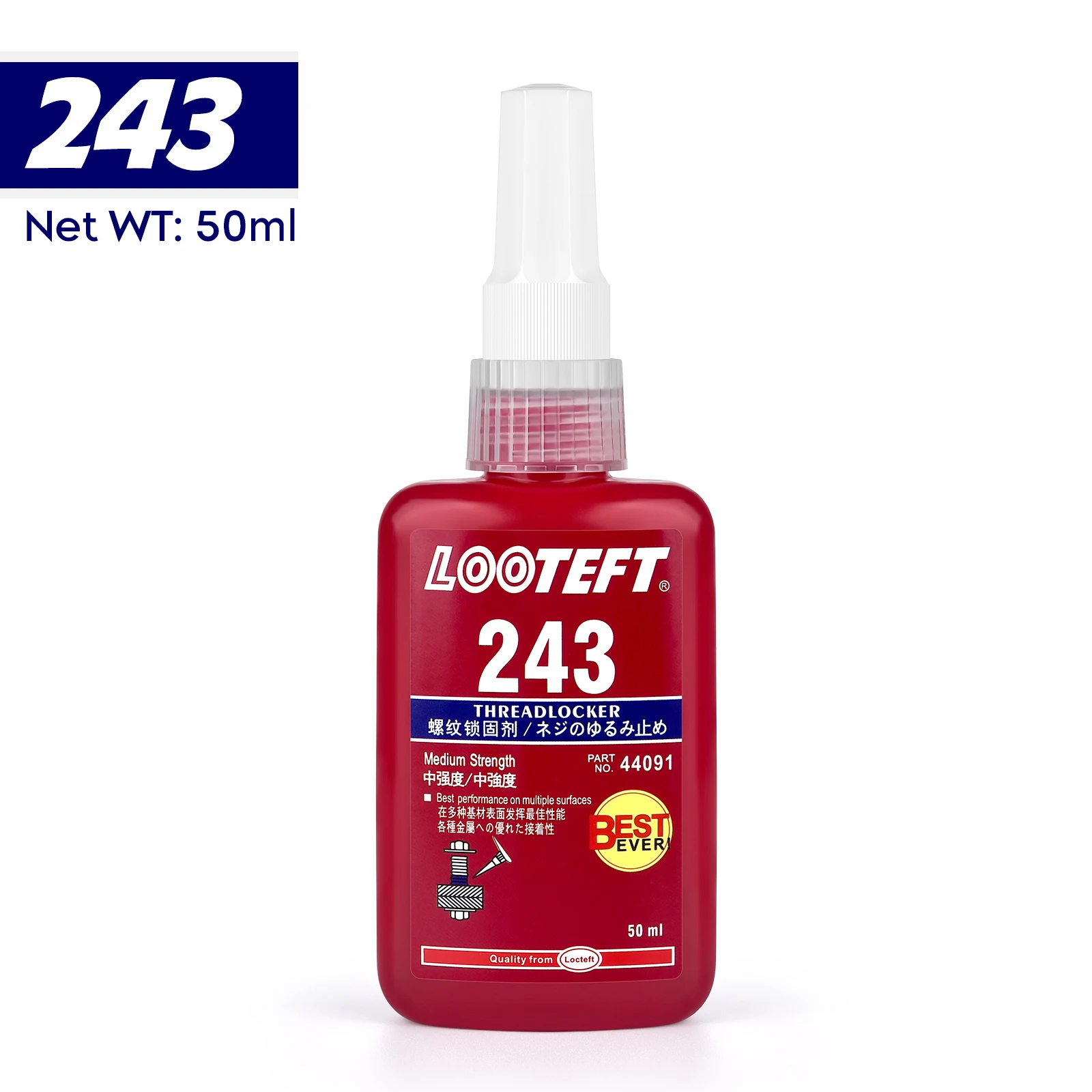

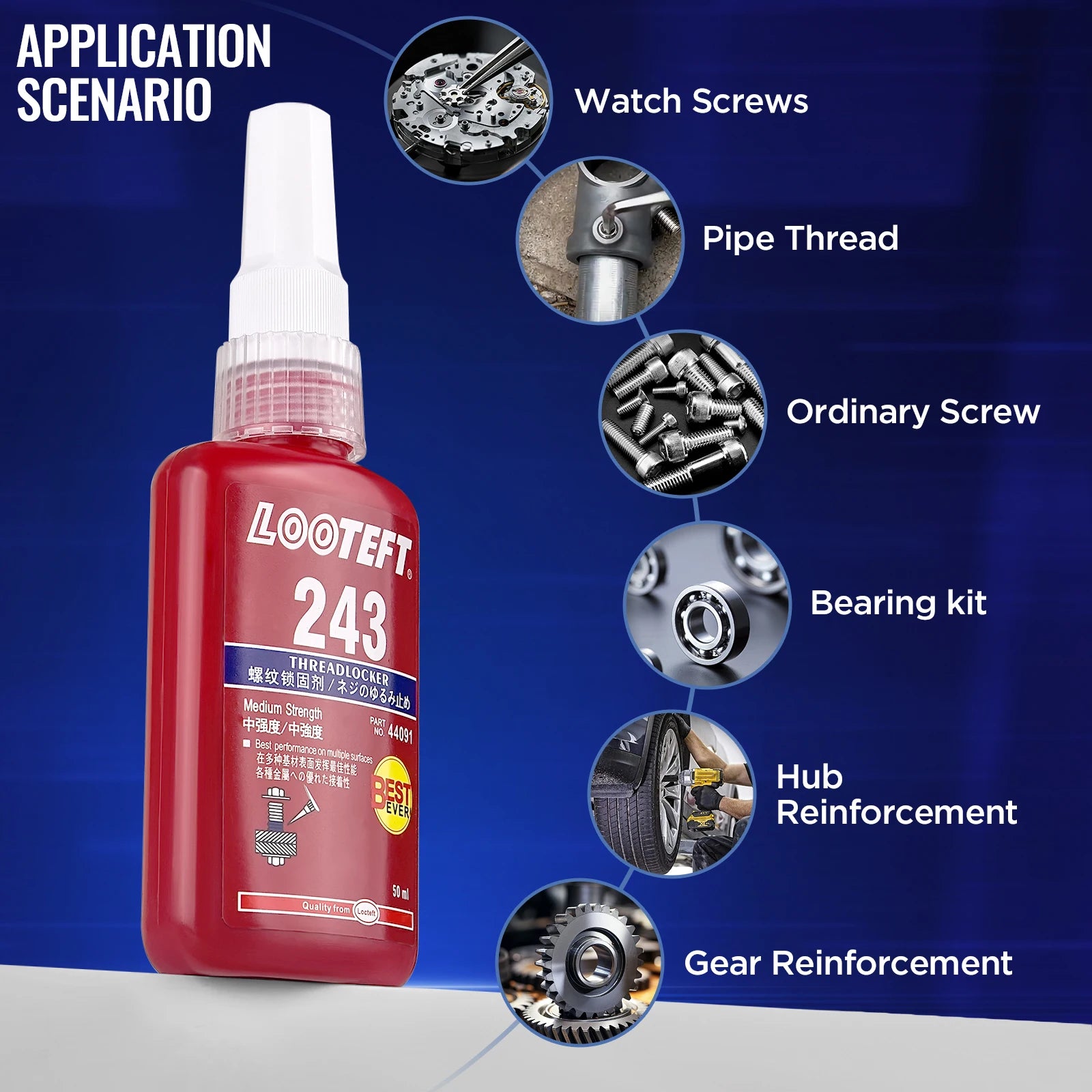

Model: 243 thread locking adhesive
Specification: 50ml
Special effect: medium strength - thixotropic viscosity
Viscosity: 1300/3000
Curing time: 20 minutes/24 hours
Dismantling torque: 7 (N.m)
Temperature range: -54/150 ℃
Relative density: 1.08
Maximum filling gap: 0.127mm
Description: Fast curing, suitable for inert surfaces, good oil tolerance. Easy to disassemble,
Can be used on work surfaces with slight oil pollution. Used for M20 Locking and sealing of the lower thread.

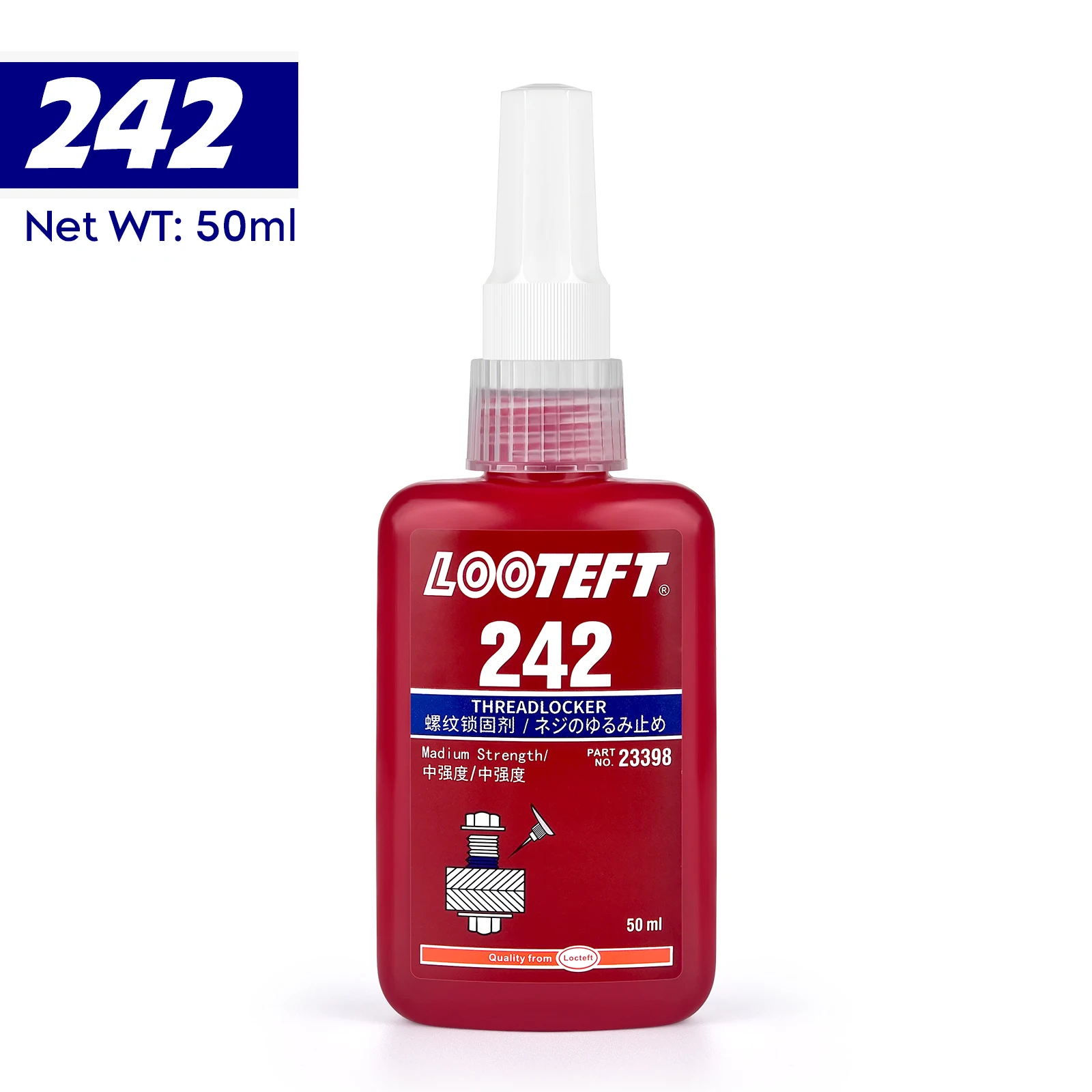

Model: 242 thread locking adhesive
Specification: 50ml
Special effect: medium strength - thixotropic viscosity
Viscosity: 1200/5000
Curing time: 20 minutes/24 hours
Dismantling torque: 4.9 (N.m)
Temperature range: -54/150 ℃
Relative density: 1
Maximum filling gap: 0.127mm
Description: Universal type, thixotropic viscosity; Used for locking and sealing M6-M20 threads. Can be used for tool disassembly and has a certain degree of lubricity to achieve precise clamping load.

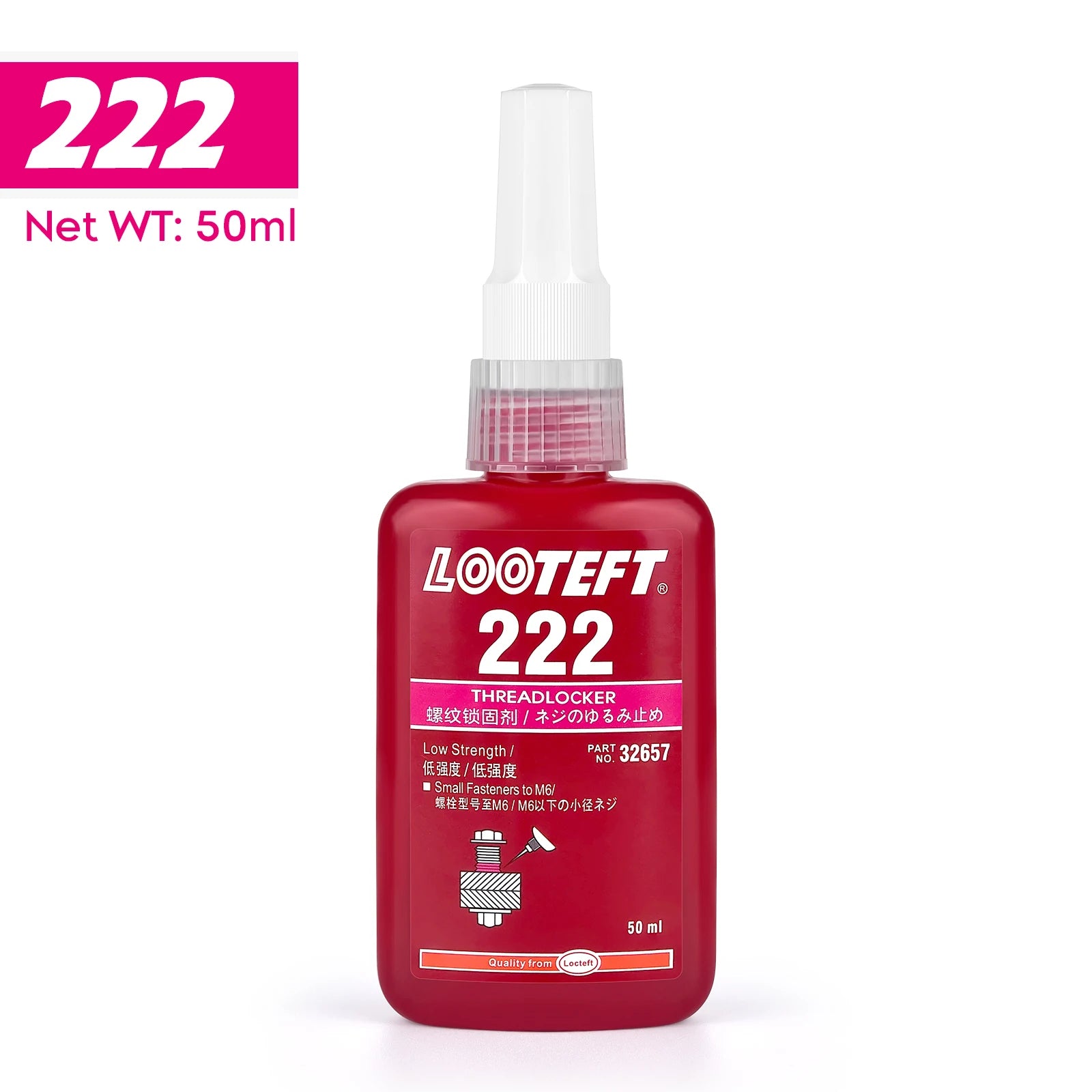

Model: 222 thread locking adhesive
Specification: 50ml
Special effects: low strength, detachable, anti loosening
Viscosity: 1200/1500
Curing time: 20 minutes/24 hours
Dismantling torque: 3.4 (N.m)
Temperature range: -54/150 ℃
Relative density: 1.05
Maximum filling gap: 0.127mm
Description: Used for most metal surfaces and can be disassembled with ordinary tools. Used for locking and sealing M2-M12 threads. The best effect is achieved when applied to fasteners with a diameter of no more than 1/4 #, with a certain degree of lubricity to achieve precise clamping load.

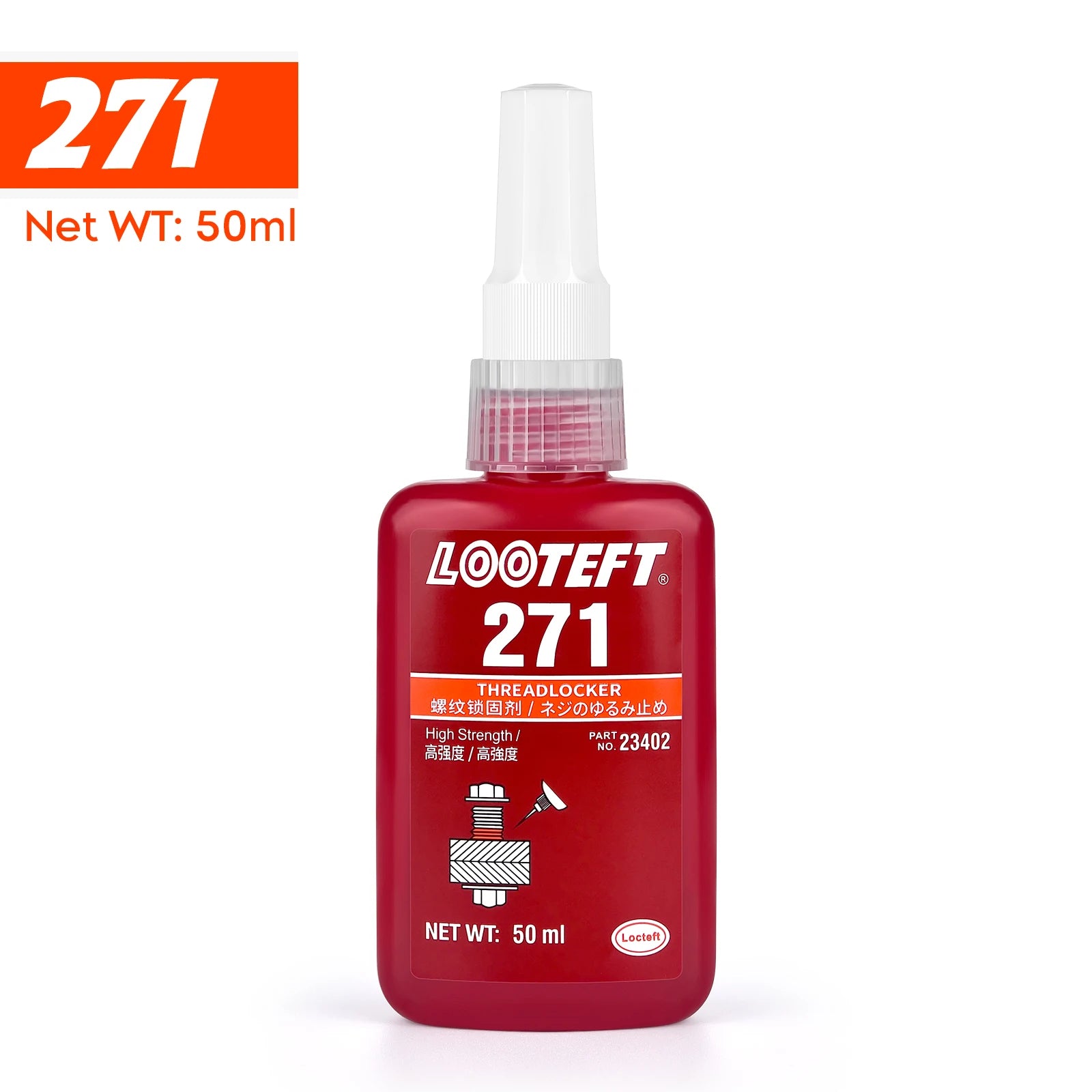

Model: 271 thread locking adhesive
Specification: 50ml
Special effects: high strength, leak proof, anti loosening
Viscosity: 400/600
Curing time: 20 minutes/24 hours
Dismantling torque: 25-40 (N.m)
Temperature range: -54/150 ℃
Relative density: 1.1
Maximum filling gap: 0.127mm
Explanation: Medium viscosity, used for permanent locking and sealing of threads below M36.

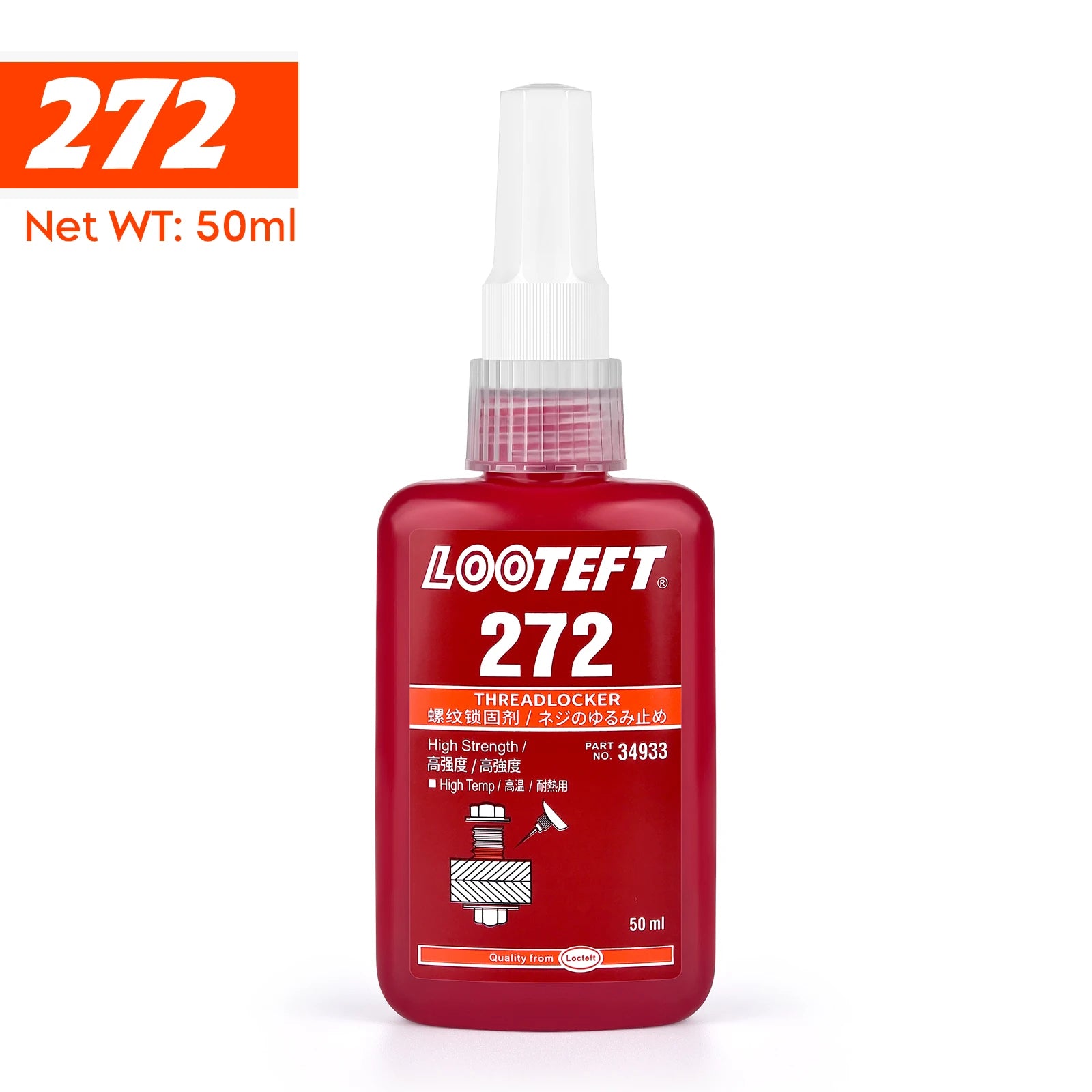

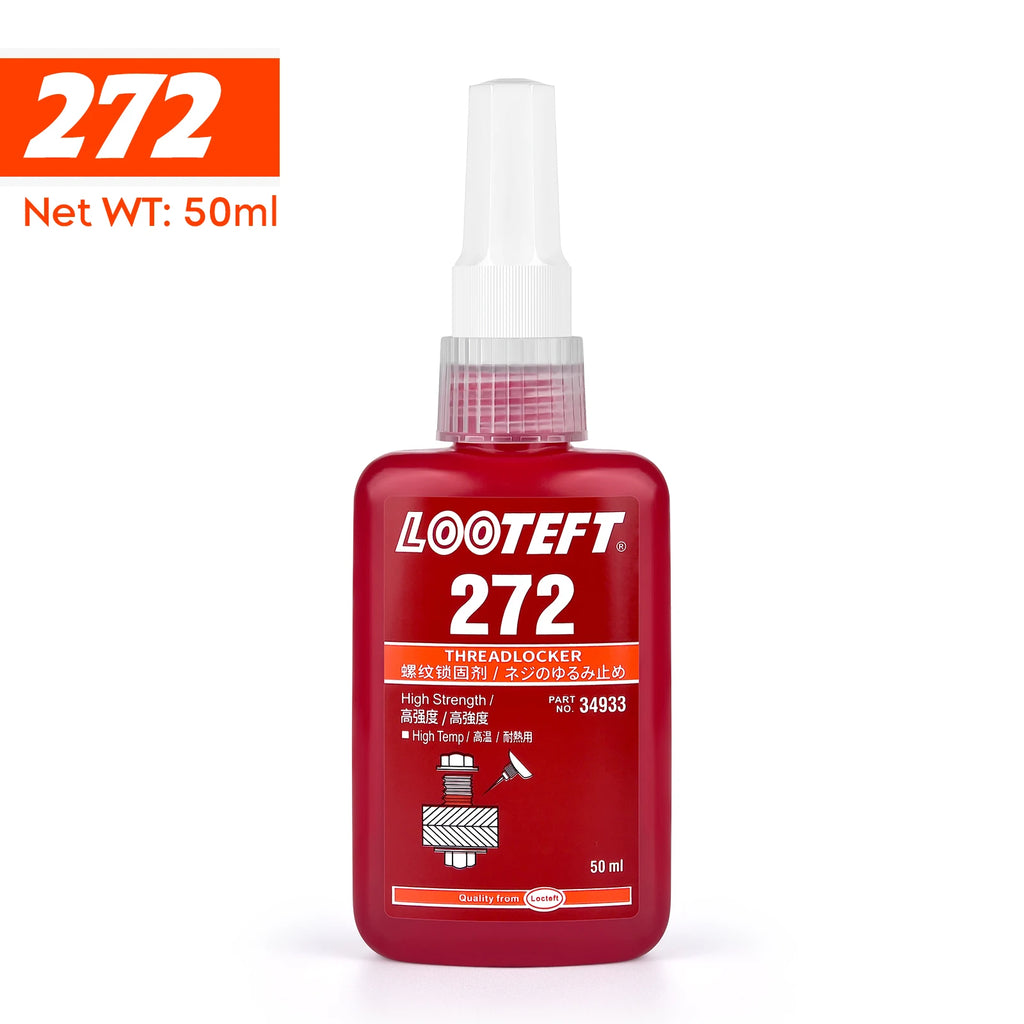

Model: 272 thread locking adhesive
Specification: 50ml
Special effects: high strength, leak proof, anti loosening
Viscosity: 4000/5000
Curing time: 20 minutes/24 hours
Dismantling torque: 25 (N.m)
Temperature range: -54/150 ℃
Relative density: 1.1
Maximum filling gap: 0.127mm
Explanation: Medium viscosity, used for permanent locking and sealing of threads below M36.
Model: 277 thread locking adhesive
Specification: 50ml
Special effects: high strength, leak proof, anti loosening
Viscosity: 6000/8000
Curing time: 20 minutes/24 hours
Dismantling torque: 32 (N.m)
Temperature range: -54/150 ℃
Relative density: 1.12
Maximum filling gap: 0.127mm
Description: It can withstand high temperatures up to 230 ℃ and can be used for quick curing of cylinder head double head thread locking, including fasteners without special surface treatment. It is recommended to use for bolts with a diameter of 1.5 # or less. Heating and tool usage are required during disassembly.
Model: 262 thread locking adhesive
Specification: 50ml
Special effects: high strength, leak proof, anti loosening
Viscosity: 1200/2400
Curing time: 20 minutes/24 hours
Dismantling torque: 25 (N.m)
Temperature range: -54/150 ℃
Relative density: 1.1
Maximum filling gap: 0.127mm
Description: Suitable for most metal surfaces Thixotropic viscosity, good chemical resistance. For locking and sealing of threads up to M20. Permanent thread locking agent, excellent rust and corrosion resistance.

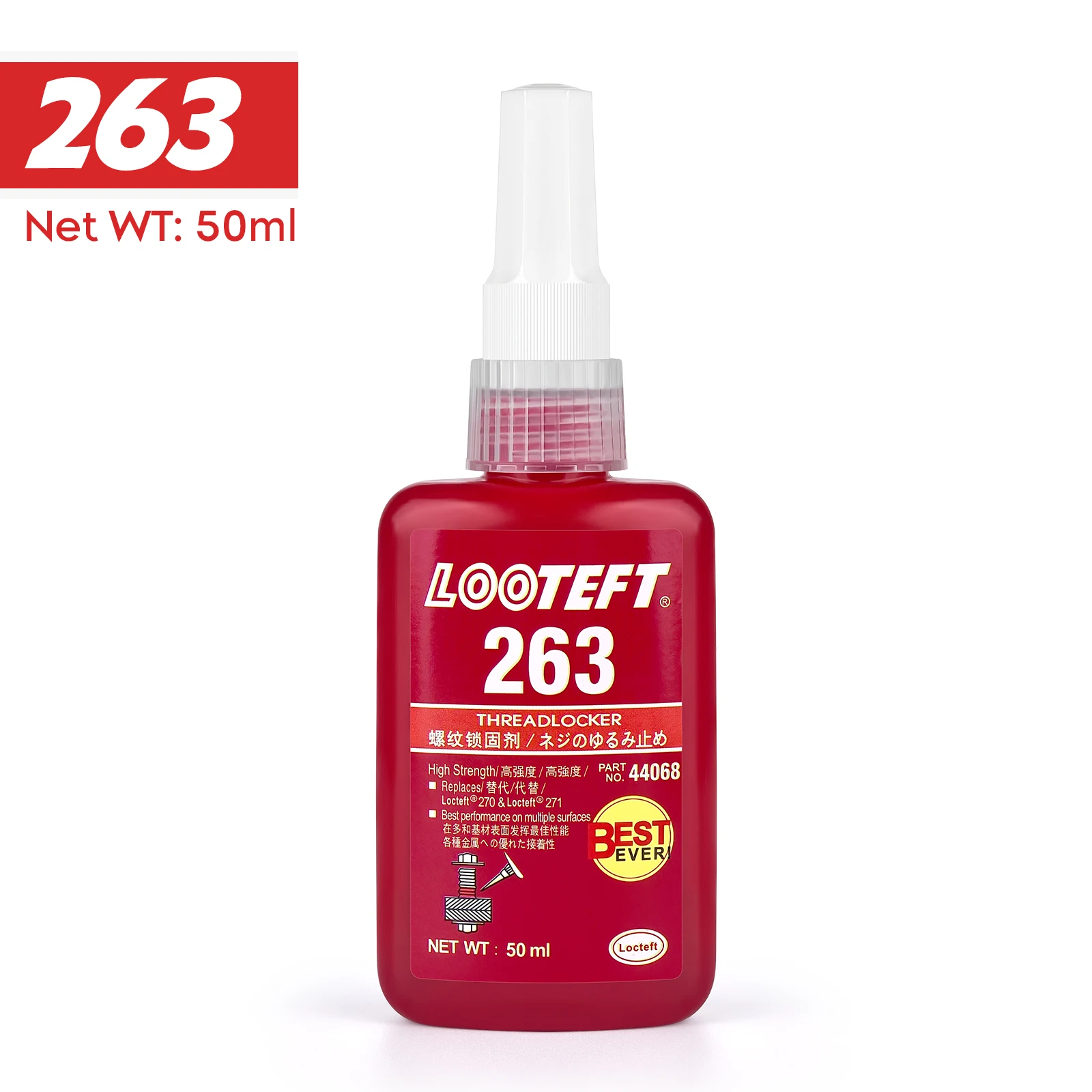

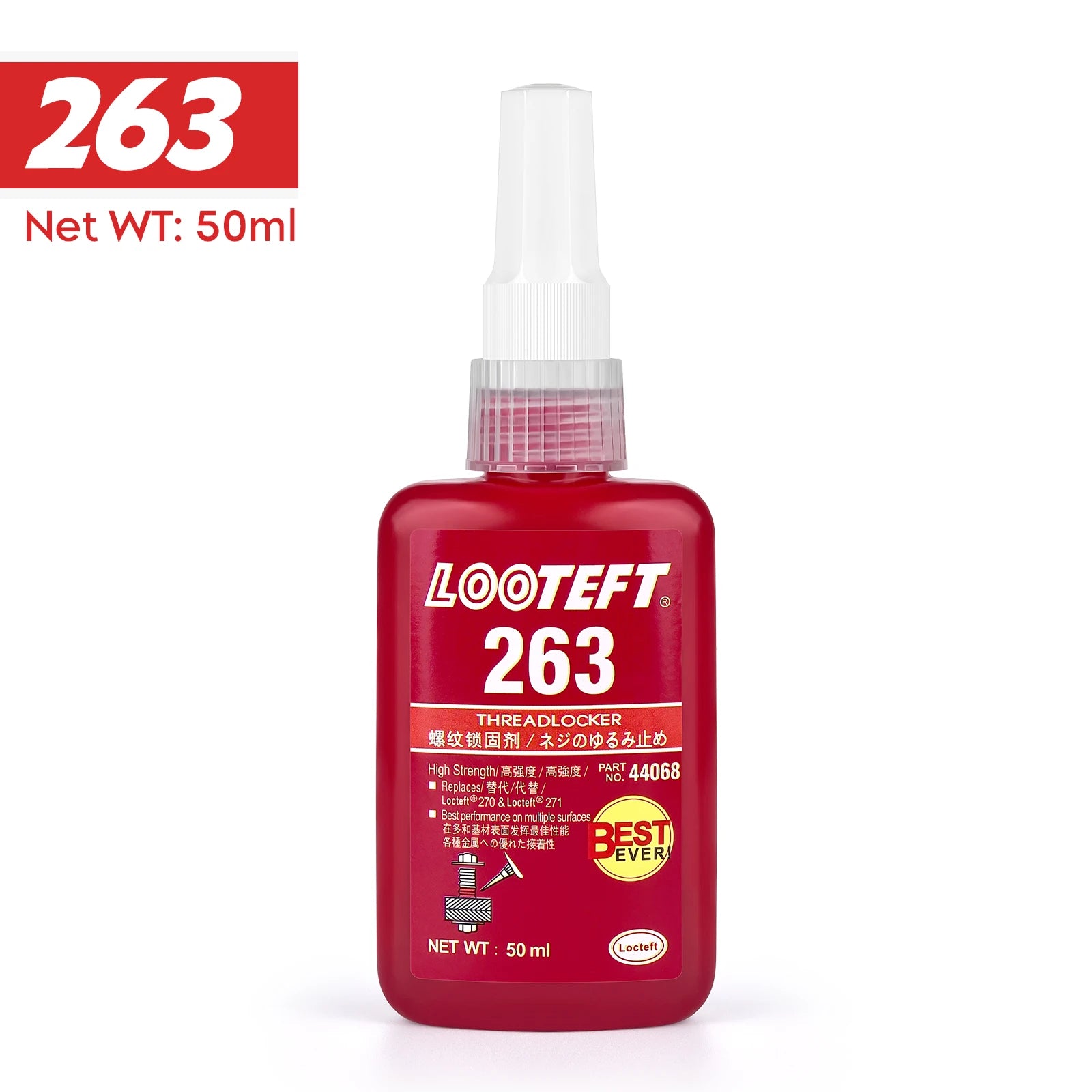

Model: 263 thread locking adhesive
Specification: 50ml
Special effects: high strength, leak proof, anti loosening
Viscosity: 400/600
Curing time: 20 minutes/24 hours
Dismantling torque: 32 (N.m)
Temperature range: -54/150 ℃
Relative density: 1.1
Maximum filling gap: 0.127mm
Explanation: Fast curing, can be used on inert surfaces, good oil tolerance. Easily removable, can be used on slightly oil-contaminated work surfaces. For locking and sealing of threads up to M20.

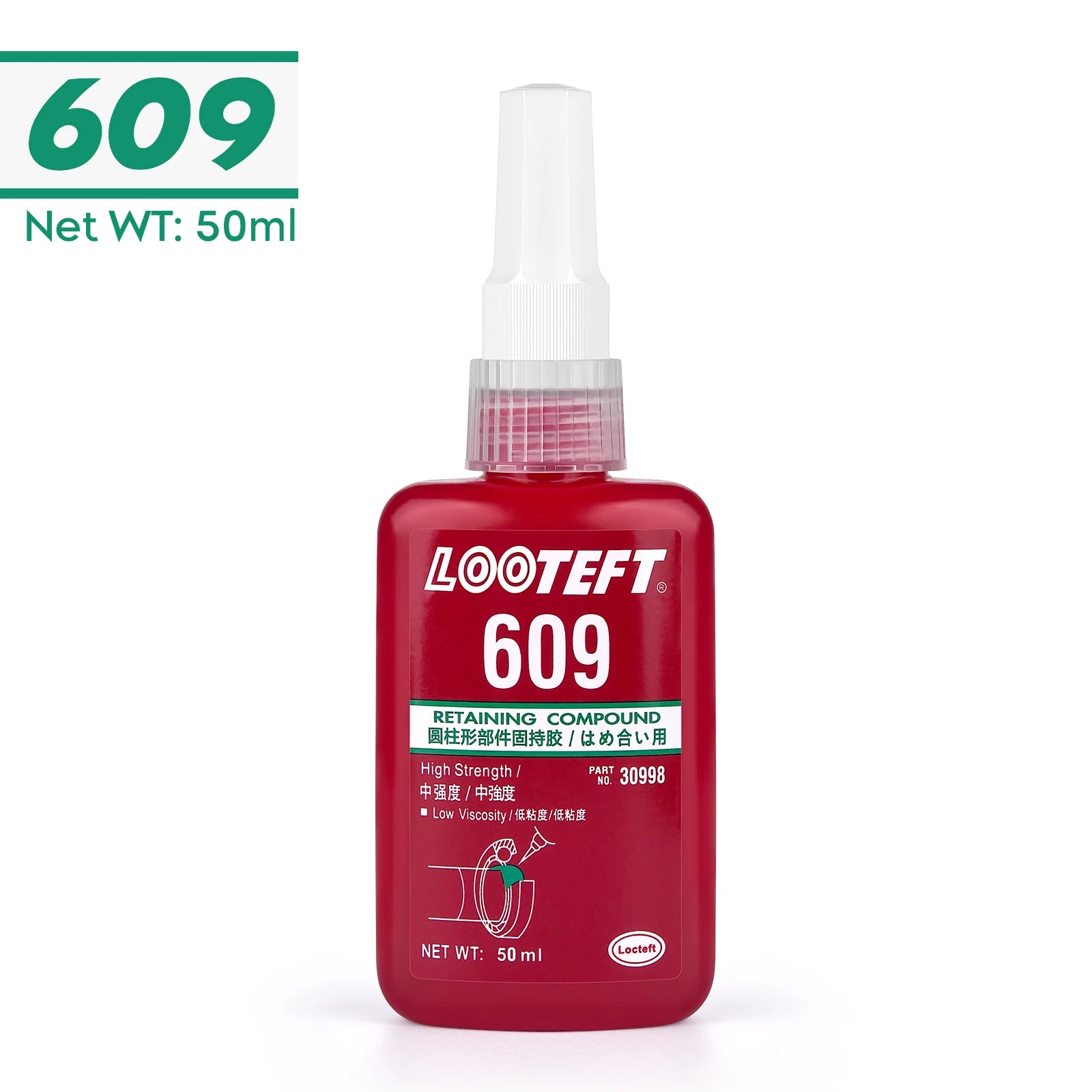

Model: 609 Cylindrical Component Retaining Adhesive
Specification: 50ml
Special Effects: High Intensity Universal Type
Viscosity: 110-140
Curing time: 10 minutes/24 hours
Shear strength: 2290 (psi)
Temperature range: -54/150 ℃
Relative density: 1.1
Maximum filling gap: 0.127mm
Explanation: Fast curing, can be used on inert surfaces, good oil tolerance. Easily removable, can be used on slightly oil-contaminated work surfaces. For locking and sealing of threads up to M20.Medium strength, suitable for transition and interference fits. Fixed key and shaft bearing fits, small motor rotor shafts, bushings. Repair worn holes, shaft mating parts or overfitting parts. The optimal radial filler gap is 0.13mm or less, providing 21MPa shear strength after 24 hours.
Model: 620 Cylindrical Component Retaining Adhesive
Specification: 50ml
Special effects: high strength, high temperature resistance
Viscosity: 5000-12000
Curing time: 10 minutes/24 hours
Shear strength: 2495 (psi)
Temperature range: -54/150 ℃
Relative density: 1.1
Maximum filling gap: 0.381mm
Explanation: High strength, high viscosity, no flow. Hold valve bushings, injection molding machine core bushings, valve bushings, cylinder bushings, keyways, etc. Resistance to high temperature up to 200 ℃, providing shear strength of 19.0N/mm or more to steel.

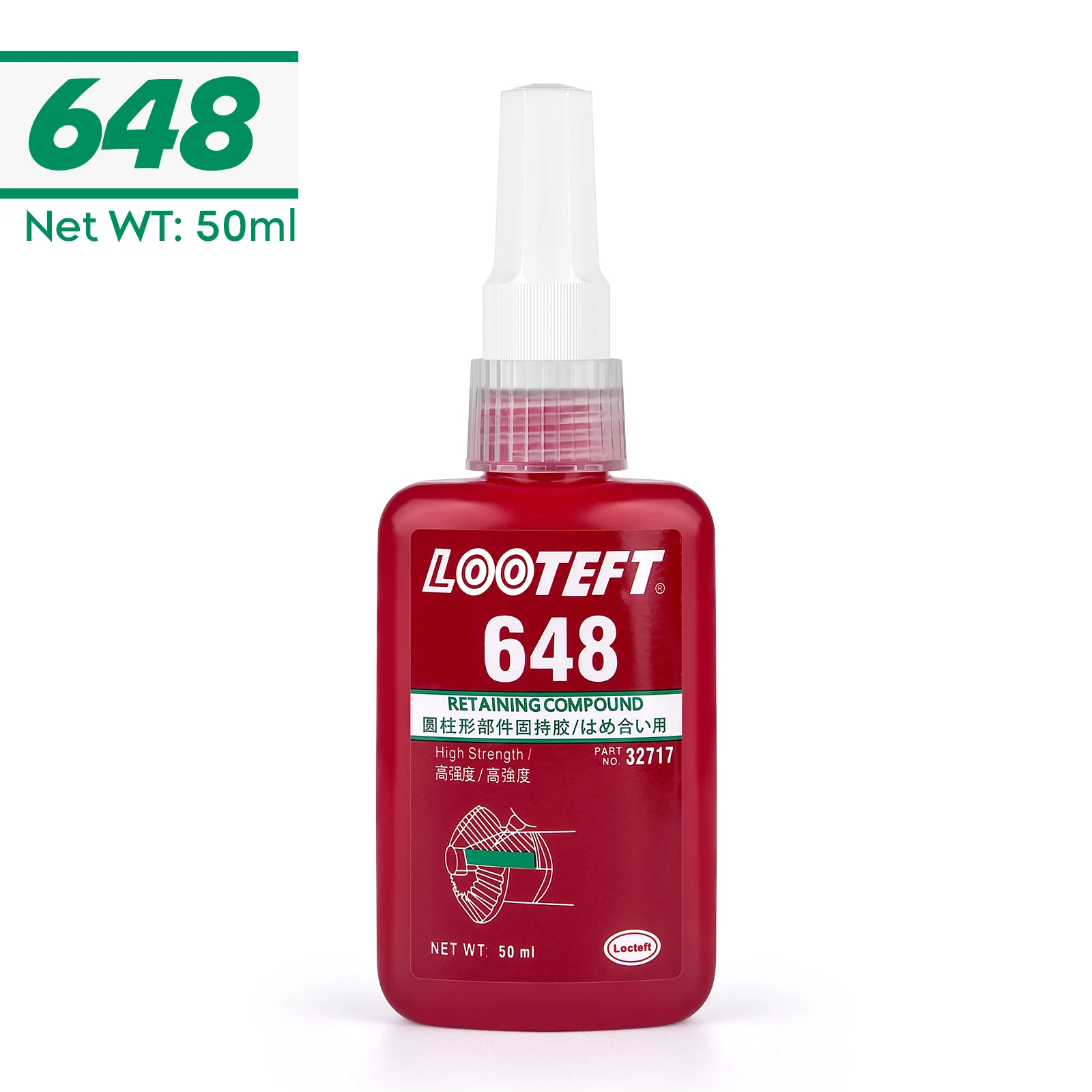

Model: 648 Cylindrical Component Retaining Adhesive
Specification: 50ml
Special effect: High strength, fast curing
Viscosity: 400-600
Curing time: 5 minutes/24 hours
Shear strength: 3625 (psi)
Temperature range: -54/150 ℃
Relative density: 1.13
Maximum filling gap: 0.1524mm
Explanation: Can be used in continuous operating temperatures up to 175 ° C Filling gap of 0.1524mm or less. Initial curing within 5 minutes.

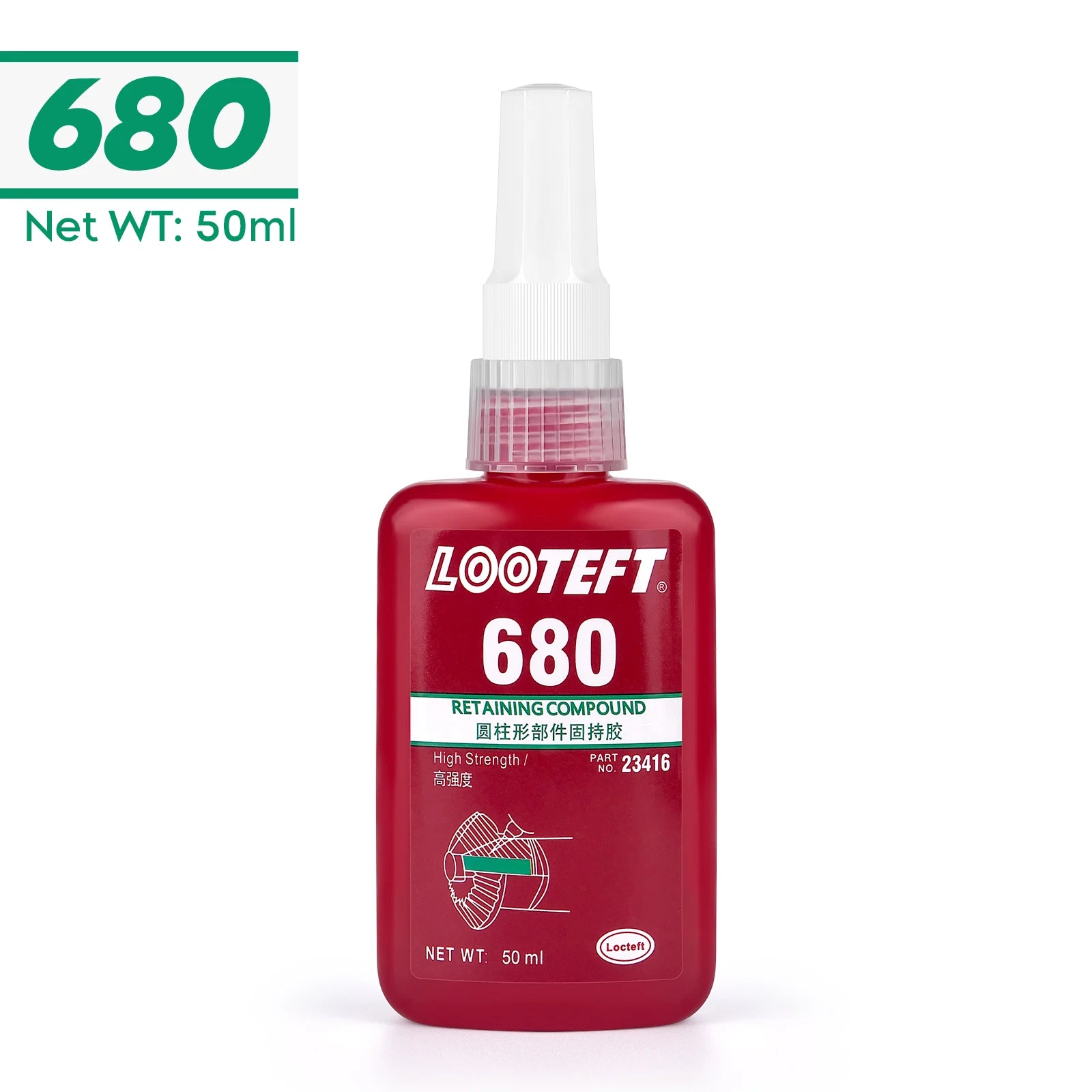

Model: 680 Cylindrical Component Retaining Adhesive
Specification: 50ml
Special effects: high strength, medium viscosity, oil resistance
Viscosity: 700-1750
Curing time: 10 minutes/24 hours
Shear strength: 2800 (psi)
Temperature range: -54/150 ℃
Relative density: 1.1
Maximum filling gap: 0.381mm
Explanation: Medium viscosity, suitable for clearance fits or interference fits. Holds pipe sleeves, pulleys, gears, rotors. Repair holes, shaft mating parts with overfitting parts in 10 minutes initial cure. Provides greater than 0.7n/mm shear strength on steel after 24 hours. Maximum filler gap is 0.381mm.

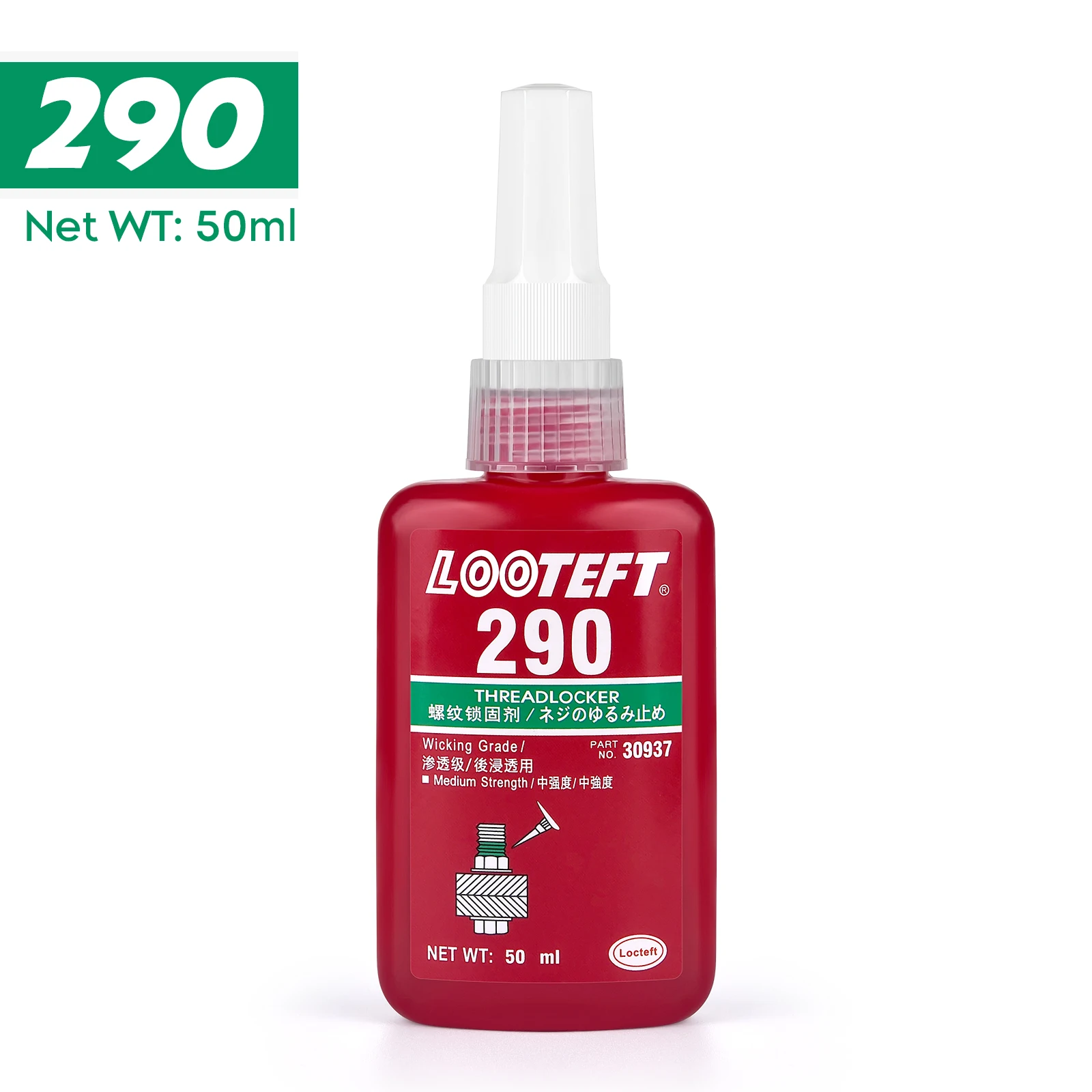

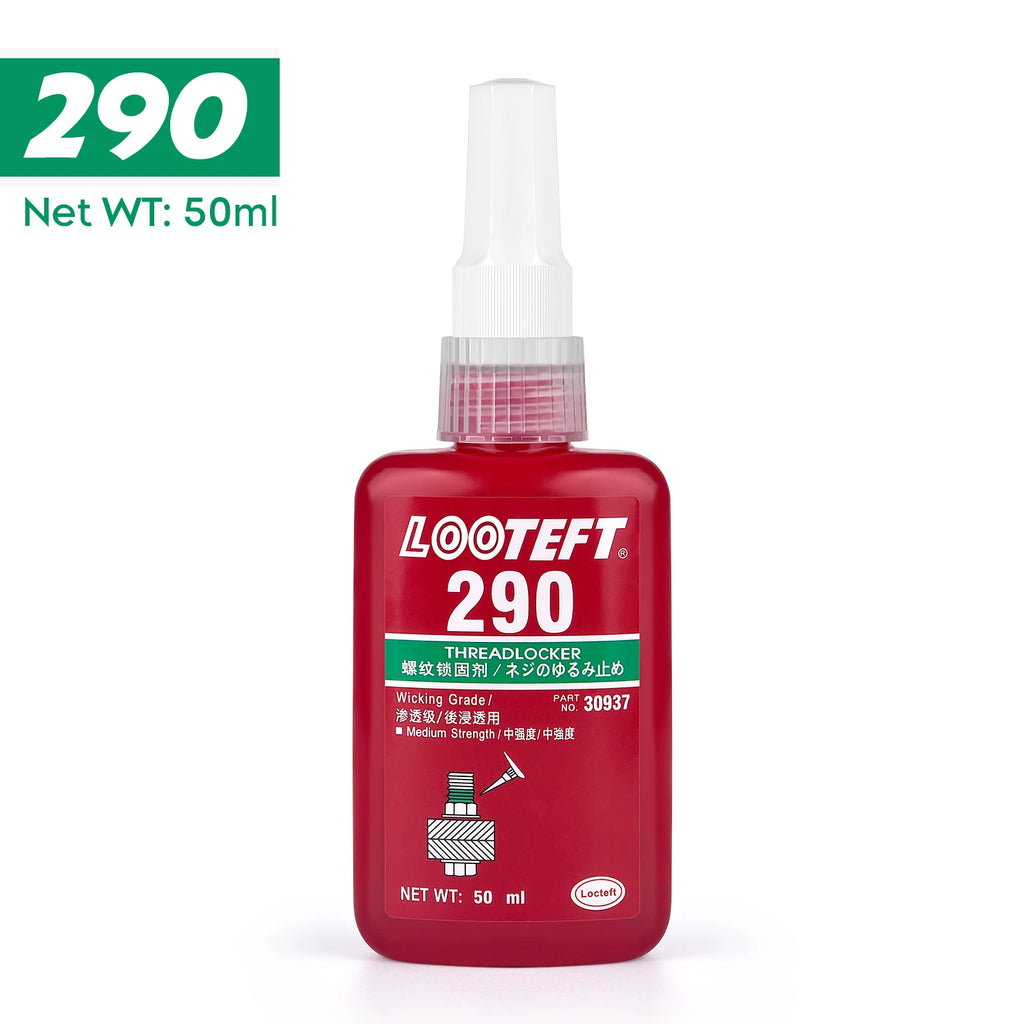

Model: 290 thread locking adhesive
Specification: 50ml
Special effects: Medium strength, penetration grade, detachable
Viscosity: 25-55
Curing time: 20 minutes/24 hours
Dismantling torque: 29 (N.m)
Temperature range: -54/150 ℃
Relative density: 1.12
Maximum filling gap: 0.254mm
Description: Used for locking and sealing of assembled M2-M12 threads. It can also be used for sealing welds, casting sand holes, and other micropores below 0.254mm. To prevent thread rust and corrosion, local heating and tool use are required during disassembly.

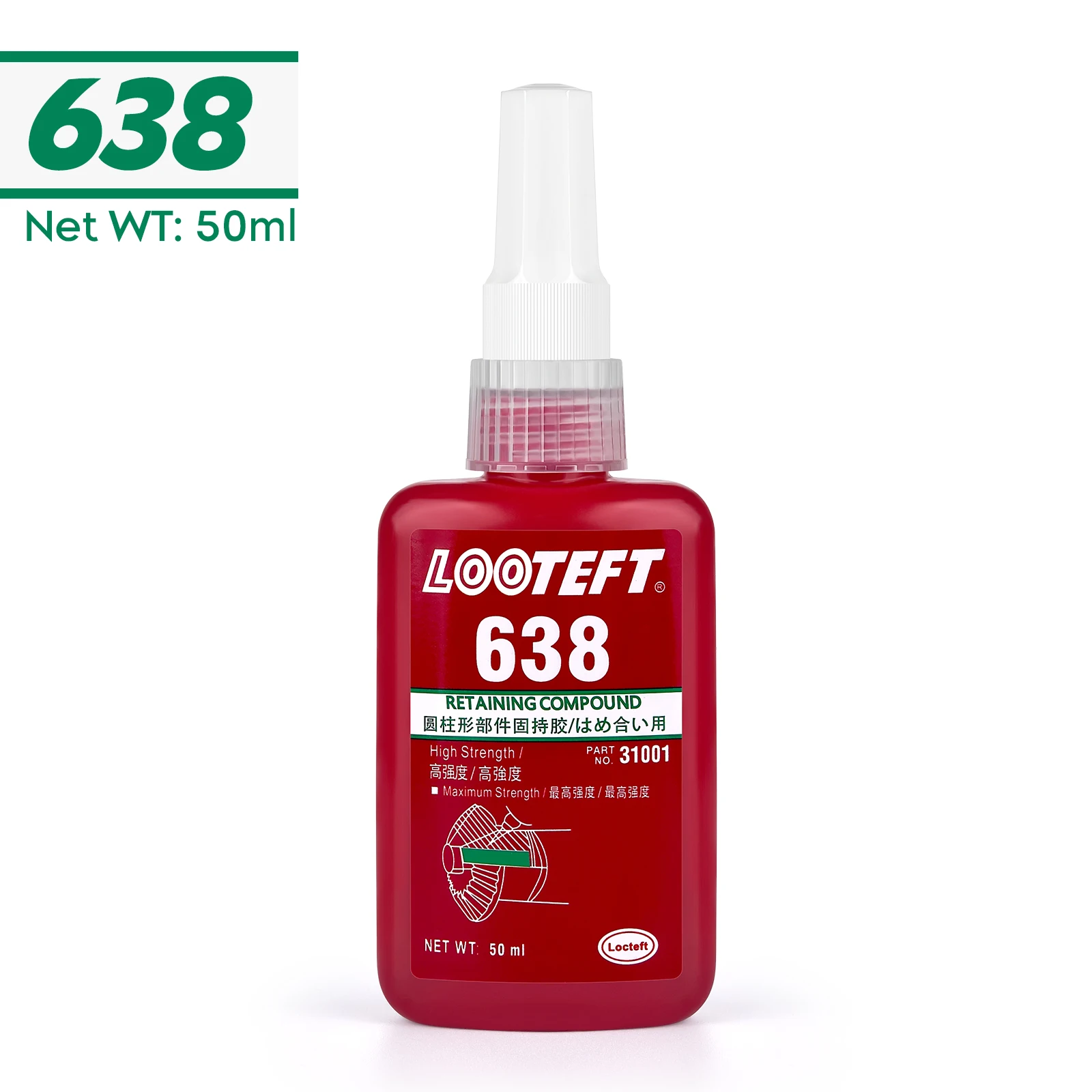

Model: 638 Cylindrical Component Retaining Adhesive
Specification: 50ml
Special effect: High strength, fast curing
Viscosity: 2000-3000
Curing time: 5 minutes/24 hours
Shear strength: 3625 (psi)
Temperature range: -54/150 ℃
Relative density: 1.09
Maximum filling gap: 0.381mm
Explanation: The strong retaining adhesive for dynamic or cyclic loading, for holding shaft-hole fits with a clearance of up to 0.381 mm. Initial curing in 5 minutes.
