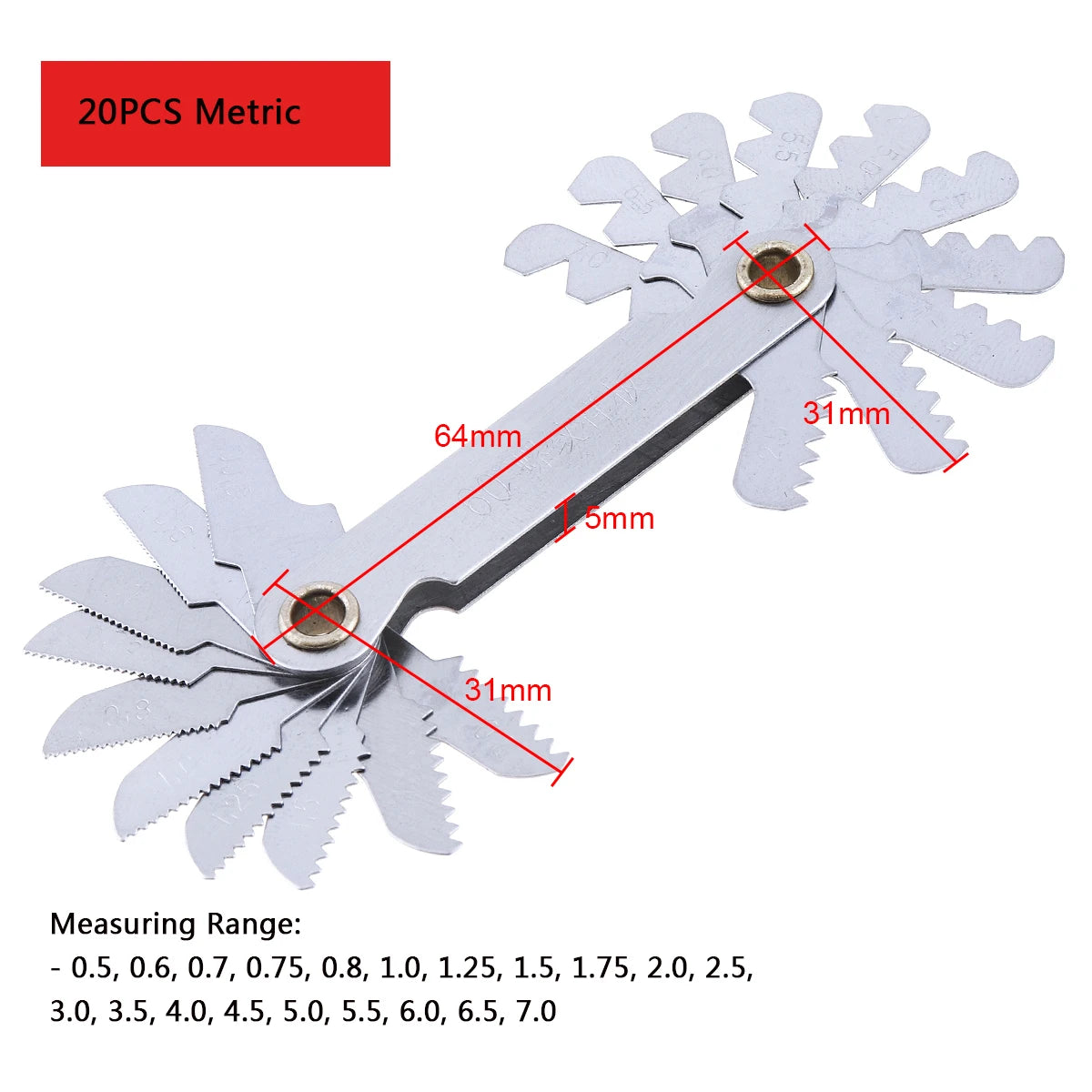

• 20PCS Metric


Blade Quantity: 20 pcs

Standards: Metric

Blade Thickness: 5mm

Measuring Range:

- 0.5, 0.6, 0.7, 0.75, 0.8, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0

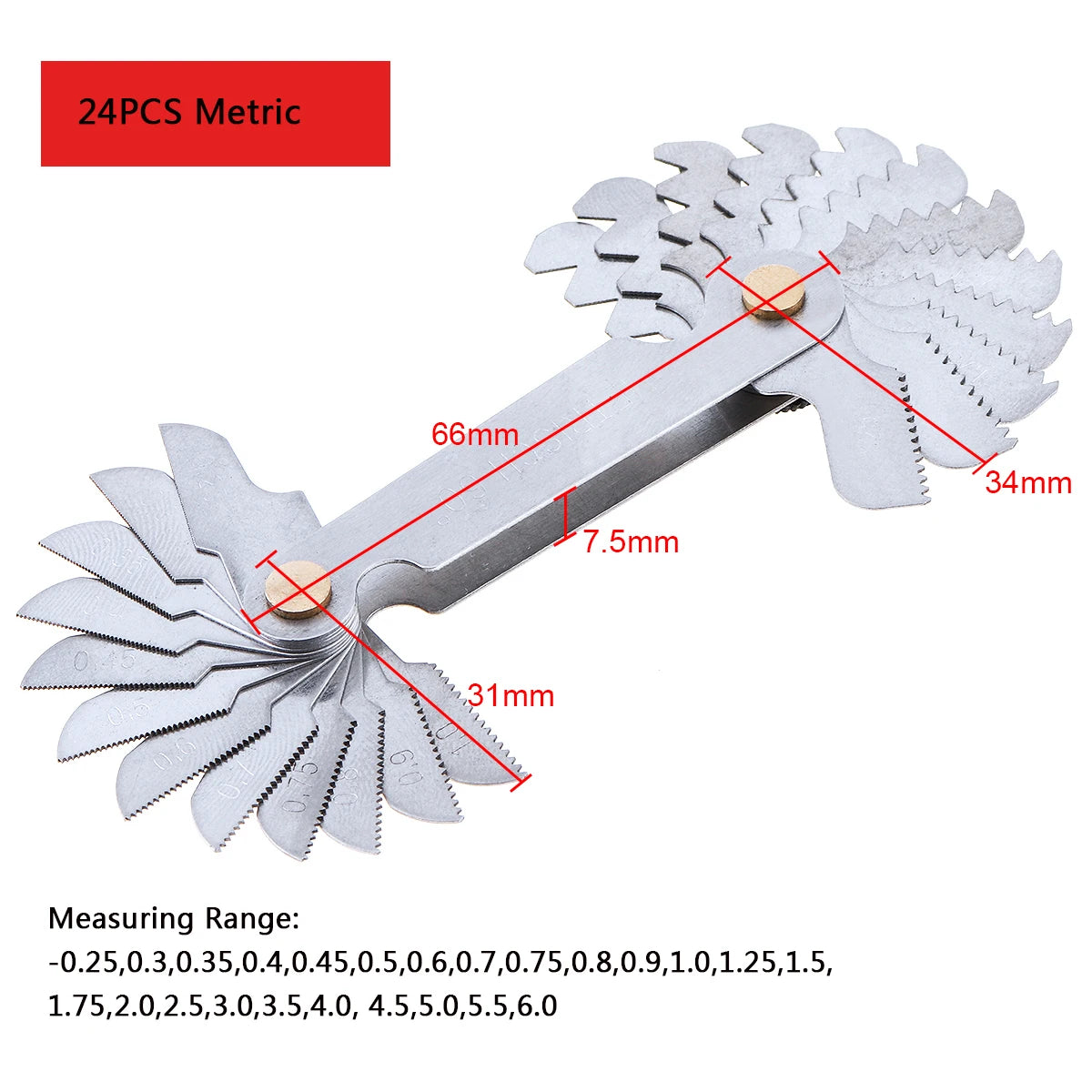

• 24PCS Metric


  Material: Stainless Steel

  Blade Quantity: 24 pcs

  Standards: Metric

  Blade Thickness: About 7.5mm

  Measuring Range:

  -0.25,0.3,0.35,0.4,0.45,0.5,0.6,0.7,0.75,0.8,0.9,1.0,1.25,1.5,1.75,2.0,2.5,3.0,3.5,4.0, 4.5,5.0,5.5,6.0

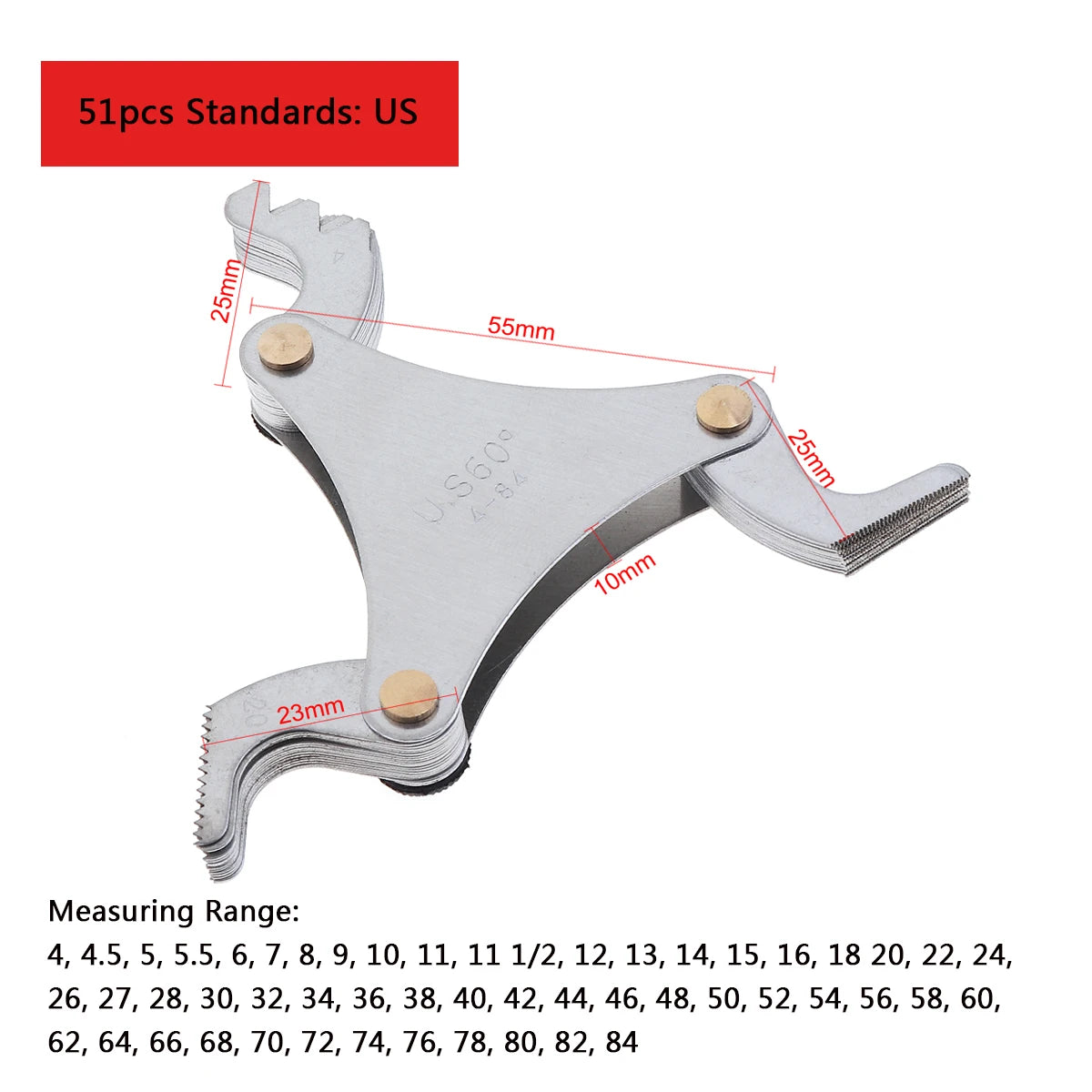

• 51PCS Standards: US


  Parameter Information:

  Material: Stainless Steel

  Blade Quantity: 51 pcs

  Standards: US

  Blade Thickness: 0.5cm

  Measuring Range: 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 84

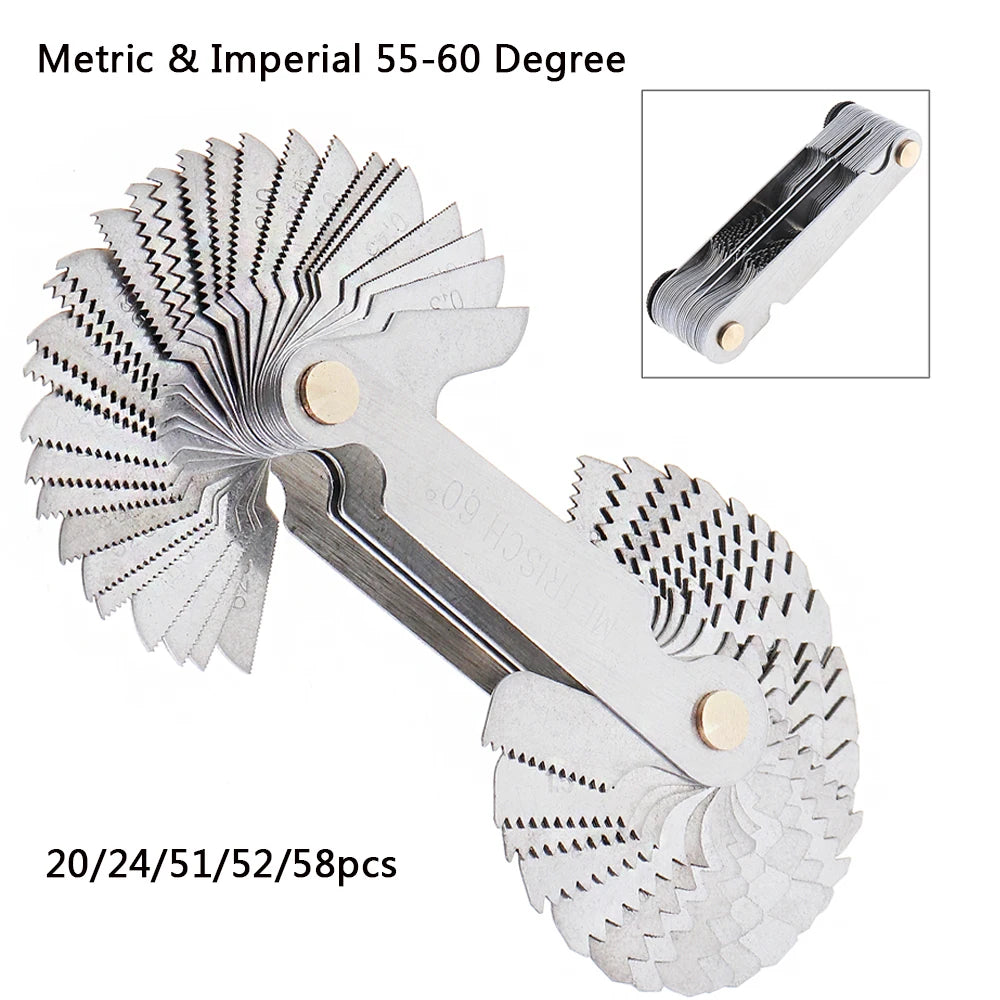

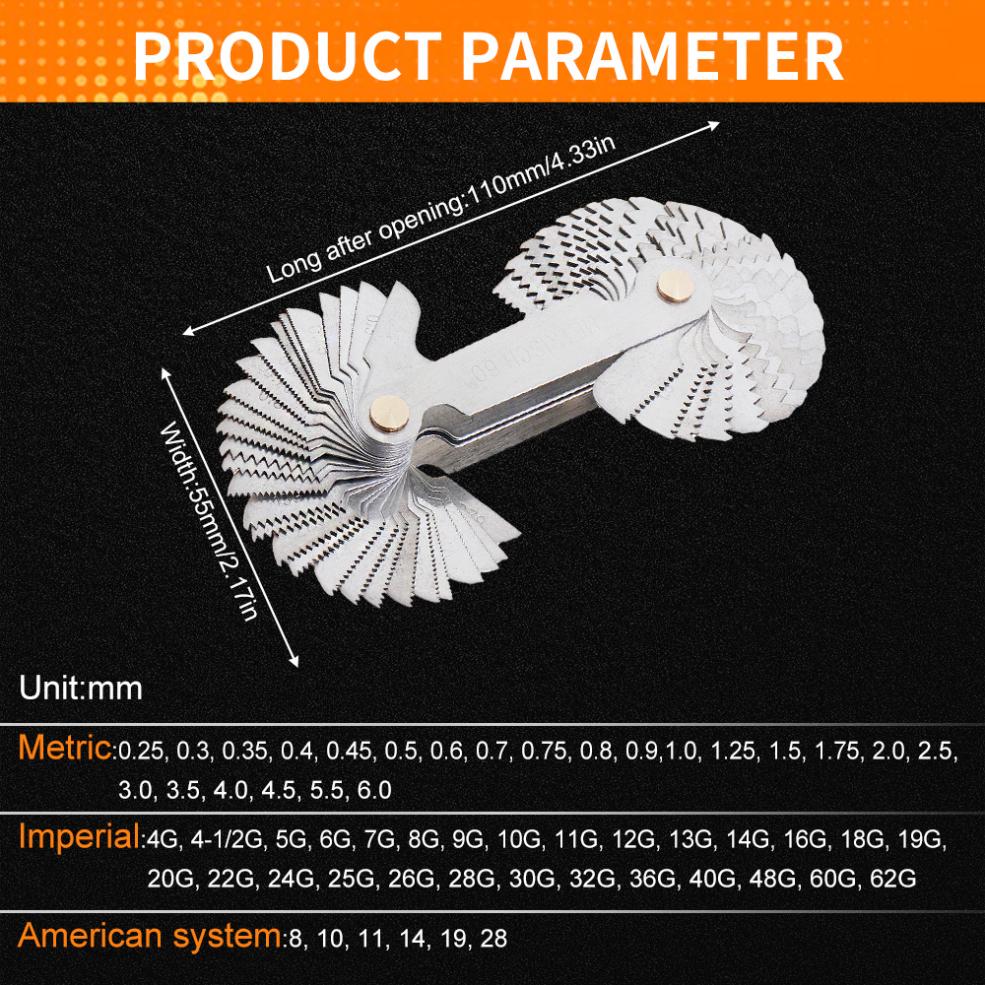

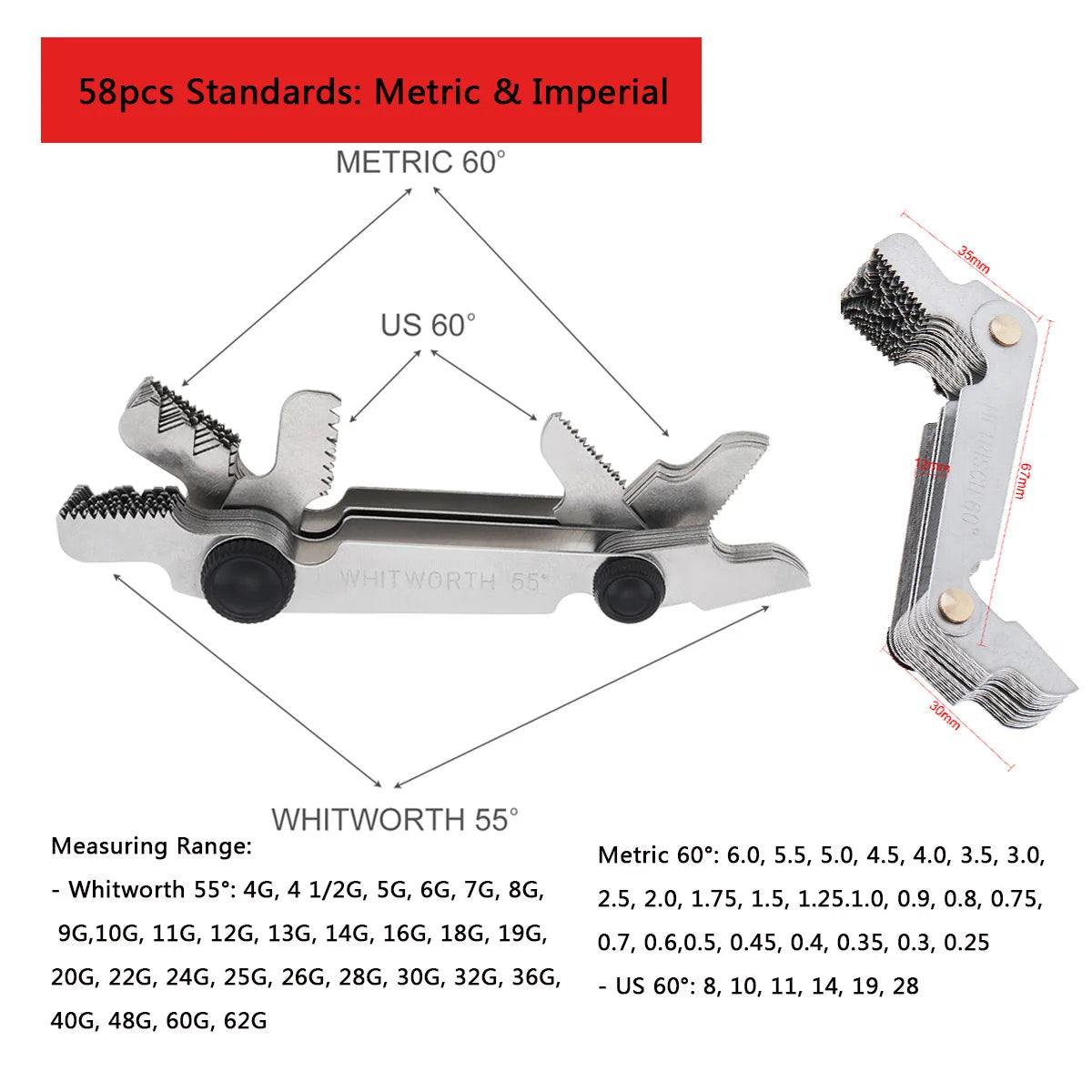

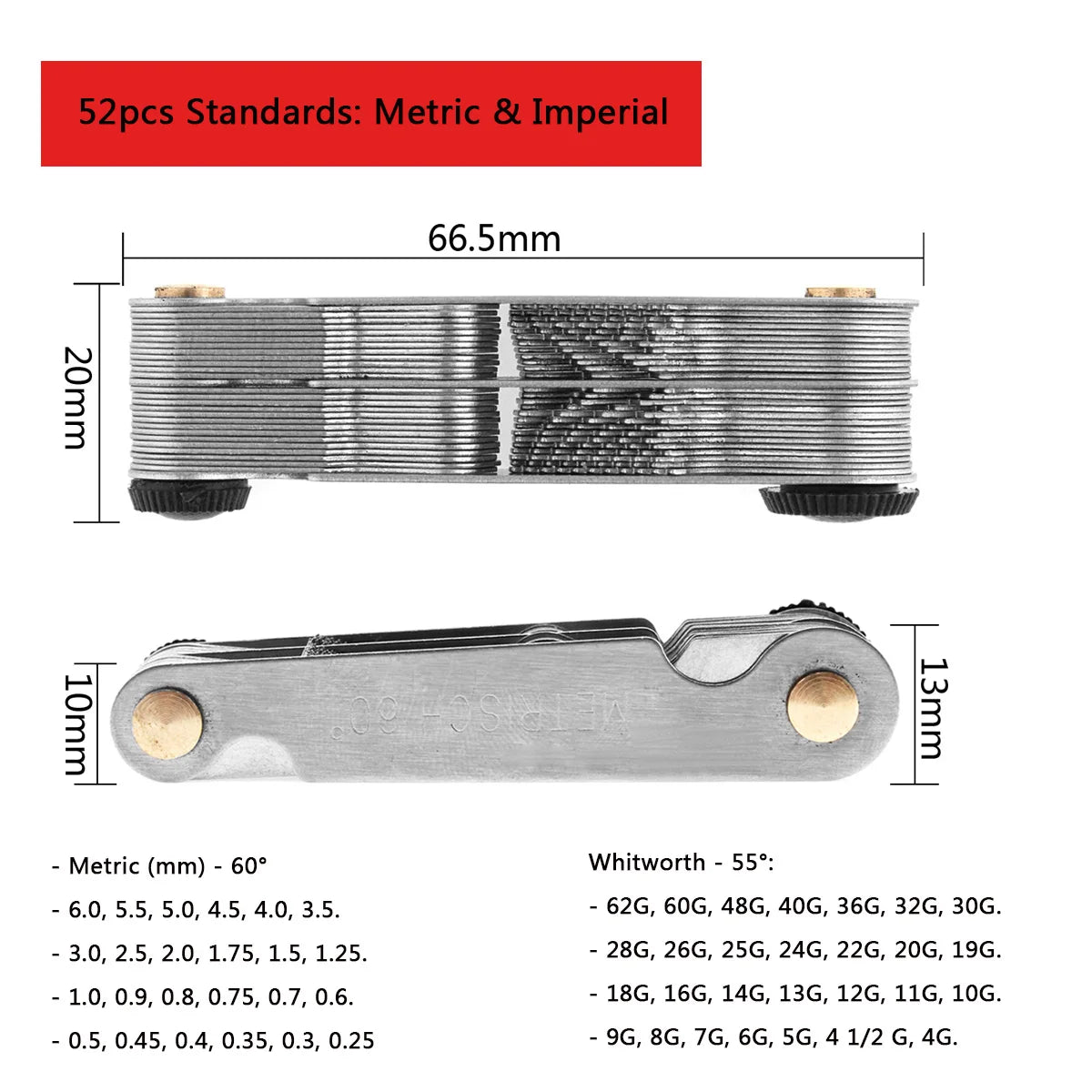

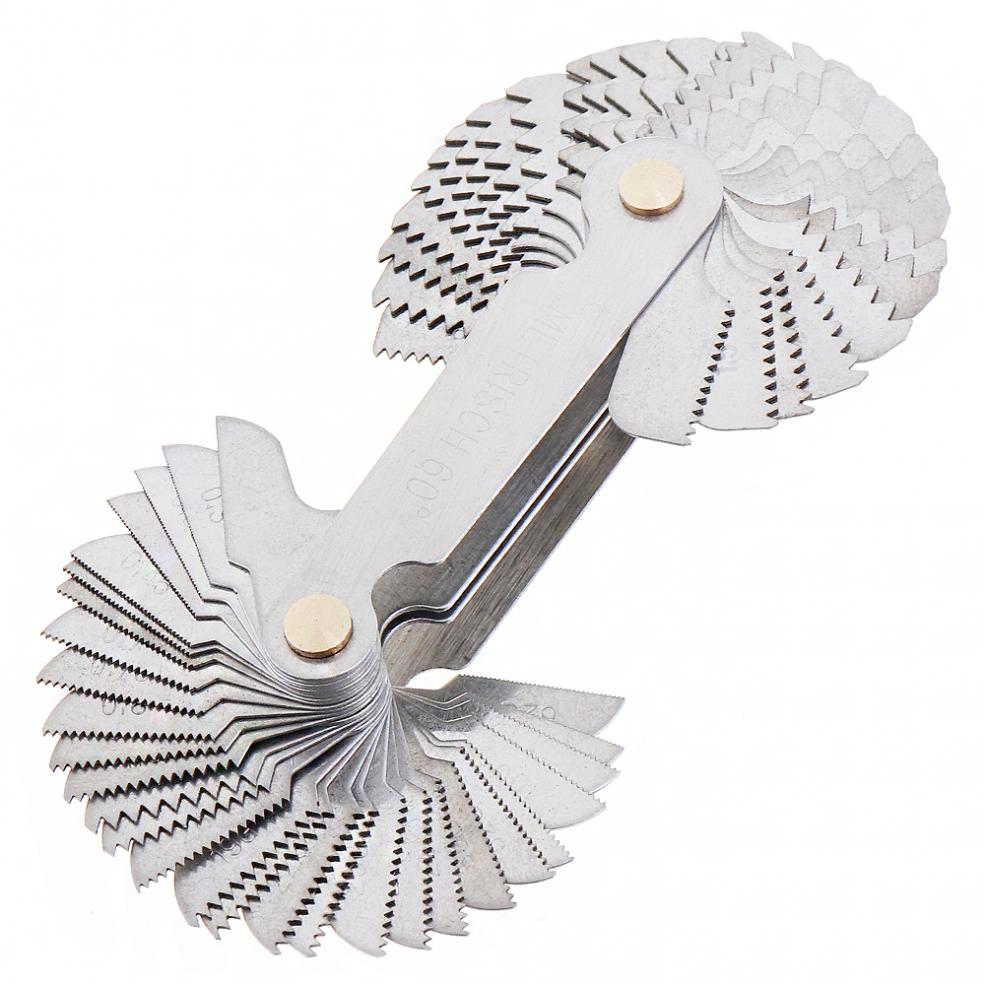

• 58PCS Metric & Imperial


  Parameter Information:

  Material: Stainless Steel

  Blade Quantity: 52 pcs

  Standards: Metric & Imperial




  Size:

  - Metric (mm) - 60°

  - 6.0, 5.5, 5.0, 4.5, 4.0, 3.5.

  - 3.0, 2.5, 2.0, 1.75, 1.5, 1.25.

  - 1.0, 0.9, 0.8, 0.75, 0.7, 0.6.

  - 0.5, 0.45, 0.4, 0.35, 0.3, 0.25.

  - Whitworth - 55°:

  - 62G, 60G, 48G, 40G, 36G, 32G, 30G.

  - 28G, 26G, 25G, 24G, 22G, 20G, 19G.

  - 18G, 16G, 14G, 13G, 12G, 11G, 10G.

  - 9G, 8G, 7G, 6G, 5G, 4 1/2 G, 4G.

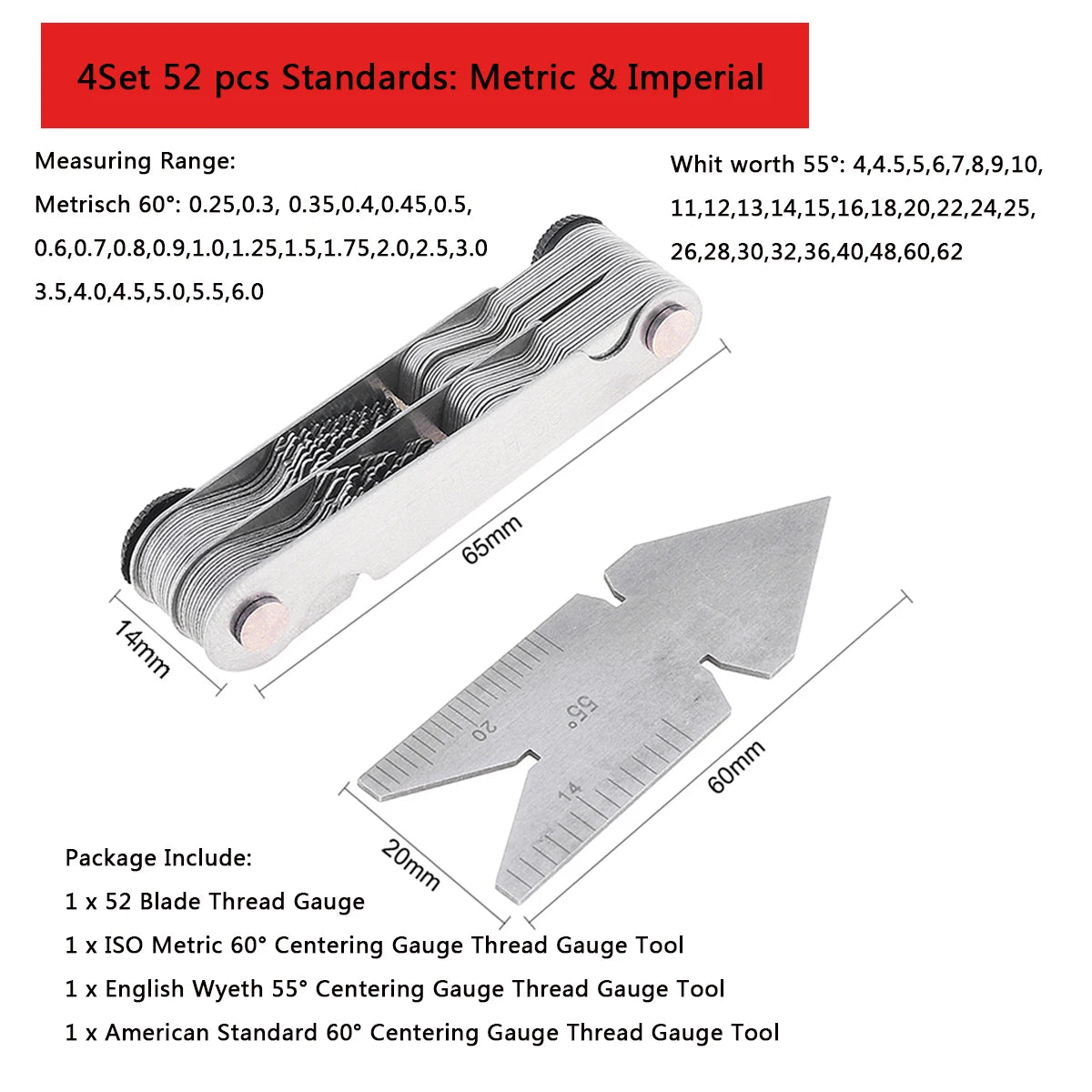

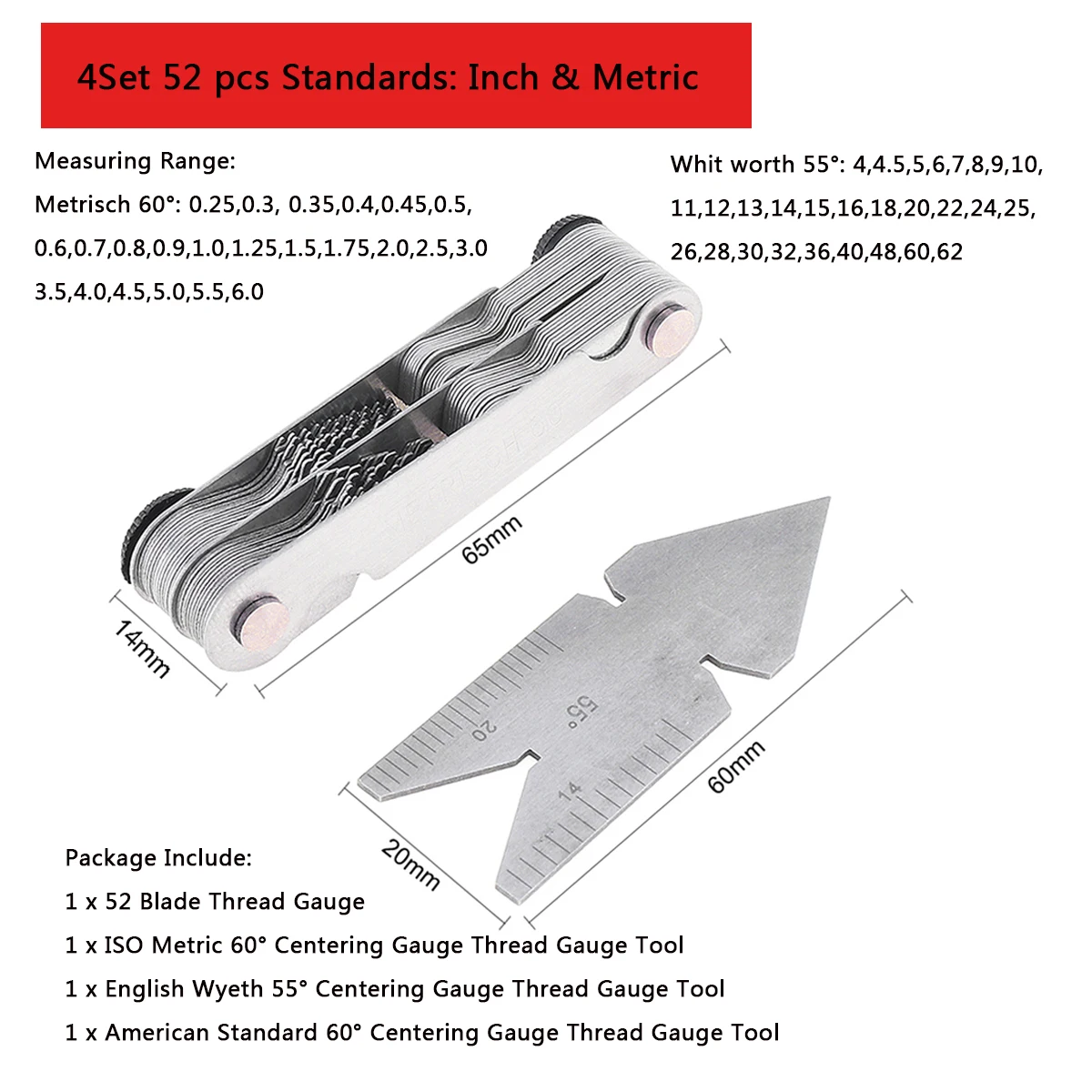

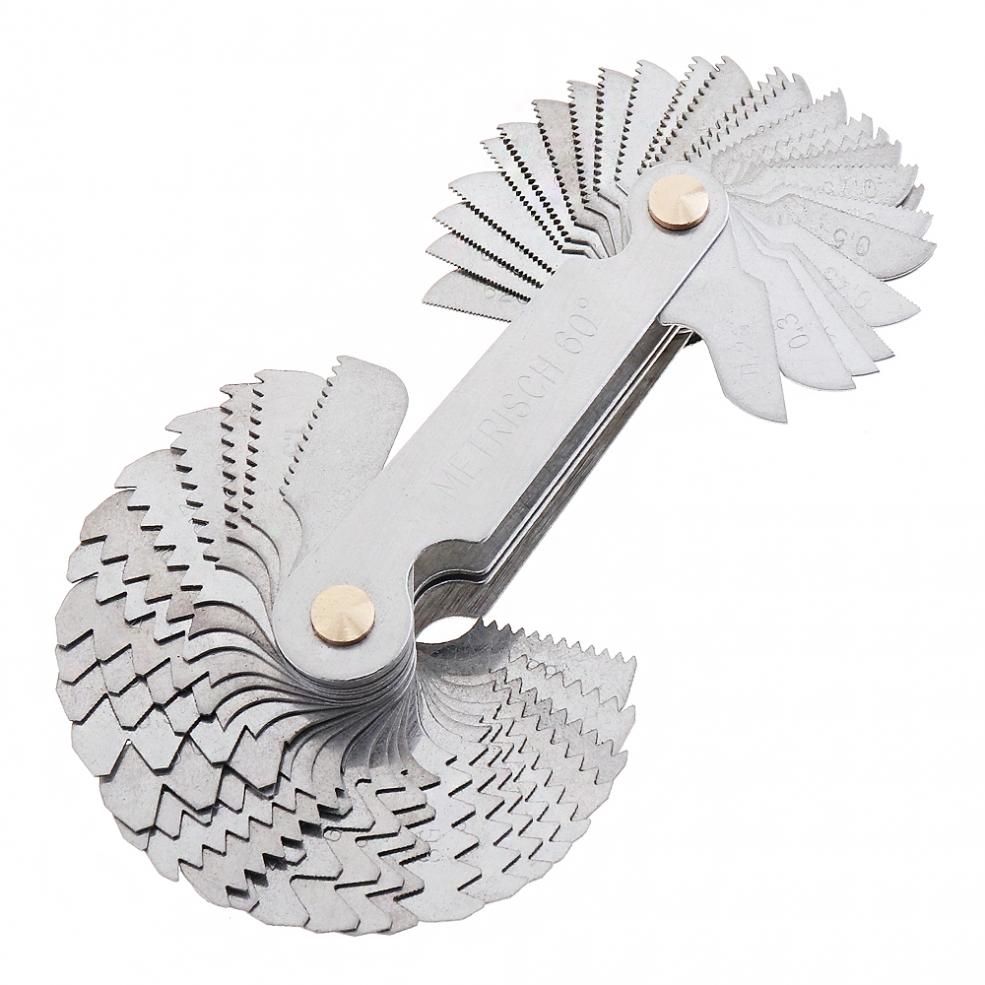

• 4Set Inch & Metric


  Parameter Information:

  Material: Stainless Steel 430

  Blade Quantity: 52 pcs

  Standards: Inch & Metric

  Accuracy: 0.01

  Measuring range:

  Metrisch 60°: 0.25,0.3, 0.35,0.4,0.45,0.5,0.6,0.7,0.8,0.9,1.0,1.25,1.5,1.75,2.0,2.5,3.0,3.5,4.0,4.5,5.0,5.5,6.0

  Whit worth 55°: 4,4.5,5,6,7,8,9,10,11,12,13,14,15,16,18,20,22,24,25,26,28,30,32,36,40,48,60,62

  Package Include:

  1 x 52 Blade Thread Gauge

  1 x ISO Metric 60° Centering Gauge Thread Gauge Tool

  1 x English Wyeth 55° Centering Gauge Thread Gauge Tool

  1 x American Standard 60° Centering Gauge Thread Gauge Tool

•


• Place of Application: Industrial Measurement

• Note:
  - Wipe the measuring surface of the feeler gauge with a clean cloth, and do not measure when the feeler gauge is dirty or metal septum, otherwise the accuracy of the measurement result will be affected.
  - Insert the feeler gauge into the measured space, pull the feeler gauge back and forth, and feel resistance, indicating that the source value of the room is close to the value marked on the feeler gauge. If the resistance is too large or too small, it means that the clearance value is less than or greater than.
  - Marked on the feeler gauge. When measuring and adjusting the clearance, first select the feeler gauge that meets the clearance requirements and insert it into the measured gap, and then adjust and pull the feeler gauge at the same time, When you feel a little resistance, tighten the lock nut, and the value marked by the feeler gauge is the clearance value.

• Product Weight: 68 G / 2.40 Ounces

• Product Dimensions (L*W*H): 70*40*15 MM / 2.76*1.57*0.59 Inches

• Package Weight: 70.0 G / 2.47 Ounces

• Package Dimensions (L*W*H): 90*60*18 MM / 3.54*2.36*0.71 Inches

• Retail Packaging: Yes, General Box

• Package Including:


• 1 x Screw Gauge Set
