55/60 Degree Thread Plug Gauge Metric Imperial Gear Tooth Screw Pitch Gauges Carbon Steel Measuring Tool Tap Thread Measurement
55/60 Degree Thread Plug Gauge Metric Imperial Gear Tooth Screw Pitch Gauges Carbon Steel Measuring Tool Tap Thread Measurement
SPECIFICATIONS
Brand Name: NONE
Certification: CE
Choice: yes
DIY Supplies: Woodworking
High-concerned chemical: None
Origin: Mainland China
Place of Application: Industrial Measurement

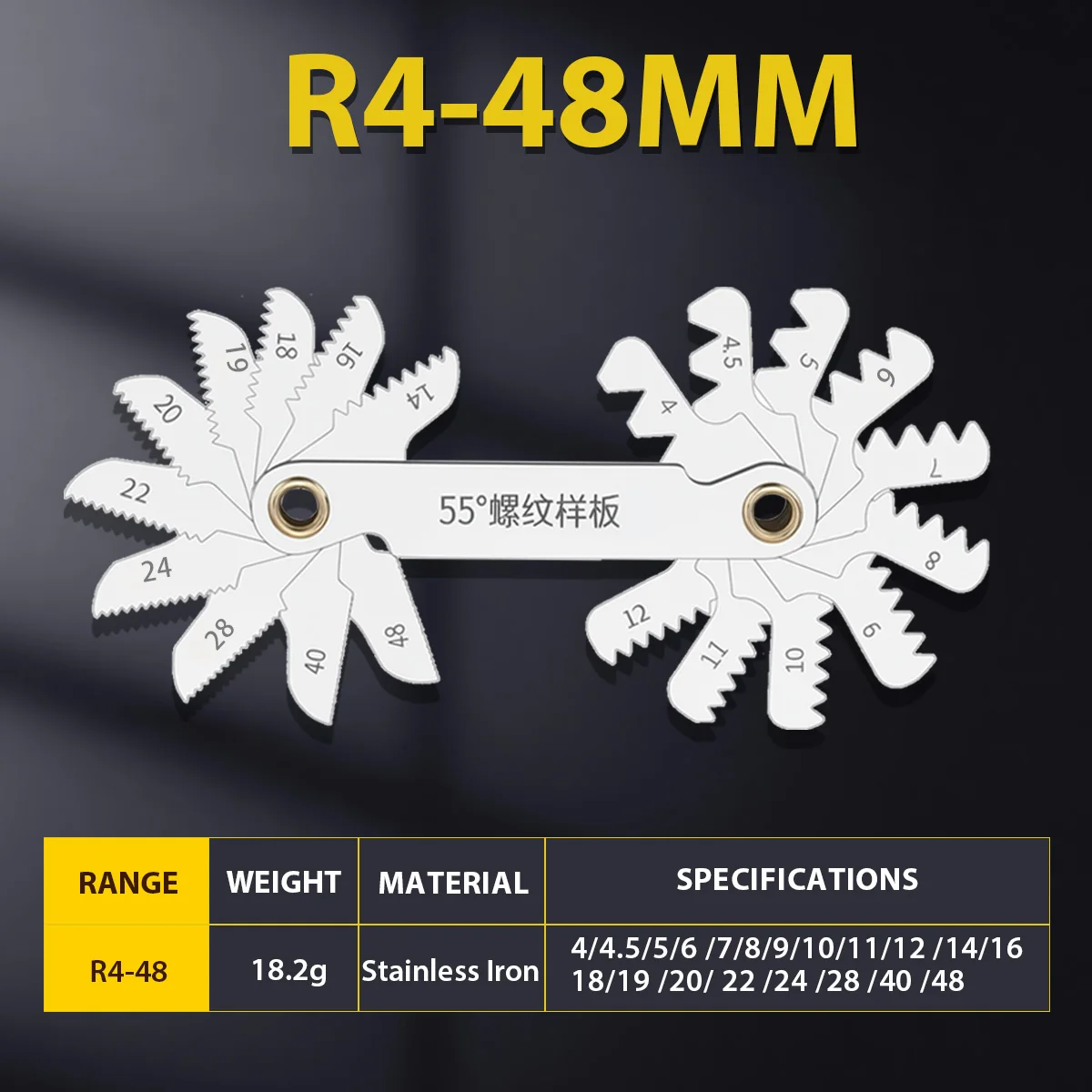

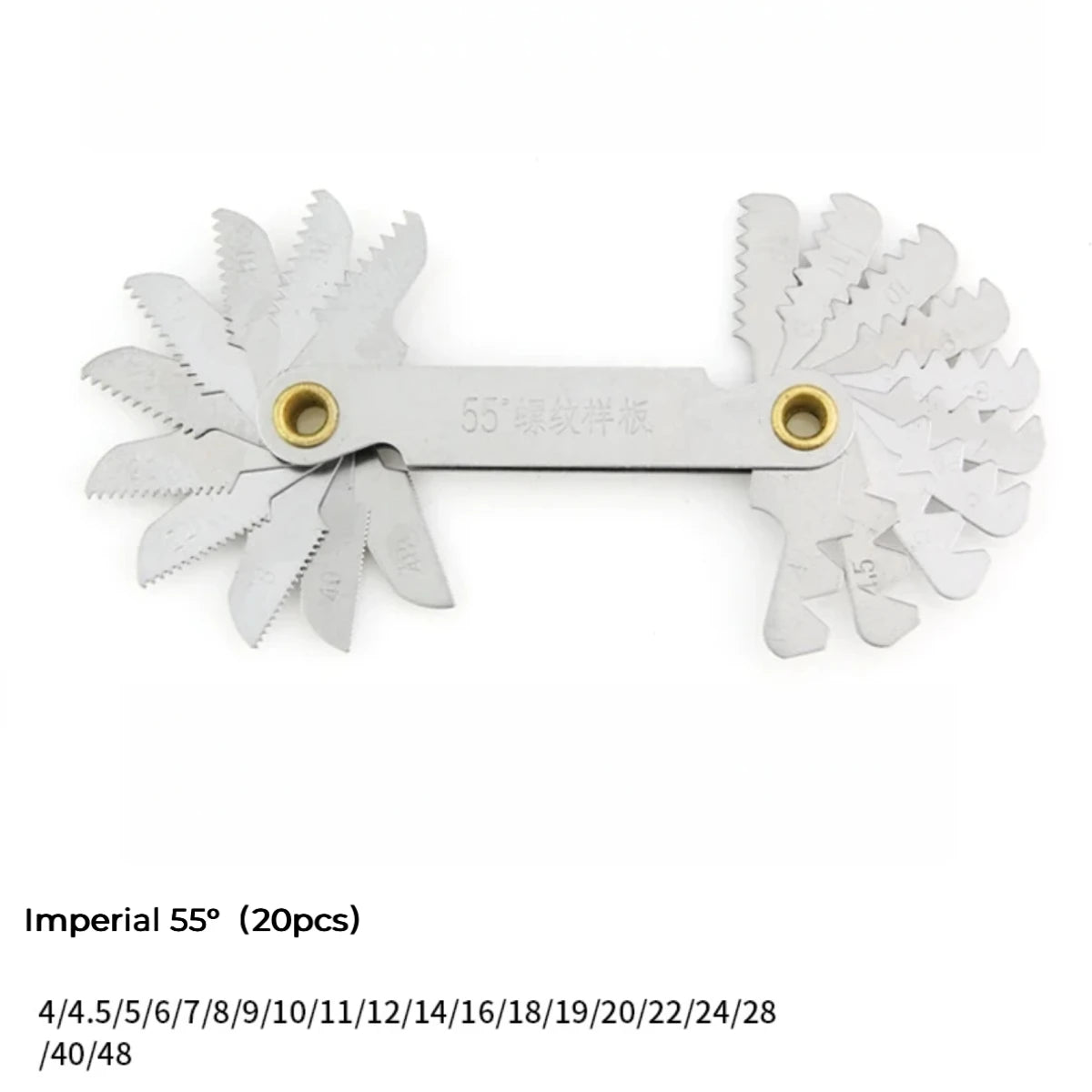

20pcs Imperial 55°
Blade Quantity: 20 pcs
Standards: Imperial
Measuring Range:
4/4.5/5/6/7/8/9/10/11/12/14/16/18/19/20/22/24/28/40/48

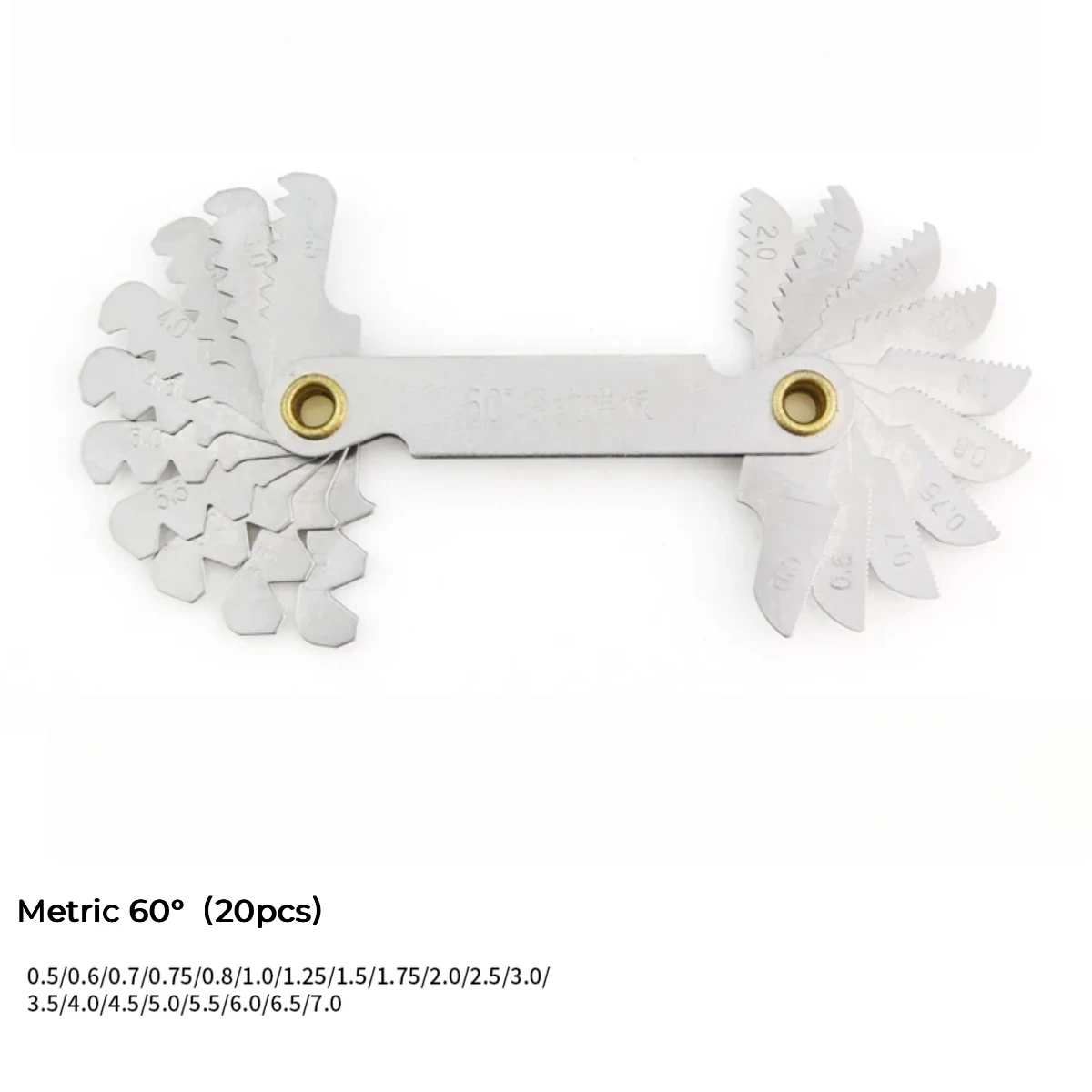

20pcs Metric 60°
Blade Quantity: 20 pcs
Standards: Metric
Measuring Range:
0.5/0.6/0.7/0.75/0.8/1.0/1.25/1.5/1.75/2.0/2.5/3.0/3.5/4.0/4.5/5.0/5.5/6.0/6.5/7.0

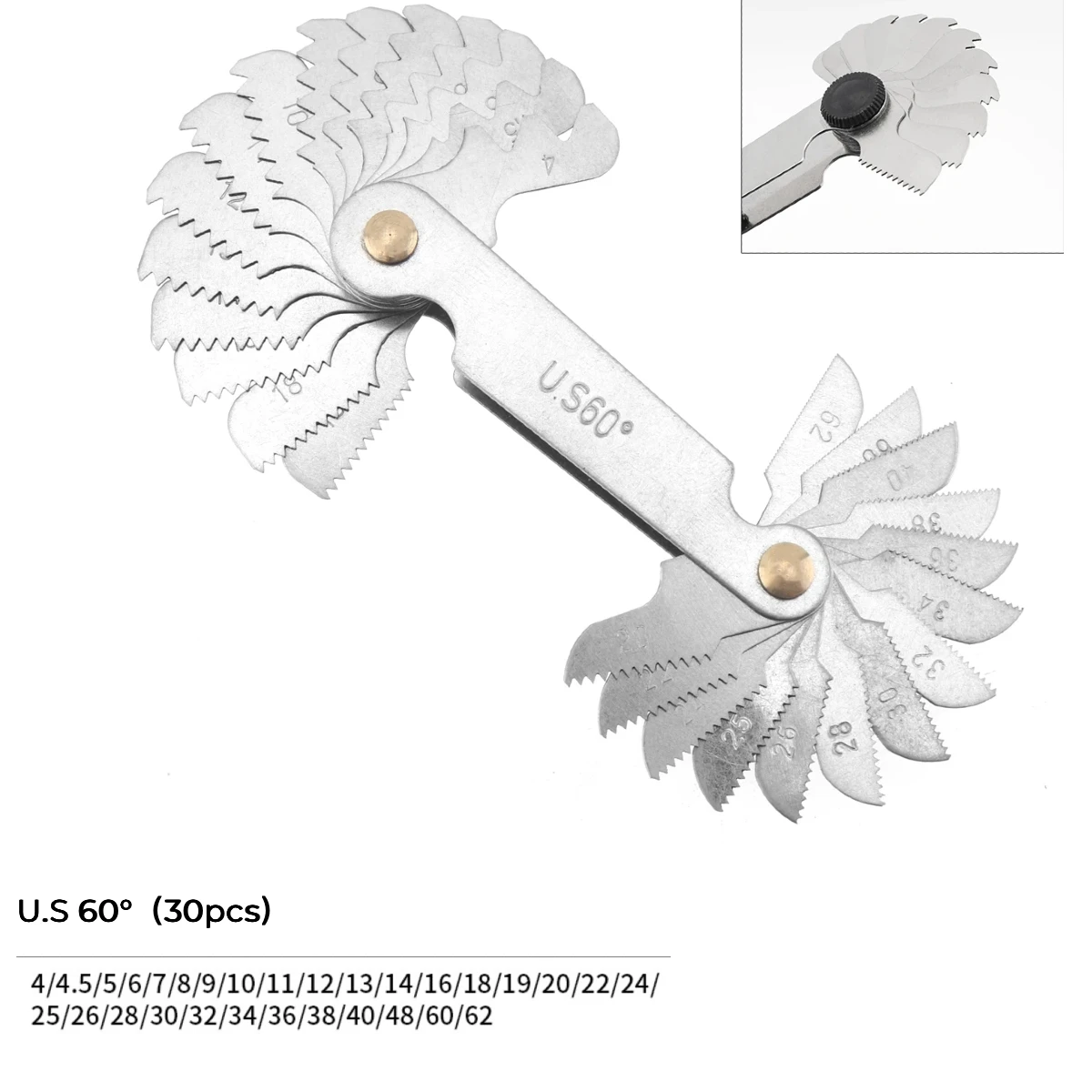

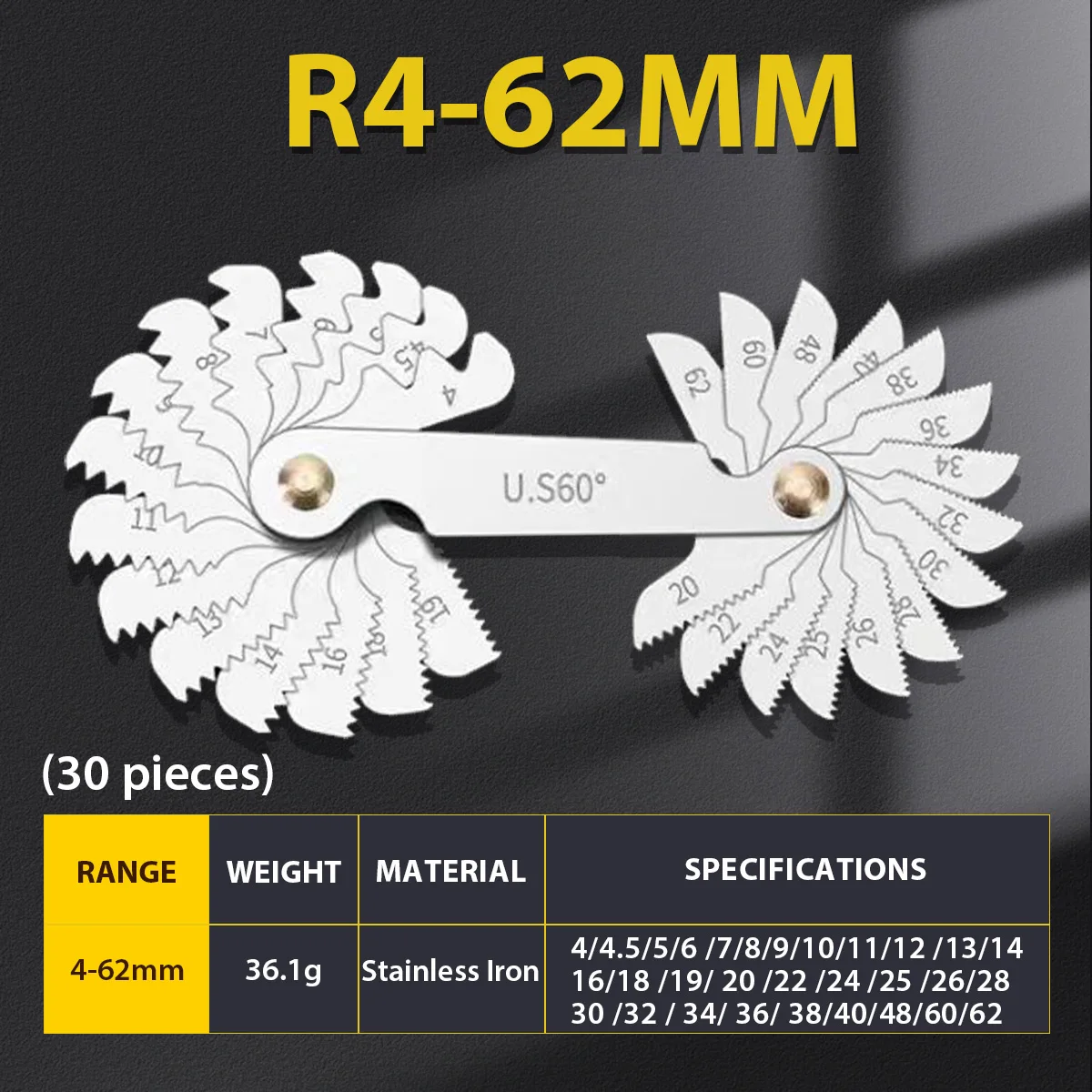

30pcs American 60°
Blade Quantity: 30 pcs
Standards: American
Measuring Range:
4/4.5/5/6/7/8/9/10/11/12/13/14/16/18/19/20/22/24/25/26/28/30/32/34/36/38/40/48/60/62

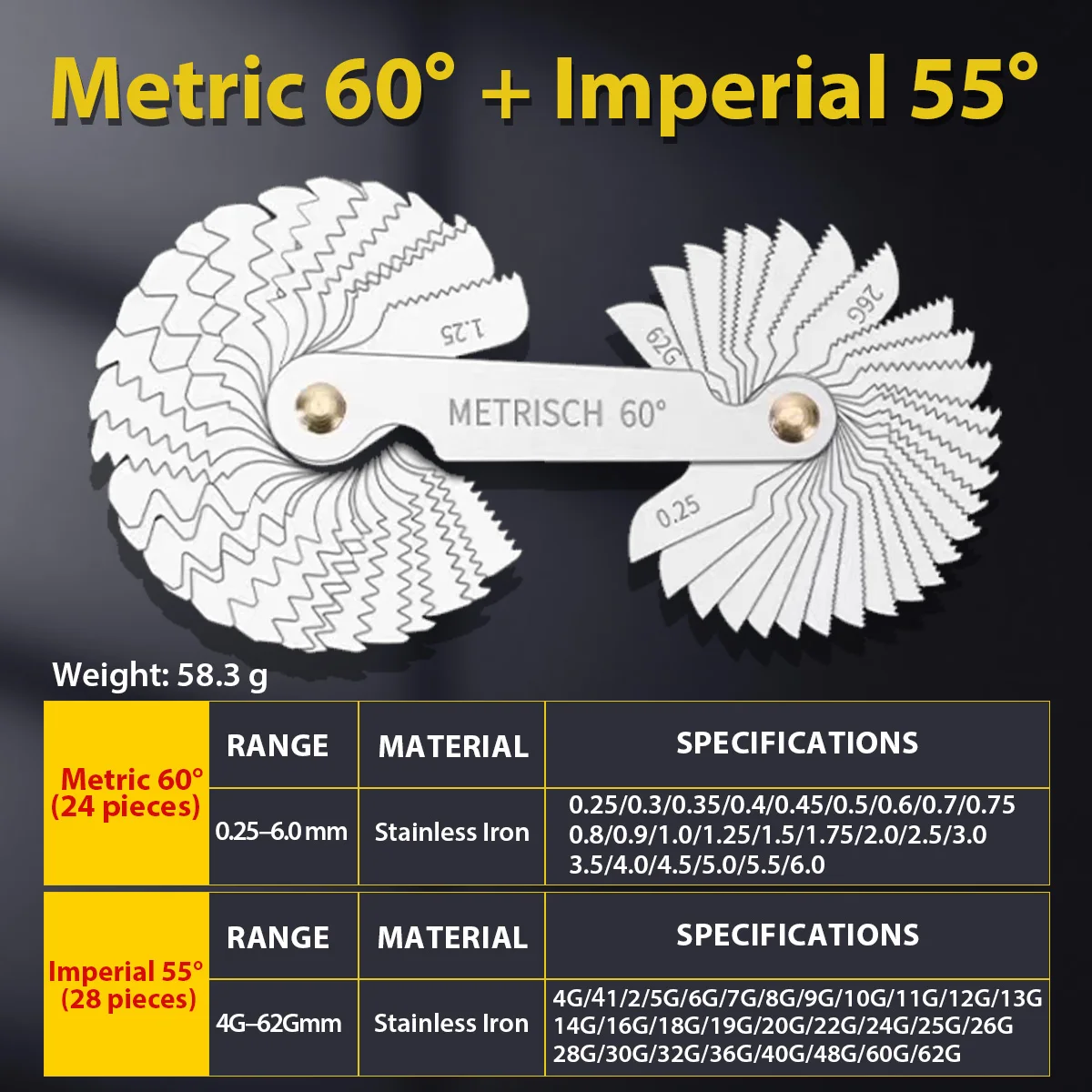

52pcs Metric 60°+Imperial 55°
Blade Quantity: 30 pcs
Standards: Metric +Imperial
Measuring Range:
Metric 60°:
0.25/0.3/0.35/0.4/0.45/0.5/0.6/0.7/0.75/0.8/0.9/1.0/1.25/1.5/1.75/2.0/2.5/3.0/3.5/4.0/4.5/5.0/5.5/6.0
Imperial 55°:
4G/4½G/5G/6G/7G/8G/9G/10G/11G/12G/13G/14G/16G/18G/19G/20G/22G/24G/25G/26G/28G/30G/32G/36G/40G/48G/60G/62G

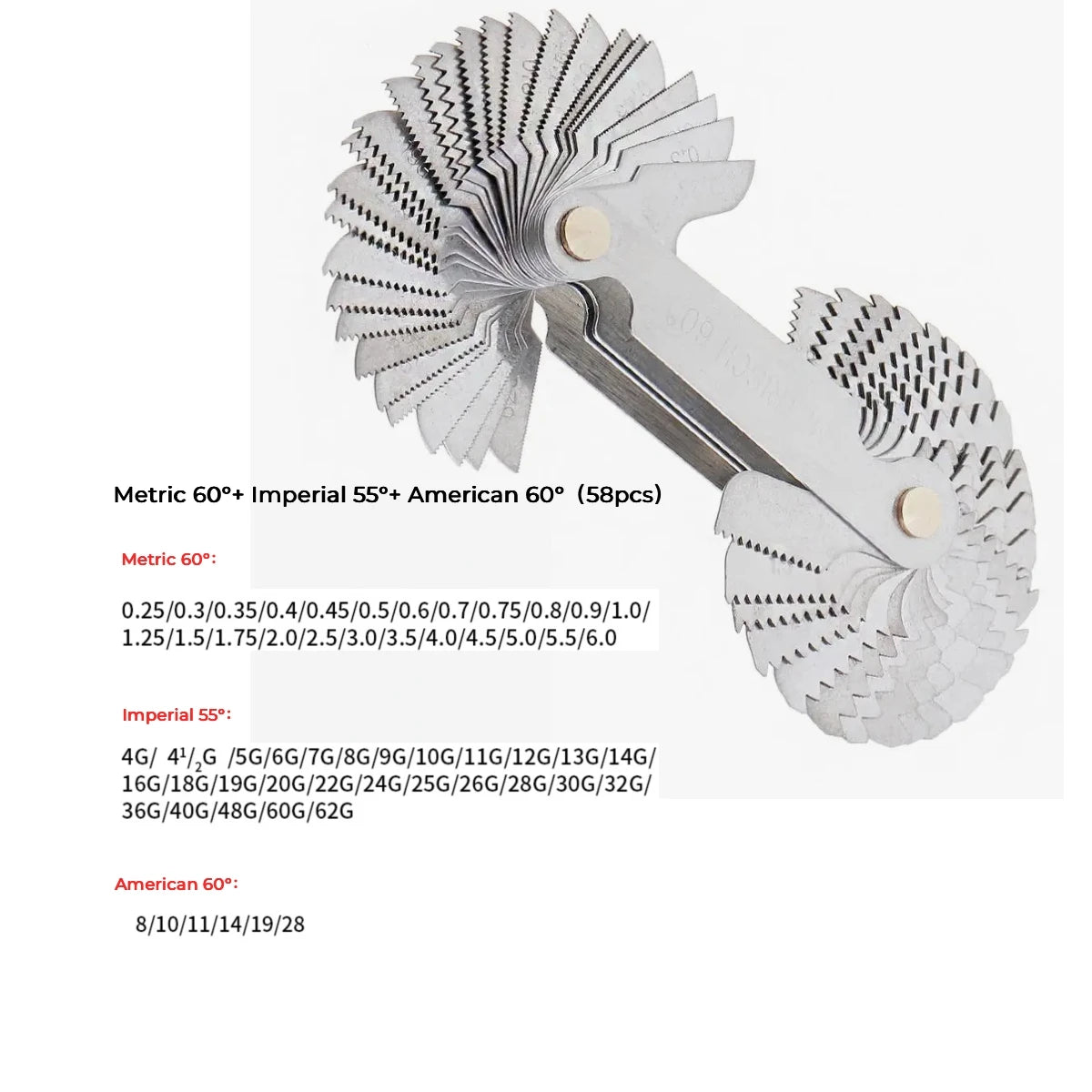

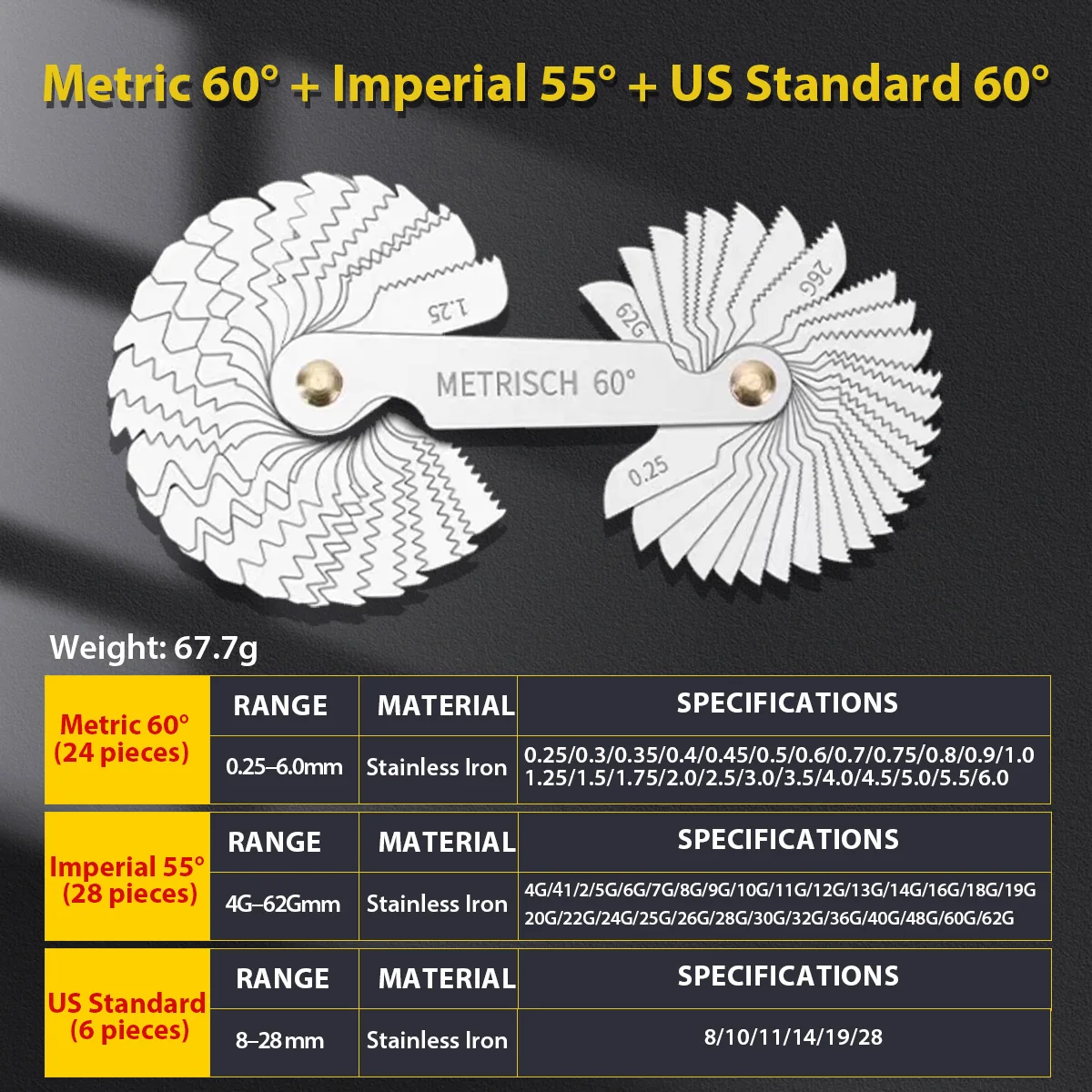

58pcs Metric 60°+Imperial 55°+American 60°
Blade Quantity: 58 pcs
Standards: Metric+Imperial+American
Measuring Range:
Metric 60°:
0.25/0.3/0.35/0.4/0.45/0.5/0.6/0.7/0.75/0.8/0.9/1.0/1.25/1.5/1.75/2.0/2.5/3.0/3.5/4.0/4.5/5.0/5.5/6.0
Imperial 55°:
4G/4½G/5G/6G/7G/8G/9G/10G/11G/12G/13G/14G/16G/18G/19G/20G/22G/24G/25G/26G/28G/30G/32G/36G/40G/48G/60G/62G
American 60°:
8/10/11/14/19/28
Note:
- Wipe the measuring surface of the feeler gauge with a clean cloth, and do not measure when the feeler gauge is dirty or metal septum, otherwise the accuracy of the measurement result will be affected.
- Insert the feeler gauge into the measured space, pull the feeler gauge back and forth, and feel resistance, indicating that the source value of the room is close to the value marked on the feeler gauge. If the resistance is too large or too small, it means that the clearance value is less than or greater than.
- Marked on the feeler gauge. When measuring and adjusting the clearance, first select the feeler gauge that meets the clearance requirements and insert it into the measured gap, and then adjust and pull the feeler gauge at the same time, When you feel a little resistance, tighten the lock nut, and the value marked by the feeler gauge is the clearance value.
Package Including:
1 x Screw Gauge Set
