SPECIFICATIONS

Brand Name: APWIKOGER

Certification: NONE

Choice: yes

DIY Supplies: Metalworking

High-concerned chemical: None

Model Number: Proportional

Origin: Mainland China

(A)--Proportional Divider

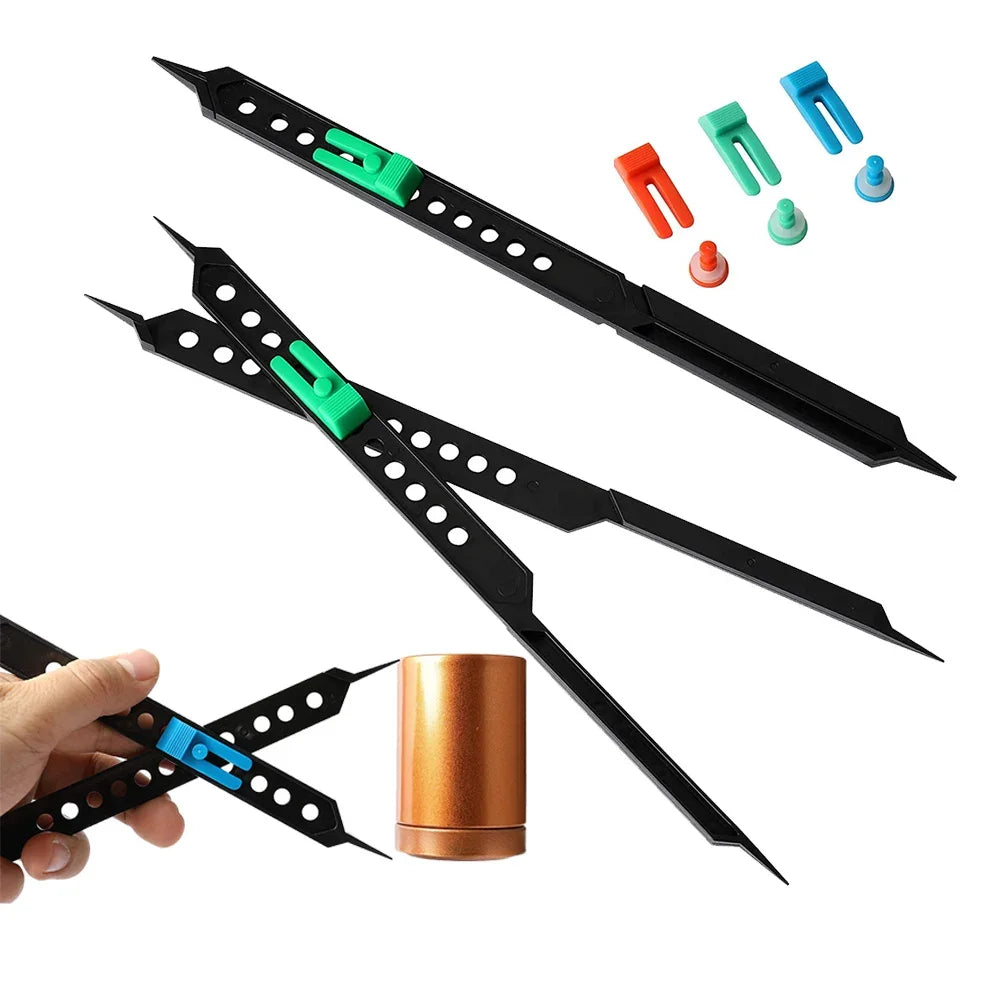

25.4cm Adjustable Plastic Proportional Scale Divider Drawing Tool for Artists Art Projector Drawing Ruler
Feature:
Using the scale divider, you can quickly complete a very realistic drawing.
Learn how to use it in just a few minutes and draw like a master. Easy to use.

Specification:
Material: Plastic
Size: Length 25.4cm

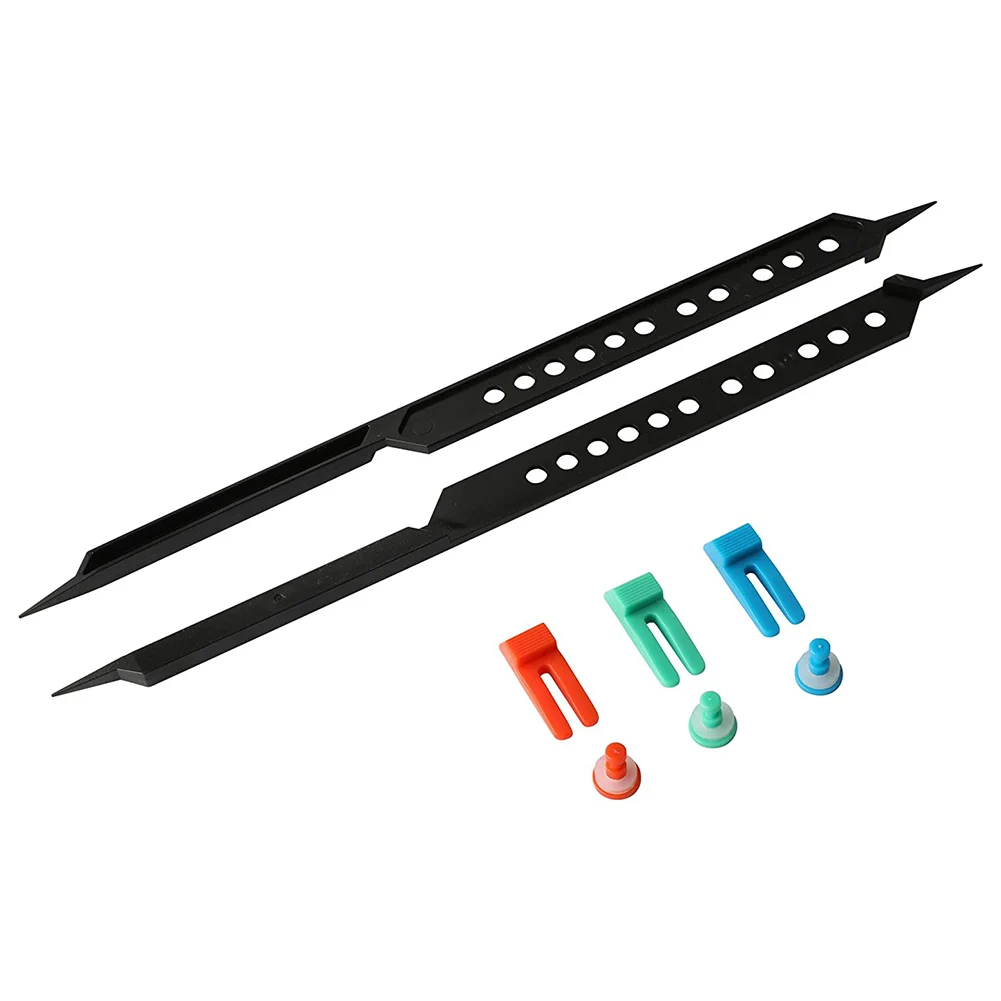

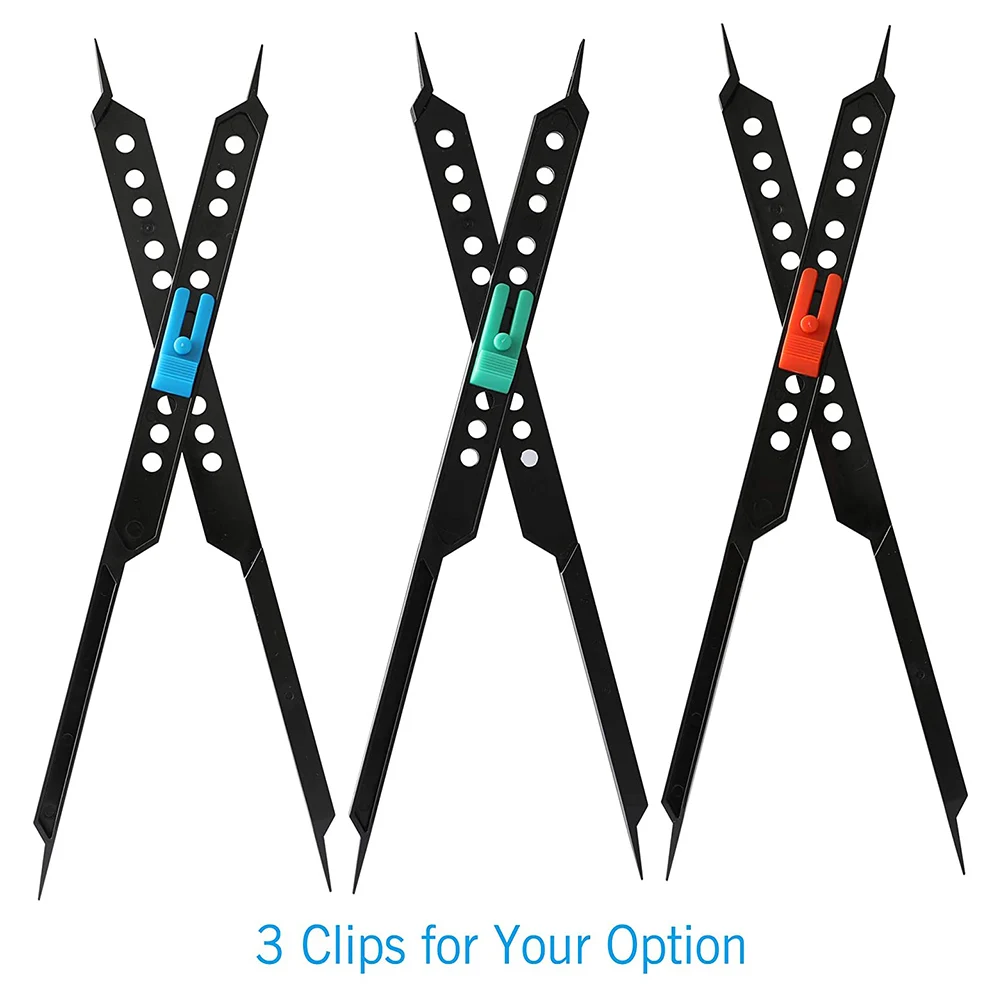

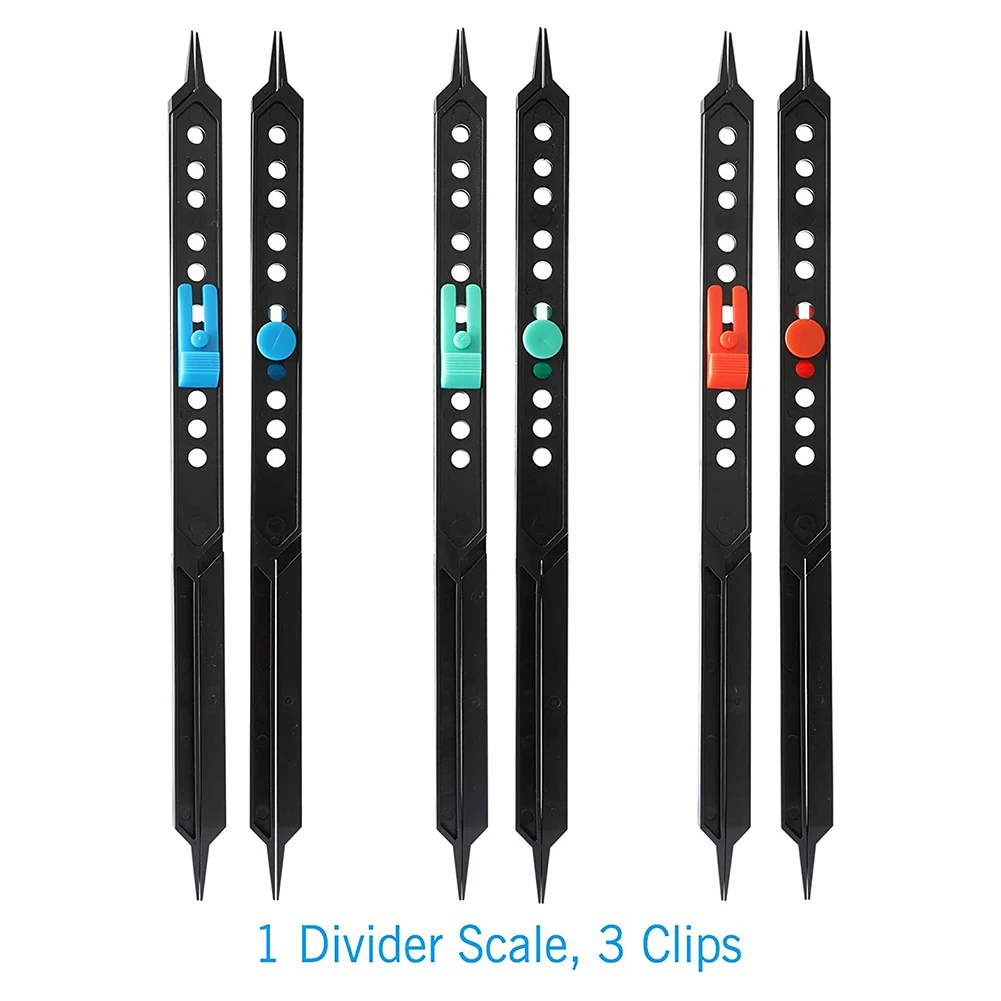

Accessories: 3pcs

Steps for usage:
Step 1:

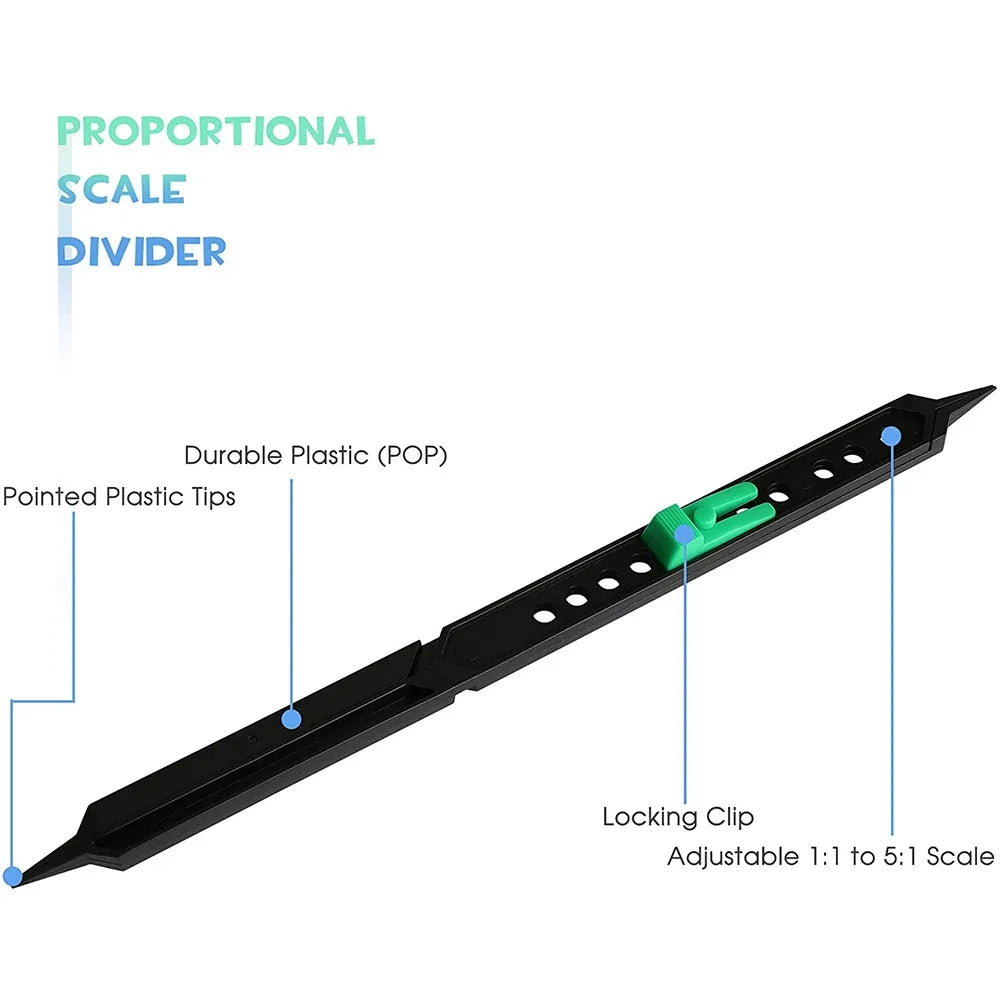

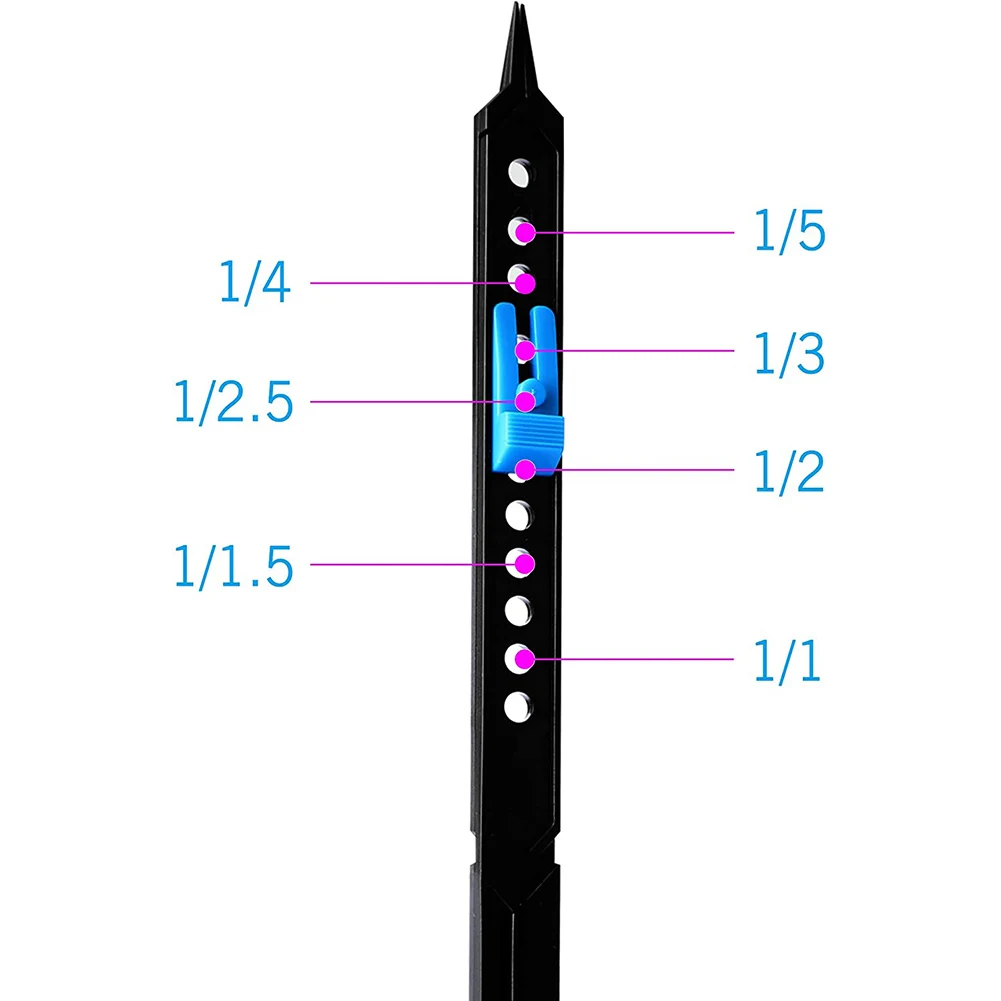

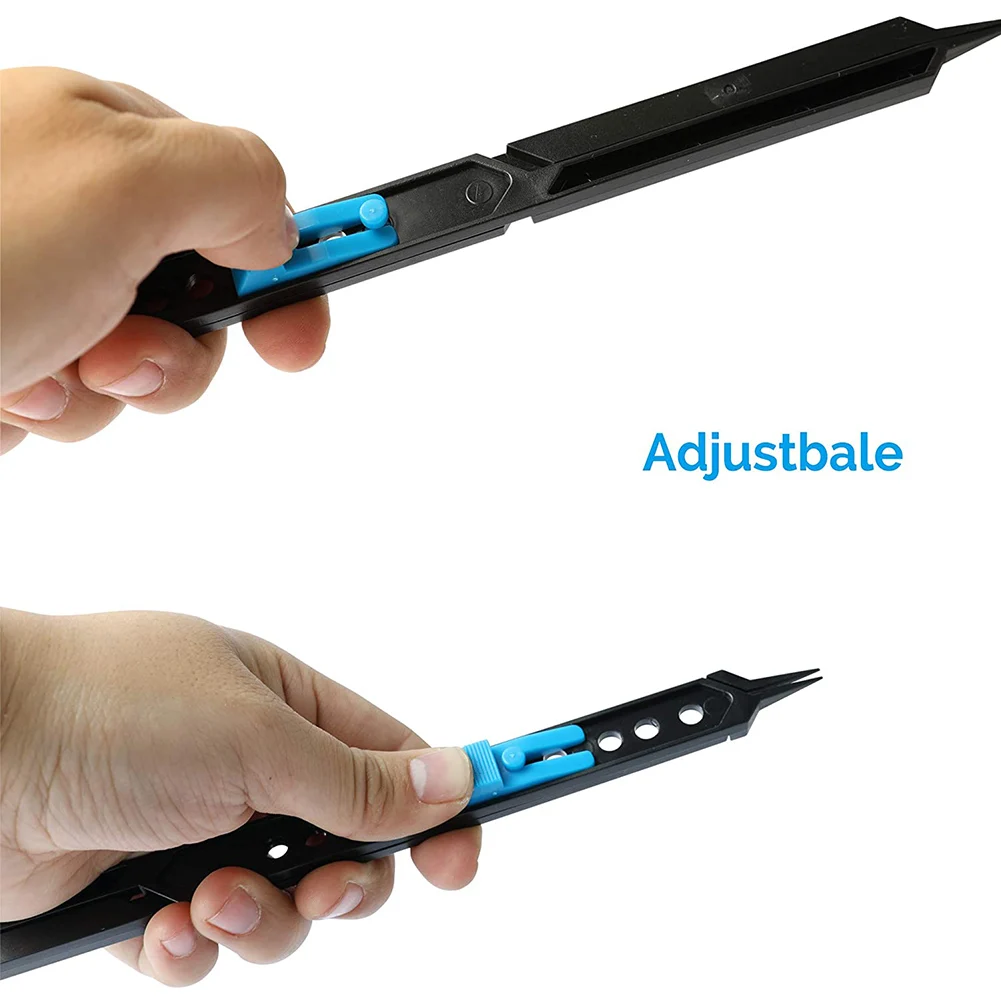

Slide the locking clip up and down to adjust the scale, and move the green label toward the middle of the divider to reduce the transfer size.
Move the green label toward one end to enlarge the transfer size.
Step 2:

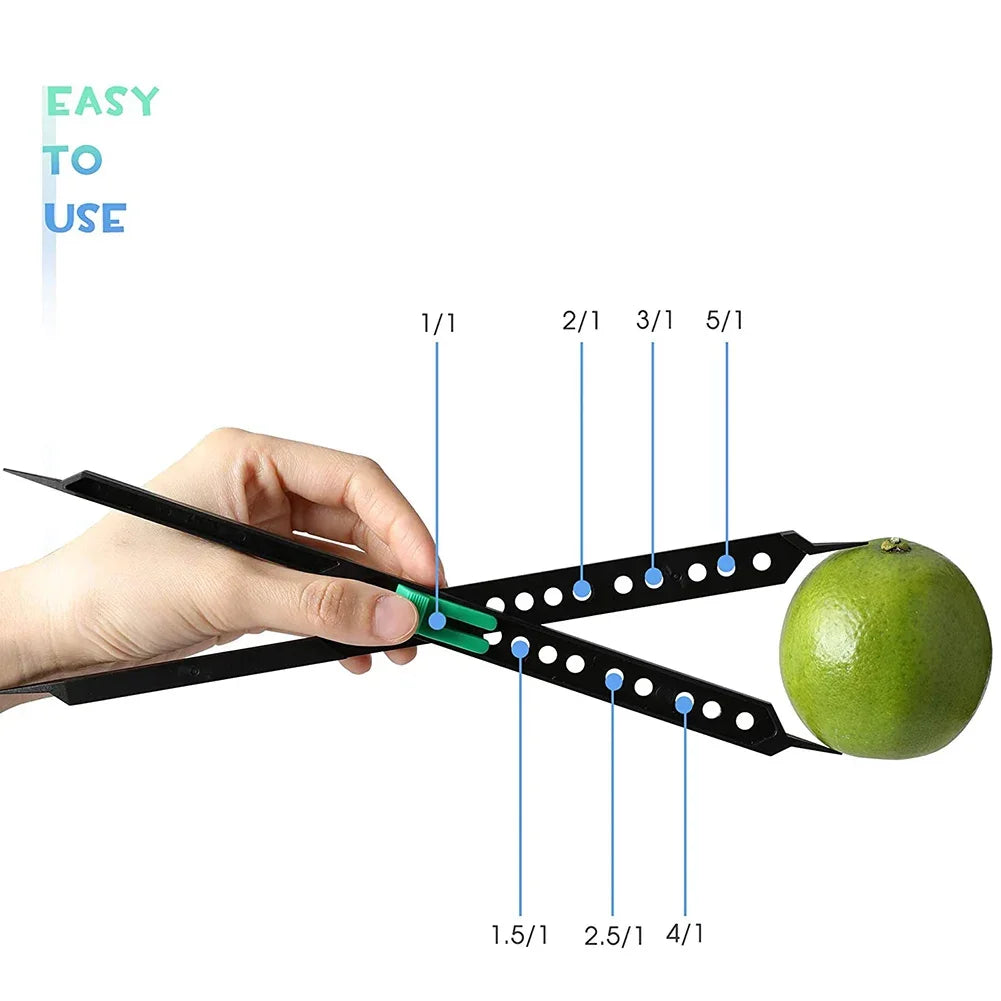

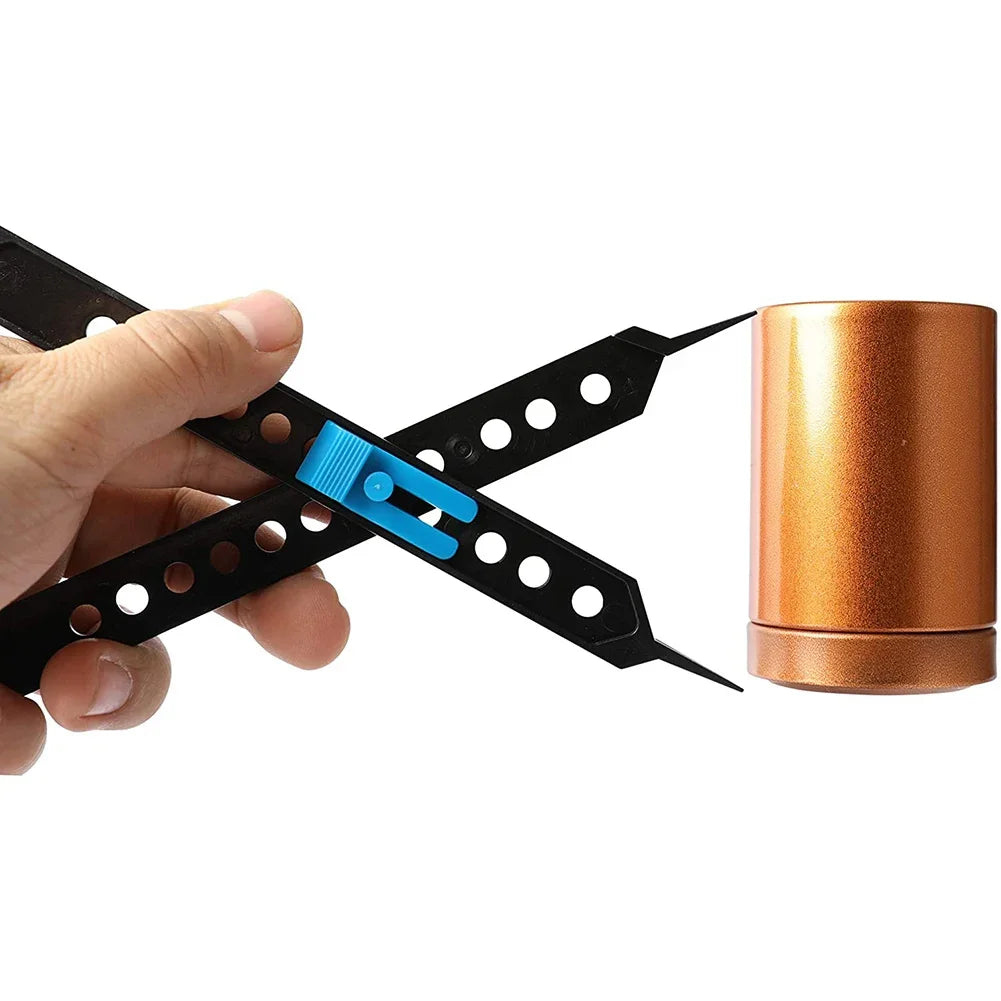

Hold the proportional divider with one hand and extend your arm directly in front of you.
Next, place the object you want to draw in the small opening of the proportional divider.
Adjust the divider with one hand until the two pin points on the short end accurately reflect the size of the object from your perspective.
Step 3:
Bring the proportional divider back to the drawing paper or canvas, and use a pencil to mark the length of the larger opening of the divider.
Since the proportional divider operates on the pivot, the small opening and the large opening are proportional to each other. Therefore, even if you use a small opening to measure an object, a large opening can transfer the measurement to a larger scale.
Step 4:
Continue to measure the object through the small opening of the proportional divider and transfer the scaled measurement data to the drawing paper.
Use these measurements to draw a scale map.

Tip:
Put the proportional partition on drawing paper or canvas to prevent the legs from moving.
Even the slightest movement can cause inaccurate scales.
Always use a proportional divider to measure the object, with the arm fully extended to keep the measurement method consistent.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3cm measuring deviation due to manual measurement.
