ANT Smart BMS 4S-24S 16S 40A Lifepo4 BMS 10S 13S 48V 30A Li-ion BMS 20S NMC LFP for E-bike E-scooter with Bluetooth Balance BMS
ANT Smart BMS 4S-24S 16S 40A Lifepo4 BMS 10S 13S 48V 30A Li-ion BMS 20S NMC LFP for E-bike E-scooter with Bluetooth Balance BMS
SPECIFICATIONS
APP system: Android / IOS / PC
Balance Function: Passive Balanced BMS
Balance function: Professional
Bluetooth: Professional
Brand Name: JNFN,ANT & JNFN
Certification: CE,FCC,RoHS,pse
Charge and Discharge Port: Common Port BMS,Common Port BMS
Charging Current: 30A
Compatible Battery Types: L-ion / Lifepo4 / Titanate battery
Compatible Series Number: 4S-24S General
Coulomb Counter: Current Integration Method
Current Option: 40A/80A/110A/130A/170A/220A/400A/420A
Customizable Communication: RS485 / CAN
Default Communication: Bluetooth / TTL
Function: Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection
Handware or Smart: SMART BMS
High-concerned chemical: None
LCD display: Optional
Object: All household electric-powered devices
Origin: Mainland China
Over charge protection: Yes
Over discharge voltage: Yes
SOC estimation accuracy: Error < 8%(operating conditions)
Short circuit protection: Yes
Standby time: 1800 seconds-adjustable
Strings: 4S/5S/6S/7S/8S/9S/10S/11S/12S/13S/14S/15S/16S/17S/18S/19S/20S/21S/22S/23S/24S BMS
Temperature detection: -40 ~125°C
Type: LI-ION Battery BMS
Usage Scenario: Power BMS,Energy Storage BMS,3C Digital BMS
Working Consumption Current: <4mA(no communication)|<15mA(485/CAN)

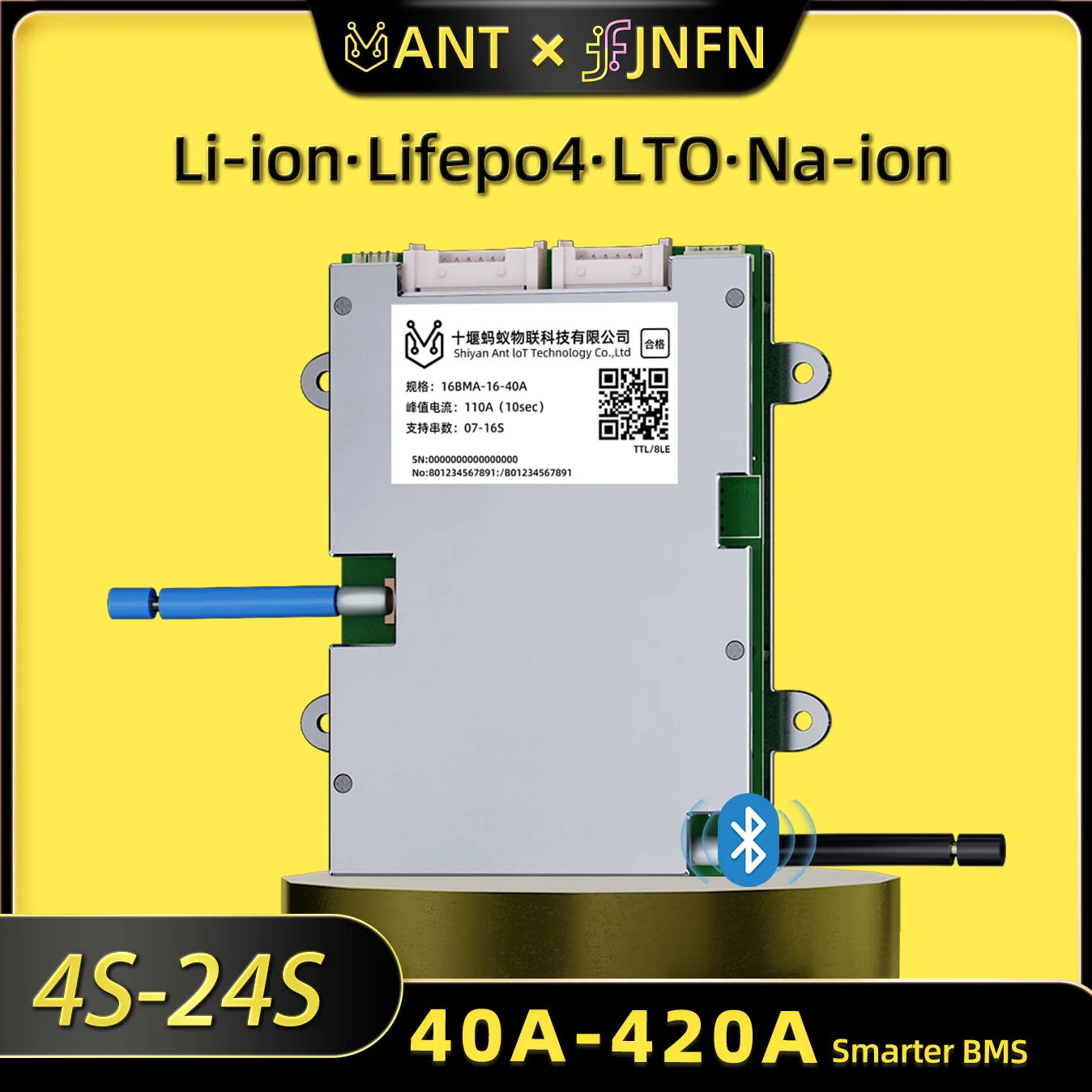

ANT BMS

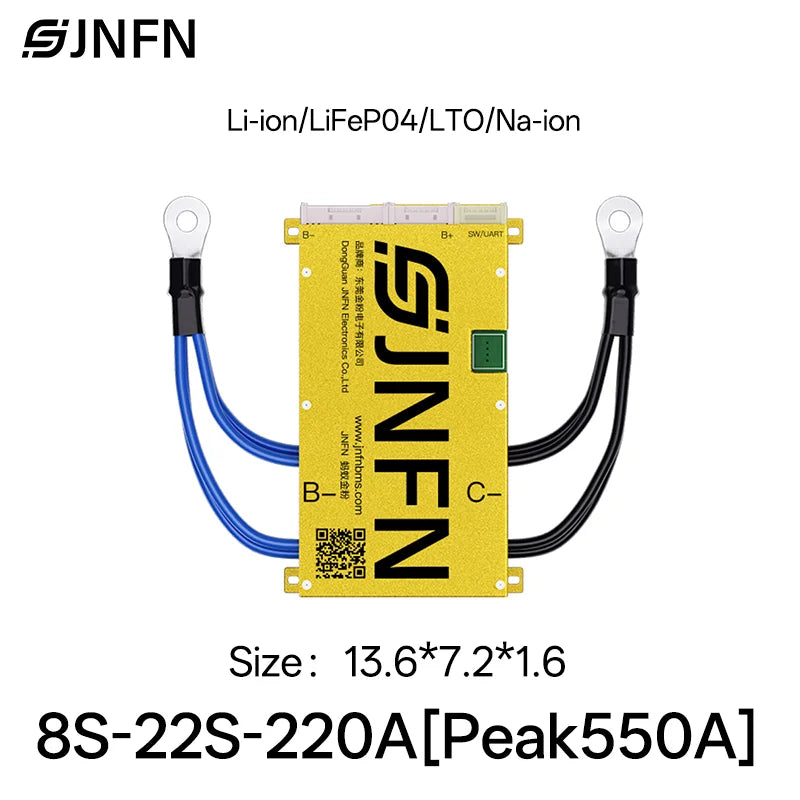

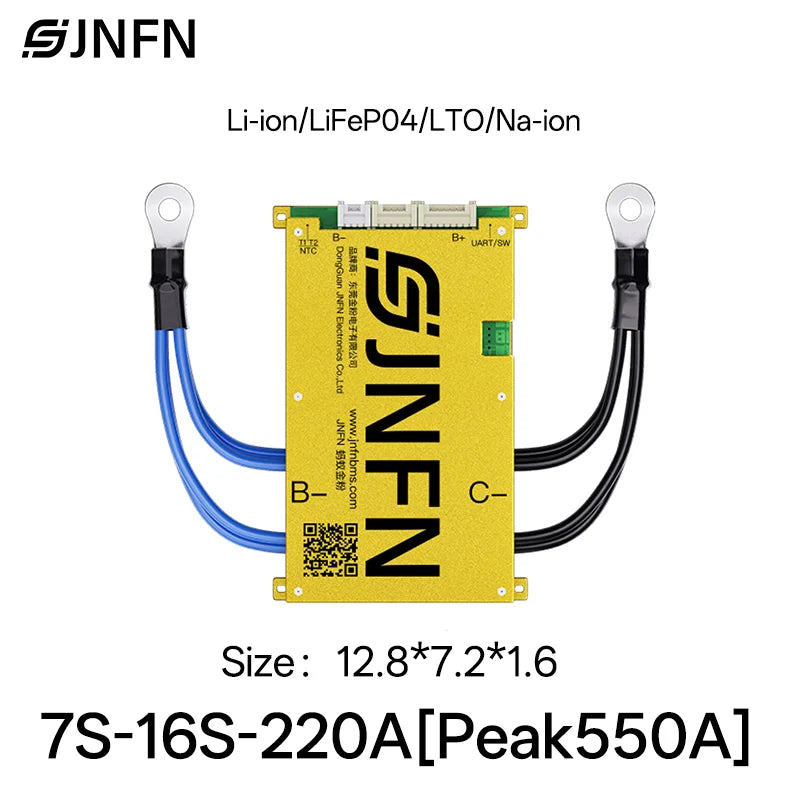

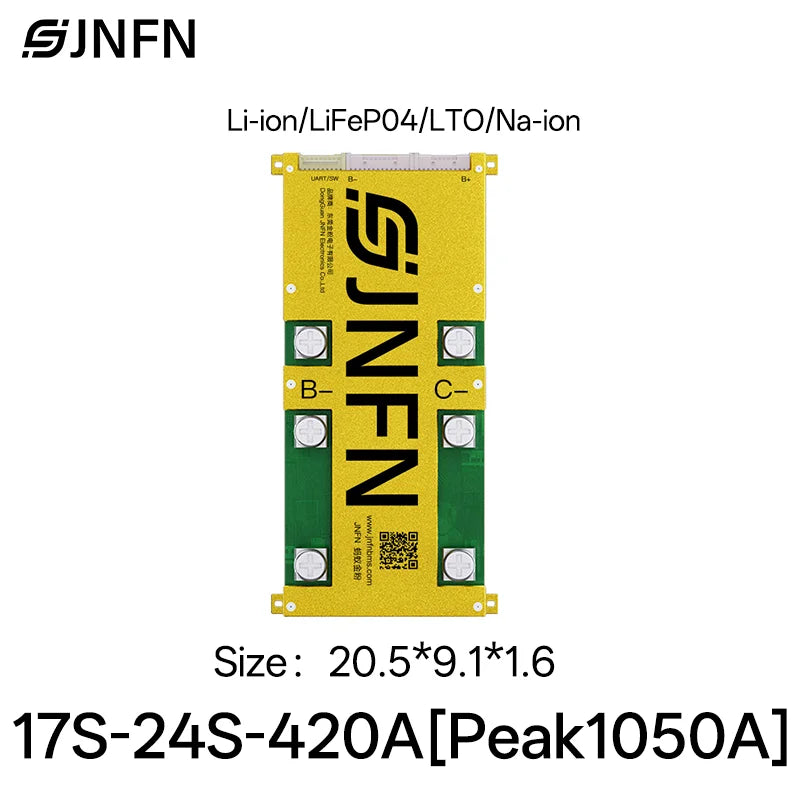

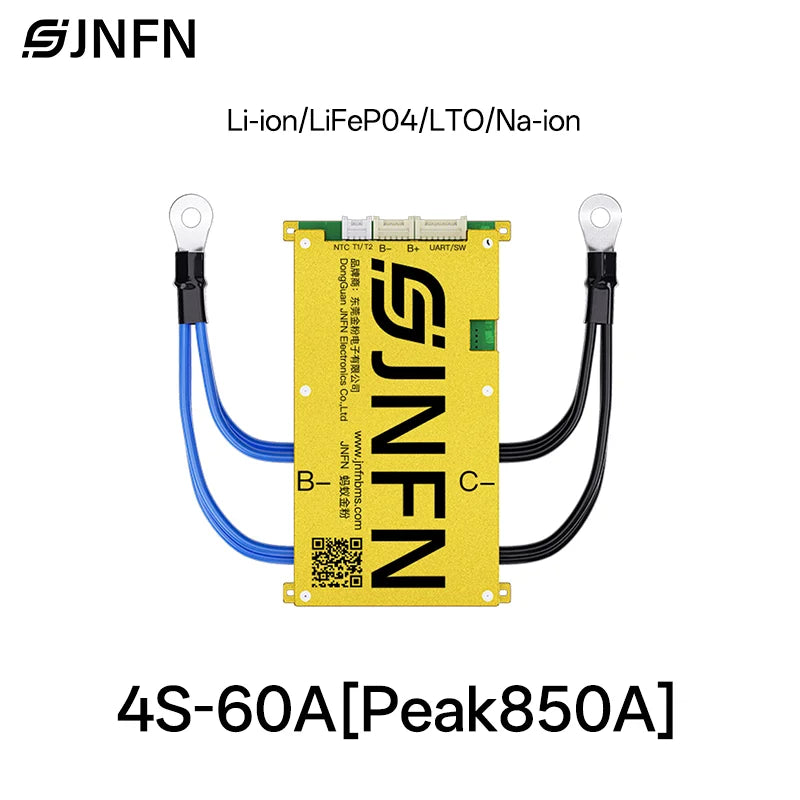

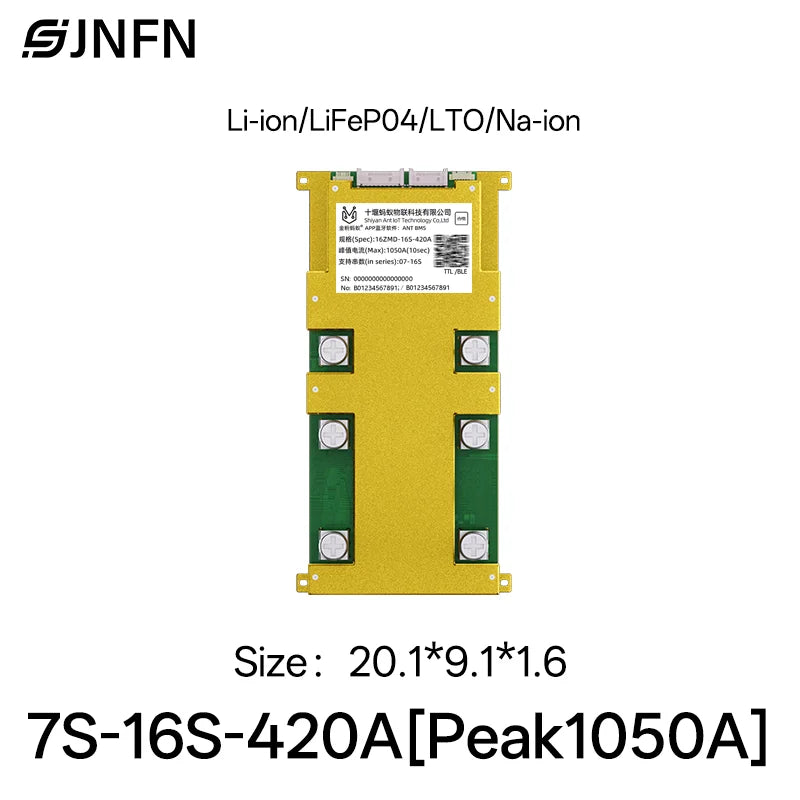

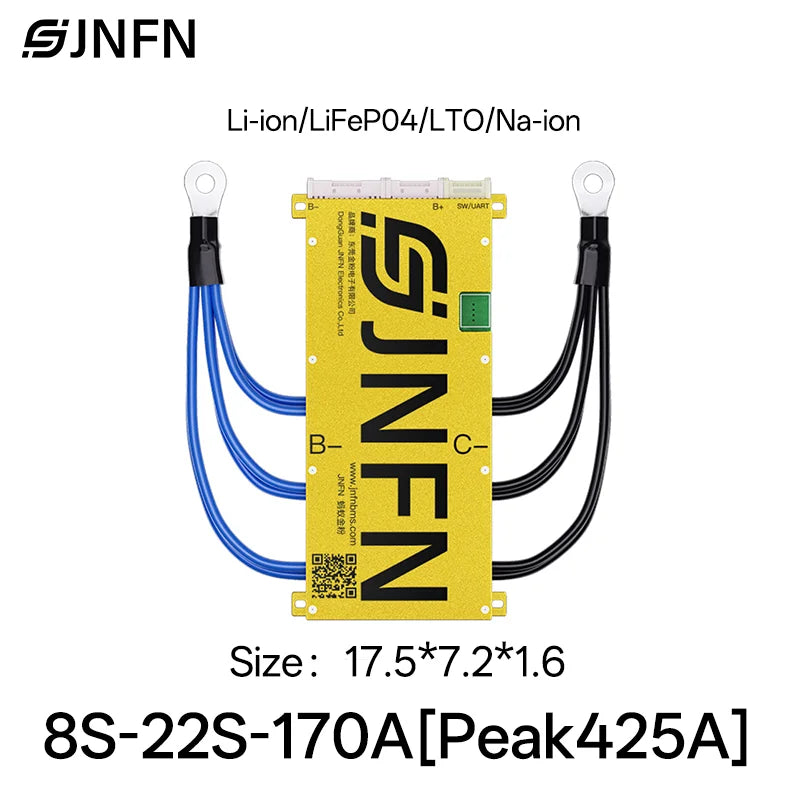

4S-24S 40A-420A
Professional smart BMS designed for lithium batteries, 4S to 24S are compatible, it is more convenient to match different combinations of different batteries, BMS is smaller in size and has more functions.
[Balanced Function]
[Wireless power display]
[Bluetooth Function]
[Temperature Control Function ]
[RS485 Communication Function]
[Optional External Power Display Function]
[Bluetooth Connectivity:]

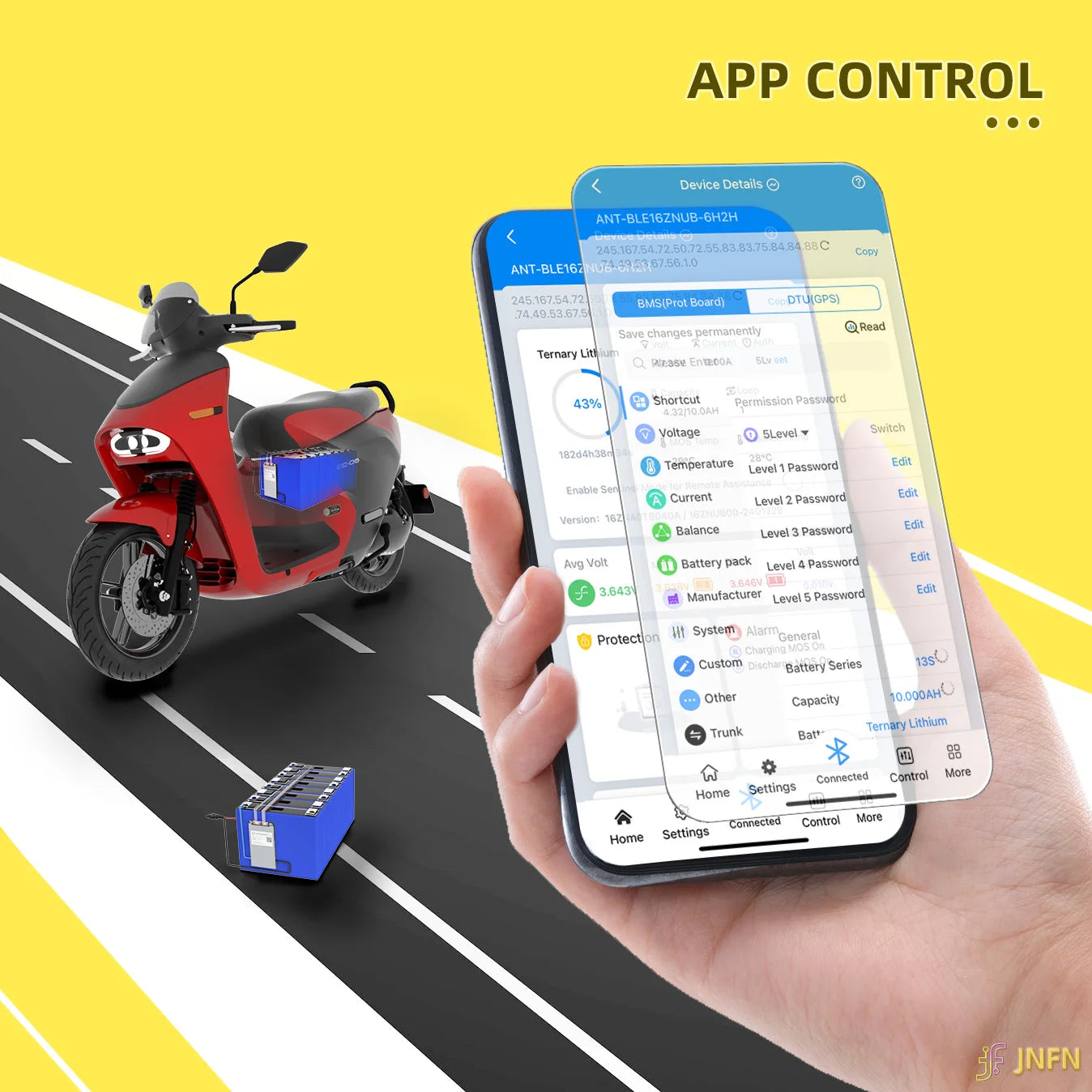

Monitor battery data in real-time via the ANT Smart BMS's Bluetooth feature, ensuring remote accessibility and control.
[Wireless power display:]
Wireless built-in Bluetooth display, showing operating voltage, operating temperature, remaining battery, etc.
[Balanced Function:]
Balance current 100mA, real-time balance, small current on the battery balance effect is better and more accurate, voltage drop is smaller, balance voltage drop can reach 0.005V.
[High-Quality Components:]
Equipped with high-precision ICs and MOSFETs, the ANT BMS offers superior performance and reliability.
[Temperature control function: ]
It comes with a temperature control cable, which can read the operating temperature of the battery more intuitively and protect it in time.
[Advanced Protection:]
Comprehensive protection against over-charging, over-discharging, over-current, and temperature ensures safe operation.
[Customizable Functions:]
Tailor the ANT Smart BMS to your specific needs with customizable functions and parameters for diverse applications.
[Functional DIY:]
ANT BMS is designed for convenience, with an optional preset interface and touchscreen LCD for easy setup.
By default, it comes with Bluetooth communication.RS485 communication can be optional
NOTE：

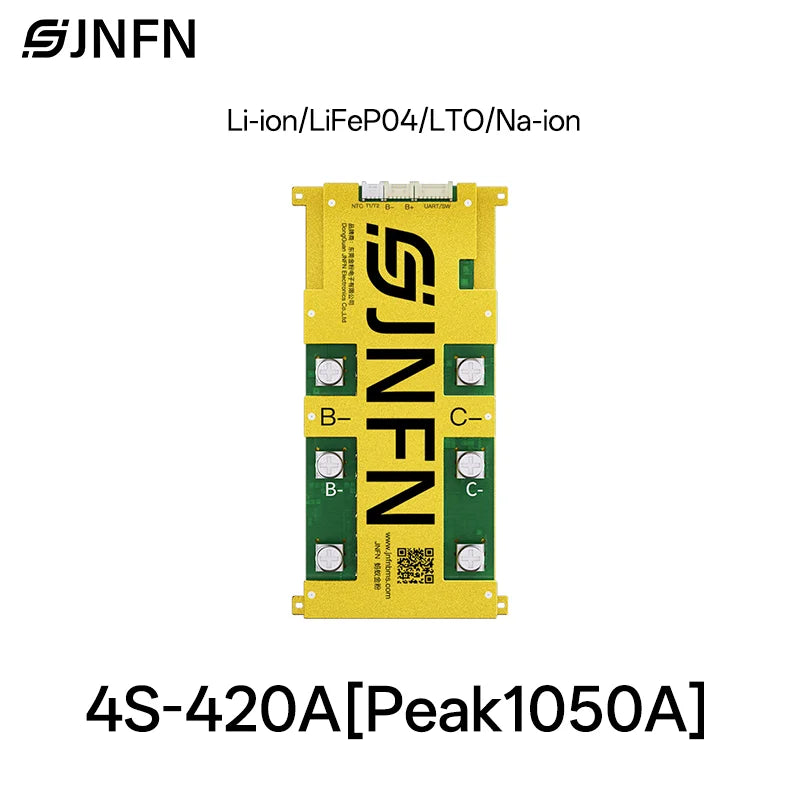

☆ Strictly forbidden to reversely connect the B- and C- cables of the BMS, forbidden to confuse wiring
