SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,HDMI 1.4,DVI-D

Battery Included: no

Brand Name: Asus

Certification: weee,UL,FCC,CE

Chipset: Intel Z370

Chipset Manufacturer: Intel

Form Factor: ATX

High-concerned chemical: None

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of PCI: 3

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: No

Processor compatibility: 8th Intel Core i5,9th Intel Core i3,9th Intel Core i5,8th Intel Core i7,9th Intel Core i7,8th Intel Core i3

Quality Certification: ce

RAID Supported: no

Socket Type: LGA 1151

Special Features: NONE

Storage Interface Type: SATA

Support Memory Type: DDR4

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video

With CPU: No

Intel® Socket 11519th / 8th Gen Intel® Core™, Pentium® Gold and Celeron®  Processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® Z370
Memory
4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered, Register Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Multi-VGA output support : HDMI/DVI ports
Integrated Graphics Processor- Intel® HD Graphics support
- Supports HDMI with max. resolution 4096 x 2160 @ 24Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x2 mode)
3 x PCIe 3.0/2.0 x1
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
Storage
6 x SATA 6Gb/s port(s)*1
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
Intel® Z370 Chipset :
Intel® Optane™  Memory Ready *2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Support Raid 0, 1, 5, 10
LAN
Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Anti-surge LANGuard
ROG GameFirst Technology
Audio
- Sonic Studio III
- Supports up to 32-Bit/192kHz playback *3
ROG SupremeFX8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
USB Ports
Intel® Z370 Chipset :
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A)
8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board)
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
ROG Exclusive Features
ROG RAMCache II
ROG CloneDrive
GameFirst IV
ROG CPU-Z
Overwolf
Special Features
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
Gamer´s Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable components
- Digi+ VRM
- SafeSlot
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM

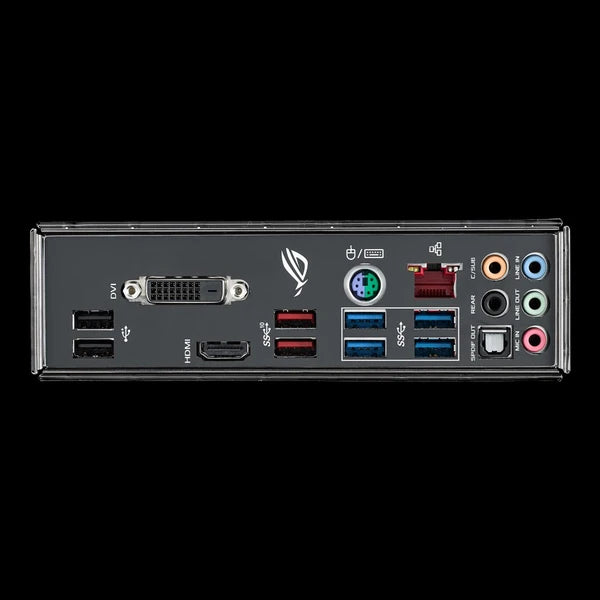

Back I/O Ports
2 x USB 3.1 Gen 2 Type-A,
4 x USB 3.1 Gen 1
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports
1 x AAFP connector
1 x CPU_OV jumper
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
2 x Chassis Fan connector(s) (2 x 4-pin)
1 x AAFP connector
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM connector(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x CPU OPT Fan connector(s) (1 x 4-pin)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability
WfM2.0, DMI3.0, WOL by PME, PXE


*ROG GameFirst IV is only available for Windows 10/8.1 64-bit
Operating System
Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
