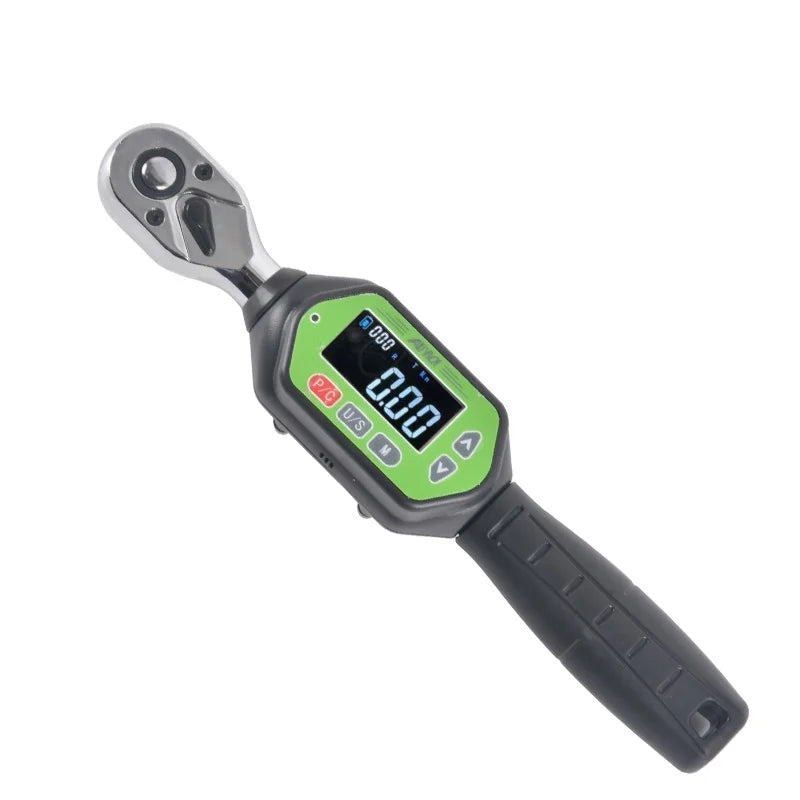

AWM 1/4,3/8,1/2 Screen Display And Regular Display Portable Preset Wrench Bidirectional Ratchet Head Mini Digital Torque Wrench
AWM 1/4,3/8,1/2 Screen Display And Regular Display Portable Preset Wrench Bidirectional Ratchet Head Mini Digital Torque Wrench
SPECIFICATIONS
Battery Included: no
Brand Name: Aliyiqi,ALIYIQI
Certification: CE
Choice: yes
Digital Torque Wrench ratchet teeth: 72 teeth
Display Type: DIGITAL
High-concerned chemical: None
Max Load: 135N
Model Number: AWM
Origin: Mainland China
Product Accuracy: Clockwise 2% ;Counterclockwise 2.5%
Product Name: Digital Portable Torque Wrench
Torque Wrench Form of ratchet head: Bidirectional ratchet head
Torque Wrench Function: Color Display Repair Hand Tools
Torque Wrench Operation Mode: Peak mode P and Real-time mode T
Torque Wrench Power: 2 pcs AAA battery(shipping not included)
Torque Wrench Preset Value Memory Capacity: 9
Torque Wrench Unit: N.m, kgf.cm,Ft.lbf, In.lbf
AWM 1/4,3/8,1/2 Color Screen Display And Regular Display Portable Wrench Bidirectional Ratchet Head Mini Digital Torque Wrench

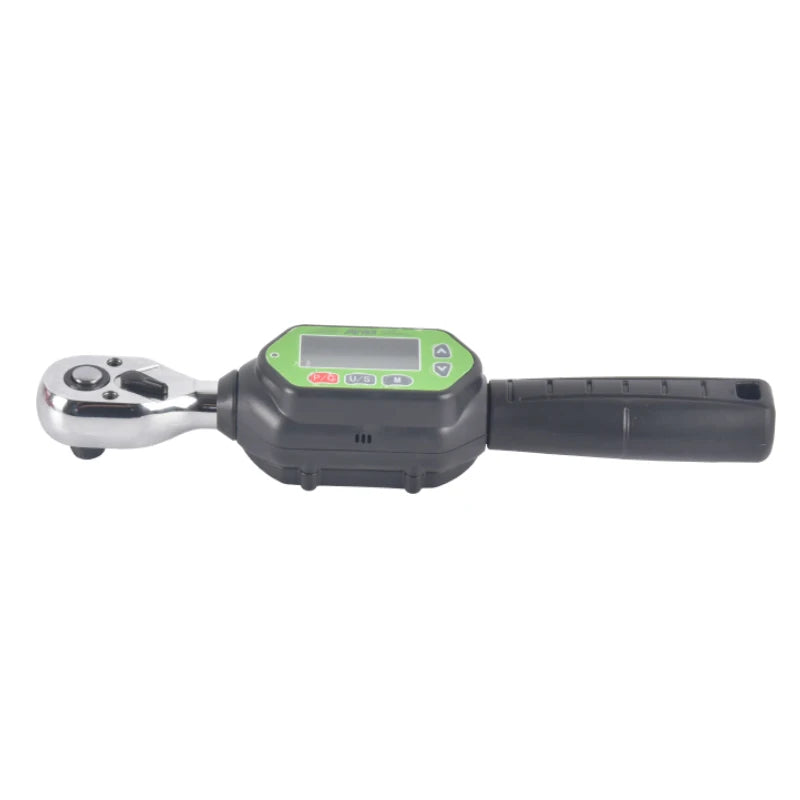

The mini digital wrench is designed in a miniaturized shape and is more suitable for the operation in a narrow space. Meanwhile, it has complete operating functions including torque setting function, unit setting function, numerical value storage function, numerical value eliminating function, numerical value output function and user correction function. It is easy to operate. The mini digital torque wrench is provided with the digital display screen, so that the requirement on operators is reduced. The mini digital torque wrench is suitable for fastening and controlling bolts in automobile industry, machinery industry, etc.
-
Model

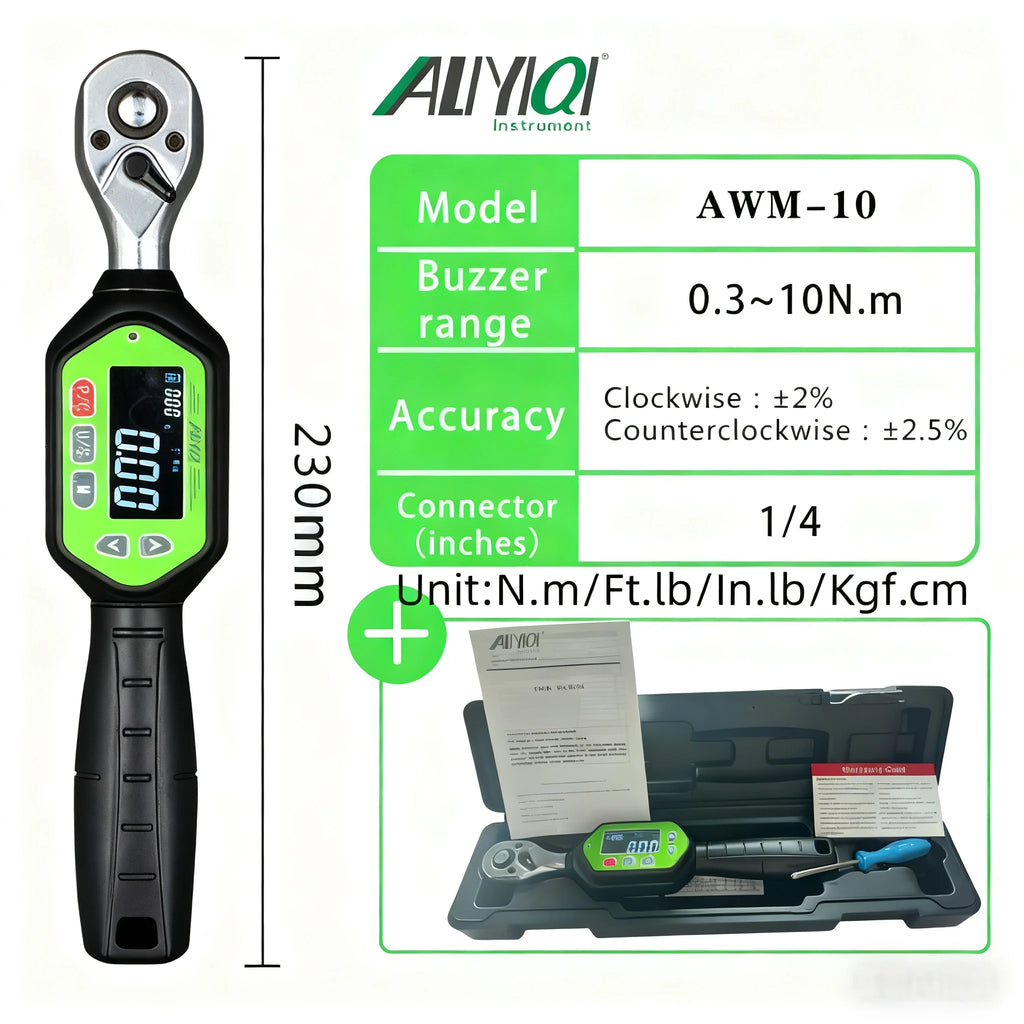

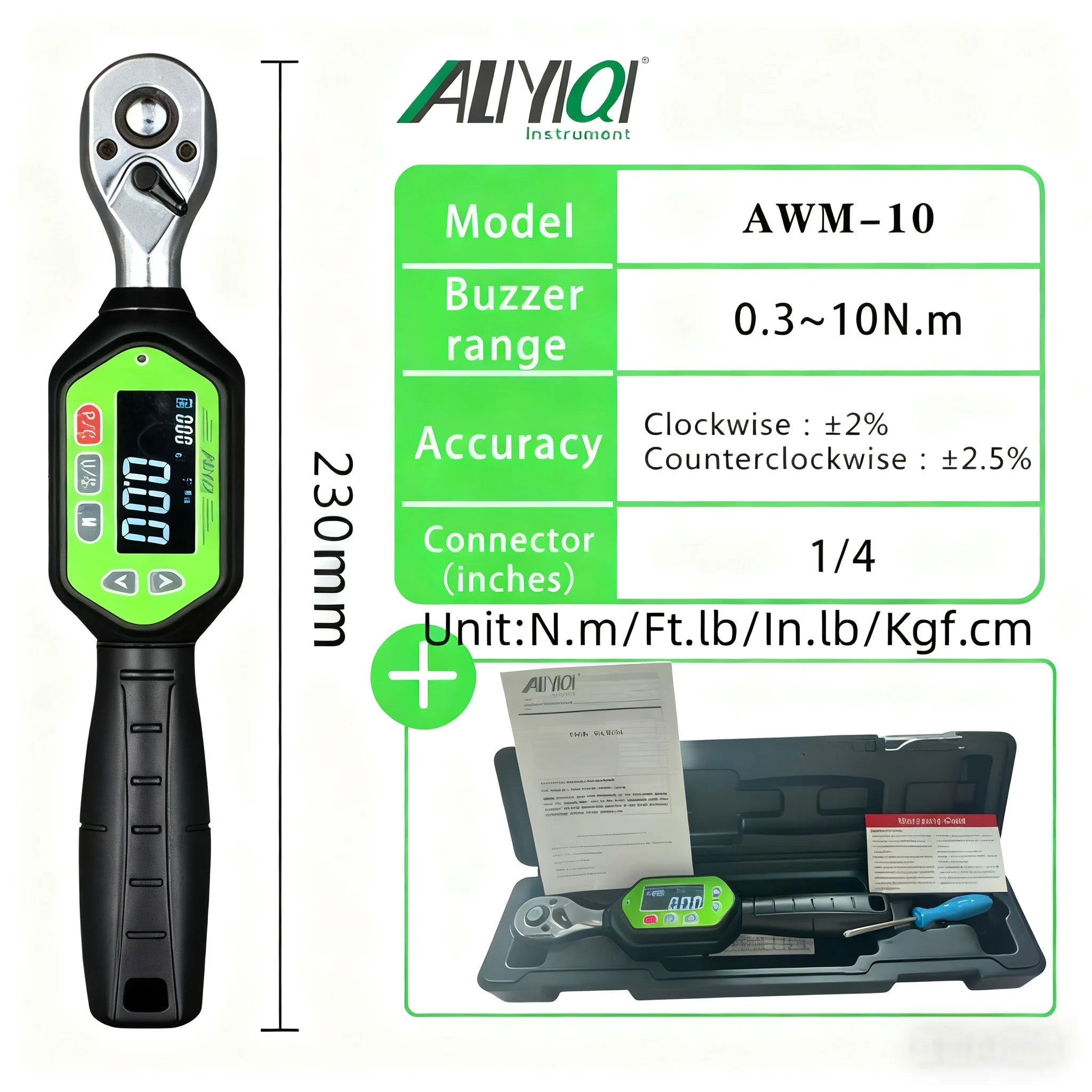

AWM-10

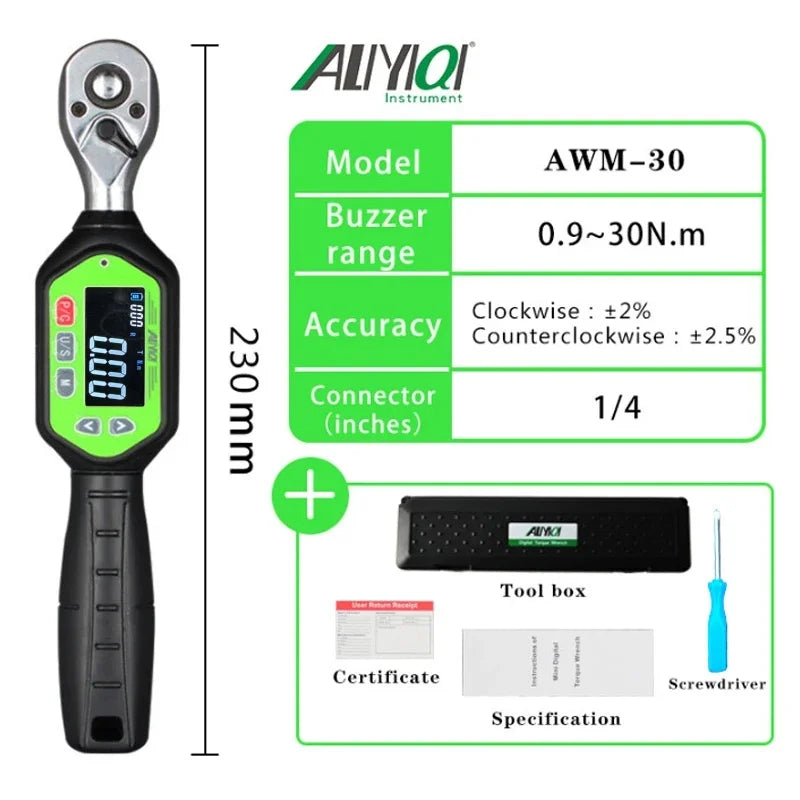

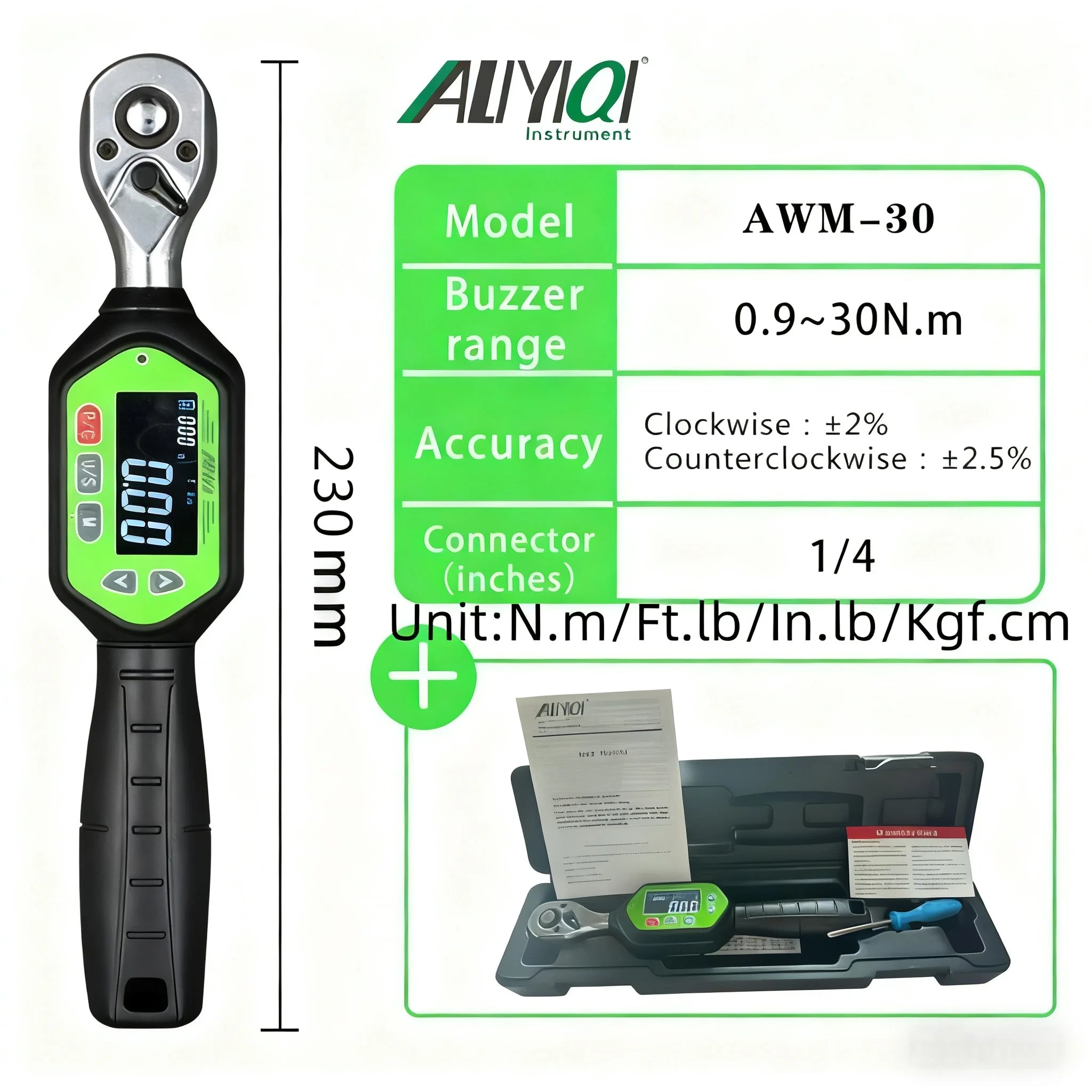

AWM-30

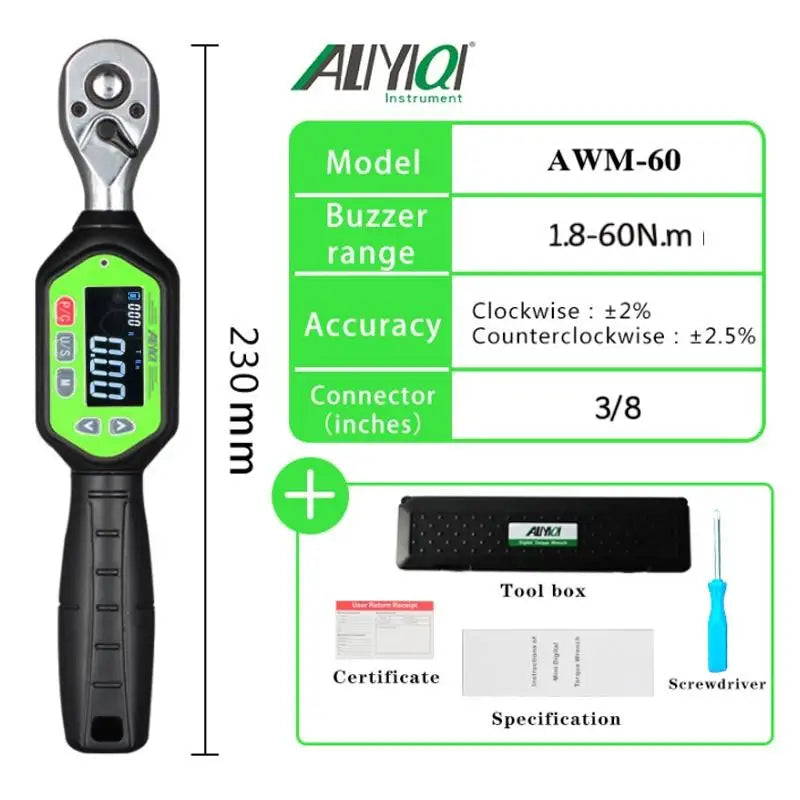

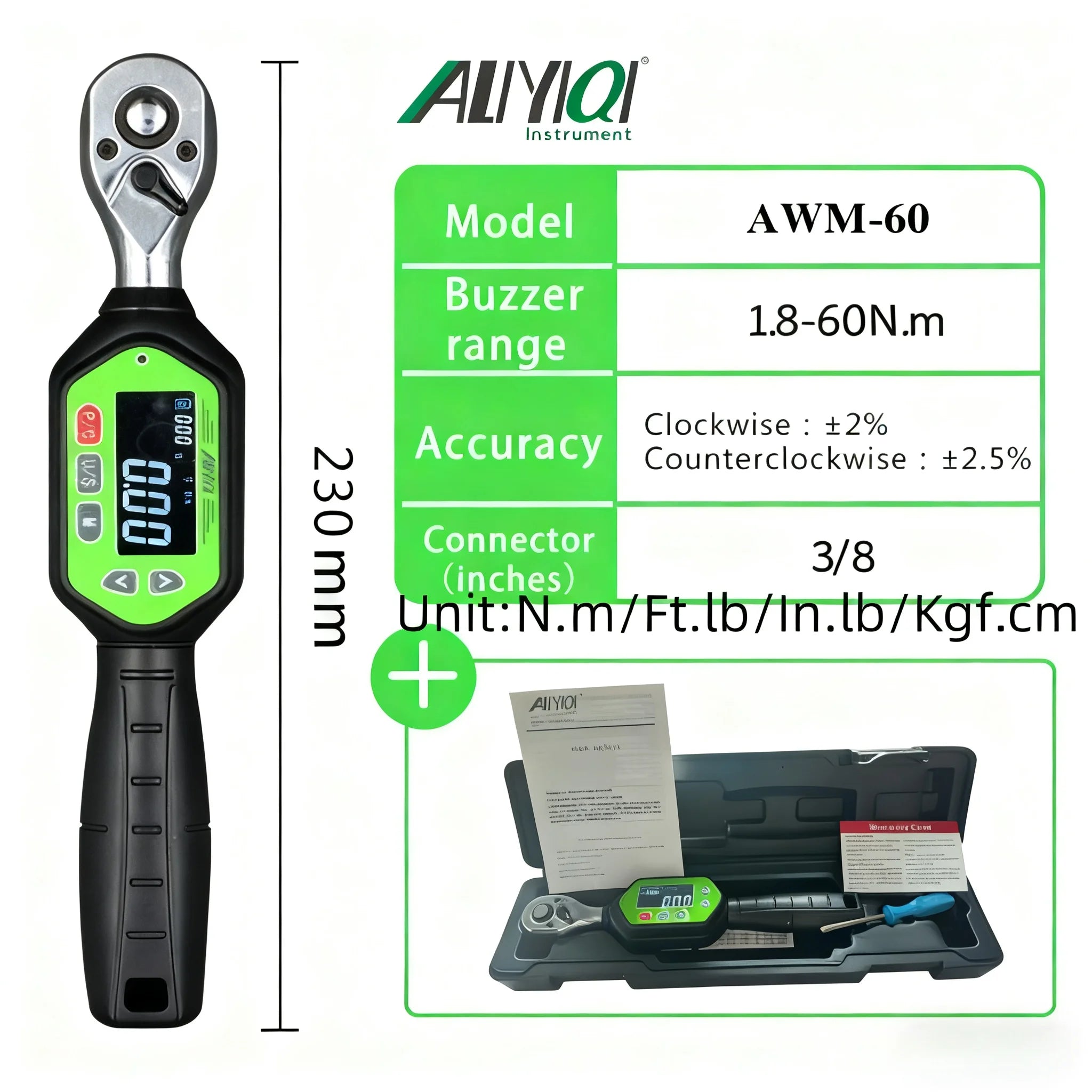

AWM-60

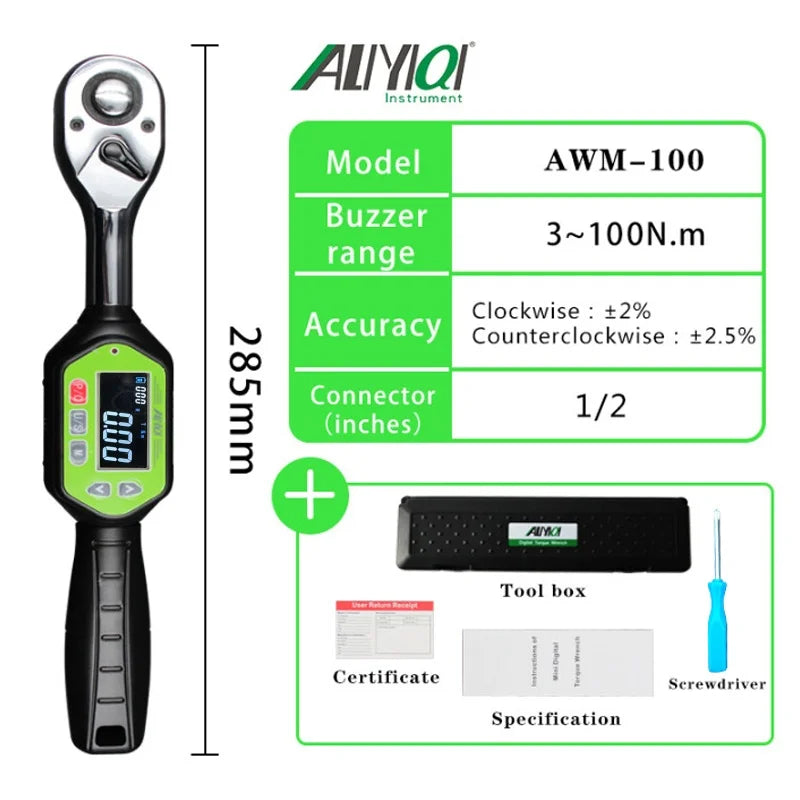

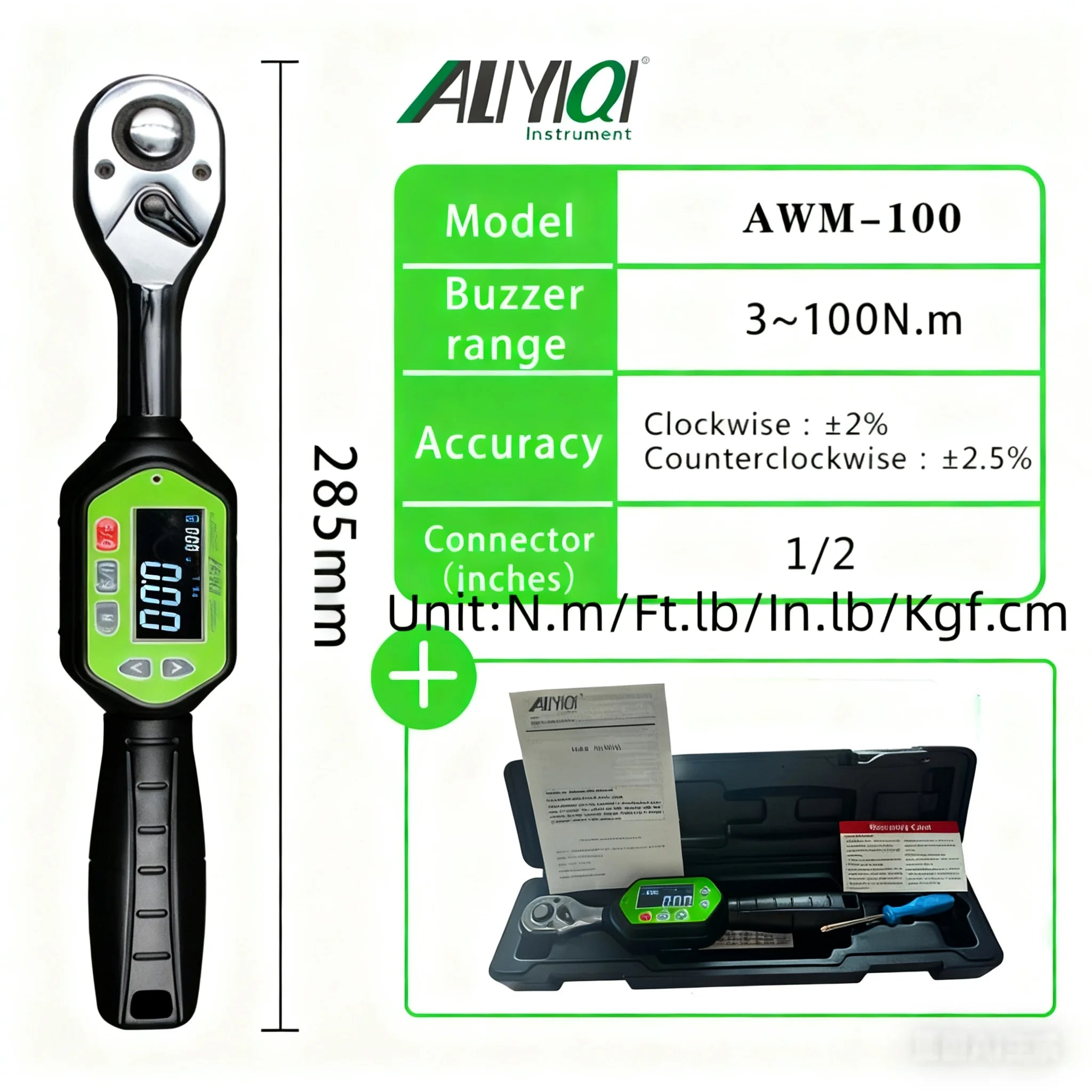

AWM-100

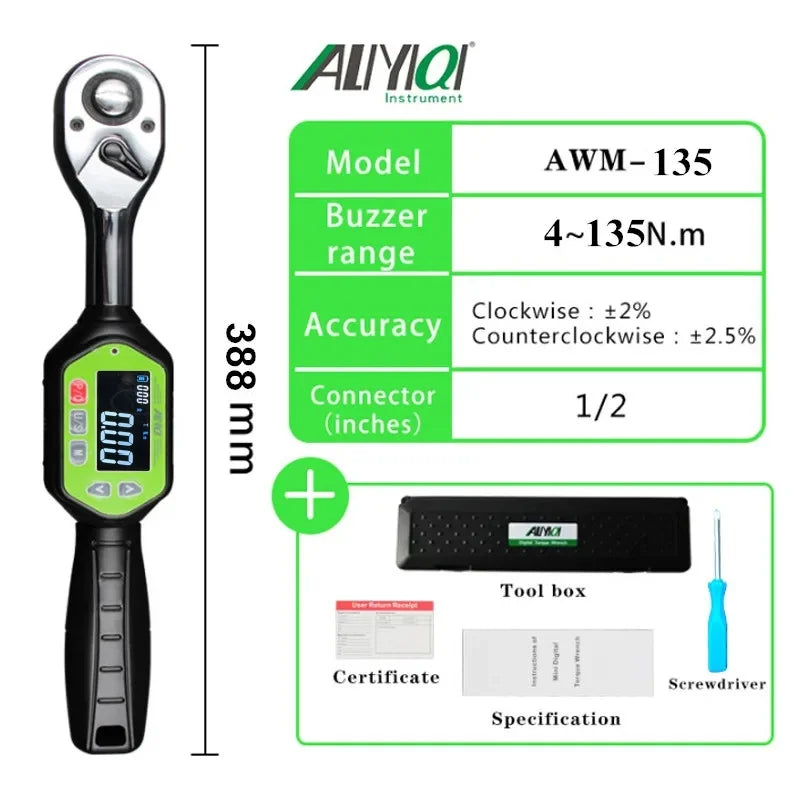

AWM-135
Minimum division value
0.01
0.1
Maximum operating range
10N.m/7.37ft.lb/88.50in.lb/101.97kgf.cm
30N.m/22.12ft.lb/265.5in.lb/305.91kgf.cm
60N.m/44.25ft.lb/531.04in.lb/611.82kgf.cm
100N.m/73.7ft.lb/885.0in.lb/1019.7kgf.cm
135N.m/99.6
ft,lb/1194in.lb/
1377kgf.cm
（N.m）
Connector（inches）
1/4 inches
3/8 inches
1/2 inches
Setting range of buzzer（N.m）
0.3~10N.m
0.9~30N.m
1.8~60N.m
3~100N.m
4~135N.m
Length (mm)
230mm
240mm
285mm
388mm
Accuracy*1
Clockwise：±2% Counterclockwise：±2.5%
Preset Value Memory Capacity
9
Operation Mode
Peak mode（P）/ Real-time mode（T）
Unit
N.m, kgf.cm, ft.lbf, in.lbf.
Form of ratchet head
Bidirectional ratchet head
Number of ratchet teeth
72 teeth
Battery
2 pcs AAA battery
Operating temperature
-10℃to 60℃
Storage temperature
-20℃to 70℃
