SPECIFICATIONS

Brand Name: BSIDE

High-concerned chemical: None

Origin: Mainland China

Semi-finishedproduct: No

Voltage: 220/110

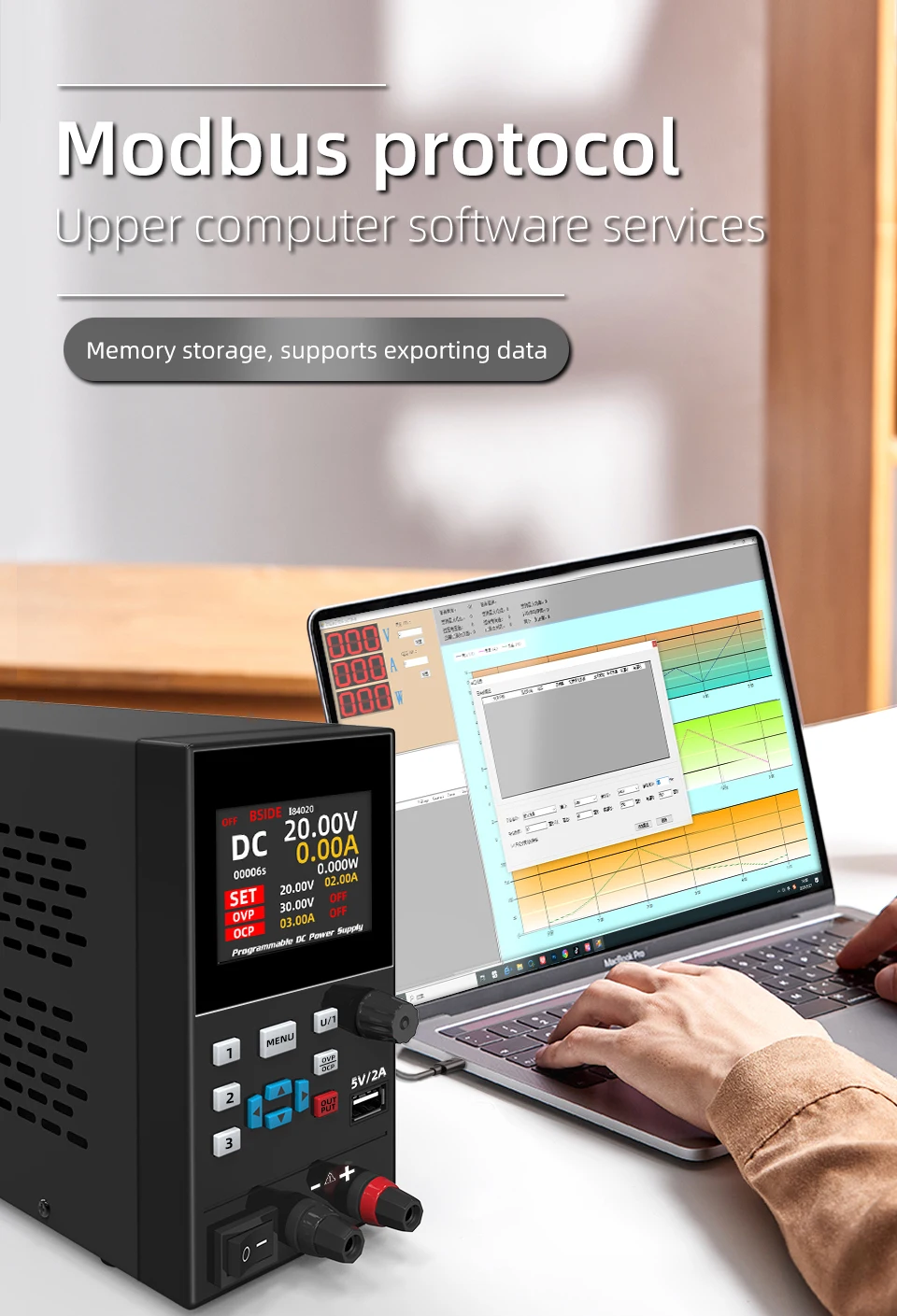

• [Programmable DC Power Supply]: The variable power supply comes with a software and USB interface communication cable. With the software, you could customize the output voltage and current through your computer, you could also export the tested data for analysis.

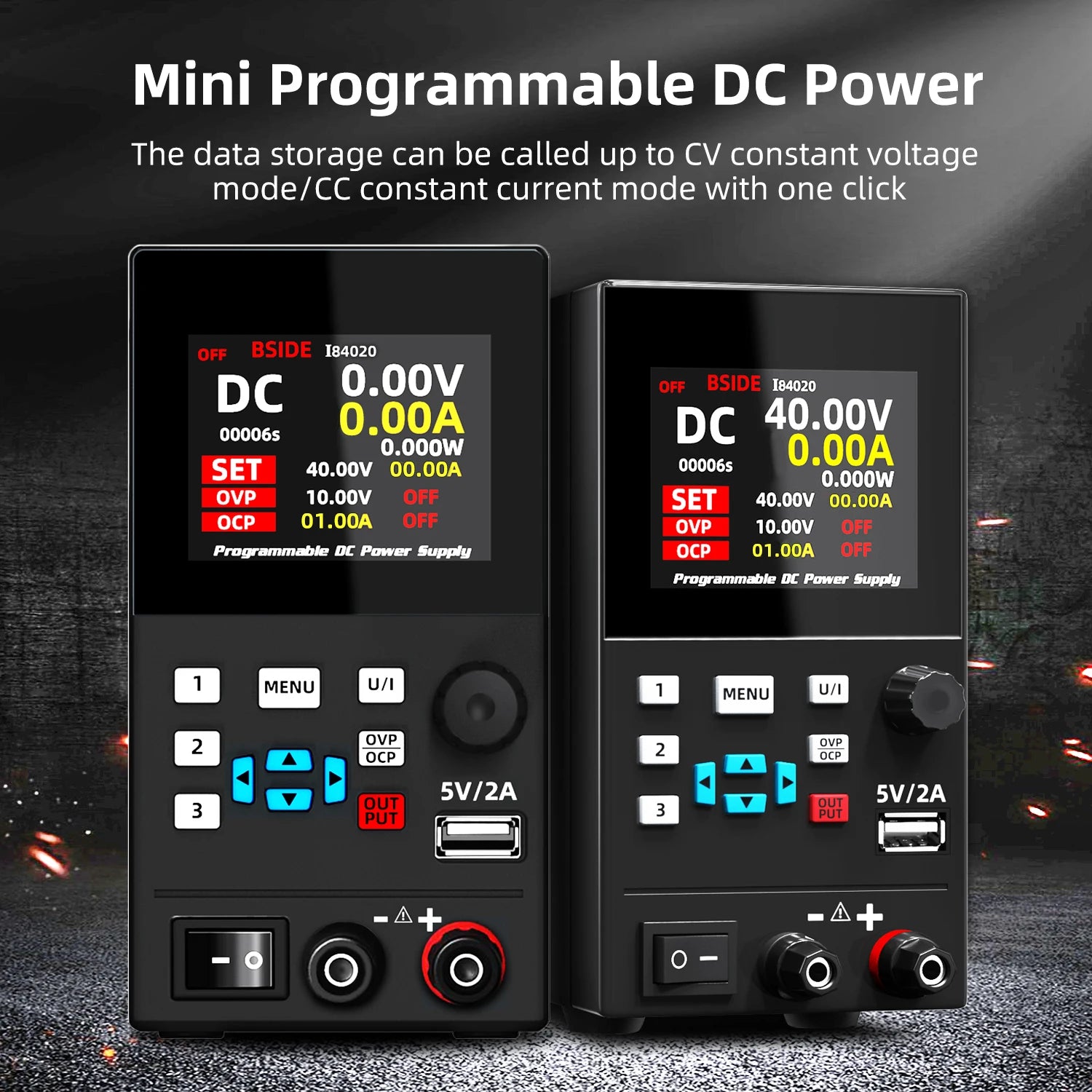

• [Memory Storage]: The lab power supply can storage 3 sets of data, for example your commonly used voltage and current, you can active the commonly used data by pressing the button (button 1, 2 or 3) once.

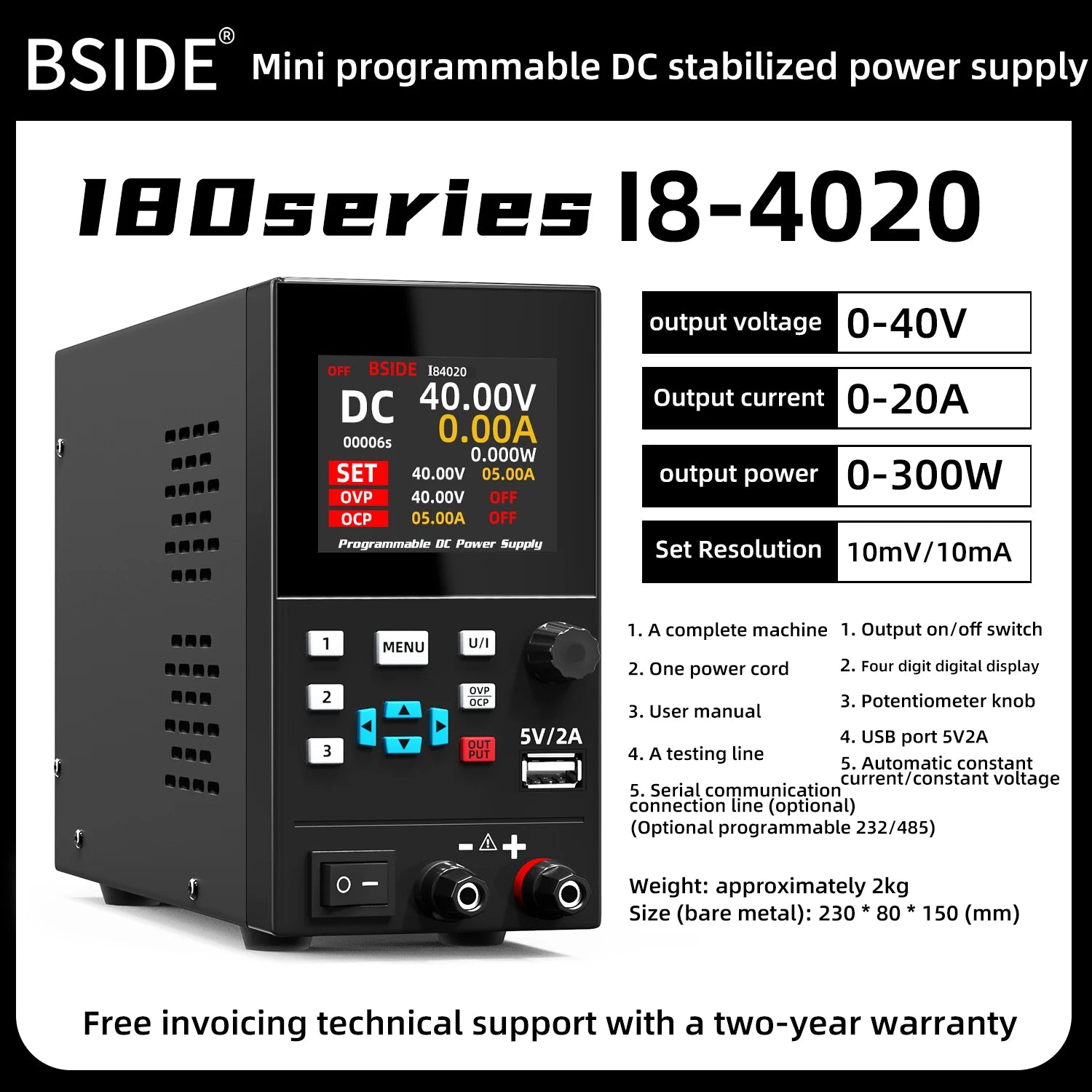

• [Encoder Adjustment Knob]: BSIDE I84020 DC power supply equipped with a high precision encoder knob. Pressing the knob to switch the number of digits, rotating the knob to customize each digit from 0 to 9. MAX output power: 300W.

• [Auto C.V. and C.C. Mode]: The bike battery power supply can be used as a constant-voltage(C.V.) power supply and constant-current (C.C.) power supply. It switches automatically between CV mode and CC mode according to the changes in the load.

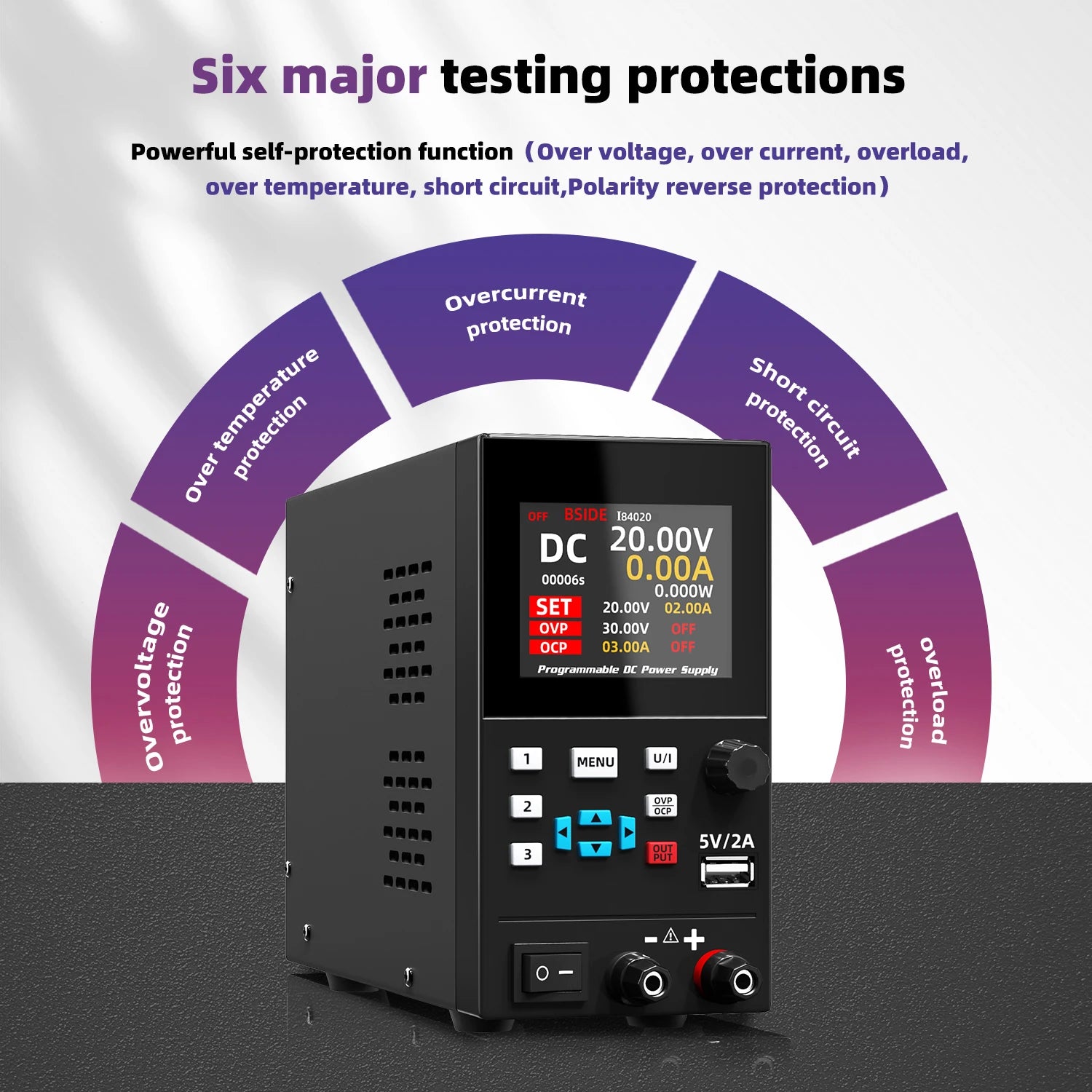

• [OVP/OCP/OLP/OTP Protection]: The adjustable power supply has function of over voltage protection, over current protection, overload protection and over temperature protection, which provides you with full-around security.

• [Notice]: The maximum output power for this portable dc power supply is 300W.

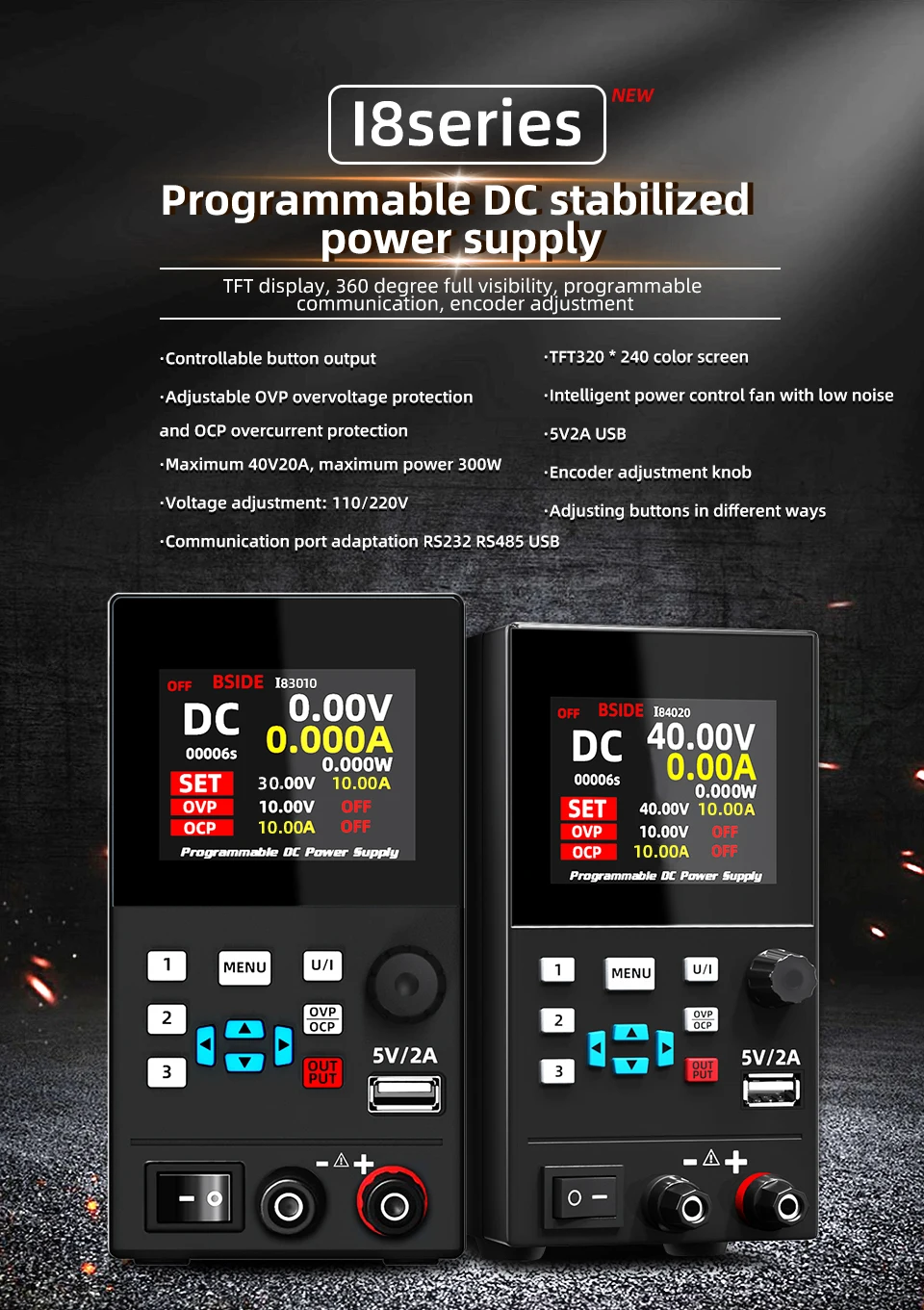

Features:
Programmable, with USB-B port on the back, connect to PC for remote control or automation control. Support USB, RS232, RS485 three kinds of interface, if you need please contact us.

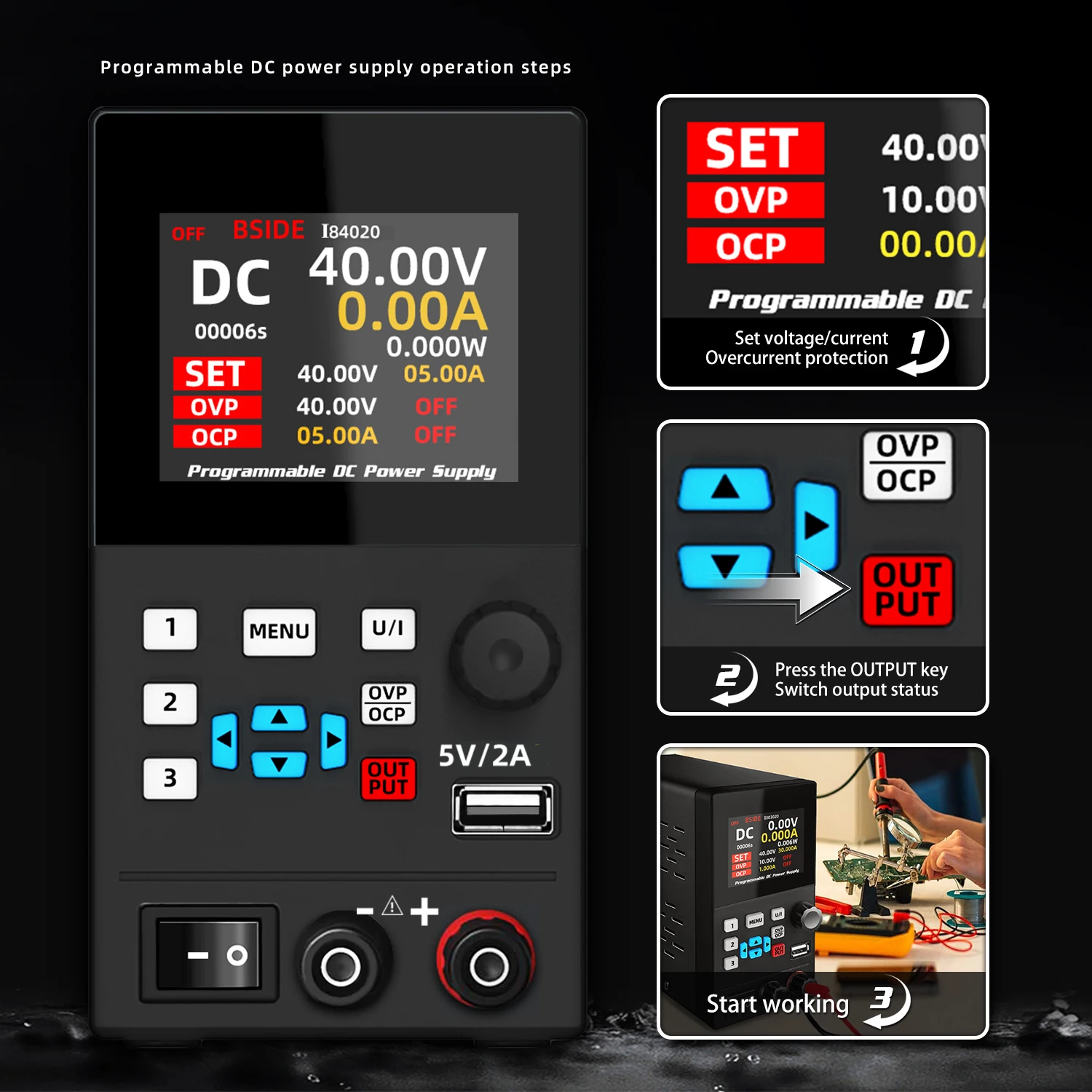

Adjustable and stable DC power supply with two adjustment methods: high-precision knob and directional key

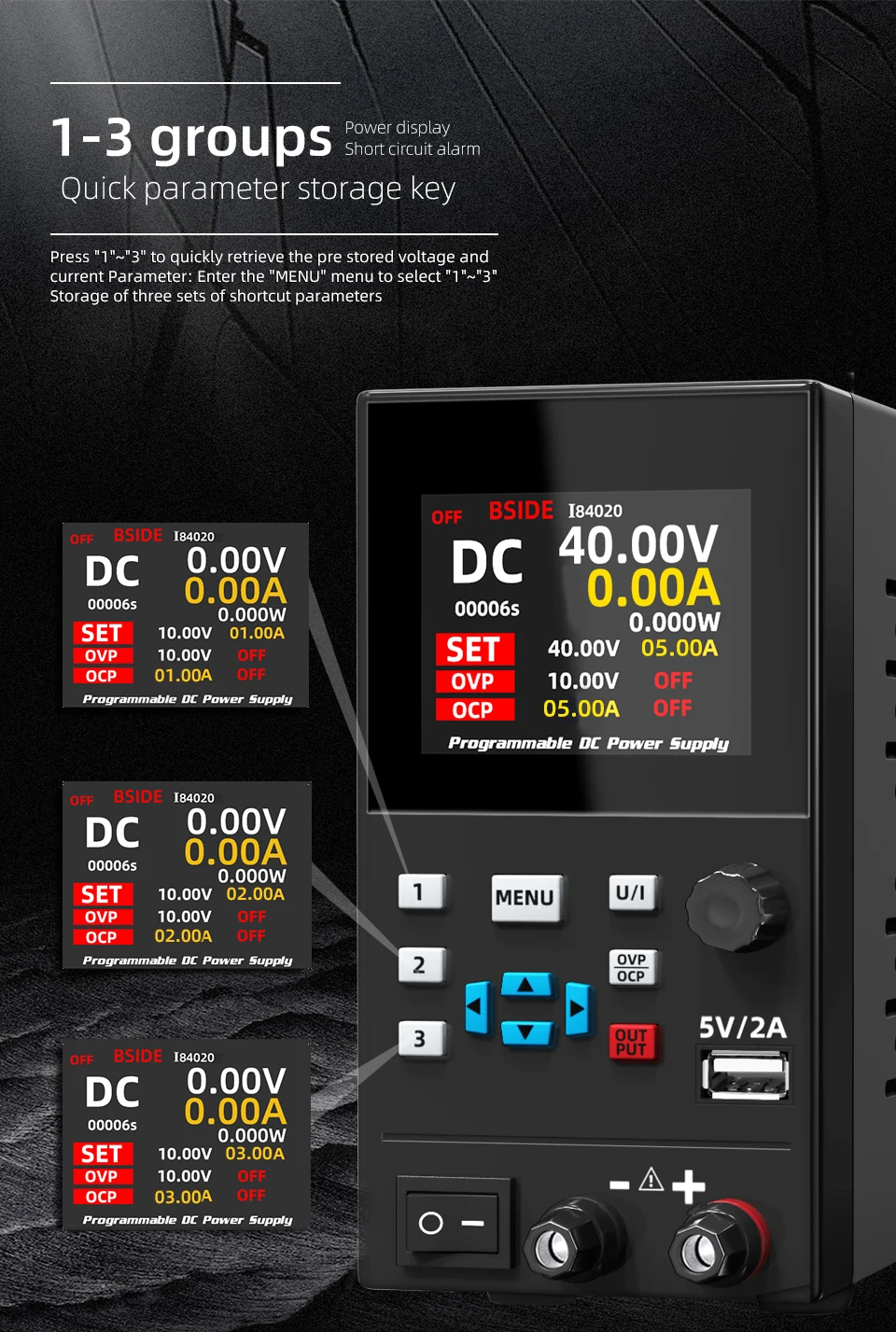

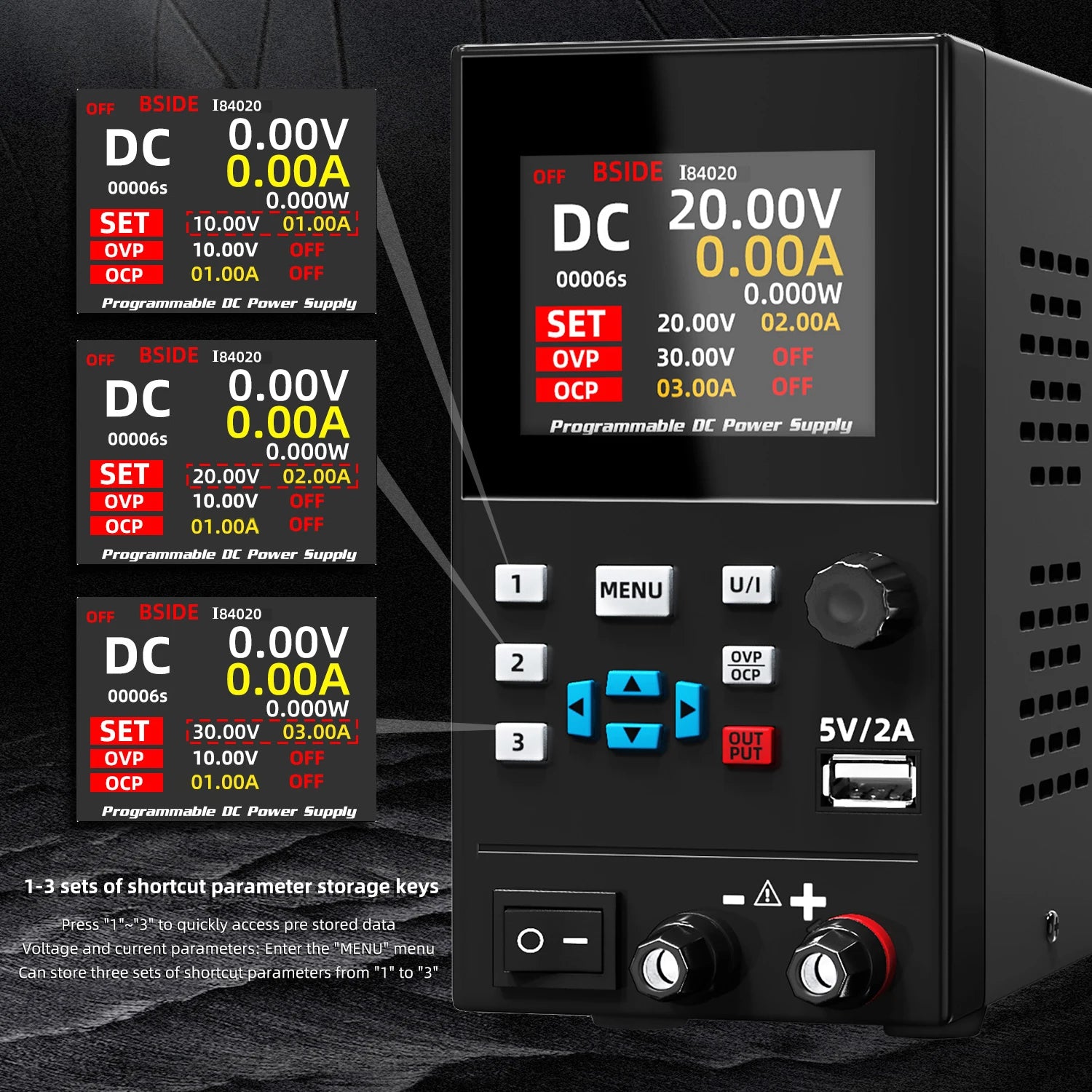

3 sets of quick parameter storage keys: can preset the voltage and current values when the output is turned off, and can quickly call up the pre stored values of M1M2M3, making it convenient and flexible
It has four protection functions: overvoltage protection (OVP), overcurrent protection (OCP), over temperature protection (OTP), and overload protection (OPP)
Front 5V2A USB charging interface. One click output on/off, one click voltage and current stabilizing switch, automatic locking menu key to prevent incorrect operation

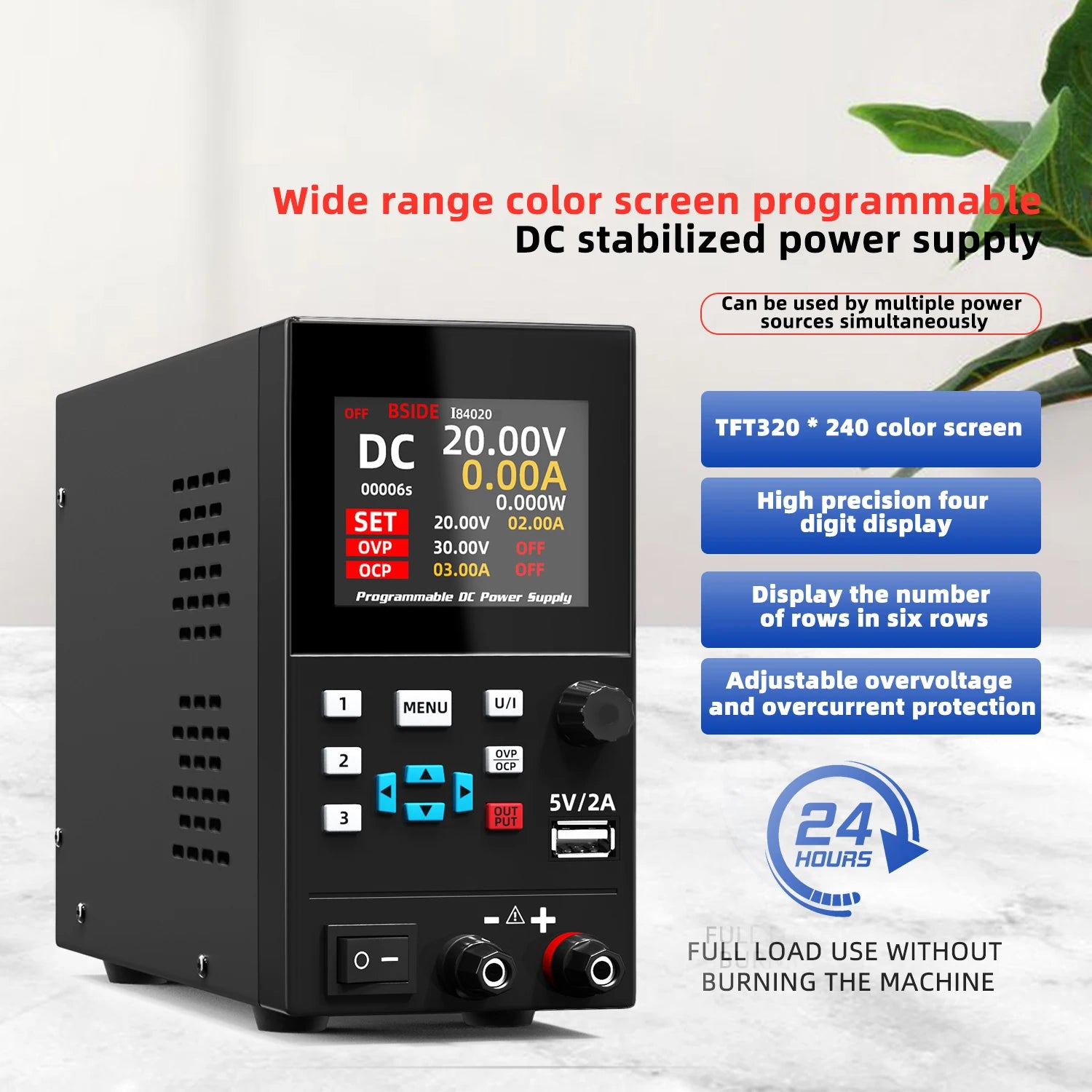

TFT Color LCD 4-digit, 6-line display, full view view
The panel can simultaneously display the output status, output current, voltage, power, and display time, as well as the switch status of overvoltage protection (OVP)/overcurrent protection (OCP)
Can support global voltage adjustment: 110V/220V
Constant current and voltage switching, accurate output
Low ripple and low noise
Compact and lightweight, space-saving and easy to carry.

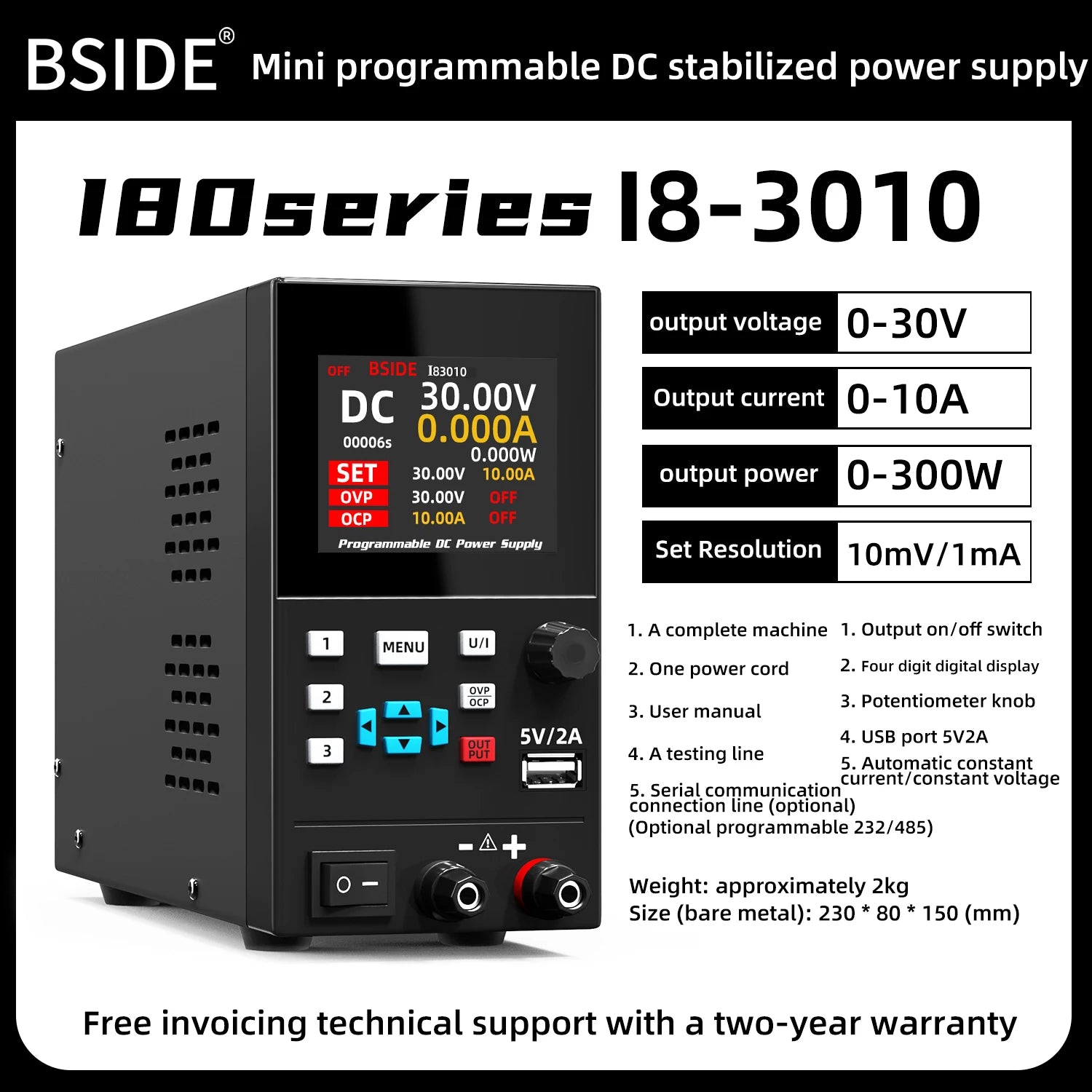

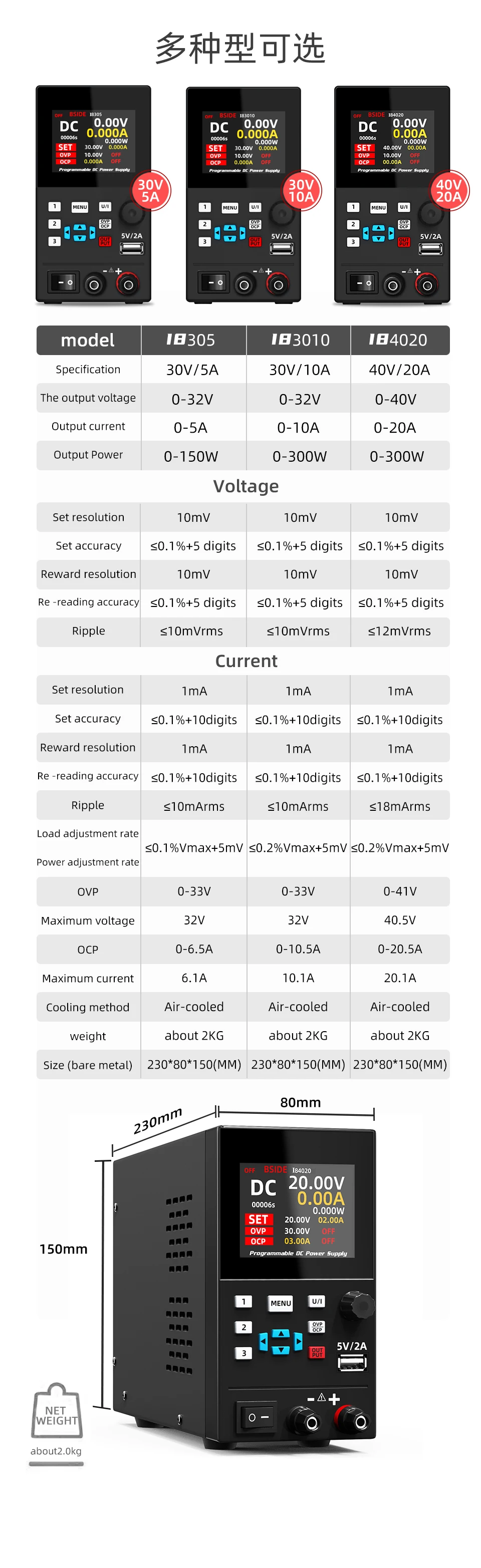

Specifications:
Output voltage: 0-32V, output current: 0-10A
Resolution: 10mV(≤0.1%+5 digits );1mA(≤0.1%+10digits )
Ripple: ≤10mVrms, ≤10mArms
Load/power regulation rate: ≤0.2%Vmax+5mV
Max voltage: 32V
Max current: 10.1A
OVP:0-33V
OCP: 0-10.5A
Working Voltage: AC220V±10% 50Hz or AC110V±10% 60Hz

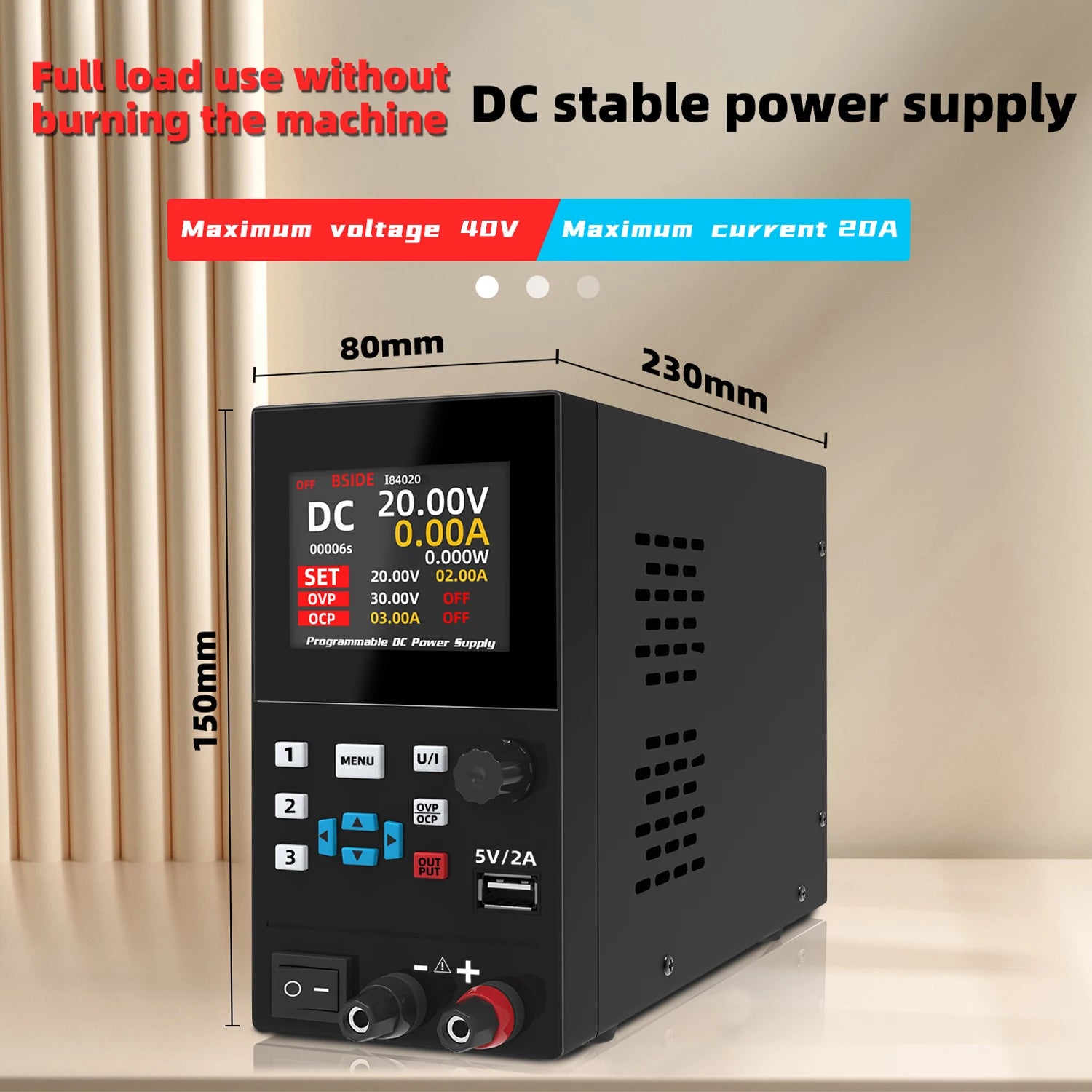

Size: 230 * 80 * 150mm
Weight: 1.88kg

Packaging content:
DC output power supply
Power cord
User manual
Testing line
Banana plug test leads
