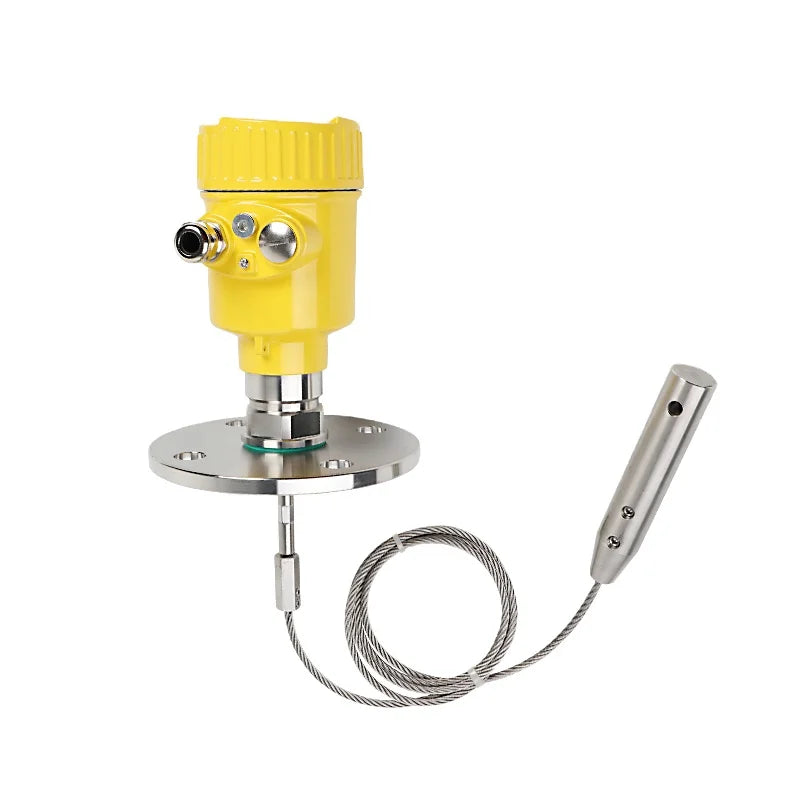

Cement Silo solid-liquid 4-20ma hart guided wave high frequency smart meter Radar distance Level Meter
0-10m
Prix promotionnel
$1,355.99
Prix régulier $1,898.99
Passer aux informations sur le produit
Cement Silo solid-liquid 4-20ma hart guided wave high frequency smart meter Radar distance Level Meter
Prix promotionnel
$1,355.99
Prix régulier $1,898.99
Expédition calculée lors du paiement.
SPECIFICATIONS
Accuracy: 0.05%
Battery Included: no
Brand Name: NONE,Tentec
Color: Yellow
Display: LCD Digital
Fluid Measured: Conducting Liquid and Non Conducting Liquid
Fluid Temperature: -2≤160℃
High-concerned chemical: None
Origin: Mainland China,Mainland China
Production name: Radar level gauge
Protection level: IP65/IP68/Explosion Proof
Repetitiveness: 0.25%
Semi-finishedproduct: No
Temperature: 20-+120C
Velocity Range: 0.1-32 m/s
Transmitting frequency |
76GHz~81GHz |
||||||
Measurement range
|
LM78x0:0.3 m~60m
LM78x1:0.08 m~30m
LM78x2:0.6m~120m
|
||||||
Measurement accuracy |
±lmm |
||||||
Field angle |
3°/8° |
||||||
Use the dielectric constant range |
>=2 |
||||||
communication mode |
LM782x: indicates the MODBUS
LM783x:HART
|
||||||
Signal output |
LM782x:4to 20mAor RS-485
LM783x:4~20mA
|
||||||
Field operation/programming |
128x64 dot matrix display /4 buttons
can configure the upper computer setup software
|
||||||
Industrial temperature/humidity |
T0:-40~85°C/≤95%RH:T1:-40~200°C:T2:-40~500°C;T3:-40~1000°C |
||||||
Shell material |
Aluminum alloy,stainless steel |
||||||
Antenna type |
Lens antenna/anti-corrosion antenna/quartz isolation flange |
||||||
Process pressure |
-0.1~2MPa |
||||||
Product size |
100*270mm |
||||||
Cable inlet |
M20*1.5 |
||||||
Recommended cable |
AWG18 or 0.75mm2 |
||||||
Level ofprotection |
IP68 |
||||||
Anti-hazard classification |
ExdiallCT6 |
||||||
Way to install |
Thread or flange |
||||||
Net/gross weight |
2.480Kg/2.995Kg |
||||||
Box size |
370*270*180mm |
||||||
