SPECIFICATIONS

Battery Included: Yes

Brand Name: VINCKOLOR

High-concerned chemical: None

Interface: USB

Origin: Mainland China

Semi-finishedproduct: No

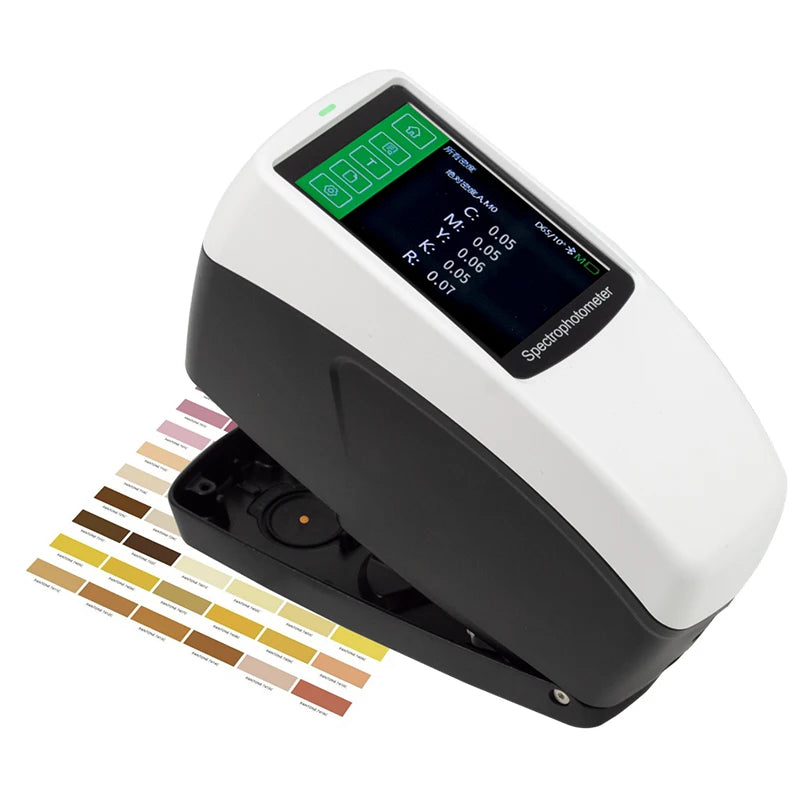

Highly cost-effectiveportable spectrophotometer

• Ultra-high repeatability accuracy：dE*ab≤0.02

• Horizontal compression measurement, physical positioning observation window

• More than 30 measurement parameters and nearly 40 evaluation light sources

• Supports 5 measurement calibers to meet users’ measurementscenarios of different sample sizes

• The software supports WeChat applet, Android, Apple, Hongmeng,mobile APP, etc., and supports data synchronization

一、Product features

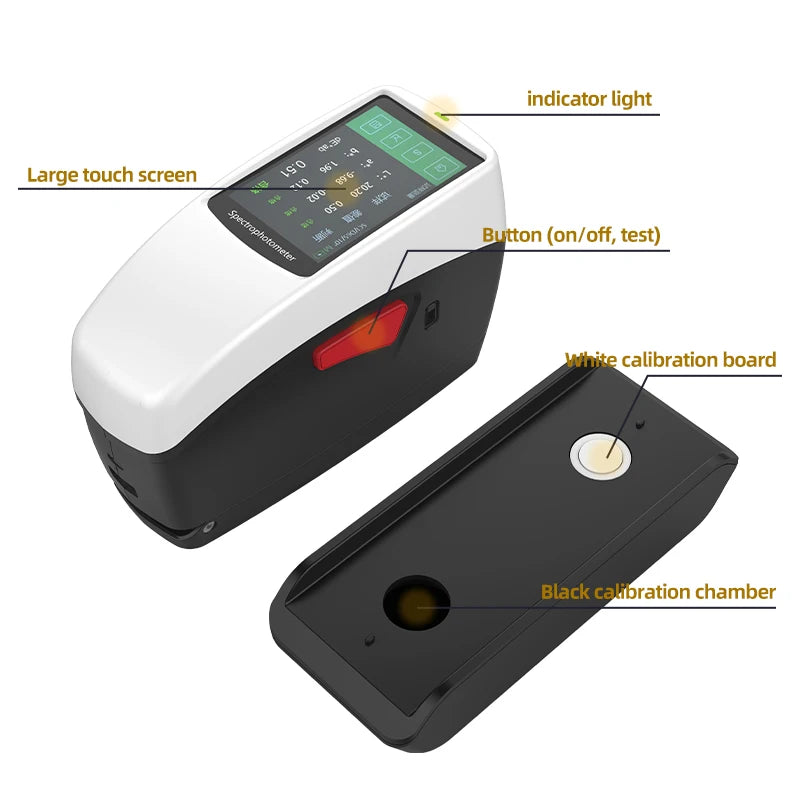

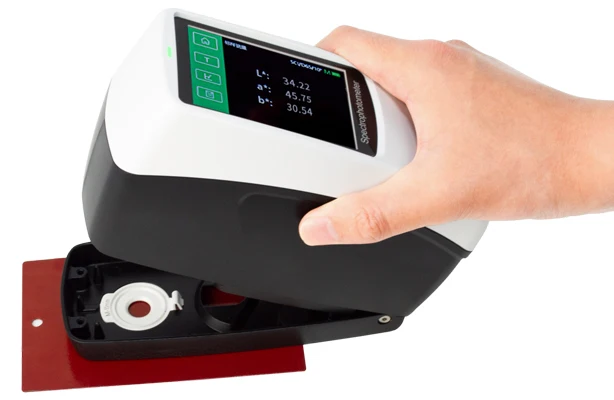

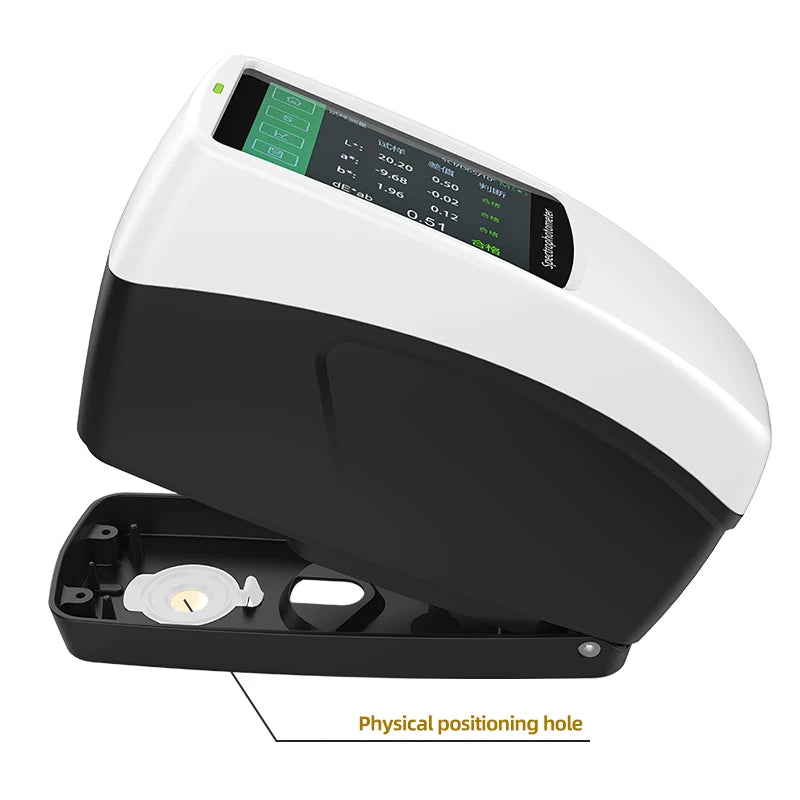

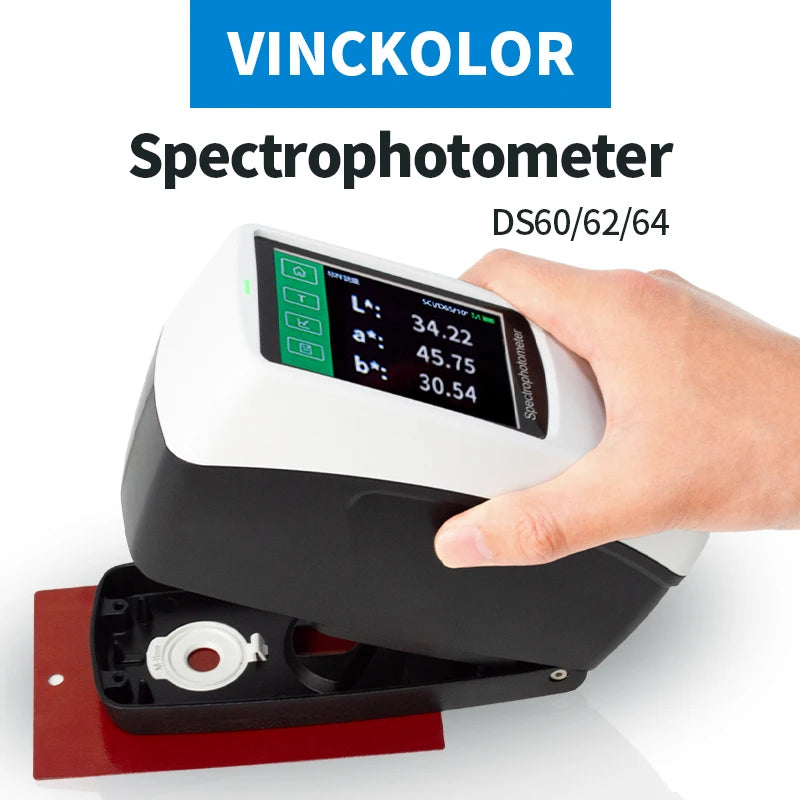

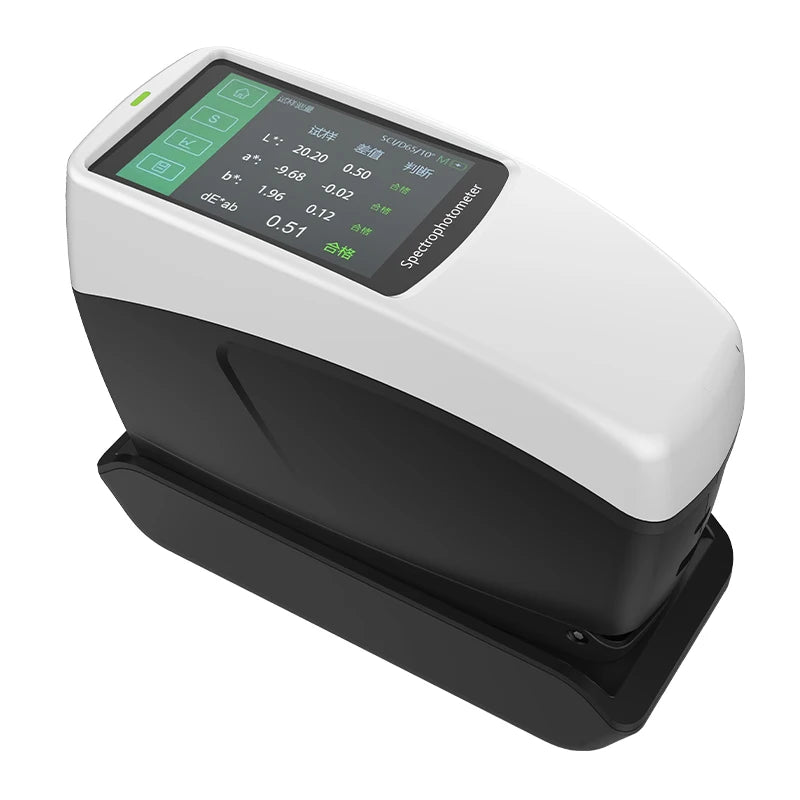

·Horizontal compression measurement, physical positioning observation window

The DS60 series spectrophotometer adopts a horizontal design with a low center of gravity, which can be stableMeasure the surface being measured. During the measurement process, you can follow the observation windowCheck the measurement position at all times to avoid measurement position errors.

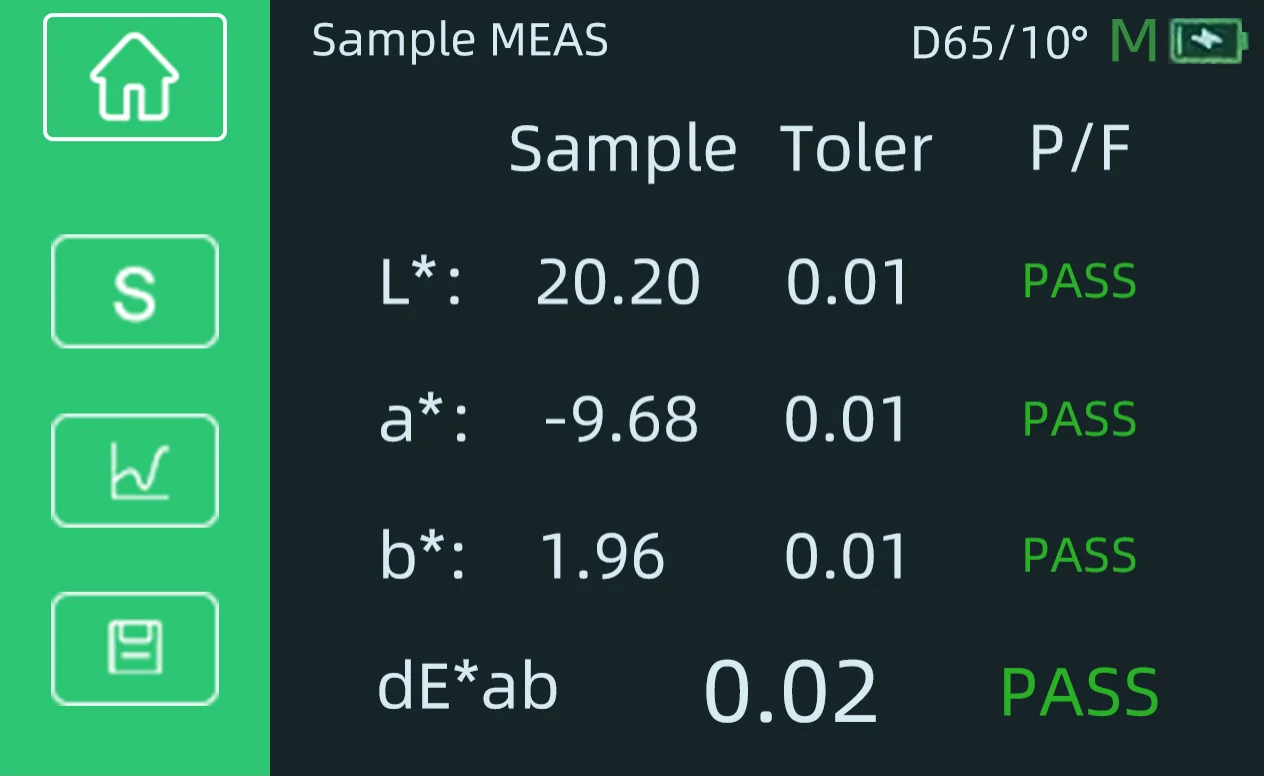

·Ultra-high repeatability accuracy：dE*ab≤0.02

Repeatability accuracy is the most important indicator to describe the performance of a spectrophotometer.The DS60 series spectrophotometer adoptshigh-precision nanometer spectroscopic devices, which enables the repeatability accuracy of the instrument to reach a level of dE*ab≤0.02 that is difficult to match with similar products.

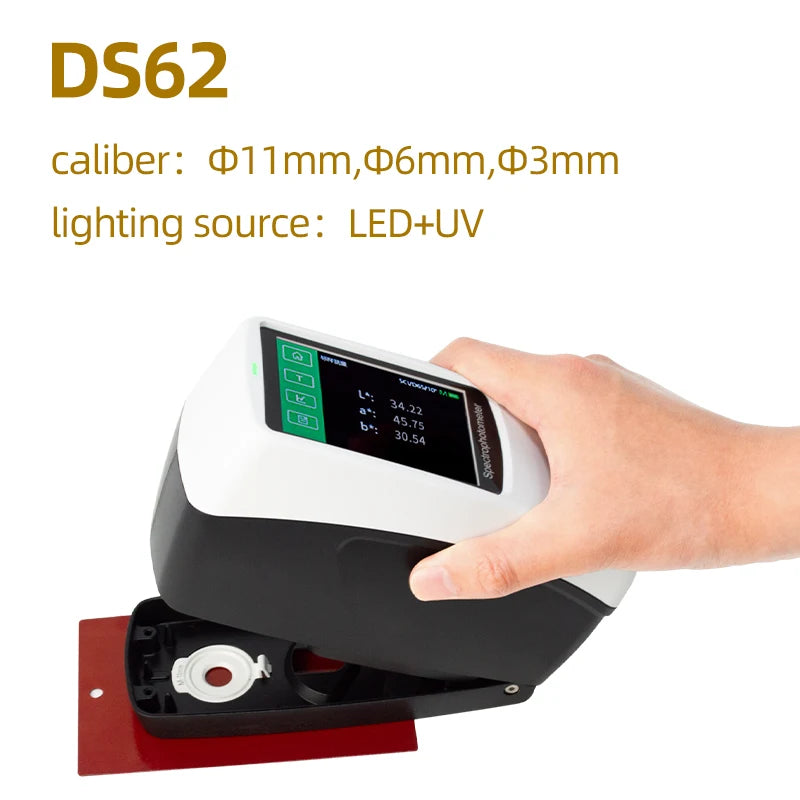

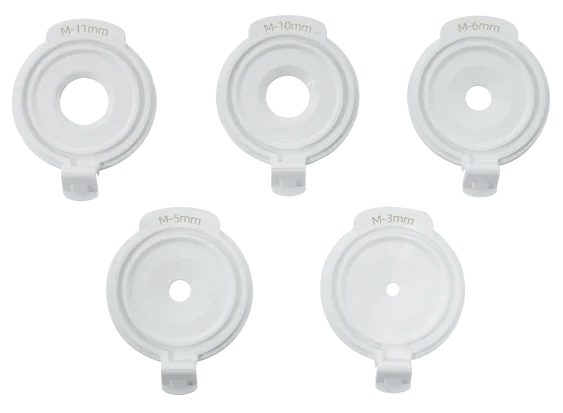

·DS60 series supports 5 measurement calibers

In order to facilitate users to measure samples of different sizes, the DS60 series is divided intoThe optical colorimeter supports 5 calibers for customers to use: Φ11mm, Φ10mm,Φ6mm, Φ5mm, Φ3mm, can be flexibly applied to various samplesproducts and test conditions.

·More than 30 measurement parameters and nearly 40 evaluation light sources

DS60 series spectrophotometers provide spectral reflectance, CIE-Lab, CIE-LCh,ΔE*ab, covering power, whiteness,yellowness and other 30+ measurement indicators; A, B, C,There are nearly 40 evaluation light sources to choose from such as D50, D55, and D65, covering almost all industriesAll color measurement metrics and light source types included.

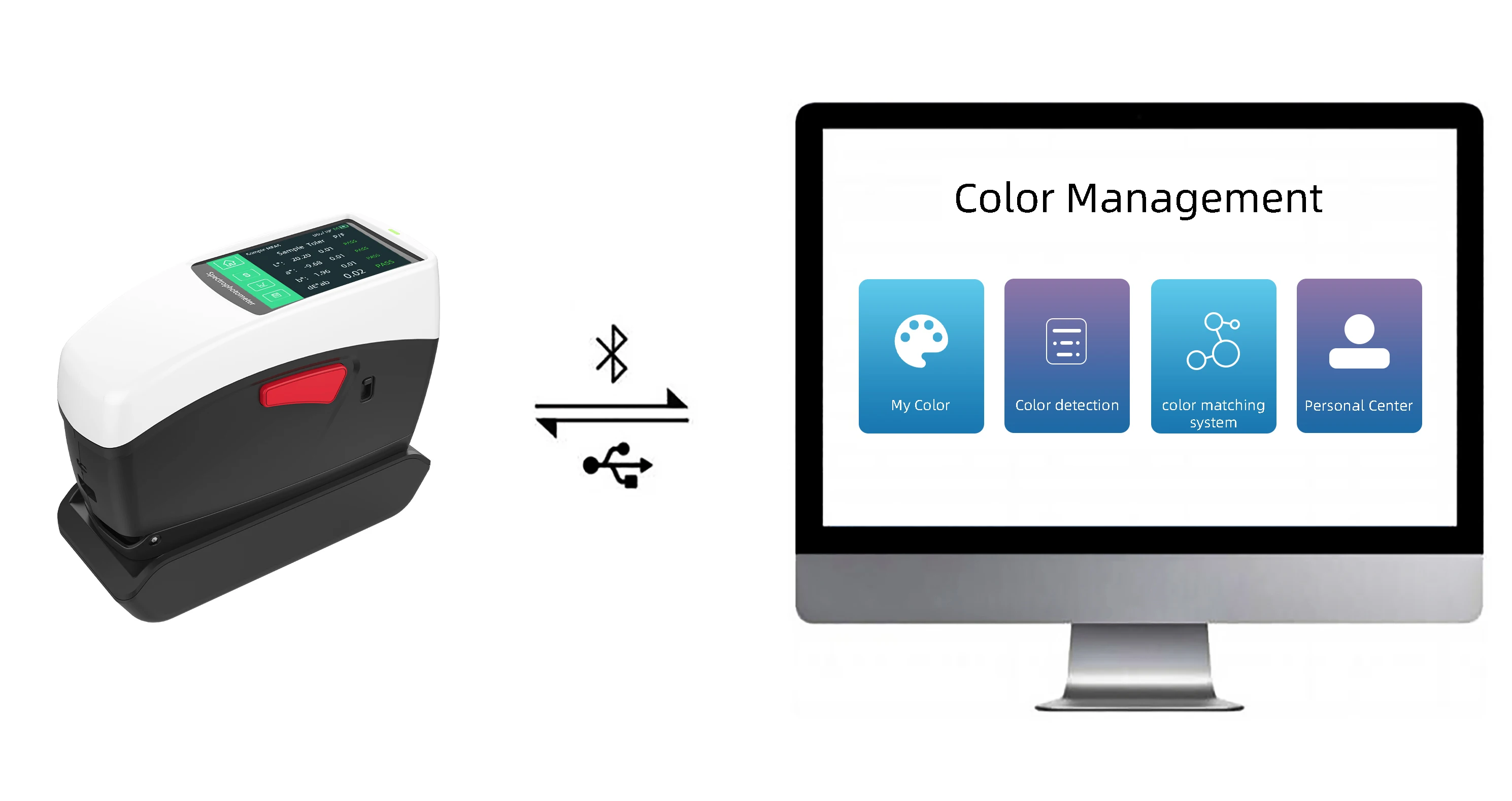

·Use the powerful PC-side color management system ColorExpert

The DS60 series spectrophotometer comes with the Windows color management system ColorExpert, which can be connected to the DS60series spectrophotometer via Bluetooth or USB cable. ColorExpert is a full-featured color management software with four major functional modules: My Color, Color Detection, Color Matching System, and Personal Center.

1. In the "My Colors" function module, users can collect or create new color libraries they need among hundreds of color libraries shared by other users. ElectricityThe brain software and mobile APP can share an account, and the color library data follows the account to achieve information synchronization between PC and mobile terminals.

2. In the "Color Detection" function module, users can calibrate, measure, and set up the spectrophotometer through computer software. Users can use the colors in the cloud database as standard samples to measure color differences, view spectra, color difference charts, standard sample data, and export the desired data test report.

3.In the "Color Matching System" function module, it can provide users with a more convenient and efficient color matching process. After the instrument measures the color of the sample, the system calculates the formula in the formula center and automatically corrects the color, finally achieving an accurate match. Suitable for computer automatic color matching applications in paints, coatings, printing, textiles and other fields.

4. In the "Personal Center" function module, users can edit their personal information, search or delete connected instrument information, manage downstream users, and manage color libraries shared with downstream users.

、Brief table of model distinctions

、Product parameters
