SPECIFICATIONS

Battery Included: no

Brand Name: JUANJUAN

Certification: NONE

High-concerned chemical: None

Material: ABS

Measurement accuracy: ±(3%+1UM)

Measuring range: 0-2000um

Meter car paint: automotive paint

Model Number: HW300PRO

Origin: Mainland China

Power supply: 2 1.5V AAA batteries (without batteries)

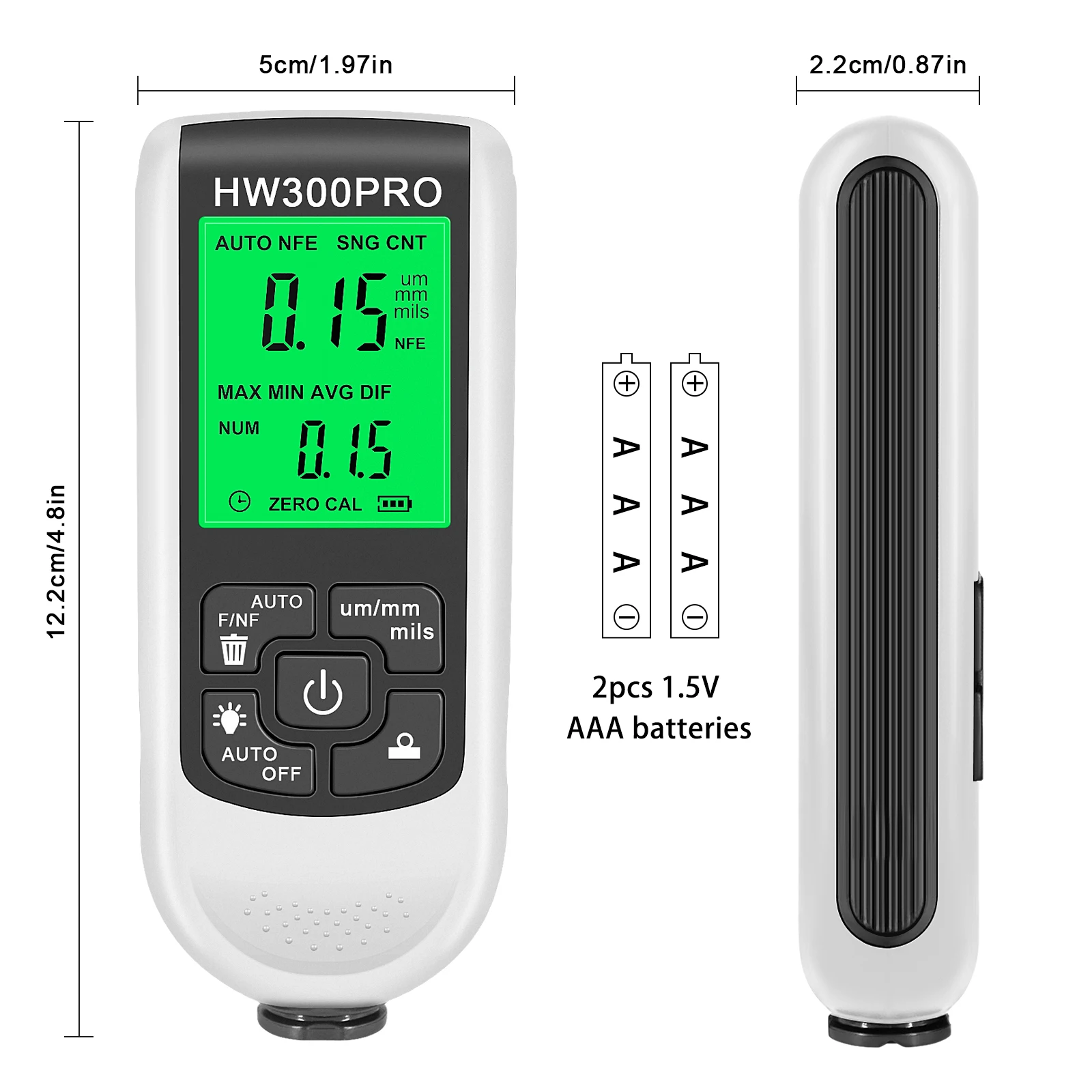

Product size: 122MM*50MM*22MM

Semi-finishedproduct: No

Thickness gauge: Thickness gauge tester for cars

Ultra-precision resolution: 1um

Use temperature: -10 degrees Celsius 50 degrees Celsius

With Backlight Or Not: Yes

auto paint thickness gauge: paint thickness tester

car paint thickness gauge: car paint making

thickness gauge for cars: paint thickness meter

Automotive Paint Coating Thickness Gauge Ultra-Precision Resolution 1um Display Digital Thickness Gauge Coating Measuring Tools

• Specifications:


  This product is mainly used to measure the thickness of non-conductive coating on metal surface, as well as the thickness of non-ferromagnetic coating on ferromagnetic metal (such as iron, nickel, cobalt, etc.), such as paint thickness on automobile surface, coating thickness of metal parts and so on. This product also has built-in magnetic induction and vortex double principle probe, can automatically identify the measured metal substrate, only need to be placed on the measured surface, can automatically calculate the thickness of the coating.

  【1】The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.

  【2】The measuring range is 0-2000UM.

  【3】The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.

  【4】The Gauge is designed for non-destructively measuring the thickness of coating and painting.

  【5】It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

• Description:

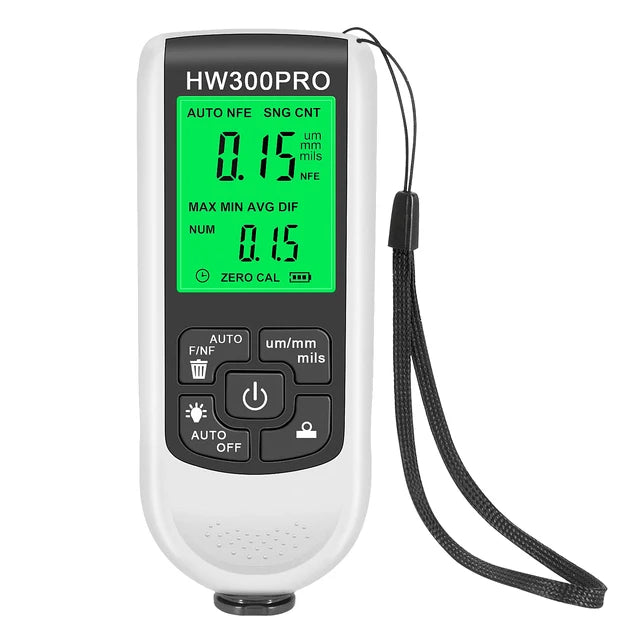

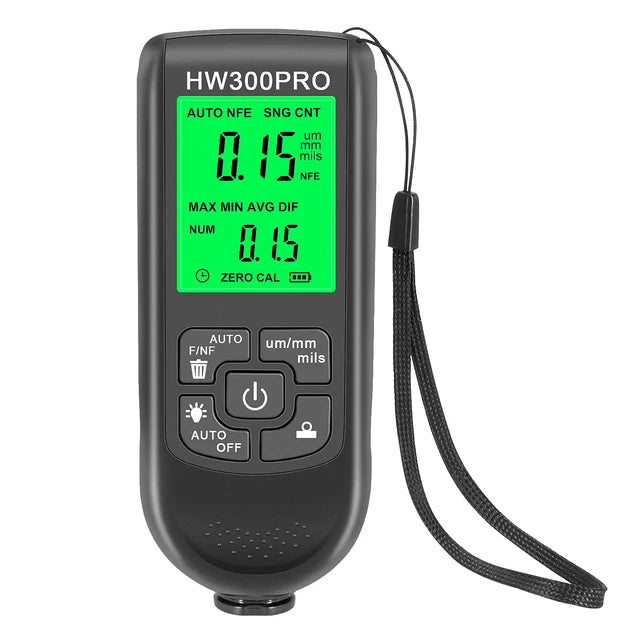

  Product Name: HW-300PRO Coating Thickness Gauge

  Material: ABS

  Product size: 122MM*50MM*22MM

  Power supply: 2 1.5V AAA batteries (battery not included)

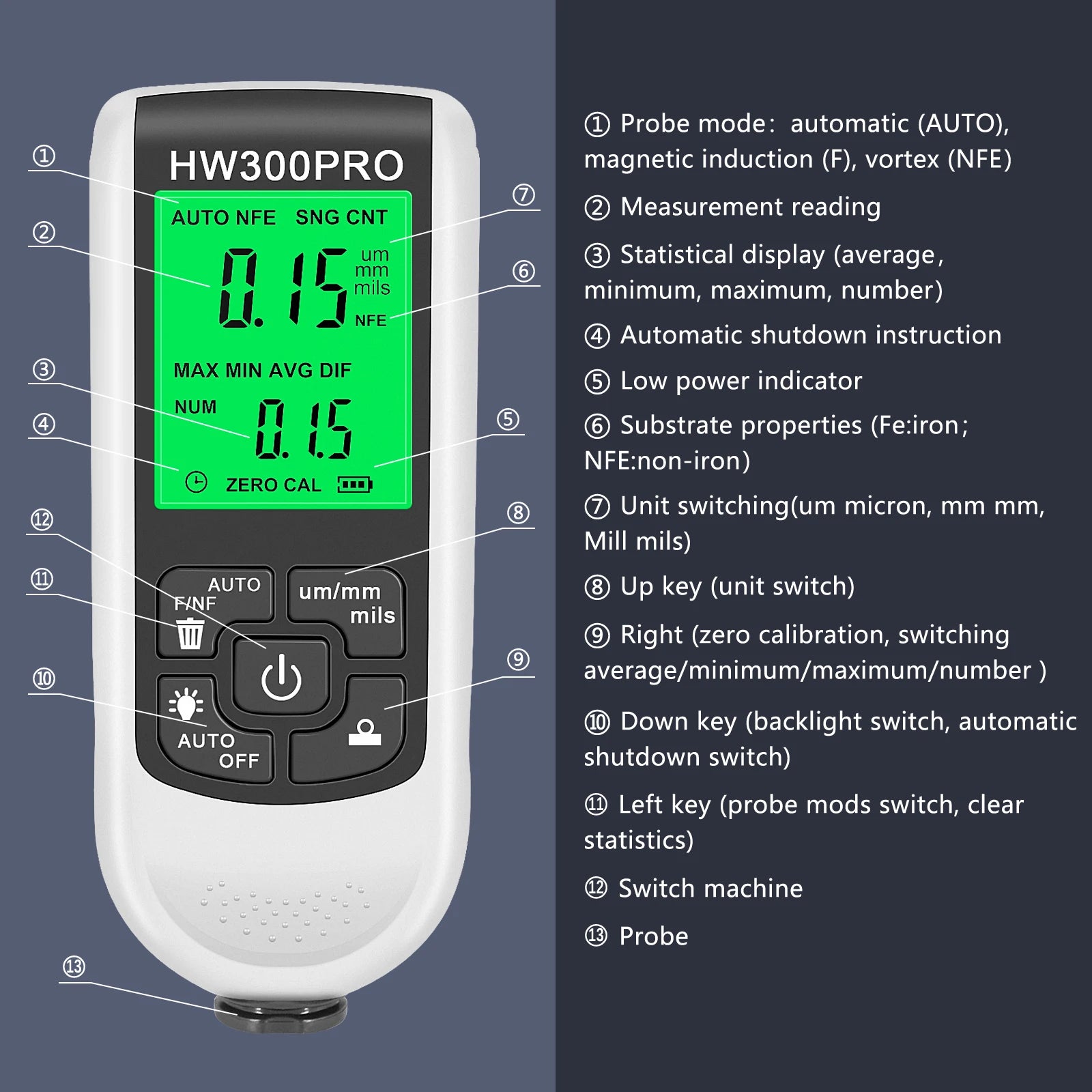

  Probe: F probe, N probe

  Magnetic induction: Measuring principle(F), Eddy current effect(N)

  Measuring range: 0-2000UM

  Measurement accuracy: ±(3% 1UM)

  Operating temperature: -10°C~50°C

  Accessories: Thickness Gauge 1PCS Manual Calibration Sheet

  feature:

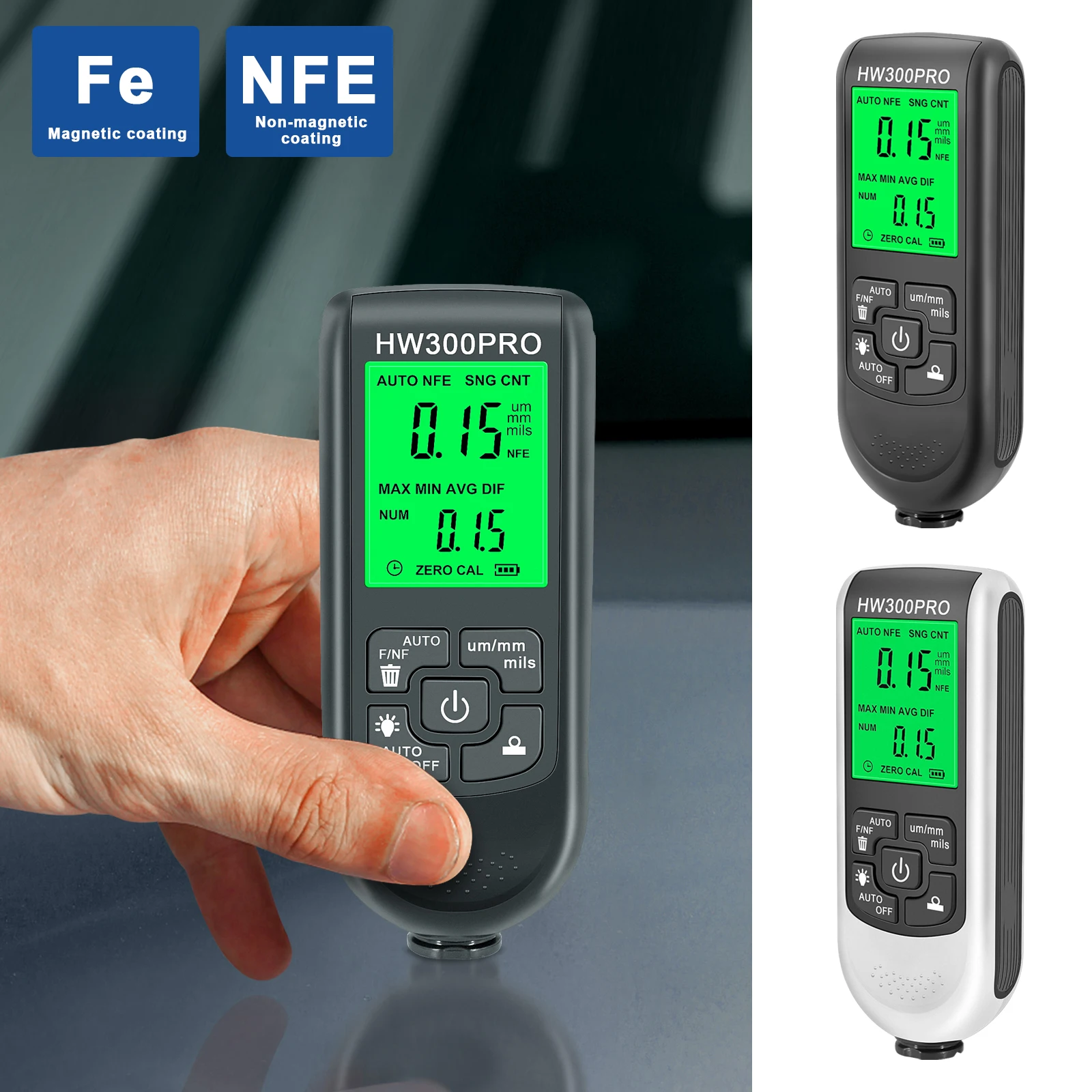

  Ultra-precision resolution 1um, FE/NFE coating measurement, automotive paint 0-2000um

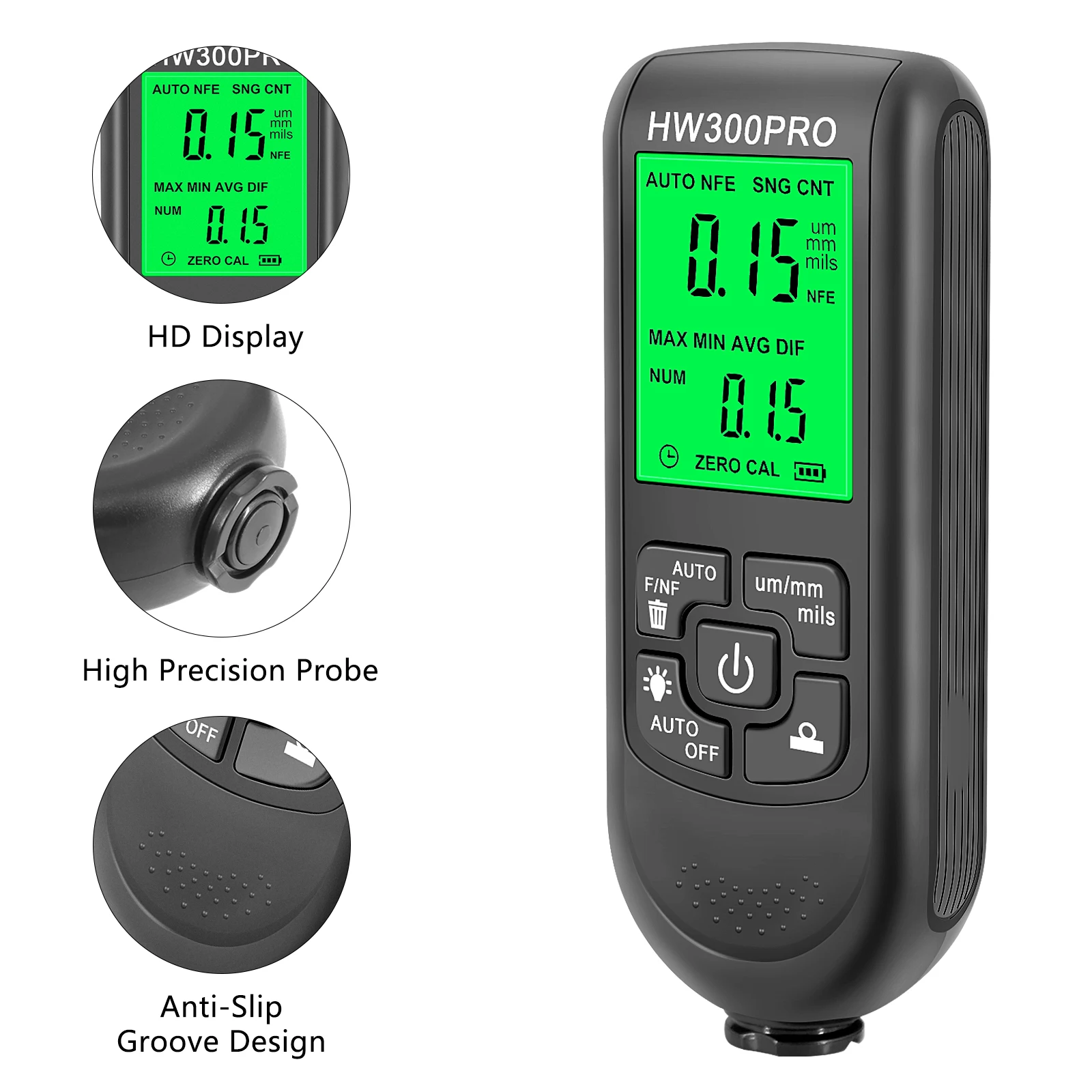

  Small size and high precision

  battery level indicator

  Automatic shutdown function

  for FE/NFE

  Measurement step

  Step 1. Prepare the parts to be tested.

  Step 2. Stay away from the metal object at least 2 cm, press the switch key to turn on.

  Note: it is suggested that the instrument should be zeroed with reference to "zero calibration" before

  testing.

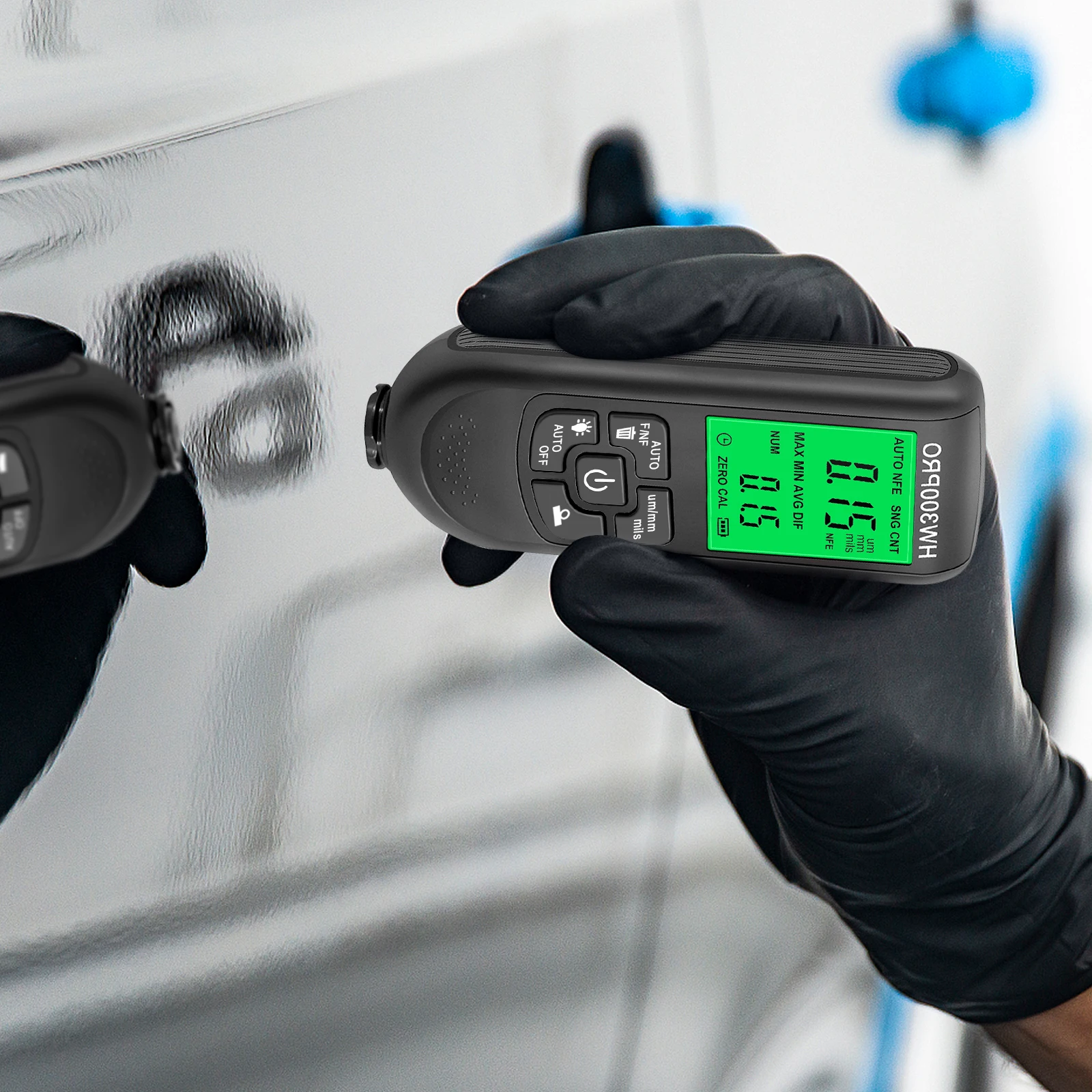

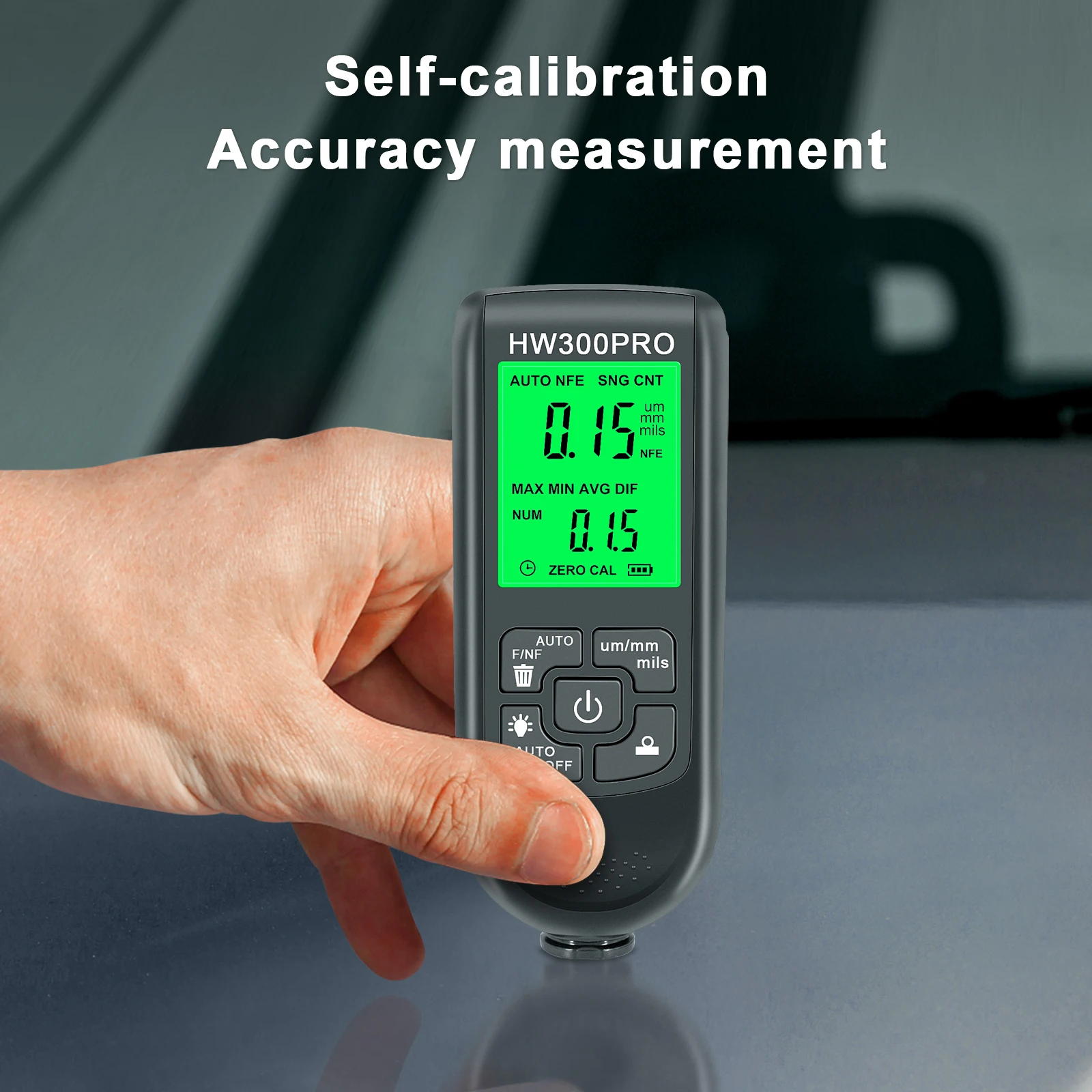

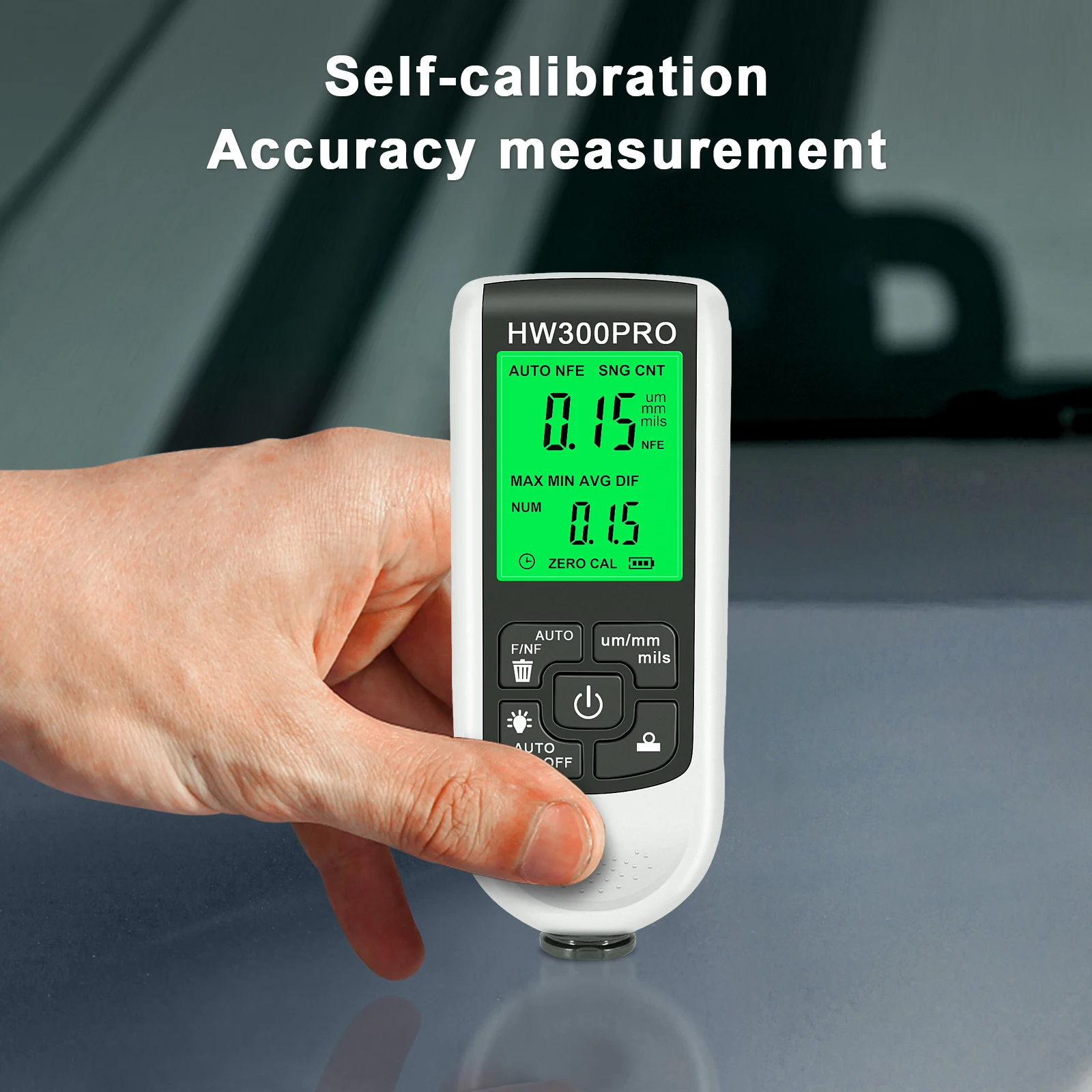

  Step 3. The probe is placed vertically and quickly on the surface to be measured until the drop is heard,

  and the measured value is displayed on the screen, and then the probe is lifted at least 2 cm away from

  the part to be measured, and the next measurement can be carried out.

  Note: if the automatic shutdown function is turned on and there is no operation within 3 minutes, the

  instrument will automatically shut down

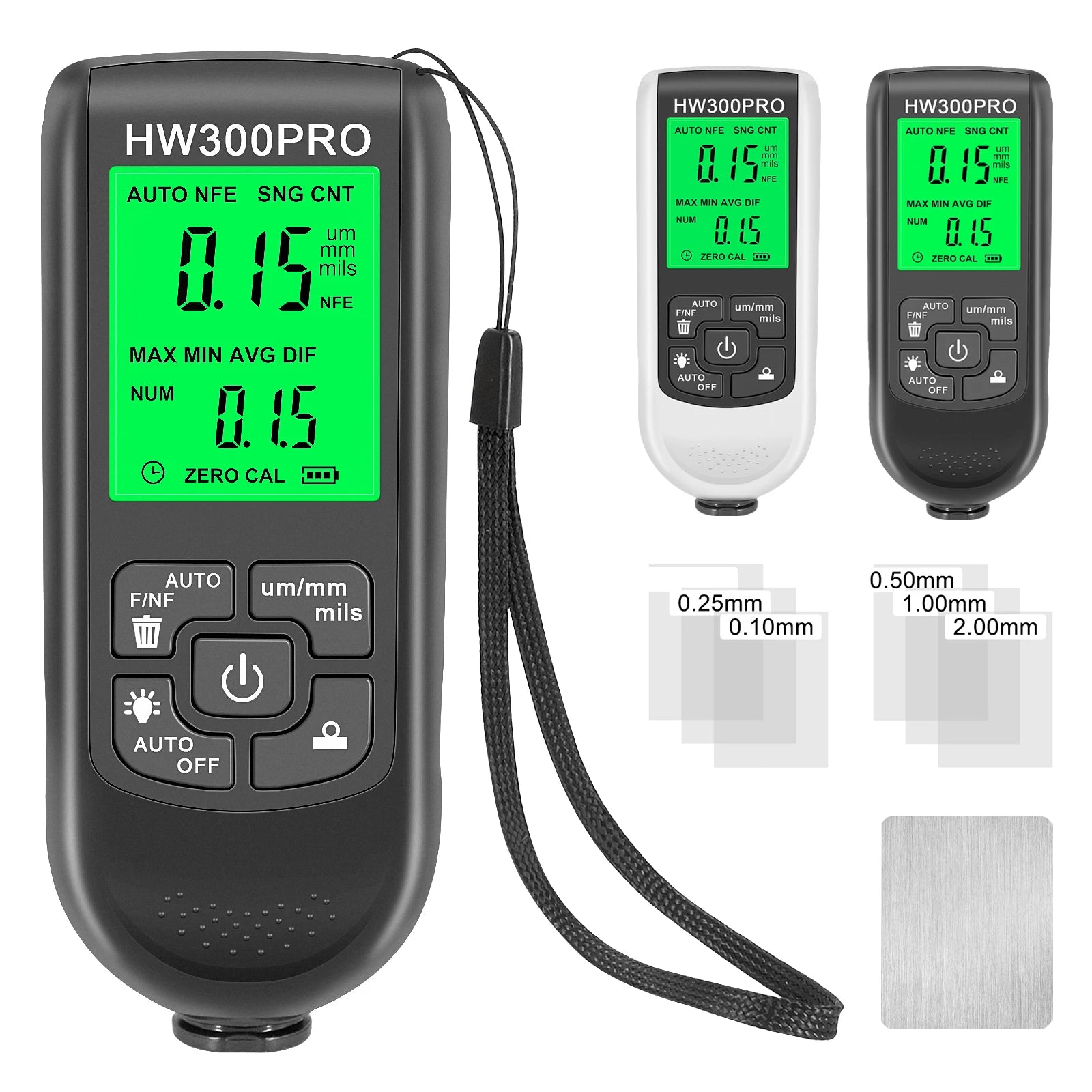

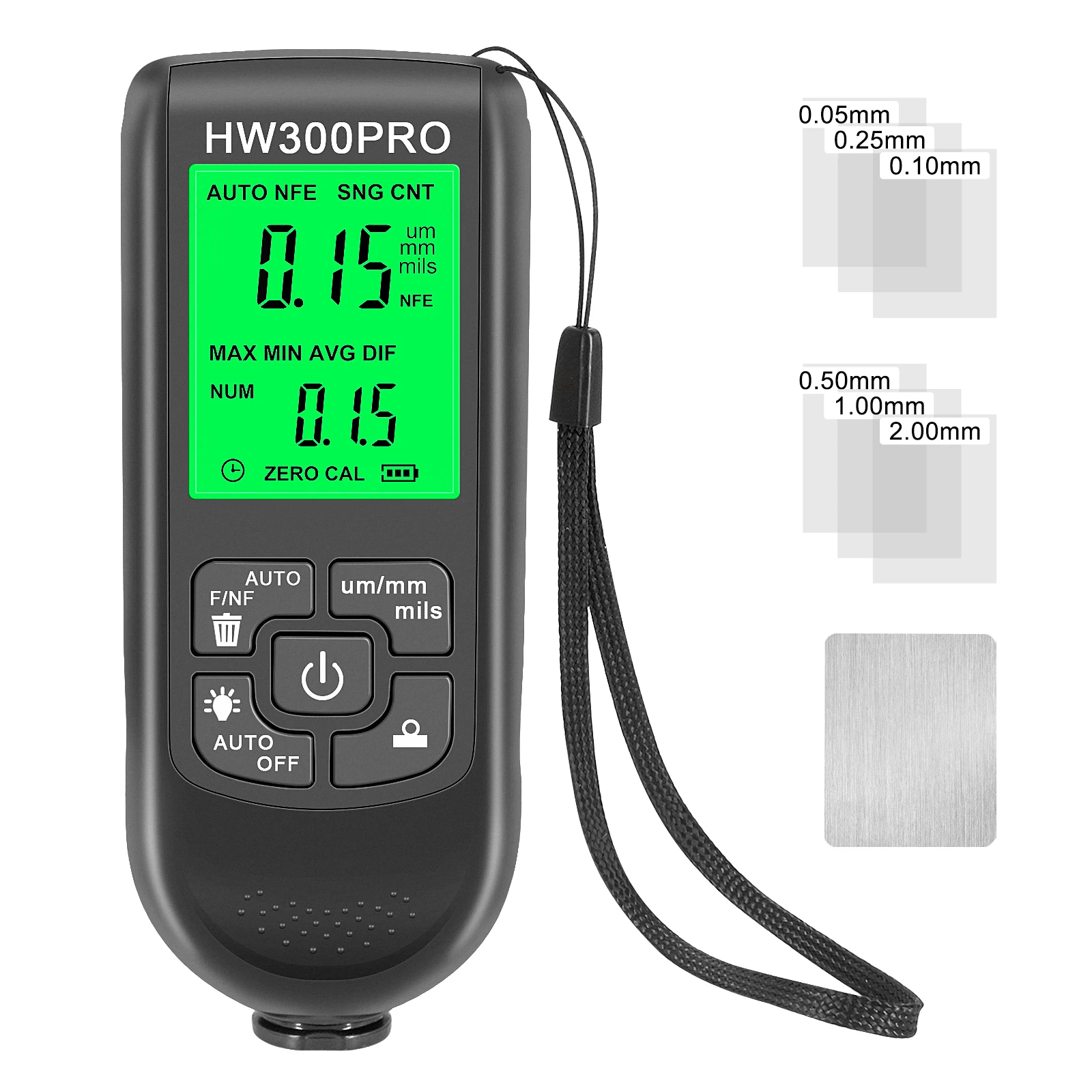

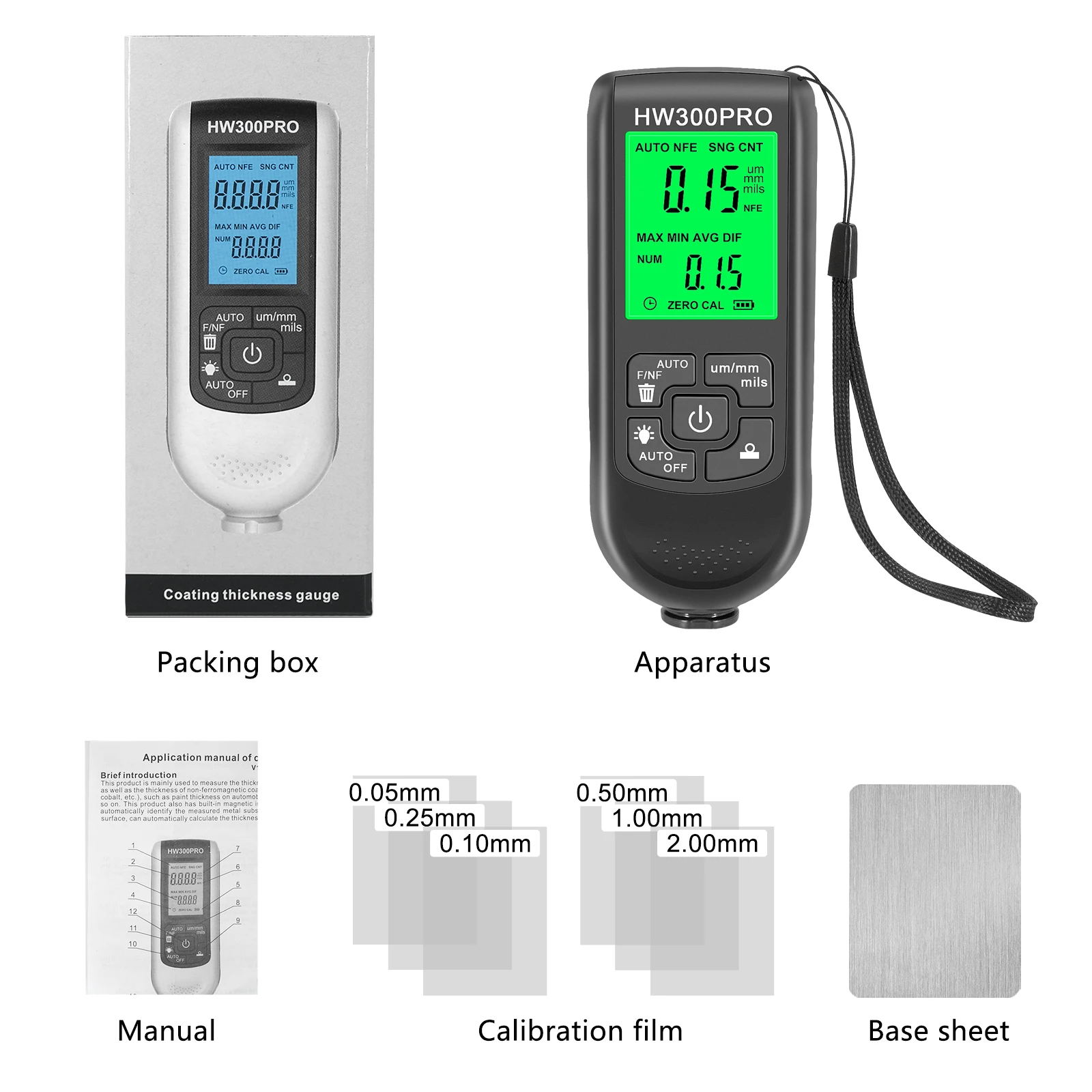

Package Included:

1 x Thickness gauge

1 x Manual

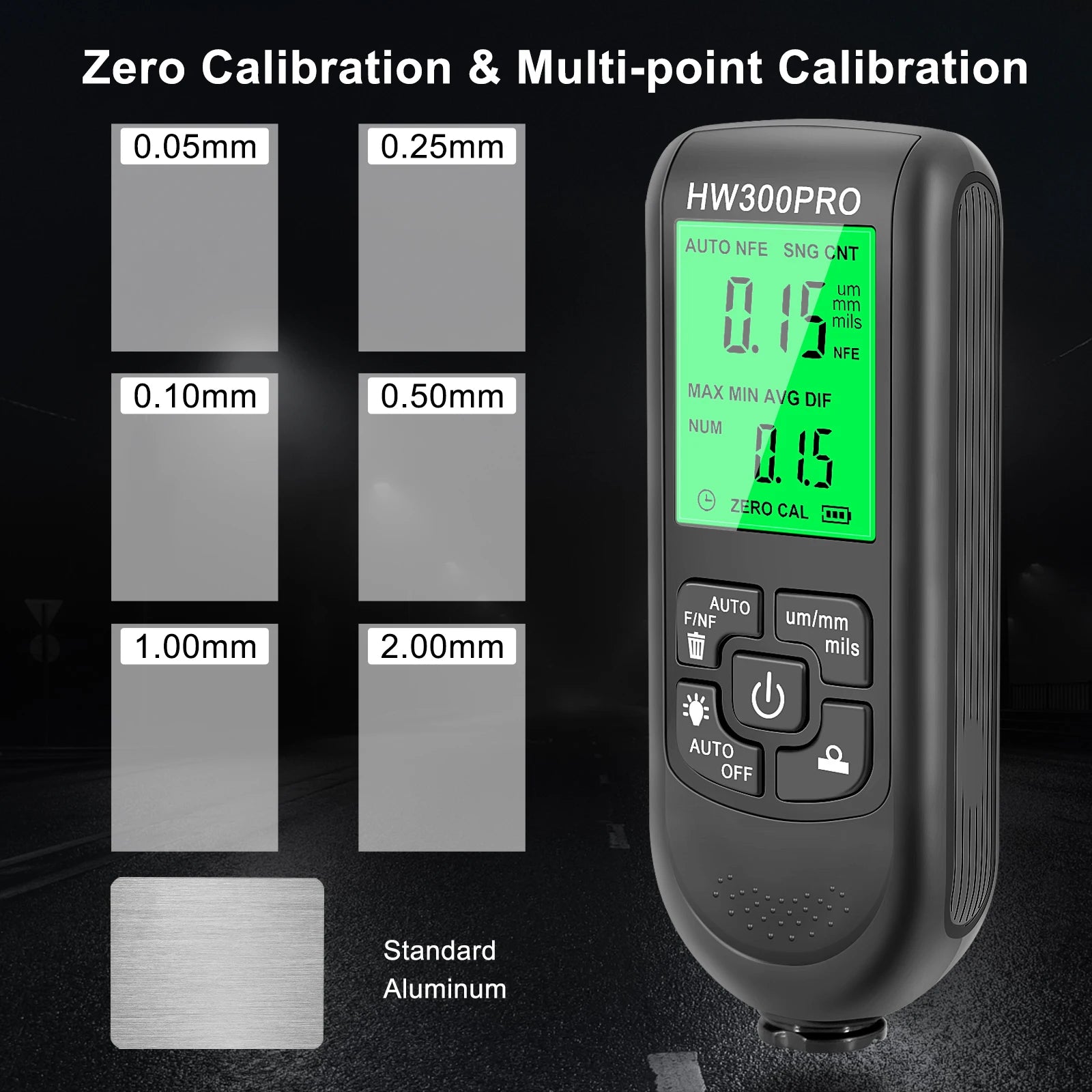

7 x Calibration sheet
