The mall specializes in producing and selling high-purity experimental products for "scientific research institutes, universities and other" scientific research institutions and laboratories. For experiments, we should buy high-cost and high-purity products instead of low-cost and low-purity products. We should buy according to the actual use. Although the purity of industrial products looks the same. We should avoid low purity industrial products entering the laboratory, which will affect the accuracy of experimental results.

Customize various specifications of platinum electrode clips. Please tell the customer service personnel the size and shape you need.

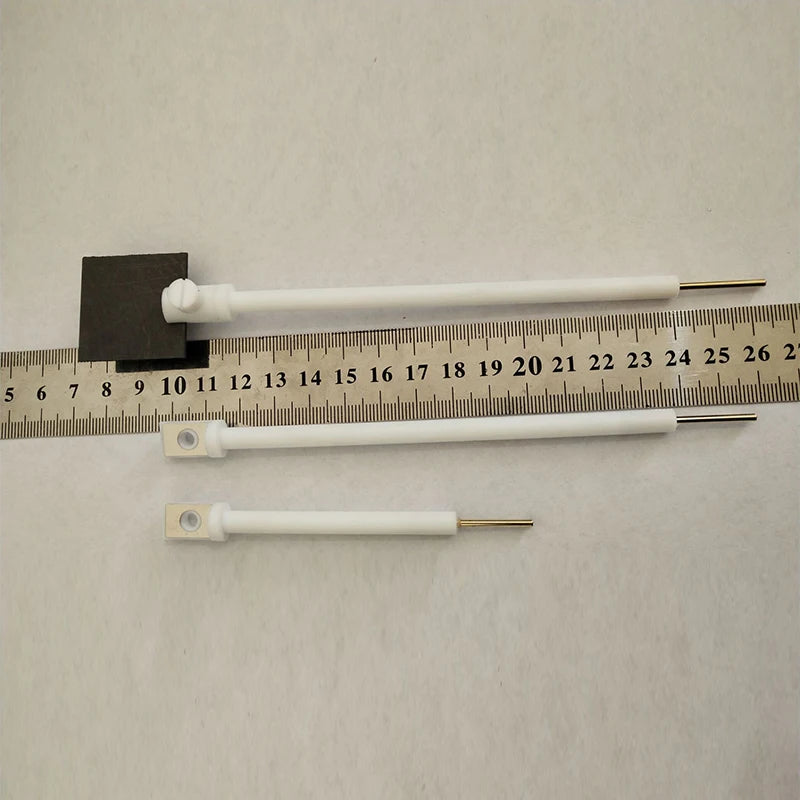

1、B80 (10-10) = the length and width of the built-in platinum plate in the collet are 10mm, the diameter and length of the Teflon rod are 6mm and 80mm, and the diameter and length of the electric copper column are 2mm and 20mm.

2、B80 (10-15) = the length and width of the built-in platinum plate in the collet are 10mm and 15mm, the diameter and length of the Teflon rod are 6mm and 80mm, and the diameter and length of the electric copper column are 2mm and 20mm.

3、B100 (10-15) = the length and width of the built-in platinum plate in the collet are 10mm and 15mm, the diameter and length of the Teflon rod are 6mm and 100mm, and the diameter and length of the electric copper column are 2mm and 20mm.

4、B120 (10-15) = the length and width of the built-in platinum plate in the collet are 10mm and 15mm, the diameter and length of the Teflon rod are 6mm and 120mm, and the diameter and length of the electric copper column are 2mm and 20mm.

5、B140 (10-15) = the built-in platinum plate in the collet has a length of 10mm and a width of 15mm, a diameter of 6mm and a length of 140mm for the Teflon rod, and a diameter of 2mm and a length of 20mm for the electric copper column.

6、Platinum electrode holder product introduction:

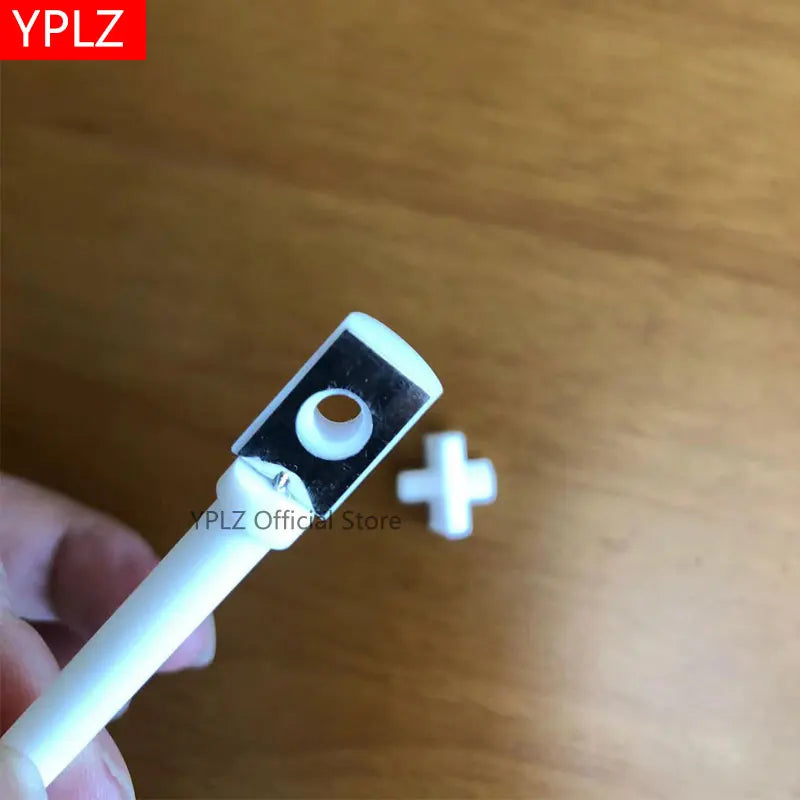

（1）. The platinum sheet built in the collet can not be used as a reaction sheet, but only as a conductive and anti-corrosion function.

（2）. The thickness of the reaction piece clamped by the collet is less than or equal to 3mm (Note: the reaction piece can be metal or conductive glass, etc.), and the size of the reaction piece shall be calculated according to the capacity of the electrolytic cell. Of course, the larger the reaction piece, the larger the corresponding platinum clip. Because the larger the reaction piece, the larger the area to be clamped. Keep the clamping firm, and the clip needs to be appropriately larger, At the same time, the reaction piece is large, and the collet also needs a large conductive area to provide sufficient conductive area and improve the experimental efficiency.

（3）. Use at normal temperature, not at high temperature.
