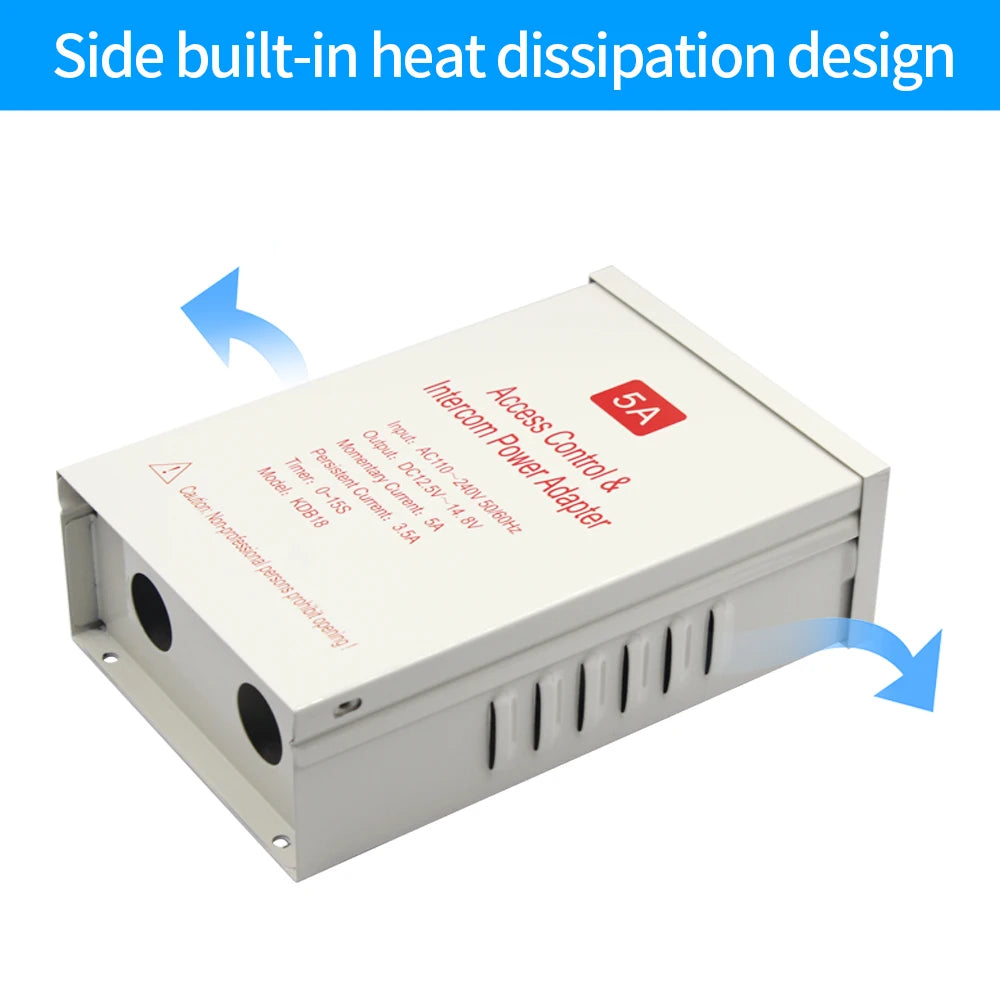

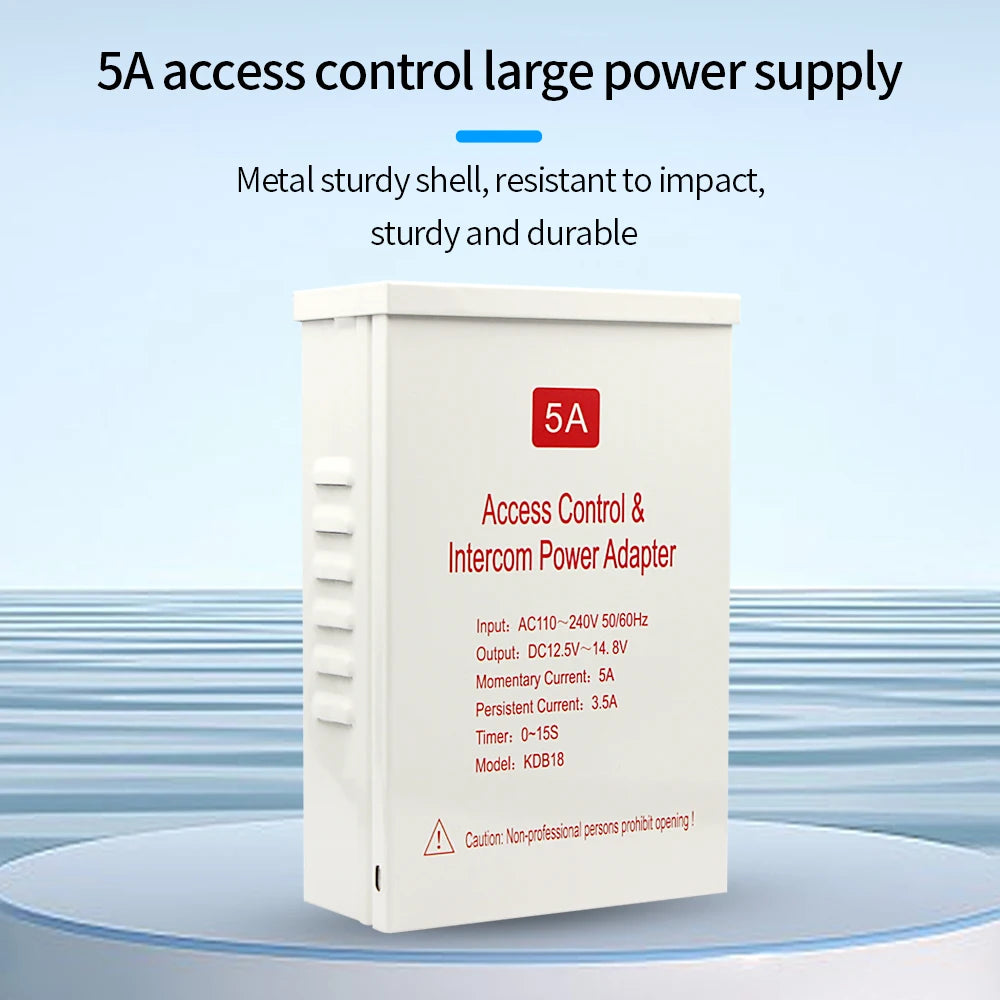

DC12V 5A Special Power Supply for Access Control AC 220V with Delay Suitable for Face Device Building Intercom Door Lock Control
DC12V 5A Special Power Supply for Access Control AC 220V with Delay Suitable for Face Device Building Intercom Door Lock Control
SPECIFICATIONS
AC Input: AC110-240V 50Hz/60Hz

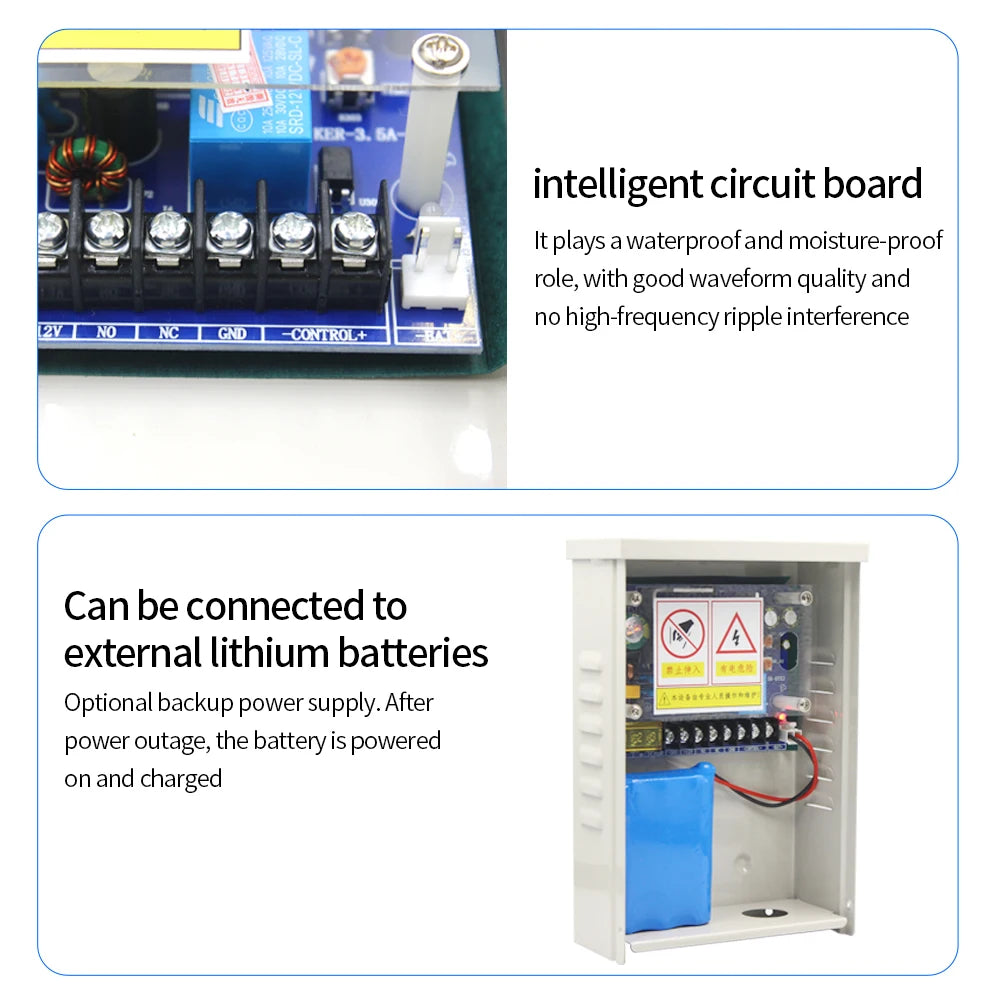

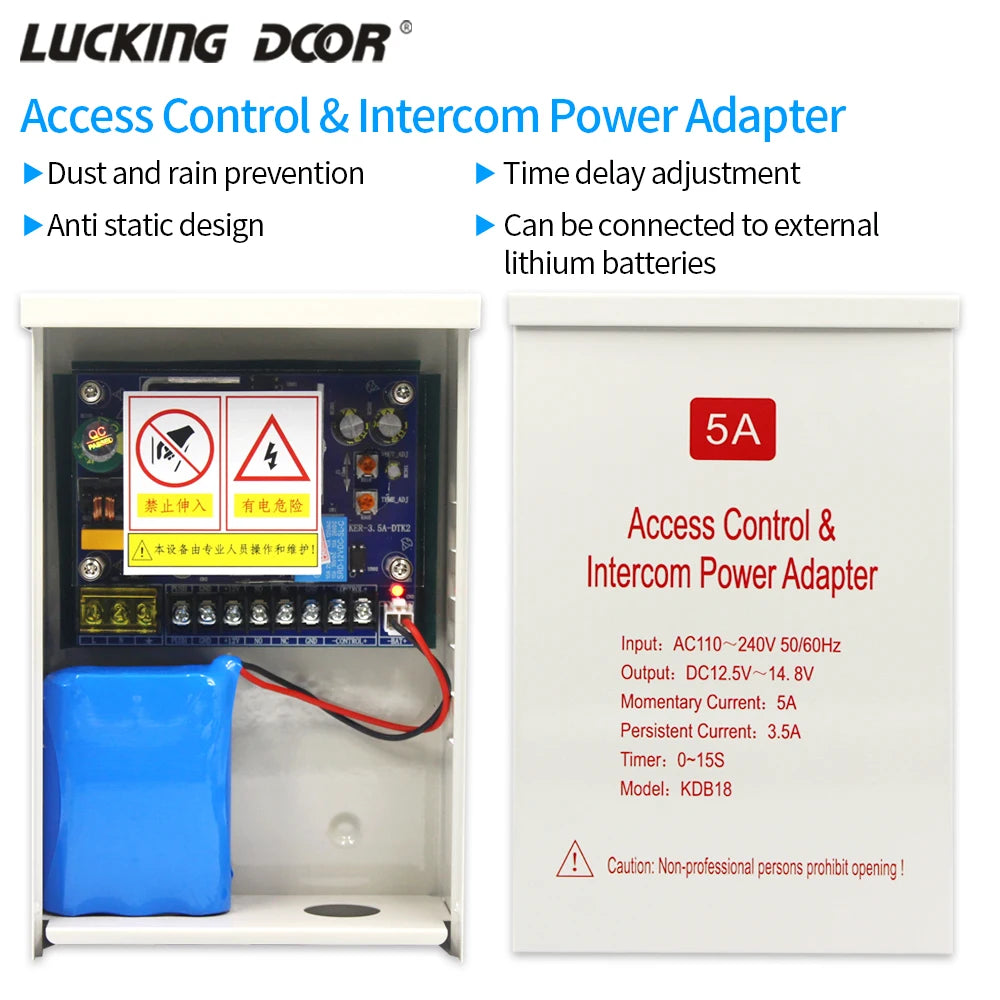

Battery Interface: Yes, can built-in lithium battery
Brand Name: LUCKING DOOR
Choice: yes

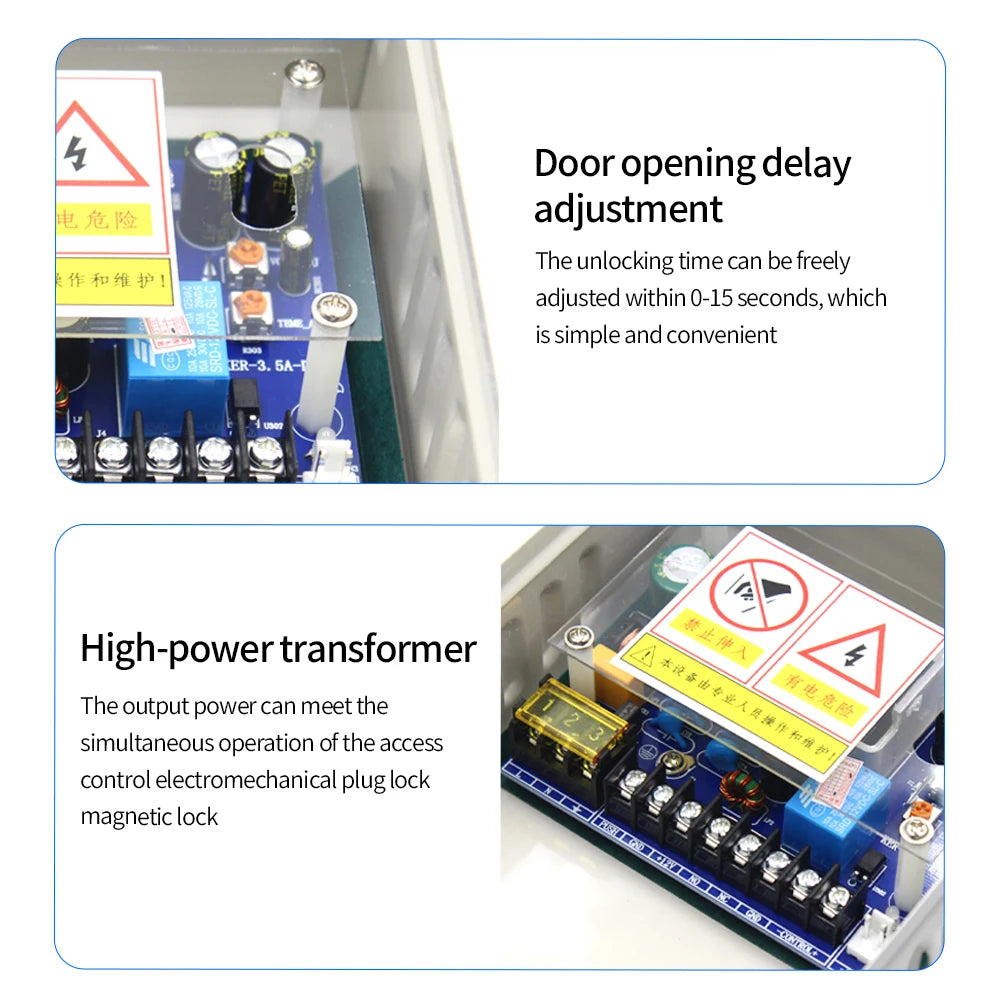

Delay Time: 0-15s

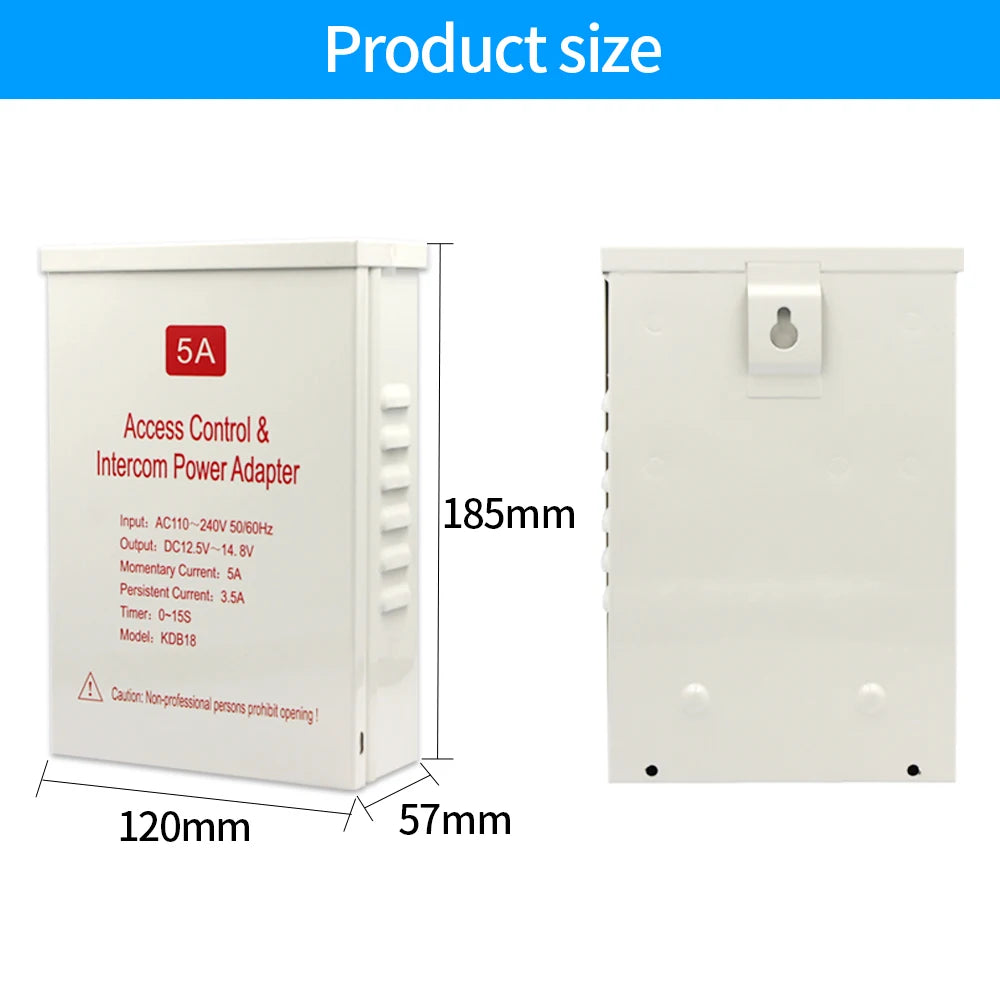

Dimension: 185*120*57mm
High-concerned chemical: None
Model: KDB18
Momentary Current: 5A
Origin: Mainland China
Out Voltage: DC12V
Output Current: 5A
Output Power: 60W
Output Voltage: DC 12v
Persistent Current: 3.5A
Product Name: Special Power Supply
Working Temperature: -20℃~60C℃
Working humidity: ≤90%RH
Special Power Supply Product Instruction
Please read the instruction carefully before use the power supply and take care of it.
Application
The power supply is applied to different face recognition/fingerprint/card devices and building intercom device/video access control devices. Especially suitable for kinds of types lock.
Through the standalone controller control output or other switch signal to control electric lock. So that can decrease electric lock induced reverse current to interfere standalone controller, and increase safety and stability. It can be connected to different normal open or normal close electric locks.
Built-in time delay circuit that can set unlock time, set exit button input that can control unlock electric lock. Set CONTROL that can input 12V electrical signal to control open and close of electric lock. Built-in protective circuit, when external circuit occurs short circuit or
overheating, it will automatically disconnect voltage output. After 3 minutes of troubleshooting, it can normally work when power on. With output voltage protection
function, does not cause damage to other devices.
NO and GND terminal:NO-Fail Secure lock control terminal, normal without output, after trigger, NO is the anode, output voltage is DC12V(0-15s).
NC and GND terminal:NC-Fail Safe lock control terminal, normal without output, after trigger, NC is the anode, output voltage is DC12V(0-15s).
PUSH and GND terminal: exit button input terminal, can control the lock to lock or unlock.
+12V and GND terminal: provide DC12V voltage to device.
CONTROL electric signal input terminal: input DC5V or DC12V electric signal control.(input electric signal, anode connect CONTROL＋, cathode connect CONTROL－
NOTE: Please adjust the delay time to minimum when connect electric control lock.
PUSH and GND is switch control input, forbid to connect electric signal to PUSH and GND.
