SPECIFICATIONS

Battery Included: no

Brand Name: TORNADOR BLACK

Include Accessories: No

Item Type: Car Washer

Material Type: Aluminum-alloy

Motor: Universal Motor

Origin: Mainland China

Special Features: Spray Gun For Die-Casting Machine

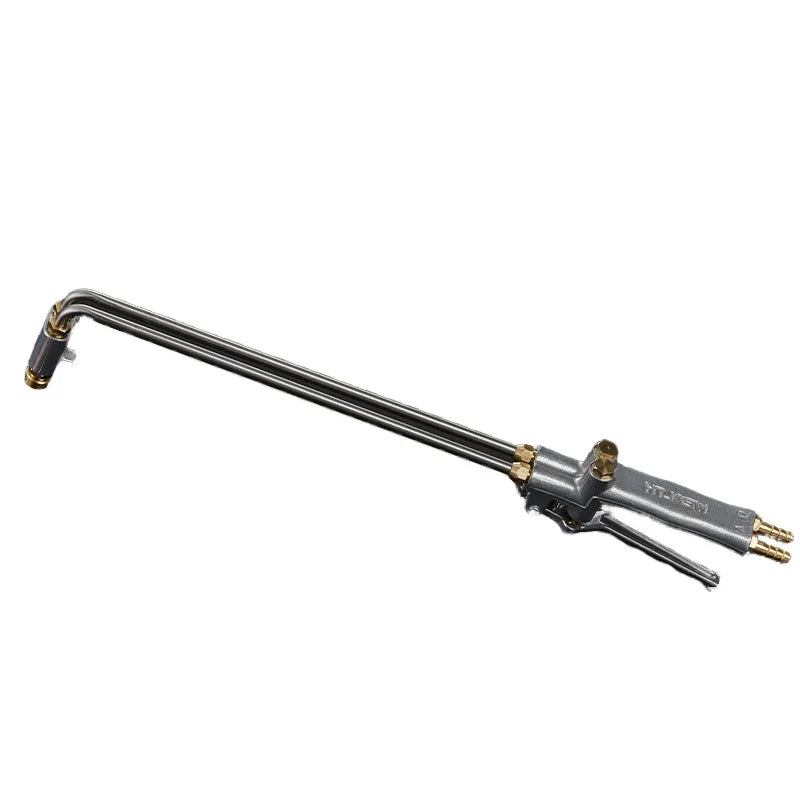

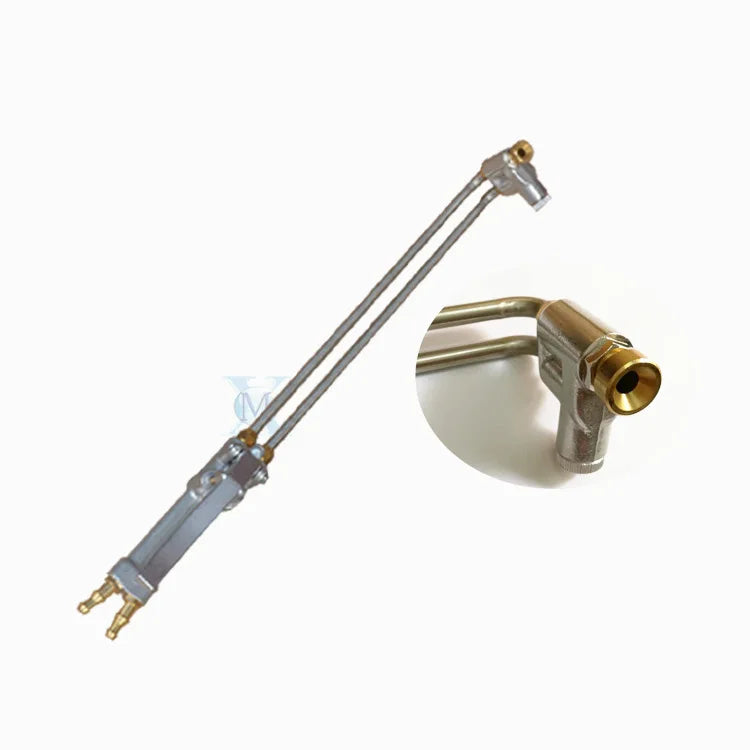

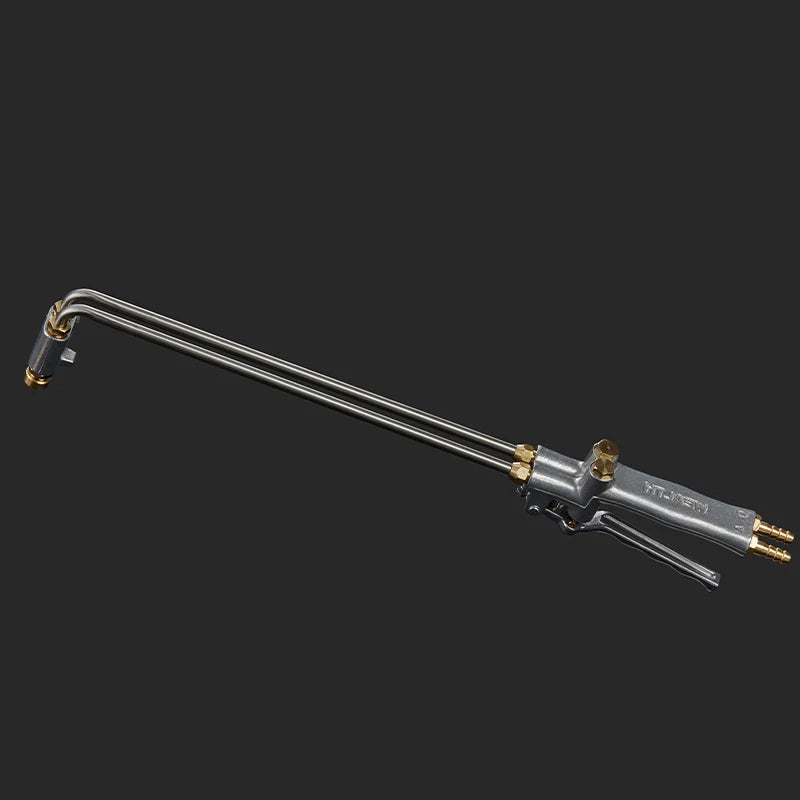

Two-position Self-suction Double-pipe Spray Gun For Die-Casting Machine Release Agent Lubricating Fluid Sprayer

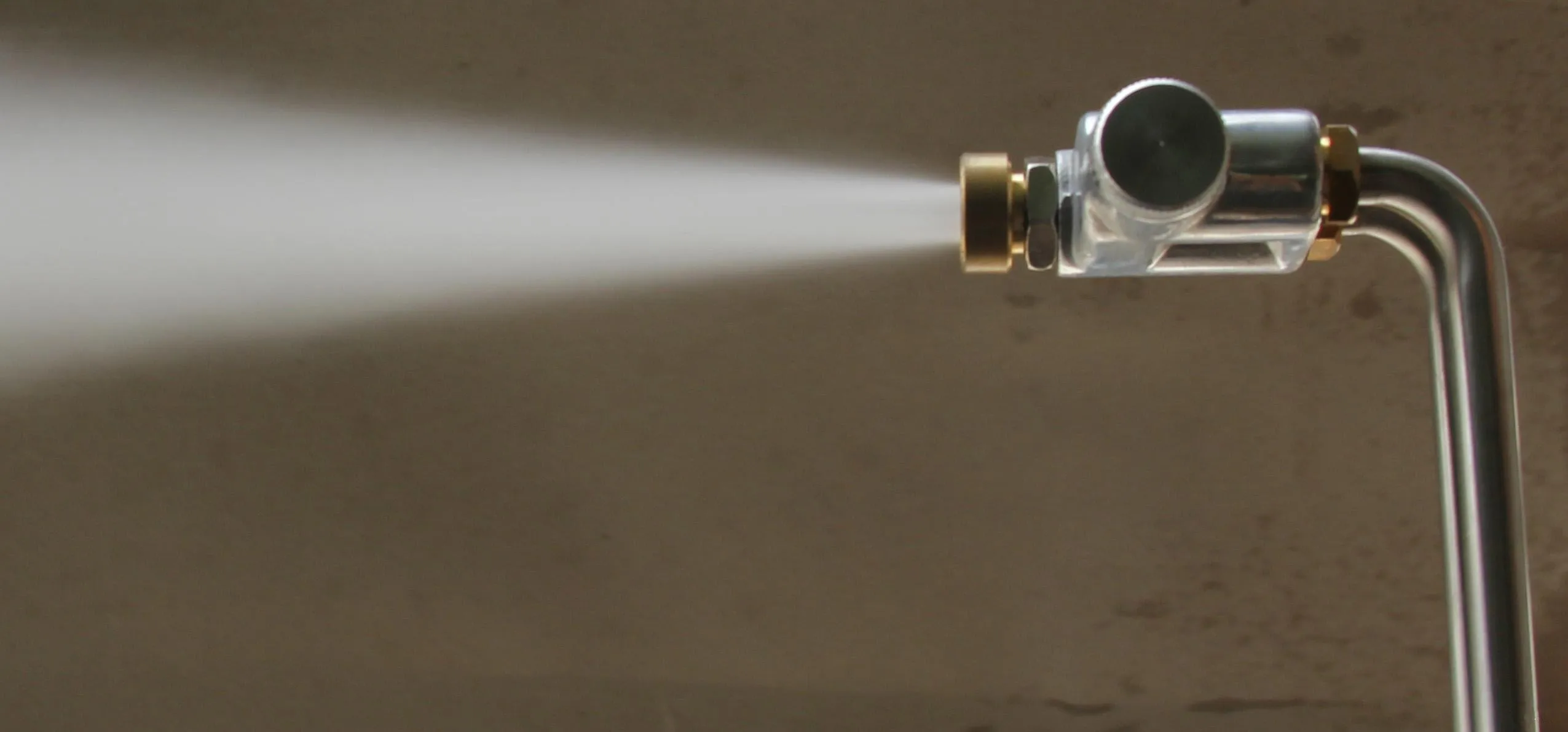

spray gun realizes automatic remote conveying and spraying of liquid coating with the principle that the negative pressure is produced by the sudden expansion of the compressed air in the spray nozzle; it is classified into two types: two-position self-suction adjustable double-pipe spray gun, and two-position self-suction adjustable composite-pipe spray gun. The atomization quantity and area of the double-pipe spray gun are adjustable, the gas discharge and atomization quantity of composite-pipe spray gun are adjustable. The gas discharge position is used for uniform drying of the coating by blowing and for the removal of the mold residues, while the liquid discharge position is used for the spray of the liquid coating.

Instruction for use

1.       Gas inlet connector (G mark) is connected with the gas source connecting pipe, and liquid inlet connector (O mark) is connected with the liquid conveying pipe, and these connectors are bundled by iron wires or hose clamps;

2.       The other end of liquid conveying pipe is inserted into the open coating bucket, and the pipe opening shall be higher than the bucket bottom, avoiding being blocked by the residues;

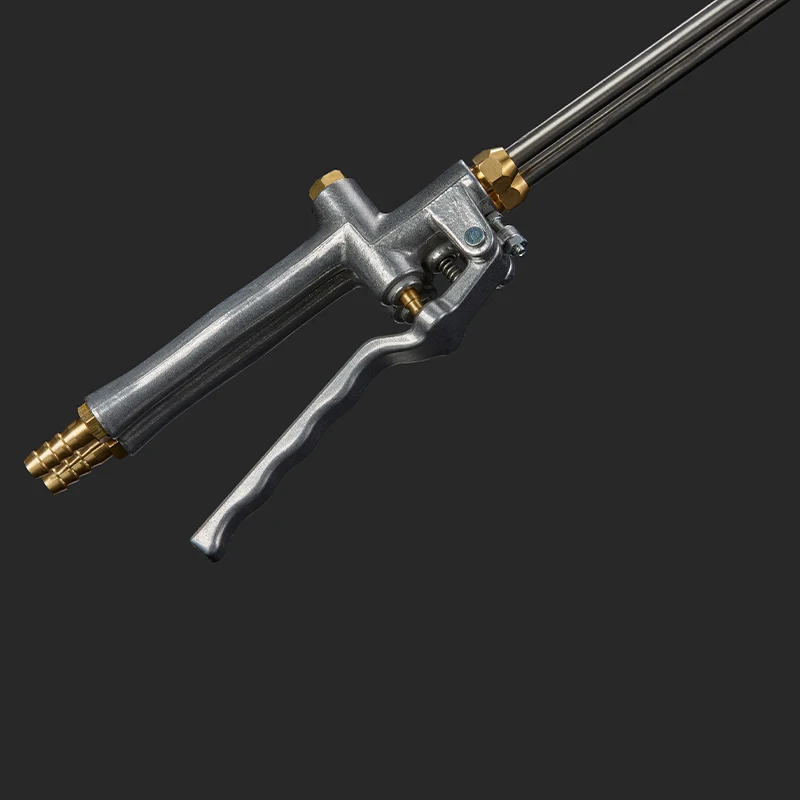

3.       Operation procedures: open the first position (gas source valve spool) for the discharge of the compressed air, and open the first and second positions at the same time (liquid valve spool) for the coating spraying;

4.  Gas discharge quantity and the amount of spray may be adjusted by adjusting the gas regulating valve spool and liquid regulating valve spool.

Technical parameters:

compressed air pressure: o.4-0.8MPa, effective coating lift height<4.0m;

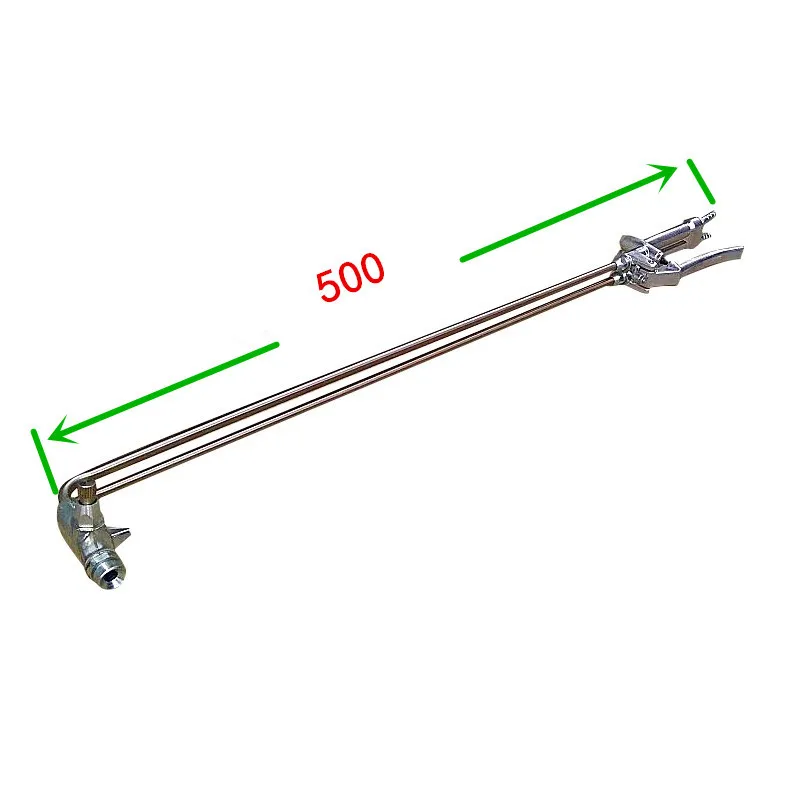

Different spray gun length for choose: 350mm, 500mm, 600mm, 700mm, 800mm

Dual Action Release Agent Spray Gun

Die-Cooling / Cleaning Release Agent Spray Gun

Dual Action Release Agent Spray Gun is ideal for die-cooling / cleaning, lubricating and spraying of release agents on forging, die casting, rubber and plastic moulding dies. The spray gun has two hose connectors for air and die-coat. Featuring two in operation as it may first releases a blast of air for cleaning then spray release agent.

Availabe in two models:

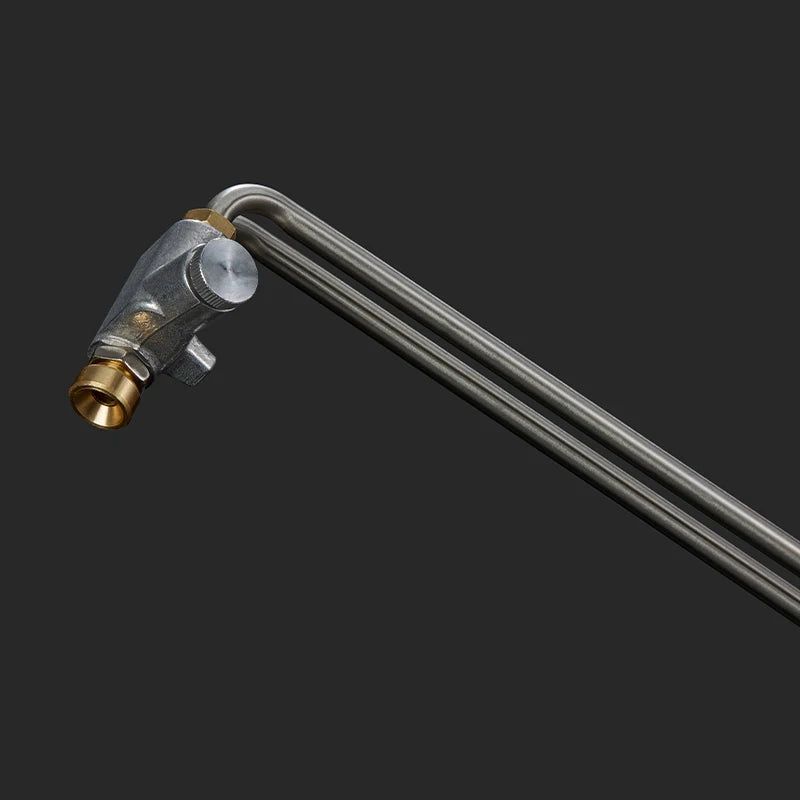

with Single orifice and bend pipe providing easy access to all parts of die from safe working distange

Pipe length or other specifications may be customized. Please contact us for more information

Notes

1.       The spray gun shall be timely cleaned after use, particularly after spraying of the sticky coating or the coating particles. Cleaning method: insert the coating conveying pipe into the clean water (or organic solvent) for atomization for 2-3 minutes, to achieve the cleaning effect;

2.       If the spray gun is blocked, your thumb is used to block the spray nozzle, and the first and second positions shall be opened, so that the blocked substances can possibly return from the coating pipe and remove the blocking.
