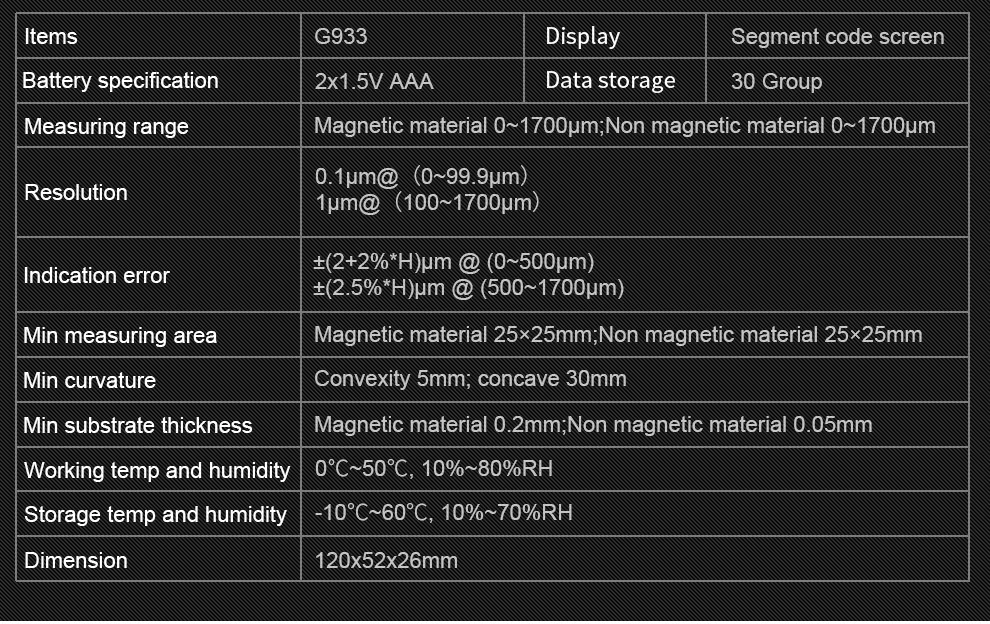

SPECIFICATIONS

Battery Included: no

Battery specification: 2x1.5V AAA (not included)

Brand Name: BOAYAL

Certification: CE,FCC,RoHS

Choice: yes

Data storage: 30 Group

Dimension: 120x52x26mm

Display: Segment code screen

High-concerned chemical: None

Measuring range: Magnetic material 0~1700μm;Non magnetic material 0~170μm

Min curvature: Convexity 5mm; concave 30mm

Min measuring area: Magnetic material 25x25mm;Non magnetic material 25x25mm

Min substrate thickness: Magnetic material 0.2mm;Non magnetic material 0.05mm

Model Number: G933-3

Origin: Mainland China

Resolution: 0.1μm@ (0~99.9μm); 1μm@ (100~1700μm)

Semi-finishedproduct: No

Storage temp and humidity: -10℃~60℃, 10%~70%RH

With Backlight Or Not: Yes

Working temp and humidity: 0℃~50℃, 10%~80%RH

semi_Choice: yes

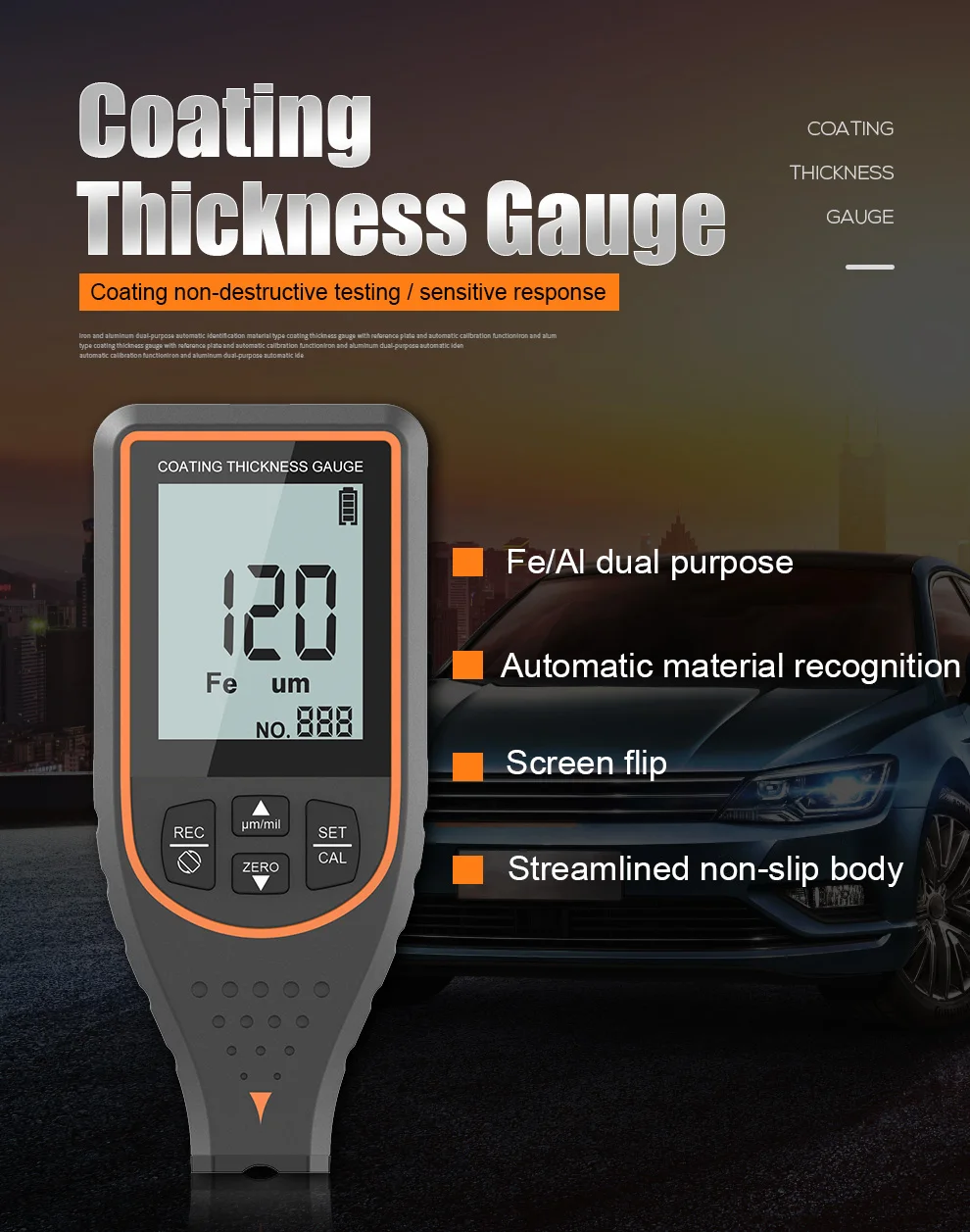

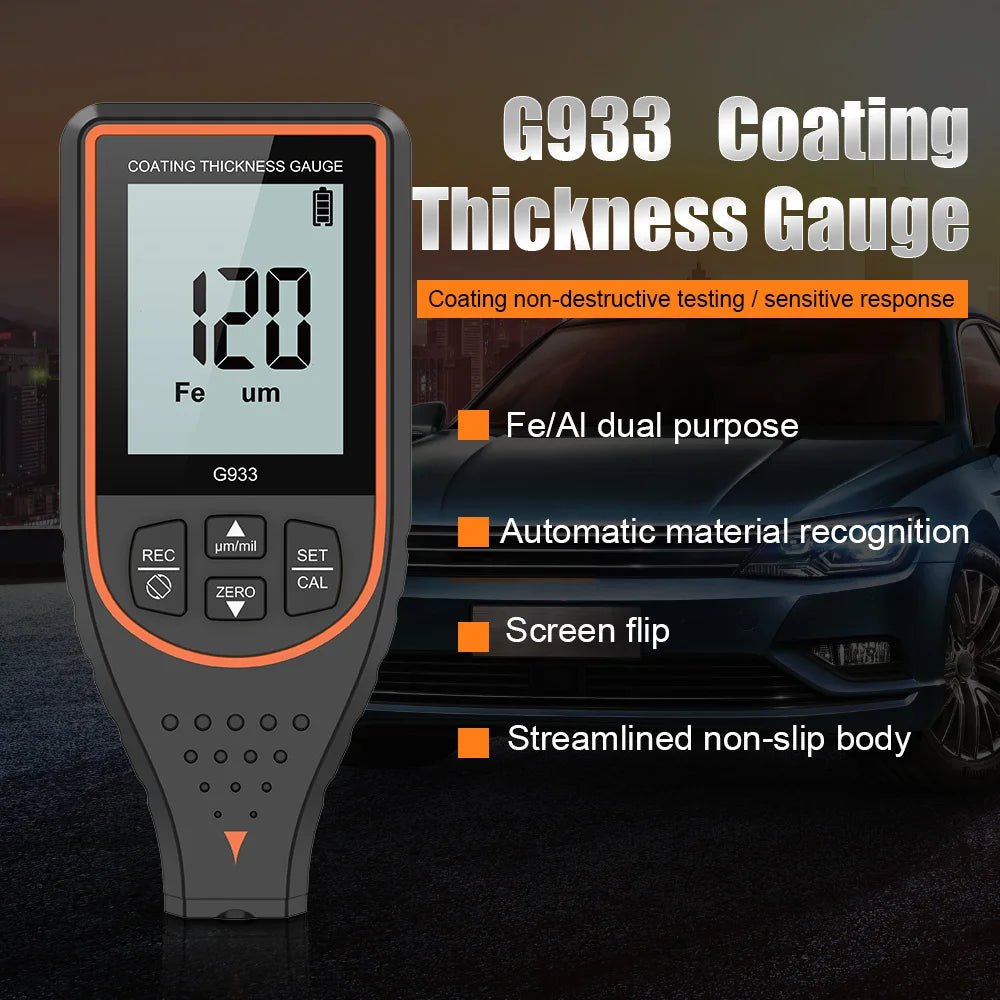

INORM Digital Coating Thickness Gauge for Cars, Fe/NFe Detection, Backlit LCD, Paint Thickness Tester, Digital Paint Thickness Gauge, Fe/NFe Auto Coating Thickness Meter, Continuous Measurement, Rotating Screen for Auto Body Shops & Used Car Buyers

★High Accuracy & Easy Operation★

The INORM Digital Paint Thickness Gauge offers precision with a ±2μm accuracy, providing reliable measurements of automotive paint and coating thickness. Featuring a high-resolution 0.1μm, it’s ideal for auto body shops, used car buyers, and professional inspectors.

★Wide Measurement Range★

This device measures coating thickness from 0-1700μm, suitable for a variety of automotive applications, including original factory paint, repainting, and body filler. It ensures precise results for both ferrous (Fe) and non-ferrous (NFe) materials, such as steel, aluminum, and zinc-coated surfaces.

★Dual Technology for Metal Surfaces★

The paint thickness gauge uses magnetic induction for ferrous materials and eddy current technology for non-ferrous metals, ensuring accurate and repeatable readings on steel, iron, aluminum, and copper.

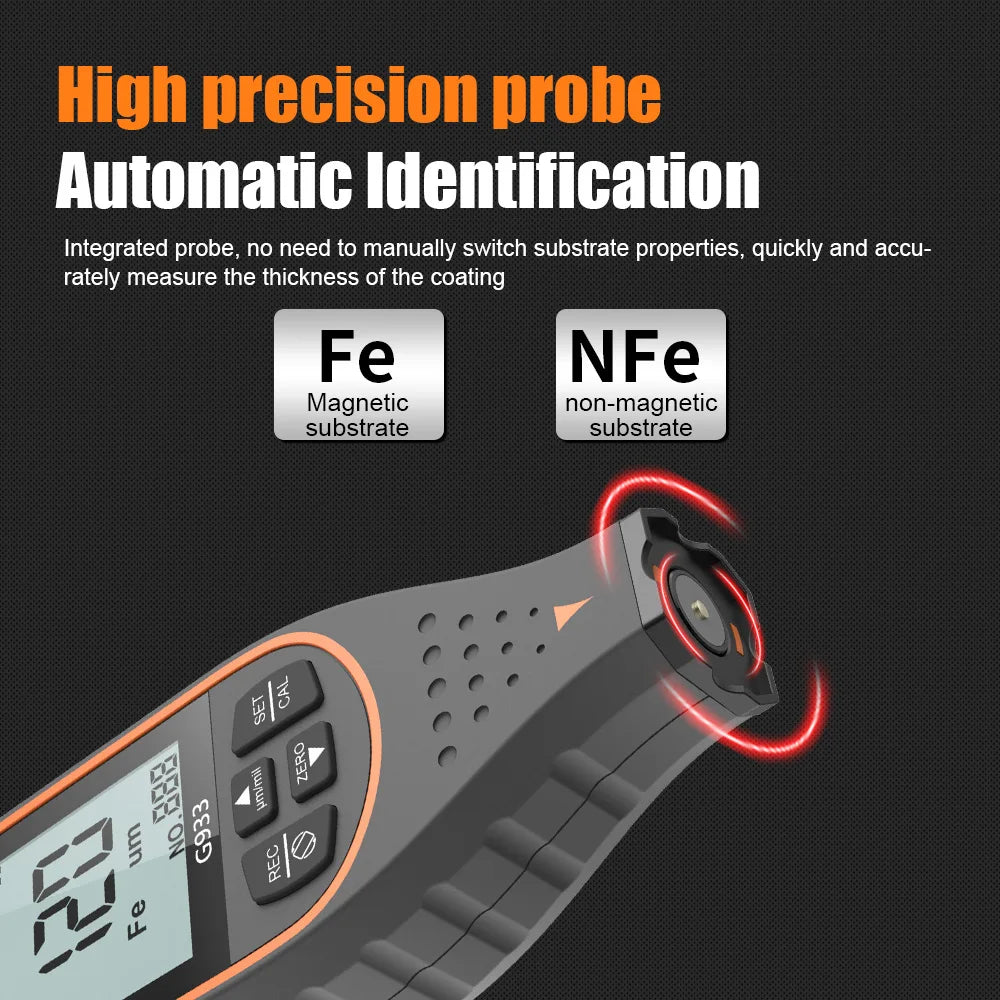

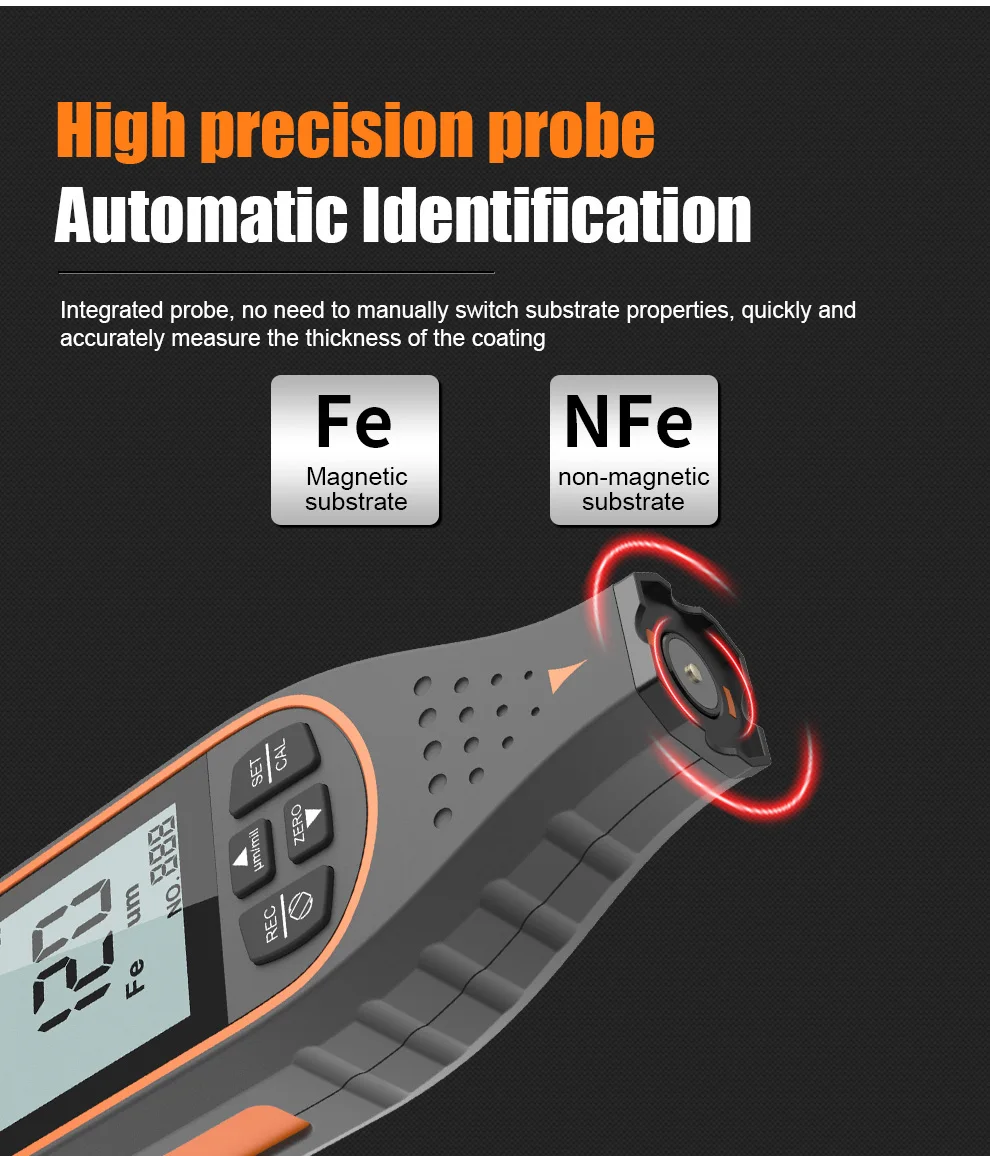

★Automatic Substrate Detection★

Automatically detects steel (Fe), aluminum (NFe), and galvanized steel (Fe+Zn) substrates, providing the correct measurement mode without manual adjustments. This feature makes it perfect for used car inspections to detect body repairs or re-coating.

★Continuous & Single Measurement Modes★

Supports both single-point and continuous measurement modes. Single-point mode is perfect for precise spot checks, while continuous mode allows quick scanning of large panels such as car doors, hoods, and roofs.

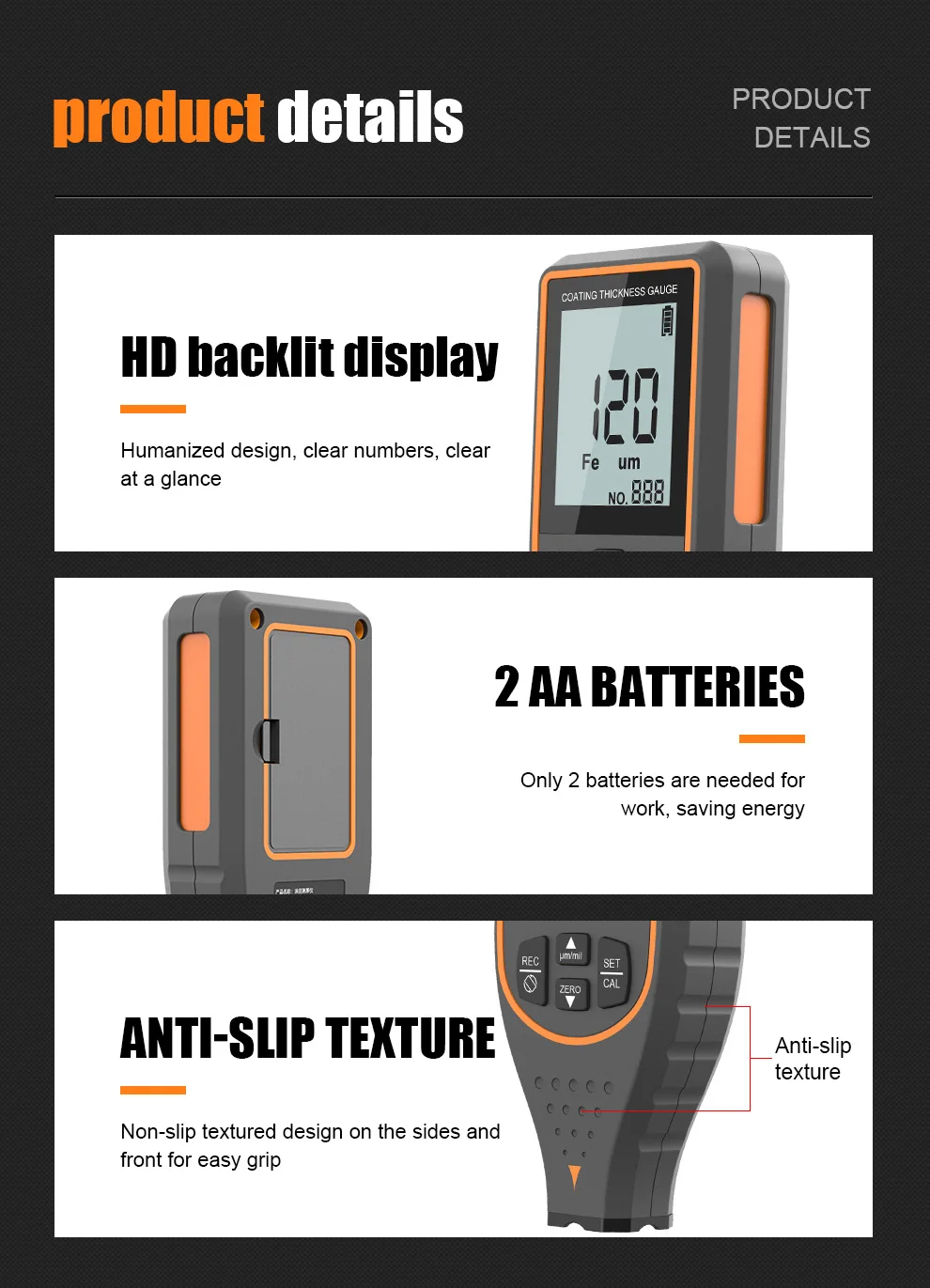

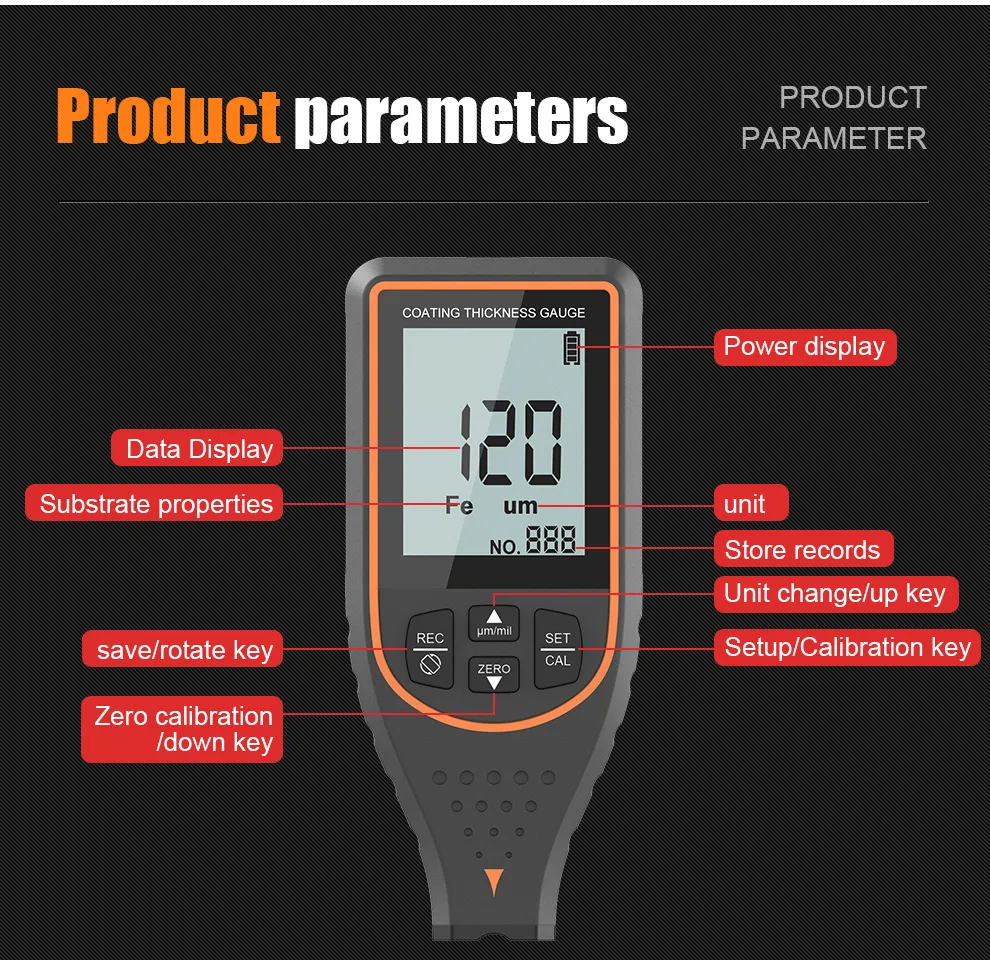

★Backlit LCD & User-Friendly★

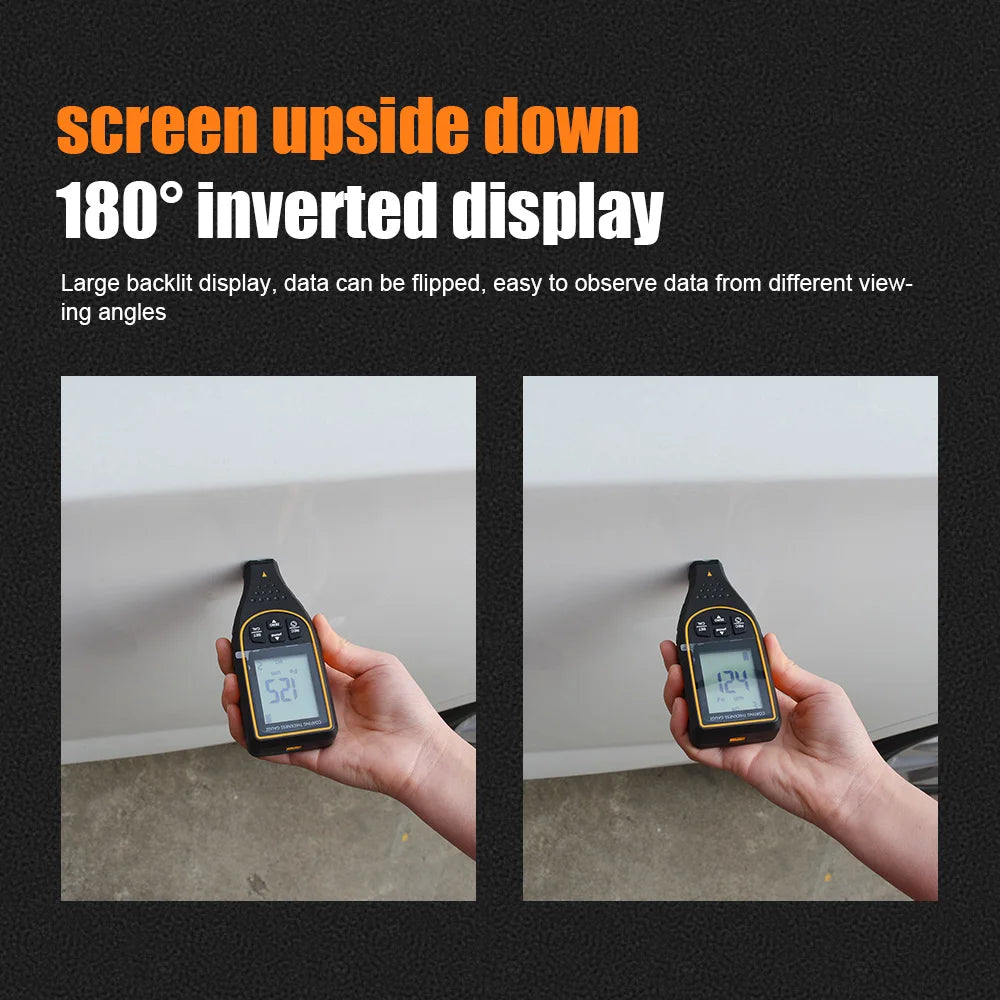

The large, clear backlit LCD display provides easy-to-read results in any lighting. Intuitive buttons make it simple for both professionals and first-time users.

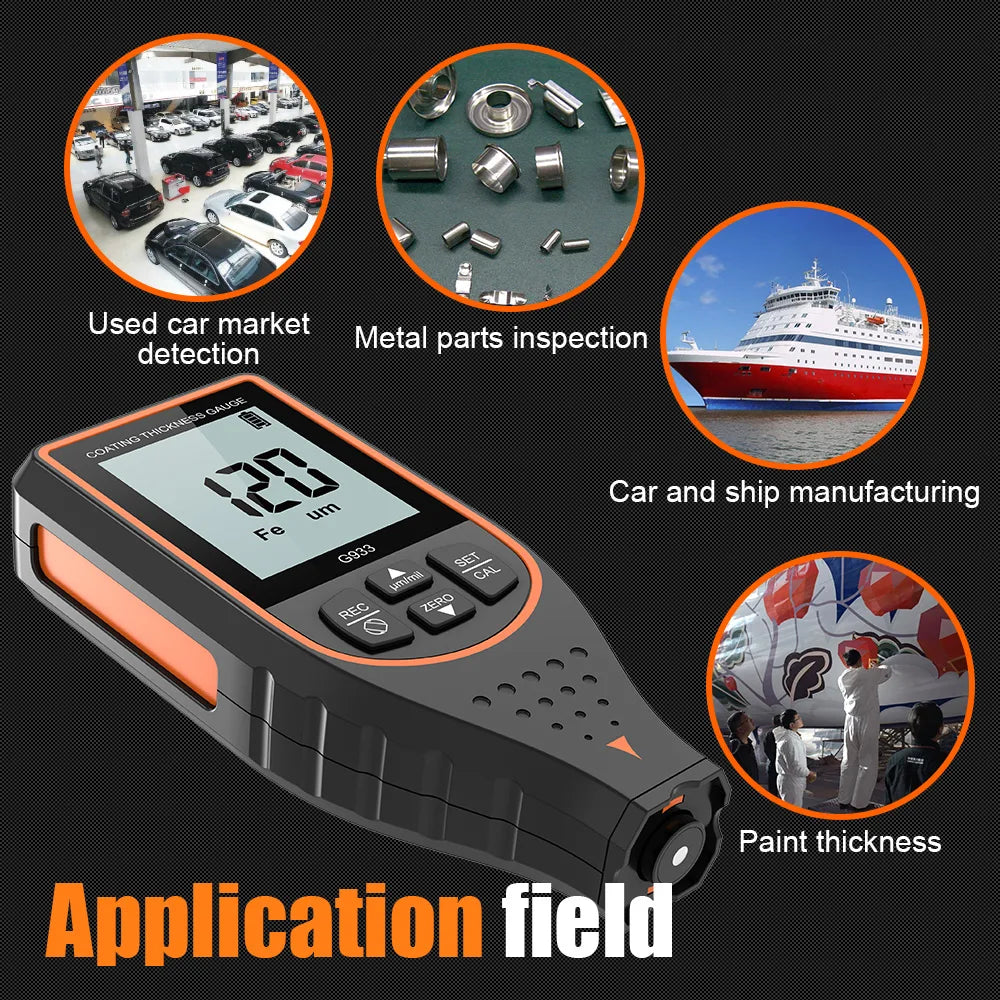

★Durability & Versatility★

Built for automotive inspection, industrial workshops, and quality control tasks. This gauge helps you detect uneven coating thickness, repainting, and body filler, ensuring accurate assessments. Comes with a 5-year maintenance program and lifetime technical support.

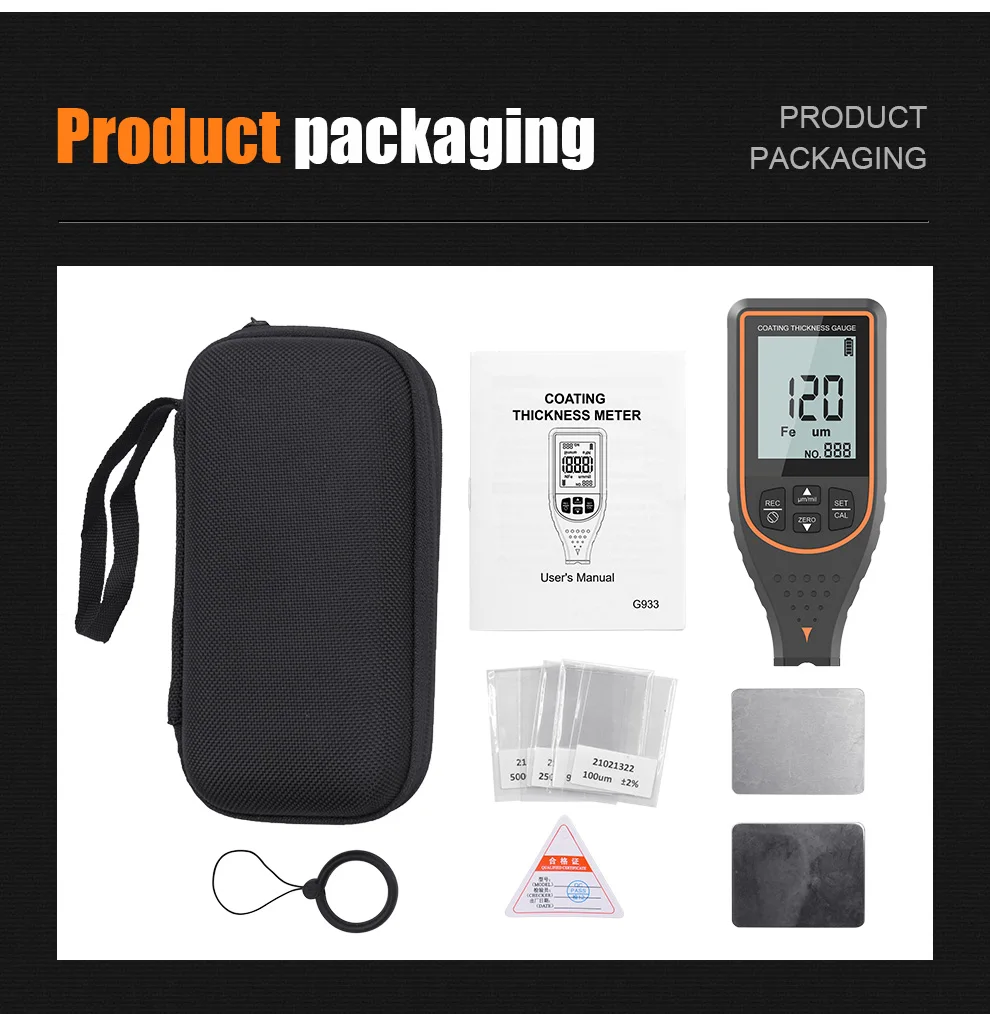

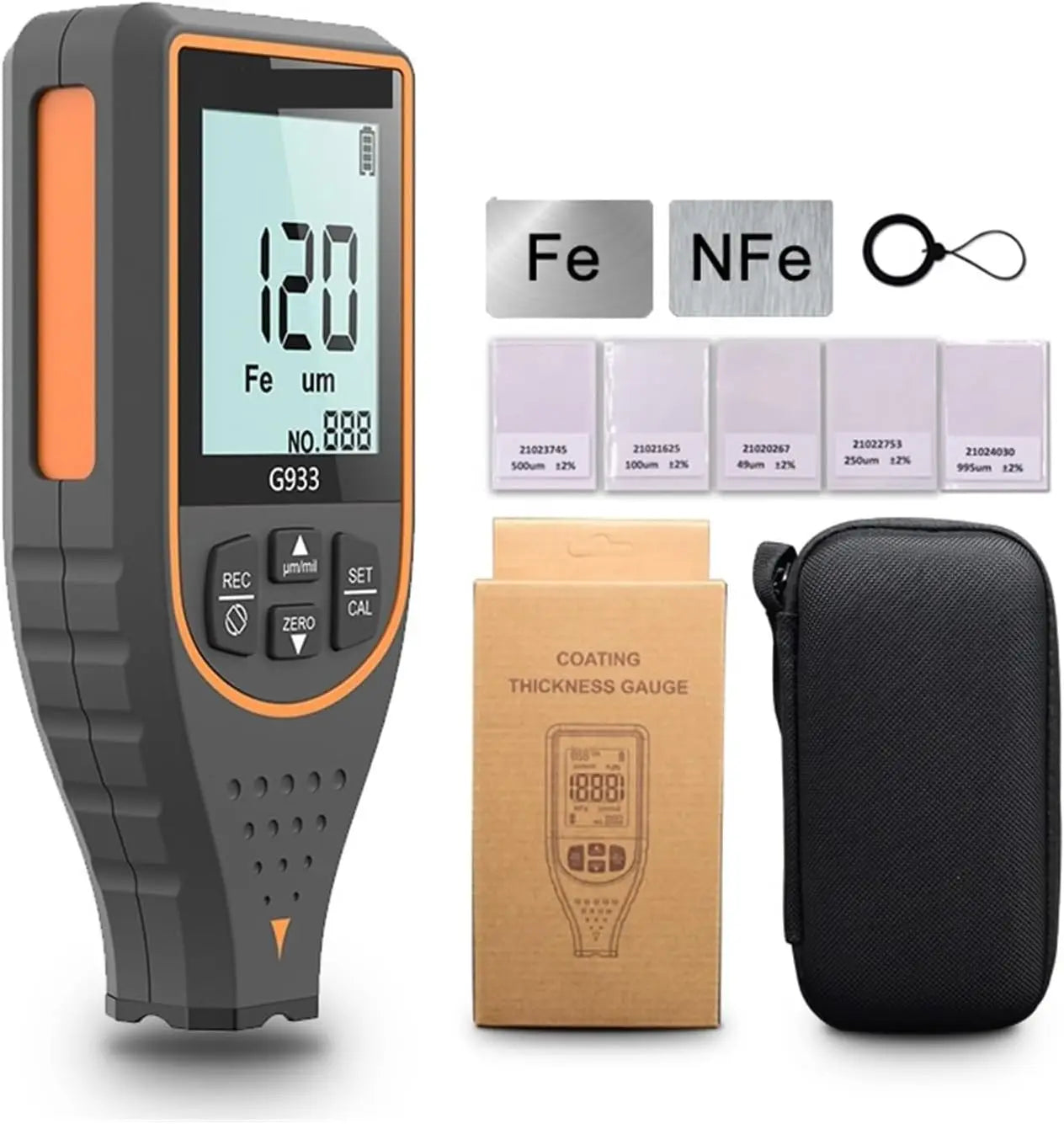

★Packaging★

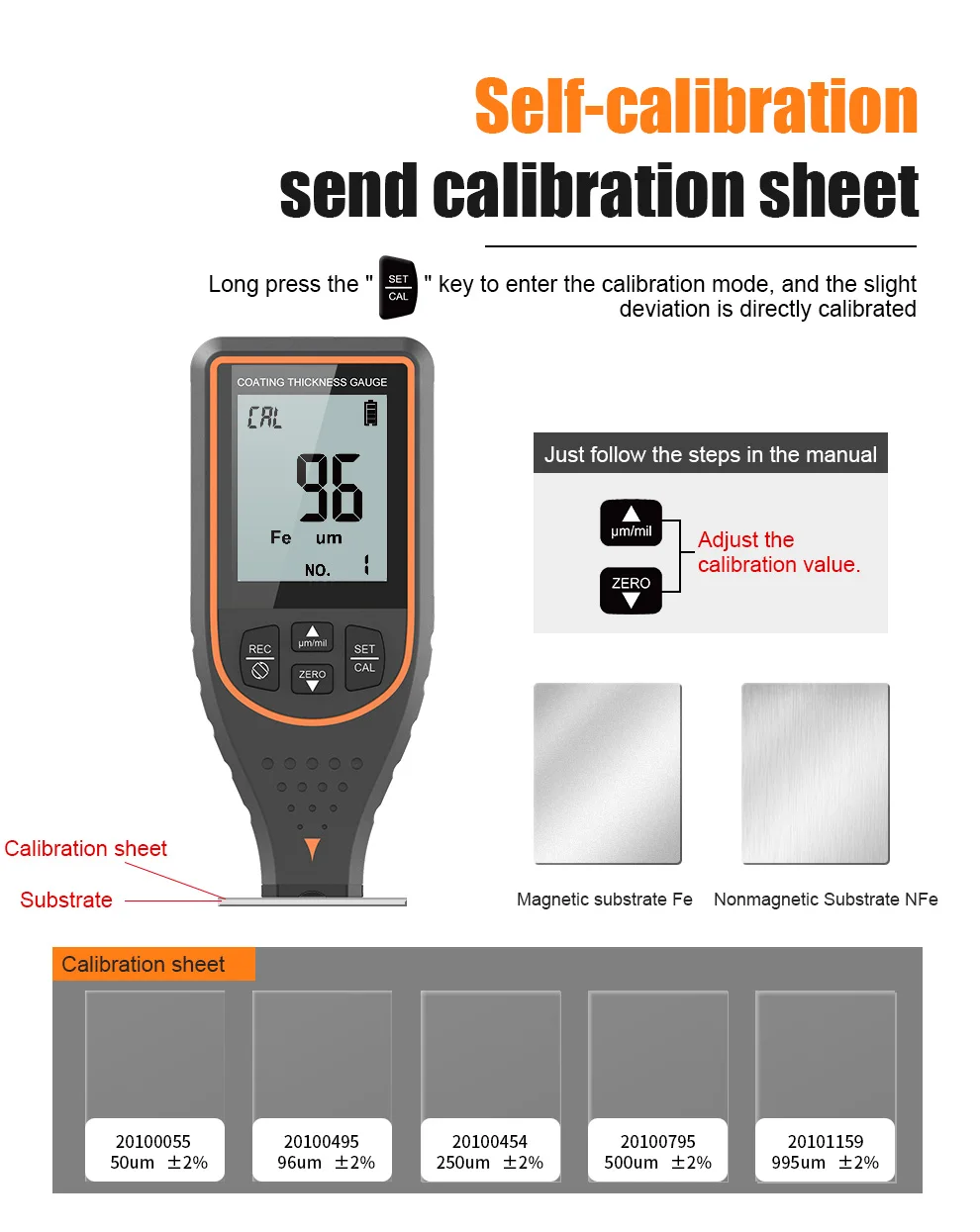

Packing box ×1

Iron substrate ×1

Aluminum substrate ×1

Standard tablets ×5

Instructions ×1

Hosts ×1

★Note★

Designed for metal surfaces only—steel, iron, aluminum, and copper. Not suitable for plastic, carbon fiber, or composite materials.
