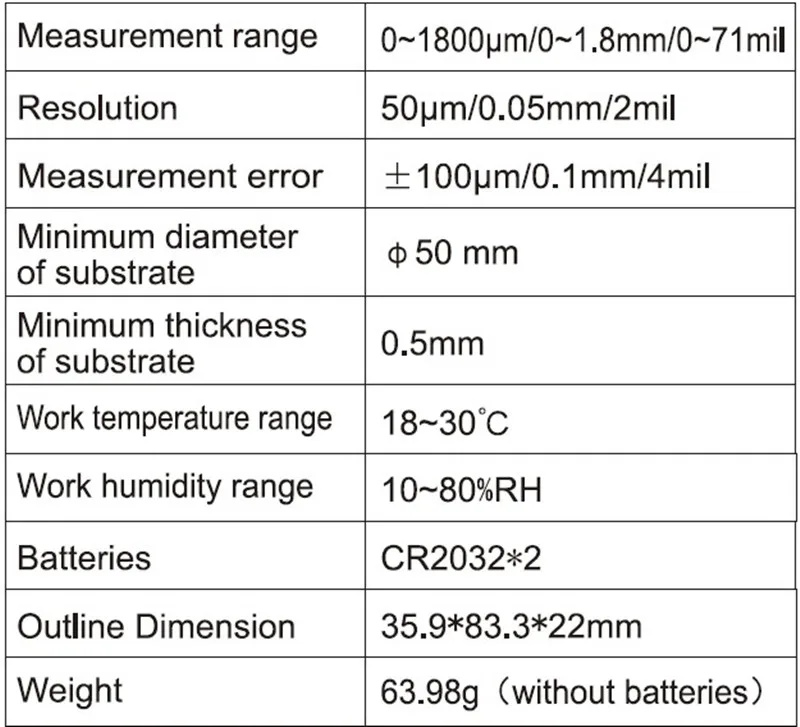

SPECIFICATIONS

Backlight(YNB-100S): Green light

Battery Included: no

Brand Name: Yunombo

Certification: CE

Dimension: 35.9*83.3*22mm

Fe/nFe/Fe+Zn function: YNB-100S only

High-concerned chemical: None

Measurement error: +-0.1mm/+-4mil/+-100um

Measurement range(YNB-100S): 0~1.80mm/0~71.0mil/0~1800um

Minimum thickness of substrate: 0.5mm

Model Number: YNB-100S/YNB-100S

Origin: Mainland China

Resolution(YNB-100S): 0.05mm/2mil/50um

Semi-finishedproduct: No

Unit(YNB-100S): mm/mil/um

Weight: 63.98g(without batteries)

With Backlight Or Not: Yes

Working Humidity: 10%-80%RH

Working Temperature: 18-30C

NOTE:

1.Please note that the YNB-100S can work on iron/aluminum/car steel substrates only.It can't work on stainless steel and other material substrates.
2.The YNB-100S resolution is 0.05mm, and error range is +-0.1mm.It is good to check the car is repainted or not. It shows 0.1mm when the buyer checking on his car, which means it is original paint, not repainted. If repainted, the result will be over than 0.25mm.
3.There is protective film on the screen,you can remove it before using it.

YNB-100S Introduction:

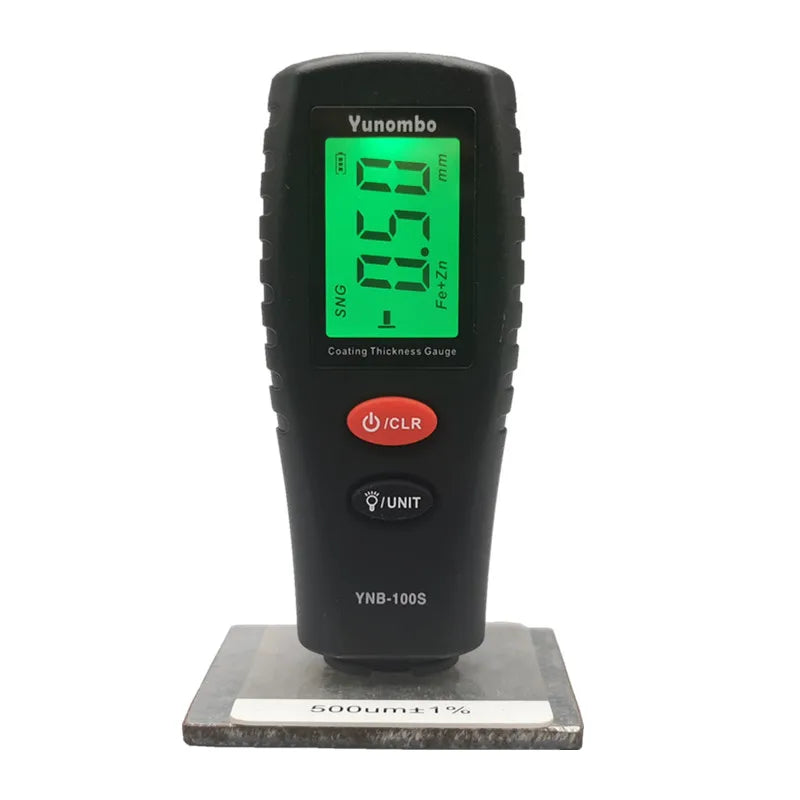

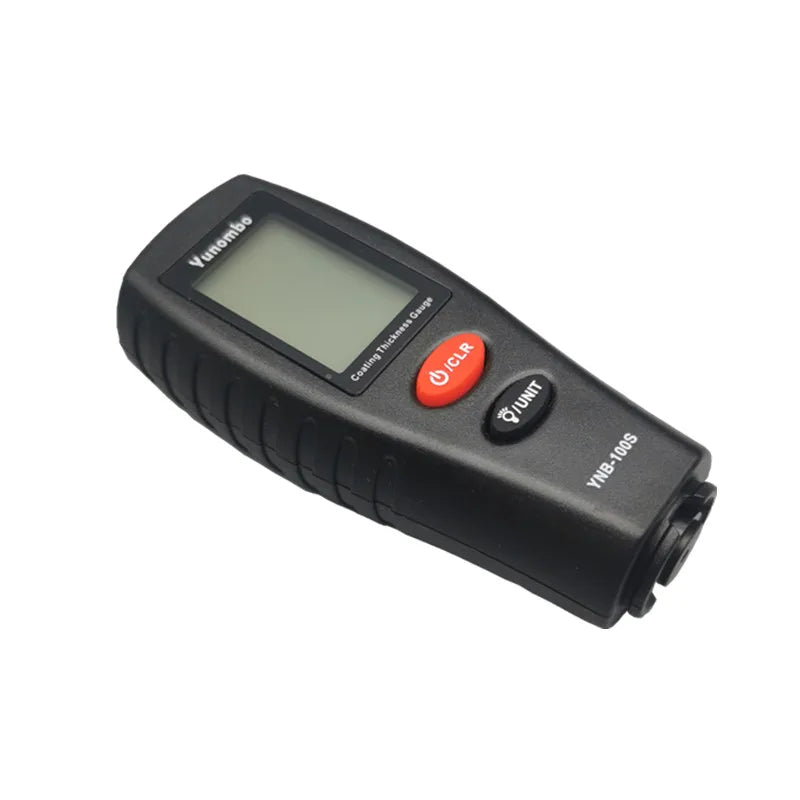

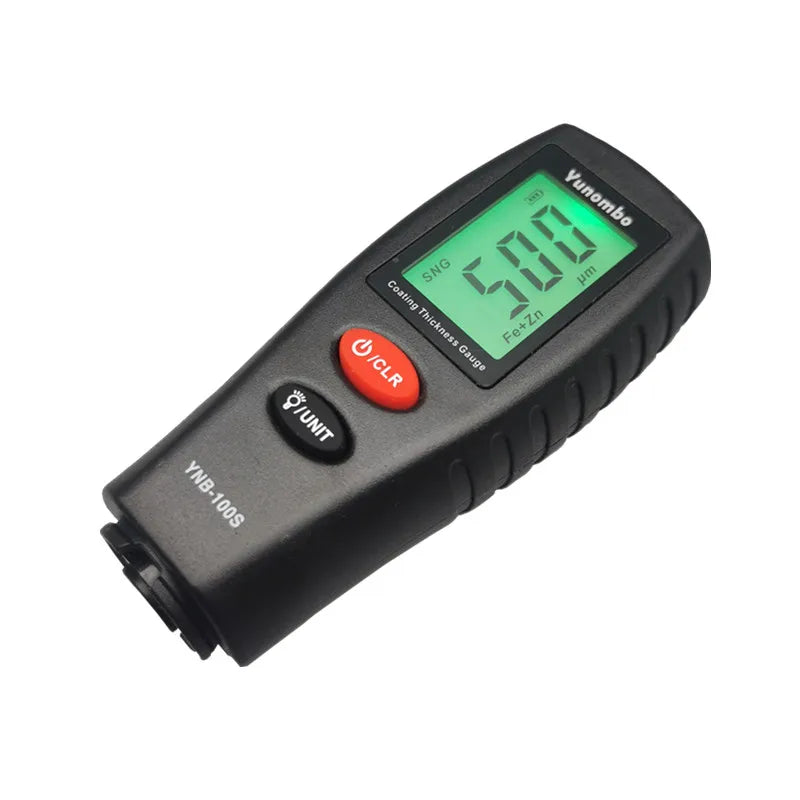

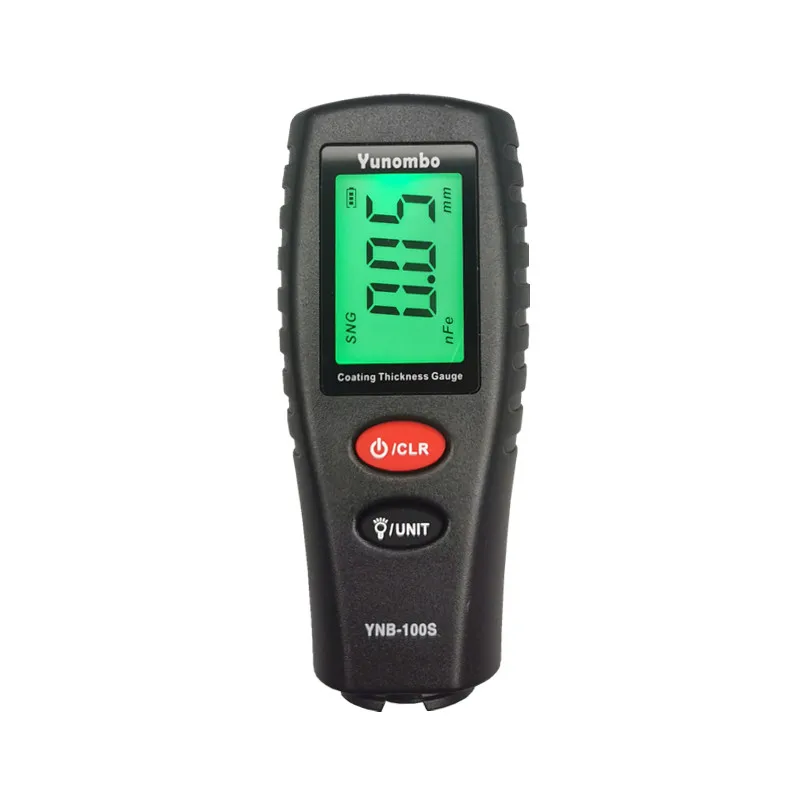

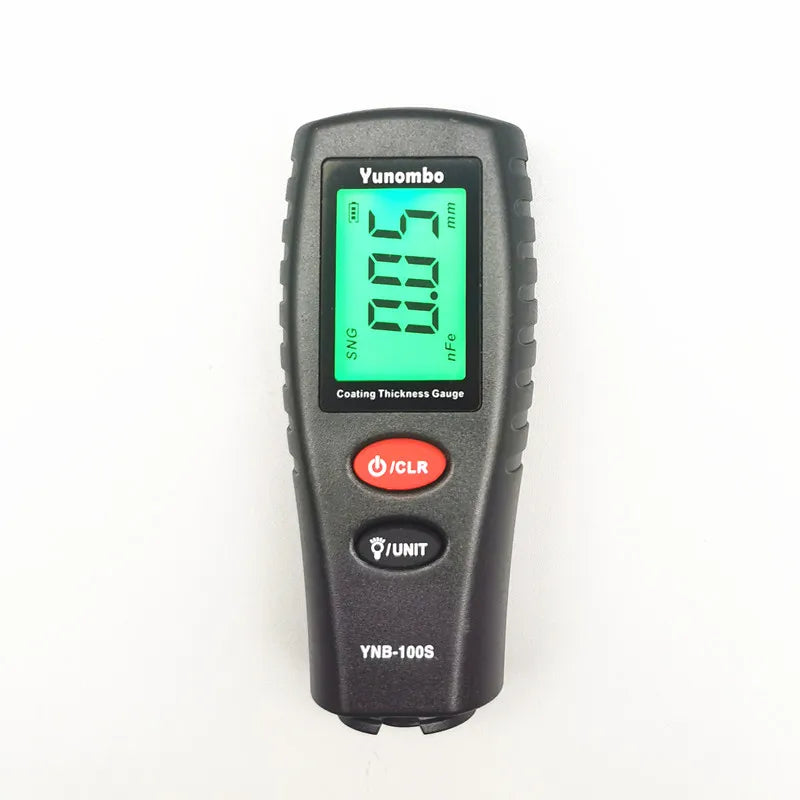

Yunombo YNB-100S Digital Car Paint Thickness Meter Thickness Tester Coating Thickness Gauge with English Russia Manual

This product is a portable coating thickness gauge, which can measure the thickness of non-metallic coating(such as paint, film, etc.) on metal substrate quickly,nondestructively,and accurately. It is mainly used to measure the thickness of the vehicle's surface paint and other coating measurement.

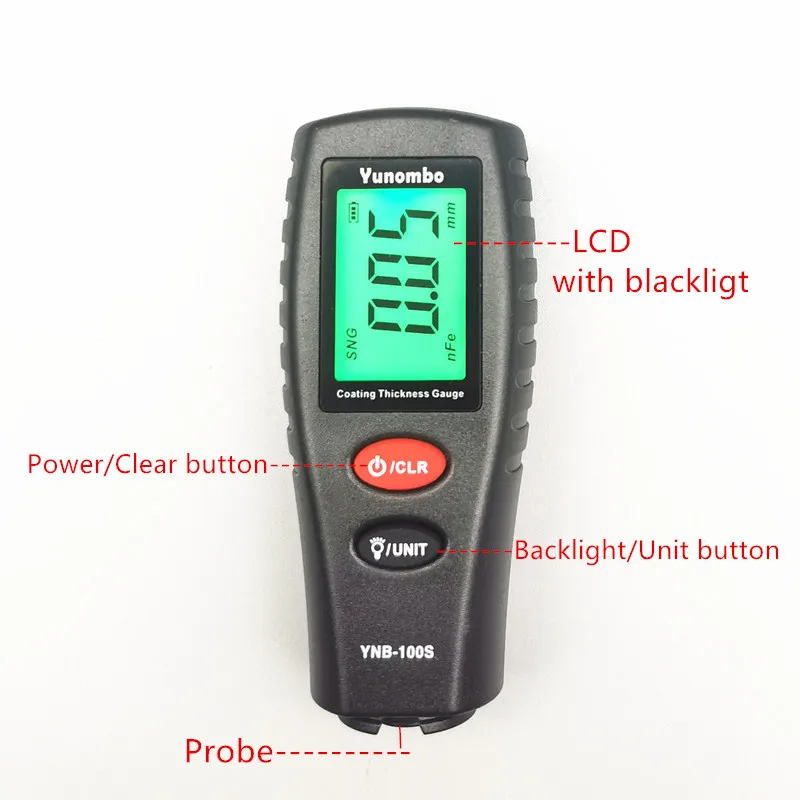

Product Overview:

Introduction:

Yunombo YNB-100 Digital Car Paint Thickness Meter Thickness Tester Coating Thickness Gauge with English Russia Manual

This product is a portable coating thickness gauge, which can measure the thickness of non-metallic coating(such as paint, film, etc.)
on metal substrate quickly,nondestructively,and accurately. It is mainly used to measure the
thickness of the vehicle's surface paint and other coating measurement.

Specification:
