Digital Sonic Belt Tension Tester AT-180S Measuring Range 10HZ-680Hz Handheld Sonic Belt Tension Meter
Digital Sonic Belt Tension Tester AT-180S Measuring Range 10HZ-680Hz Handheld Sonic Belt Tension Meter
SPECIFICATIONS
Battery Included: no
Brand Name: SOZZDA
Certification: CE
Digital sampling accuracy: < 1%
Dimensions: 140x72x34mm
Display: LCD
Display Type: DIGITAL
High-concerned chemical: None
Measuring range: 10HZ-680Hz
Model Number: AT-180S
Origin: Mainland China
Power supply: 4*1.5V AAA
Precision: ±1HZ<100HZ AND ±1%>100HZ
Semi-finishedproduct: No
Digital Sonic belt tension tester AT-180S 10HZ-680Hz
Product Description
It can be used to measure the vibration frequency (unit: Hertz) of the transmission belt when it is hit or moving fast.
Product Feature

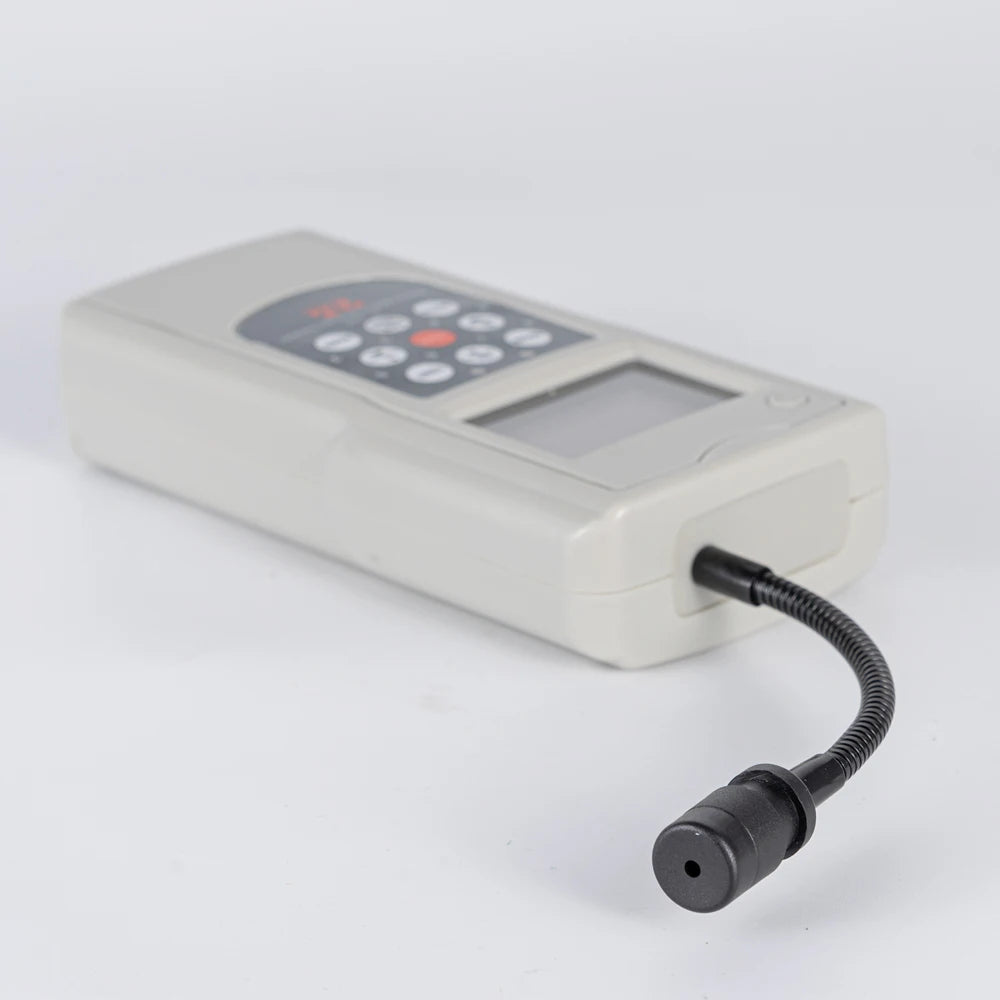

* The probe can be adjusted.
* Can store 20 set belt parameters.
* Maximum frequency: 680 Hz.
* Automatic shutdown, etc.
Product Parameters
Measuring range |
10HZ-680Hz |
Belt free strand length |
Up to 9999 mm |
Belt width |
Up to 999.9 mm/R |
Belt mass |
Up to 999.9 g/m |
Precision |
±1HZ<100HZ AND ±1%>100HZ |
Digital sampling accuracy |
< 1% |
Display accuracy |
土1Hz |
Overall accuracy |
< 5% |
Operating temperature |
+10°C to +50° C |
Transport temperature |
-5° C to +70° C |
Display |
LCD |
Measurement unit |
Hz/N |
Power supply |
4×1.5V AAA |
Housing |
Plastic(ABS) |
Dimensions |
140x72x34mm |
Package size |
248x206x52mm |

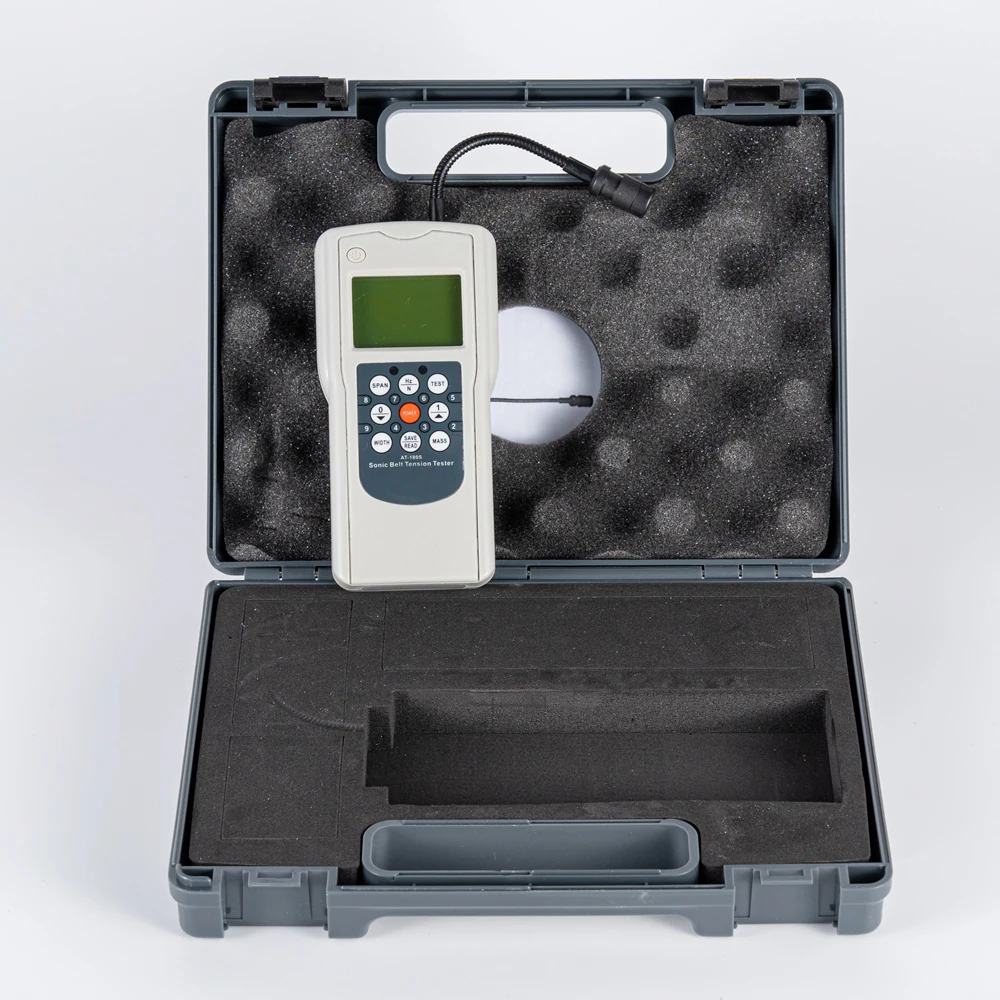

Standard Accessories |
Main Unit (one) |
Portable suitcase(one) |
|
Operating Instructions (one copy) |
