SPECIFICATIONS

Battery Included: no

Brand Name: XGFLYDRAGON

High-concerned chemical: None

Model Number: gm100

Origin: Mainland China

With Backlight Or Not: Yes

【WIDE APPLICATION】— The device is equipped with a fast microprocessor; has a small and comfortable size and work with an ultrasonic technology. The ultrasonic thickness gauge is widely used for measuring Metal and Nonmetal materials, Steel, Aluminum, Copper, Brass, Zinc, Plastic, PVC, Glass, Ceramics, Pipes and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces.

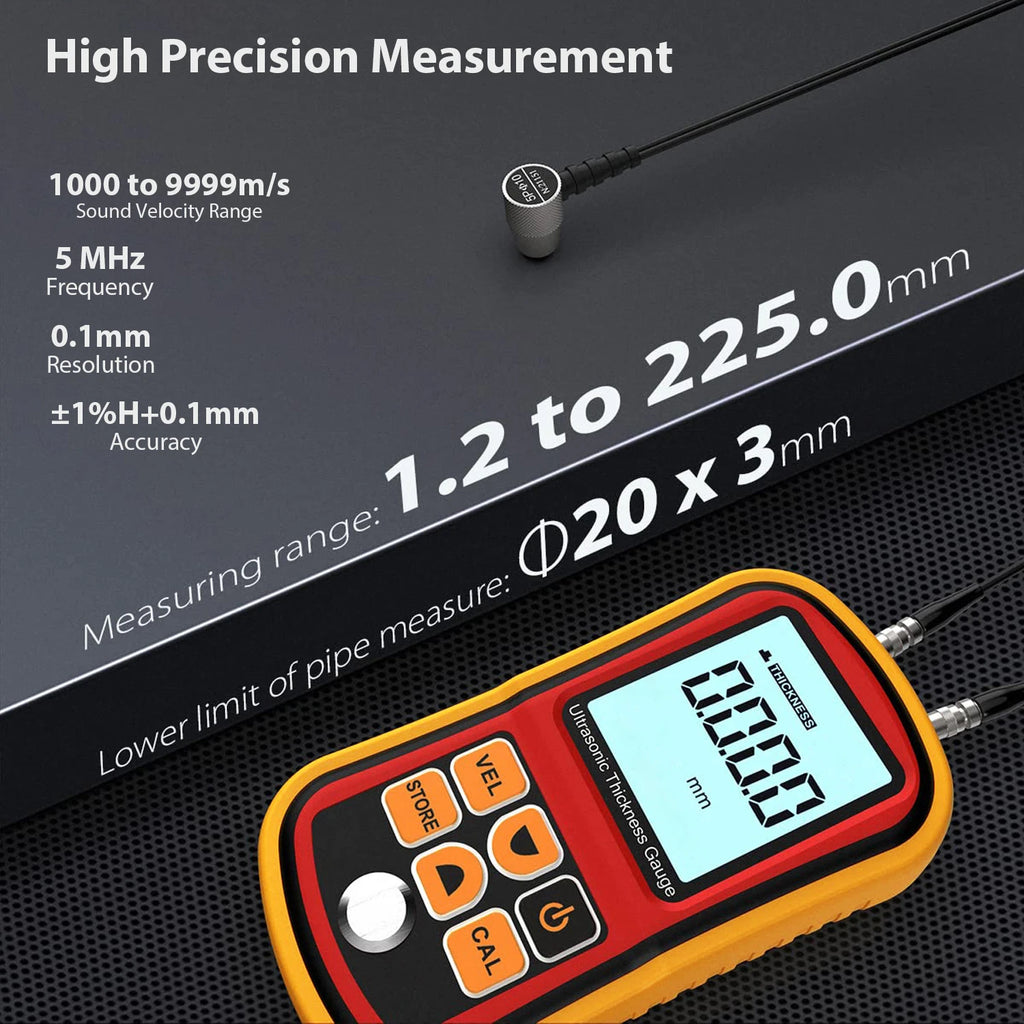

【HIGH ACCURACY】— The ultrasonic thickness tester has a wide Range of 0.04 to 11.8 inch /1mm to 300mm with a minimum Resolution: 0.1mm. The device is equipped with a fast microprocessor, has a small and comfortable size and work with an ultrasonic technology.

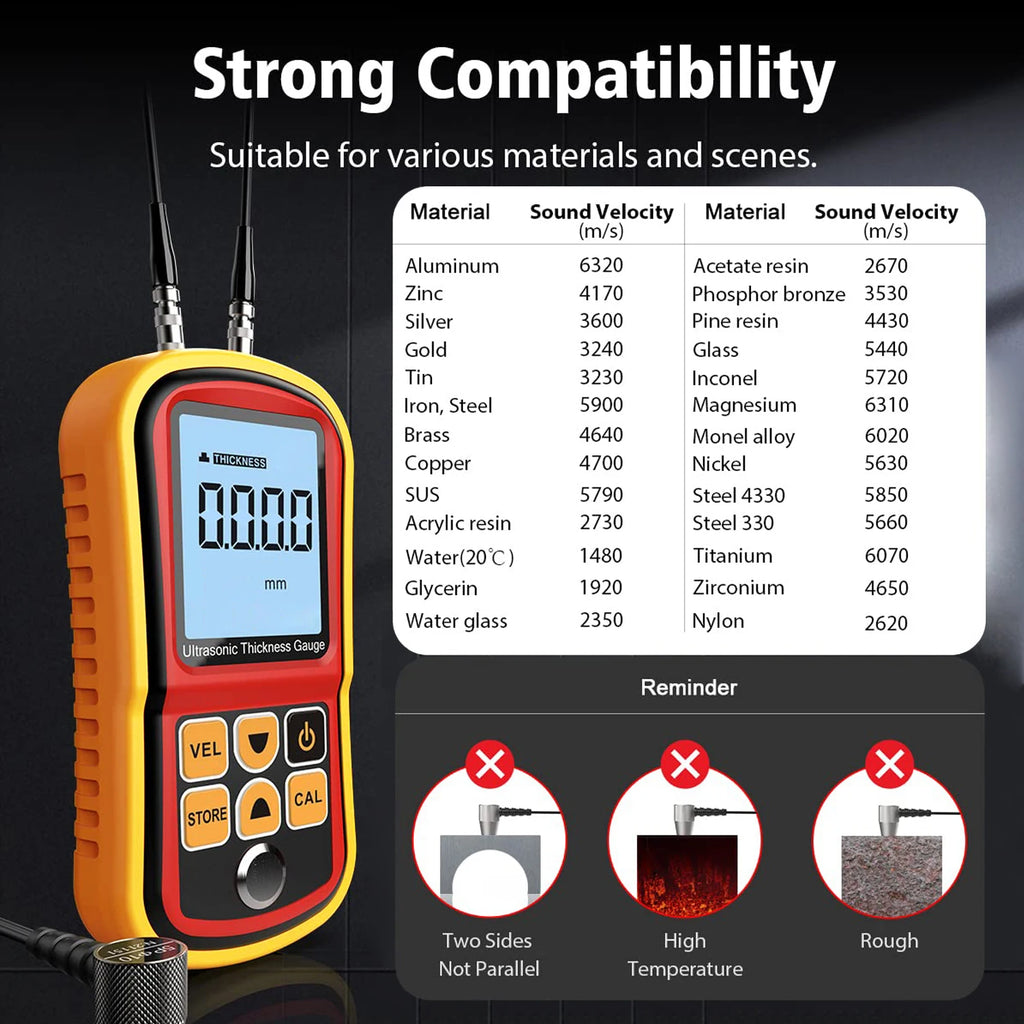

【SOUND SPEED ADJUSTMENT】User can select the preset sound velocity values among various materials, sound speed adjustment range is 1000～9999m/s, sound speed also is defined customizable for the digital ultrasonic thickness better based on your different application. With a given thickness by a sample hardware to measure the sound velocity.

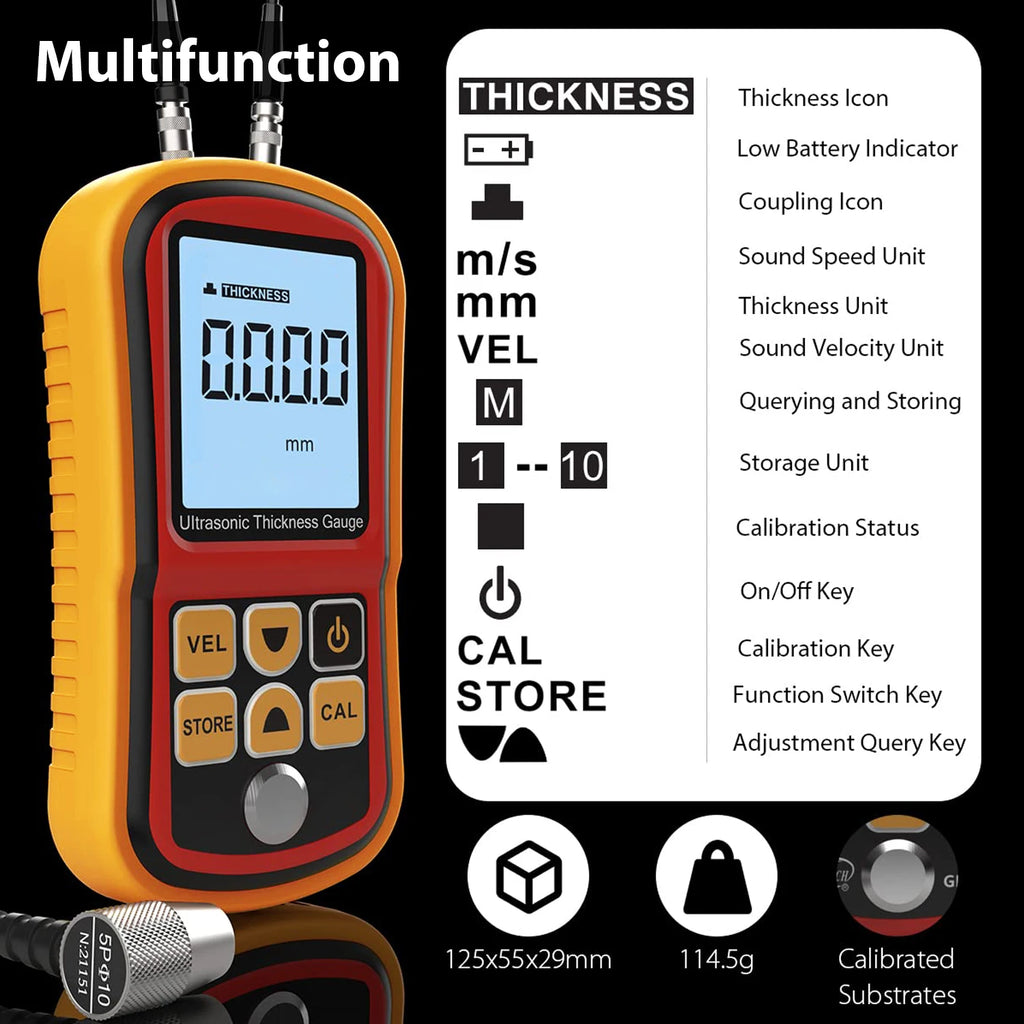

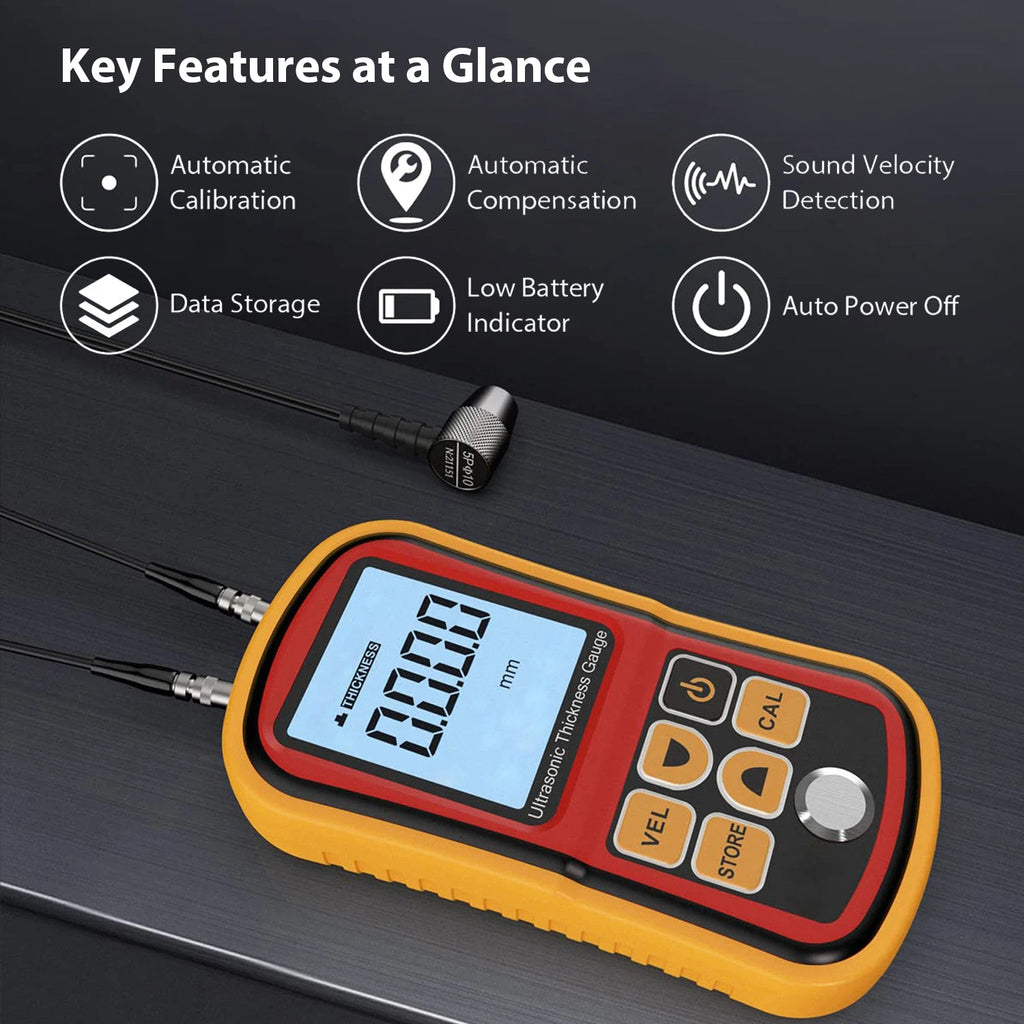

【MULTI-FUNCTIONAL】— 2.4″HD screen display with backlit display ultrasonic thickness tester, statistic view, calibration, auto-off, low battery indicator, store/recall function.

Specification:

1. Display: 4-digital LCD display

2. Minimum display unit: 0.1 mm

3. Working frequency:5MHZ

4. Measuring range:1.2~300mm(steel)

5. Minimum limit for tube measuring: 中20*3mm(steel)

6.Accuracy:±(1%H+0,1)mm H denotes the measuredthickness.

7. Sound velocity range: 1000~9999 m/s

8. Measuring sound velocity with a given thickness:Measuringrange:1000-9999m/s.

9. When the given thickness over 20mm,the accuracyis +1%When the given thicknessless than 20mm, the accuracy is+5%.

10.0peration temperature:0'C~40'C

11. Power supply: 3*1.5VAAA alkaline batteries(Not Included)
