SPECIFICATIONS

Battery Included: no

Brand Name: HoldPeak

Choice: yes

High-concerned chemical: None

Model Number: T9-130S

Origin: Mainland China

semi_Choice: yes

NOTICE:Now the 130D is upgrade to 130S, The function is upgrade,and price not change!!!

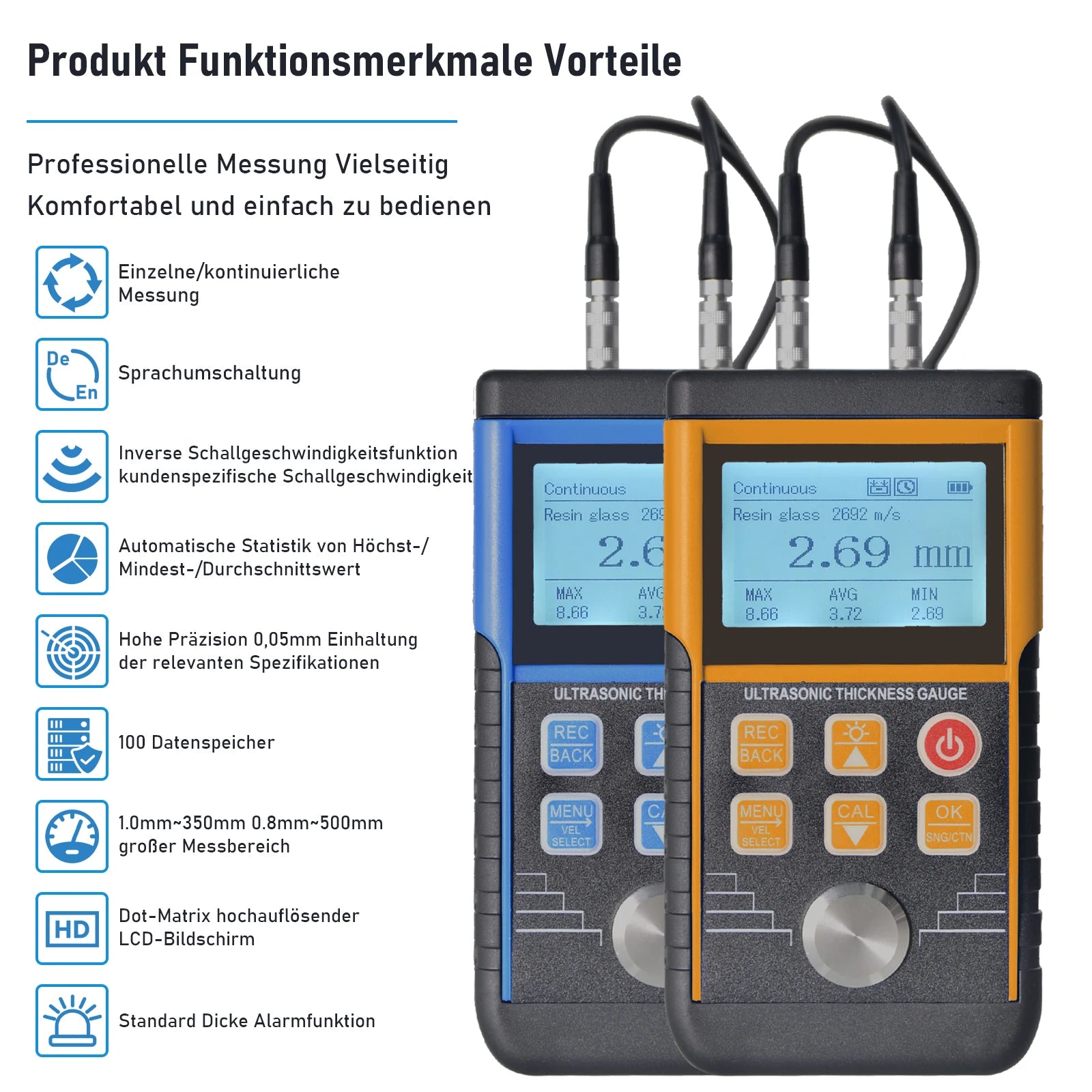

HOLDPEAK T9-130S Ultrasonic Thickness Gauge or Cars Metal Meters 1-350mm Ultrasonic Wall Metal Steel 5P Thickness Gauge Tester Meter TM130S

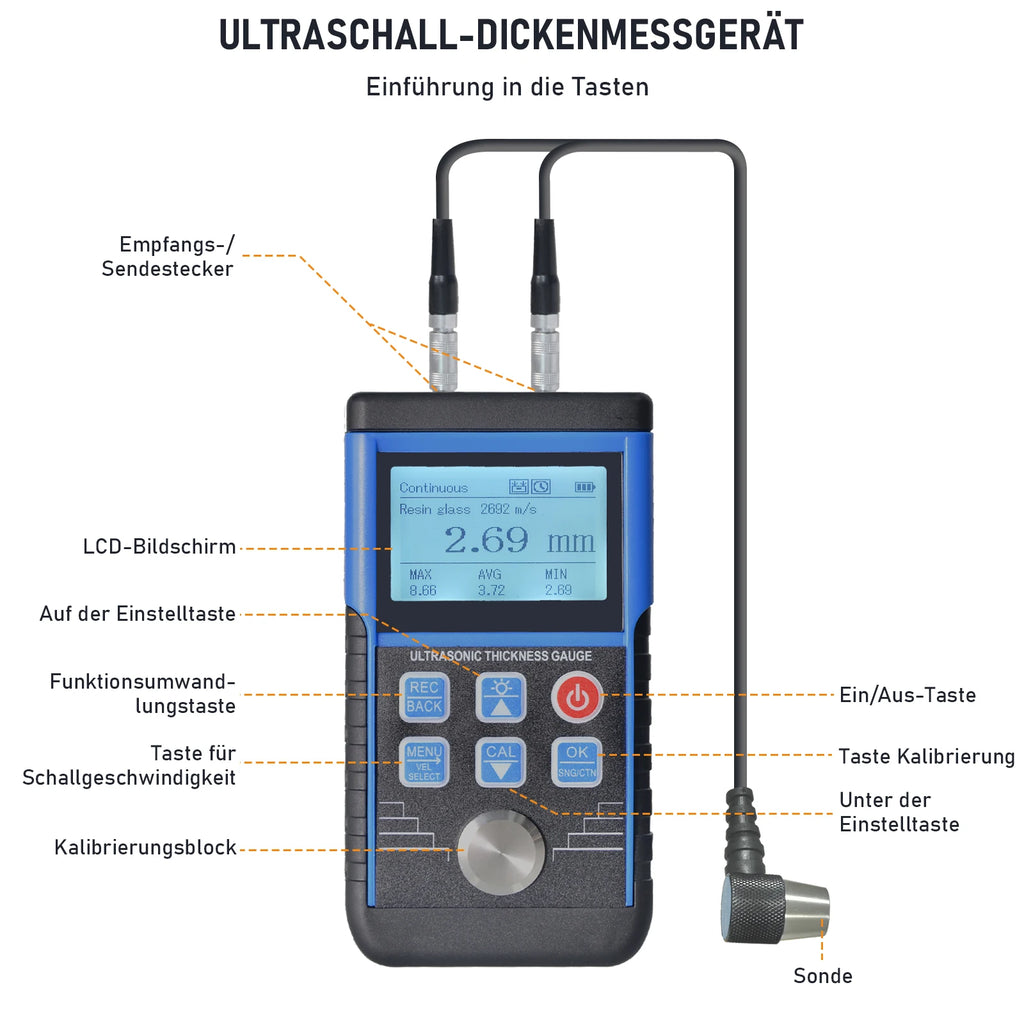

T9-130S Ultrasonic Thickness Gauge Description:

【 The main purpose】 This ultrasonic thickness gauge is an intelligent portable ultrasonic thickness gauge. It is controlled by a microprocessor and utilizes the principle of ultrasonic measurement to quickly and accurately measure the thickness and sonic velocity of a variety of materials.

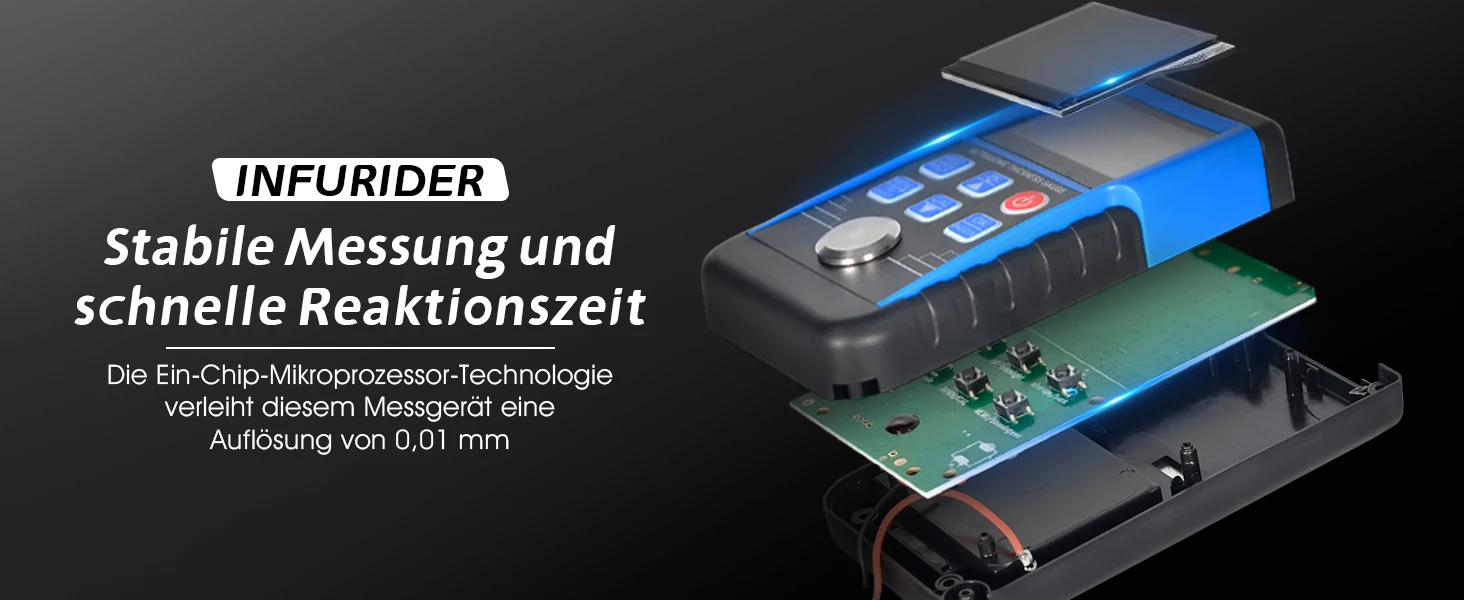

【 Accurate measurement】 : This ultrasonic thickness gauge with single-chip microprocessor technology, resolution is up to 0.01mm, stable measurement and fast response speed can be used to accurately measure various materials or parts in the field of industrial production, and it can also monitor various pipelines and pressure vessels in production equipment. It can measure the degree of thinning of various parts in time and accurately during use.

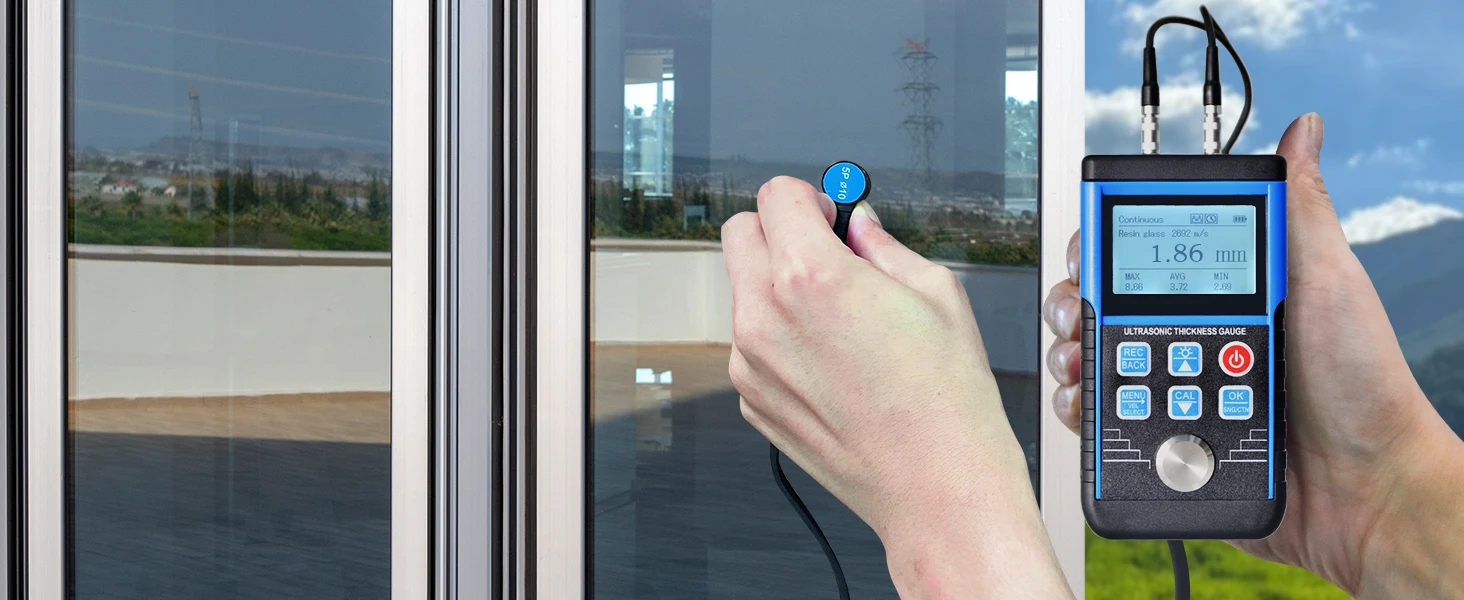

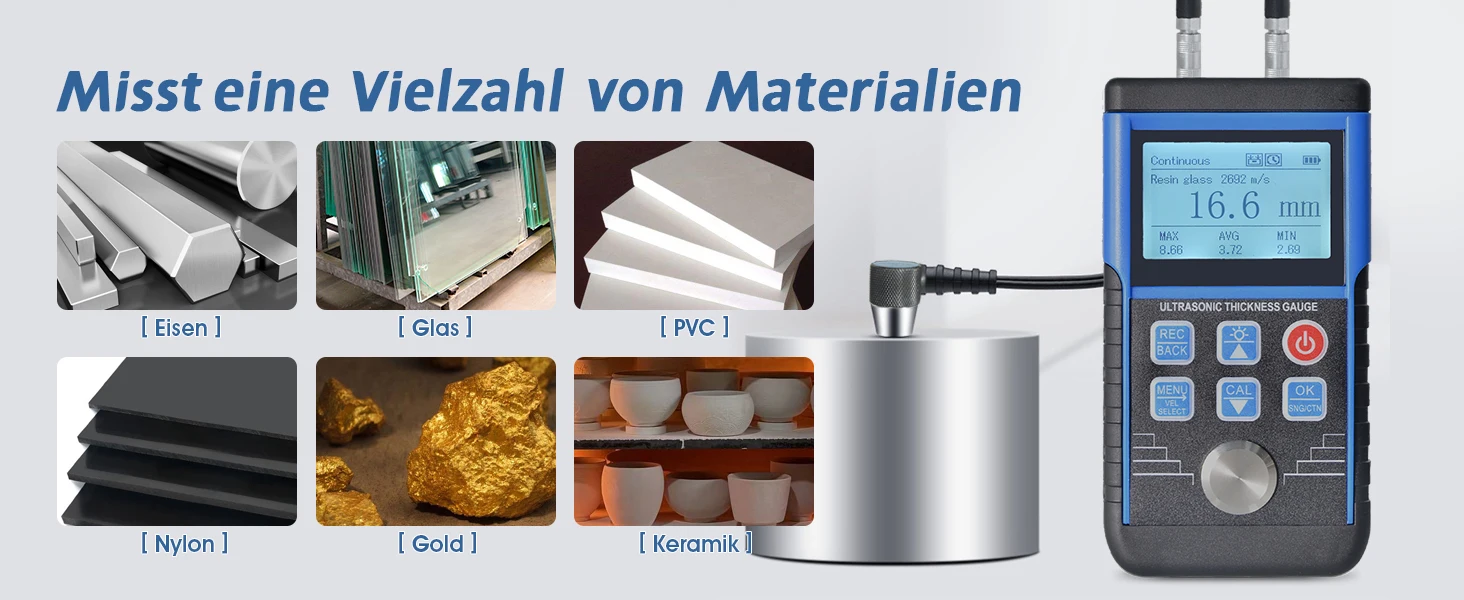

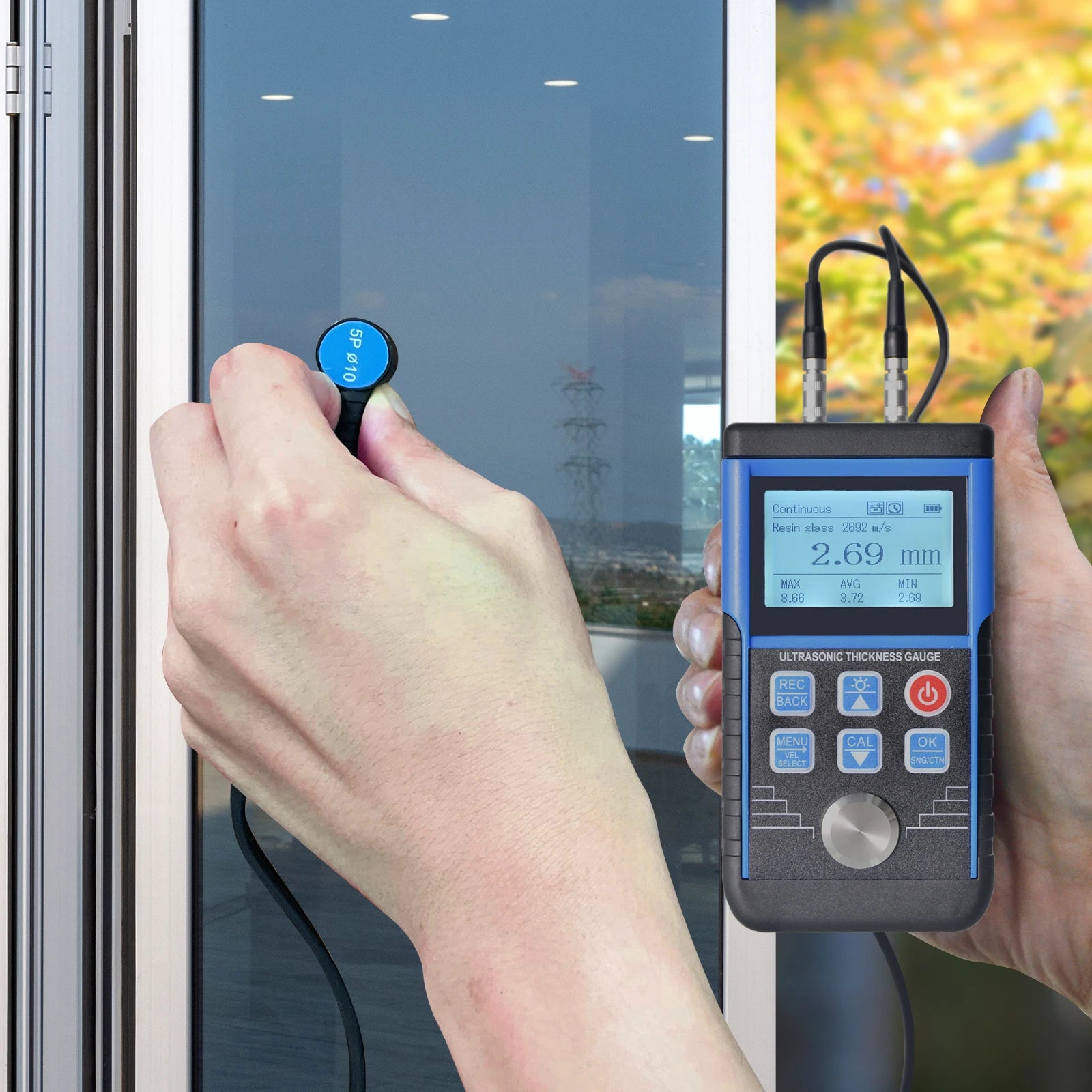

Wide range of applications: metals, plastics, ceramics, glass and other good conductors of ultrasonic waves, as long as there are two parallel upper and lower sides, you can use this device to measure the thickness, such as aluminum, copper, gold, resin, water, glycerin, etc. Cast iron is not suitable for this device as its inner grains are too coarse.

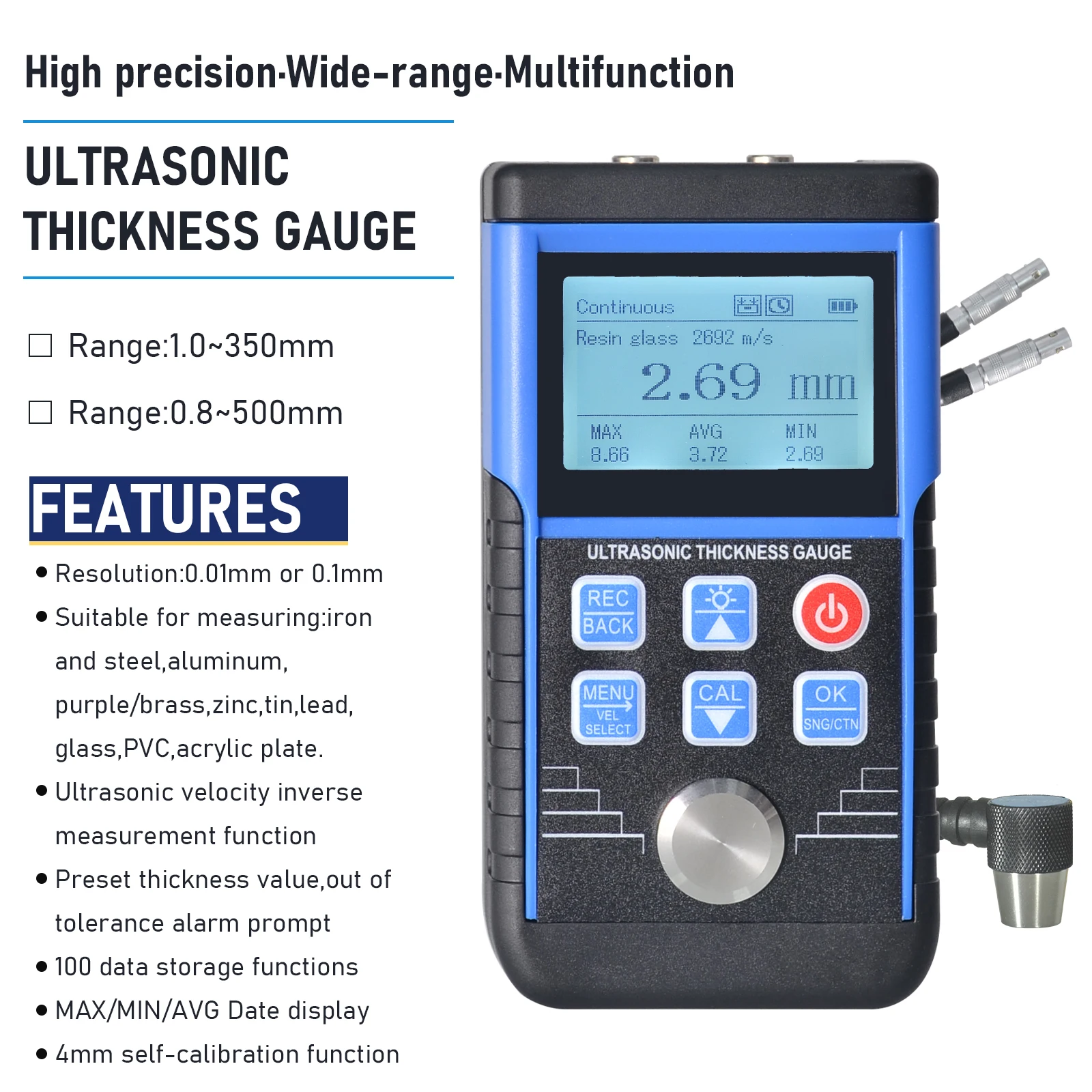

【Measuring range】Measuring range: 1.0-350mm, 100 sets of data memory, measuring resolution: 0.01 mm (1.00-99.99 mm), 0.1 mm (100-350 mm)

Translated with DeepL.com (free version)

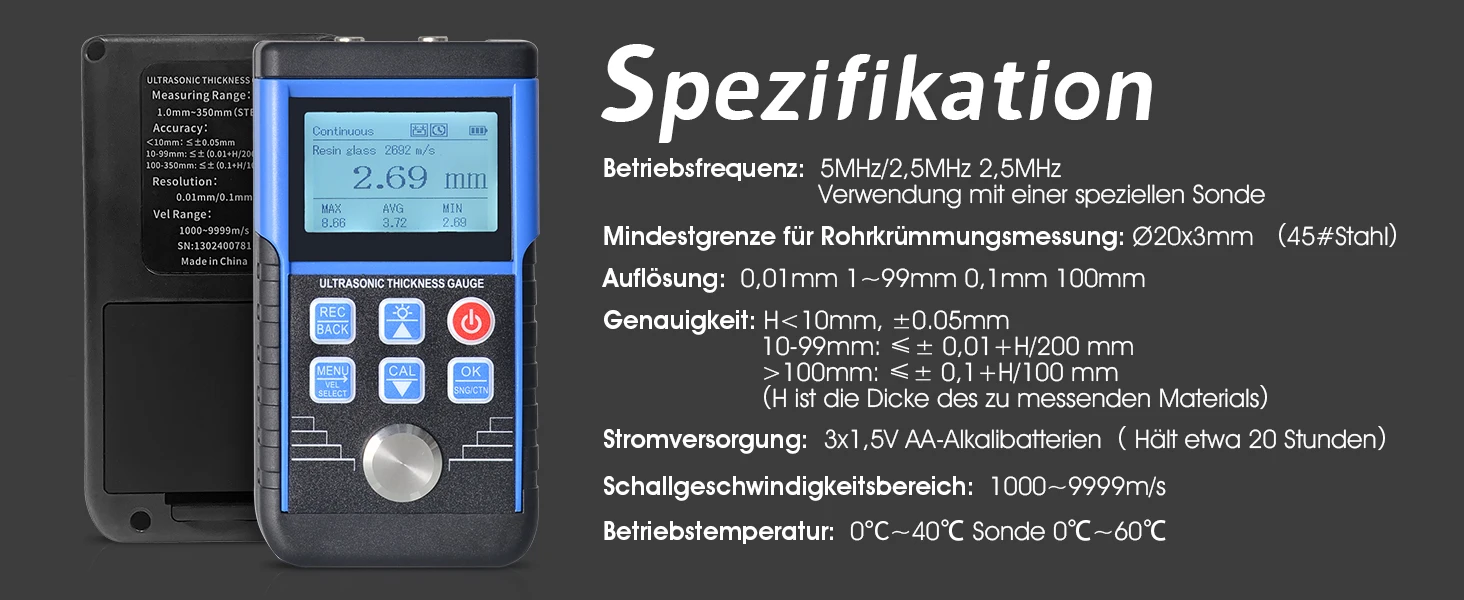

T9-130D Ultrasonic Thickness Gauge Specification:

Measuring range: 1.0-350mm

Operating frequency: 5MHz

Lower limit of pipe measurement: 20x3mm

Resolution: 0.01mm (1.00-99.99mm), 0.1mm (100-350mm)

Accuracy: H<10mm: ±0.05mm, 10-99mm: ≤± 0.01+H/200 mm, >100mm: ≤± 0.1+H/100 mm
 (H thickness of the material to be measured)

◆ Power supply Battery specification: 3x1.5V AA alkaline batteries Lasts approx. 20 hours

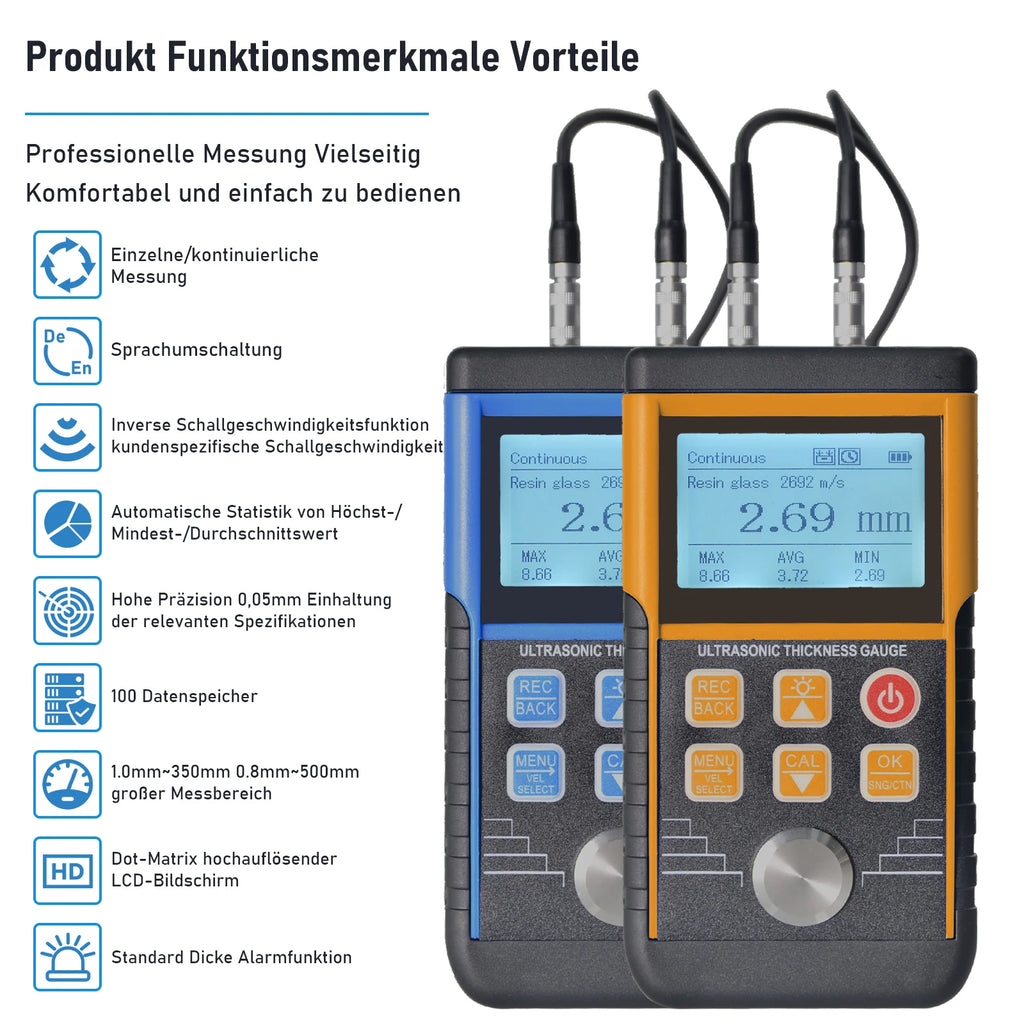

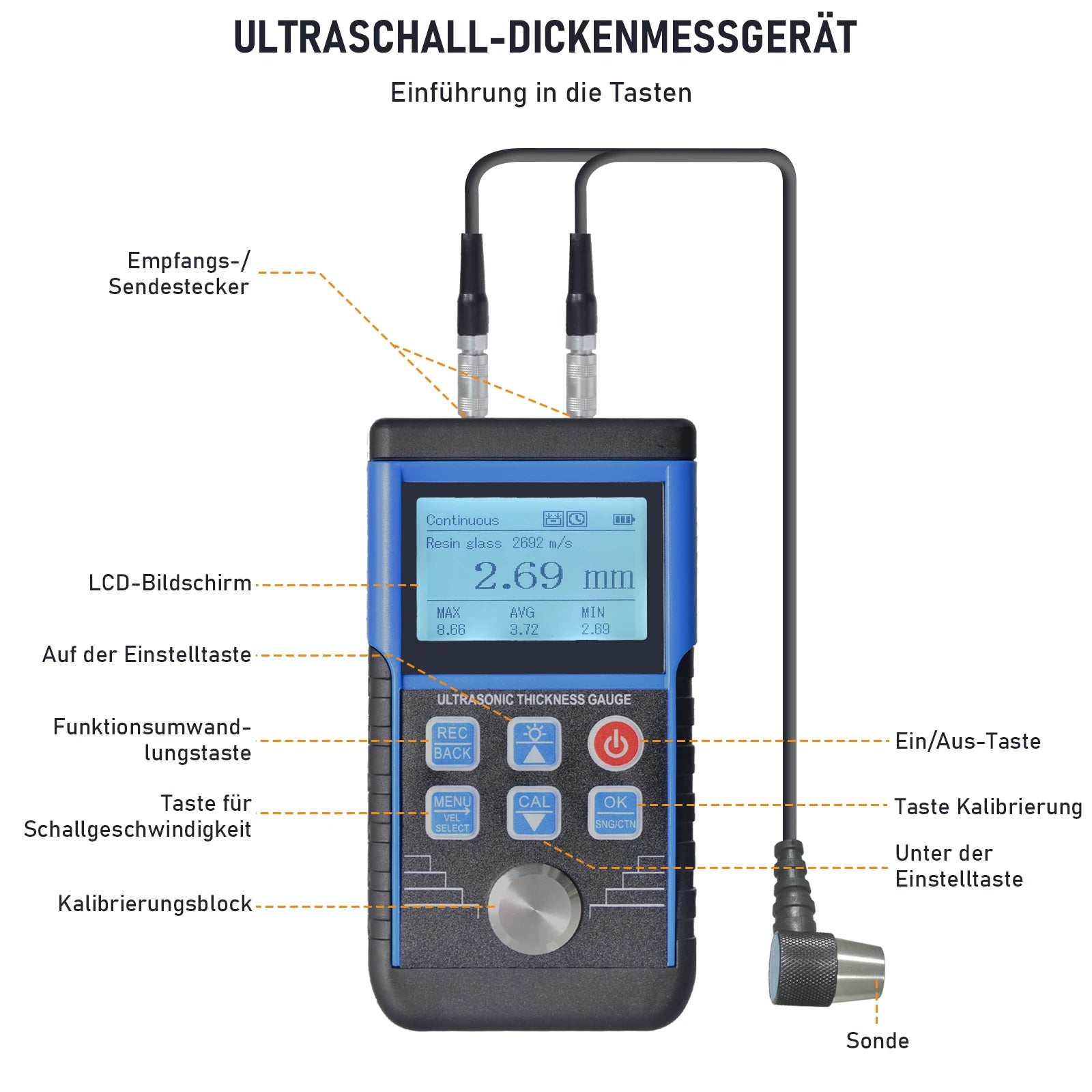

◆ Built-in 11 sets of commonly used material sound velocity values for users to select and use

Customized and adjustable sound velocity function, adjustable sound velocity range: 1000~9999m/s

4mm self-calibration function

LCD backlight can be selected to turn the function on or off

Operating temperature 0℃~40℃ Probe 0℃~60℃

◆ Net weight of the host: 153g (incl. protective cover, but not battery)

◆ Ultrasonic thickness gauge host size: 72x135x36mm

Translated with DeepL.com (free version)

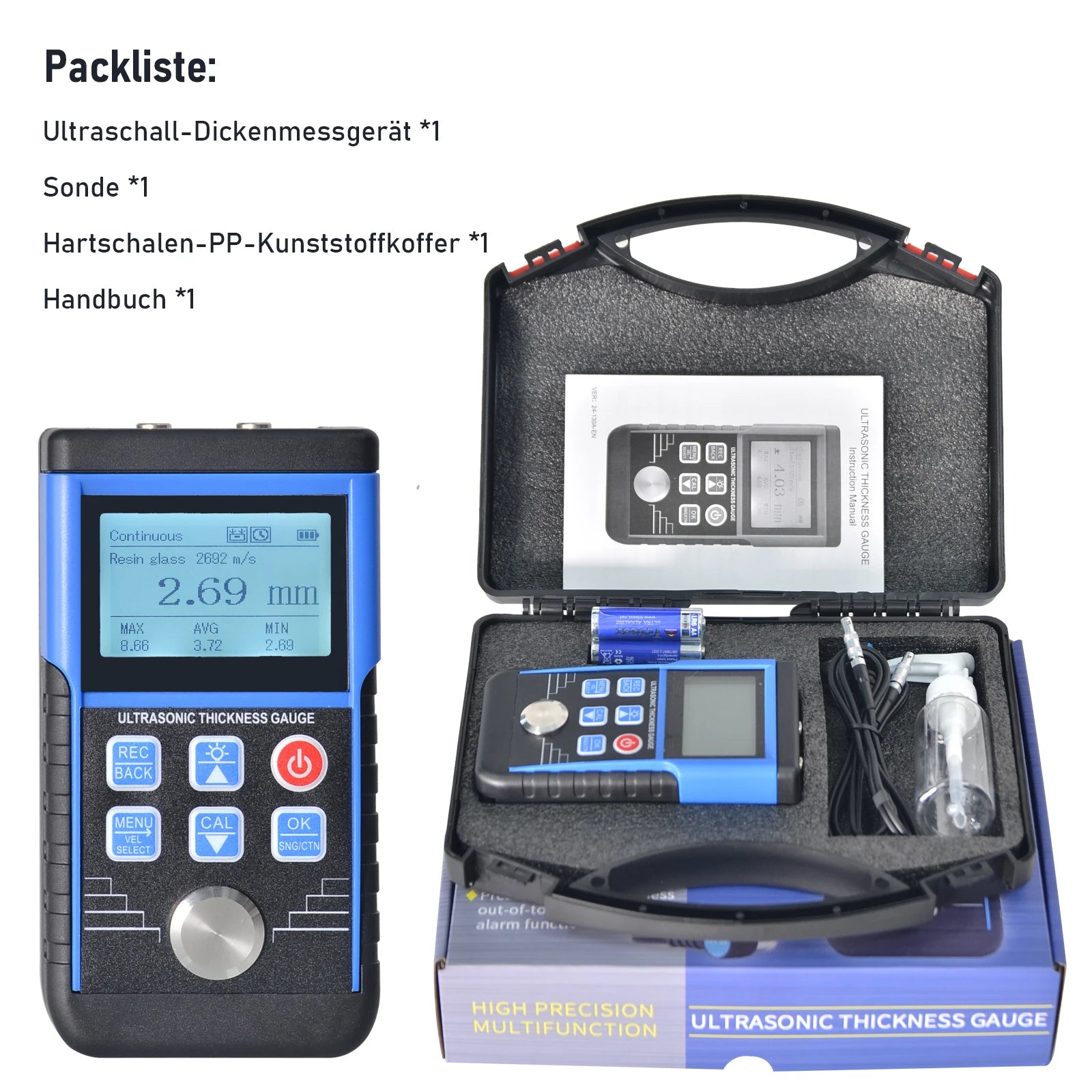

Packing list: (battery not included)

• 1 x Ultrasonic Thickness Gauge (MODEL:130D)

• 1 x 5MHz/10 probe

• 1 x Case

• 1 x User Manual

• 1 x Carrying hard case
