SPECIFICATIONS

ADC: 14 Channels, 12-bit

Application: IoT Smart Home, AI/ML Inference, Voice Recognition, Image Processing, Sensor Hub, Wearable Devices, Industrial Automation, Robotics

Bluetooth: 5.0 BLE

Brand Name: occkic

Chip: ESP32-S3

Communication: UART, SPI, I2C, I2S, PWM

Compatibility: Arduino IDE, MicroPython, ESP-IDF

Feature: for ESP32-S3-DevKitC-N16R8 Development Board, Dual Core 32-bit Xtensa 240MHz, 16MB Flash + 8MB PSRAM, 512KB SRAM, WiFi 802.11 b/g/n 2.4GHz, Bluetooth 5.0 BLE, Native USB 2.0 OTG/CDC, 45 GPIO, 14x 12-bit ADC, 3x UART, SPI/I2C/I2S, PWM, LCD/LED Controller, 5V/3.3V Power Input, Breadboard Compatible, Supports AI/ML Inference, Arduino IDE/MicroPython/ESP-IDF

Flash Memory: 16MB

GPIO: 45 Pins

High-concerned chemical: None

Model: ESP32-S3,ESP32-S3 N16R8

Origin: Mainland China

PSRAM: 8MB

Power: 5V (USB) / 3.3V

Processor: Dual Core Xtensa 32-bit @ 240MHz

Product Label: ESP32-S3 Development Board,ESP32-S3-DevKitC,ESP32-S3 N16R8,ESP32 AI Board,ESP32 USB OTG Board,Dual Core 240MHz Board,BLE 5.0 Development Board,IoT Development Kit,ESP32-S3-DevKitC-N16R8,ESP32-S3 16MB Flash 8MB PSRAM,ESP32 AI Development Board,ESP32-S3 USB OTG Module,ESP32-S3 Dual Core 240MHz,ESP32 BLE 5.0 Board,IoT Development Board with WiFi,Breadboard Compatible ESP32

SRAM: 512KB

Type: ESP Series,Development Board / MCU Board

USB: USB 2.0 OTG/CDC

WiFi: 802.11 b/g/n 2.4GHz

Features:
1.This development board is an entry-level board that is easy to use.
2. Easy to use, flexible expansion, and most of the pins on the board module have been extended to both sides.
3. Easily connect various peripheral devices through jumper cables, and the development board can be plugged into a breadboard for use.
4. Adopting PCB board mounted antenna, this development board has complete Wi Fi and low-power BT functions.
5. Suitable for a wide range of users, including college students, engineers, technicians, personal DIY, electronics enthusiasts, etc.

Product Introduction

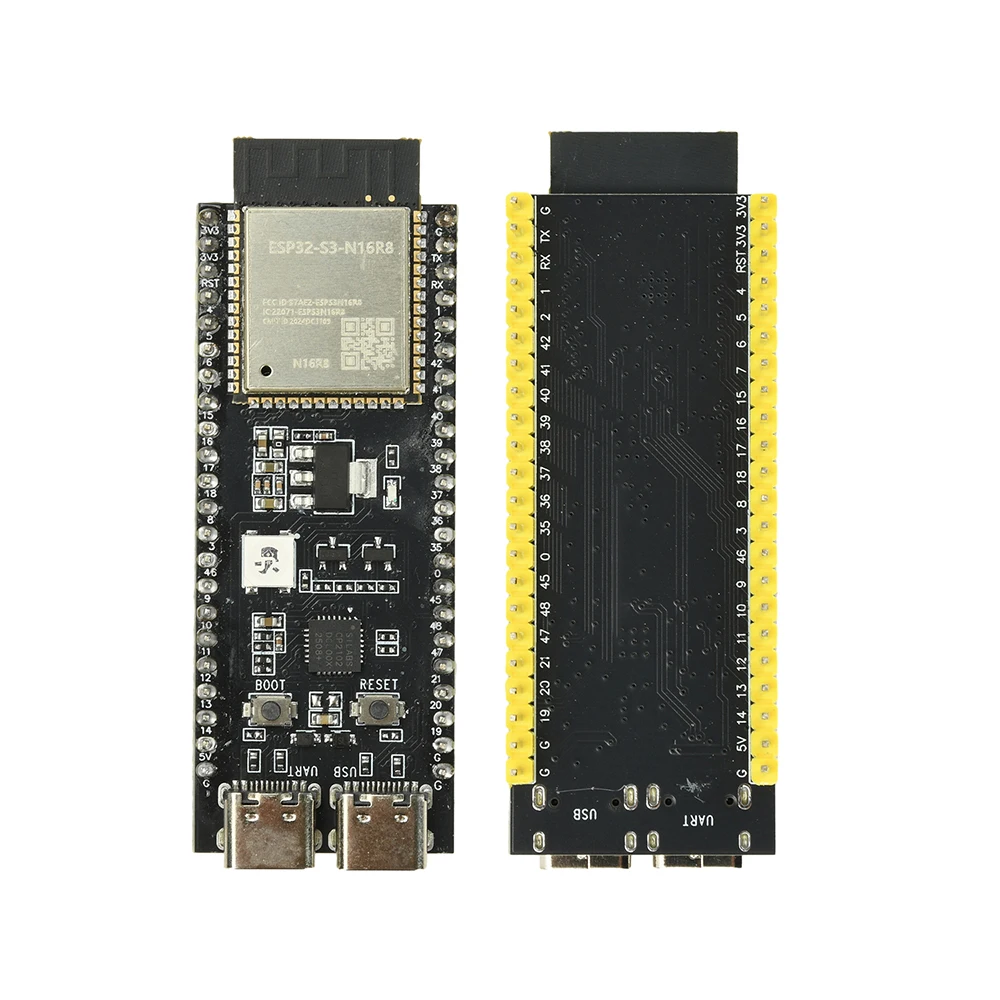

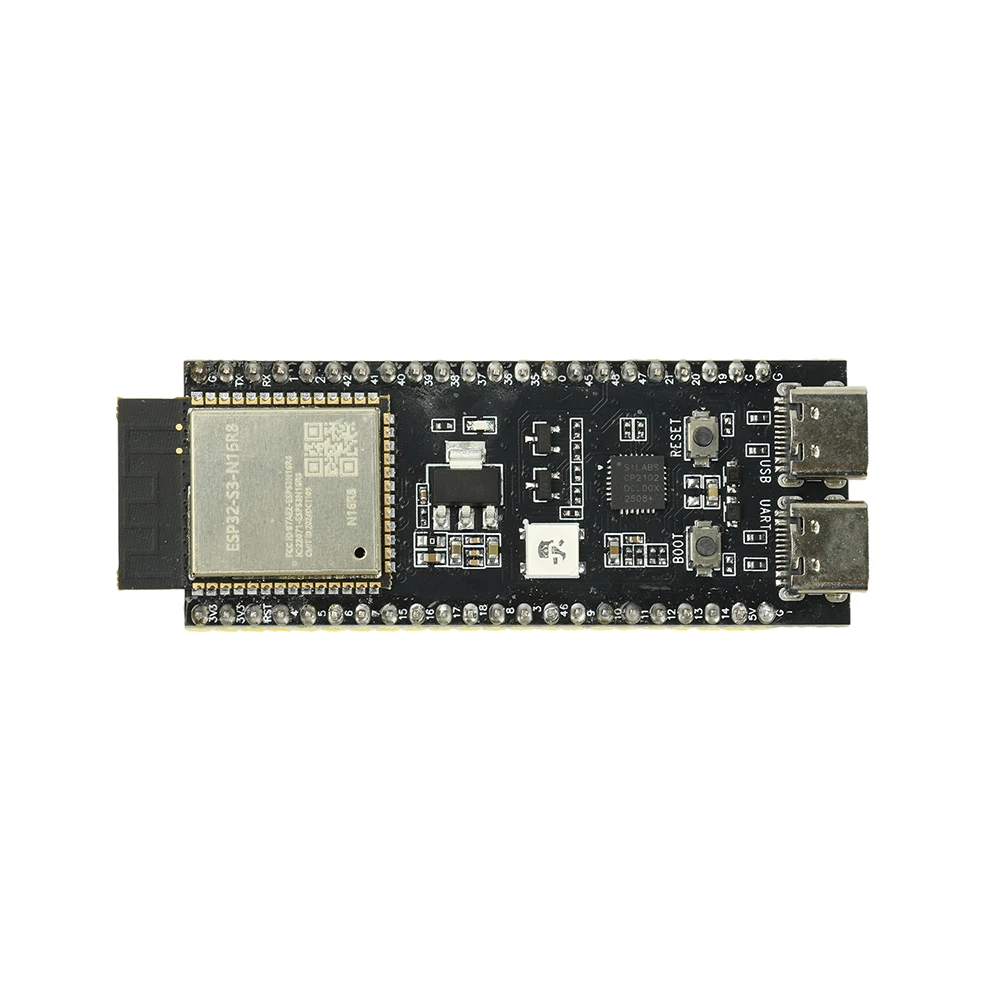

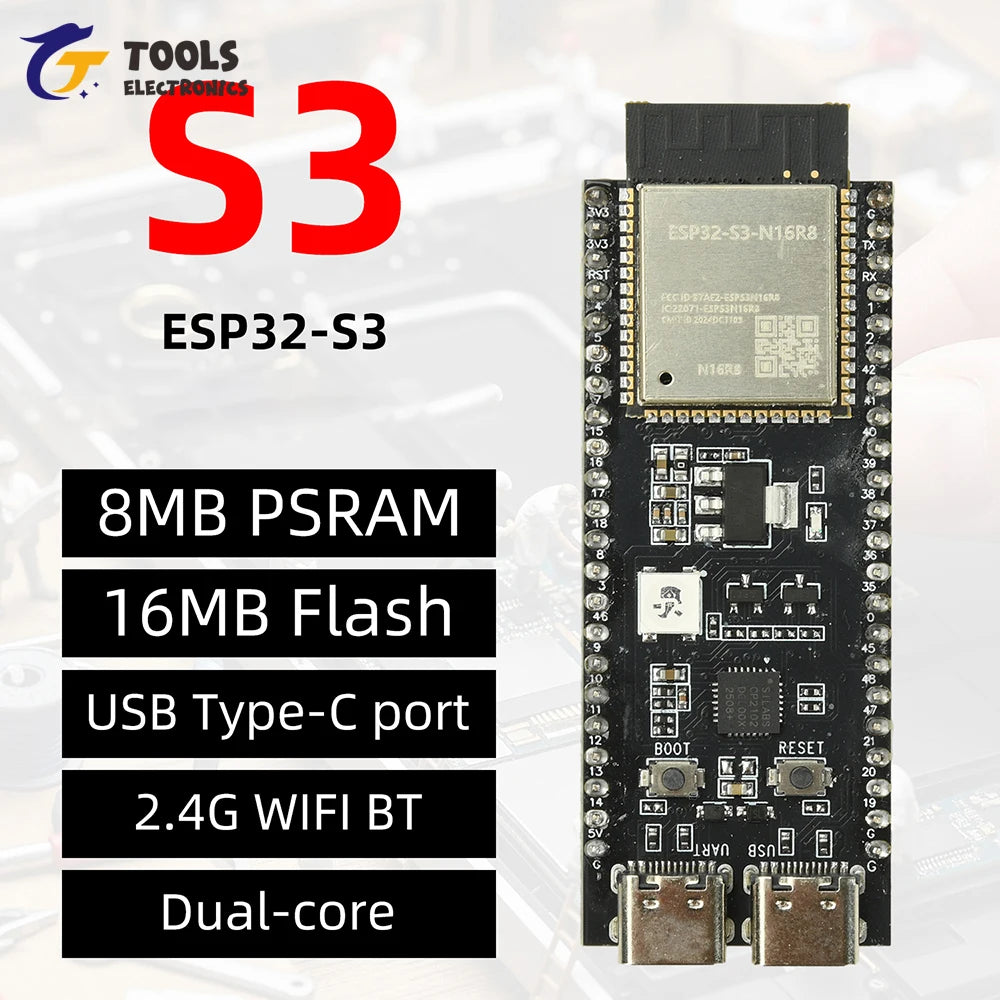

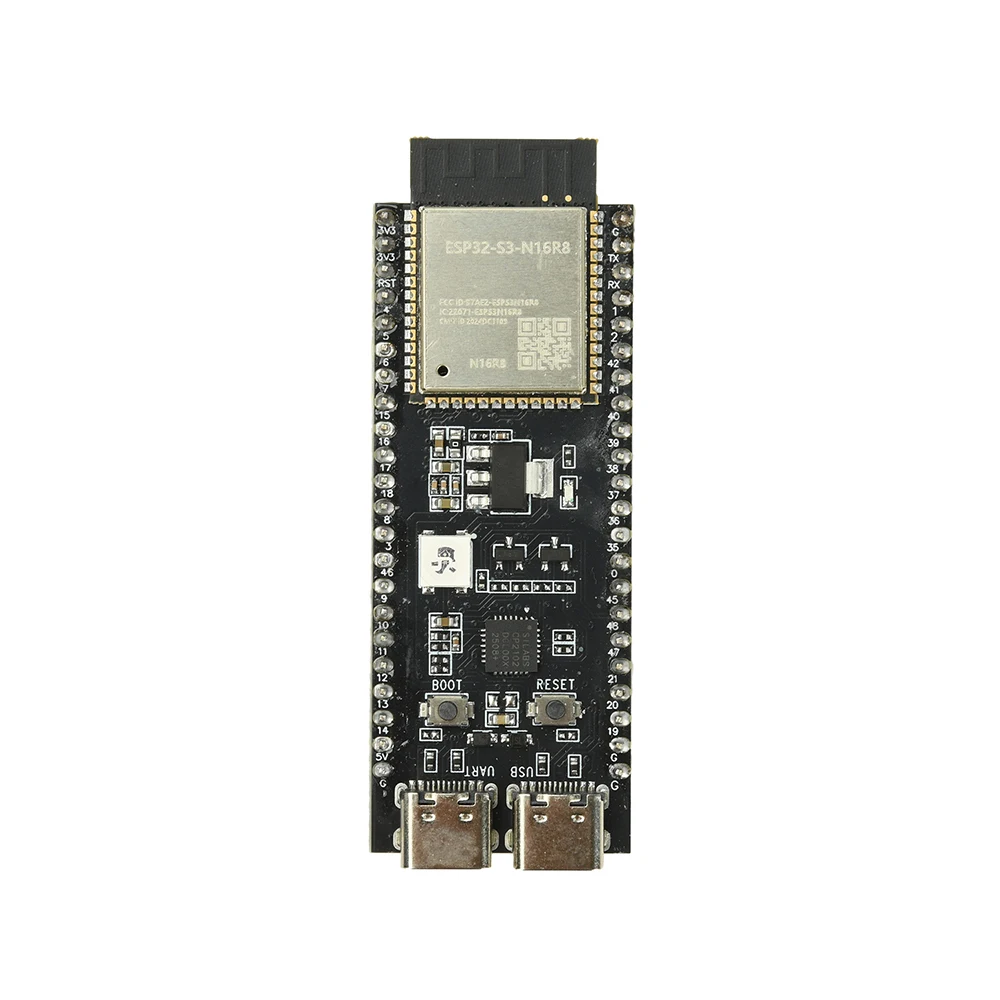

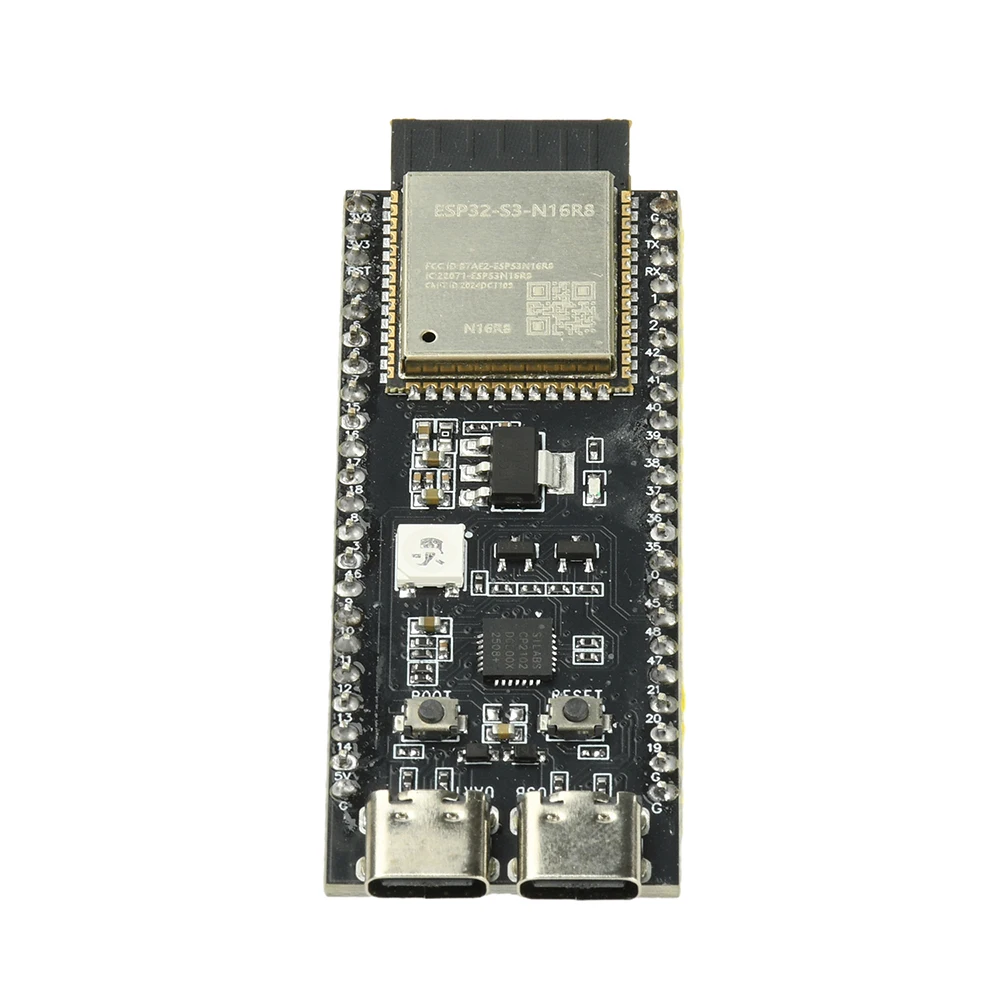

ESP32S3 DevKitC-1 is an entry-level development board. Most of the pins of the module on the board have been led out to the pin banks on both sides. Developers can easily connect various peripheral devices through jumpers according to their actual needs, and the development board can also be plugged into a breadboard for use. ESP32S3 DevKitC-N16R8 is a development board based on the ESP32S3 chip, designed specifically for high-performance and low-power applications. This development board integrates Wi Fi and BT functions, supports AI inference and multimedia processing, and is suitable for applications such as the Internet of Things (IoT), smart homes, speech recognition, and image processing.

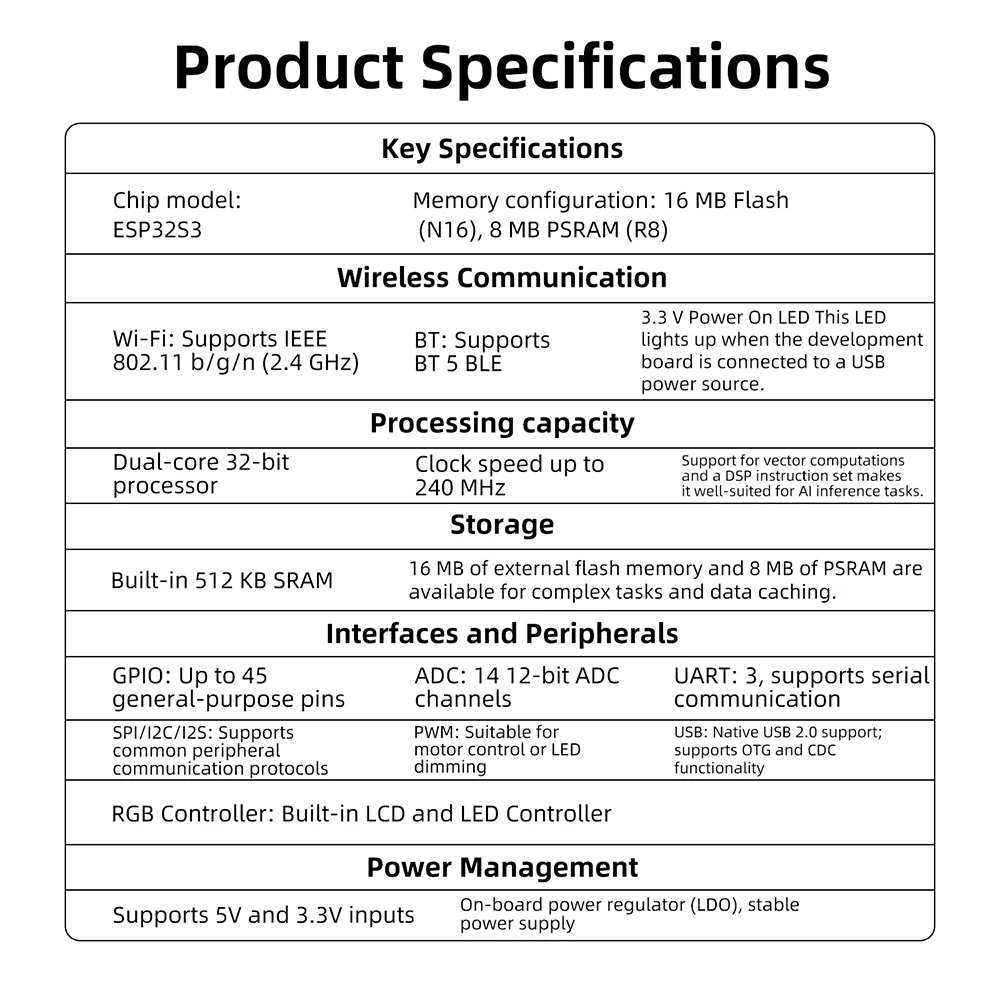

Core parameters:
Chip model: ESP32S3
Memory configuration: 16MB Flash (N16), 8MB PSRAM (R8)
Wireless communication:
Wi Fi: Supports IEEE 802.11 b/g/n (2.4 GHz).
• BT: Supports BT 5 BLE

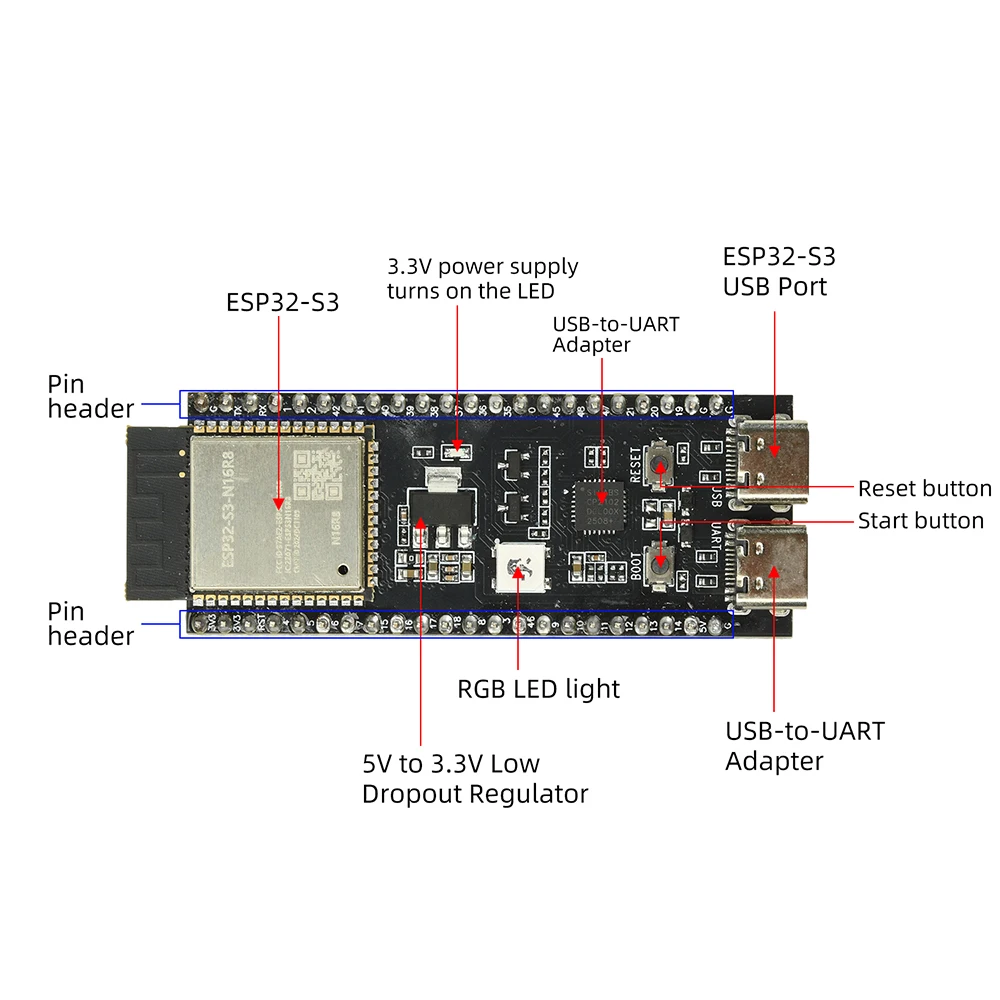

The 3.3 V Power On LED lights up when the development board is connected to a USB power source.
Processing ability:
Dual core 32-bit processor
• Main frequency up to 240MHz
Supports vector computing and DSP instruction set, suitable for AI inference tasks.
Storage:
• Built in 512KB SRAM.
External 16MB Flash and 8MB PSRAM, suitable for complex tasks and data caching.

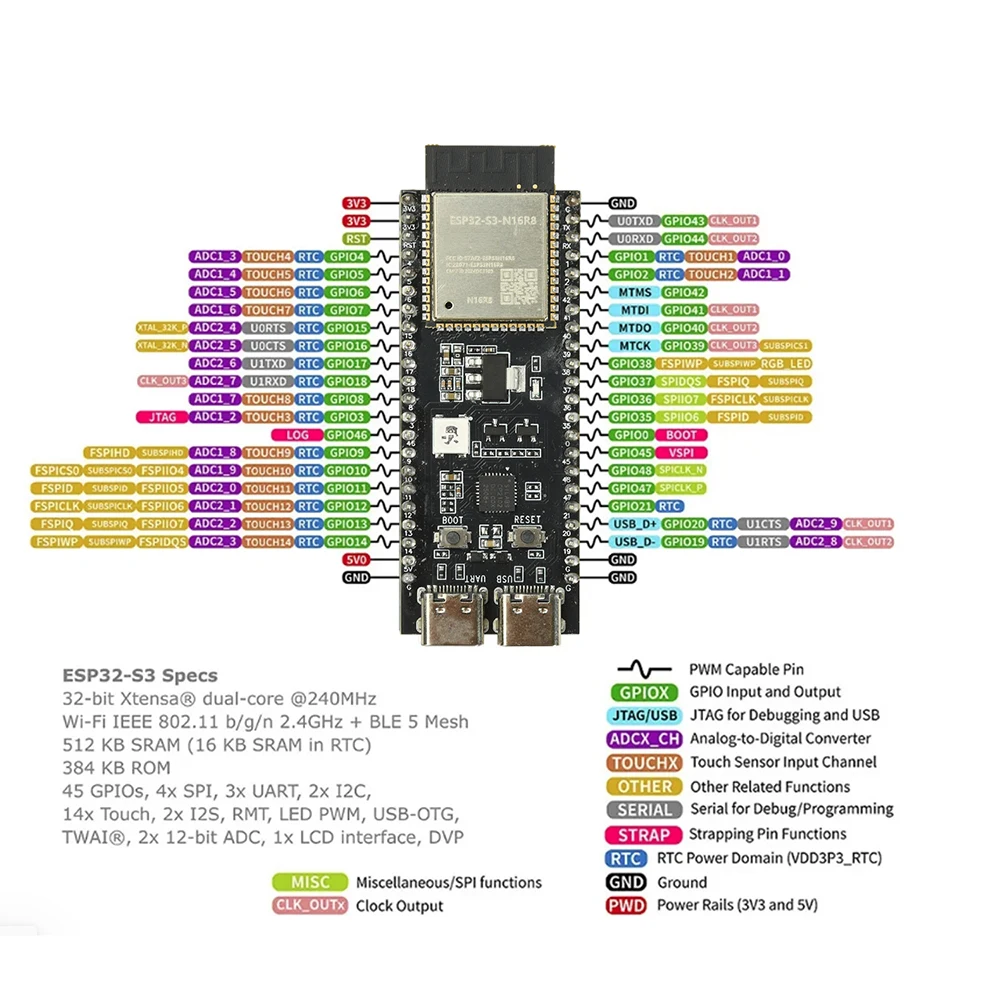

Interfaces and peripherals

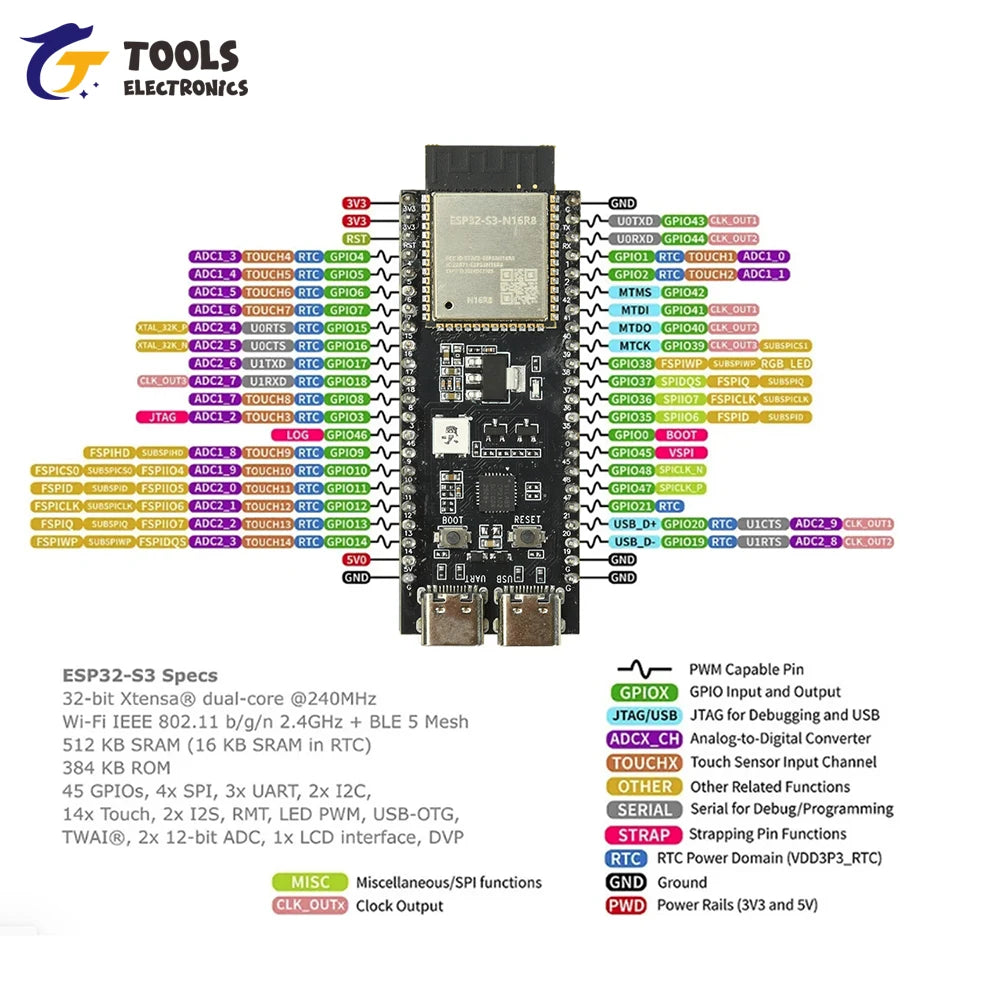

GPIO: Up to 45 general-purpose pins.
ADC: 14 12 bit ADC channels.
3 UARTs, supporting serial communication.
SPI/I2C/I2S: Supports common peripheral communication protocols.
PWM: Suitable for motor control or LED dimming.
USB: Supports native USB 2.0, OTG and CDC functions.
RGB controller: Built in LCD and LED controller.
power management
Supports 5V and 3.3V inputs.
On board power regulator (LDO) provides stable power supply.
