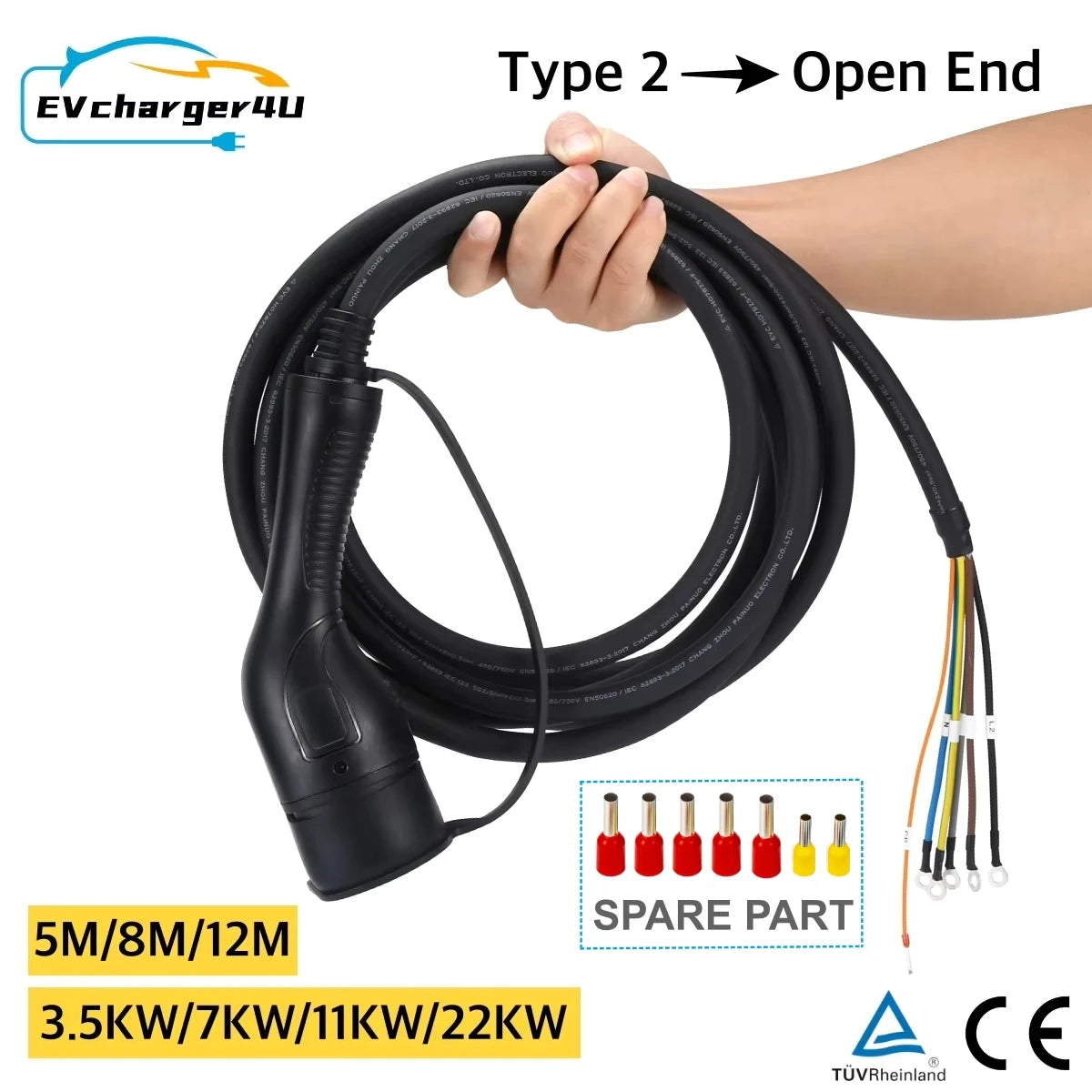

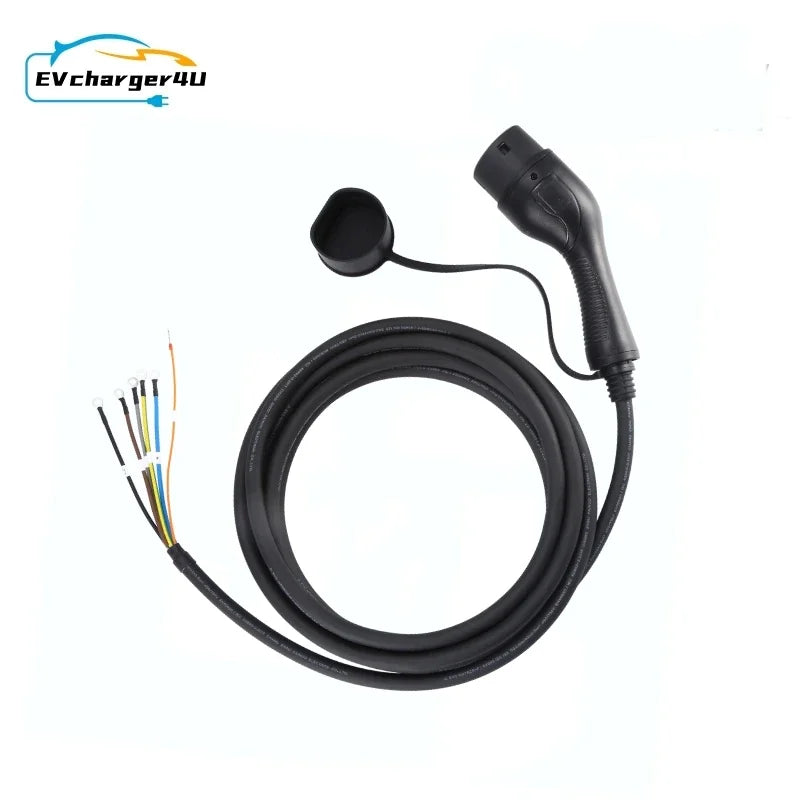

EVcharger4U 3.5KW 7KW 11KW 22KW IEC62196 EV Charging Cable Type 2 Female To Open Wire For Electric Vehicle Charger Station
EVcharger4U 3.5KW 7KW 11KW 22KW IEC62196 EV Charging Cable Type 2 Female To Open Wire For Electric Vehicle Charger Station
SPECIFICATIONS
Brand Name: Arvin
Current: 16A/32A
High-concerned chemical: None
IP Rating: IP55
Length: 5M/8M/12M/15M
Material: TPU
Operating Temperature: -30 to 50 degree
Origin: Mainland China
Plug Type: Type 2
Power (W): 3.5KW/7KW/11KW/22KW
Voltage: 250V/480V
Weight: 1.9KG/3KG/3.5KG/4.5KG

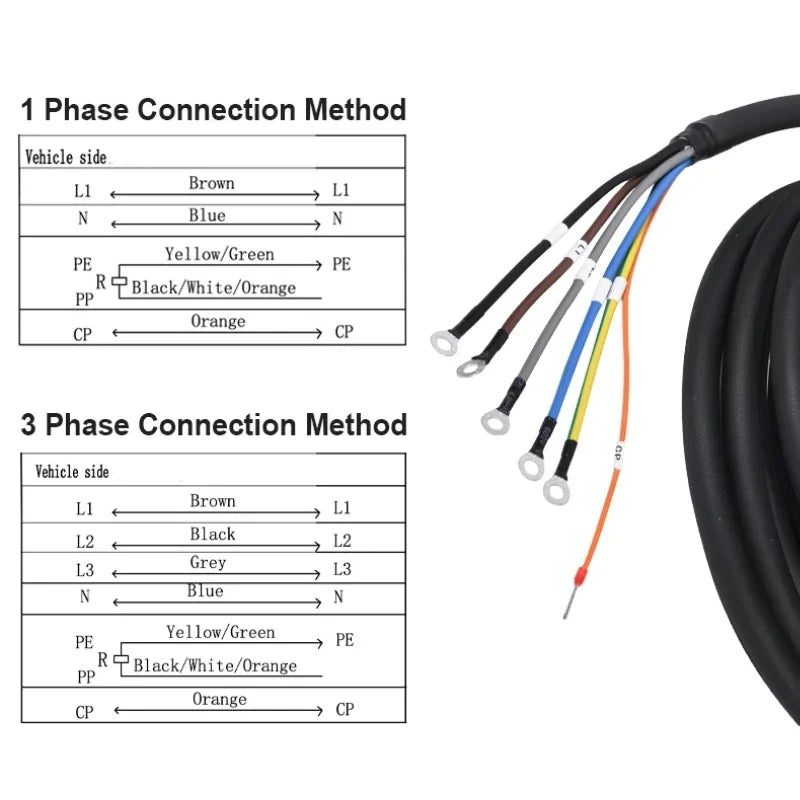

Model No. and Cable specification
V1-16S-V: 3x2.5mm2+2x0.5mm2 (16A/1phase, 250V)
V1-32S-V: 3x6.0mm2+2x0.5mm2 (32A/1phase, 250V)
V1-16T-V: 5x2.5mm2+2x0.5mm2 (16A/3phase, 480V)
V1-32T-V: 5x6.0mm2+2x0.5mm2 (32A/3phase, 480V)
Electric Performance:
Protection rank: IP55
Fire retardant level: 94 V-0
Rated Current: 16A / 32A
Rated voltage: 250V / 480V
Insulation resistance: > 1000M ohm (DC 500V)
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact resistance: 0.5m ohm Max
Coupled insertion force: >45N <80N
Operating temperature: -30C to 50C
Mechanical Testing
Mechanical life: no load plug in / pull out > 10000 times
Impact of external force: qualify 1m drop or 2 Ton vehicle run over
Materials Applied

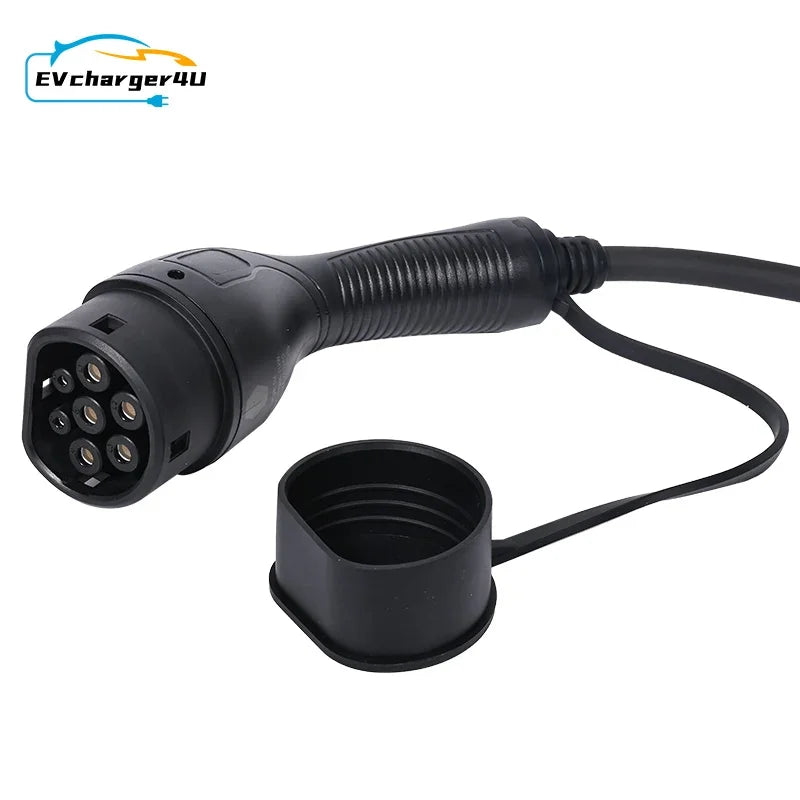

Connector: by copper alloy with nickel bottom plating and 3um silver surface plating
Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing

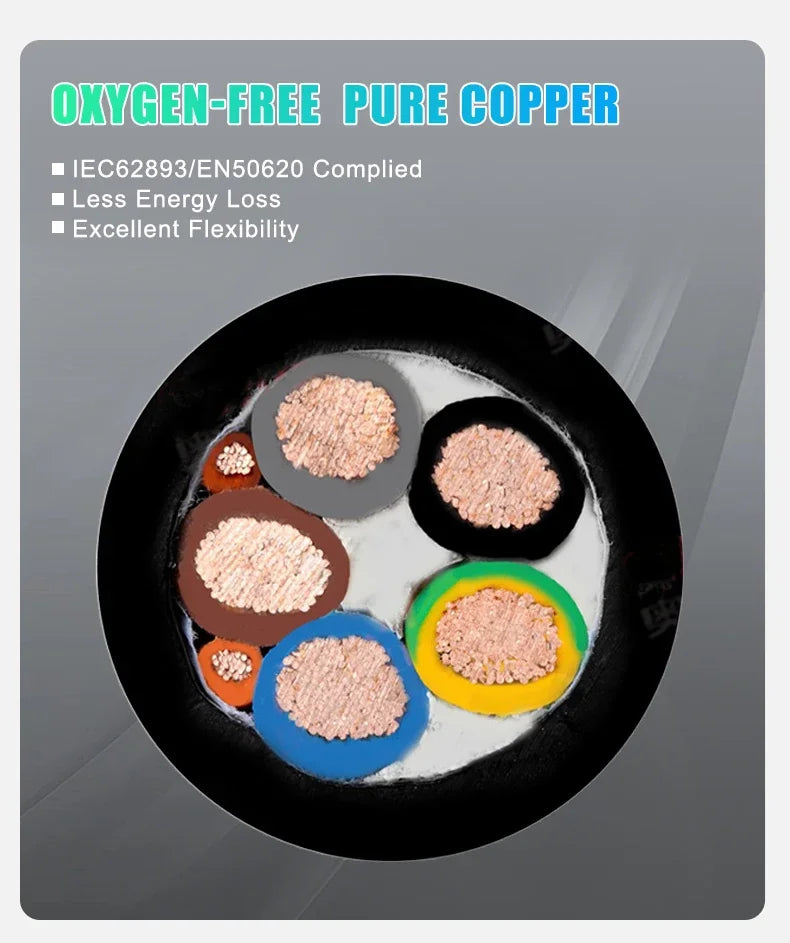

Cable: black with TPU jacket. Other color optional by customizing
Features
Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014
IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance
