Specification

Manual link: https://www.fandesensor.com/

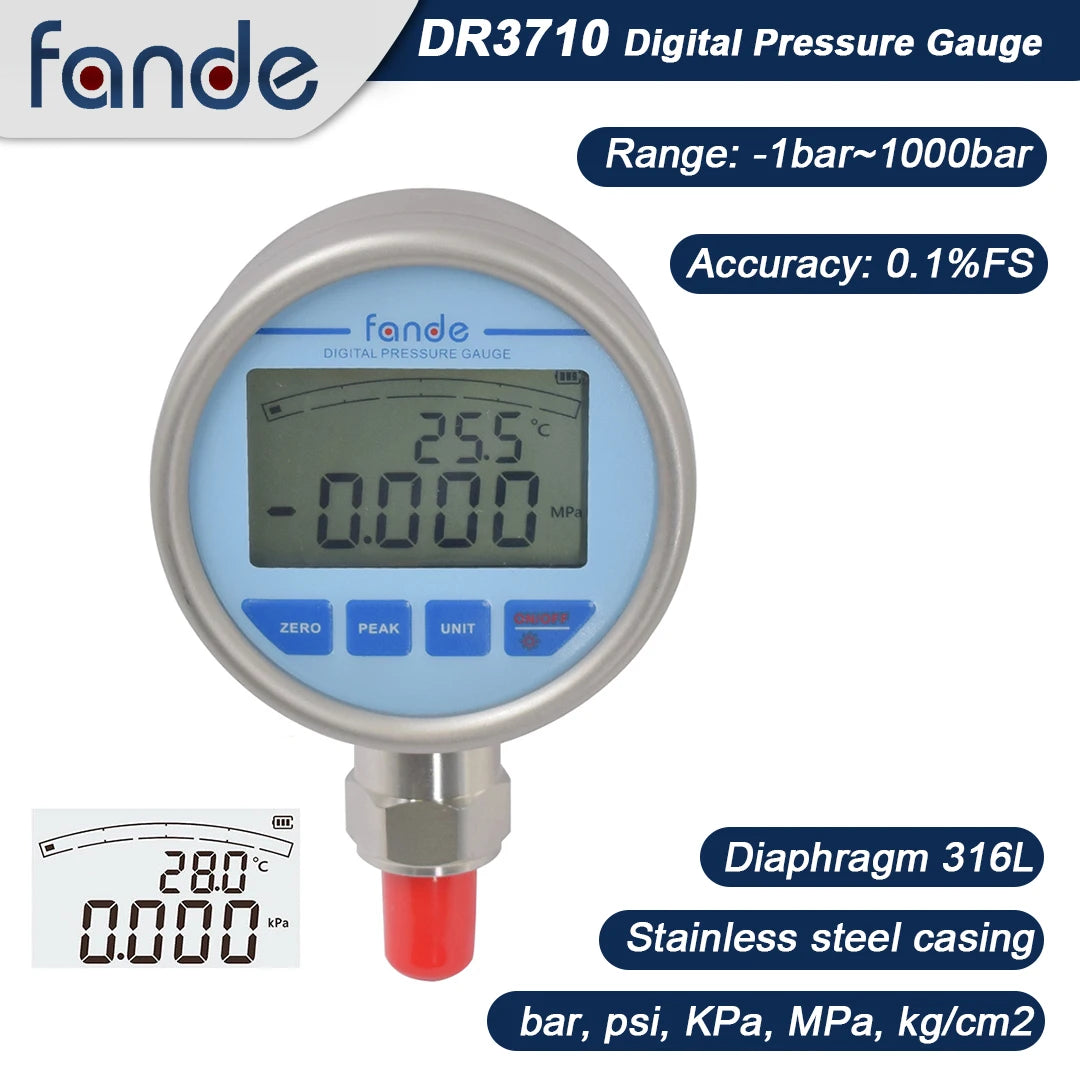

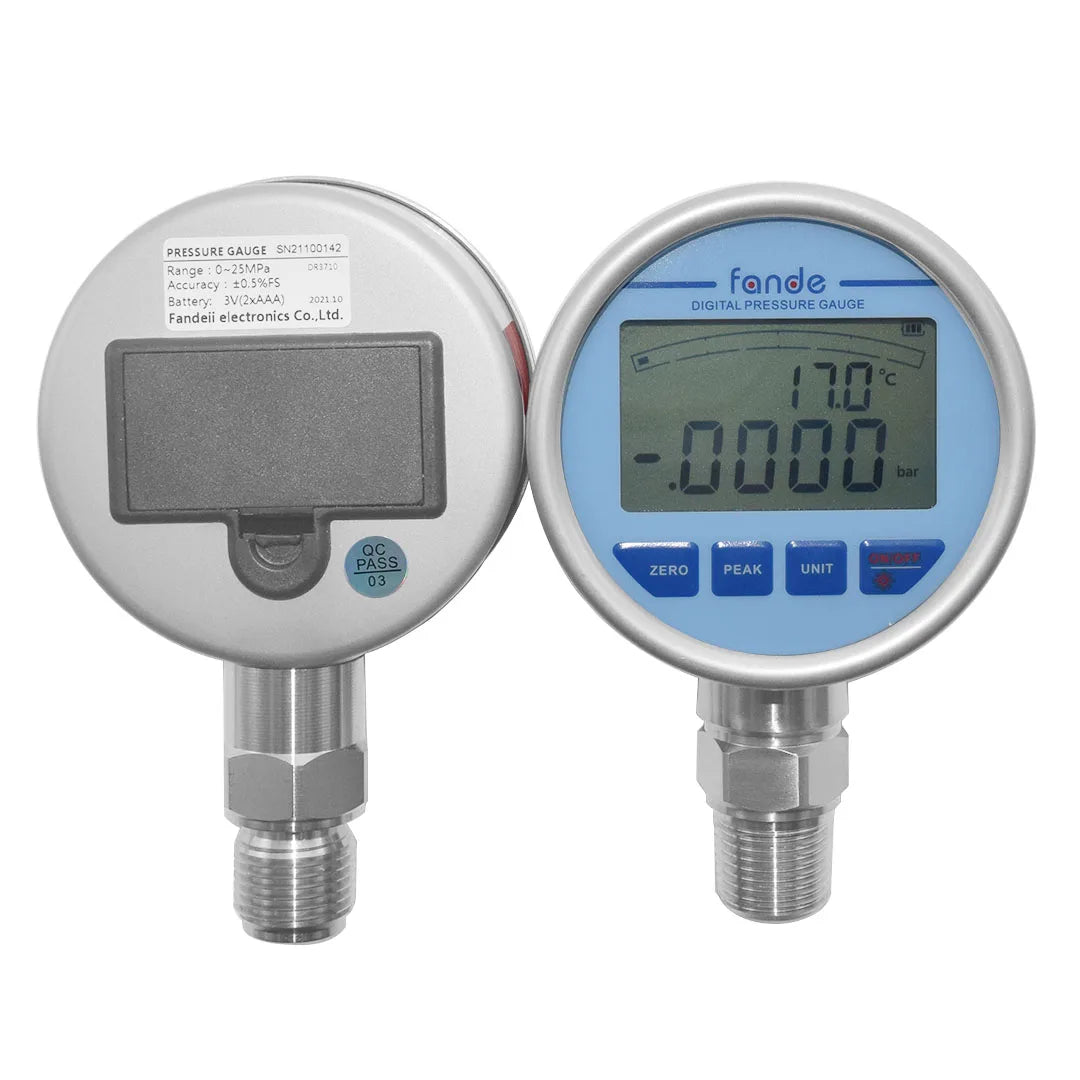

High Accuracy 0.1%FS Digital Pressure Gauge
Measurement range: -0.1…0.01~100MPa
Medium Type: Gas, water, oil, pure liquid
Pressure type: gauge pressure (standard), absolute pressure or sealed gauge pressure
Display digits: Four and half digits display
Overload: 200% full Measurement range
Resolution: -19999~19999
Pressure accuracy: ± 0.1% FS
Temperature accuracy: ± 2 ℃
Power supply: 3VDC 2PCS No.7 batteries（Battery Not Included）
Material: SUS304 stainless steel
Sensor: SUS316L stainless steel
Signal processing circuit: Industrial MCU, 24 bit AD conversion chip, high common mode rejection (CMR)
Sealing ring: Viton
Diameter: 80mm
Shell thickness: 1.5mm

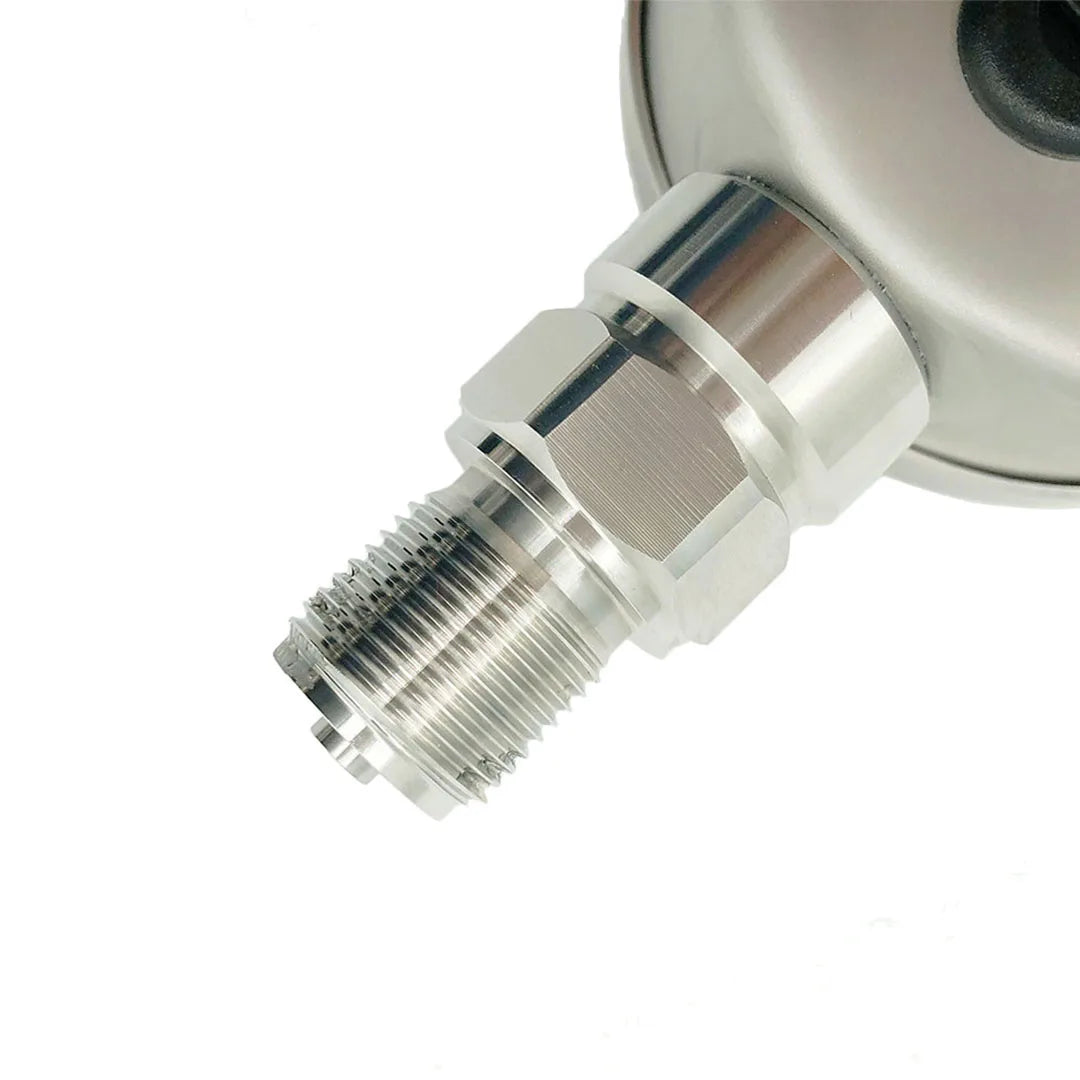

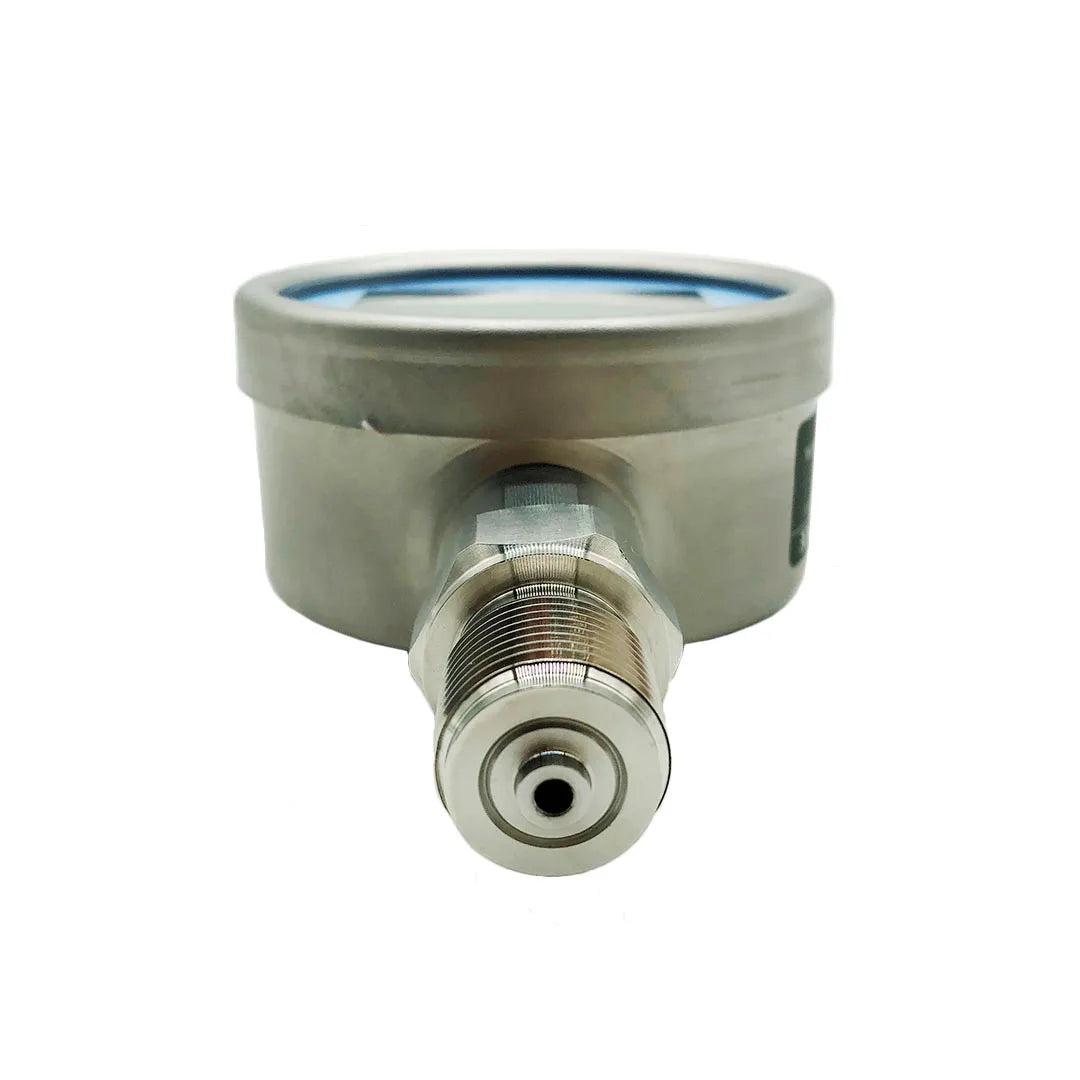

Pressure interface: NPT1/2 NPT1/4 G1/2 G1/4 M20 * 1.5/ external thread(standard)
Compensation temperature: 0 ℃ ~ + 70 ℃
Operating temperature: - 20 ℃ ~ + 60 ℃
Protection grade: IP65

Product Features

This product is widely used in laboratory pressure measurement, compressed gas pressure measurement, factory mechanical maintenance pressure measurement, tap water pipeline pressure measurement, oil pipeline pressure measurement

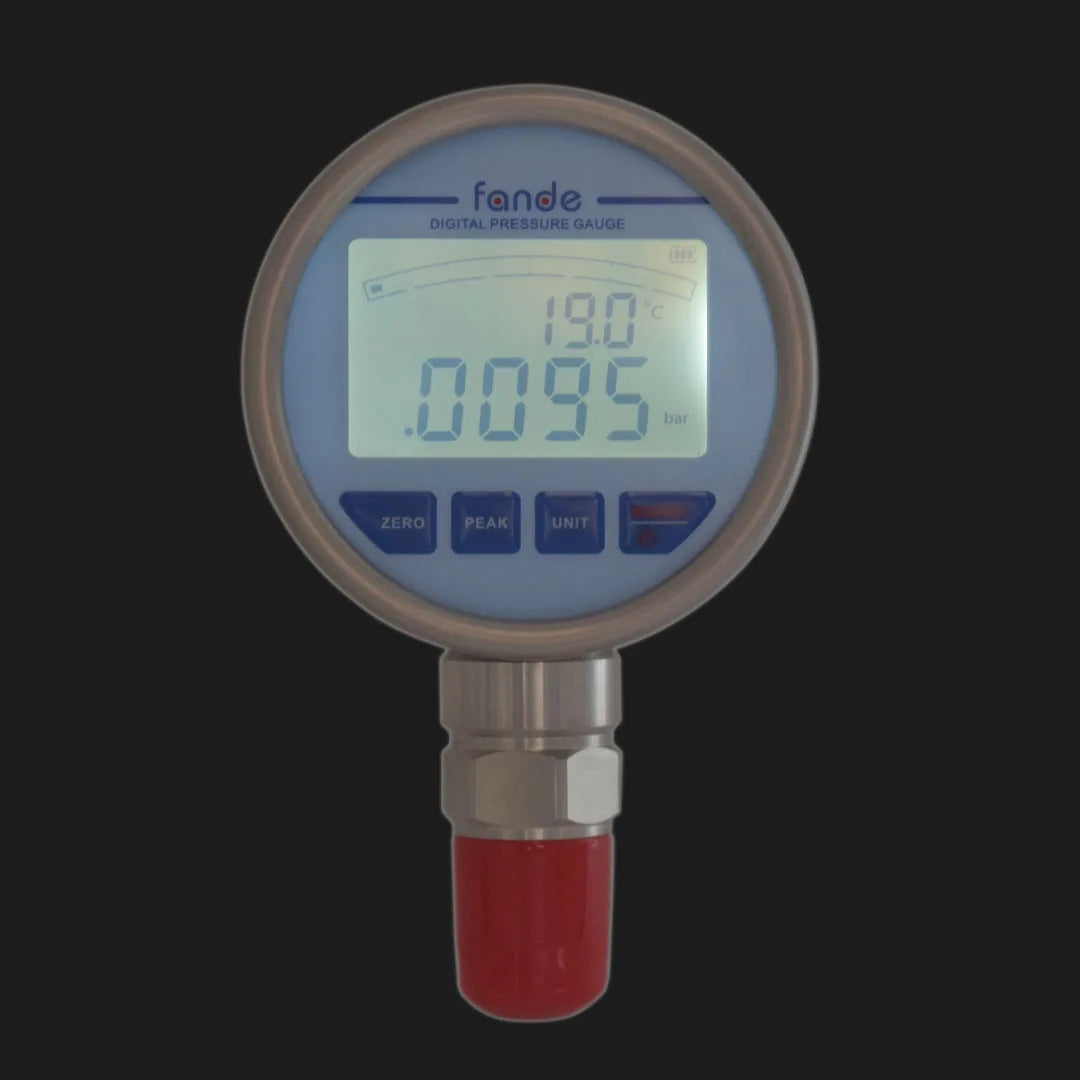

1) With backlight, large LCD dual display
2) Four and a half pressure display
3) Three digit ambient temperature display
4) Zero clearing
5) Maximum value, minimum value display
6) Pressure progress bar display
7) Electric quantity display
8) Five pressure unit switching (bar, psi, kPa, MPa, kg / cm2)

Range, Unit and Resolution

Customized Service

Please make sure we confirm the measurement range and interface specification before placing the order.
