FDC2214 capacitive sensor paper counting electronic design competition gesture recognition module liquid level measurement
FDC2214 capacitive sensor paper counting electronic design competition gesture recognition module liquid level measurement
SPECIFICATIONS
Brand Name: NONE
DIY Supplies: Electrical
Electronic: No
High-concerned chemical: None
Origin: Mainland China
Semi-finishedproduct: No
Sort by model

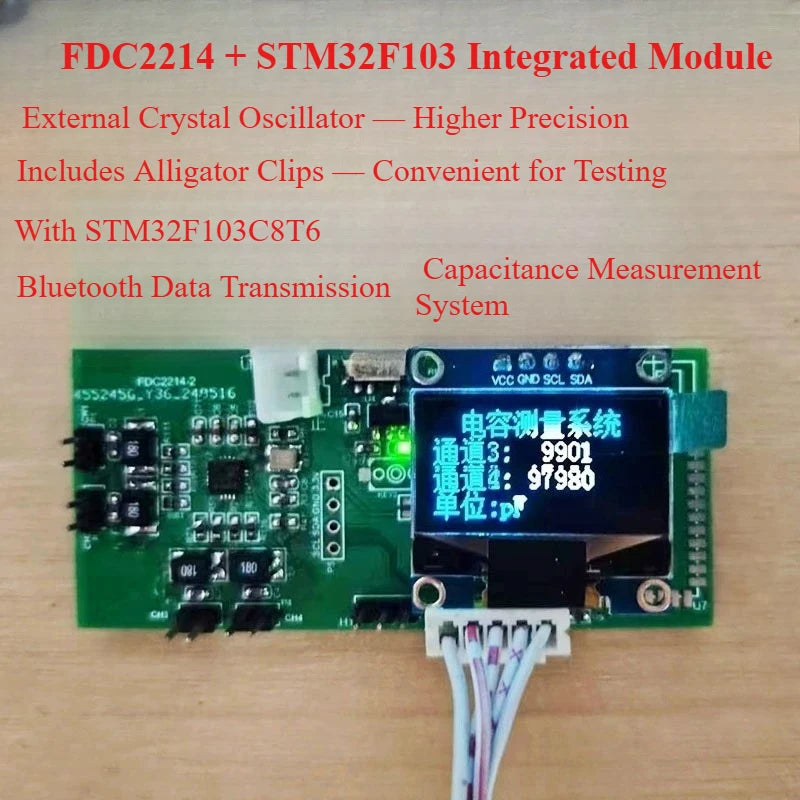

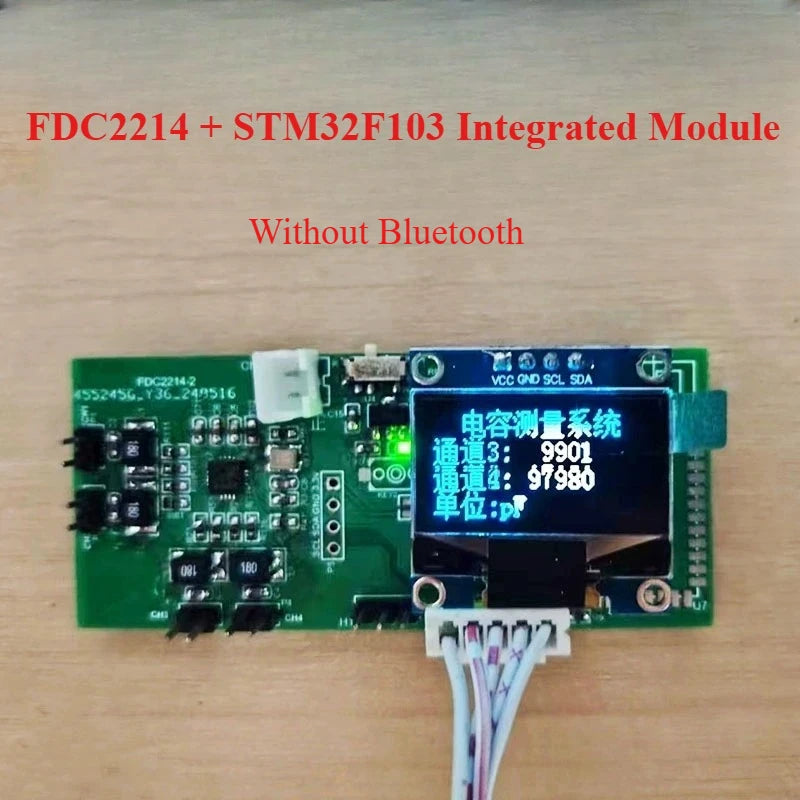

Model A:FDC2214+screen+STM32F103 main control integrated board

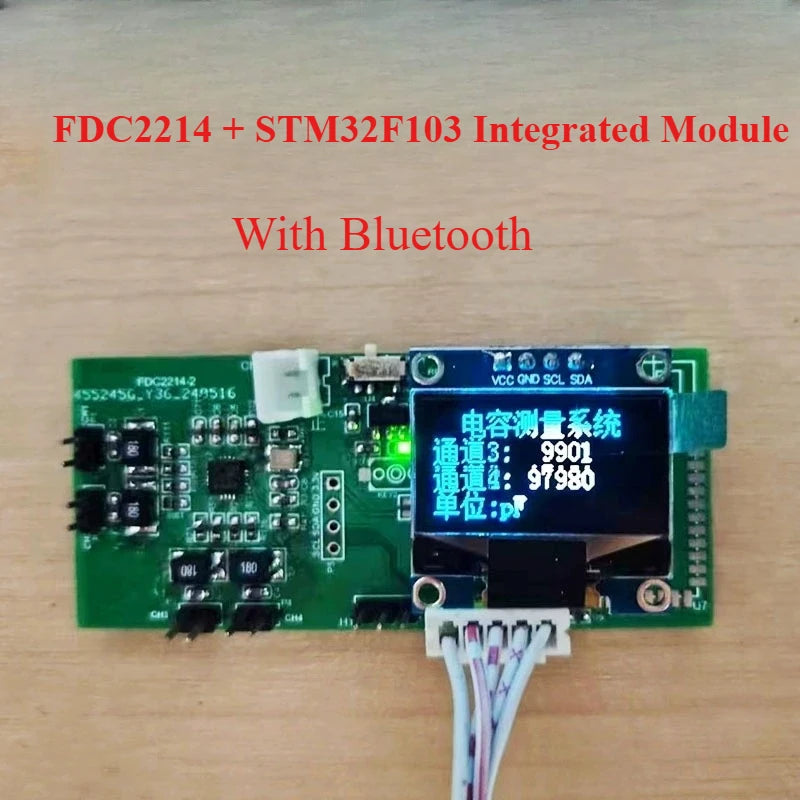

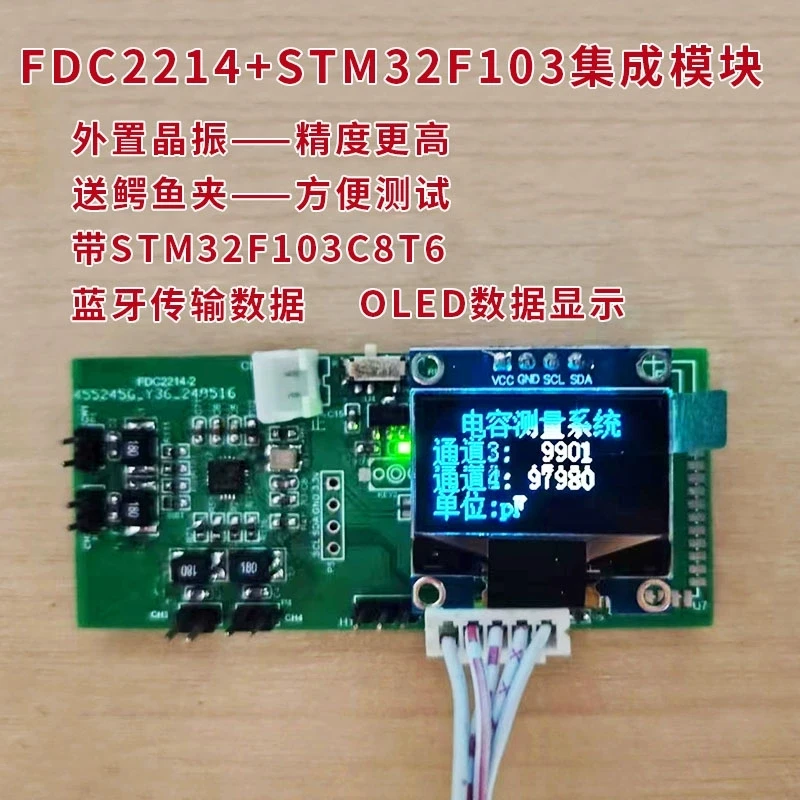

Model B:FDC2214+screen+Bluetooth+STM32F103 integrated control board

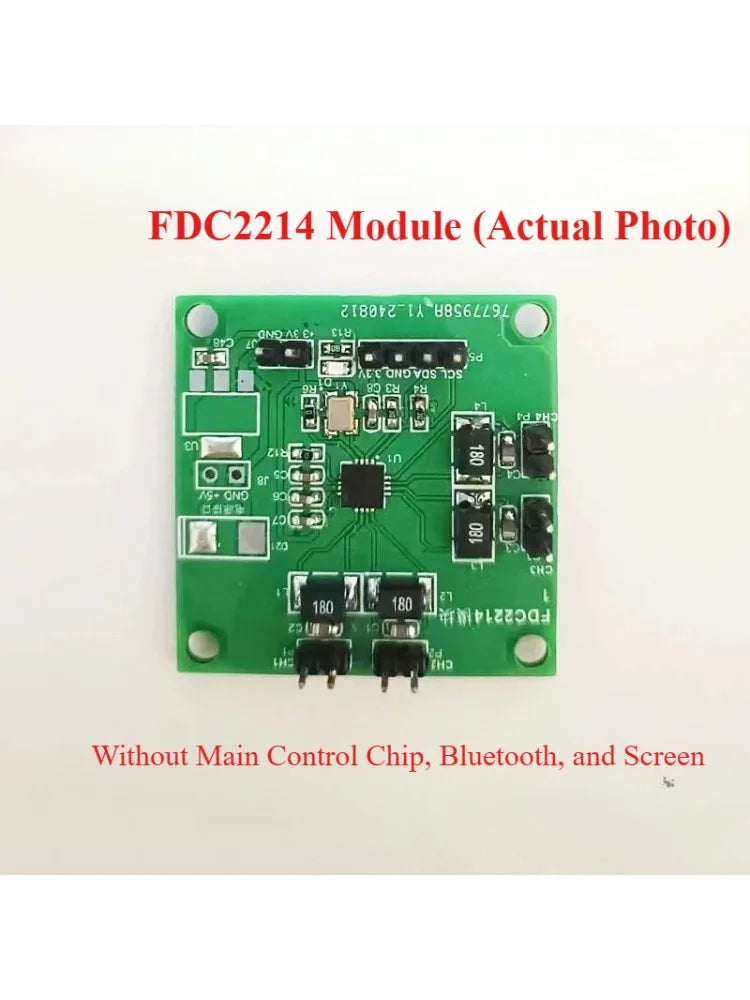

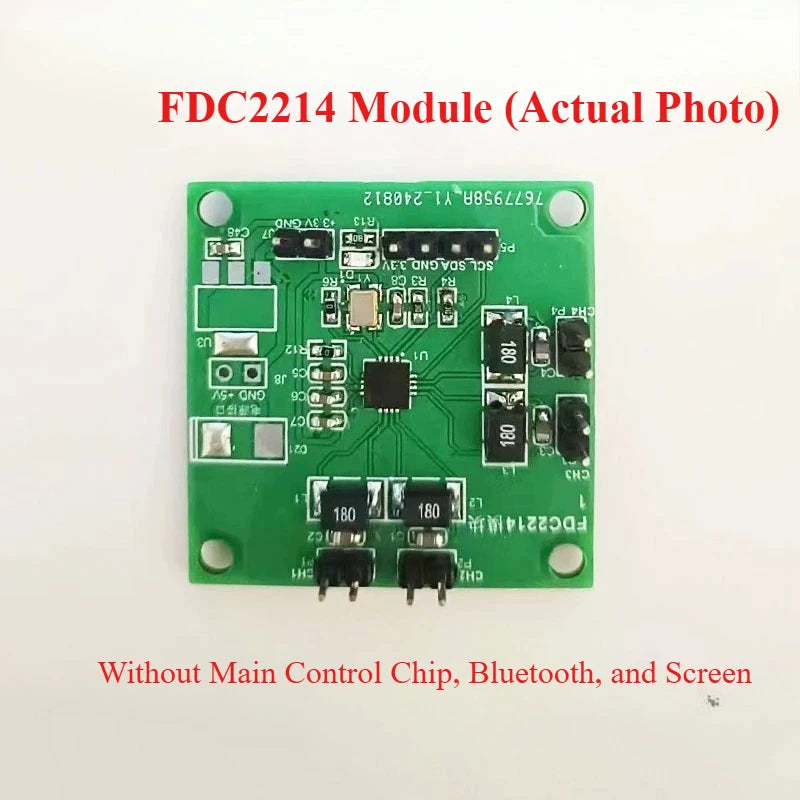

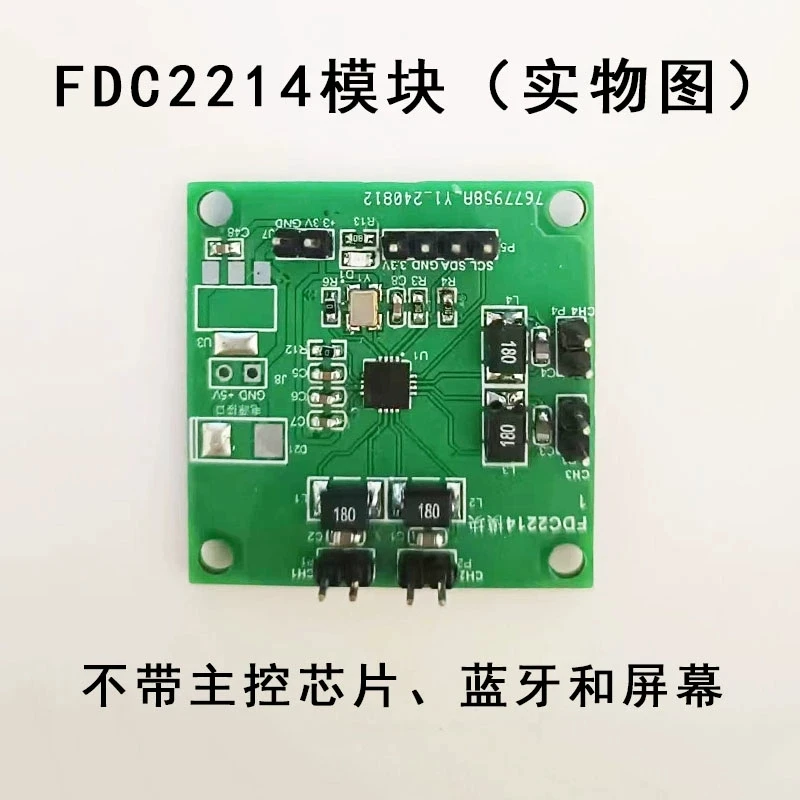

Model C:FDC2214 module (excluding screen and main control chip) does not include Bluetooth
FDC2214 capacitive sensor module
Applicable fields: electrode capacitance measurement, pressure sensor measurement, humidity sensitive capacitance sensor measurement, paper detection, gesture recognition, liquid level measurement, etc.
The integrated module of FDC2214+STM 32f103 controller can directly develop user programs on the board.
Product Features
-
Using an external 40M high-precision active crystal oscillator, the clock is more stable and the measurement data is more stable.
-
Using original imported high-frequency inductors, stable operation.
-
Provide schematic diagrams, source code, and wiring technical guidance
-
Equipped with OLED screen, it can directly display capacitance data
-
Can send capacitance measurement data to the computer through serial port
-
You can use 5V or 3 3V power supply.
-
We can develop and design capacitance data measurements up to 250nF.
