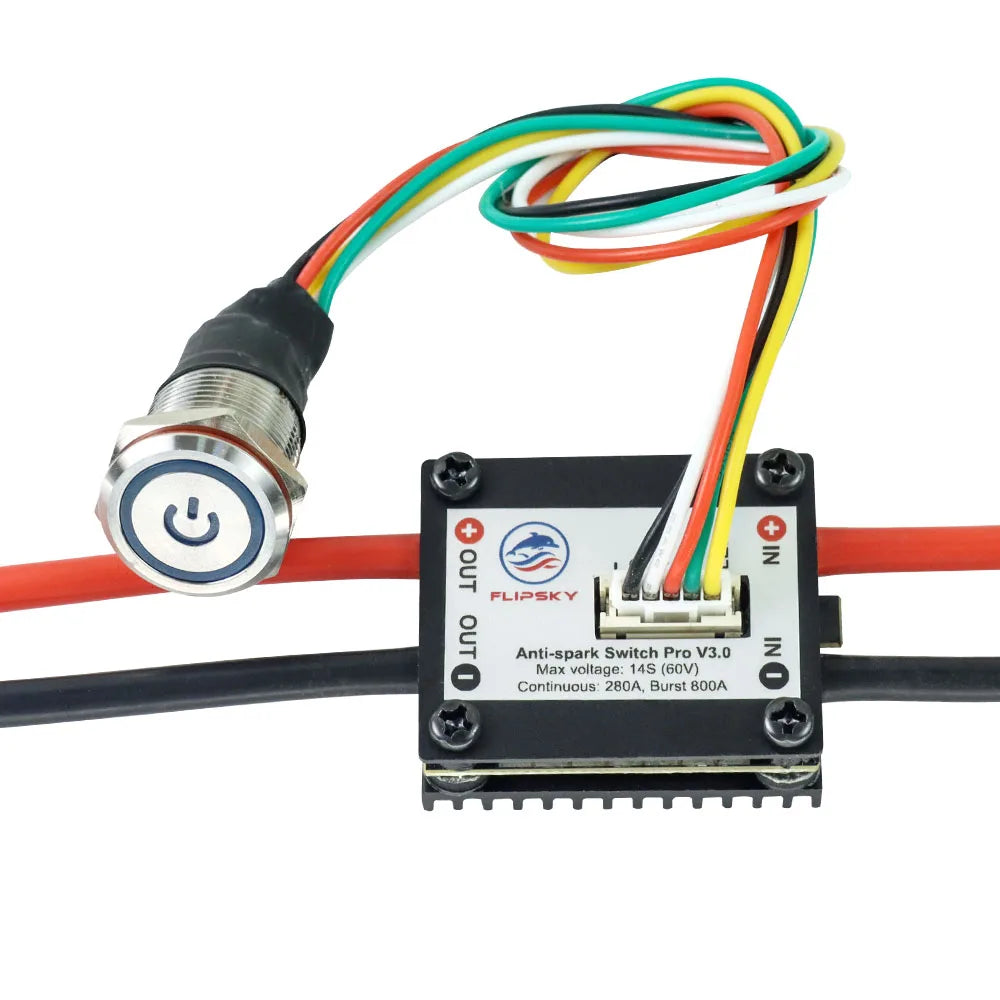

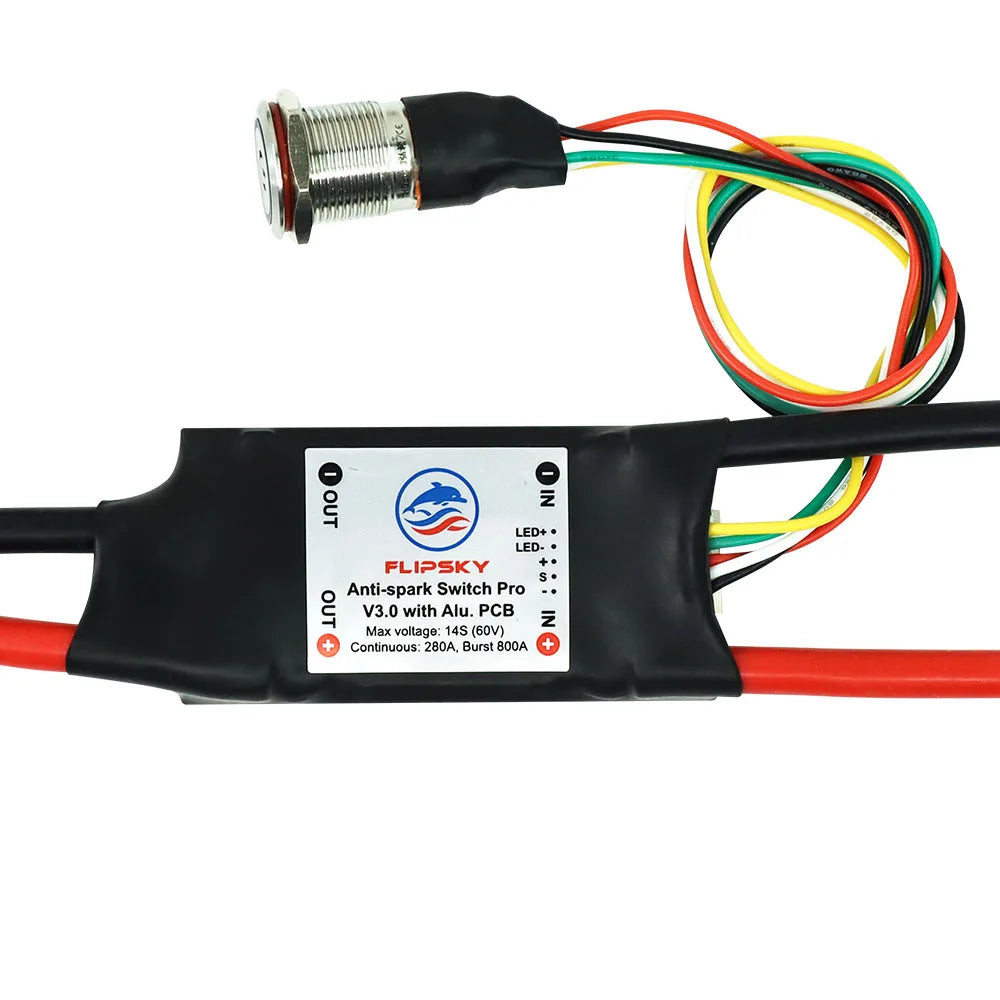

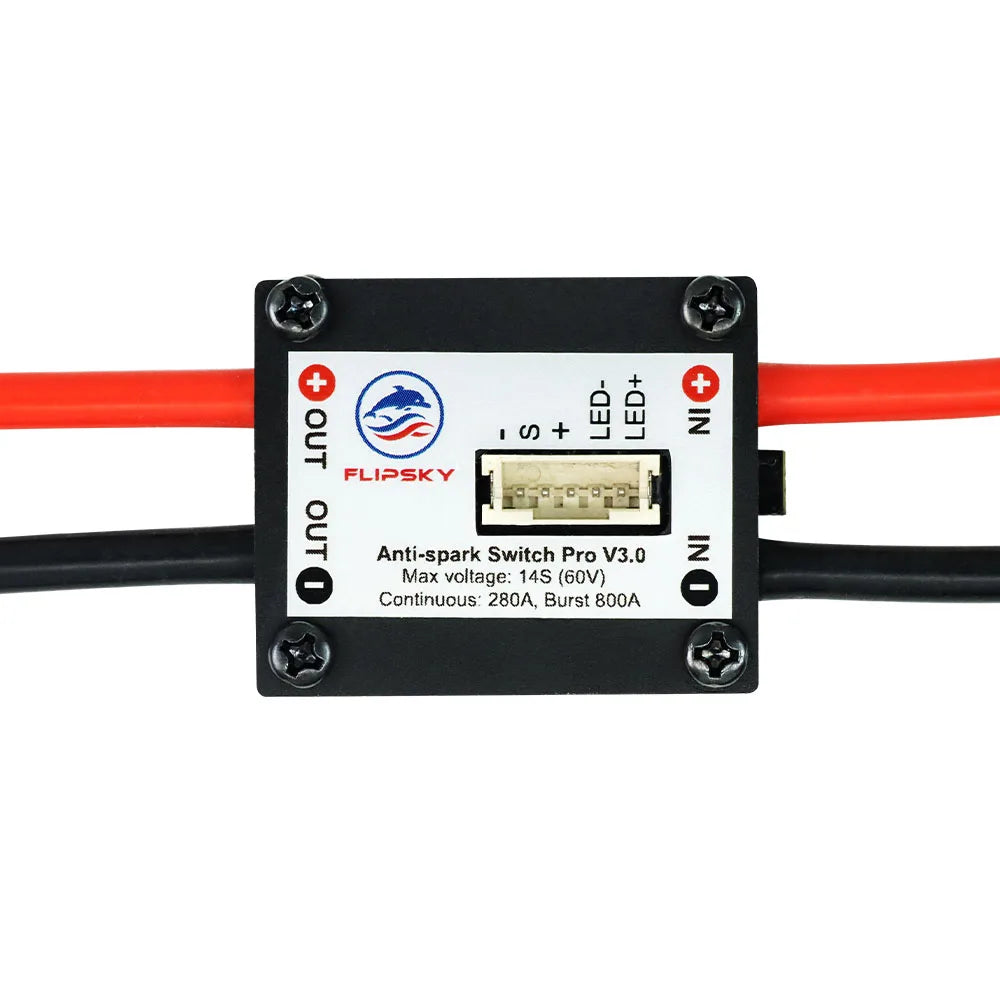

Flipsky Antispark Switch Pro V3.0 280A Contact Protector for EBike /Scooter/ Robots/ Electric Skateboard Longboard
Flipsky Antispark Switch Pro V3.0 280A Contact Protector for EBike /Scooter/ Robots/ Electric Skateboard Longboard
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Origin: Mainland China
Voltage: 48V
is_customized: Yes
Specs:
V3.0
Mosfets:HYG015N10NS1TA

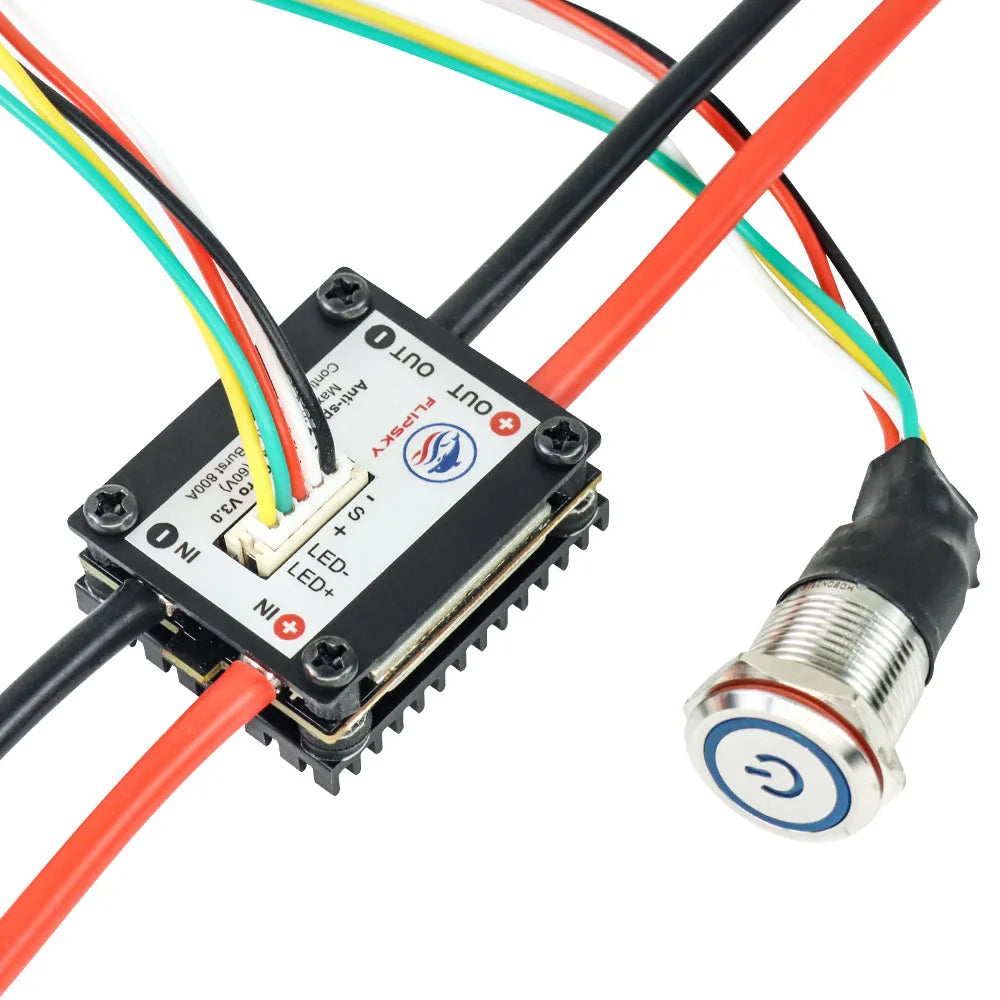

LED button diameter: 16mm
Voltage range:3S-14S (12V-60V)
Max current:200A(It is better to increase bigger heat sink)
Continuous current:100A(With Aluminum PCB/case V3.0),60A(with heatsink)
Burst current 1200A(theoretical current)
PCB thickness: 6 layer*3oz copper=18oz copper

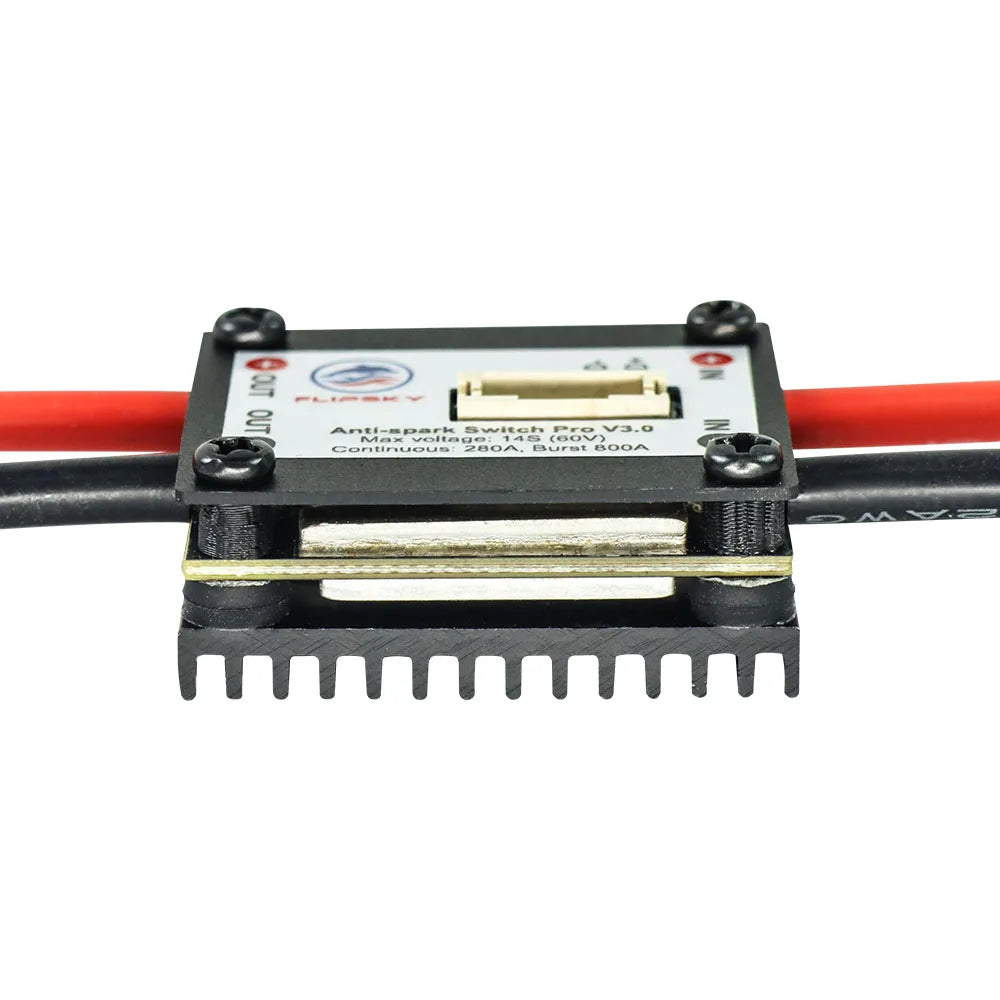

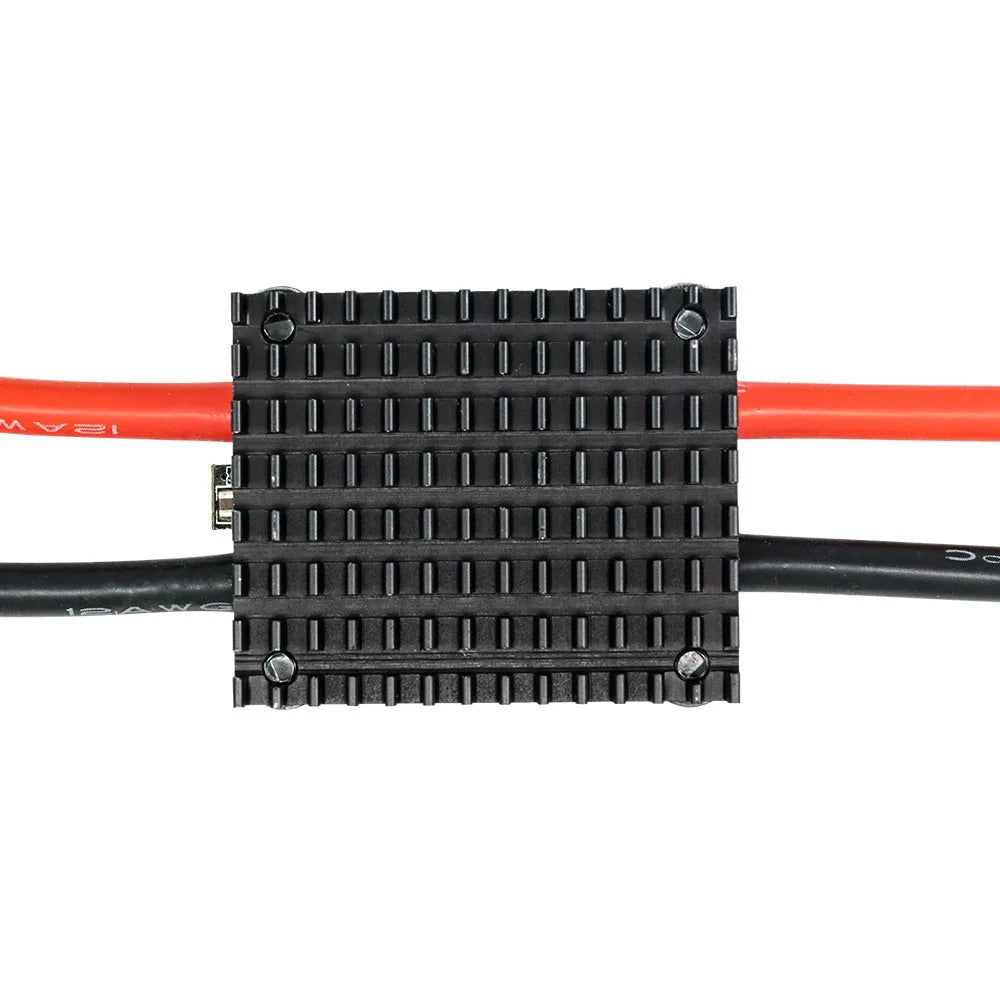

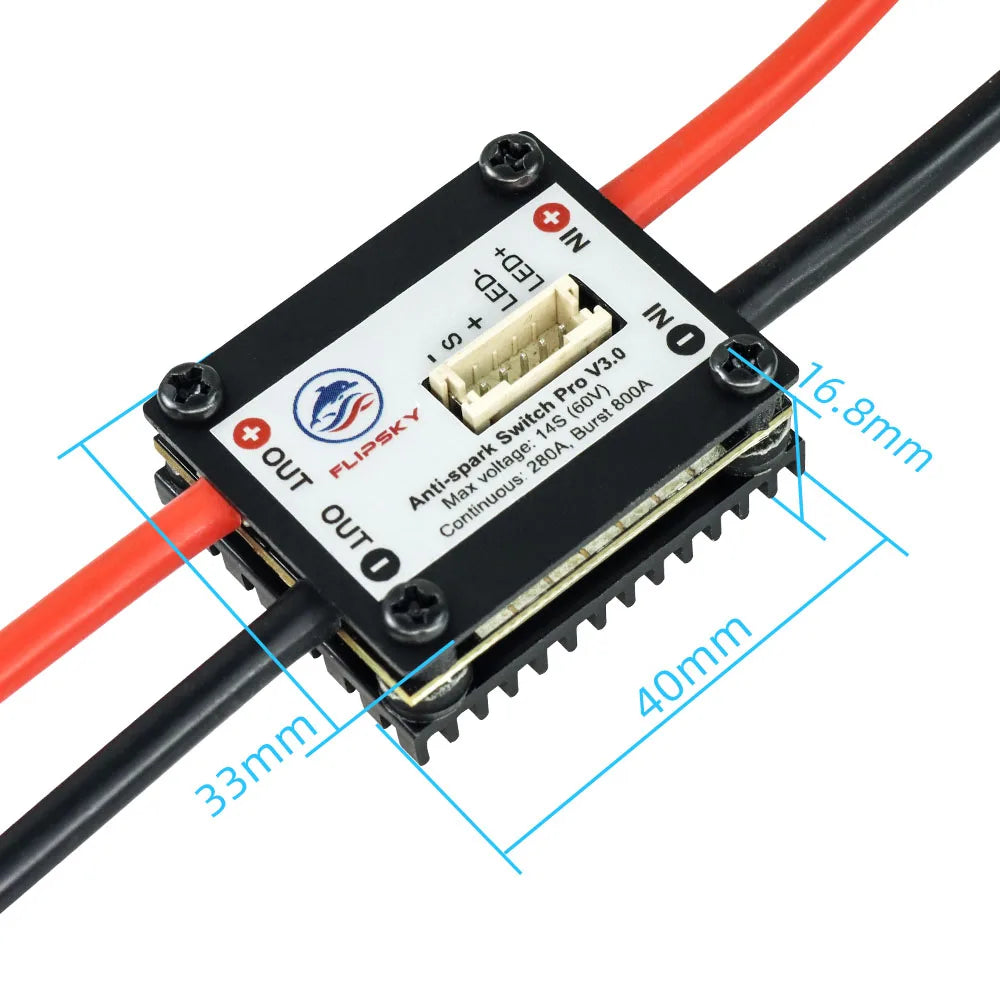

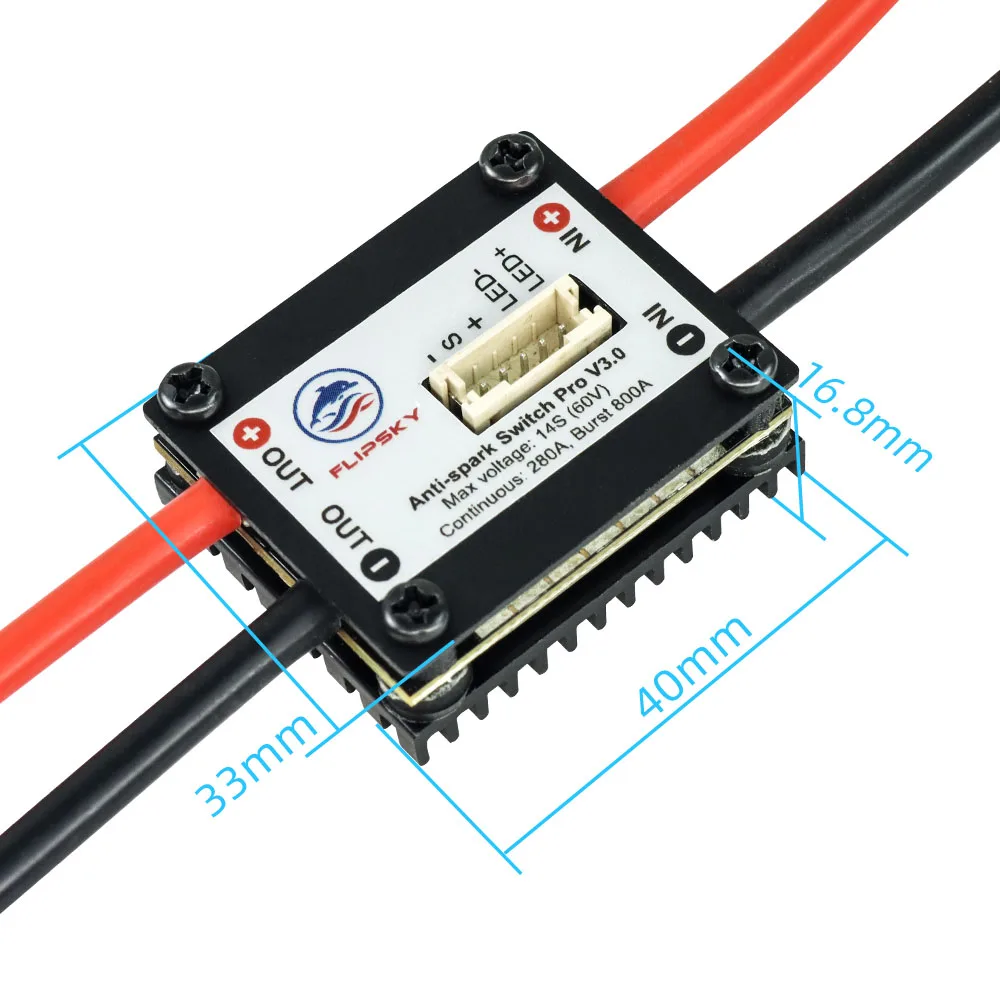

Pro V3.0 Dimensions(with heatsink and heat shrink): 42.2mm*33mm*26.6mm(12AWG Wire)

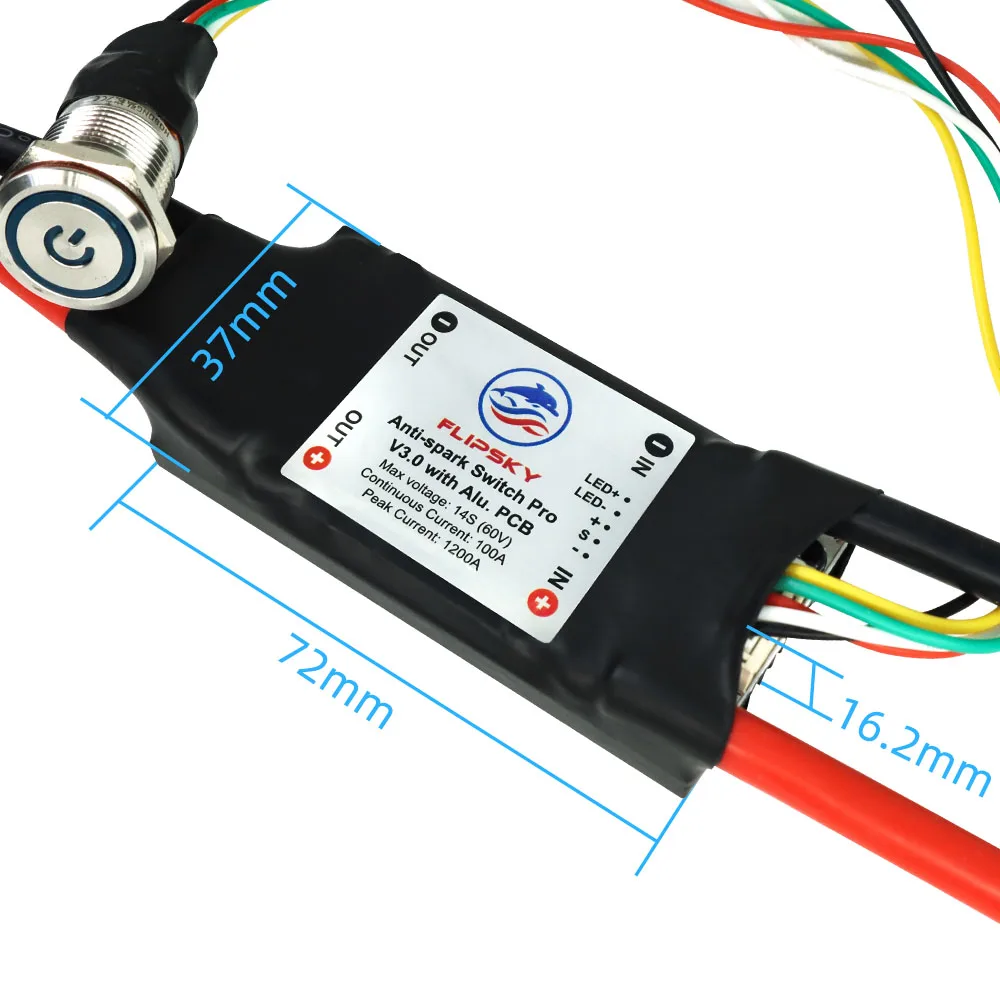

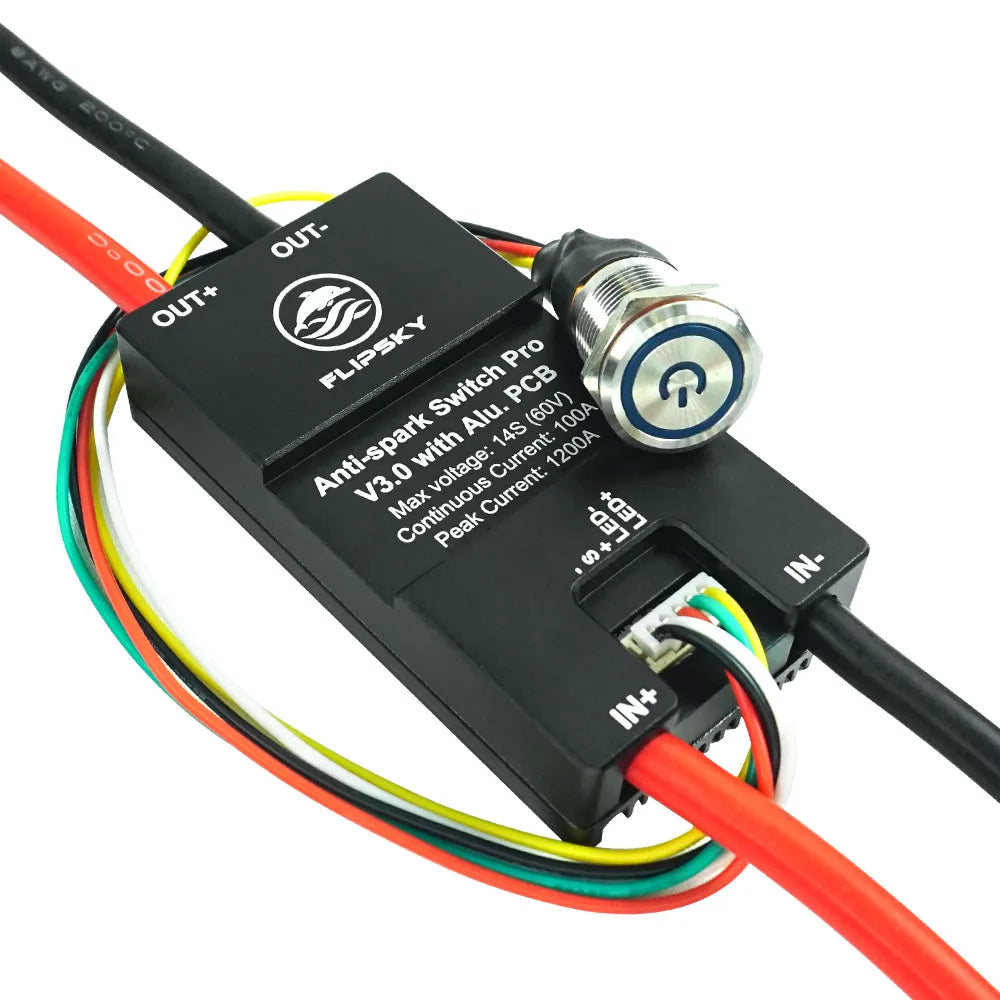

With Aluminum PCB/case V3.0 Dimensions:72mm*37mm*16.2mm(8AWG Wire)

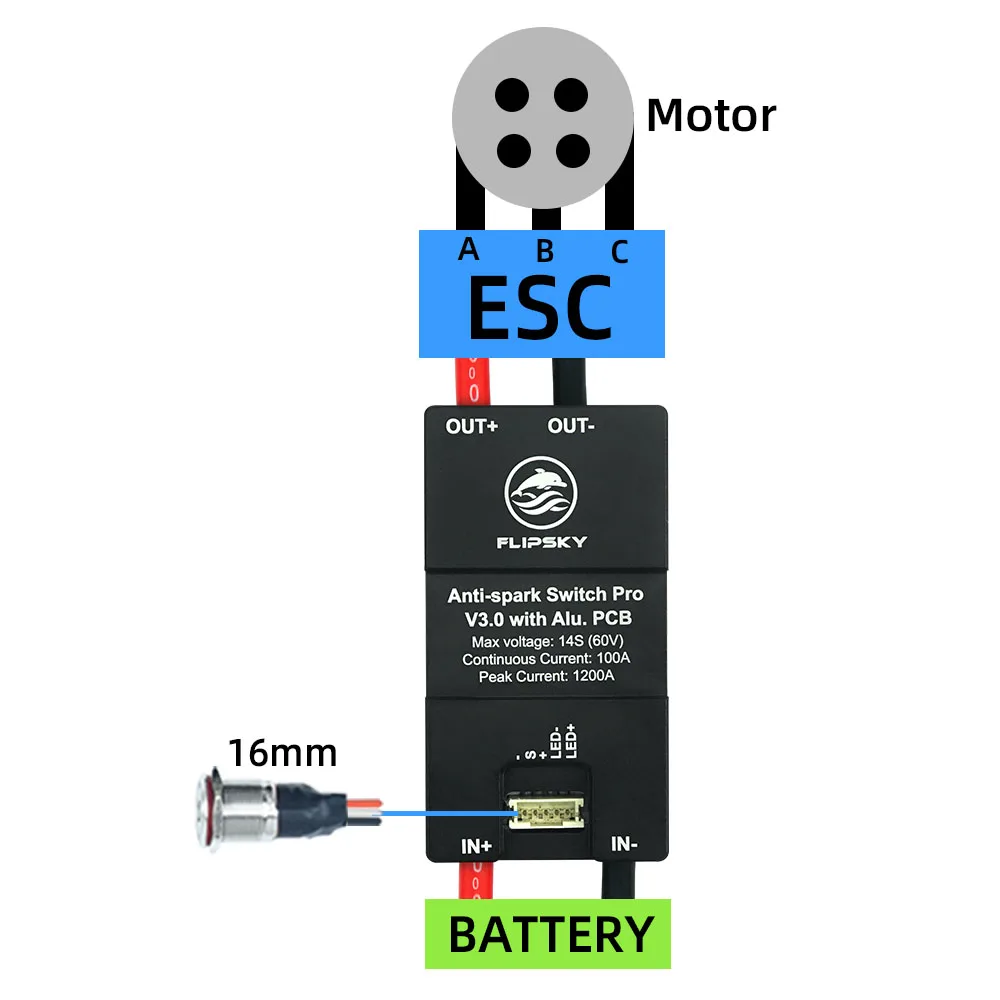

Reminder : the LED button is defaultly inserted in the switch in shipping status, DO NOT power on switch without the LED button connected.Make sure the switch is off before applying power.
