SPECIFICATIONS

Battery Included: Yes

Brand Name: FNIRSI

Certification: CE,RoHS

High-concerned chemical: None

Origin: Mainland China

Semi-finishedproduct: No

Product Description:

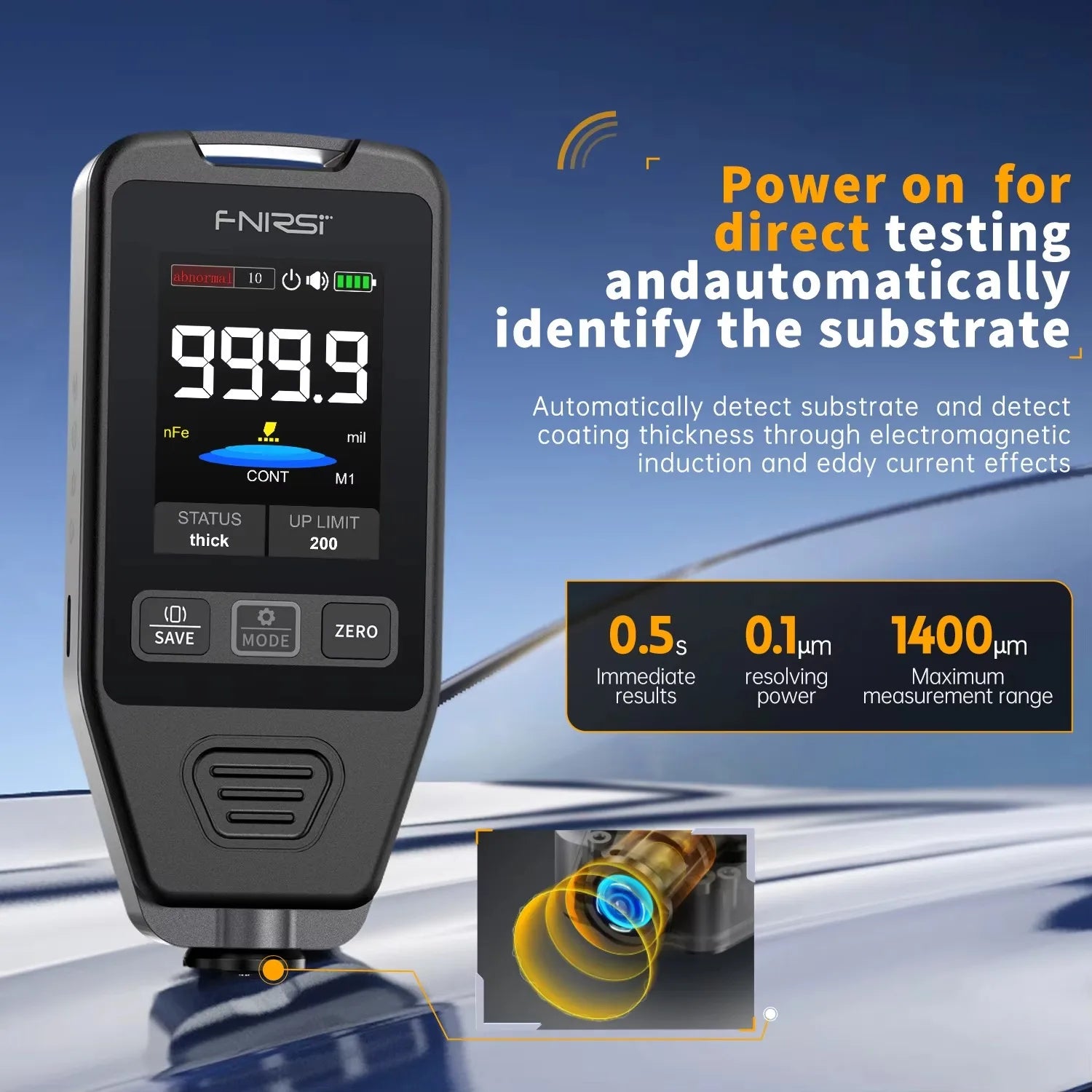

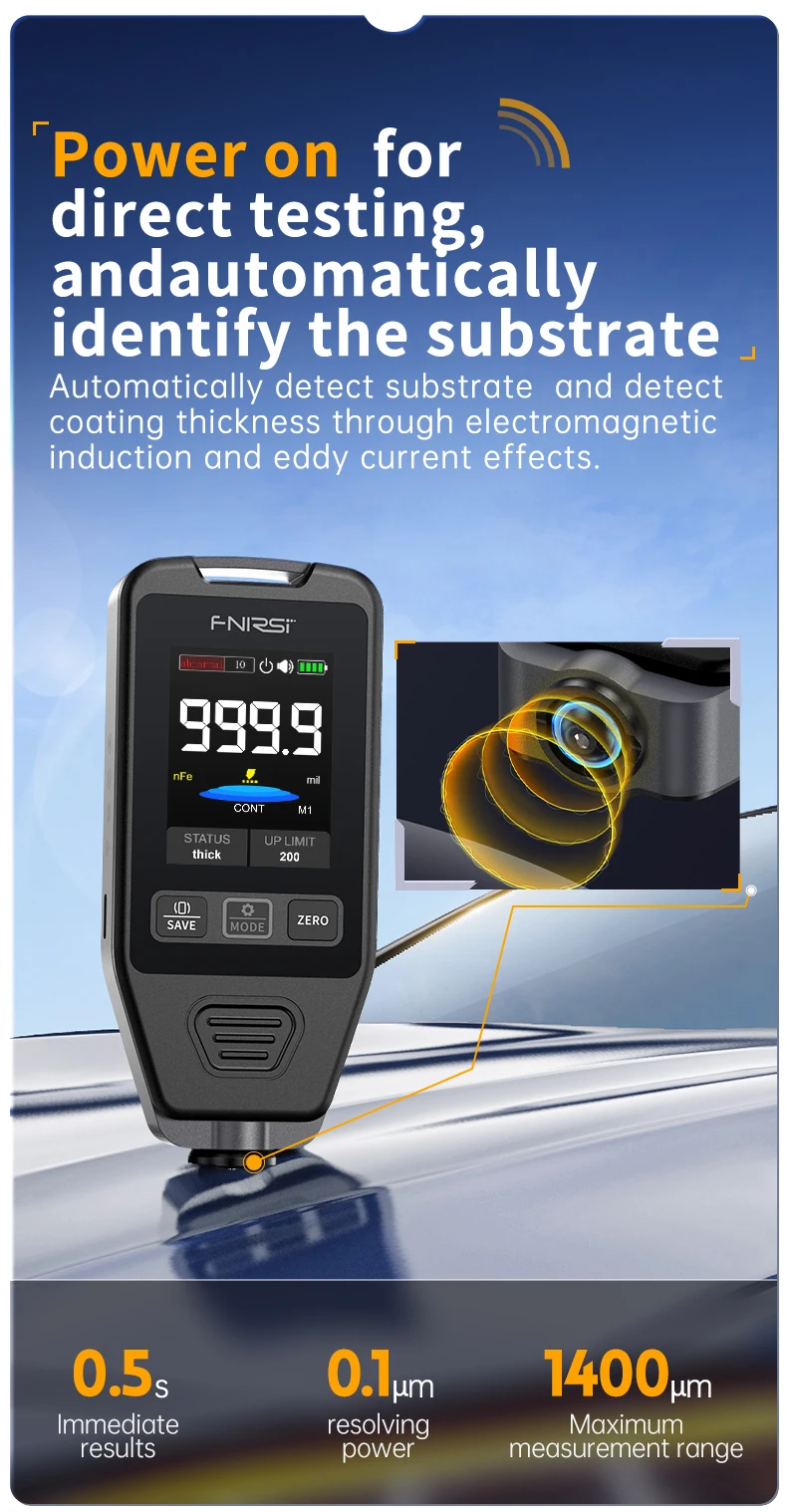

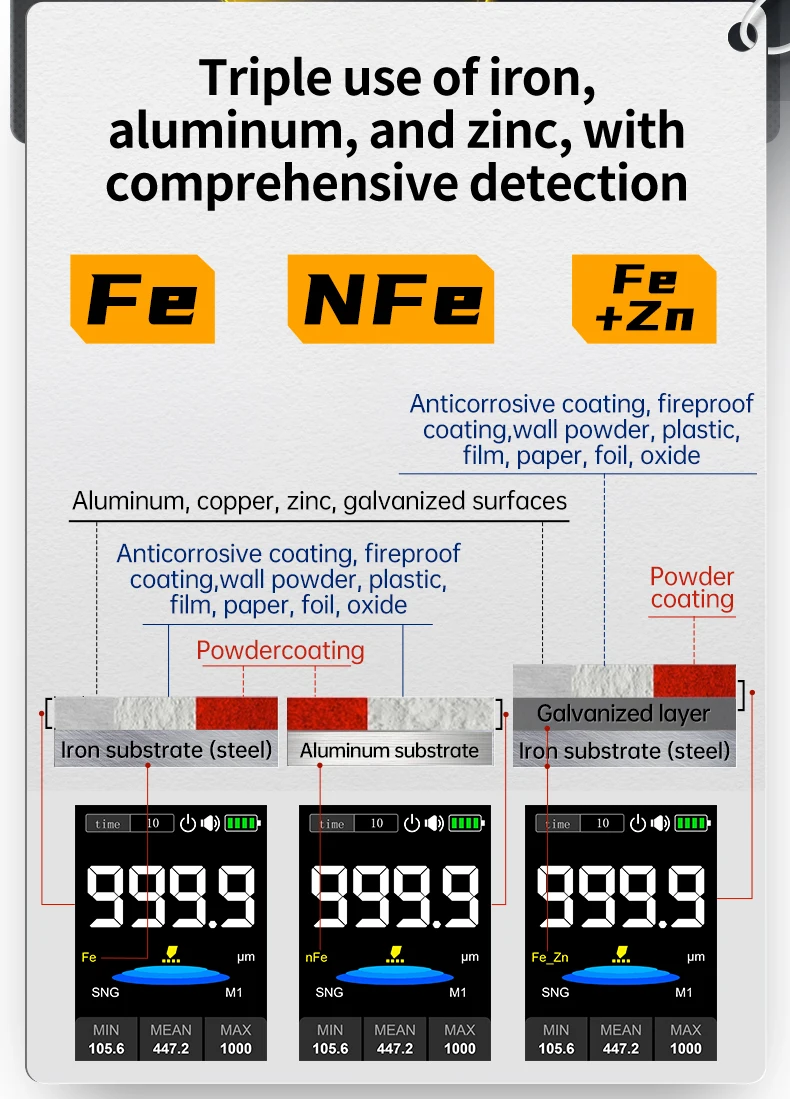

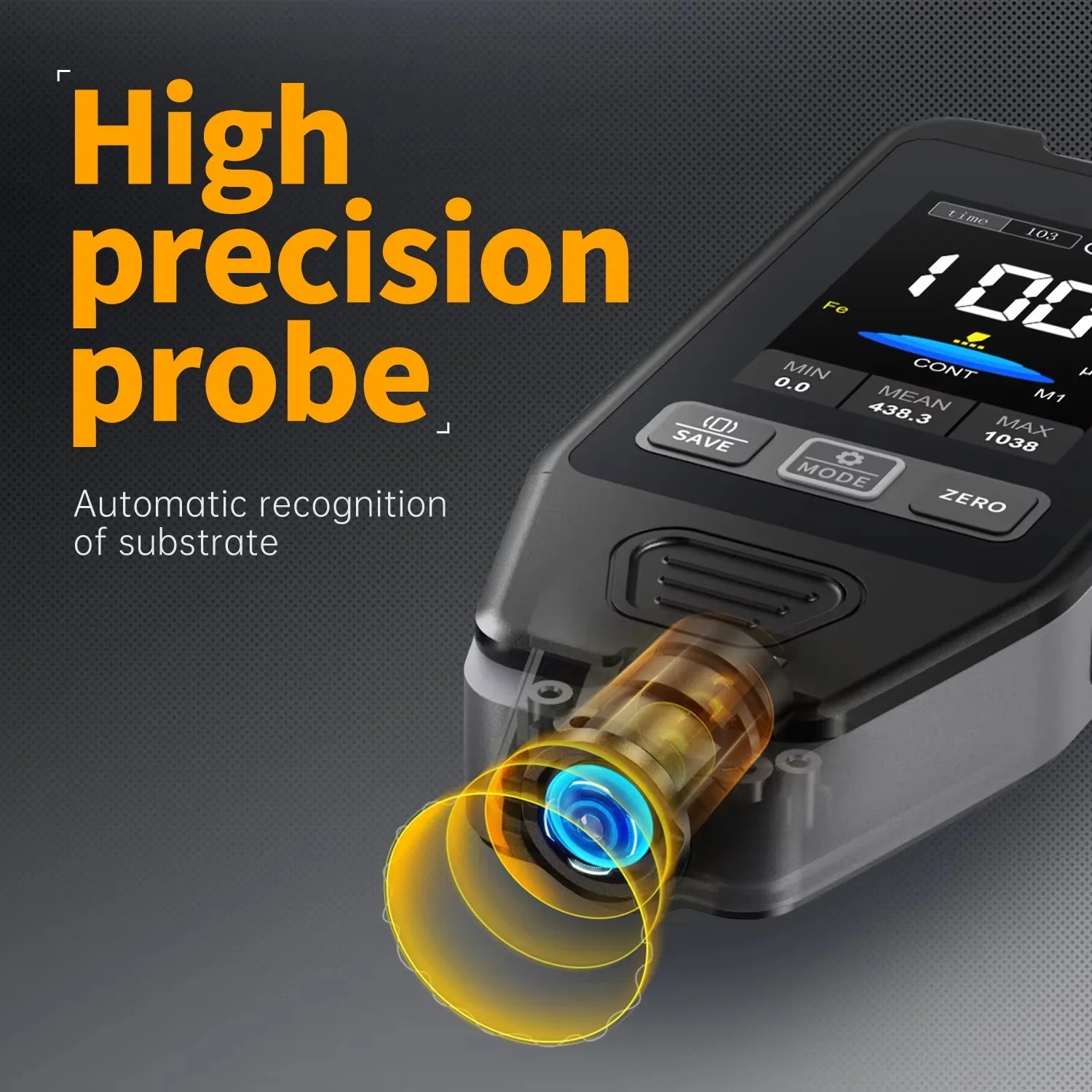

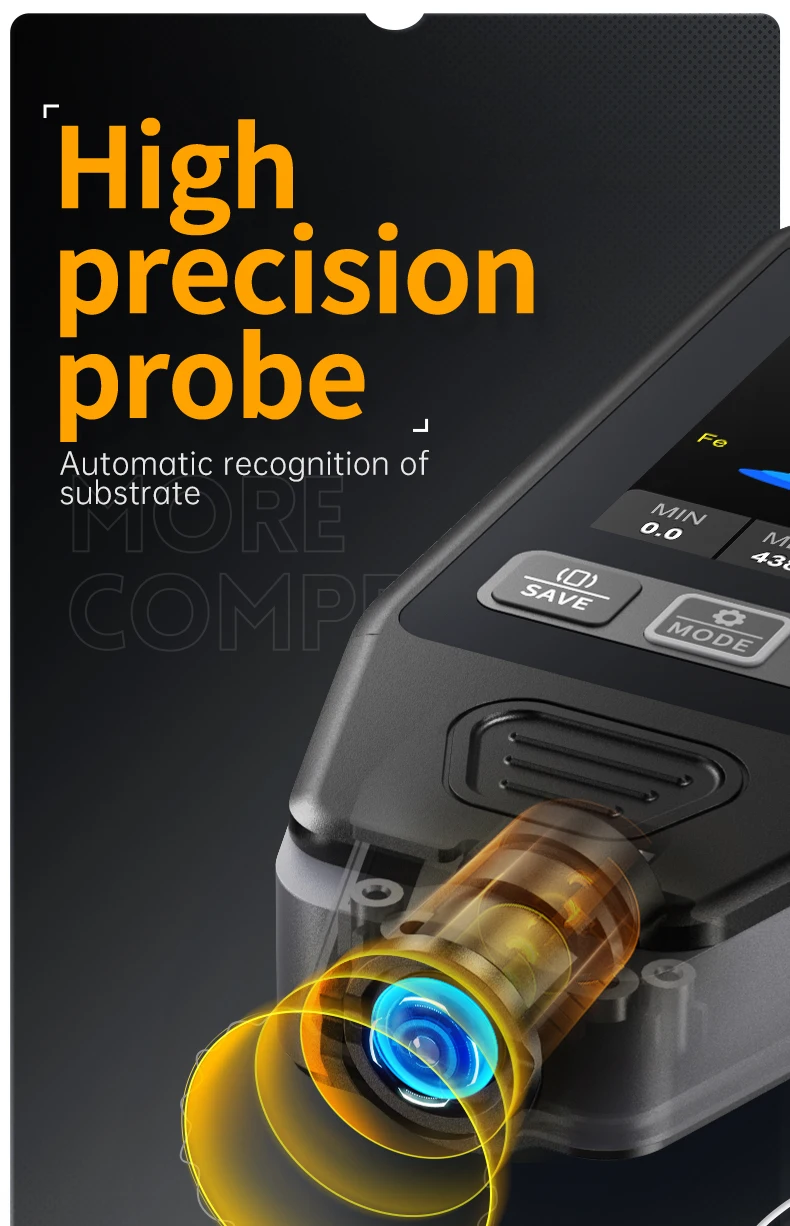

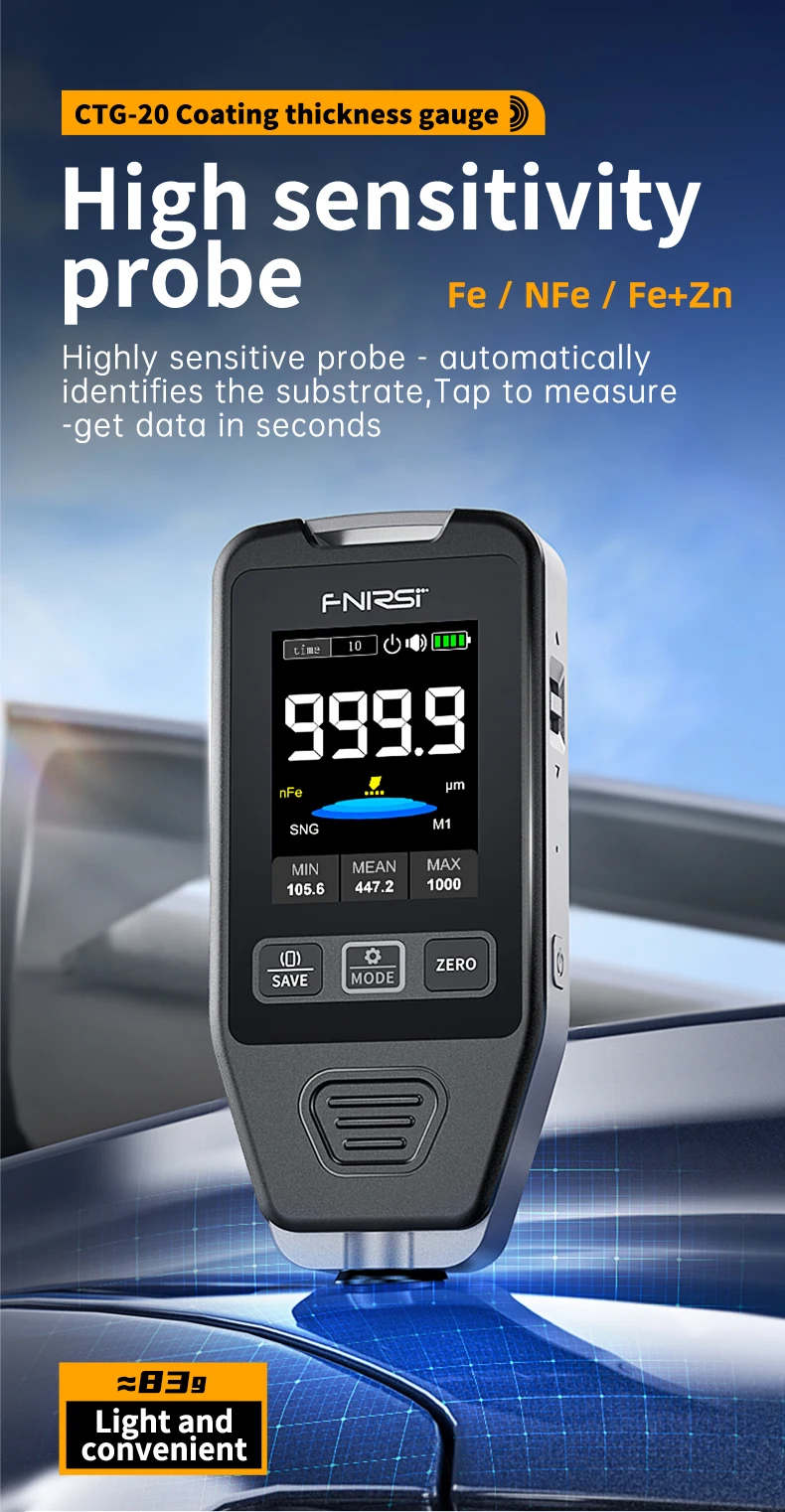

This product is a coating thickness gauge used to measure the thickness of electroplated coatings or coatings on metal surfaces. It has the ability to measure the thickness of non magnetic coating (such as paint) on magnetic materials such as steel/iron, as well as the thickness of coating (such as paint) on non magnetic materials such as aluminum. Built in precision probe, lithium battery charging. Automatically detect substrate properties and detect coating thickness through electromagnetic induction and eddy current effects. This instrument can non-destructive measure the thickness of the coating, with fast speed and high accuracy. Widely used in manufacturing, chemical industry, automotive and other testing fields.

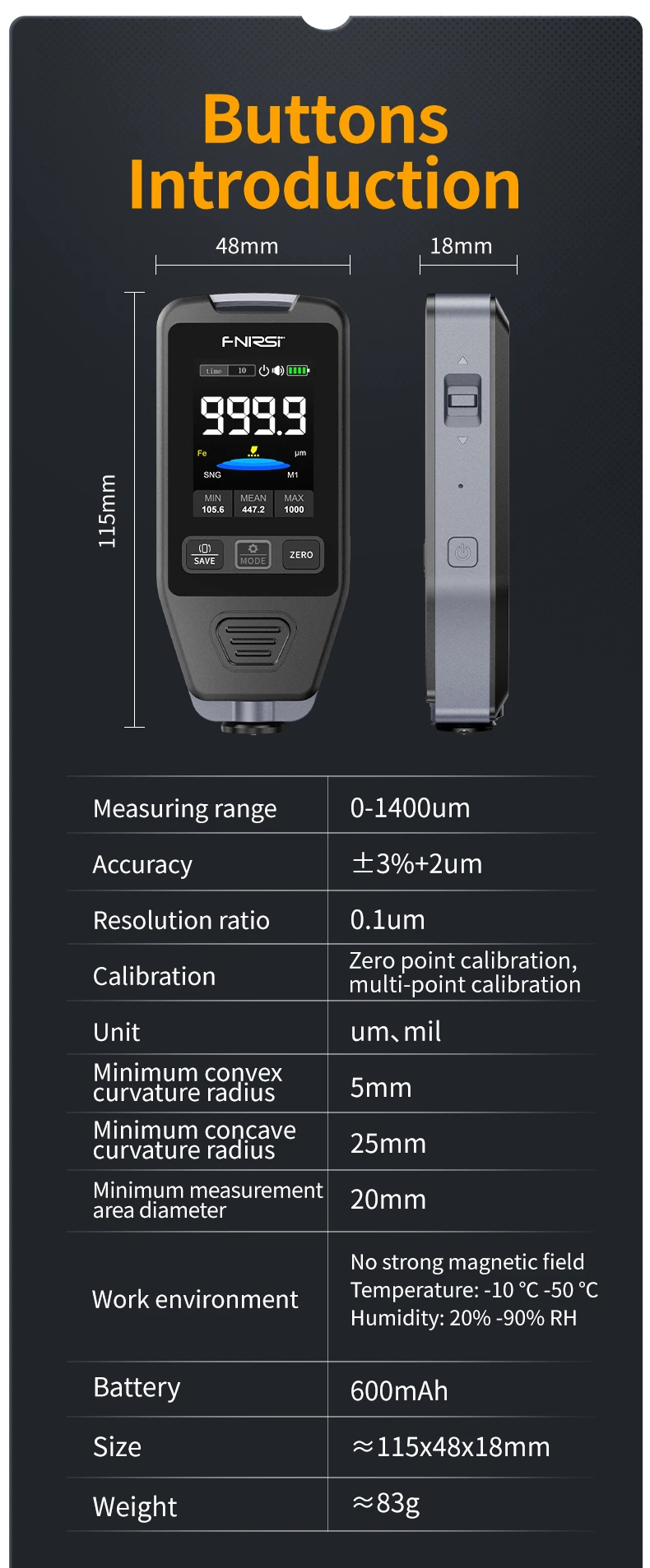

Product Parameters:

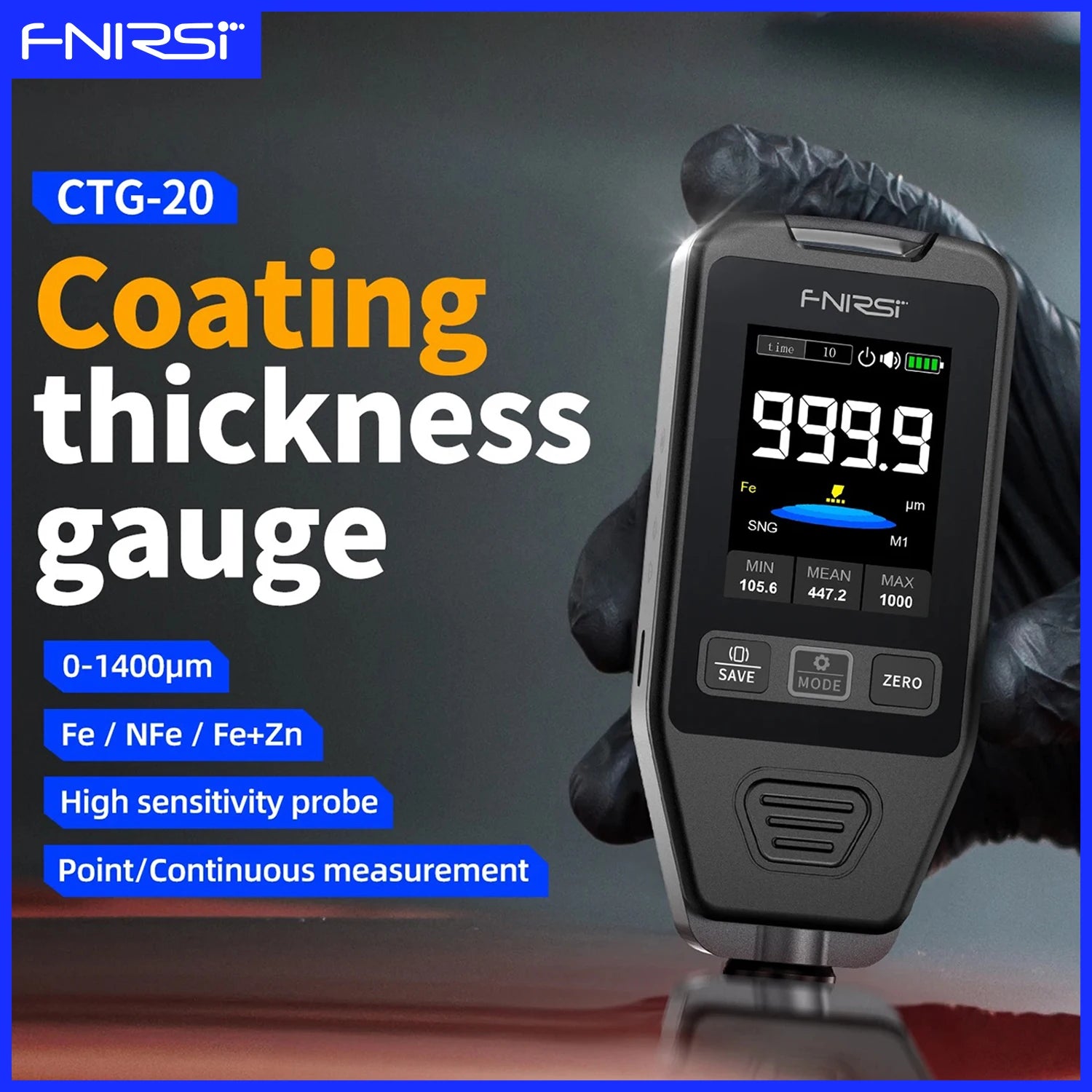

◉Product Model：CTG-20
◉Measuring Range：0-1400μm
◉Accuracy：±3%+2μm
◉Resolution Ratio：0.1μm

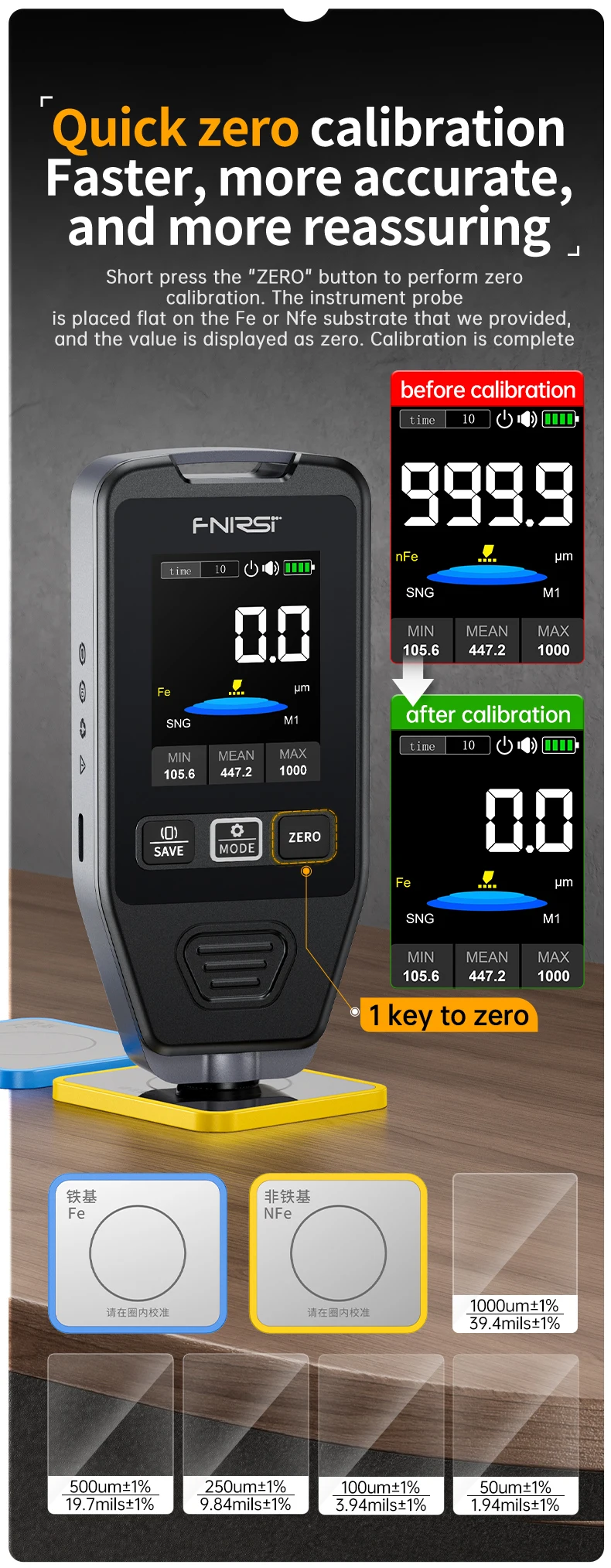

◉Calibration：Zero point calibration；Multi-point calibration

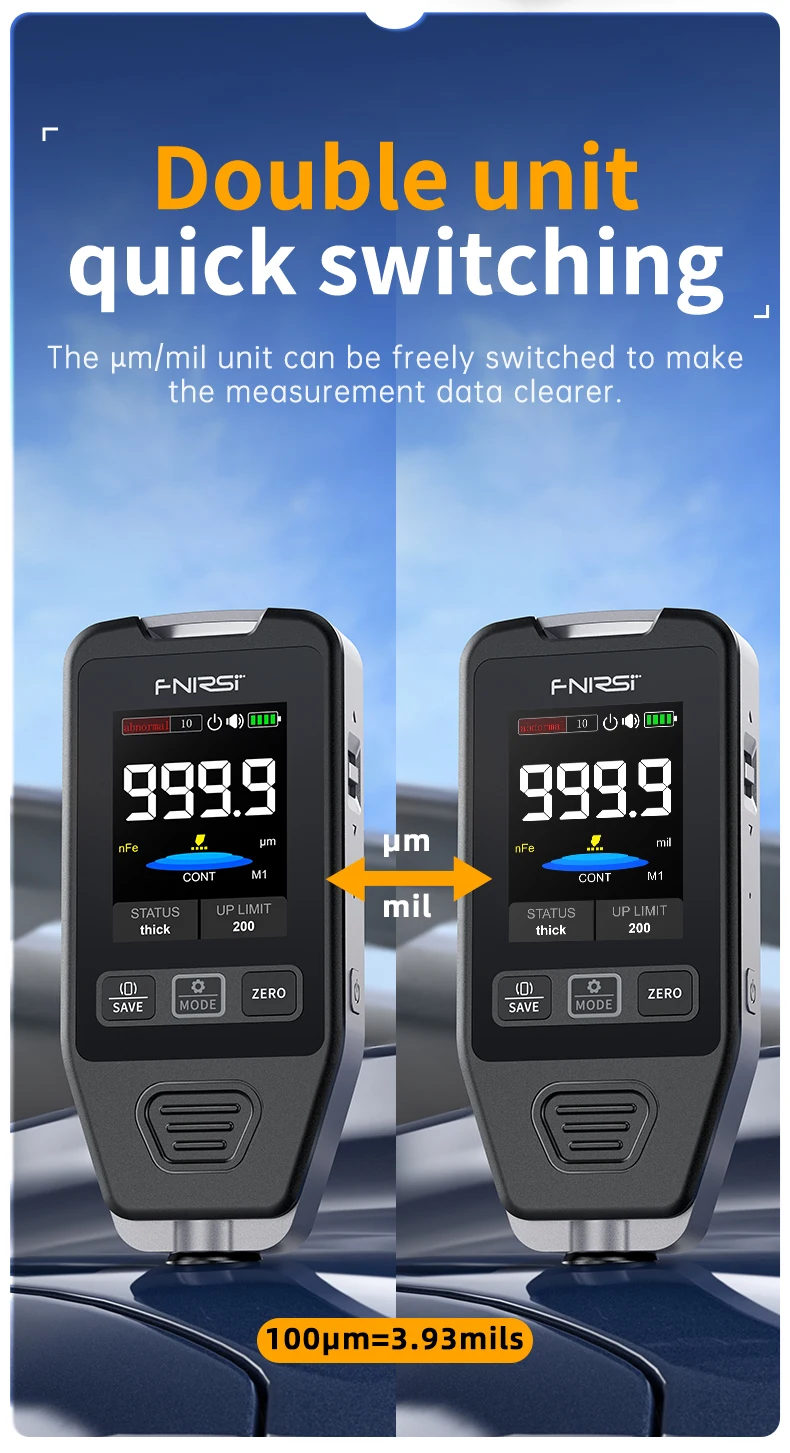

◉Unit：μm、mil
◉Mini Convex Curvature Radius：5mm
◉Mini Concave Curvature Radius：25mm
◉Mini Measurement Area Diameter：20mm
◉Work Environment：No strong magnetic field
◉Work Temperature：-10 ℃ -+50 ℃
◉Humidity：20% -90% RH

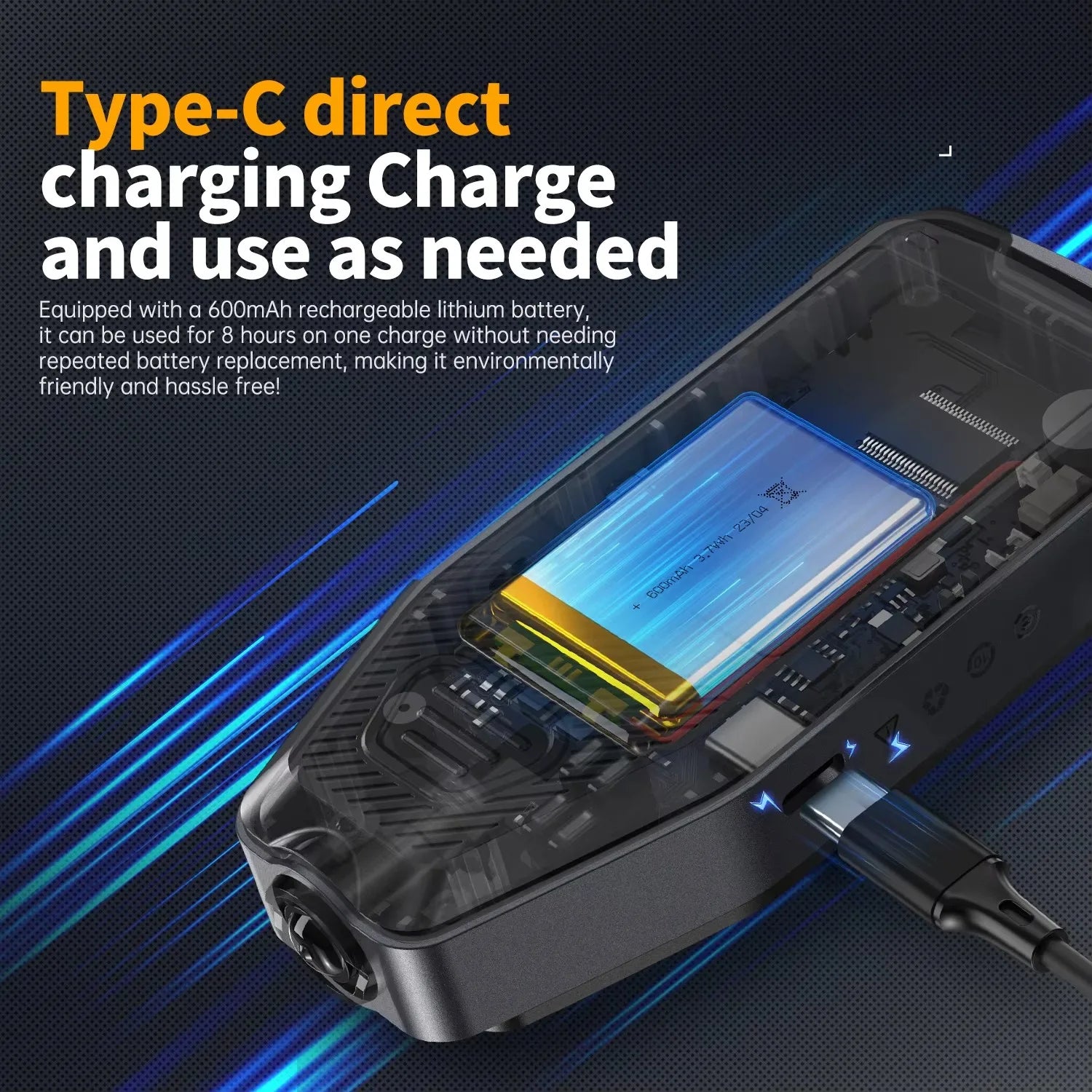

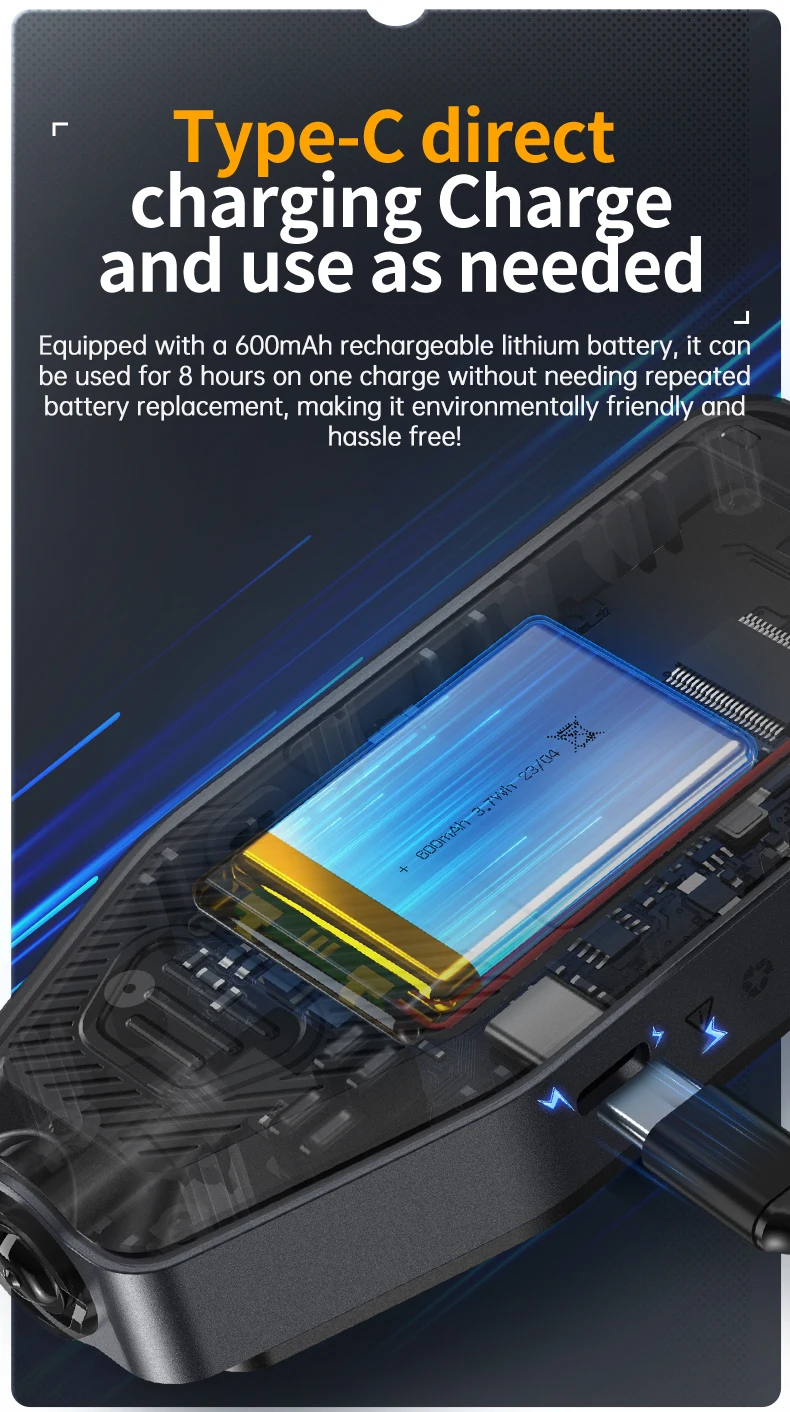

◉Battery：600mAh Lithium battery
◉Size：115 x 48 x 18mm
◉Weight：About 83g
◉Data storage: Support

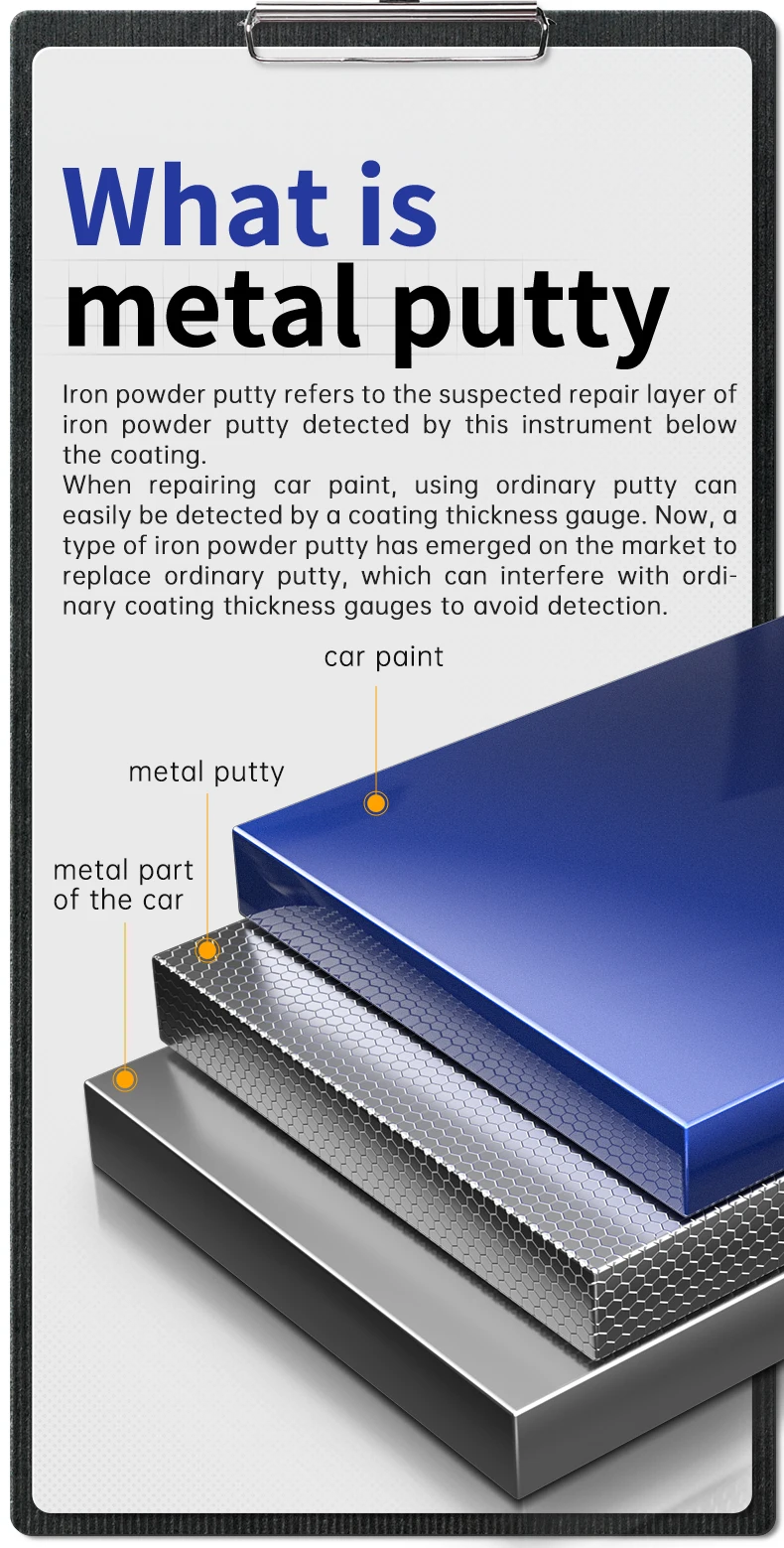

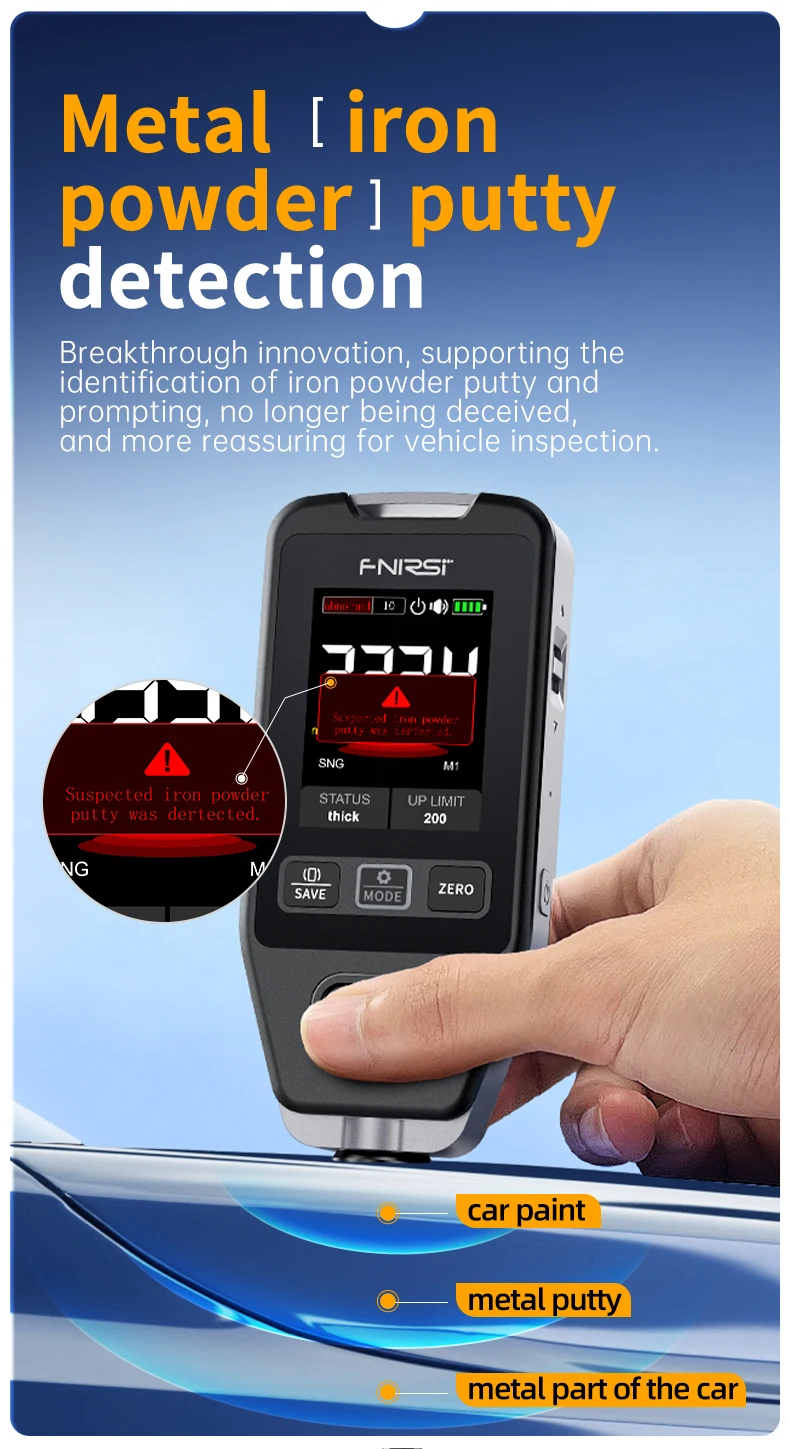

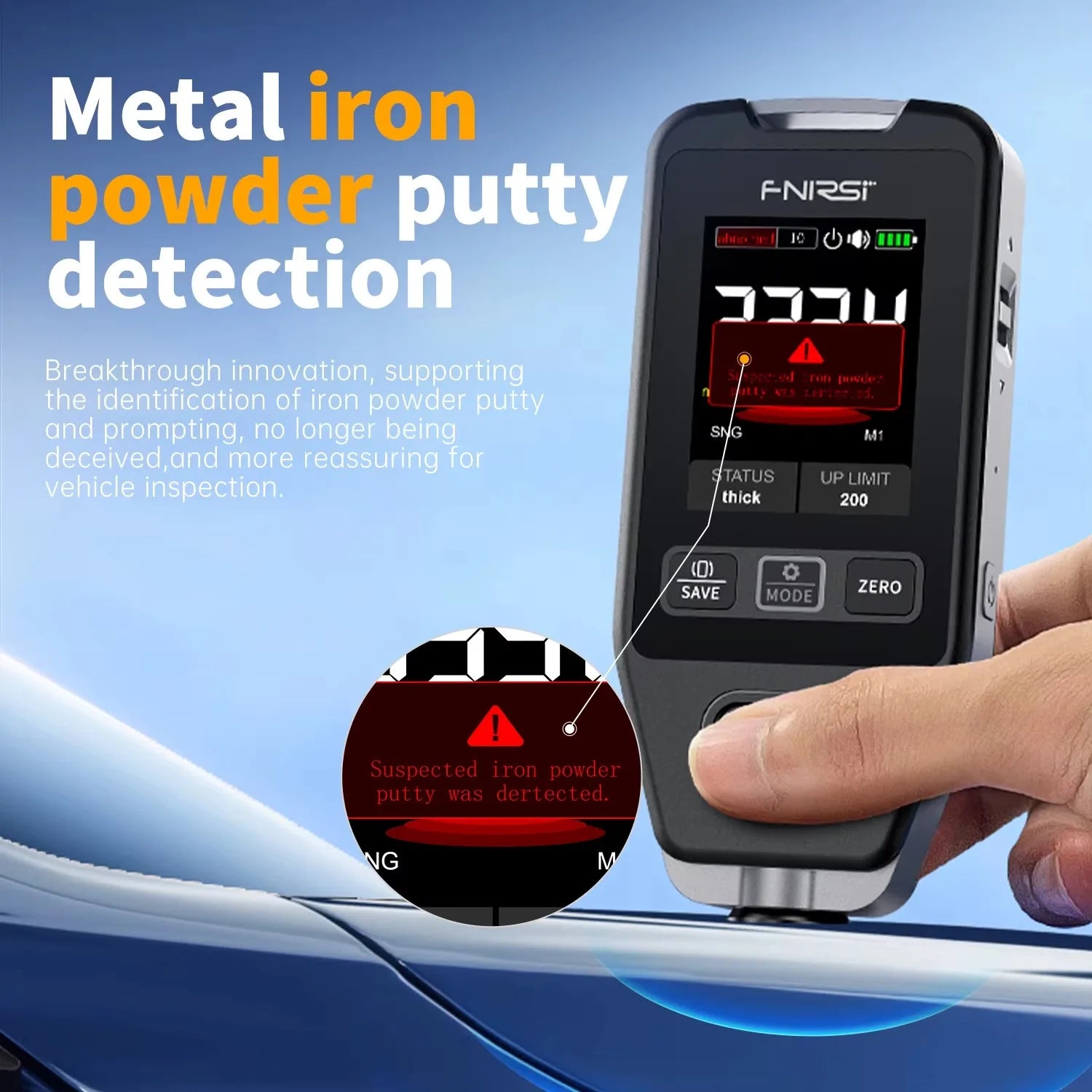

◉Putty powder test: Support
◉Rotatable screen: Support

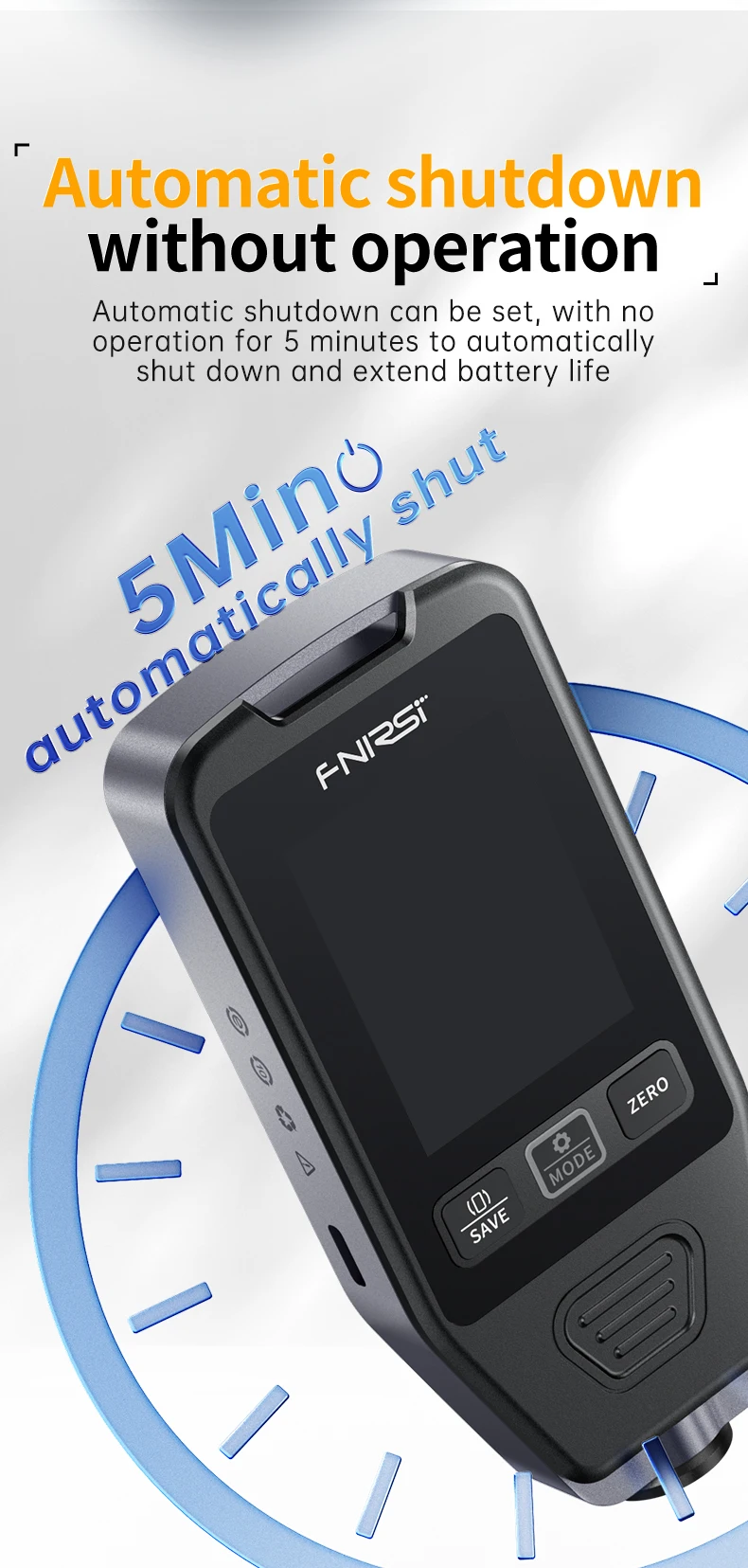

◉Auto Power Off: Support
