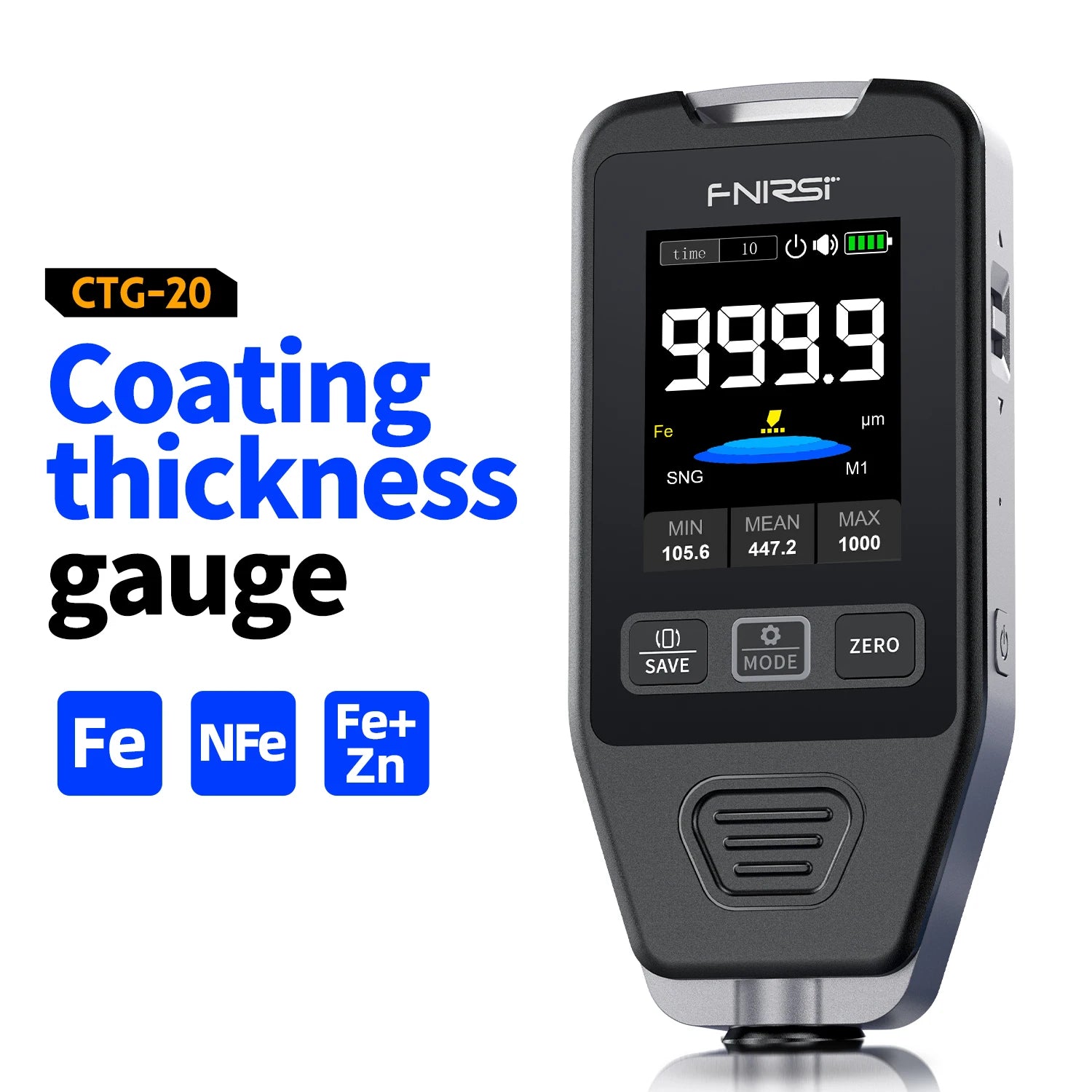

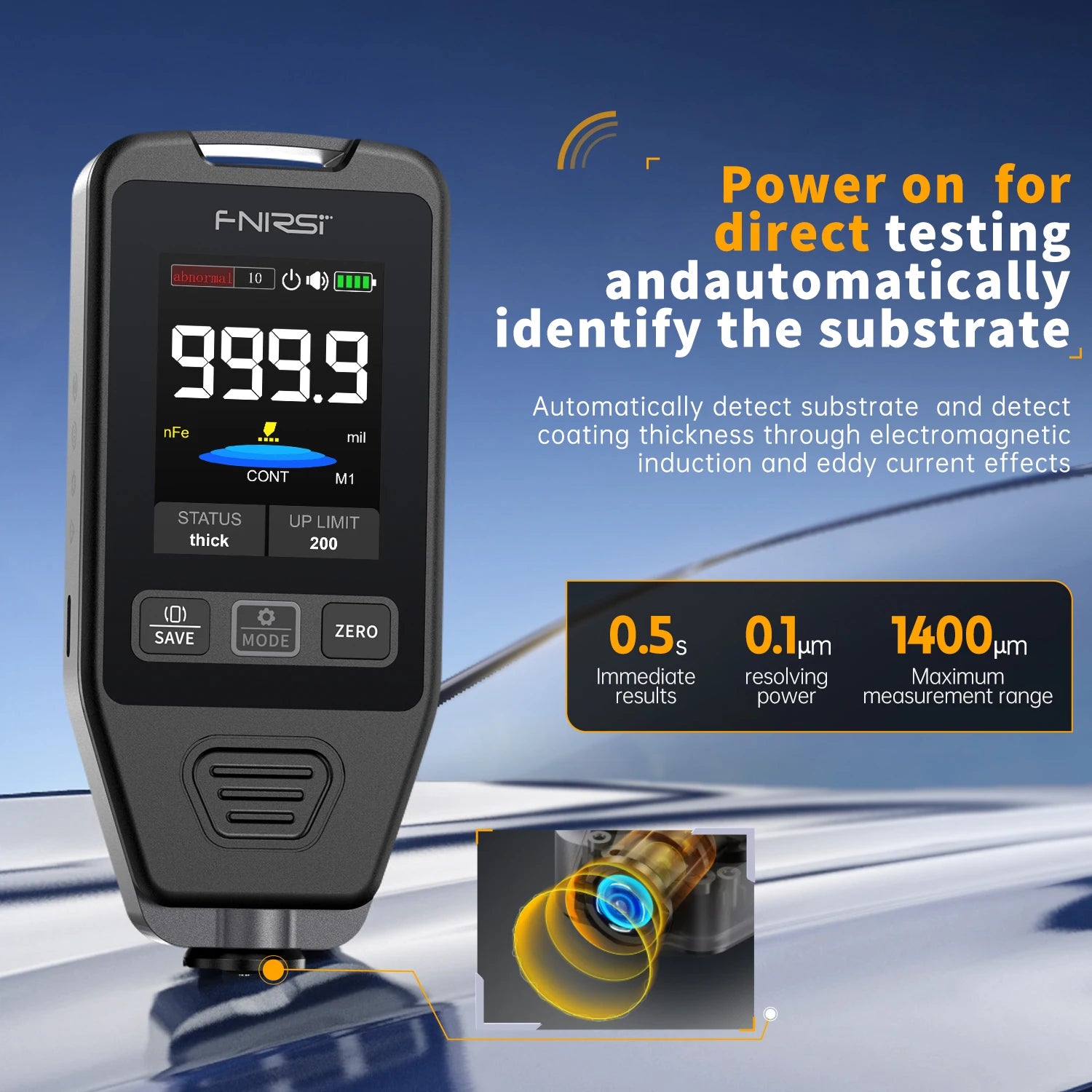

FNIRSI CTG-20 Coating Thickness Gauge 0-1400um Car Paint Film Thickness Tester Fe nFe Fe+Zn Electroplate Metal Putty Powder
FNIRSI CTG-20 Coating Thickness Gauge 0-1400um Car Paint Film Thickness Tester Fe nFe Fe+Zn Electroplate Metal Putty Powder
SPECIFICATIONS
Accuracy: ±3% +2μm
Battery: 600mAh Lithium battery
Battery Included: Yes
Brand Name: FNIRSI
Calibration 1: Zero poin calibration
Calibration 2: Multi-point calibration
High-concerned chemical: None
Measuring Range: 0-1400μm
Mini Concave Curvature Radius: 25mm
Mini Convex Curvature Radius: 5mm
Mini Measurement Area Diameter: 20mm
Model Number: CTG-20
Origin: Mainland China
Resolution Ratio: 0.1μm
Unit: μm / mil
With Backlight Or Not: Yes
Please Note：
·The curvature of the substrate to be tested is too steep.
·The area of the substrate to be tested is too small.
·The surface of the substrate to be tested is rough.
·There is a strong magnetic field nearby.
·The ambient temperature/humidity changes significantly.
·Insufficient battery, please charge in time.

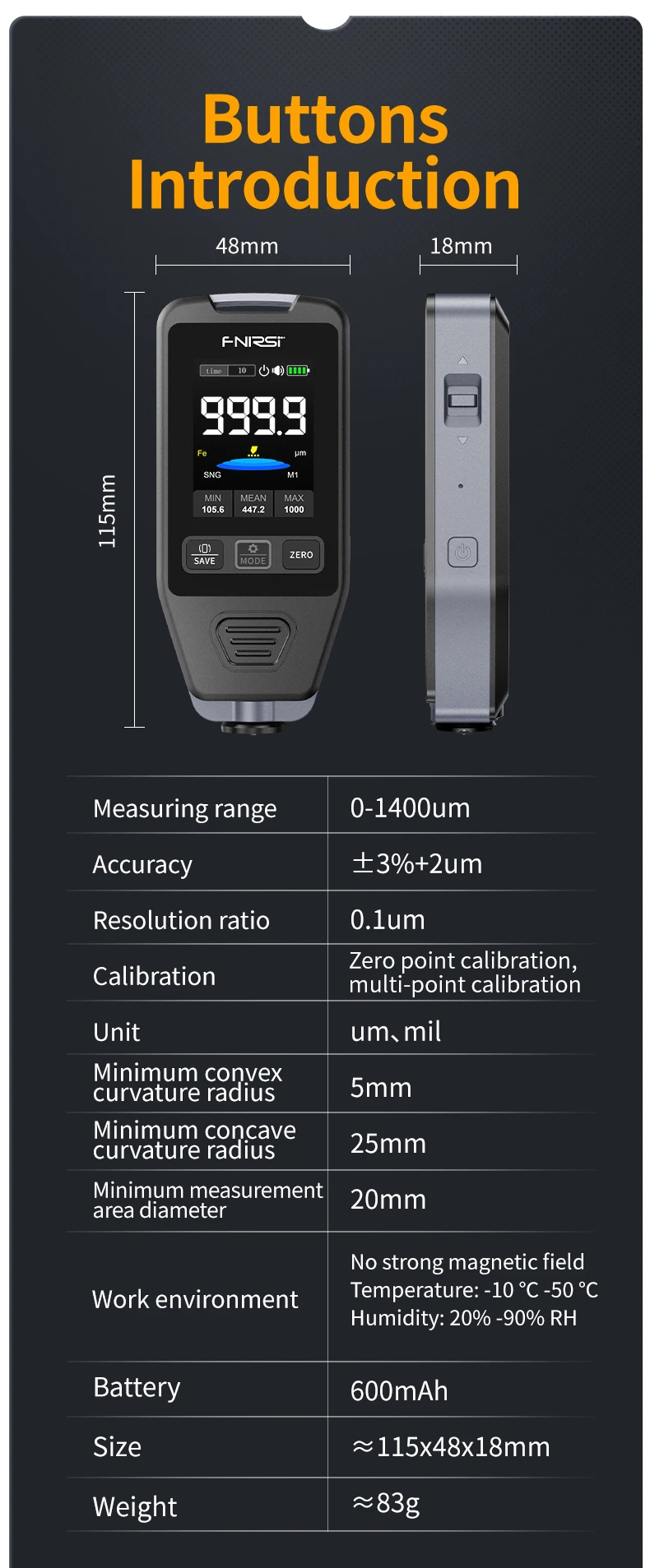

1.Product Model：CTG-20
2.Measuring Range：0-1400μm
3.Accuracy：±3%+2μm
4.Resolution Ratio：0.1μm

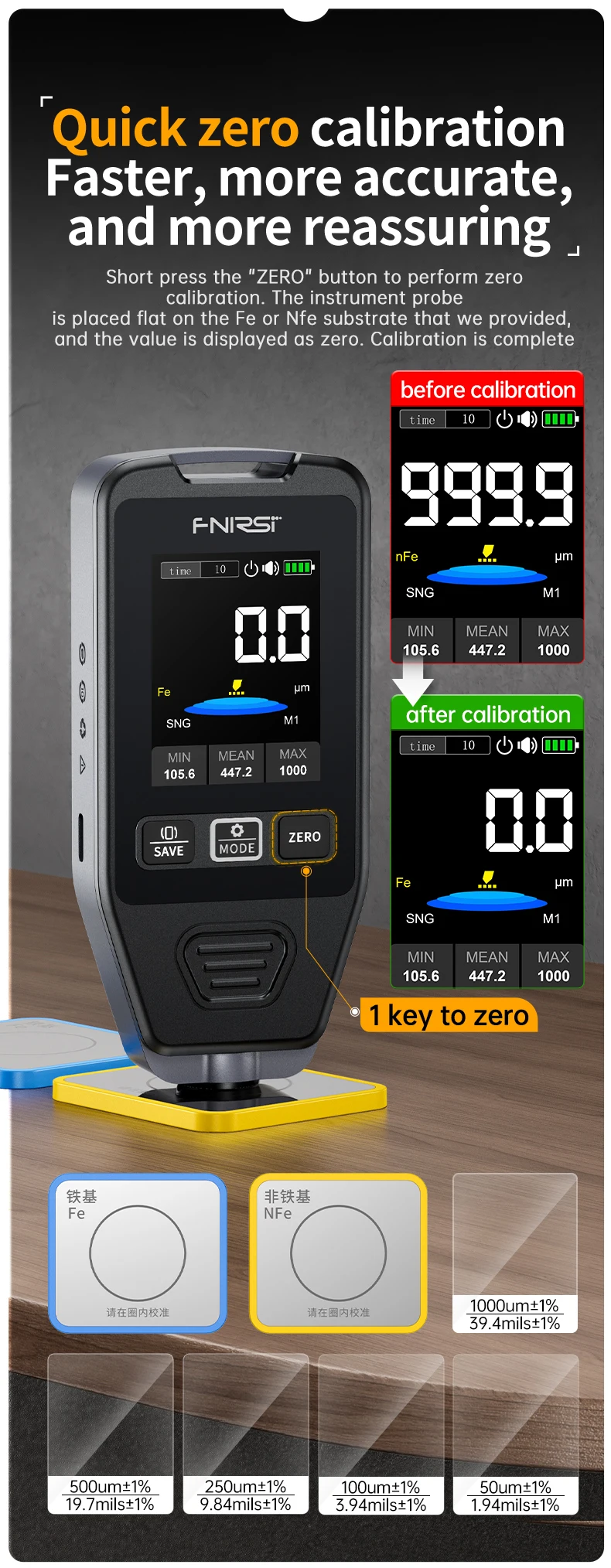

5.Calibration：Zero point calibration；Multi-point calibration

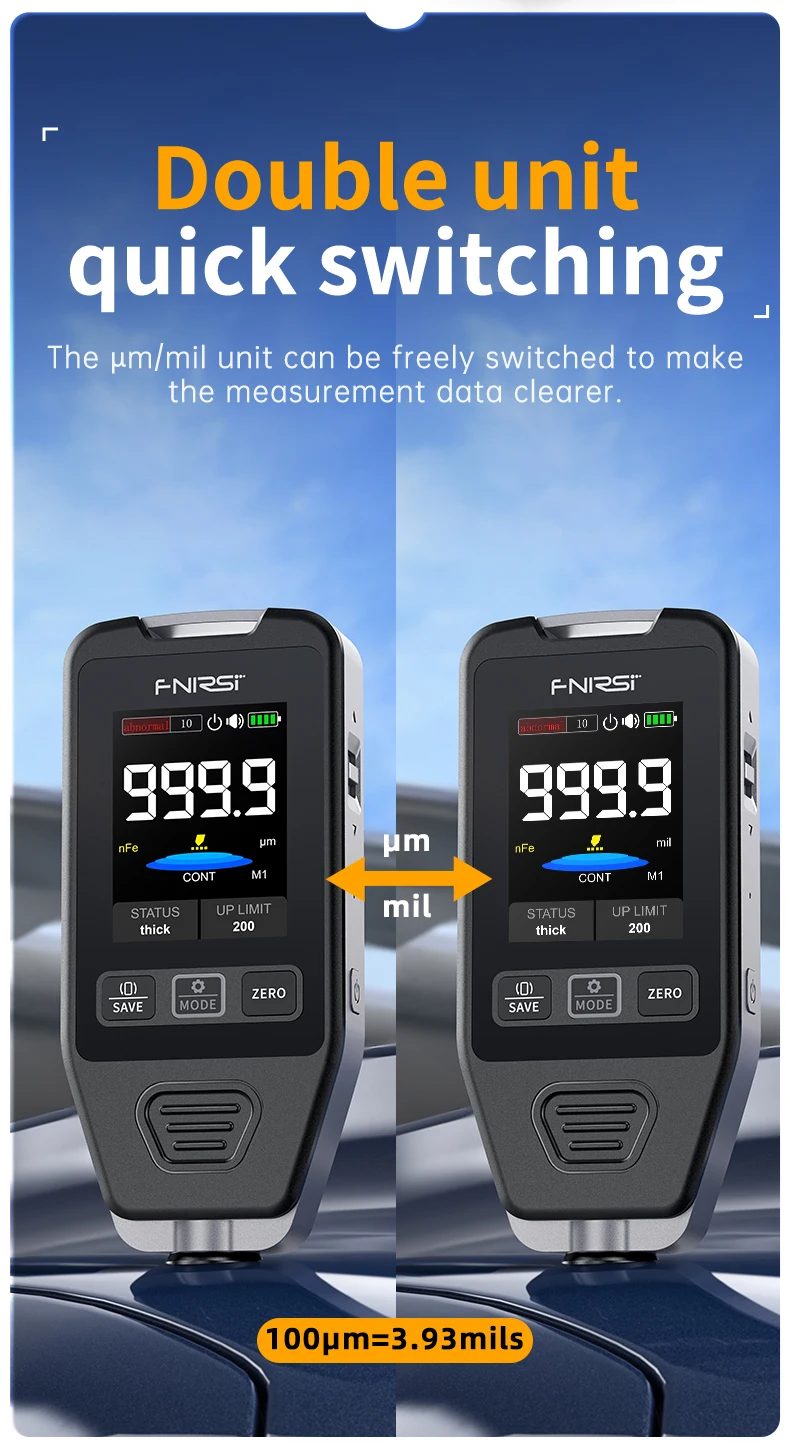

6.Unit：μm、mil
7.Mini Convex Curvature Radius：5mm
8.Mini Concave Curvature Radius：25mm
9.Mini Measurement Area Diameter：20mm
10.Work Environment：No strong magnetic field
11.Work Temperature：-10 ℃ -+50 ℃
12.Humidity：20% -90% RH

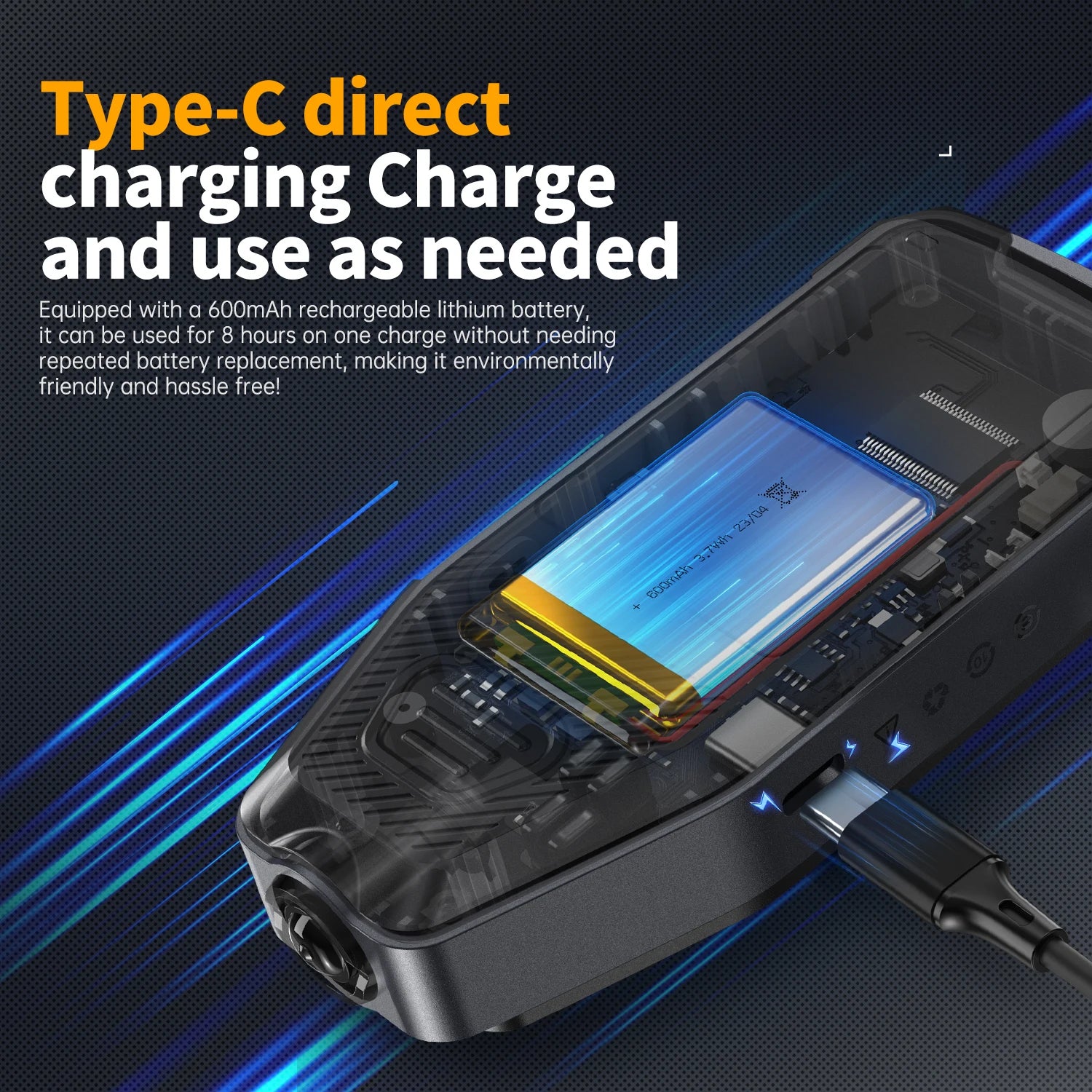

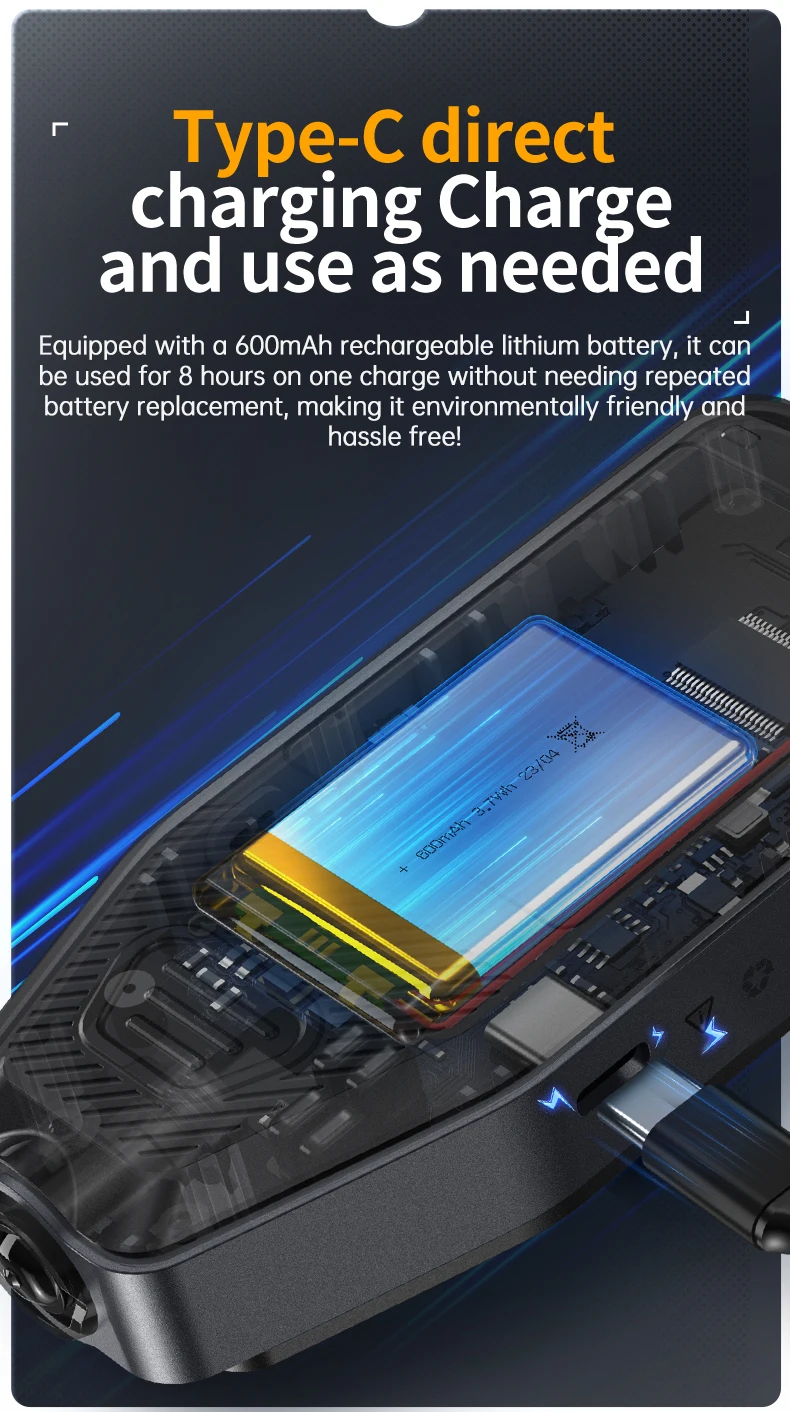

13.Battery：600mAh Lithium battery
14.Size：115 x 48 x 18mm
15.Weight：About 83g
16.Data storage: Support

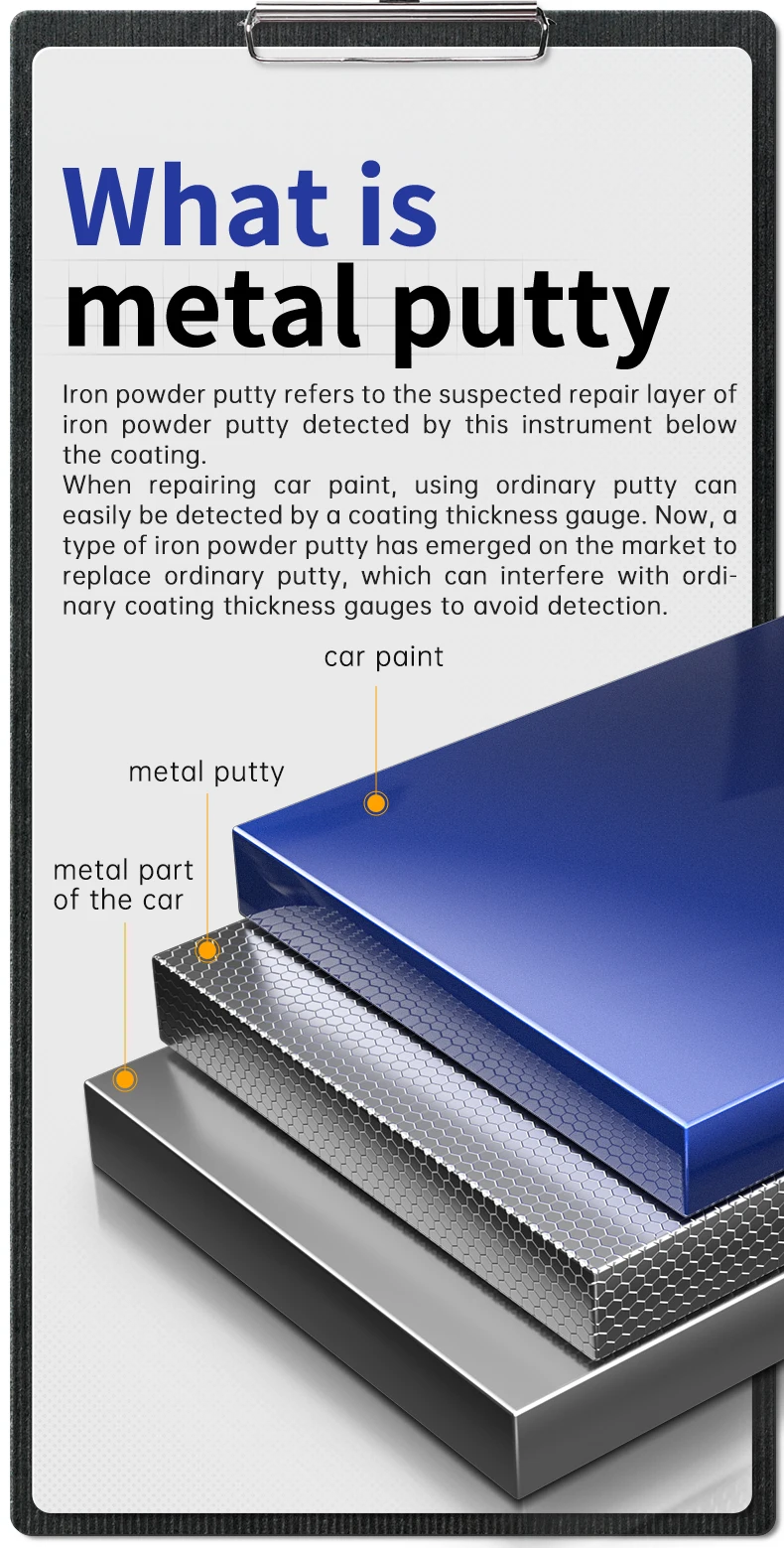

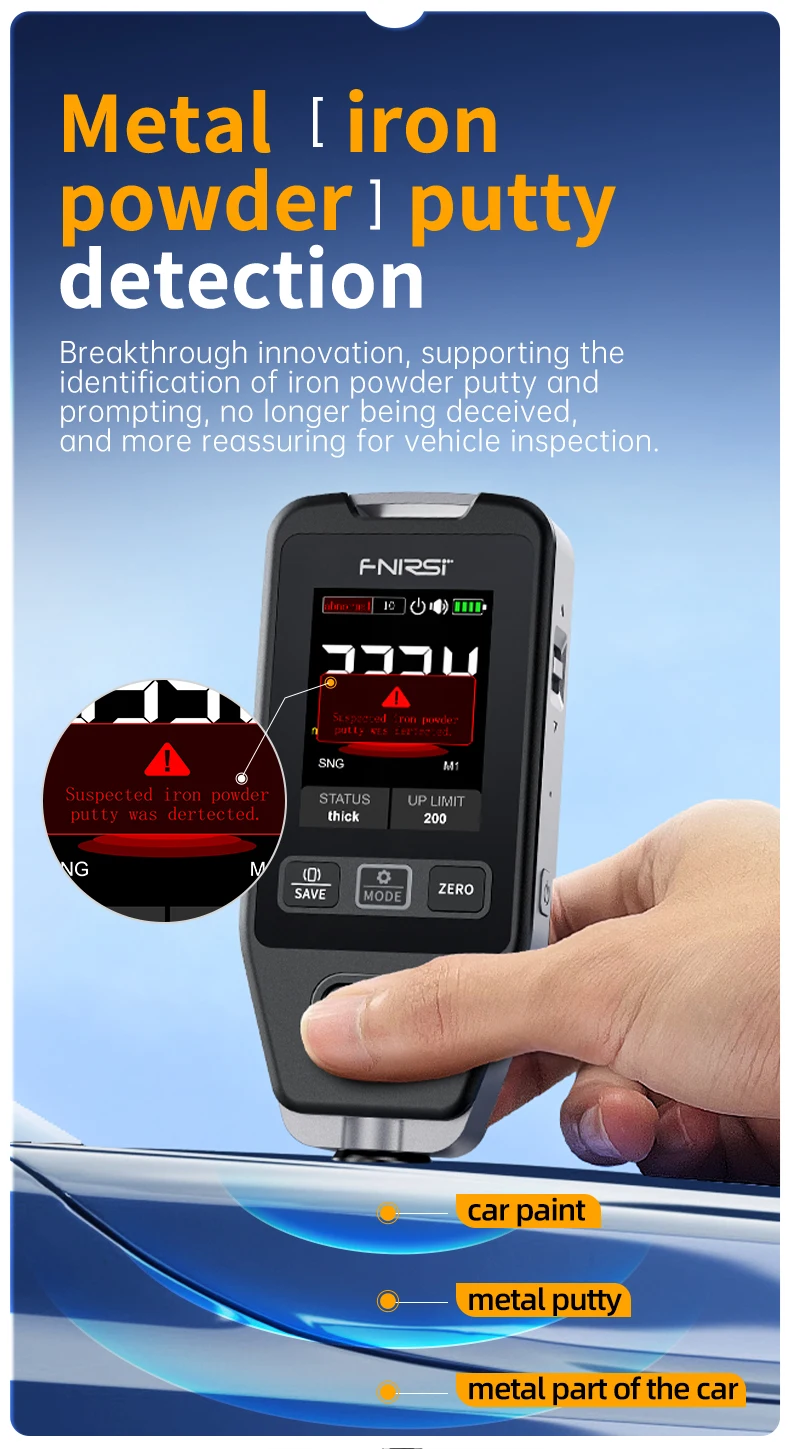

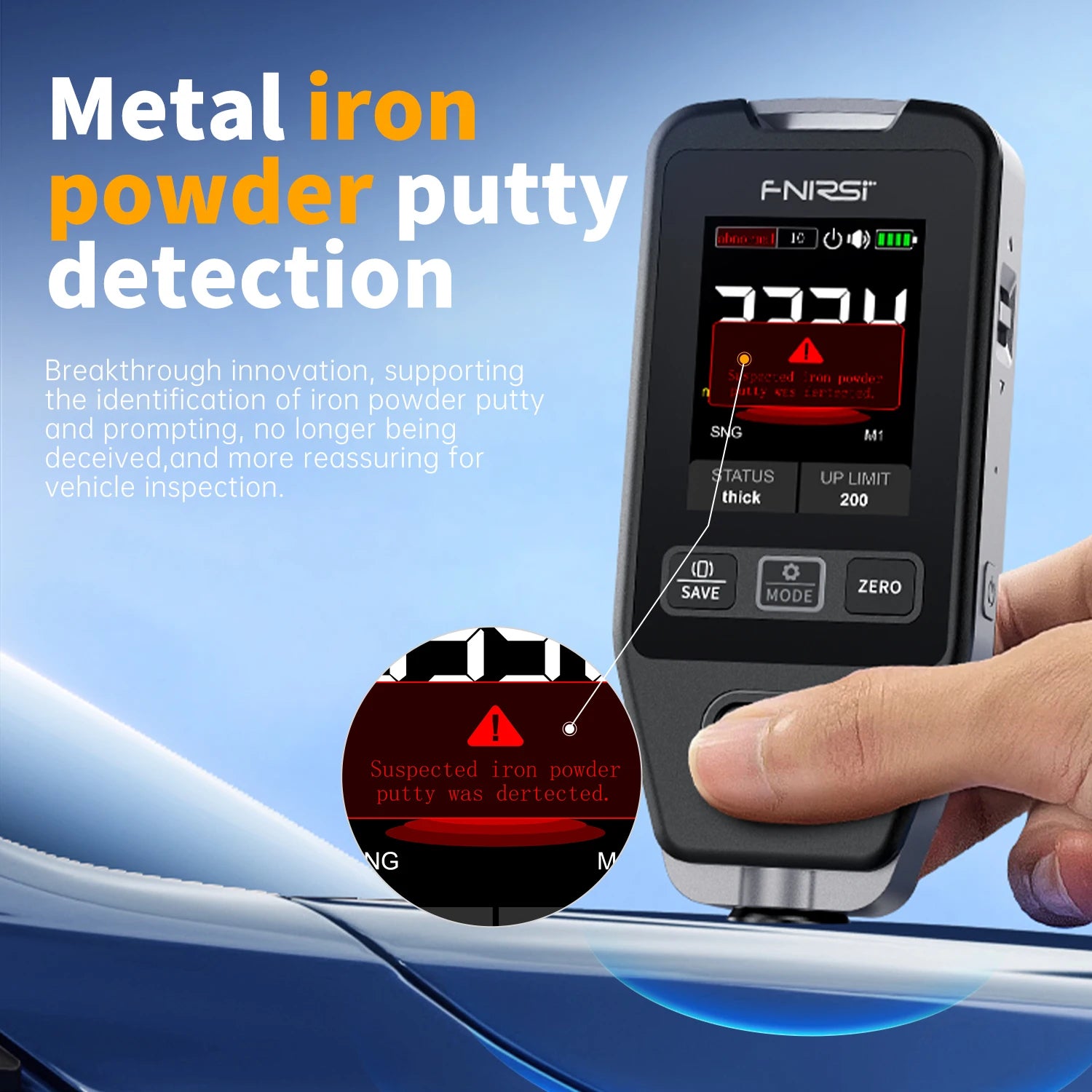

17.Putty powder test: Support
18.Rotatable screen: Support

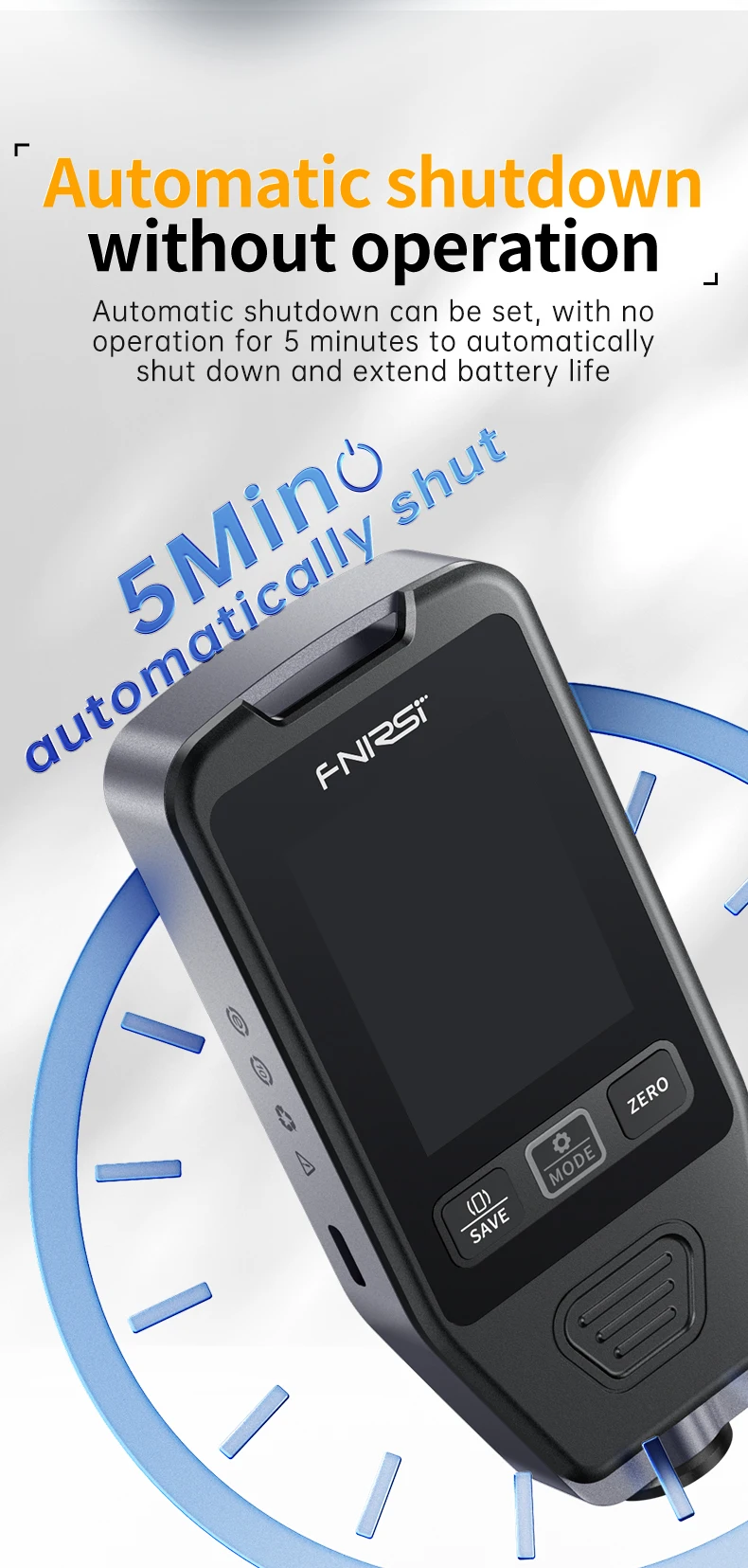

19.Auto Power Off: Support

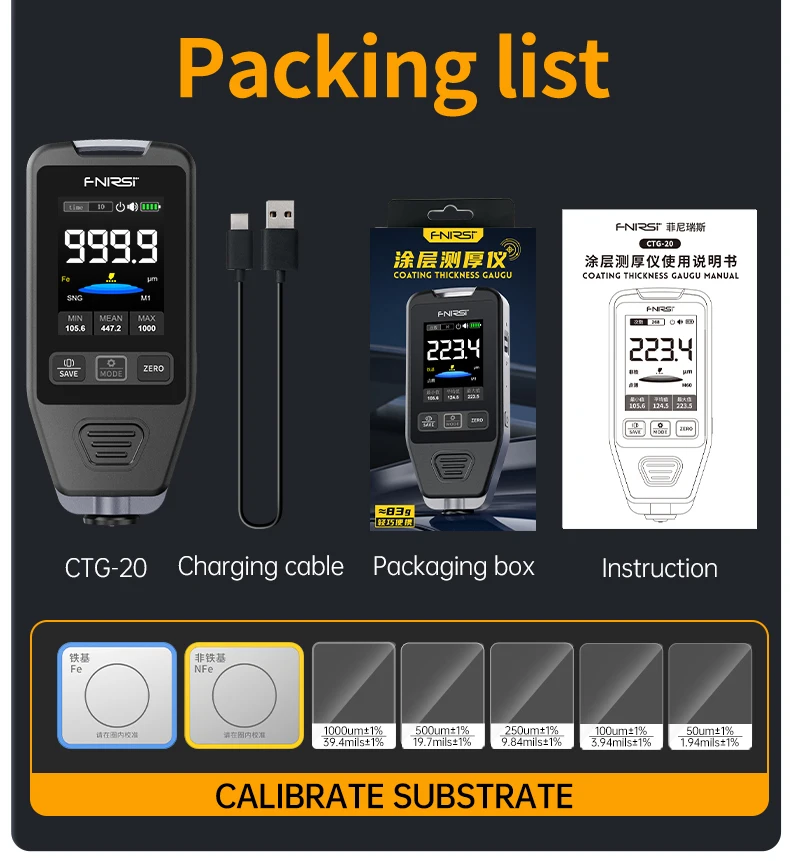

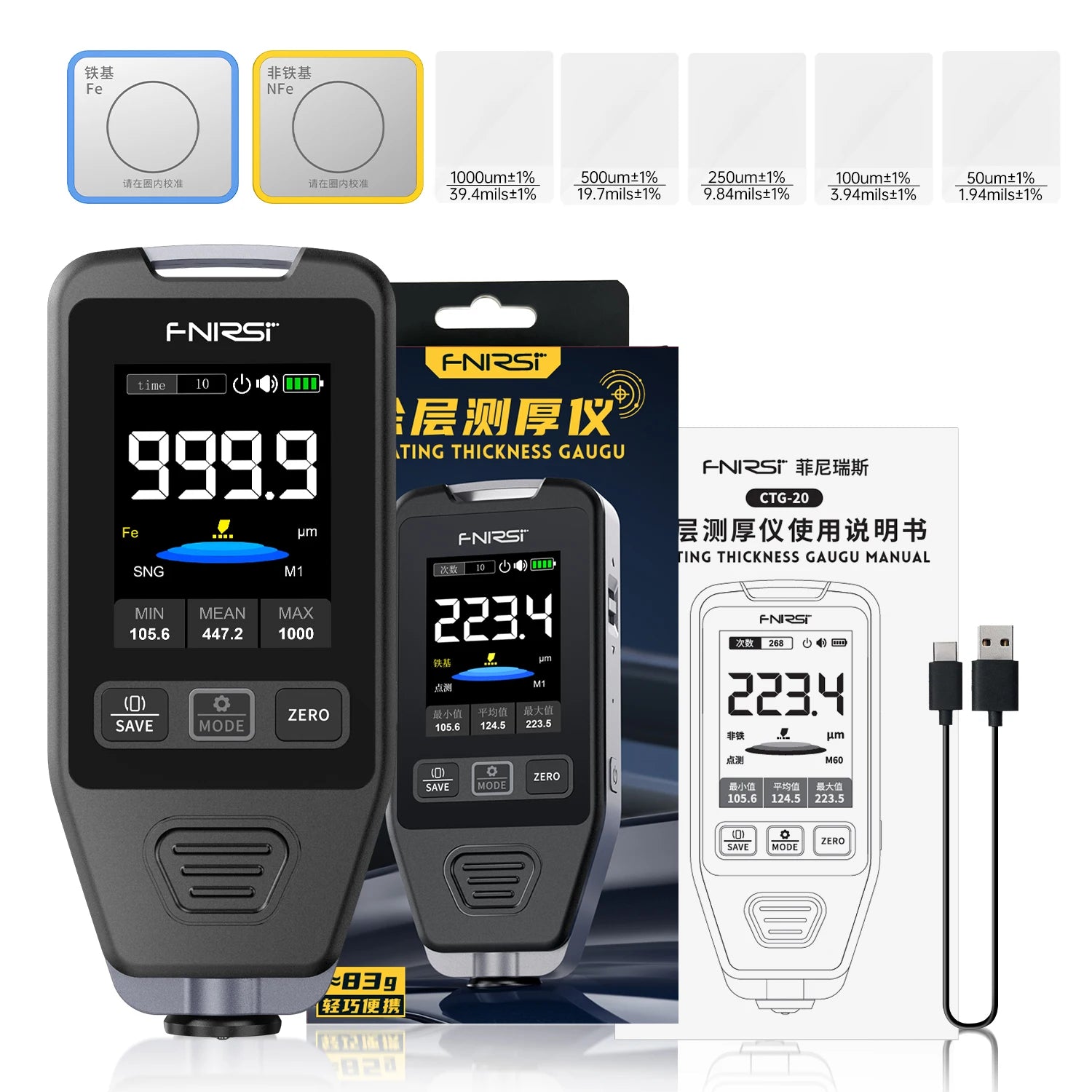

1.CTG-20 coating thicknes gauge
2.Ferrous calibration substrate
3.Non-Ferrous calibration substrate
4.50/100/250/500/1000μm calibration sheet
5.USB data cable
6.User manual
