SPECIFICATIONS

Battery Included: Yes

Brand Name: FNIRSI

Fnirsi Model: CTG-20

High-concerned chemical: None

Model Number: CTG-20

Origin: Mainland China

With Backlight Or Not: Yes

Features:

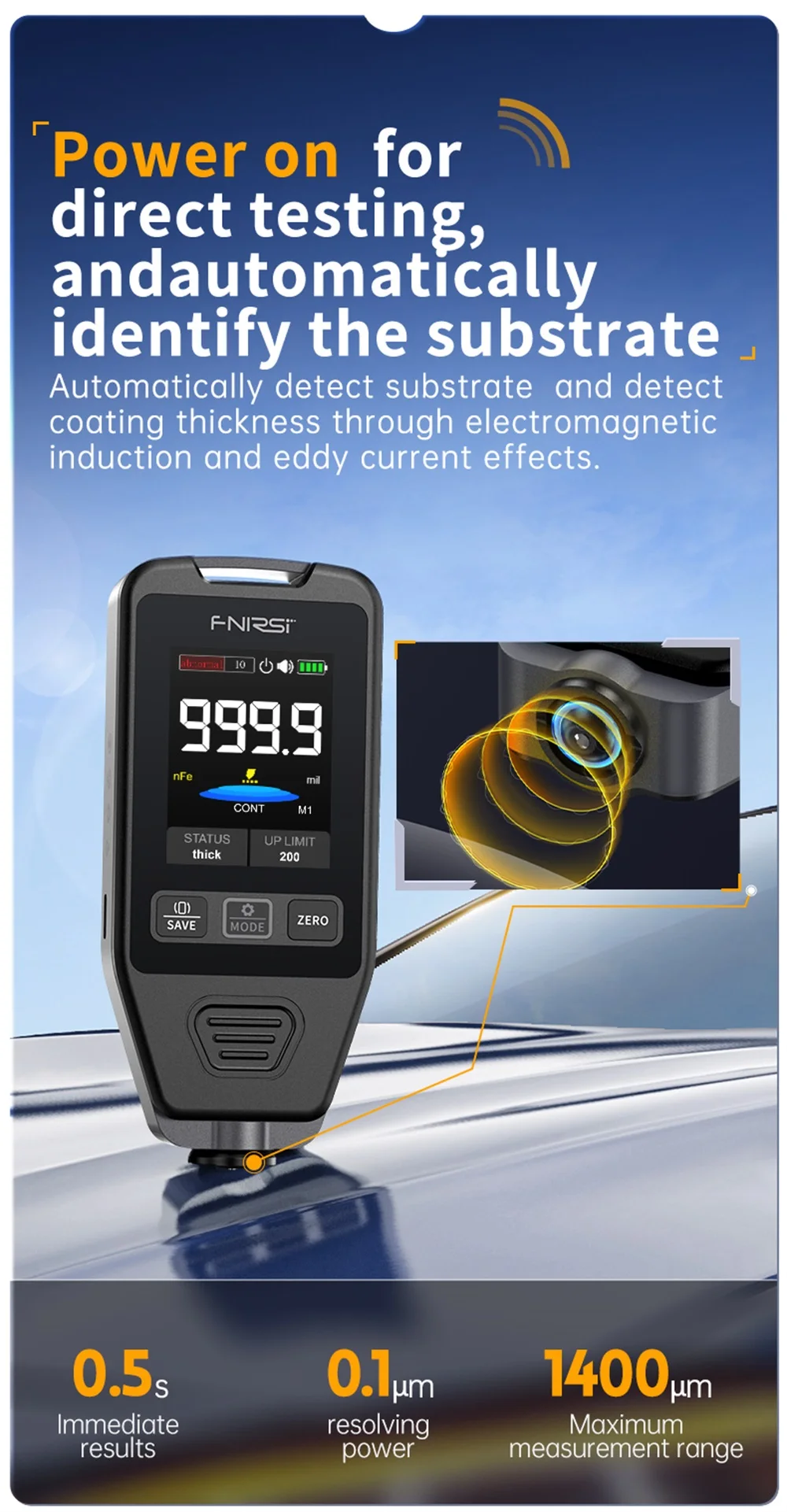

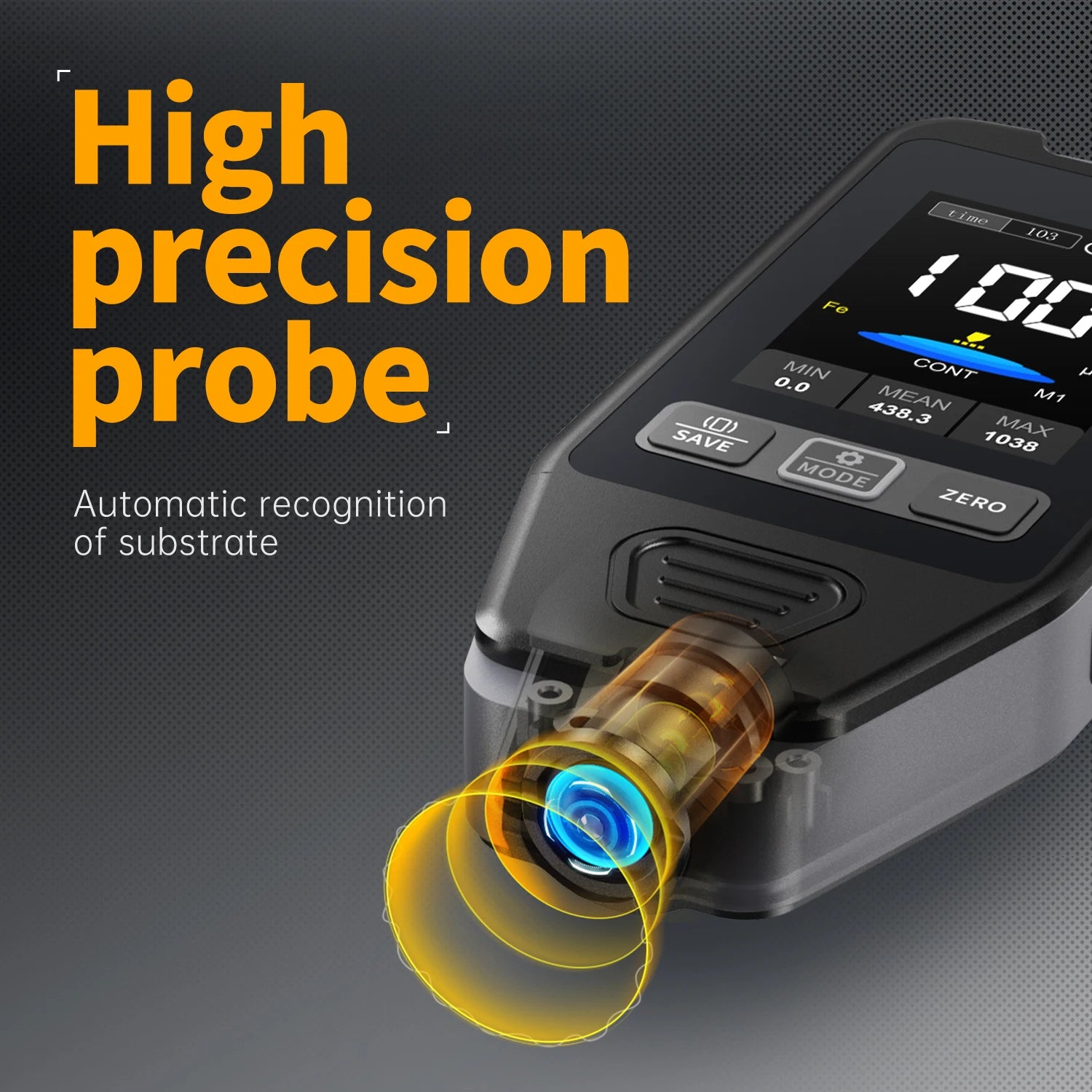

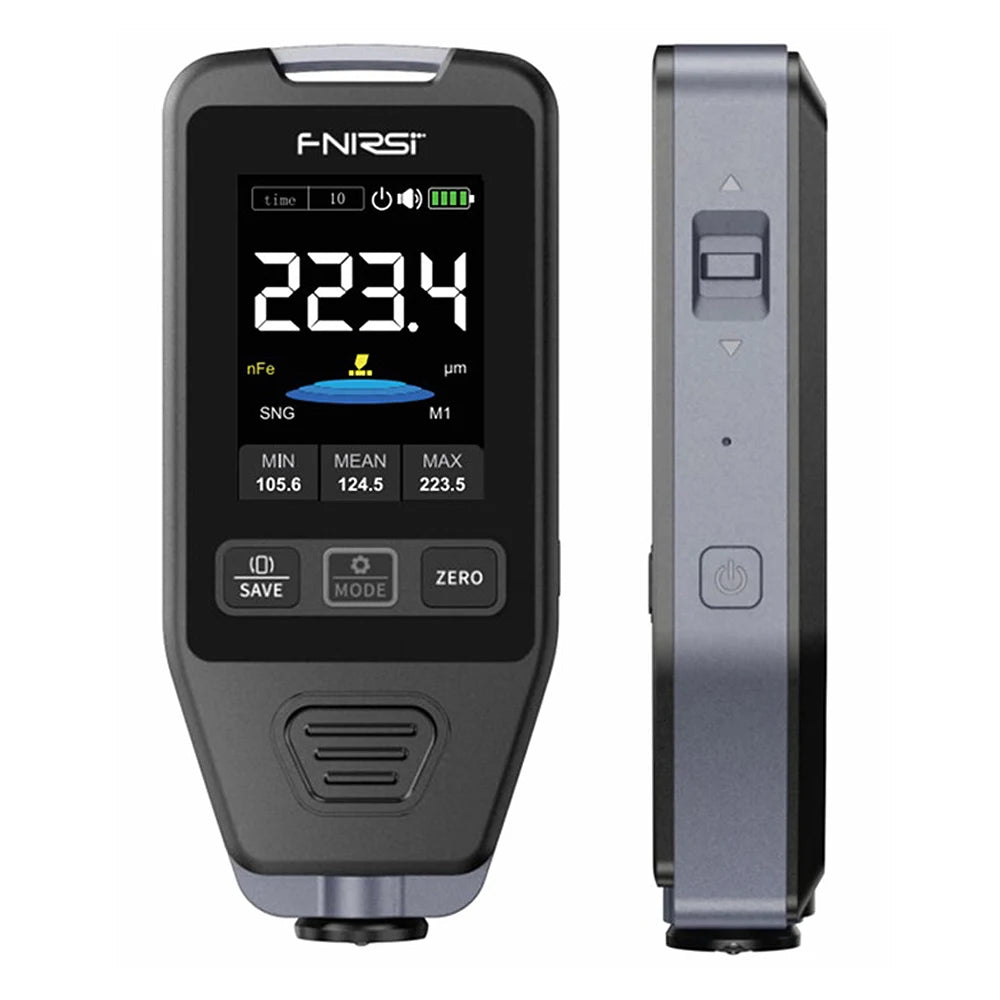

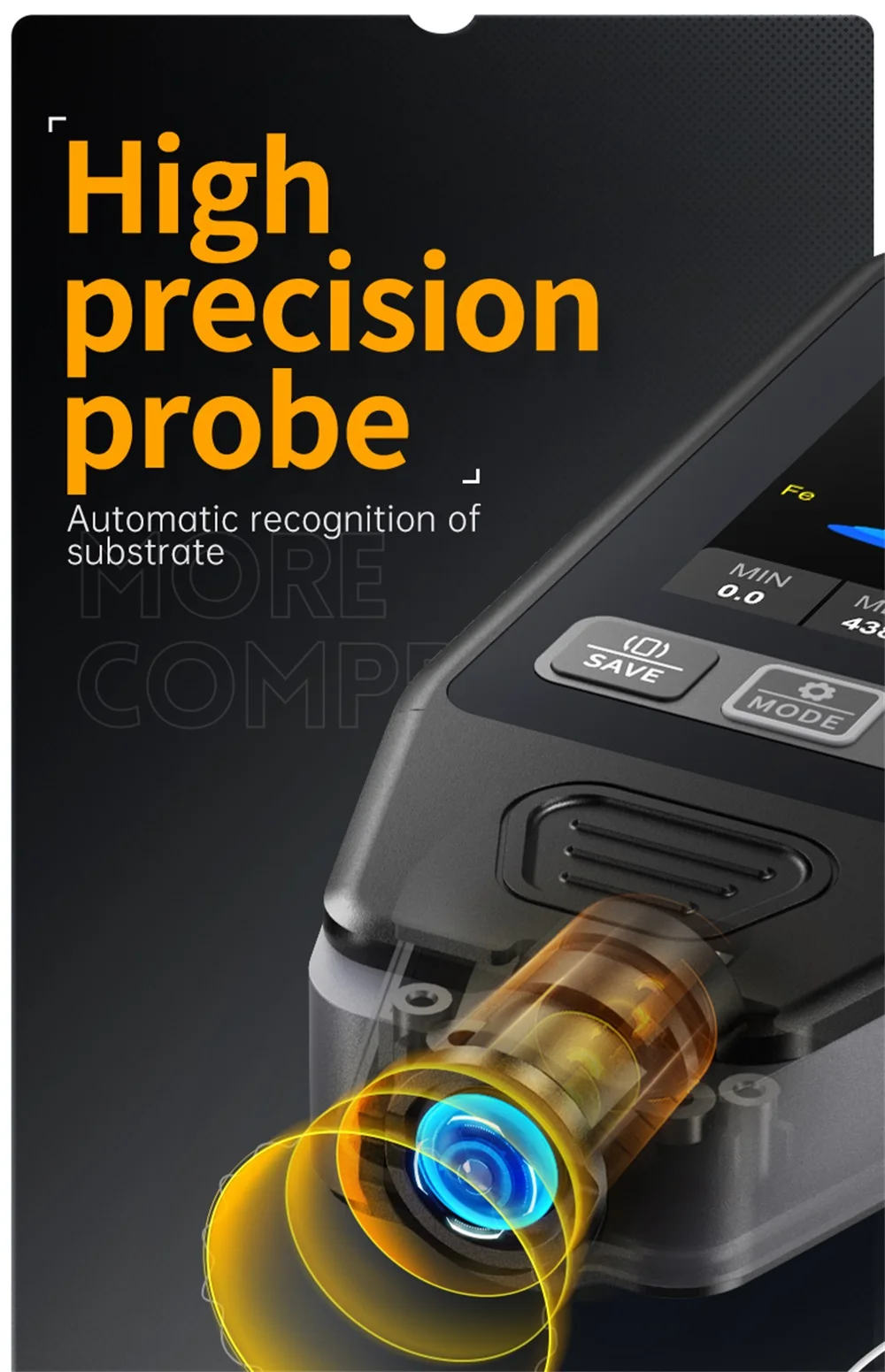

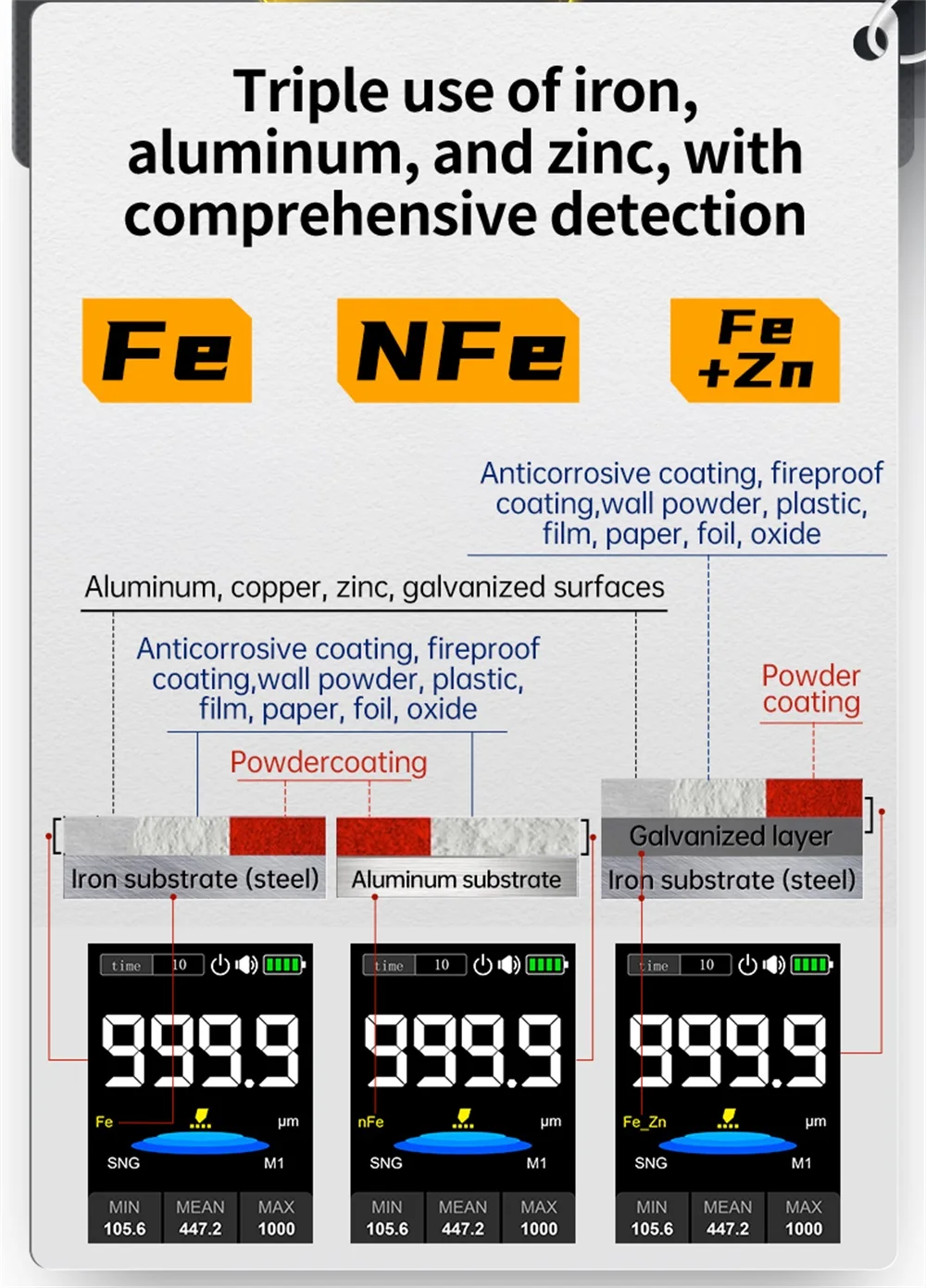

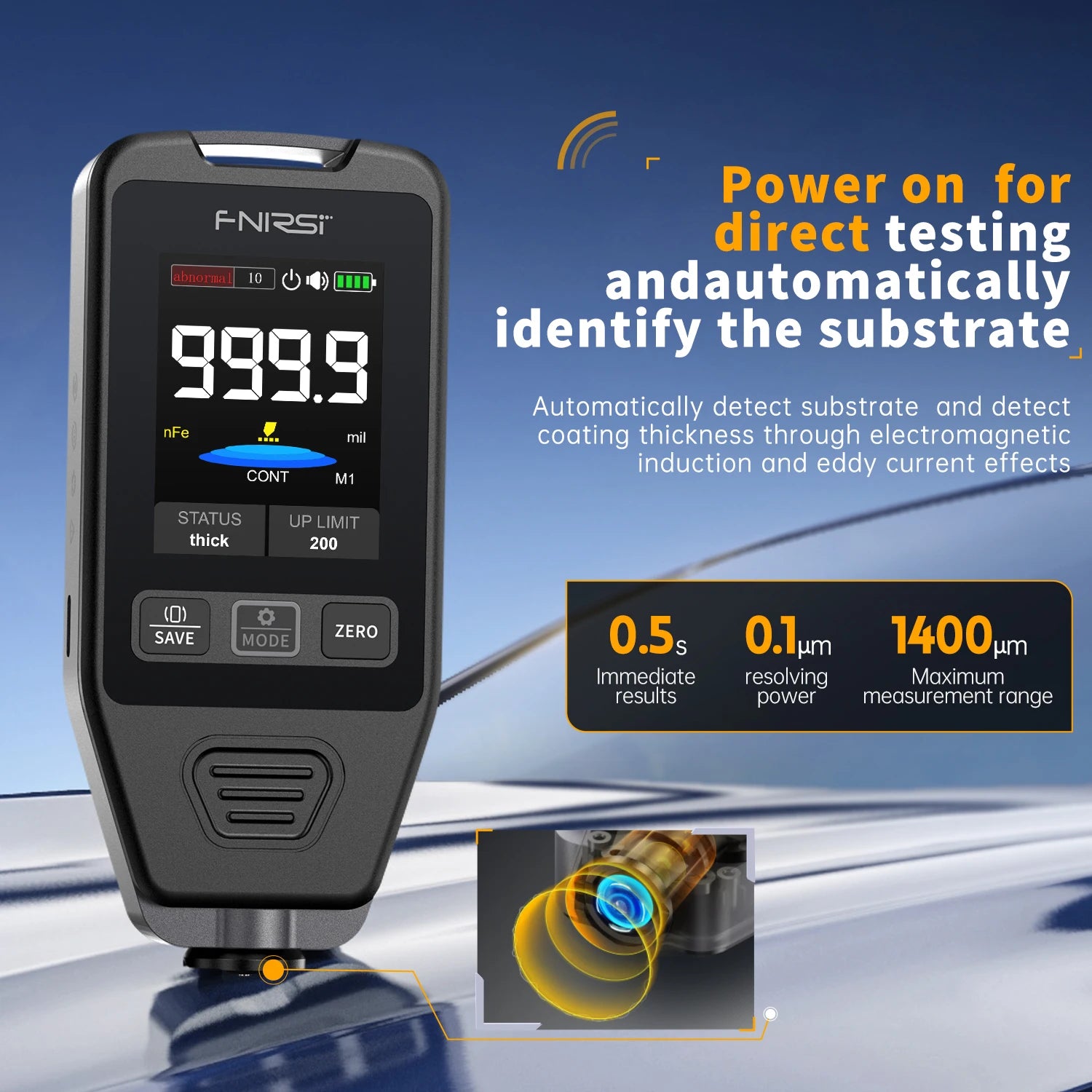

This product is a coating thickness gauge, used to measure the thickness of galvanized layer or metal coating. It can measure the thickness of non-magnetic coating (such as paint) on magnetic materials such as steel/iron, and the thickness of coating (such as paint) on non-magnetic materials such as aluminum. Built-in precision probe, lithium battery charging. Automatically detect substrate characteristics and detect coating thickness through electromagnetic induction and eddy current effect. The instrument can measure coating thickness non-destructively with high speed and high accuracy. Widely used in manufacturing, industry, automobile and other testing fields.

Please note:

· The curvature of the substrate to be measured is too steep.

· The area of the substrate to be measured is too small.

· The of the substrate to be measured is rough.

· There is a strong magnetic field nearby.

· The ambient temperature/humidity changes greatly.

· The battery is low, please charge in time.

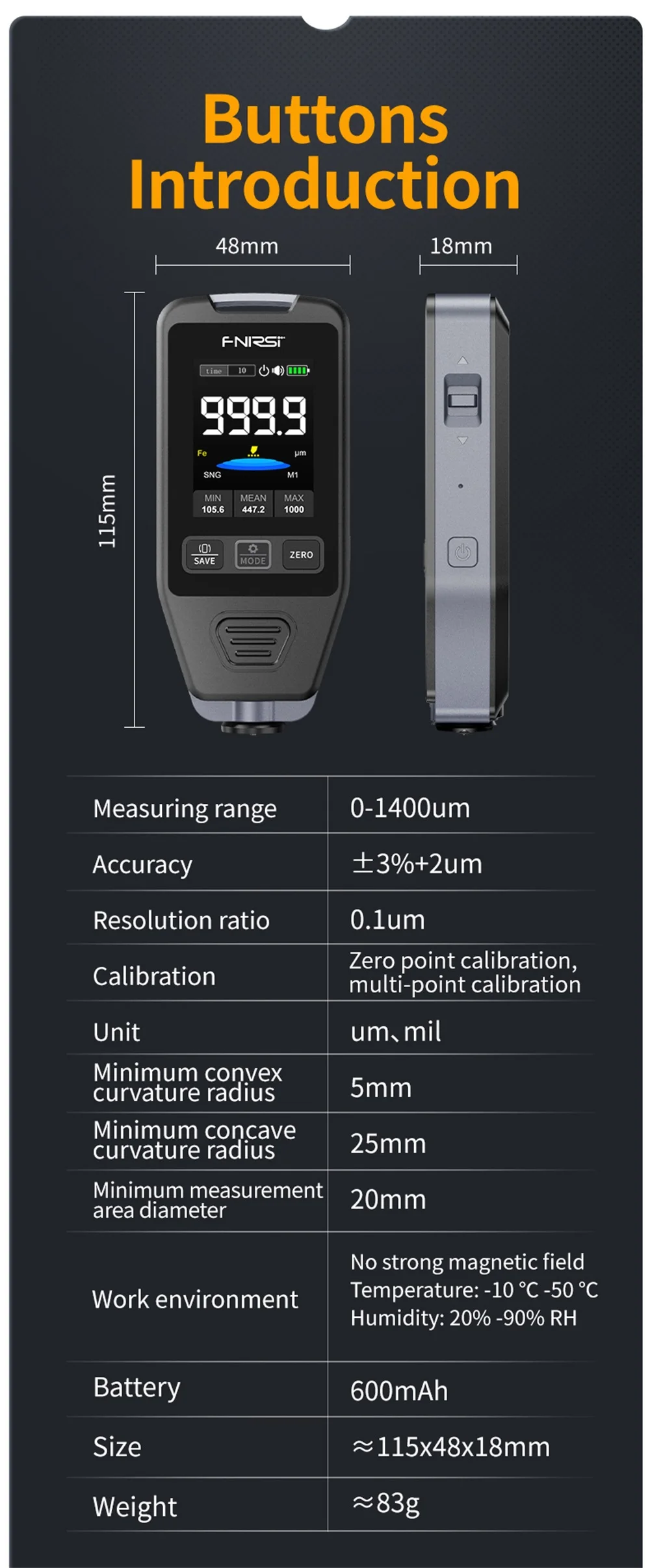

Specifications:

Part name: Thickness gauge
Material: ABS
Color: Black
Size: 115x48x18mm

2. Measuring range: 0-1400μm
3. Accuracy: ±3%+2μm
4. Resolution: 0.1μm

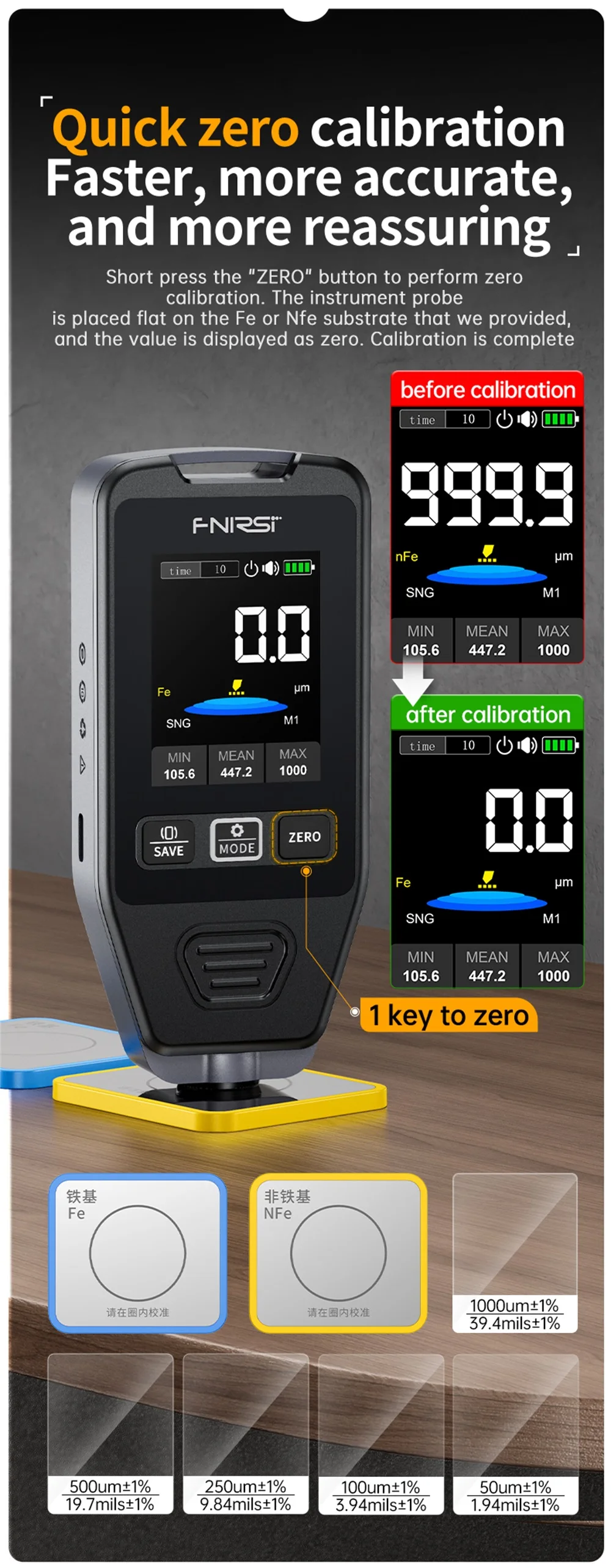

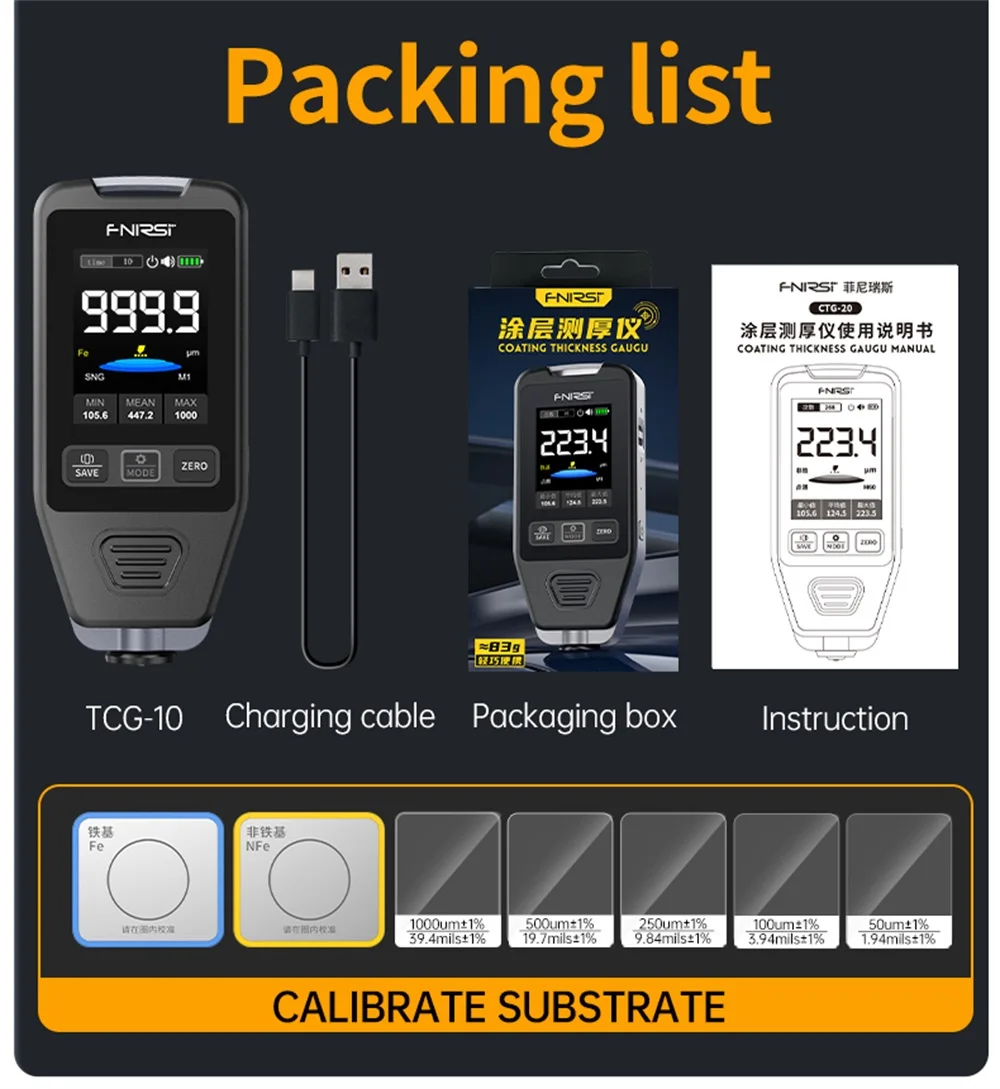

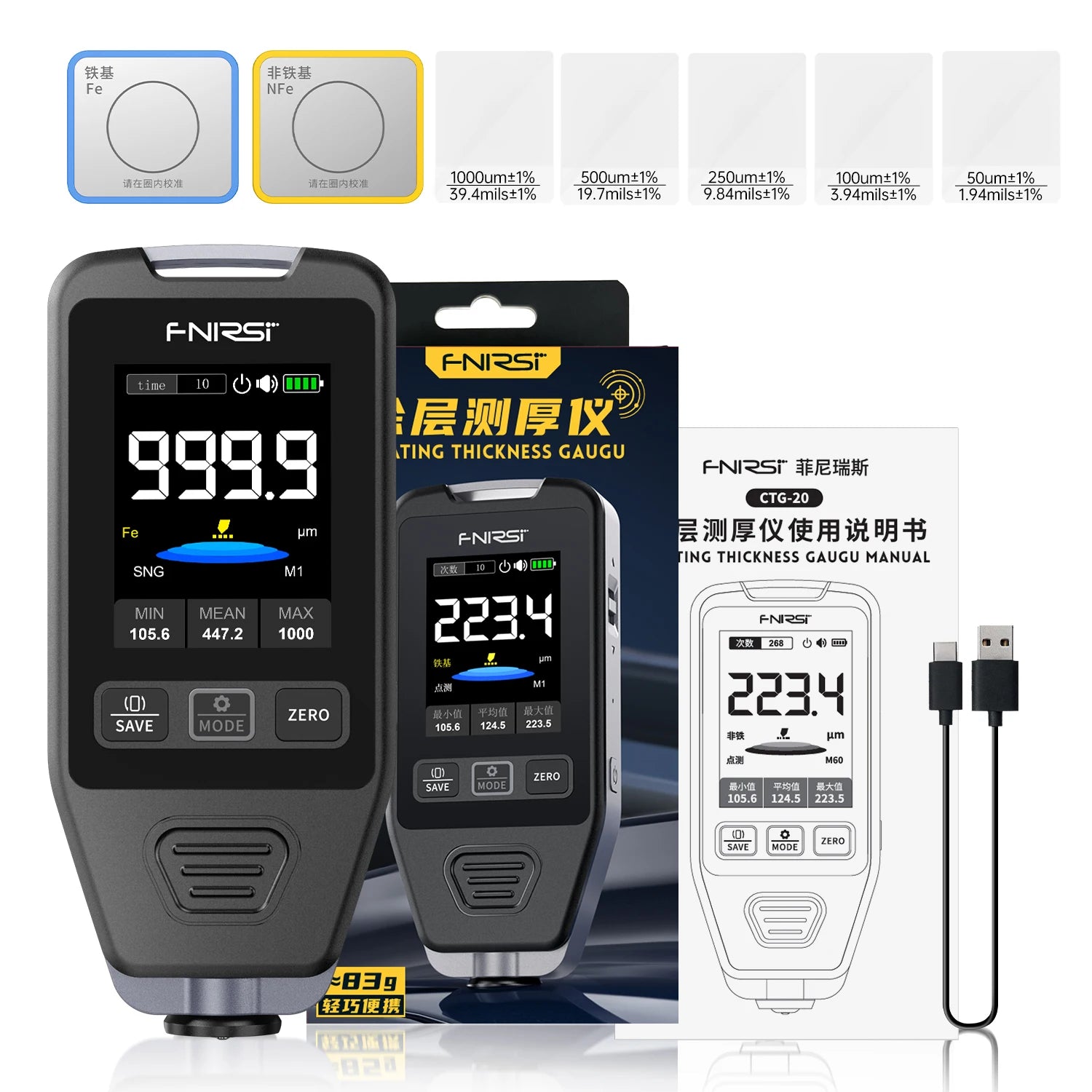

5. Calibration: 0 point calibration; multi-point calibration

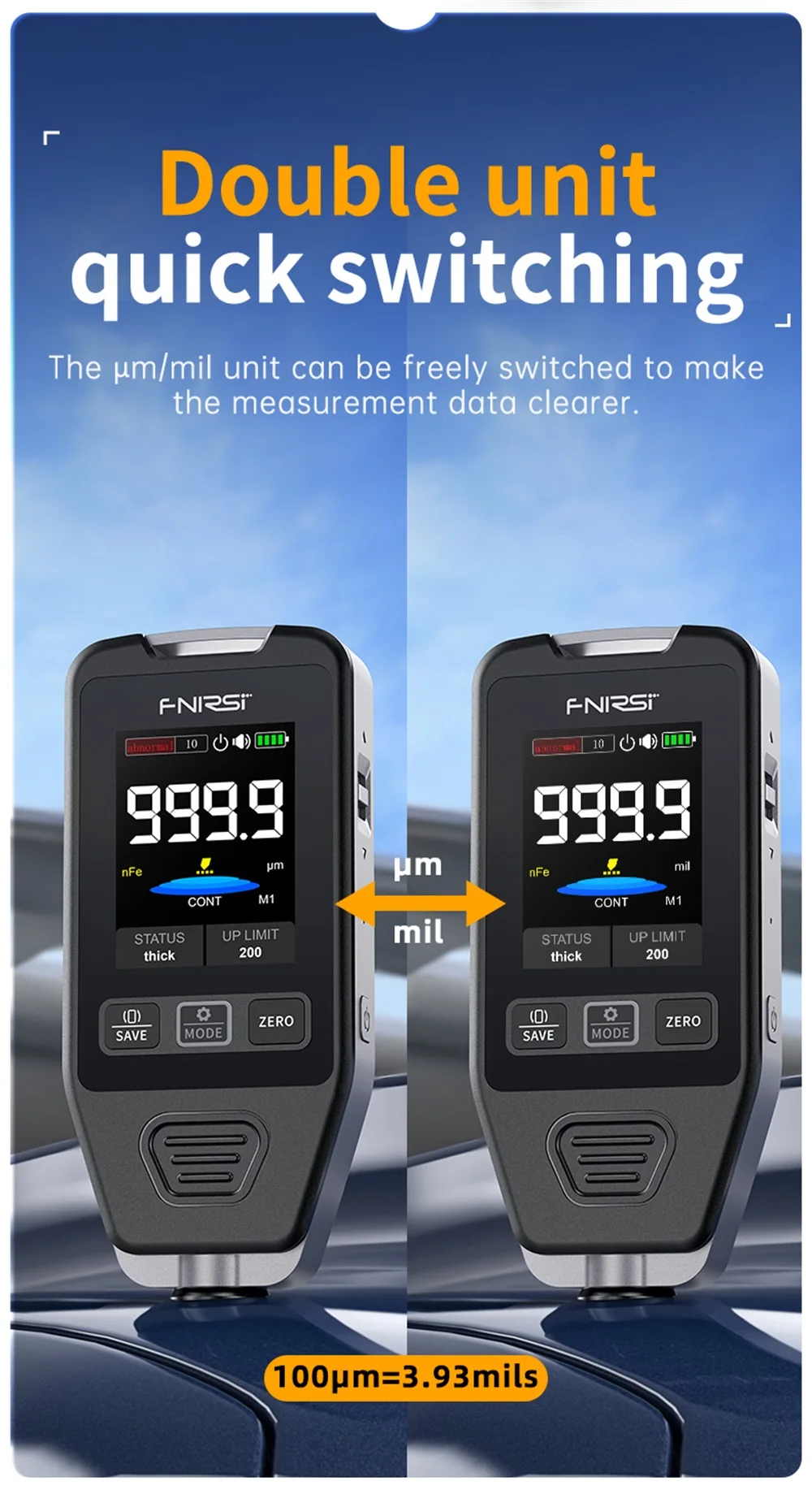

6. Unit: μm, mil
7. Small convex curvature radius: 5mm
8. Small concave curvature radius: 25mm
9. Mini diameter measurement area: 20mm
10. Working environment: no strong magnetic field
11. Working temperature: -10℃-+50℃
12. Humidity: 20%-90%RH

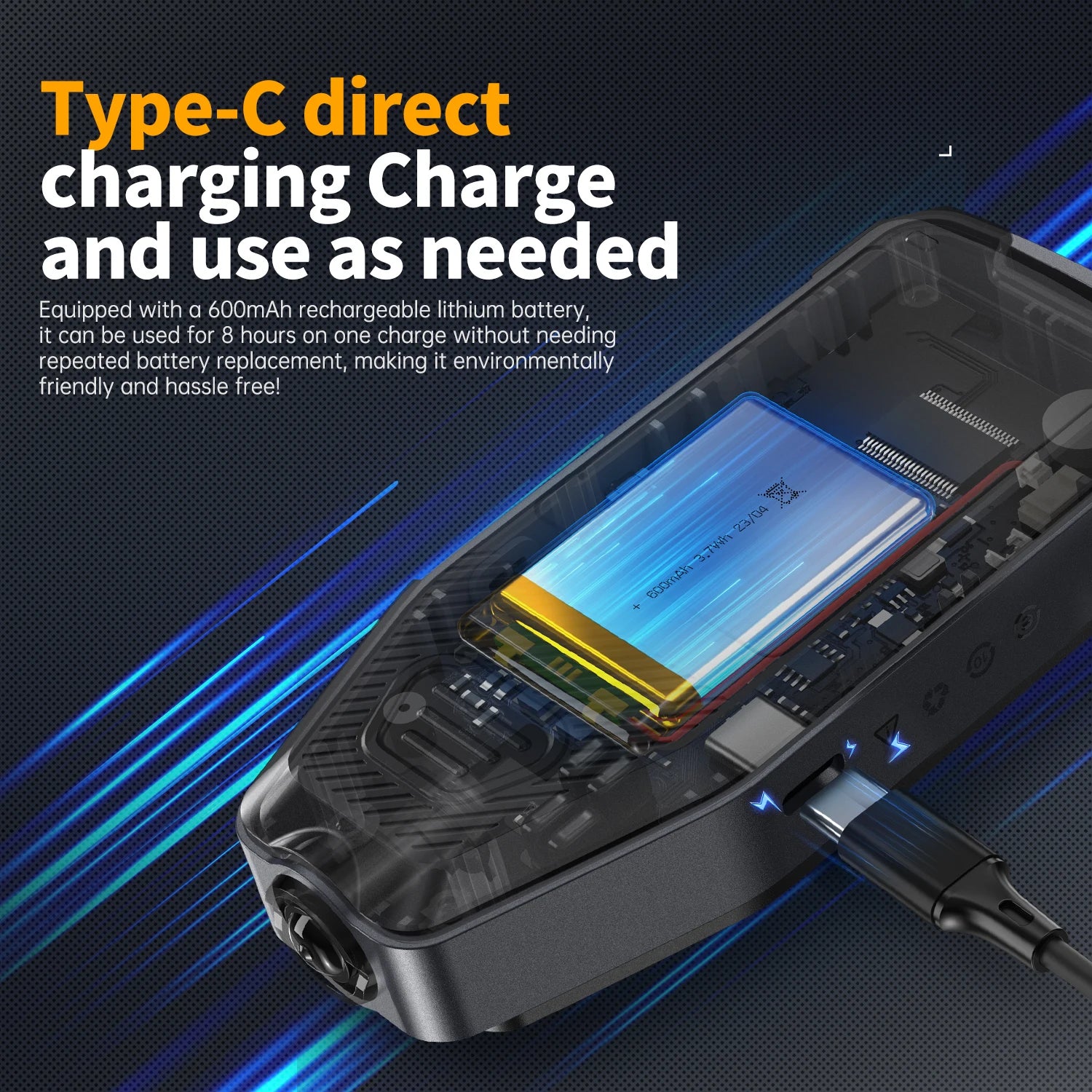

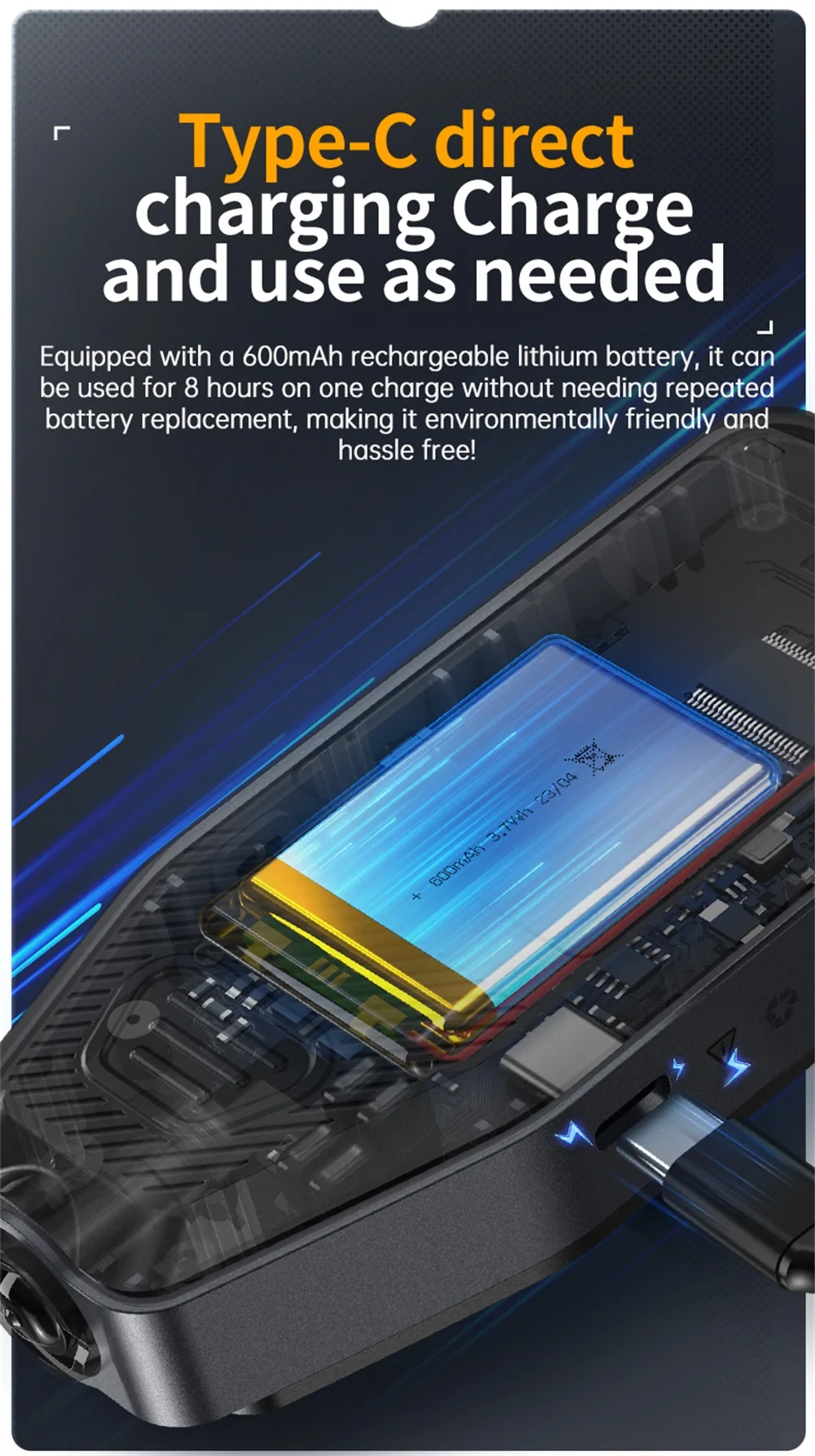

13. Battery: 600mAh lithium battery
14. Size: 115x48x18mm
15. Weight: about 83g
16. Data storage: support

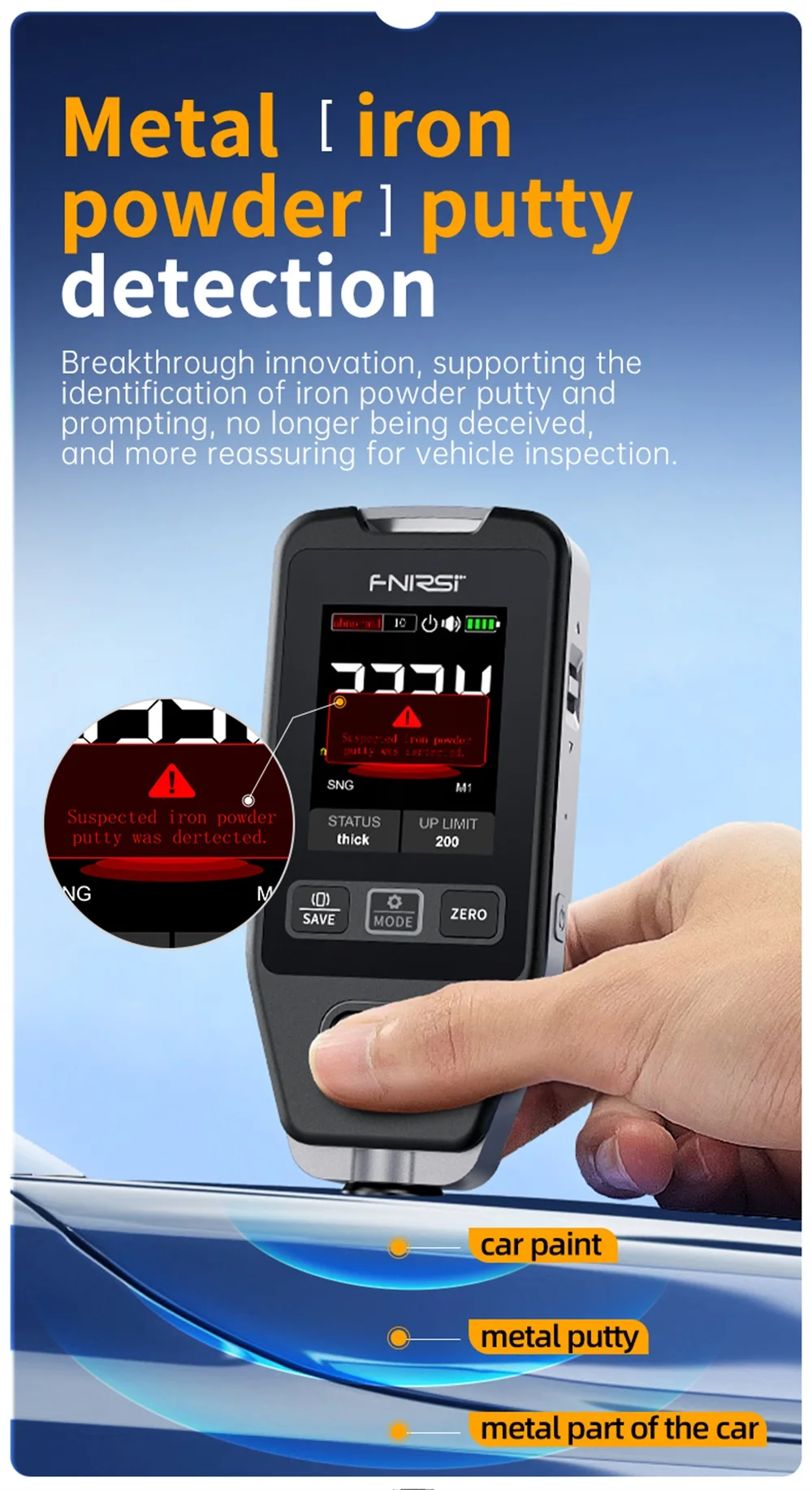

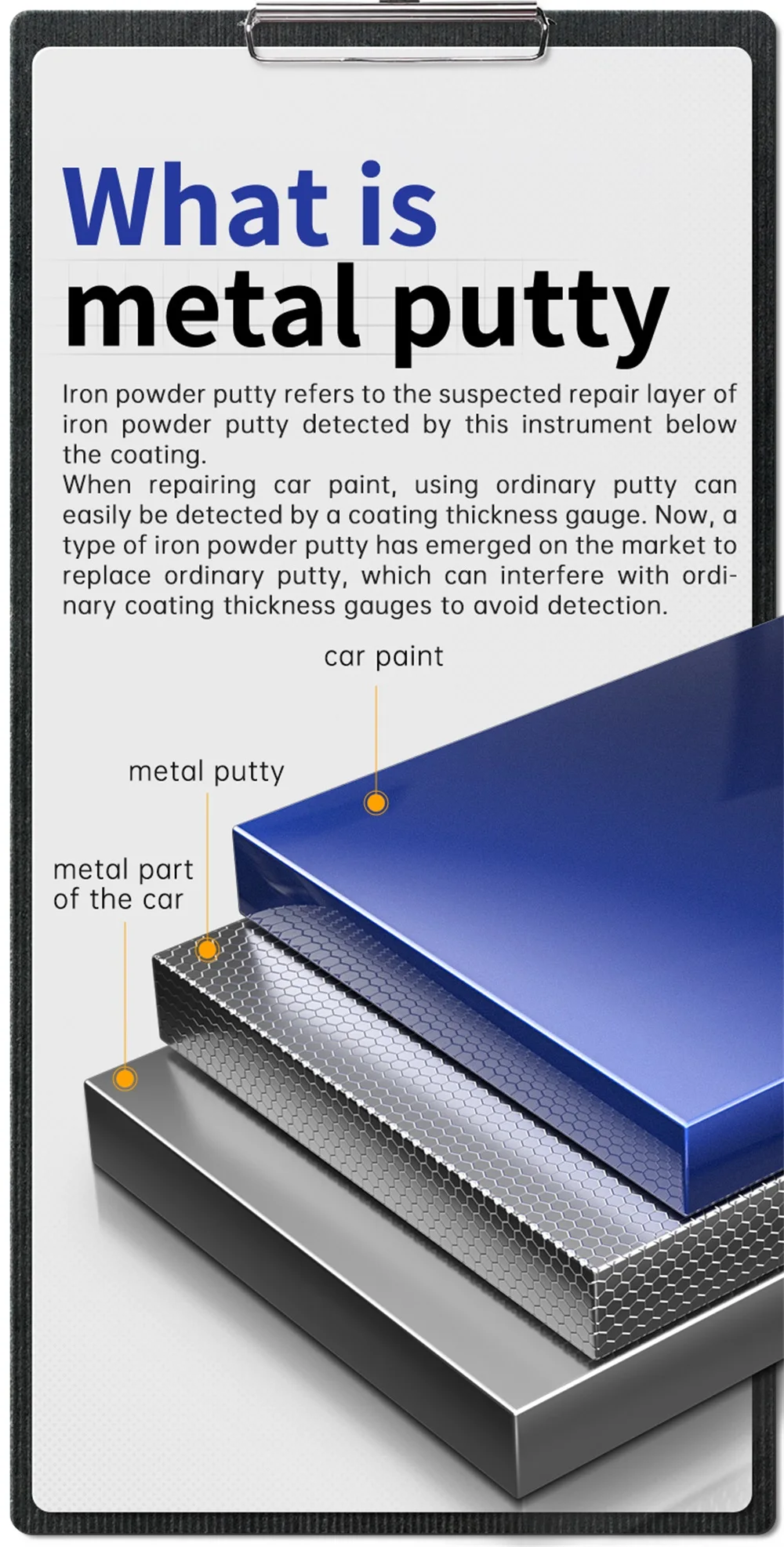

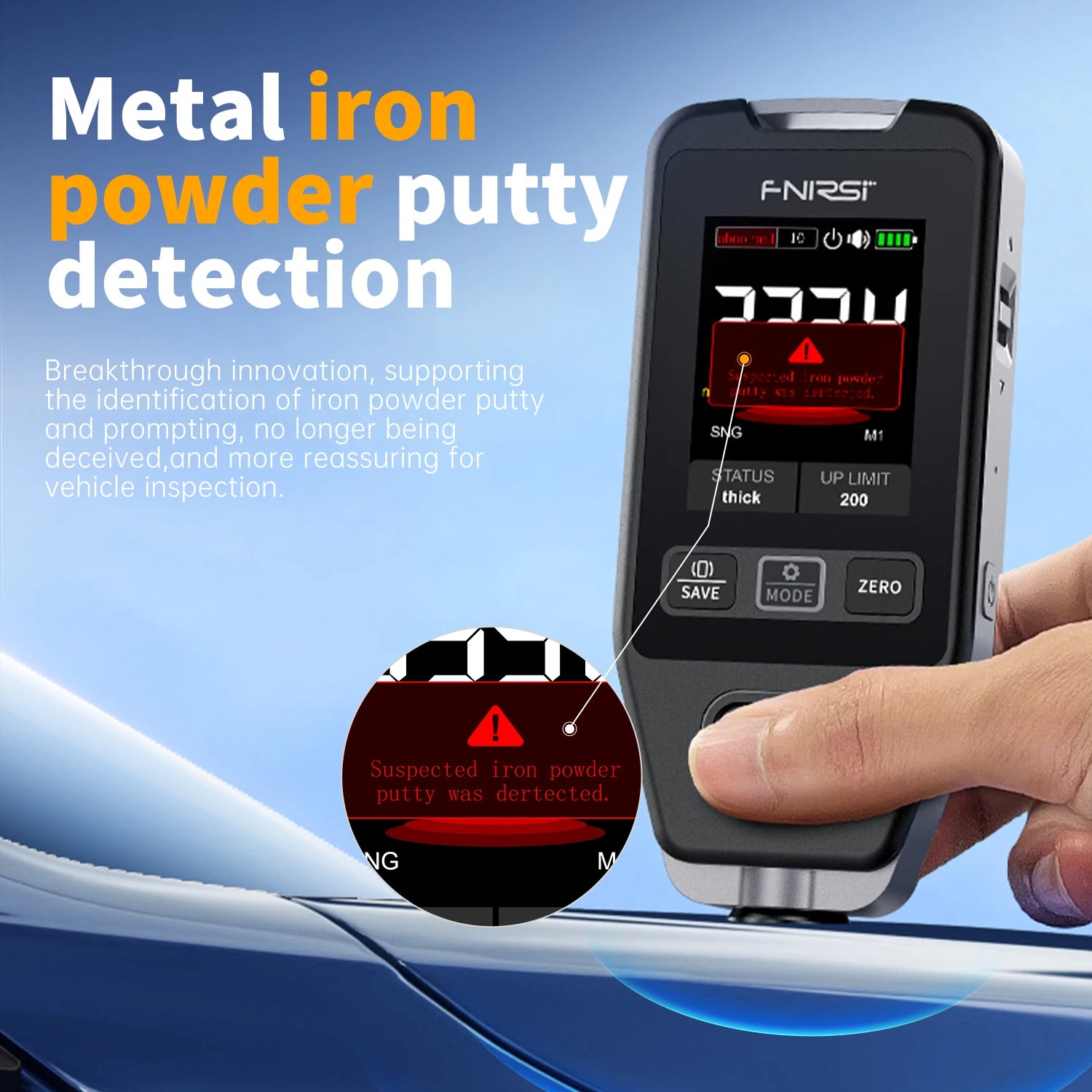

17. Dust-proof putty test: Supported
18. Screen rotation: Supported

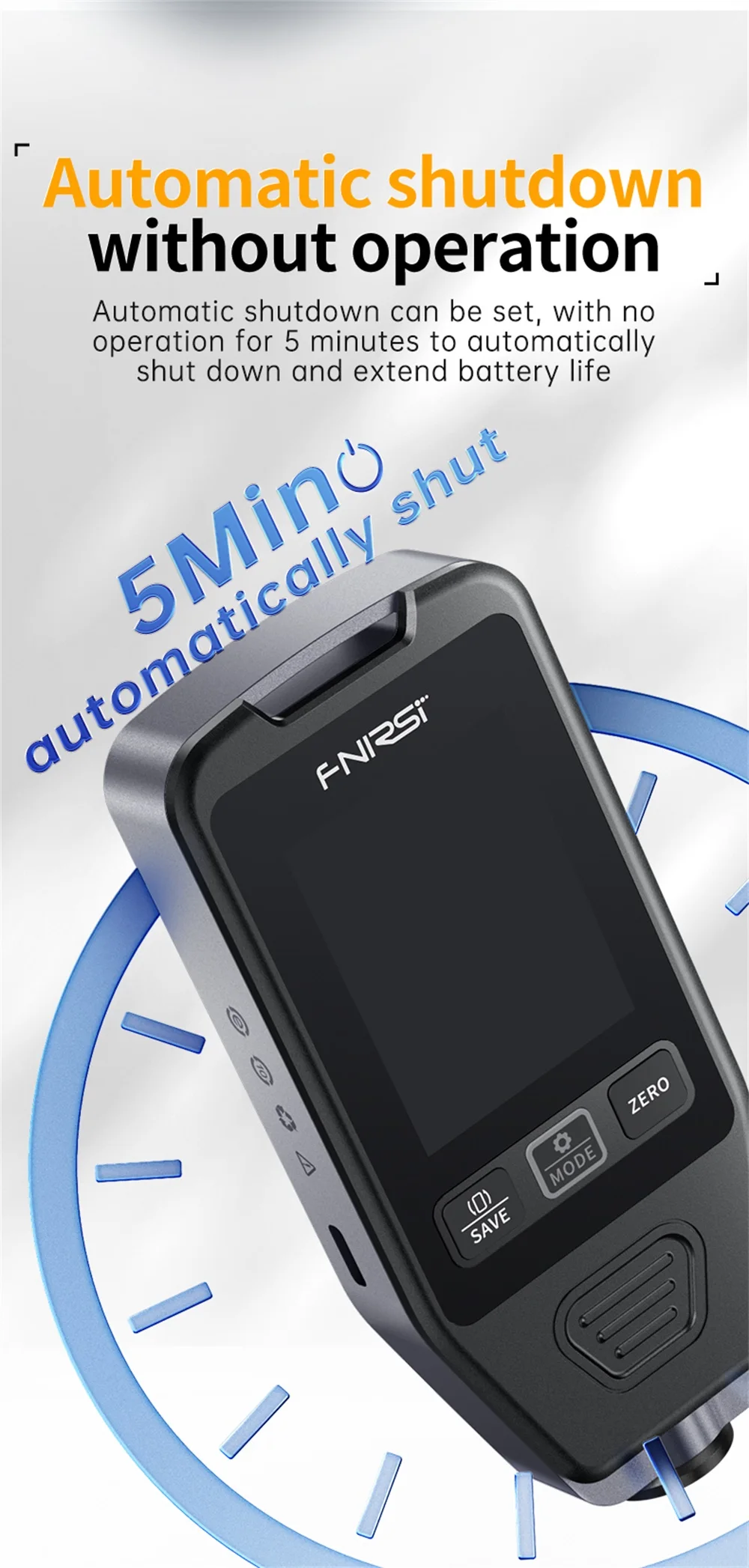

19. Automatic shutdown: Supported
