SPECIFICATIONS

Brand Name: uanmarine

Condition: New

Engine Position: Outboard

High-concerned chemical: None

Manufacturer Part Number: 8616085 4384098.

Origin: Mainland China

Replaces: Thorny croft end cap 54384098,Bowman rubber moulded end cap 3186NP

Suitable Engine Bowman Model: BL570,FM242,FM300,FM400,FM450,FM452,FM600,FM602,FM662,FM700,GM370, GM550,MB220,MB300,MB380,PE250,PE390,PE580,VW160 and VW240.

Suitable Engine Volvo Penta Model: MD22 TMD22

Replaces Volvo Penta Heat Exchanger End Cap MD22 TMD22 Bowman BL570 FM242 FM300 FM400 FM450 FM452 FM600 FM602 FM662 FM700 GM370

Replaces Part OEM Number:

Volvo Penta 861608

Replaces Thorny croft end cap 54384098.

Bowman rubber moulded end cap 3186NP

Fits the Following Volvo Penta Engines:

MD22 TMD22

Also fits the Following Bowman heat exchangers:

BL570,FM242,FM300,FM400,FM450,FM452,FM600,FM602,FM662,FM700,GM370,

GM550,MB220,MB300,MB380,PE250,PE390,PE580,VW160 and VW240.

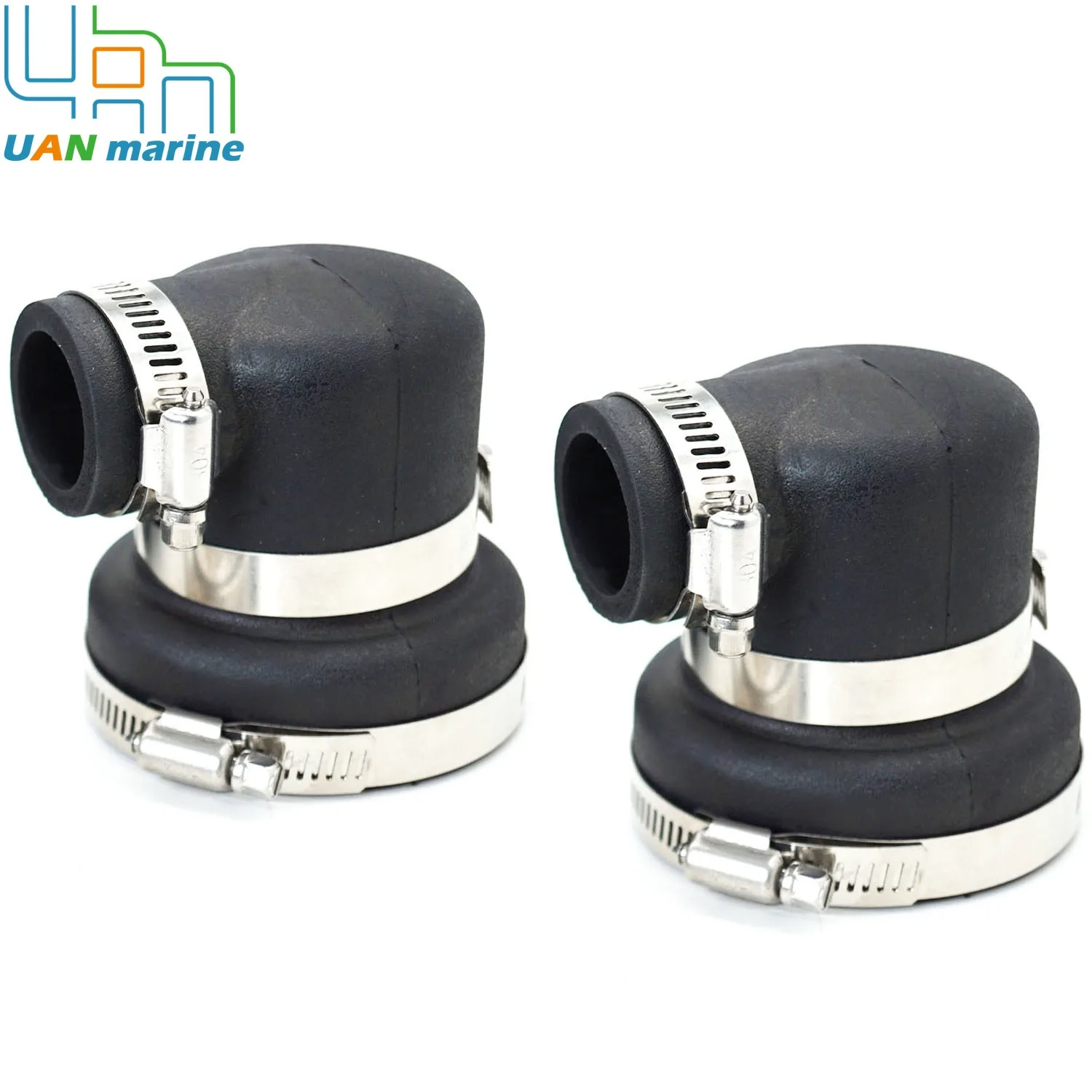

These are the 'rubber boot' end covers that fit on either end of the exhaust mounted heat exchanger.

Heat exchanger End Covers to fit all versions of the Volvo Penta MD22 engine.

Specification:

90 Degree outlet

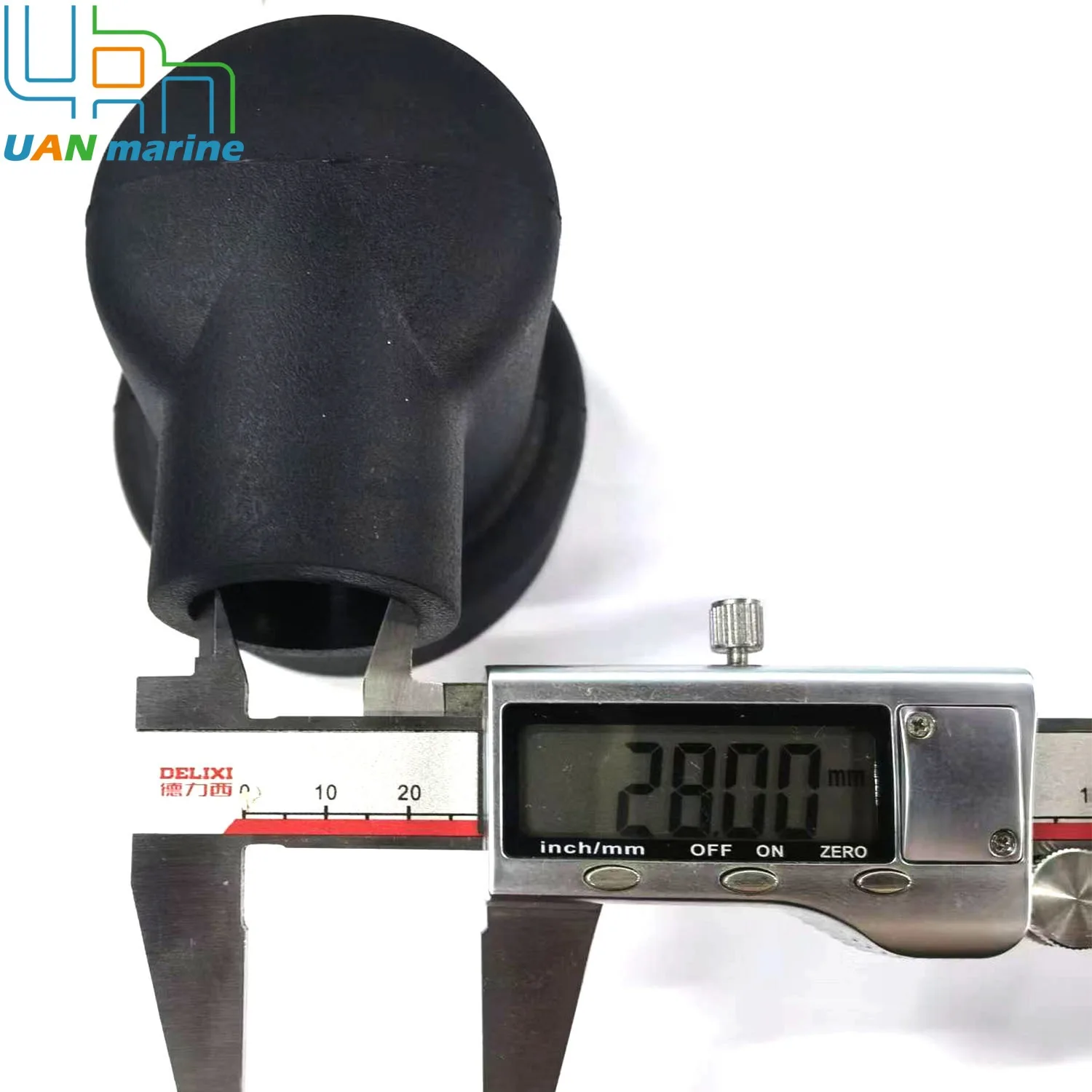

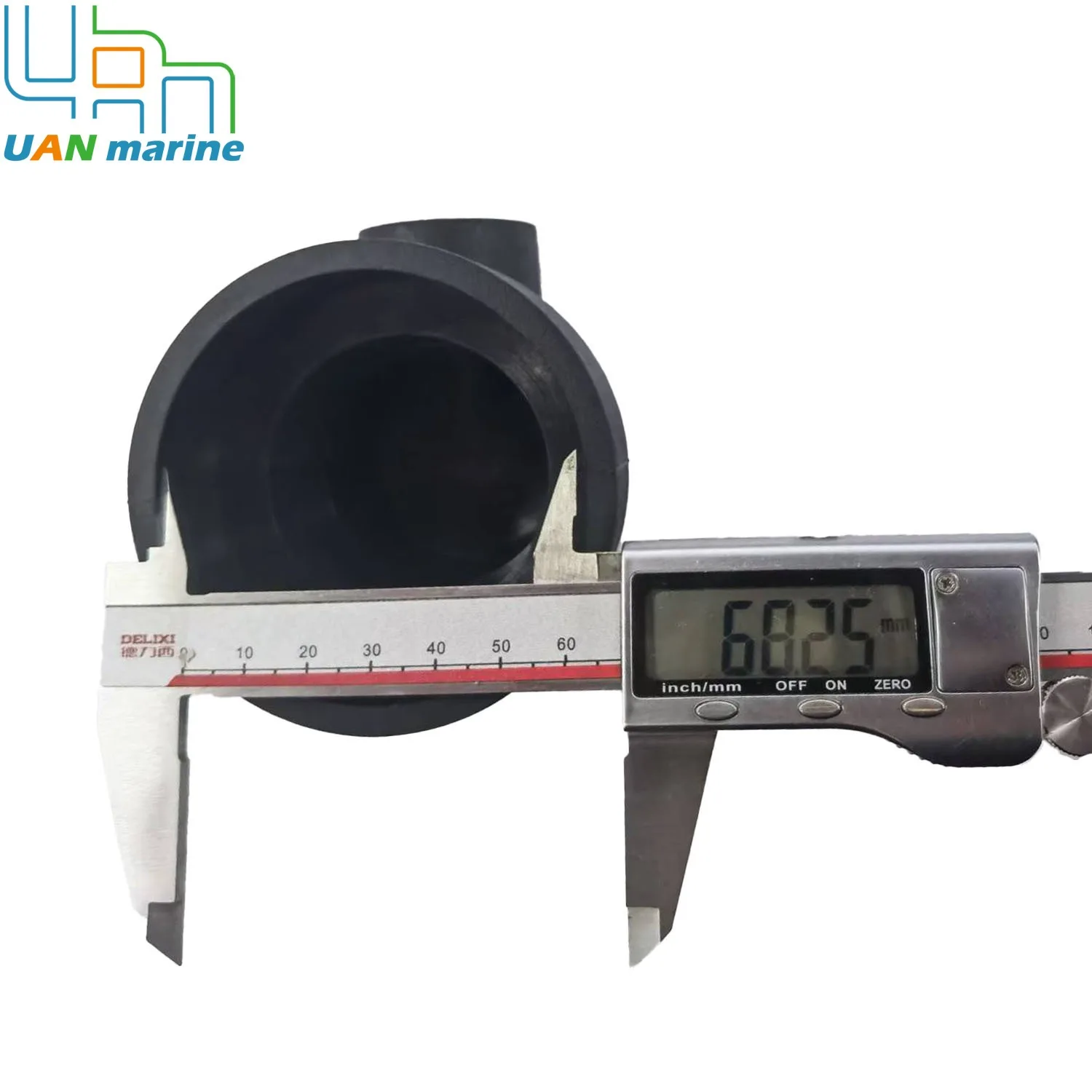

Diameter (I/D): 70mm (28mm ID outlet)

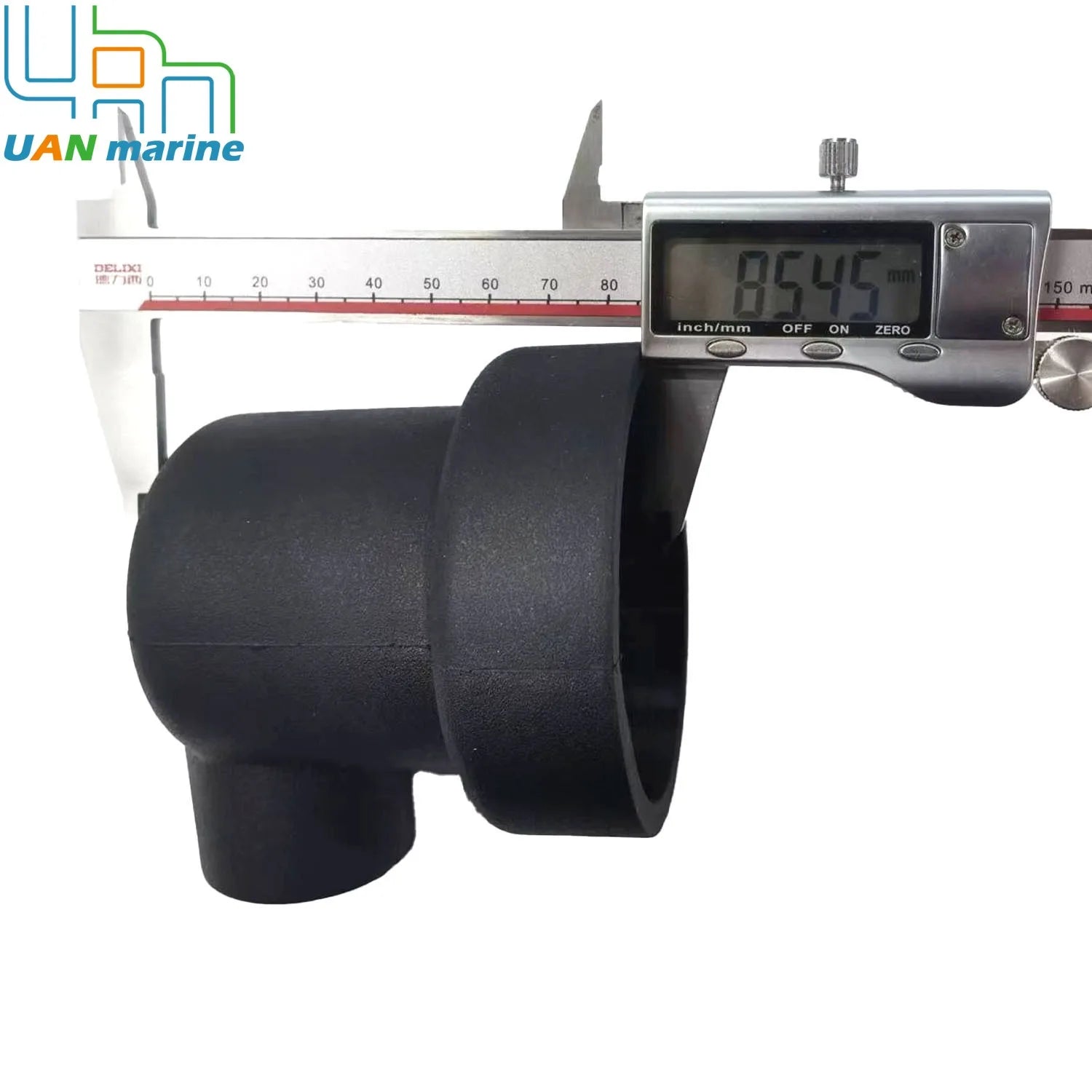

Length: 85mm

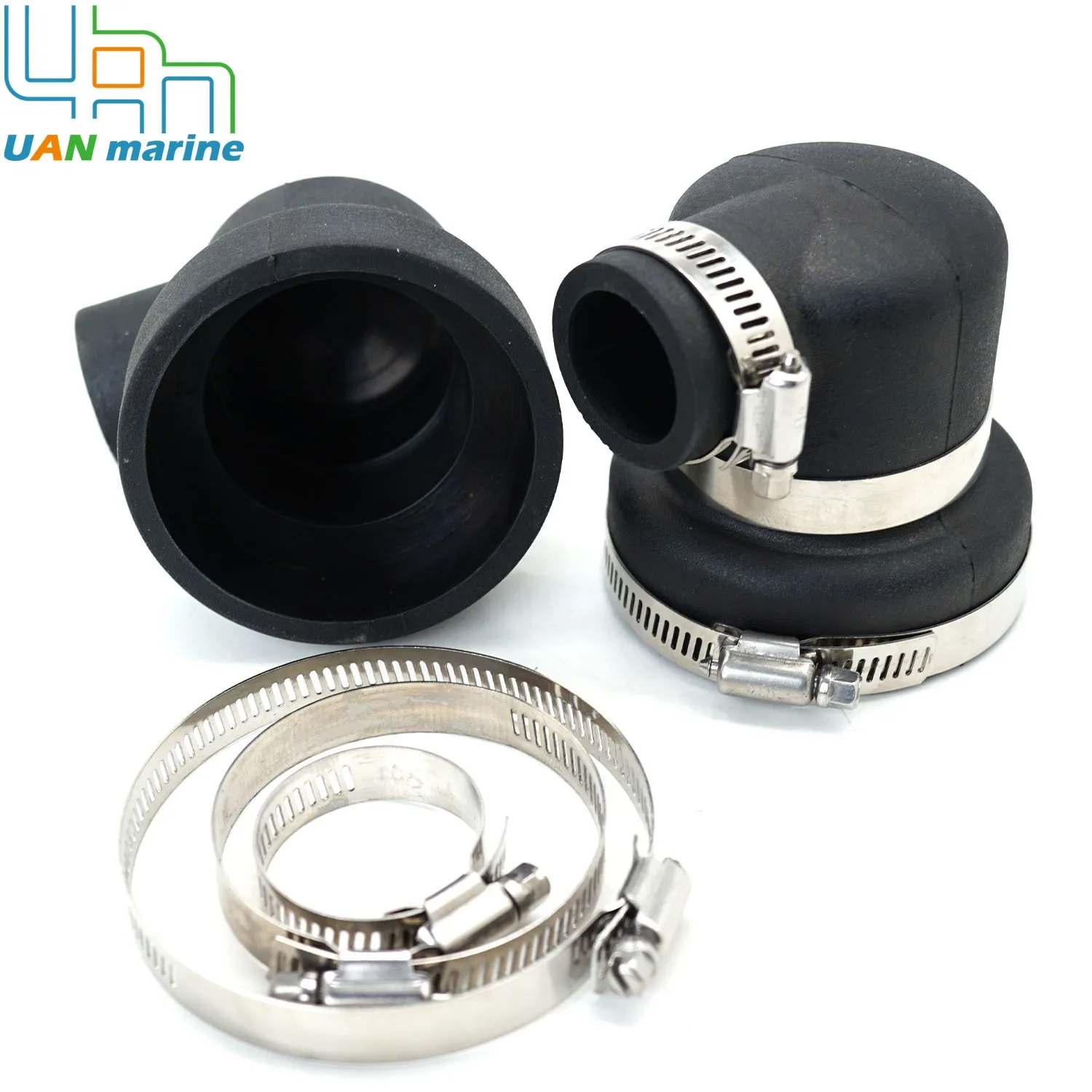

Kit Contains the Following Components:

2 X Rubber Heat Exchanger End Cap

6 X Clamps
