SPECIFICATIONS

Battery Included: no

Brand Name: AERMANDA

Certification: CE

Display: Blue Back light LCD

Display Type: DIGITAL,DIGITAL

Display Update Rate: 0.5 , 1.0 , 2.0 or 4.0 seconds , selectable

High-concerned chemical: None

Max Load: 490N

Measuring Frequency: 16 msec (62.5 samples / sec)

Model Number: LTTS

Origin: Mainland China

Power Supply: 4 x 1.5 AAA( UM-4 ) Battery

Semi-finishedproduct: No

Size: Main Unit : 149 x 70 x 30 mm

Unit: Kgf , gf , N , Lbf

Weight: 400 g

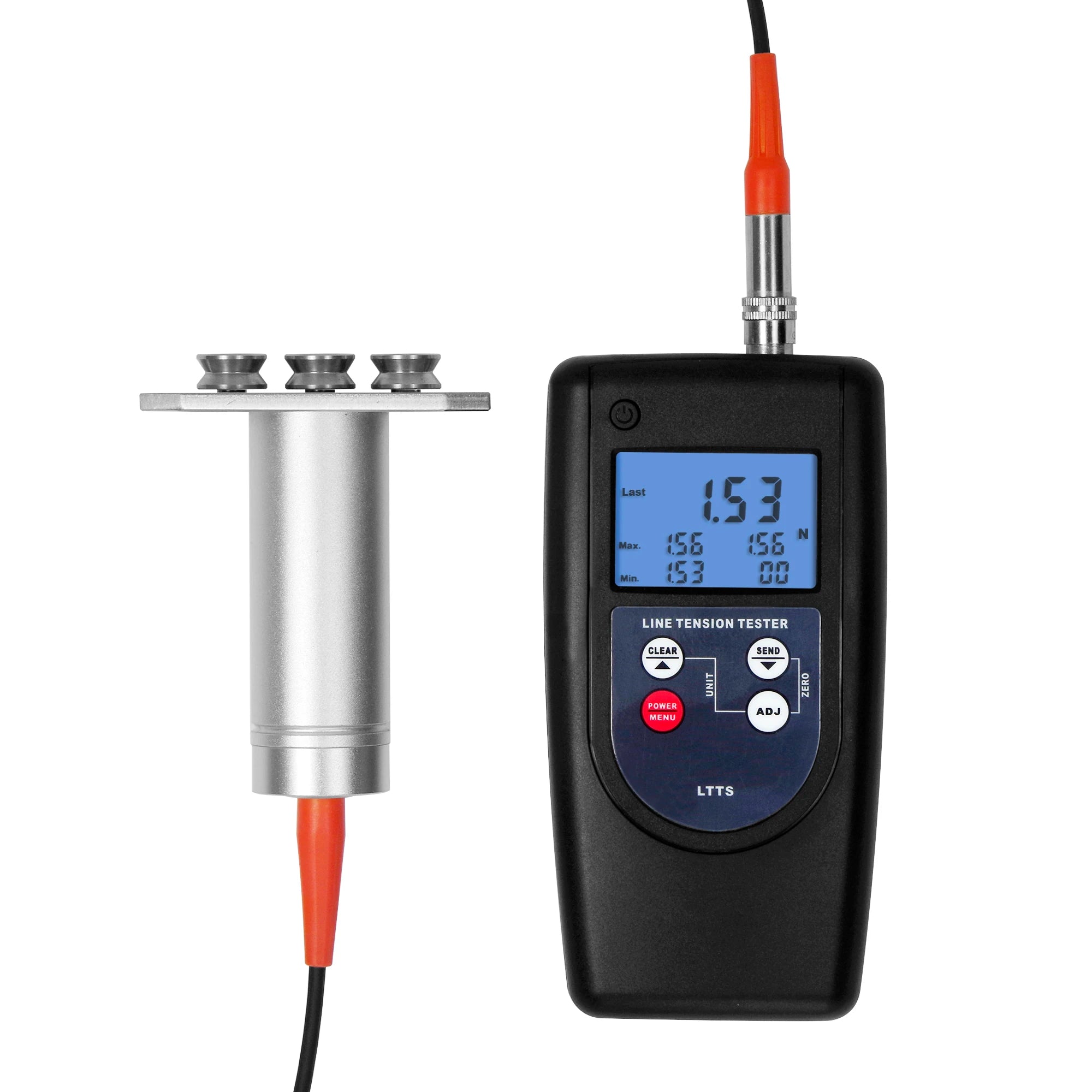

Hand-held Digital Tension Meter LTTS for yarns, fibers, wires, optical fibe Ect tension

The LTTS Digital Tension Meter is a hand-held device which accurately measures the running as well as statictensions of a wide variety of process materials including yarns, fibers, wires, optical fibe

Features

* It employs the ‘three-roller principle’ of tension test.
* High accuracy and high resolution.
* Power is supplied by 4xAAA alkaline battery.
* With 4 measurement unit for selection, N, kg, lb, g.
* Current Value, Max. Value, Peak Value, Min Valuevcan be displayed at the same time.
* With 10 minutes auto power off and manual power off.
* The Meter takes 62 tension measurements per second and displays the average of these measurements.
* Optional data output, by USB cable or Bluetooth adapter.

General Specifications

Unit	Kgf , gf , N , Lbf
Measuring Principle	Strain gauge
Measuring Frequency	16 msec (62.5 samples / sec)
Sensing Roller	Deflection of Sensing Roller ( max. ) 0.2 mm
Overload Capacity	150 % of Full Scale
Temperature Coefficient	Zero : less than ±0.3% FS/ °C
Temperature Coefficient	Span : less than ±0.01% FS/ °C
Display	Blue Back light LCD
Display Update Rate	0.5 , 1.0 , 2.0 or 4.0 seconds , selectable
Memory System	Current Value , Max. Value , Peak Value , Min Value
Overrange Indicator	Buzzer Alarm
Power Off	10 Minutes Auto , Manual
Data Output	USB , Bluetooth (Optional)
Roller Material	Stainless Steel ( Standard )
Roller Material	Plastic ( Optional )
Maximum Speed	2000 m/min
Power Supply	4 x 1.5 AAA( UM-4 ) Battery
Operation Temperature	0 ~ 40 °C
Operation Humidity	< 80 %
Weight	400 g
Size	Main Unit : 149 x 70 x 30 mm
Size	Sensor : 102 x 81 x 34 mm

Model Specifications

Model	LTTS-200	LTTS-500	LTTS-1K	LTTS-2K	LTTS-5K	LTTS-10K	LTTS-20K	LTTS-50K
Tension Range	0~0.2kgf	0~0.5kgf	0~1.0kgf	0~2.0kgf	0~5.0kgf	0~10.0kgf	0~20.0kgf	0~50.0kgf
	0~200gf	0~500gf	0~1000gf	0~2000gf	0~5000gf
	0~1.96N	0~4.9N	0~9.8N	0~19.6N	0~49N	0~98N	0~196N	0~490N
	0~0.44Lbf	0~1.1Lbf	0~2.2Lbf	0~4.4Lbf	0~11Lbf	0~22Lbf	0~44Lbf	0~110Lbf
Resolution	0.001kgf	0.001kgf	0.001kgf	0.001kgf	0.01kgf	0.01kgf	0.01kgf	0.01kgf
	1gf	1gf	1gf	1gf	1gf
	0.001N	0.001N	0.001N	0.01N	0.01N	0.01N	0.01N	0.01N
	0.001Lbf	0.001Lbf	0.001Lbf	0.001Lbf	0.01Lbf	0.1Lbf	0.1Lbf	0.1Lbf
Accuracy	±1.0% or better		±1.5% or better
