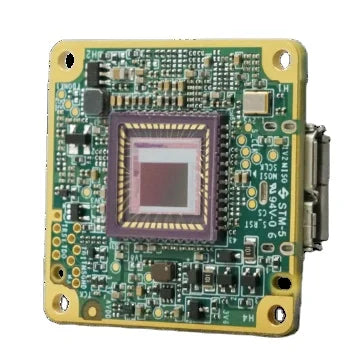

HC-CB013-A0UM Linux Arm Board Raspberry Pi Supported 1.3MP Global Shutter CMOS USB 3.0 Board Level Camera
HC-CB013-A0UM Linux Arm Board Raspberry Pi Supported 1.3MP Global Shutter CMOS USB 3.0 Board Level Camera
SPECIFICATIONS
Battery Included: no
Brand Name: XMSJ
Camera Used for: Automated Industry
Data Interface: USB3.0
Dimension: 32.5 mmx32.5 mmx4.5 mm (1.3"x 1.3" x 0.2")
Frame Rate: 201fps
High-concerned chemical: None
Keyword: USB board Camera
Origin: Mainland China
Product name: 1.3 MP 1/2" CMOS USB3.0 Board Level Camera
Resolution: 1280 x 1024
Shutter Mode: Global Shutter
Weight: Approx. 10 g (0.02 lb.)
brand name: MSTAR
customized support: OEM
material: aluminum alloy
model number: HC-CB013-A0UM
place of origin: Zhejiang, China
power: -
voltage: DC 5V
warranty: 1 Year
If you have any questions, Please contact our customer service
If you are interested in it and want to get a discount, please contact us :
WhatsApp: +86 18163688938
Email: zhaoziqiang79@gmail.com

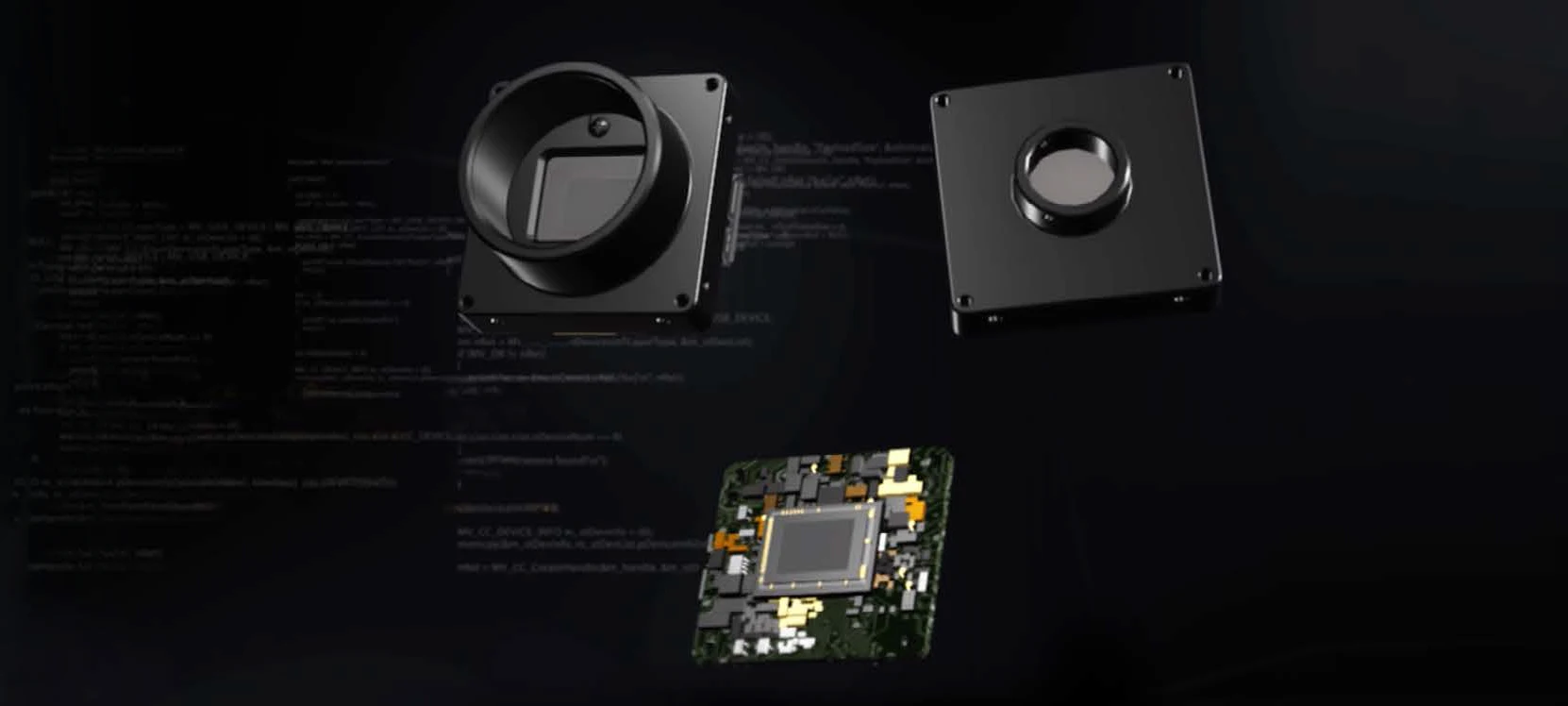

Board Level Cameras
The CB series cameras were developed to meet the requirements of a wide range of image processing applications: With S- or CS-mount or, completely without housing - in a single-board design - it offers the latest technology in a small format. The CB series board-level cameras not only score with their compact design, but it also stands out for their excellent price/performance ratio and flexible integration capability.
| Ultra-small size,
With a compact size, the board-level camera series is easier to be integrated into end users’ product structures. |
 |

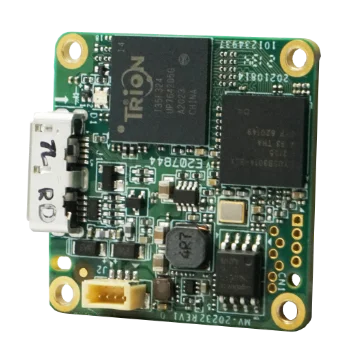

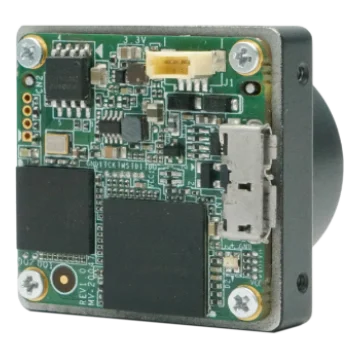

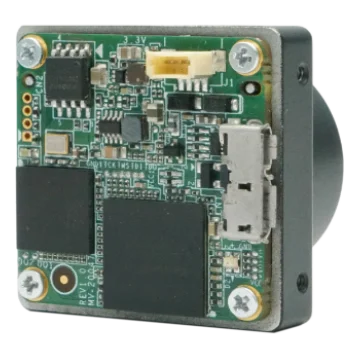

HC-CB013-A0UM
1.3 MP 1/2" CMOS USB3.0 Board Level Camera
HC-CB013-A0UM/UC camera adopts CMOS sensor to provide high-quality images. It uses USB3.0 interface to transmit non-compressed images in real-time and its max. frame rate can reach 201 fps in full resolution. With single board design, it is small in size, which can meet different spatial requirements
HC-CB013-A0UM Linux Arm Board Raspberry Pi Supported 1.3MP Global Shutter CMOS USB 3.0 Board Level Camera
Features
- Single board design for flexible installation
- Supports auto and manual adjustment for gain, exposure control, white balance, LUT, Gamma correction, and etc
- Adopts image interpolation algorithm for the color camera to have better color correction
- Power supply and data transmission via USB3.0 interface
- Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocols and standard.
Applications:
Electronic semiconductor, factory automation, logistics, liquor and beverage, medicine packing and etc

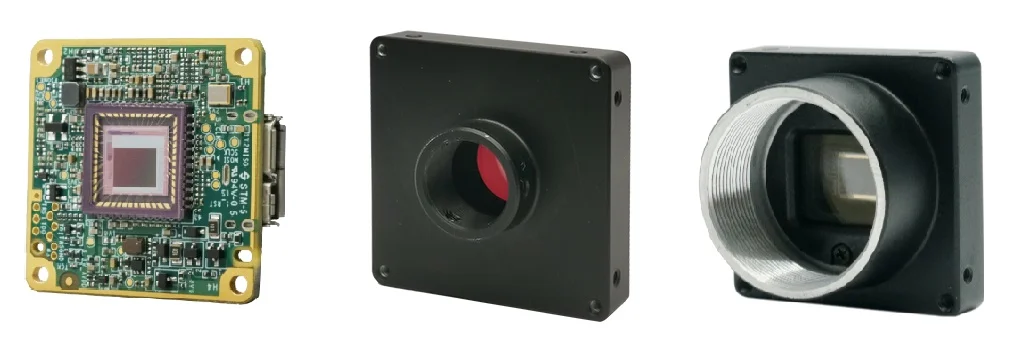

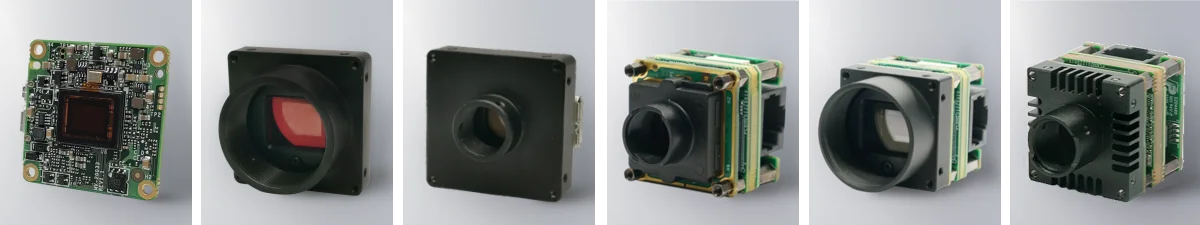

Available Models:
- Single board mono camera: HC-CB013- A0UM-B

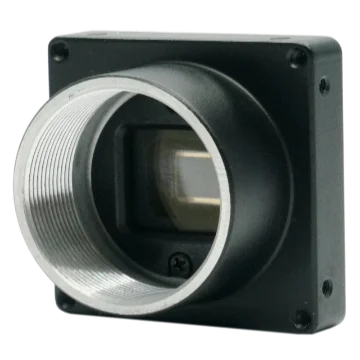

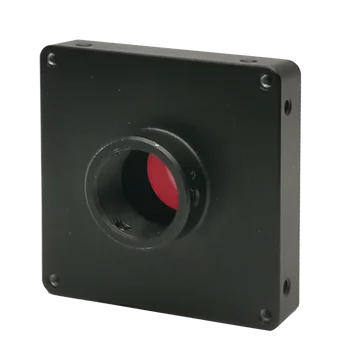

- C-mount mono camera: HC-CB013-A0UM-C
- C-mount color camera: HC-CB013-A0UC-C
- M12-mount mono camera: HC-CB013- A0UM-S
- M12-mount color camera: HC-CB013- A0UC-S
Specification:
| Model | Product Model | HC-CB013-A0UM |
| Type | 1.3MP Board Level Camera, USB3,ISG1307,Mono | |
| General | Certification | CE, FCC, RoHS, KC |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS | |
| Compatibility | USB3 Vision, GenICam | |
| Client software | MVS or third-party software compatible with USB3 Vision Protocol | |
| Performance | Sensor type | CMOS, global shutter |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Exposure mode | Off/ Once/ Continuous exposure mode | |
| Mono/color | Mono | |
| Gain | 0 dB to 16 dB | |
| Resolution | 1280 × 1024 | |
| Dynamic range | 53 dB | |
| Pixel size | 4.8 μm × 4.8 μm | |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Pixel format | Mono 8/10/10p/12/12p | |
| Exposure time | 9 μs to 10 sec | |
| SNR | 40 dB | |
| Sensor size | 1/2" | |
| Max. frame rate | 201 fps @1280 × 1024 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Mechanical | Weight | Single board camera: Approx. 10 g (0.02 lb.) C-mount camera: Approx. 30 g (0.07 lb.) M12-mount camera: Approx. 30 g (0.07 lb.) |
| Humidity | 20% to 80% RH, non-condensing | |
| Lens mount | Single board camera: None C-mount camera: C-mount M12-mount camera: M12-mount |
|
| Dimension | Single board camera: 32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1") C-mount camera: 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") M12-mount camera: 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") |
|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Electrical feature | Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Data interface | USB3.0 | |
| Power supply | USB3.0 power supply | |
| Power consumption | Typ. 1.6 W@5 VDC (USB3.0 provides power supply) |

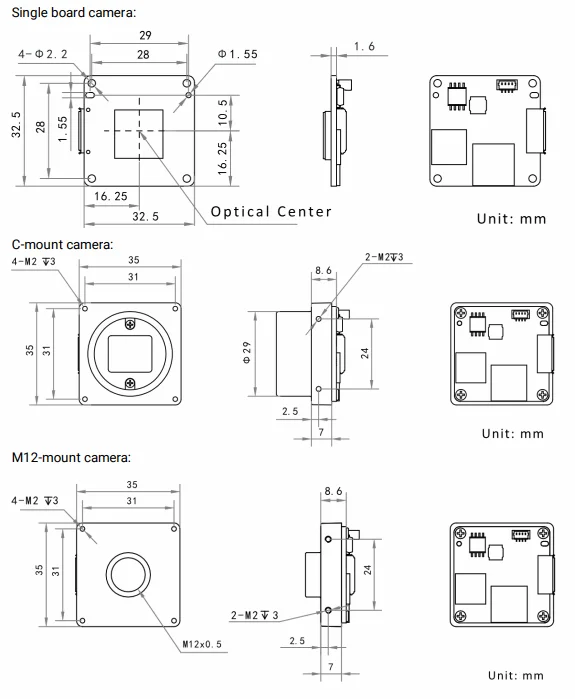

Dimension:
