Product Name:

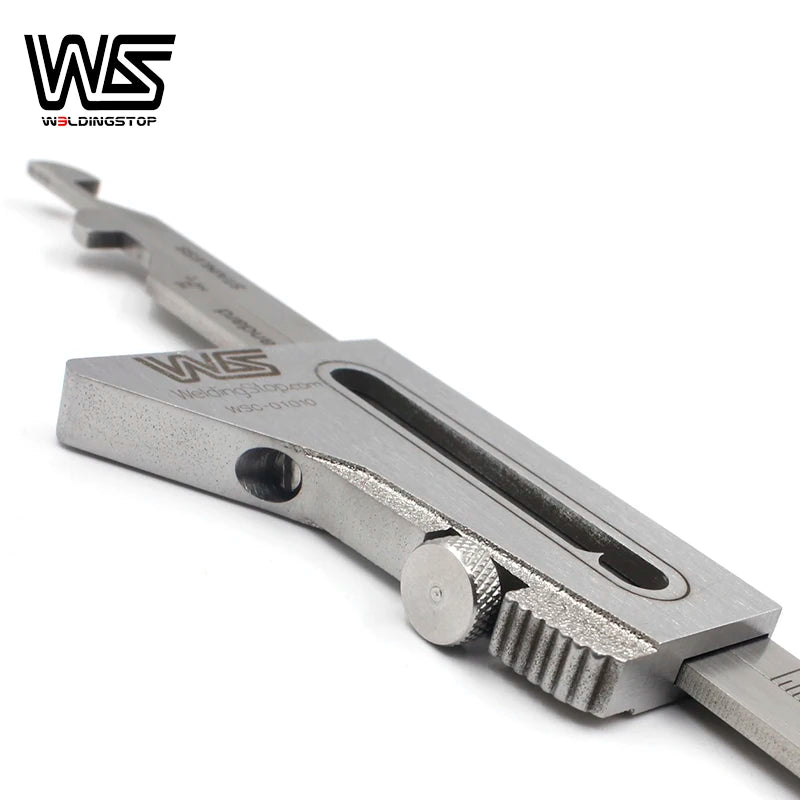

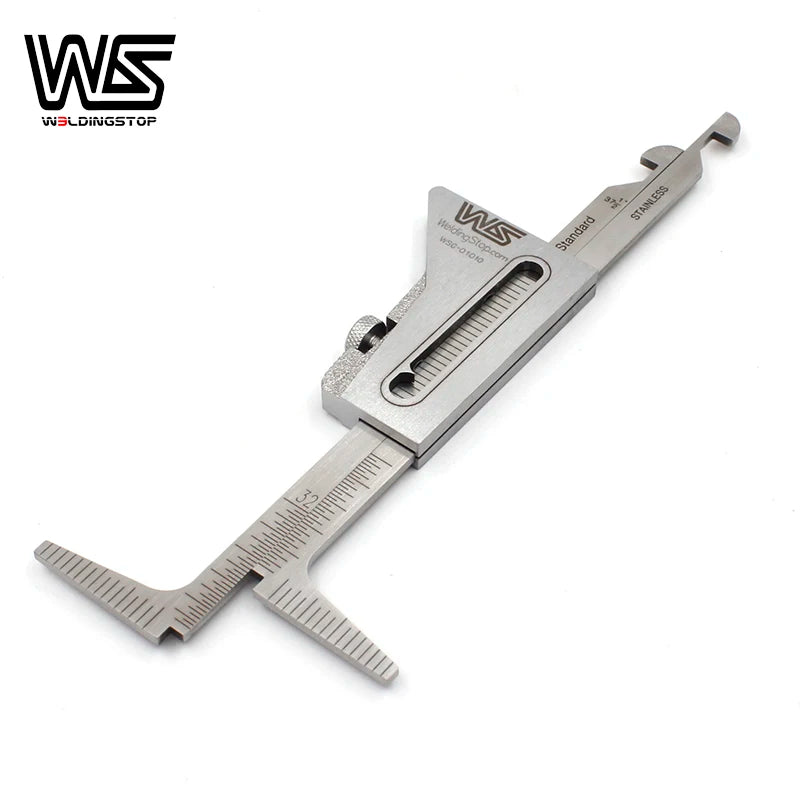

HI.LO Welding Gauge Test Ulnar Welder Inspection Both 32mm Metric & 37-1/2"inch

Descriptions:

Made of stainless steel material,  HI-LO WELDING GAGE,MEASURES INTERNAL ALIGNMENT,Of pipe after fit-up/ alignment, cuts radiographic rejects.

Application:

◆ Measures internal misalignment of pipe before and after tacking.

◆ Measurements read in standard one side, and metric on the opposite side.

◆ Changes from standard to metric simply remove gauge body,turn scales over and replace body;

Features:

◆ WS high quality welding gauge.

◆ Hi-Lo welding gauge could measure pipe internal misalignment  or thickness

◆ Measurements read in standard one side, and metric on the opposite side

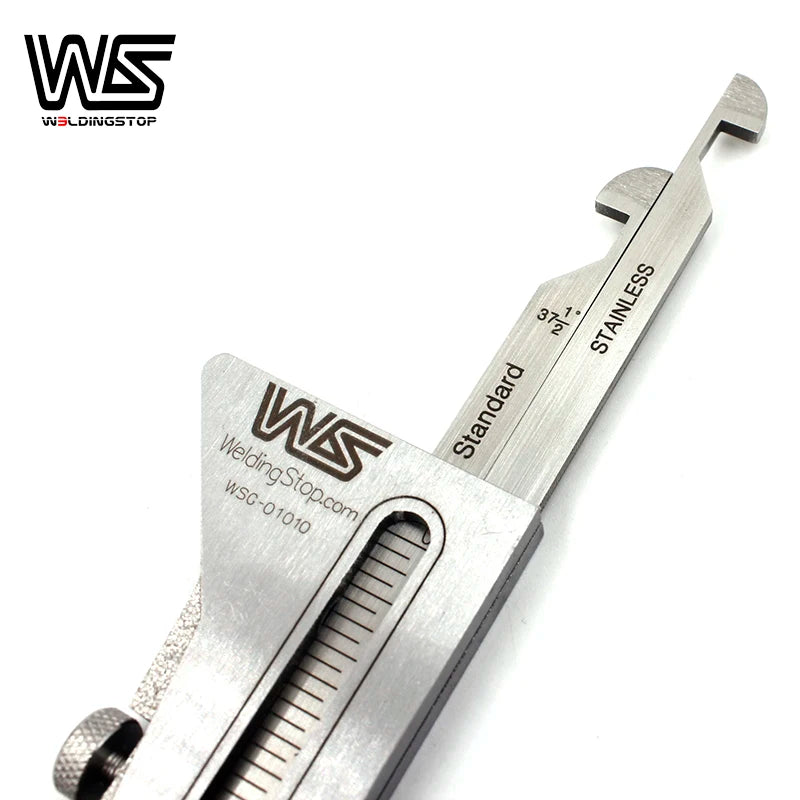

◆ The Numbers and scales are laser engraving for clearer and more wearable

◆ Gauge is made of stainless steel

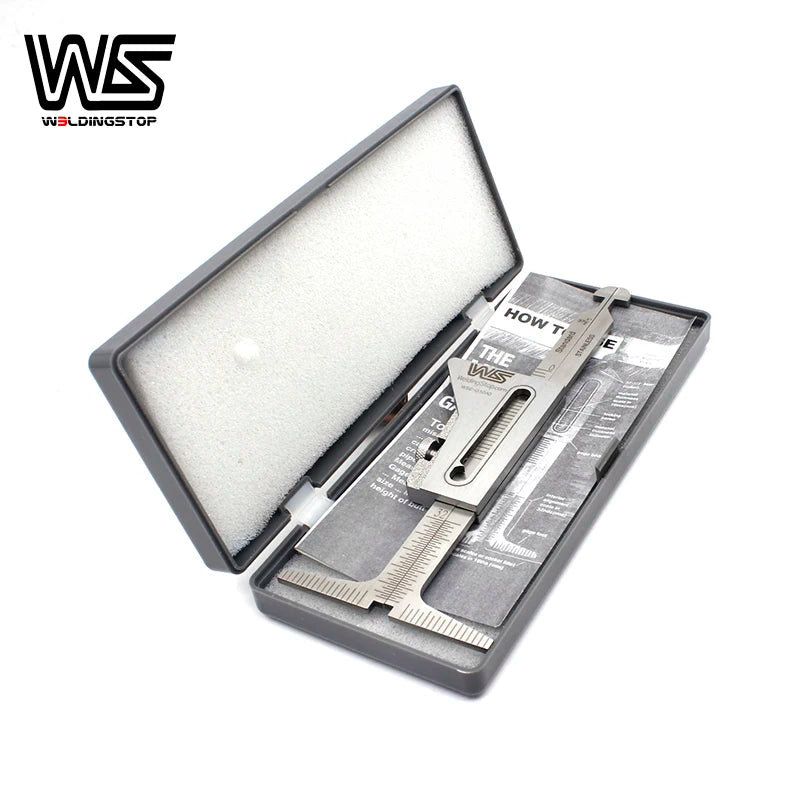

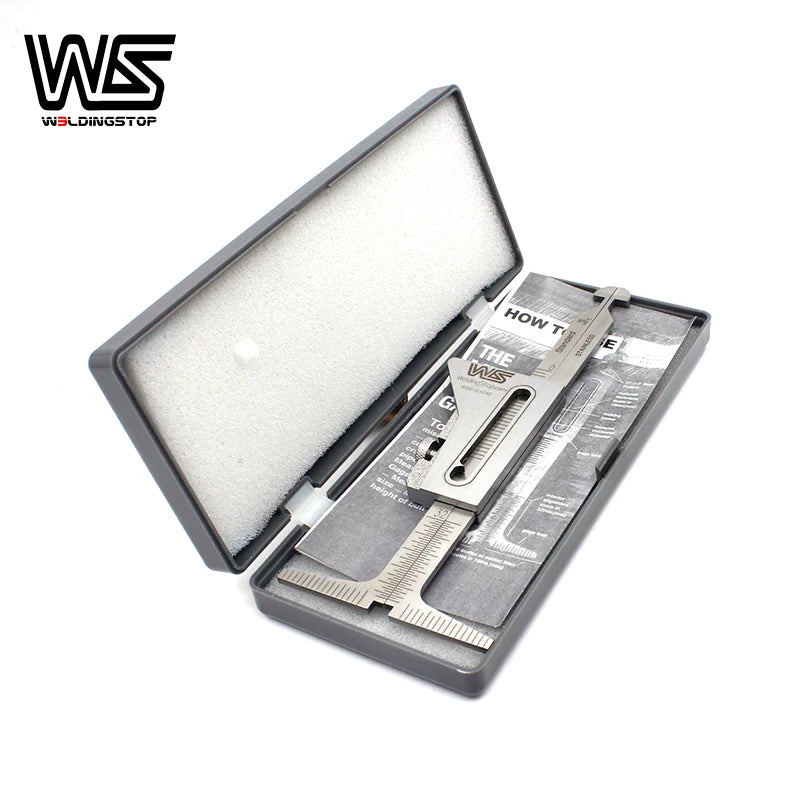

◆ Packed in plastic box for easy storage and carrying, and it can reduce wear and tear on the gauge

◆ The gauge has an instruction that you can download for understanding how to use better

Specifications:

◆ Material:stainless steel

◆ Scales Engraving Type: Laser Engraving

◆ Weight: 158g

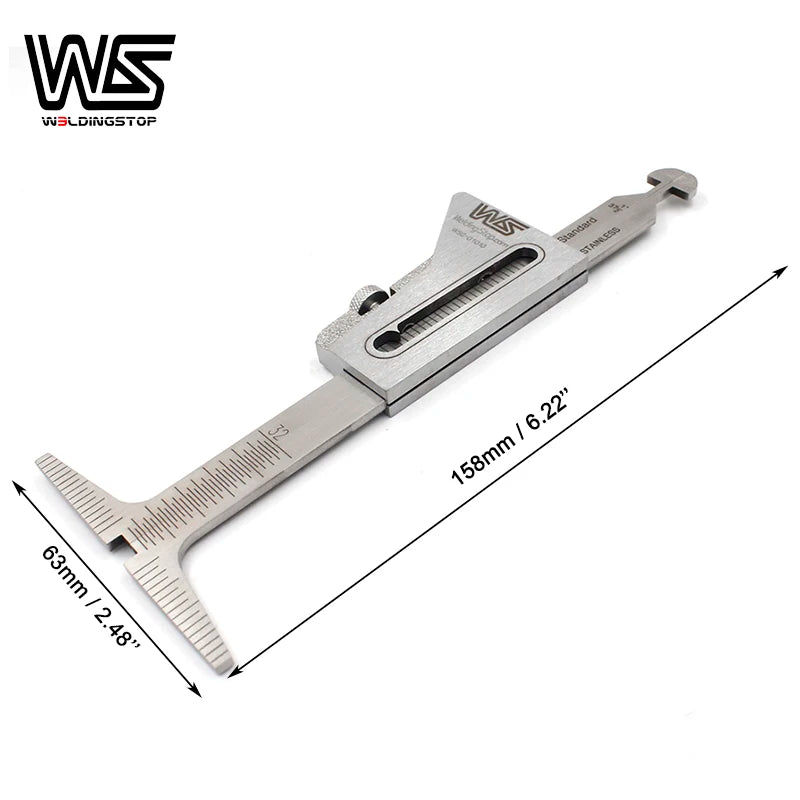

◆ Size：Show in the picture

◆ Transition: 1cm=10mm=0.39inch

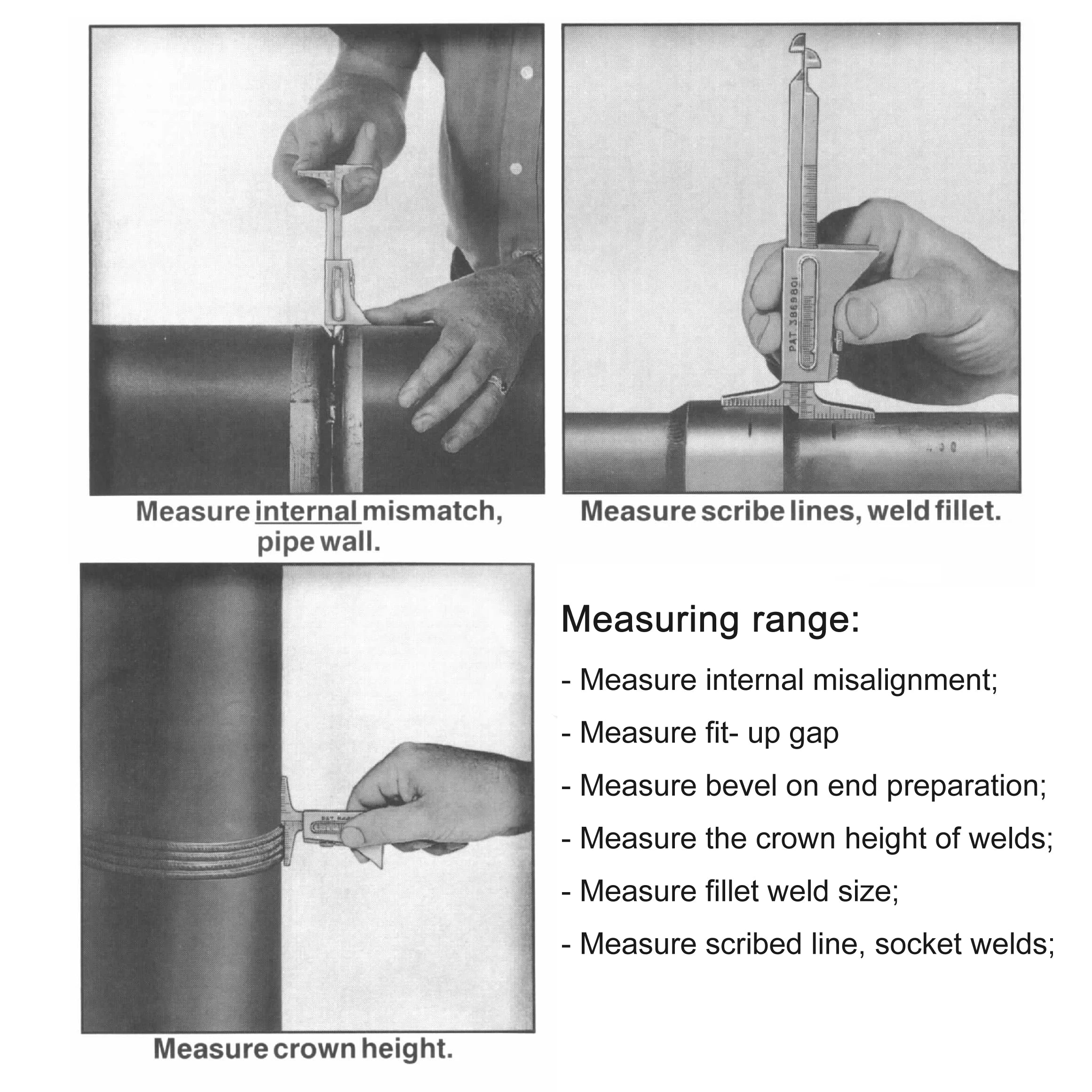

◆ Measuring range:

- Measure internal misalignment;

- Measure fit- up gap

- Measure bevel on end preparation;

- Measure the crown height of welds;

- Measure fillet weld size;

- Measure scribed line, socket welds;

- Can be calibrated to NBS standard.

Package Included:

◆ 1pc x High Low Gauge WSG-01010

◆ 1pc plastic packing box and instruction manual
