SPECIFICATIONS

Brand Name: NONE

Certification: CE,Dot,EAC,EPA,FCC,FDA,GMP,RoHS,TGA,UL,KC,pse,weee

DIY Supplies: Electrical

High-concerned chemical: None

Model Number: High Precision Gas Flow Meter

Origin: Mainland China

PCB included: Yes

Semi-finishedproduct: No

Type 1: gas level indicator

Type 10: gas gauge

Type 2: gas meter

Type 3: cylinder gas meter

Type 4: lp gas meter

Type 5: lpg gas accessories

Type 6: lpg level indicator

Type 7: measures the amount of gas in a container

Type 8: gas level indicator

Type 9: gas counter

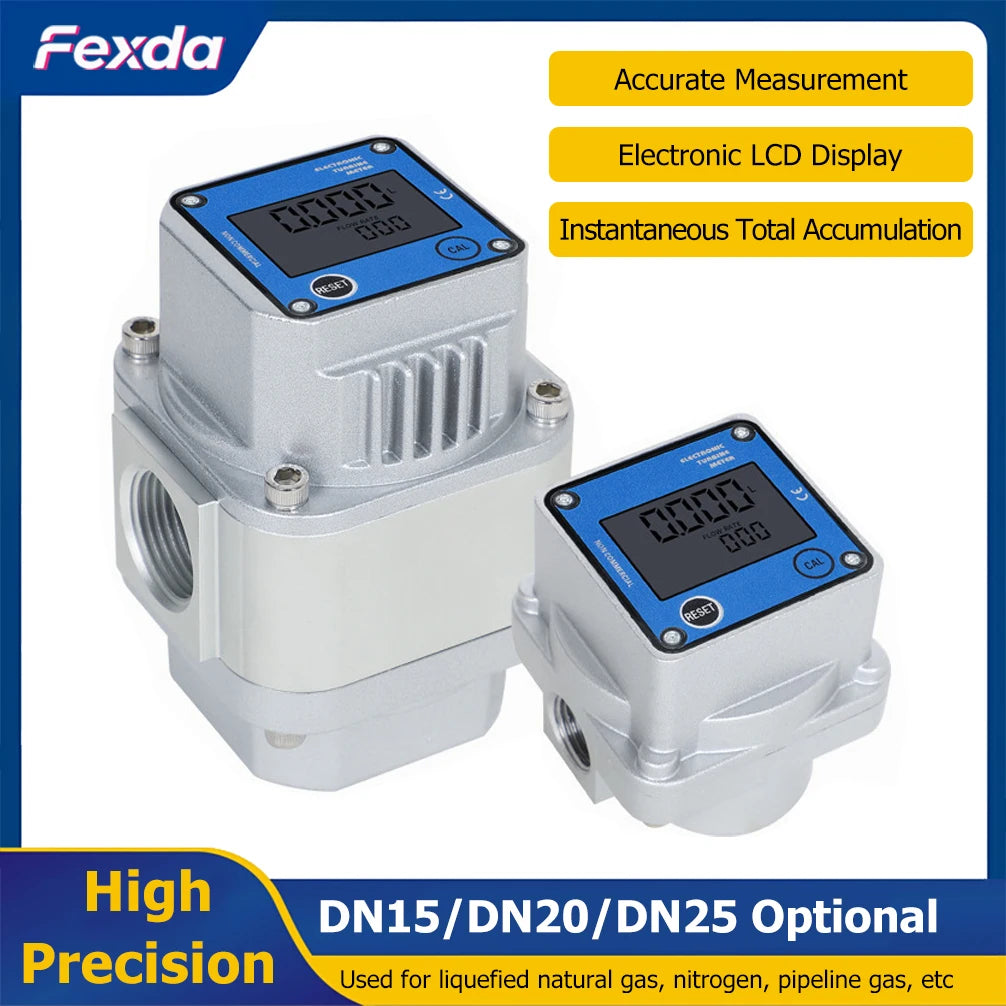

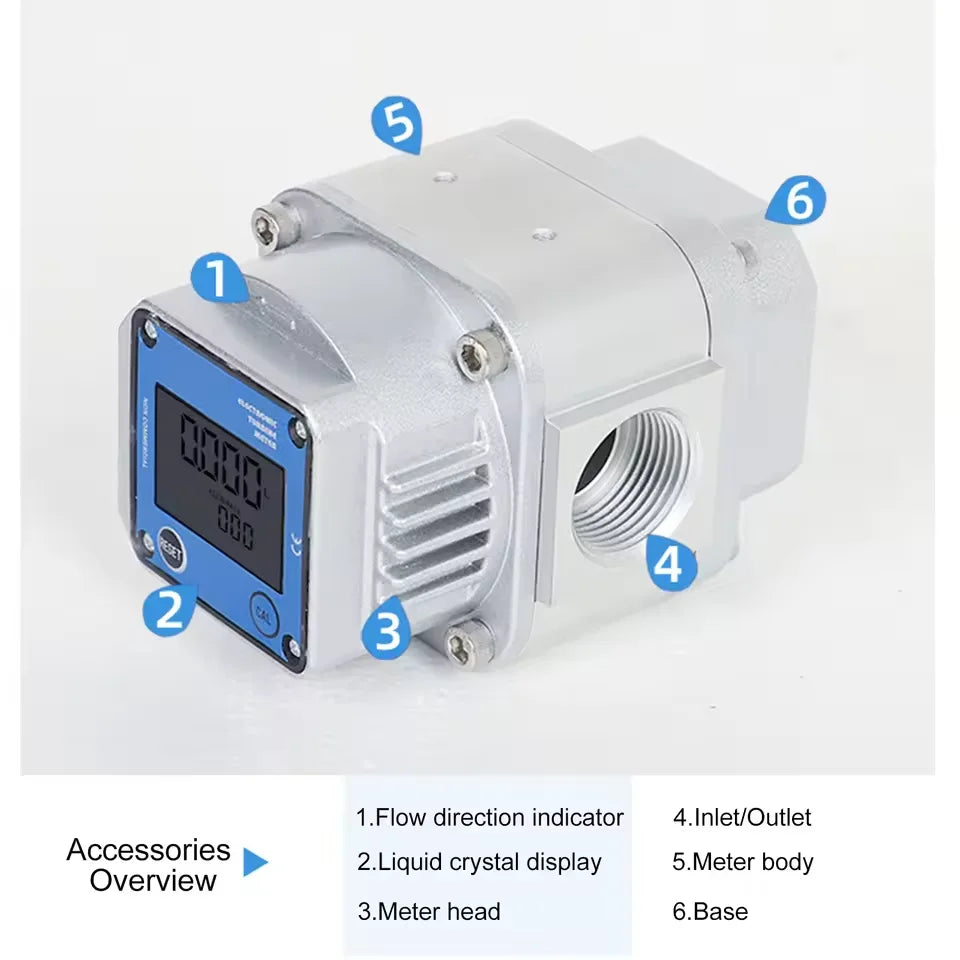

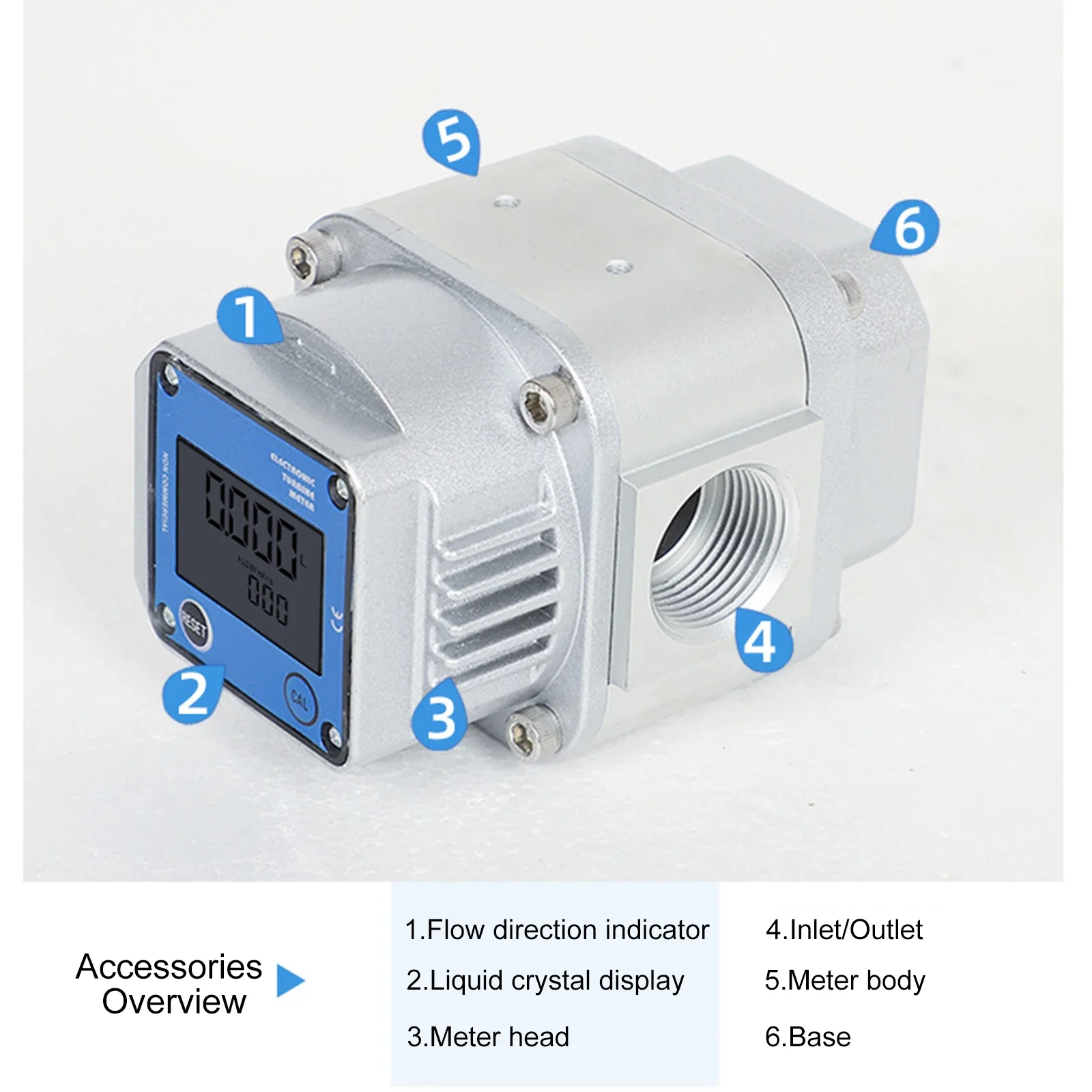

High Precision Gas Flow Meter Digital LCD Display Roots Flowmeter for Liquefied Natural Gas Oxygen Industry-Grade DN15/20/25

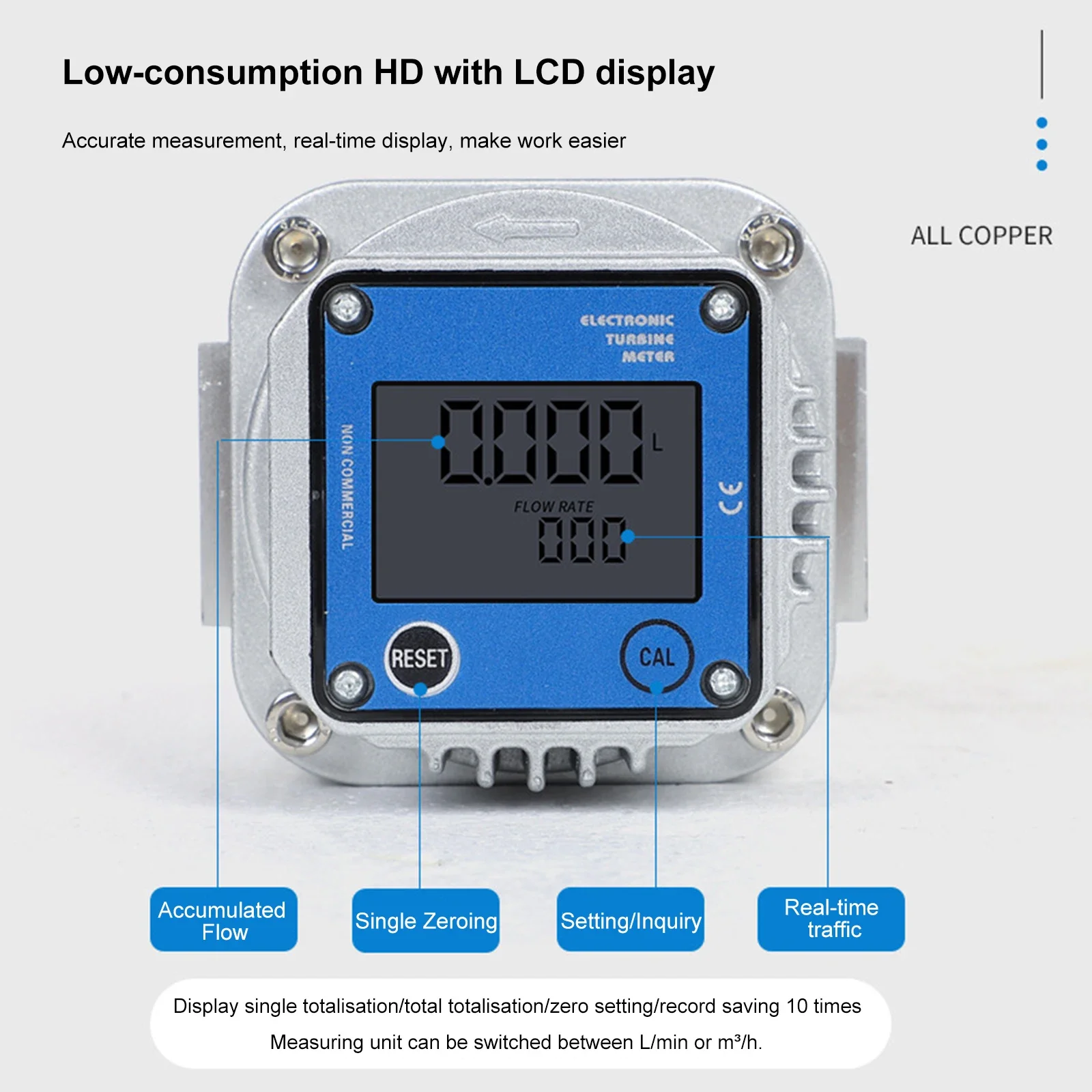

1. Accurate measurement: Individual totalization/total totalization/zero setting/record keeping for 10 times can be displayed. Measuring unit can be switched between L/min or m³/h.

2. Professional gas metering, DN15/DN20/DN25 three calibers to meet different needs.

3. Widely used in municipal gas, petrochemical, industrial metallurgy, etc. Liquefied natural gas, nitrogen, steam, pipeline gas, etc.

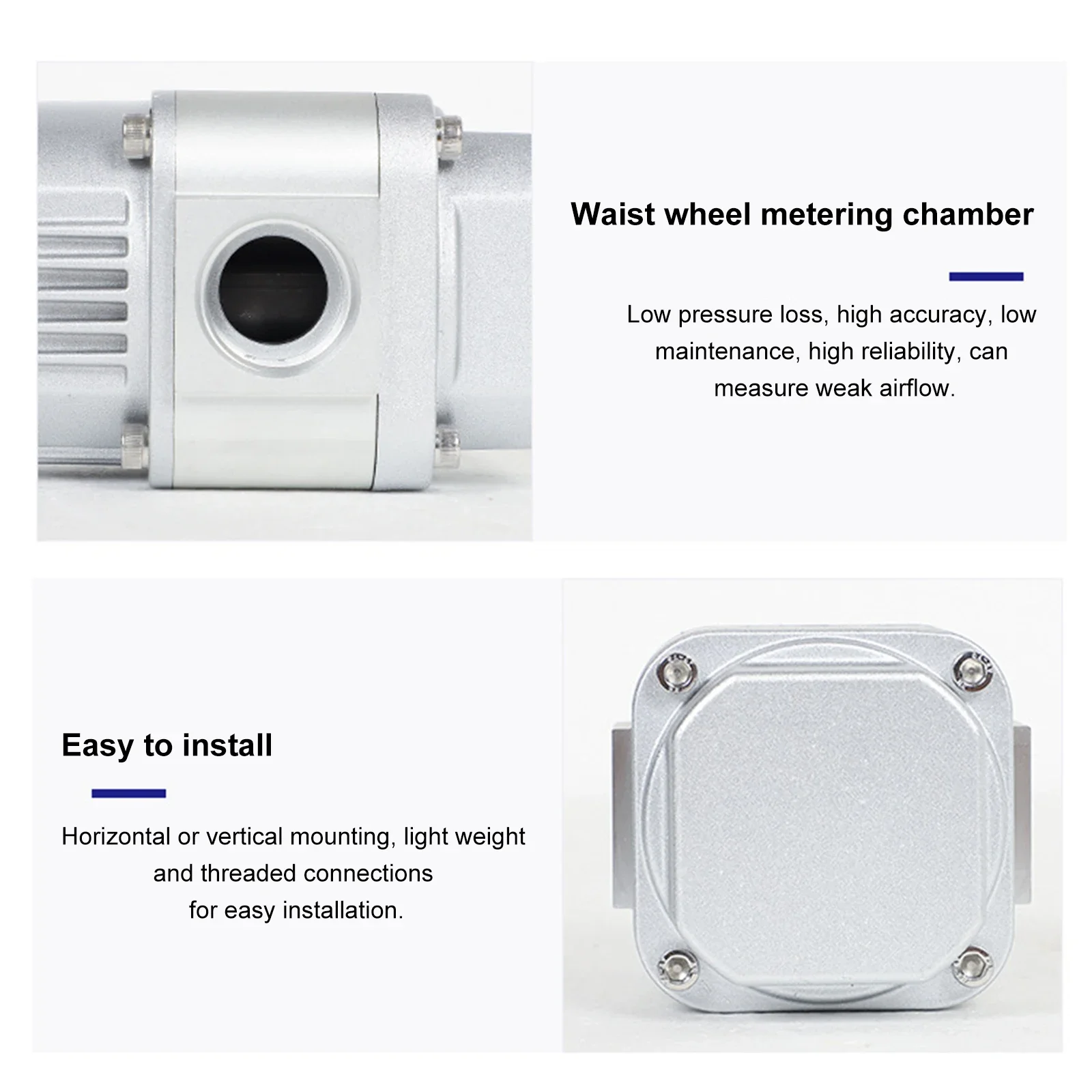

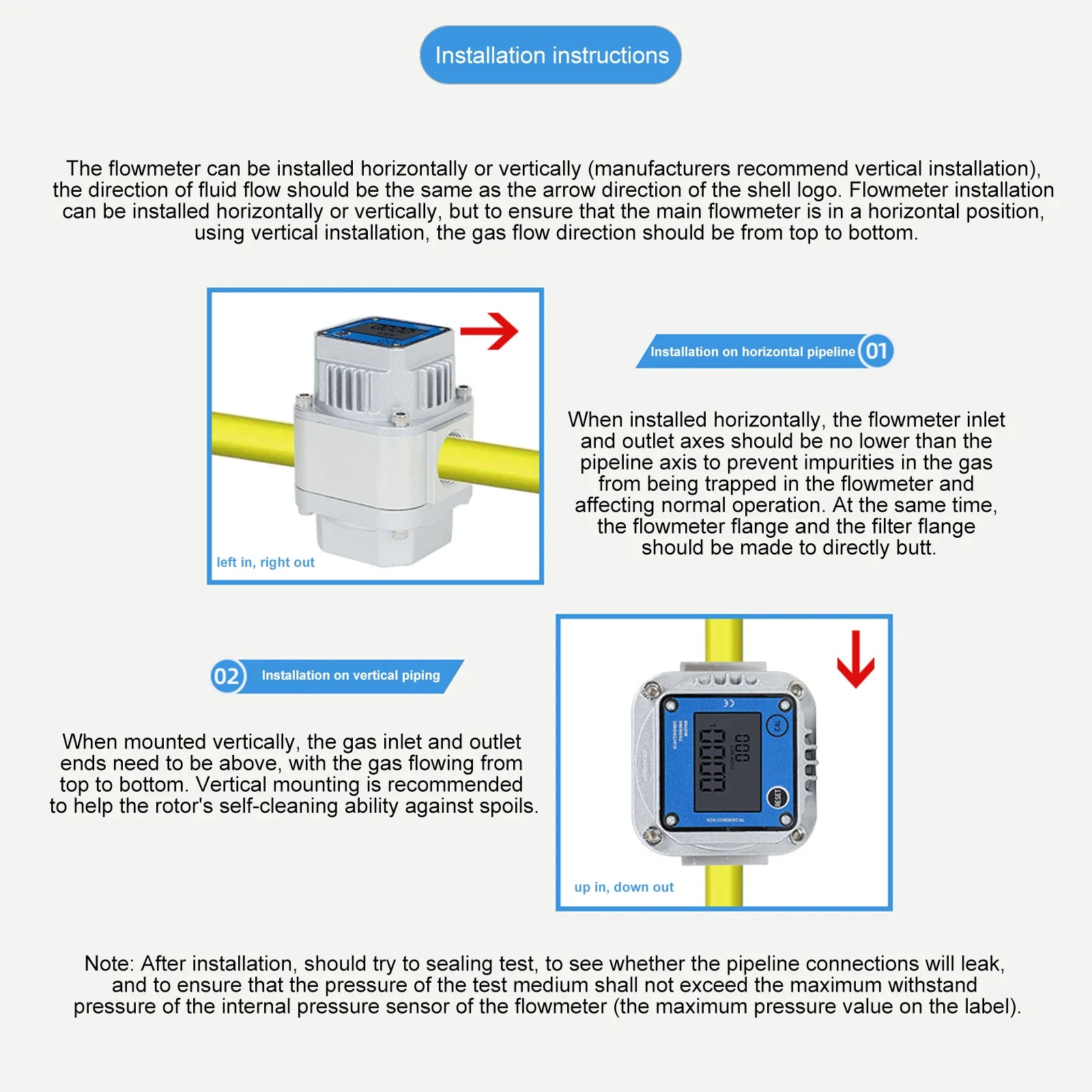

4. Easy to install, horizontal or vertical mounting, light weight and threaded connections for easy installation.

5. Matching: Filter screws (can effectively filter pipe impurities).

Item name: Gas flow meter

Measurable media: natural gas, liquefied gas, compressed air, oxygen, nitrogen and other gases

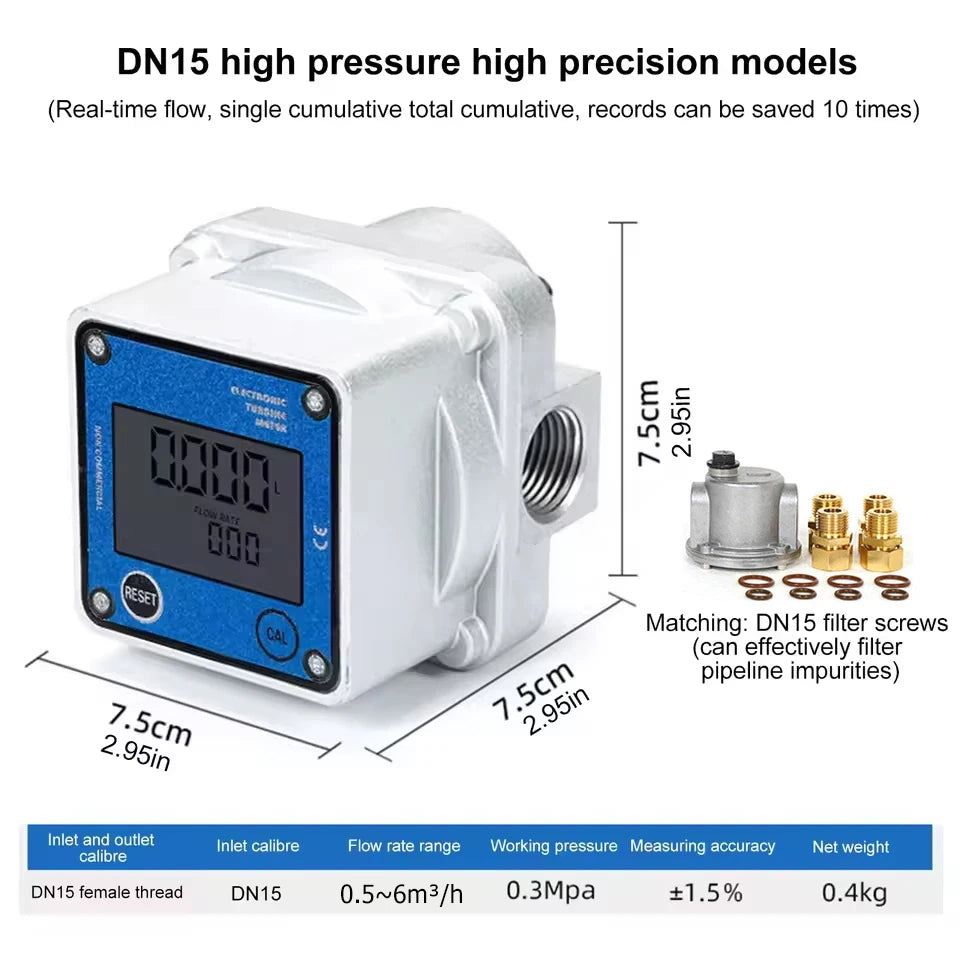

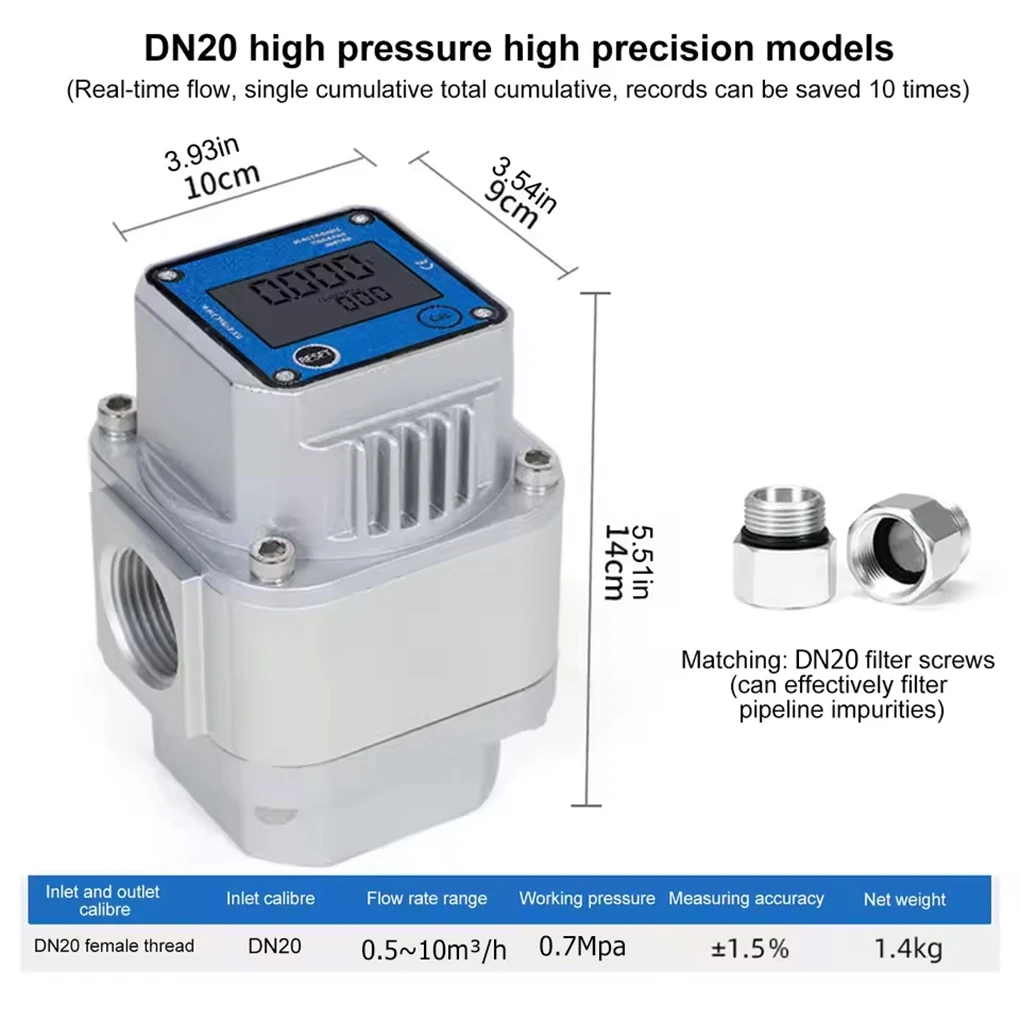

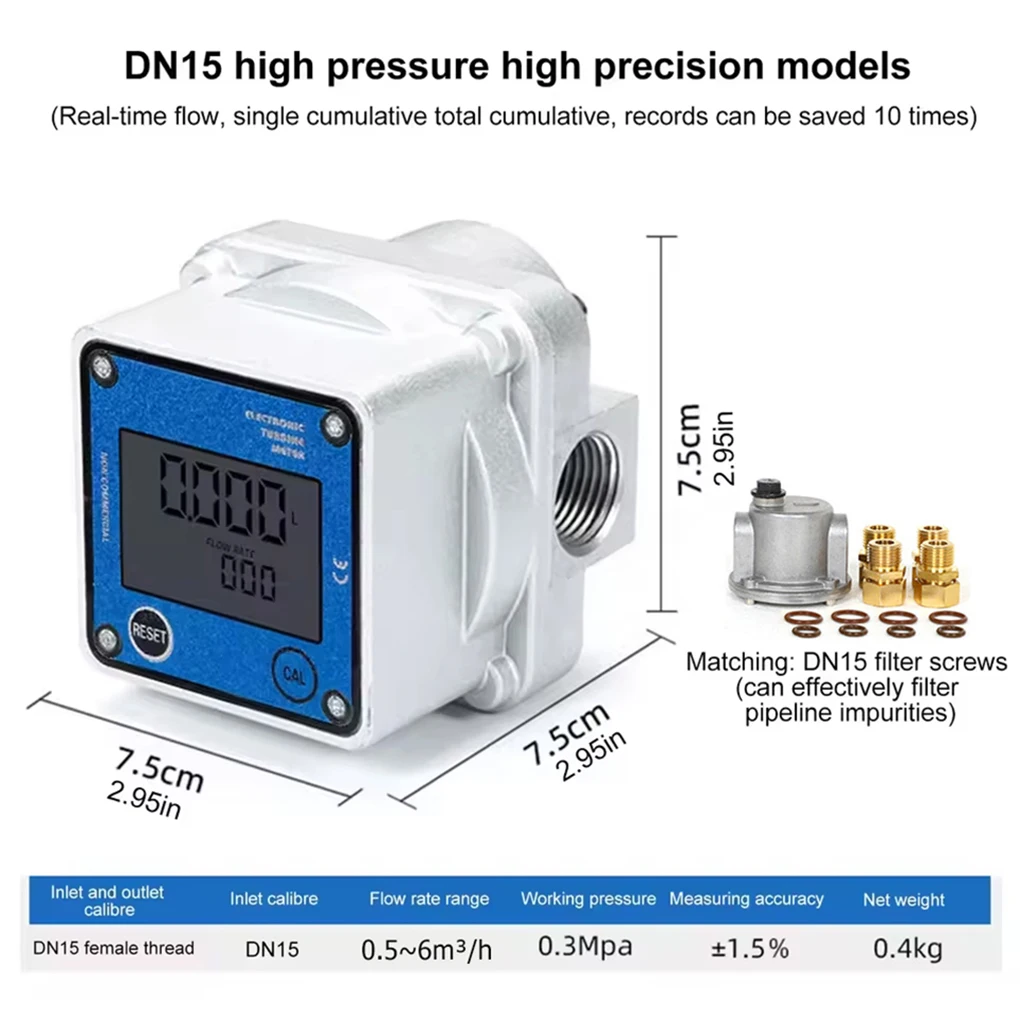

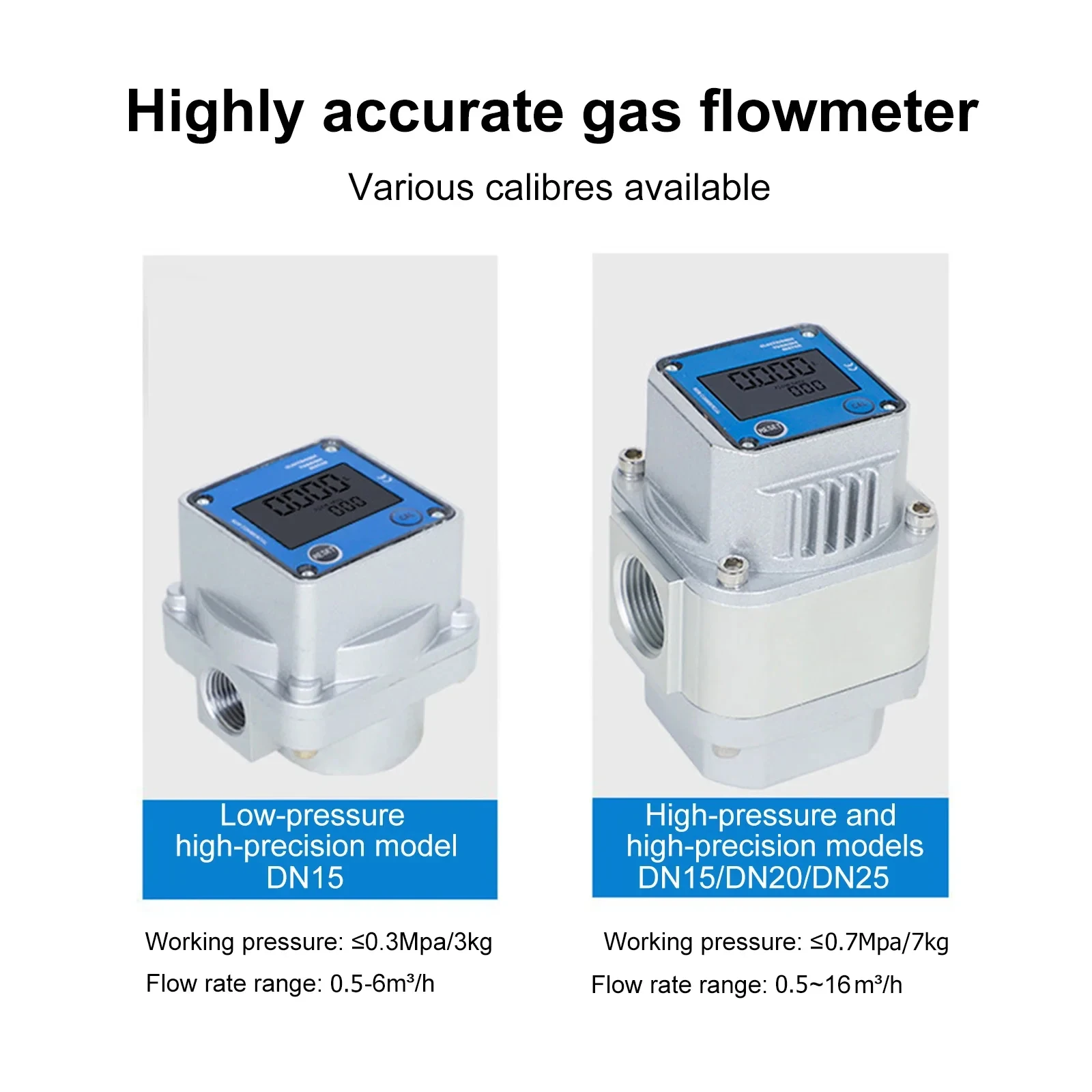

Optional Type: DN15 low pressure(Bearing capacity: 3 kg), DN15 high pressure(Bearing capacity: 7 kg), DN20 high pressure(Bearing capacity: 7 kg), DN25 high pressure(Bearing capacity: 7 kg)

Flow range: 0.5~6mm³/h (DN15 low pressure), 0.5~16m³/h (DN15,DN20,DN25 high pressure)

Working pressure: ≤0.3Mpa(DN15 low pressure), ≤0.7Mpa(DN15,DN20,DN25 high pressure)

Product configuration: Filter fittings

Item size: As shown

Matching filter screws: 2
