SPECIFICATIONS

Batteries: 2x1.5V AAA batteries,not included

Battery Included: no

Brand Name: Hilitand

Certification: CE

Choice: yes

High-concerned chemical: None

Material: ABS

Measuring Range: 0-2000 microns

Model Number: Thickness Gauge

Name: Thickness Gauge

Origin: Mainland China

Package Dimensions: 128x55x36 mm/5.04x2.17x1.42 inches

Package Weight: 109 g/3.84 oz

Product Dimensions: 122x50x22 mm/4.80x1.97x0.87 inches

Resolution: 0.01 mm

With Backlight Or Not: Yes

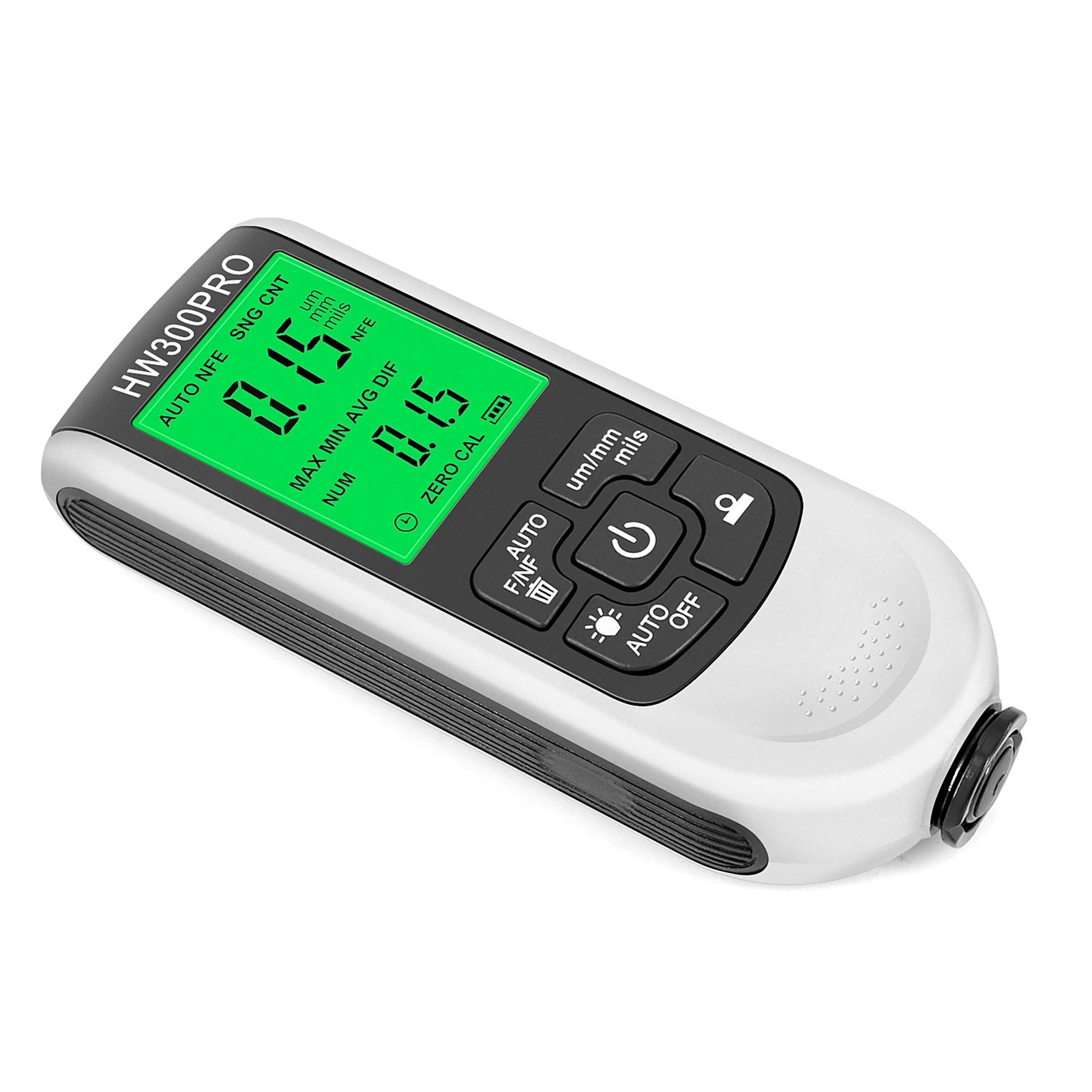

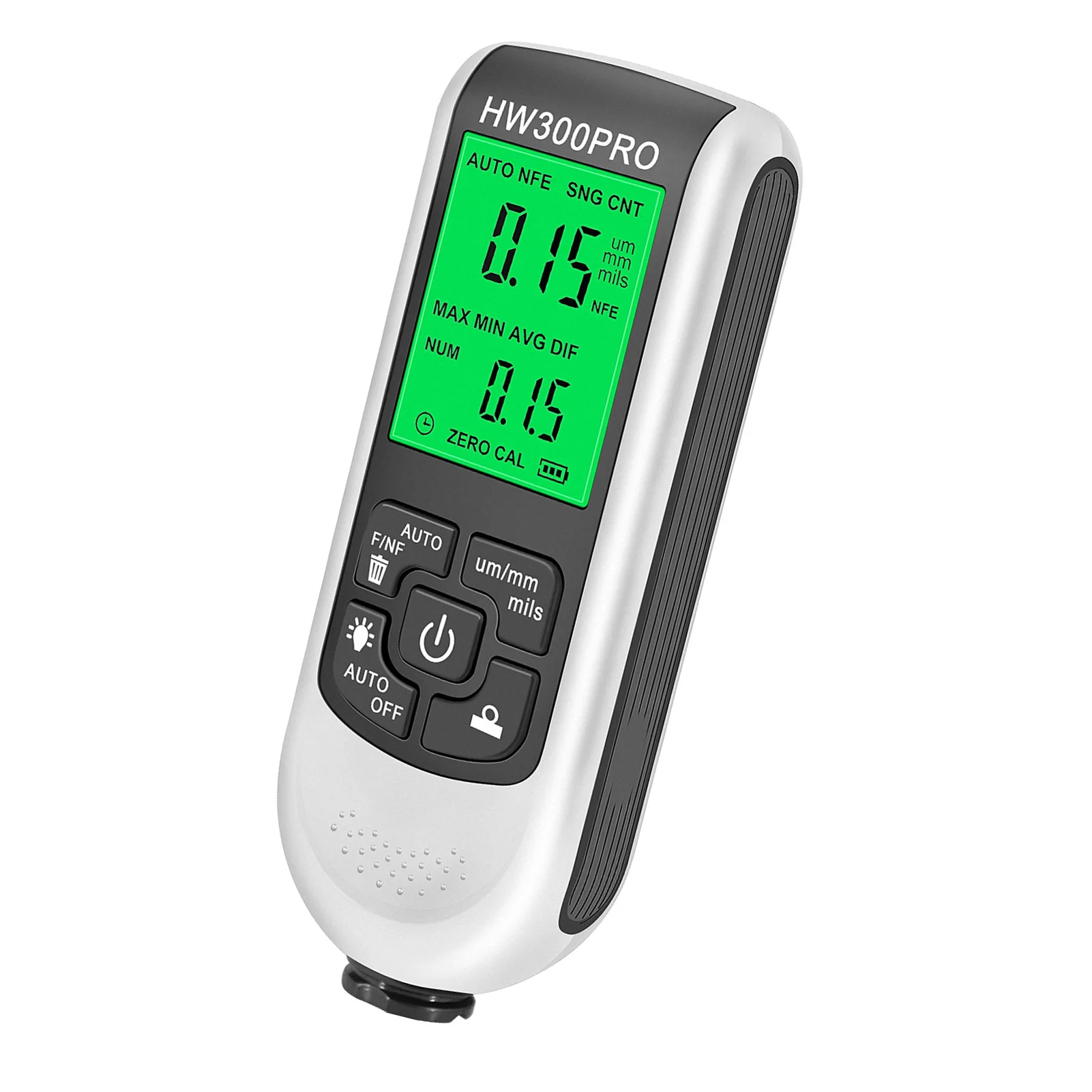

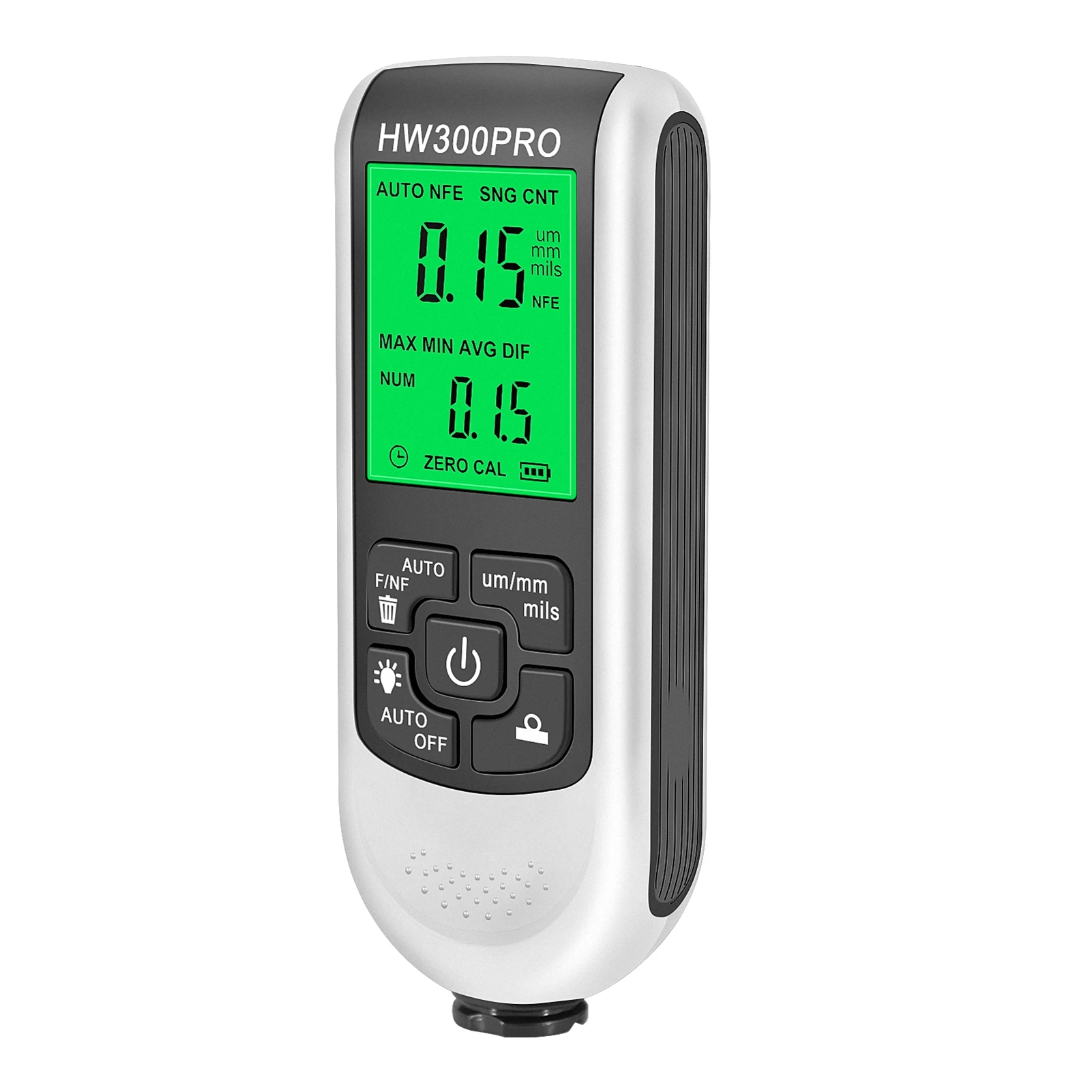

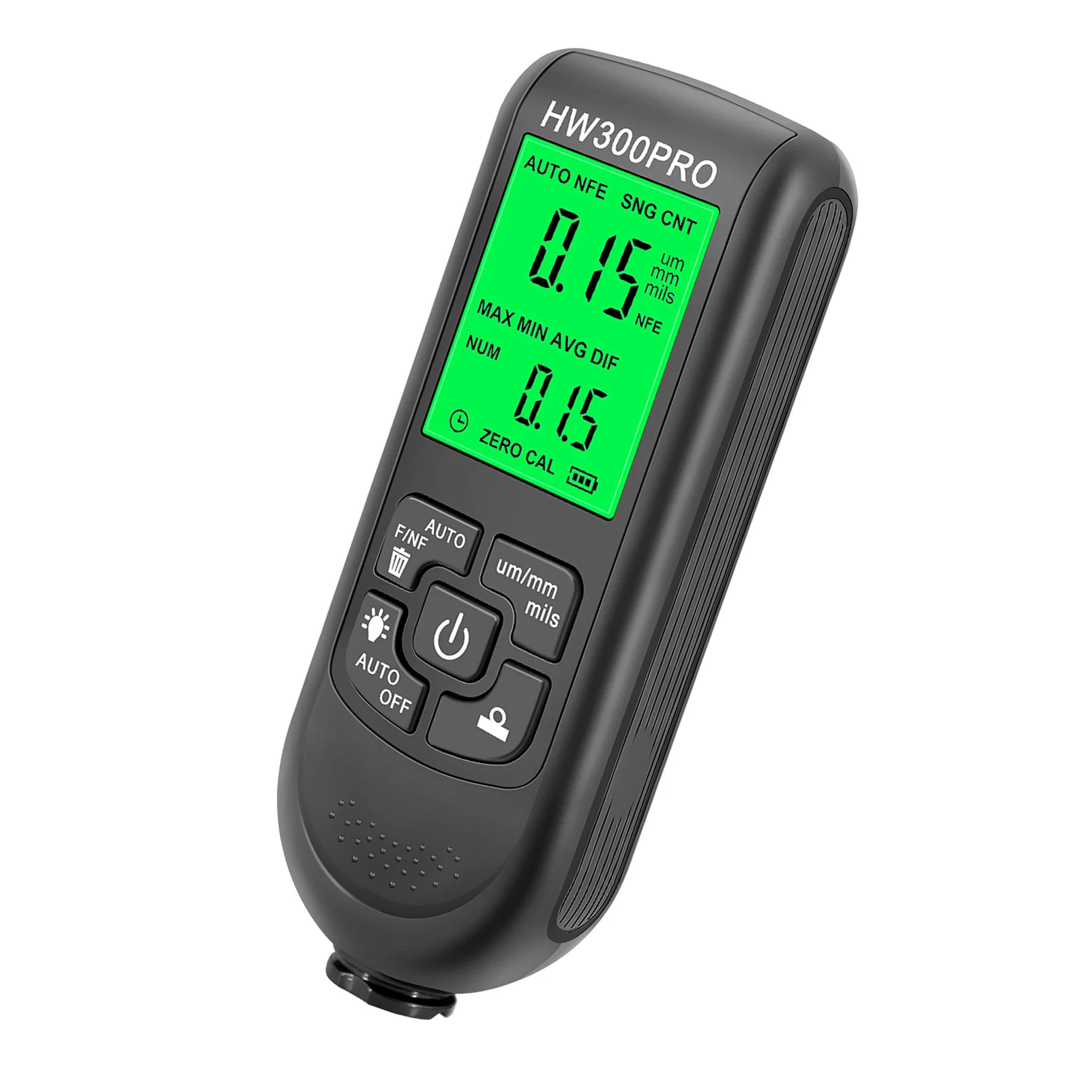

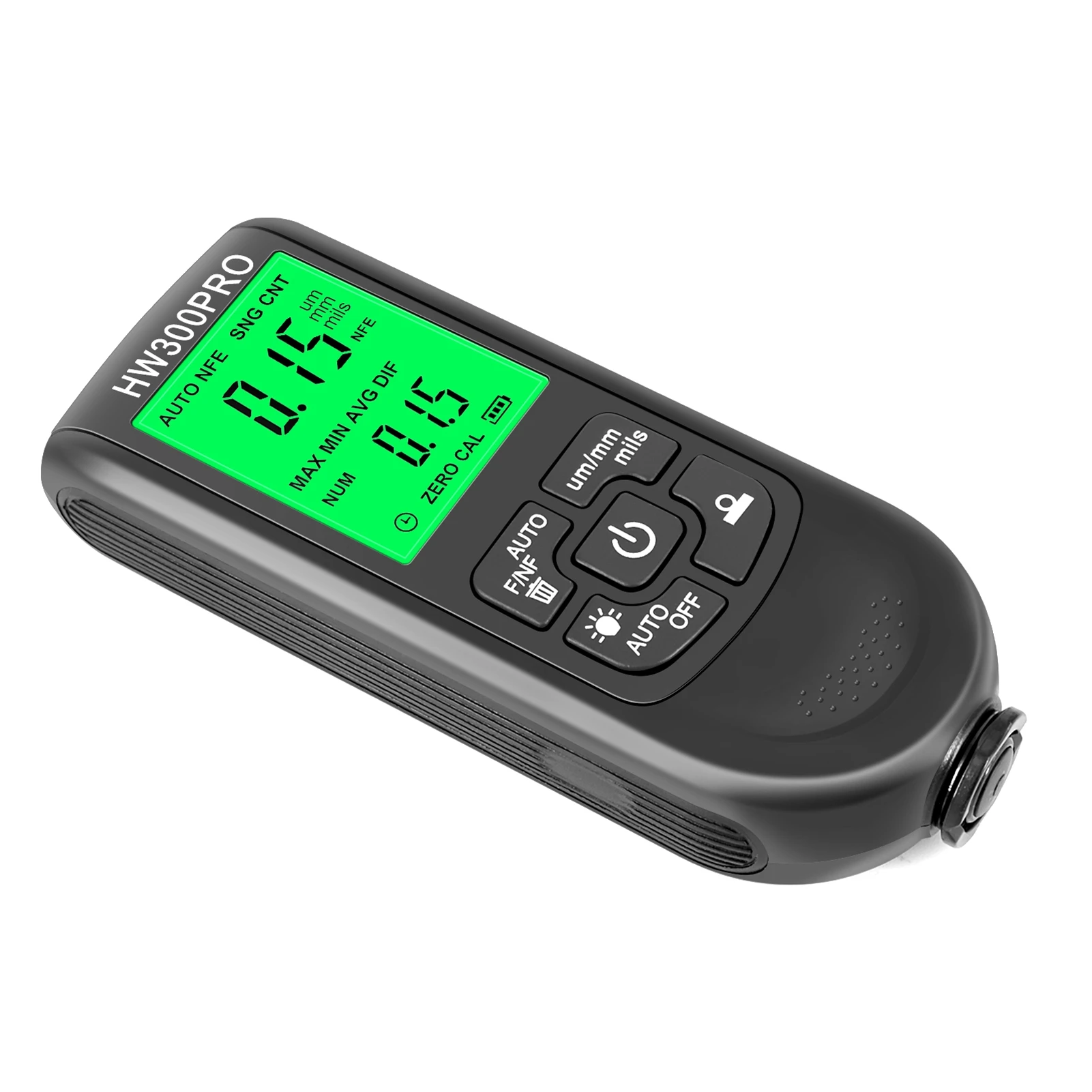

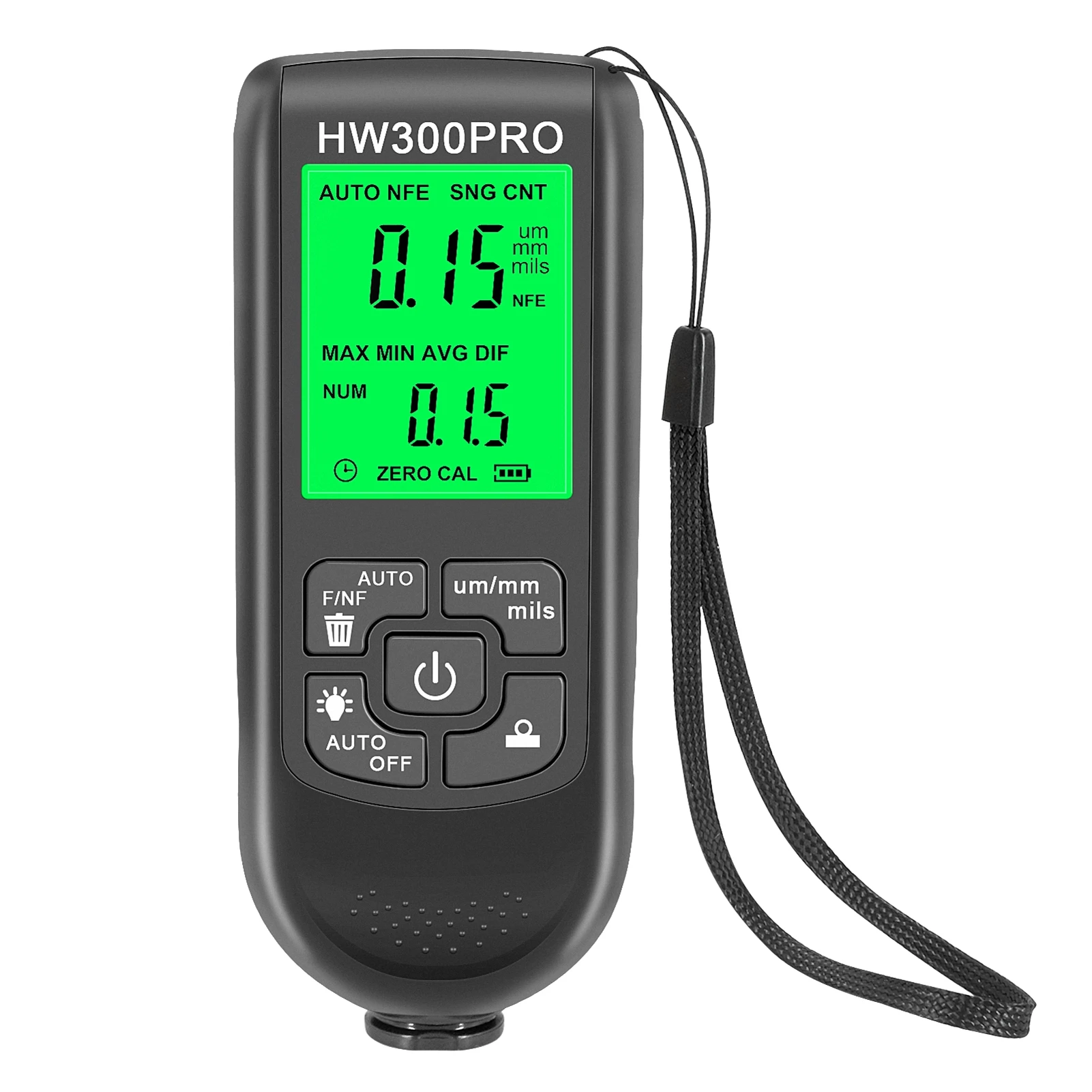

0-2000UM Thickness Gauge High Precise LCD Digital Automobile Film Thickness Meter Car Paint Coating Thickness Tester Three Probe Modes Three Units Switching with Multi-point and Zeroing Calibration Fu

Specification:

The gauge is used to measure the thickness of metal plating and coatings such as paint/enamel/chrome on steel, paint and anodic oxide coatings on aluminum/copper. Automatically detects the attributes of the substrate. It can be used to non-destructively measure the thickness of coatings and paints. It is an essential equipment for material surface and is widely used in manufacturing, metal processing industry, chemical industry, commercial inspection, etc. It can also work stably in the laboratory, workshop and outdoors.
Features:

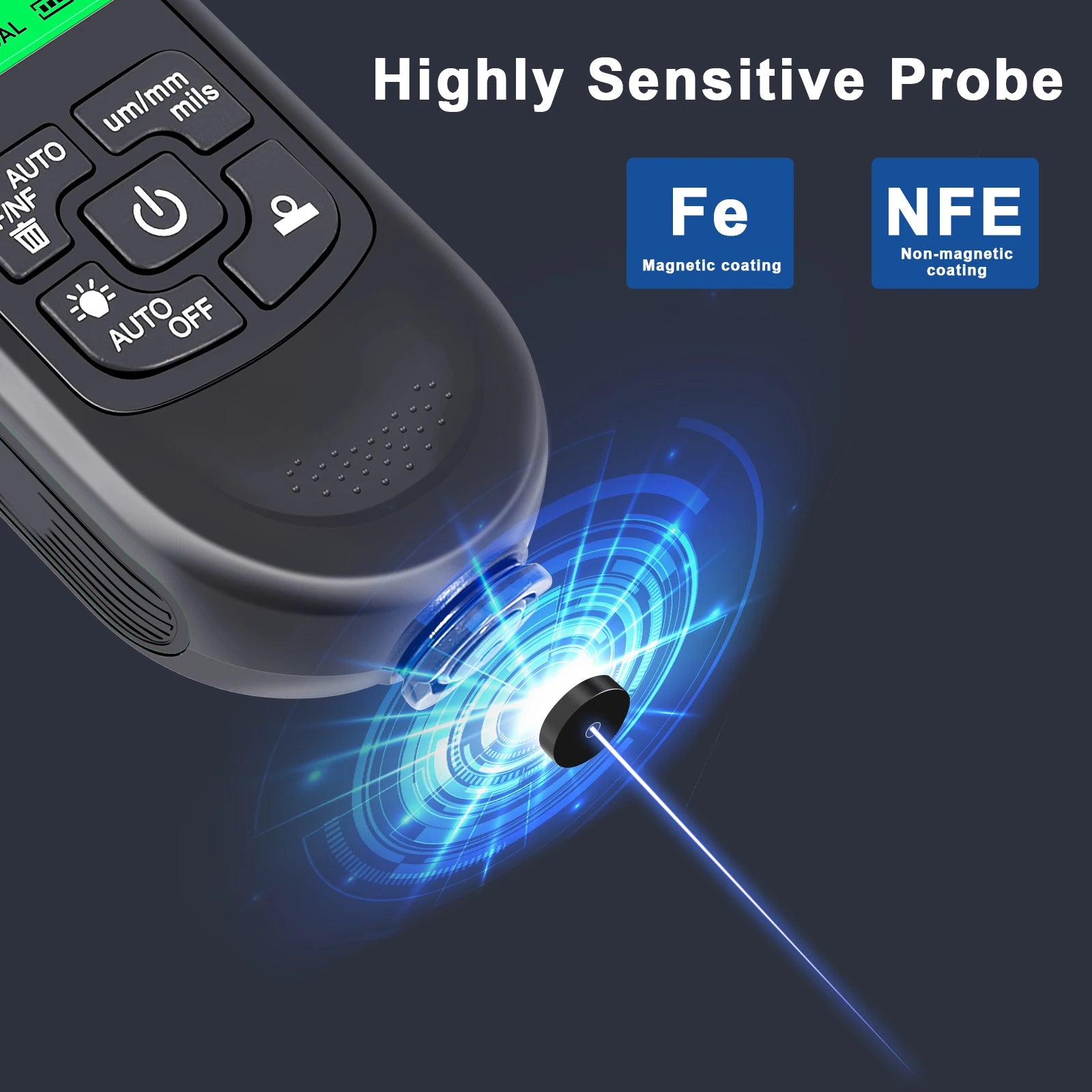

Easy Operation: Built-in magnetic induction and vortex double principle probe, can automatically identify the measured metal substrate, only need to be placed on the measured surface, can automatically calculate the thickness of the coating.

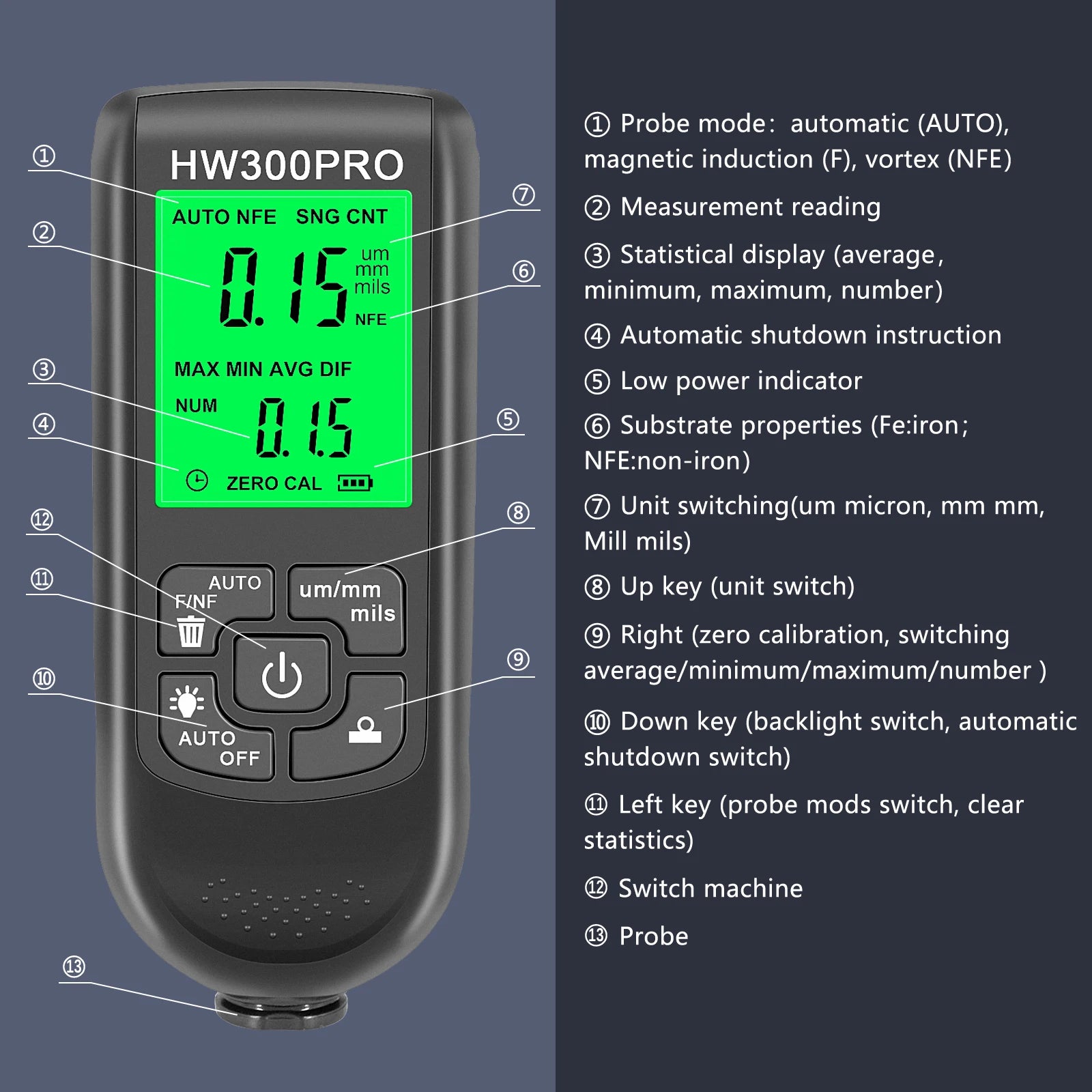

Digital LCD Display: Digital display with backlight, support statistical data display, average, minimum, maximum and number. This instrument supports up to 50 data to carry on the statistics, when reaches 50, the latest data will replace the oldest data, the statistical value will be updated automatically.
Three Probe Modes: With three probe modes of automatic (AUTO) mode, magnetic induction (F) mode and vortex (NFE) mode, you can switch depending on your needs.
Unit Switching Function: Press to switch the units between um micron, mm mm and Mill mils.

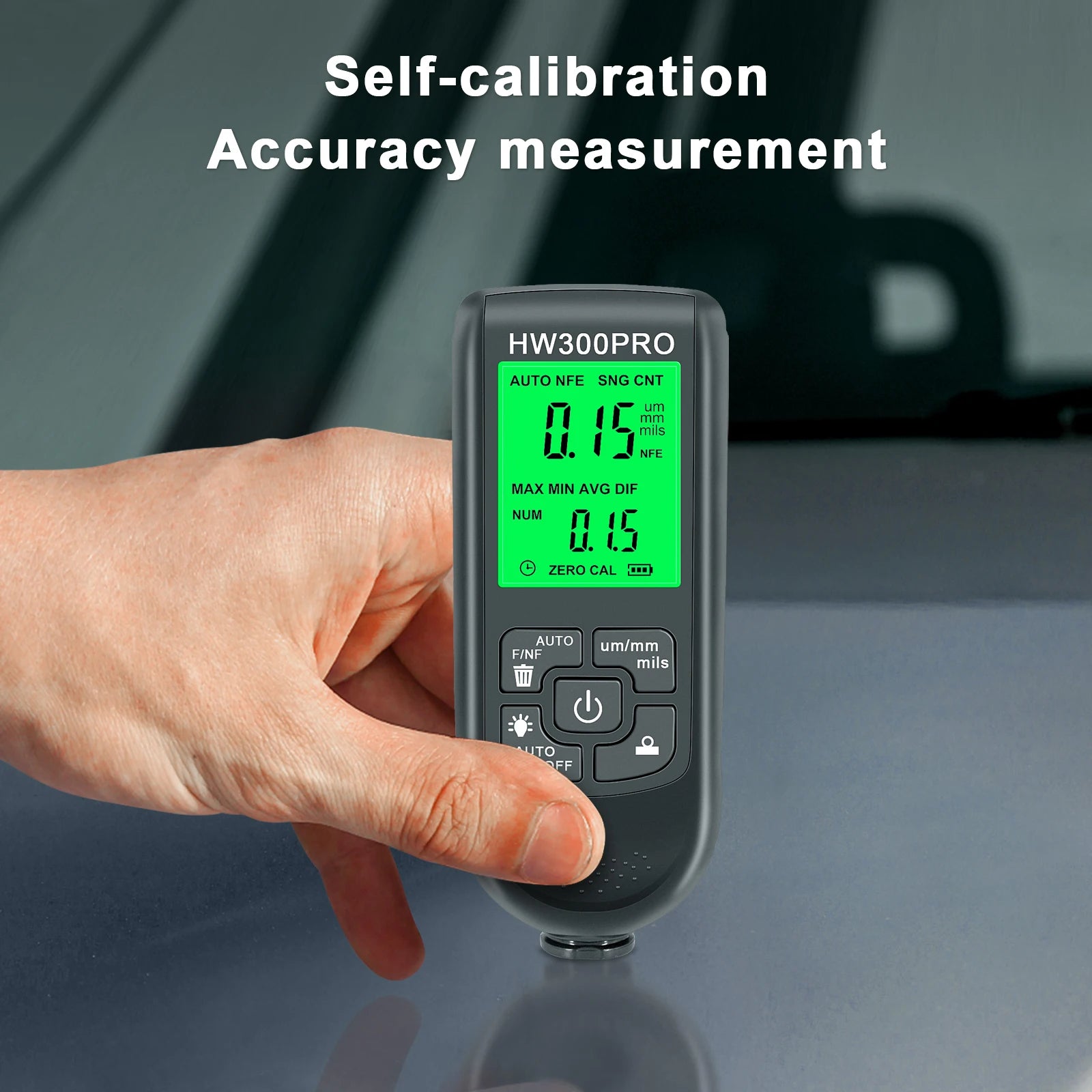

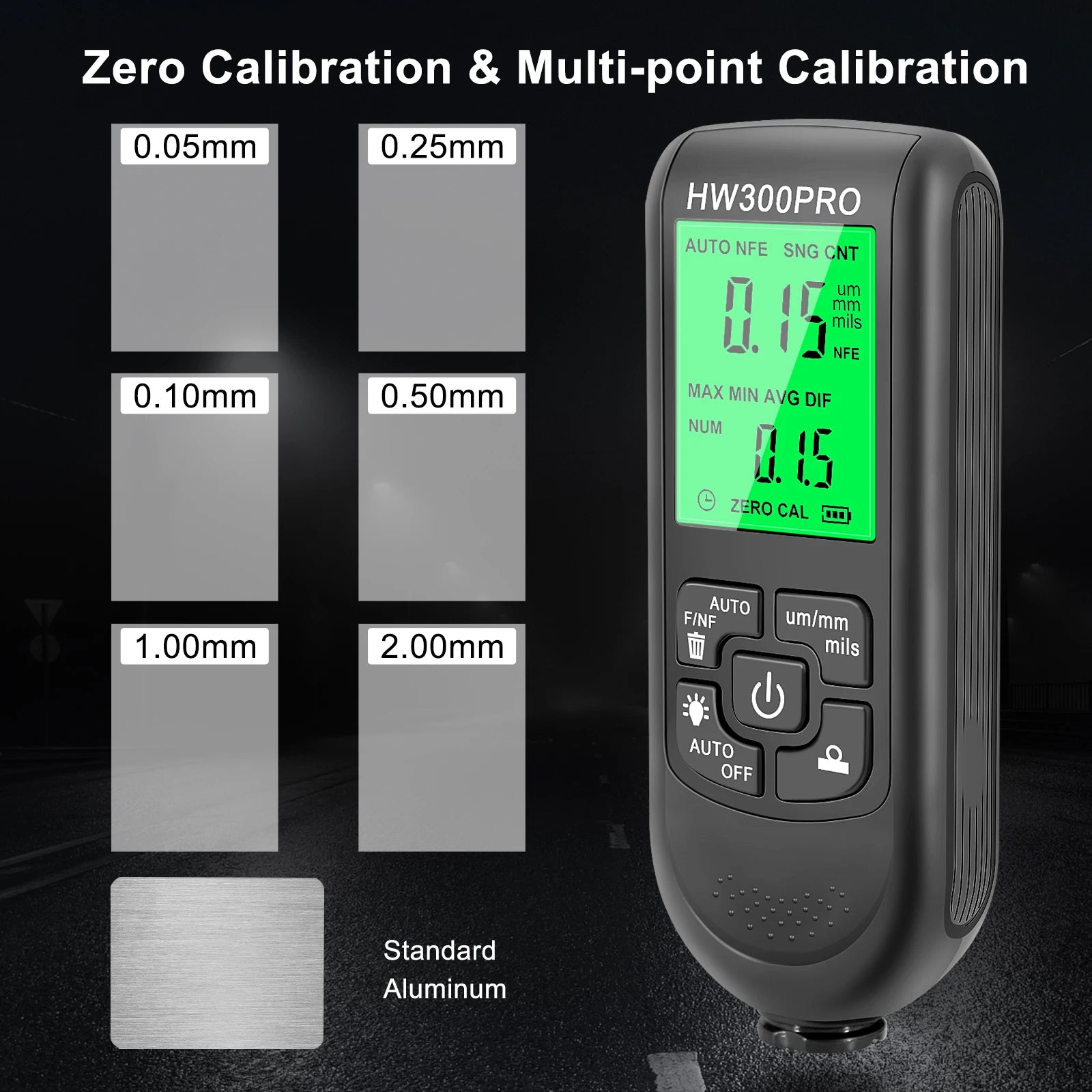

Zeroing Calibration & Multi-point Calibration: In order to improve the test accuracy, it is suggested that the instrument should be calibrated. With multi-point calibration function and self-calibration function to ensure higher accuracy.
Multifunctional Design: Equipped with battery power indicating and automatic shutoff function. Support open and close backlight, support clear the statistics.

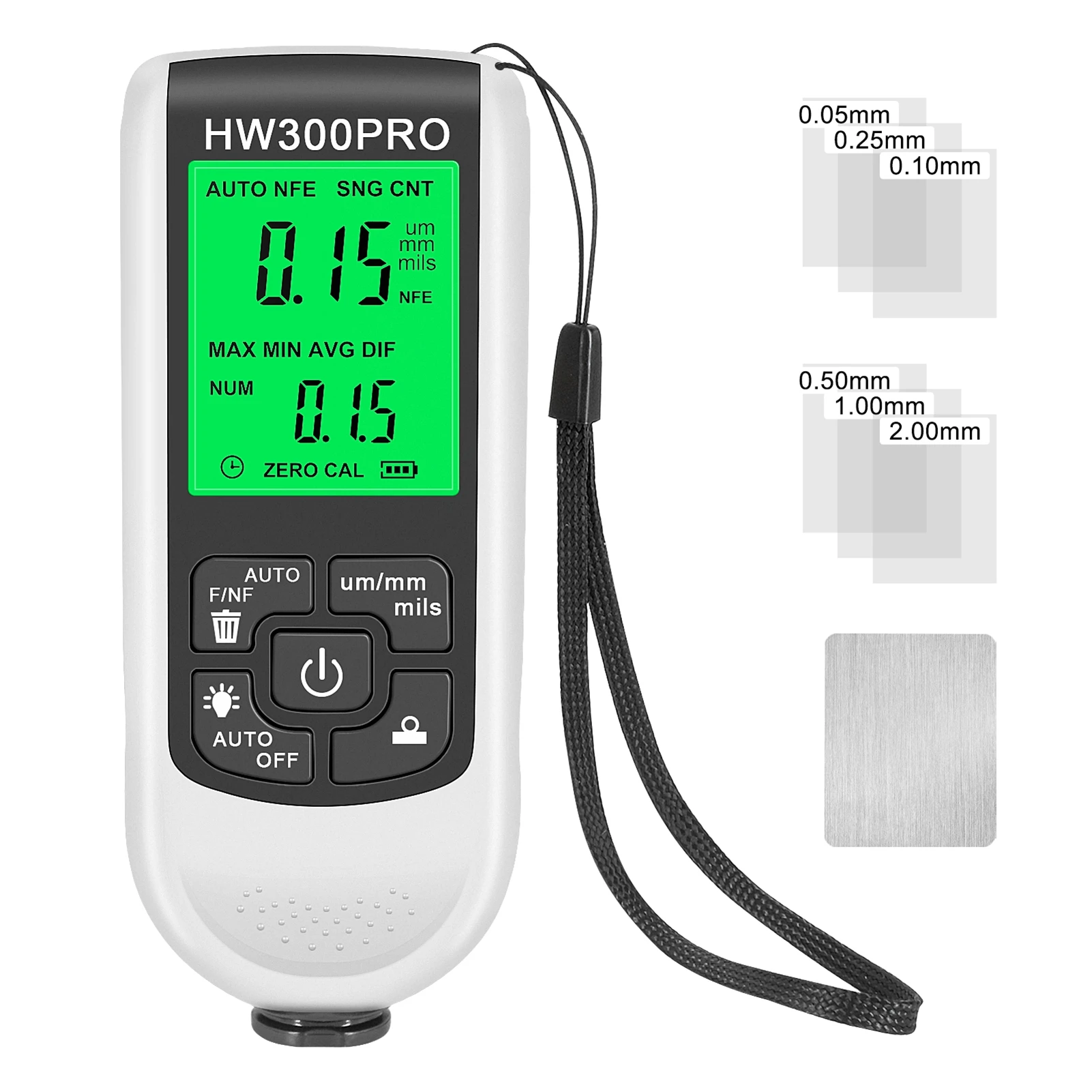

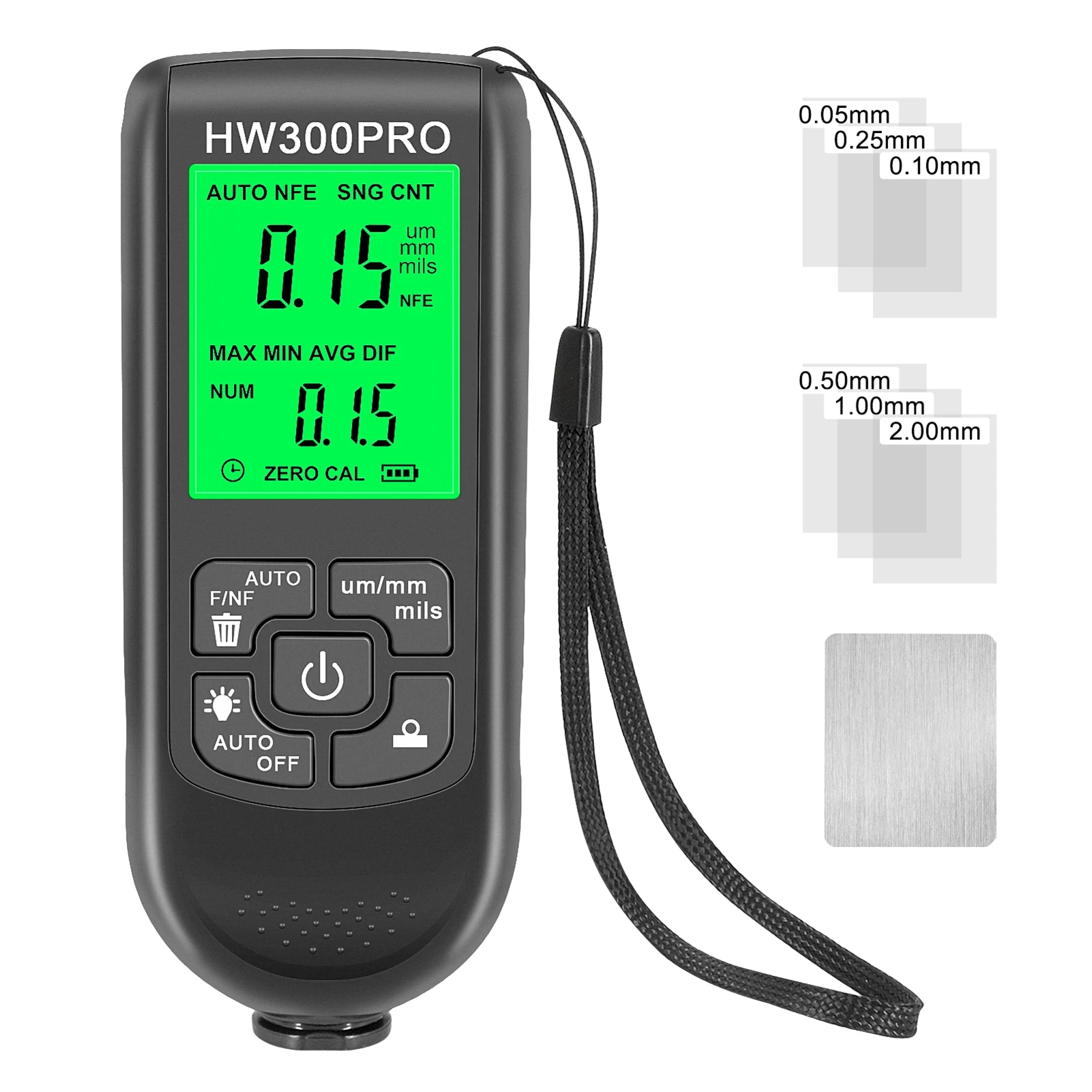

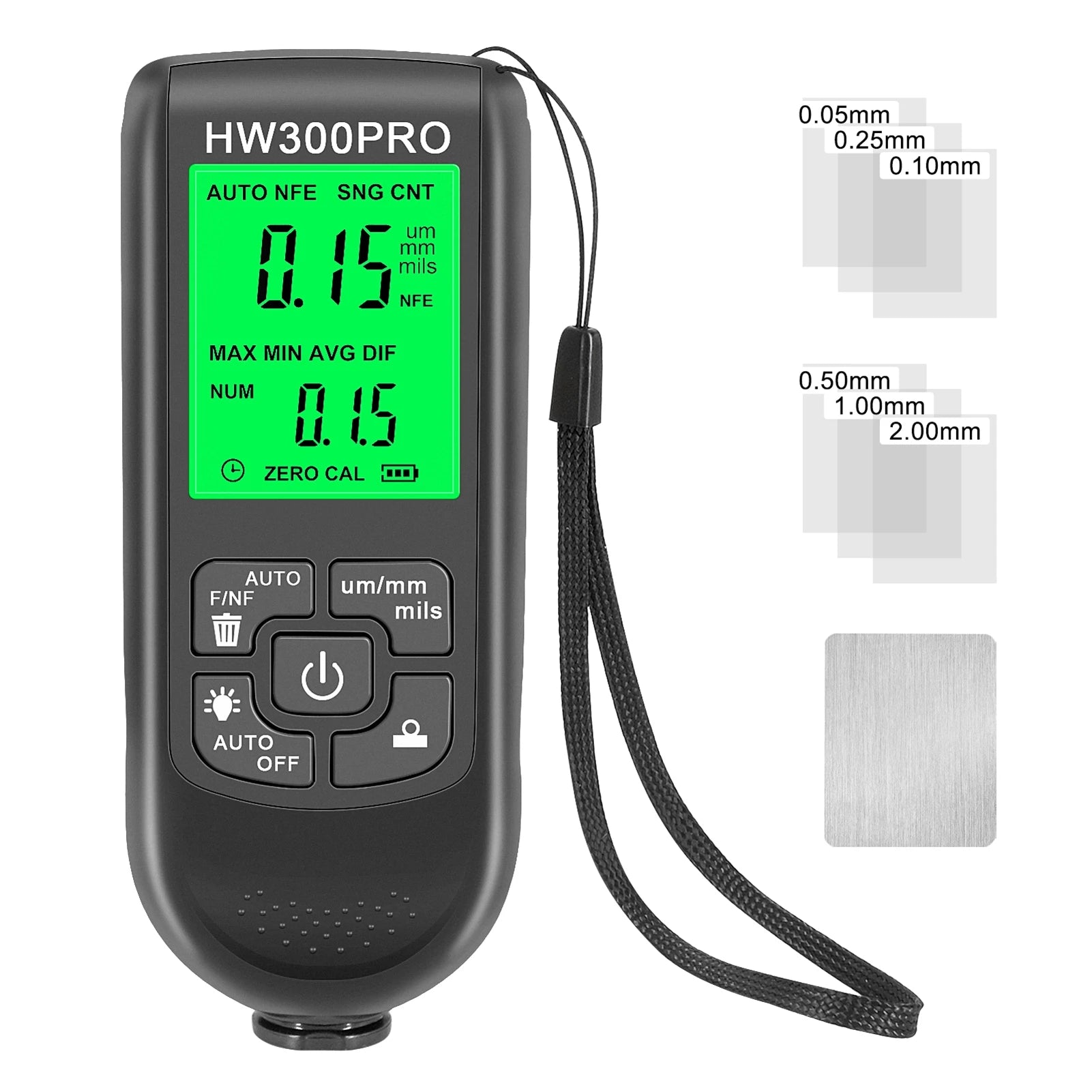

Standard Aluminum: Comes with aluminum sheet and 6pcs calibration films, with different thickness of 0.05mm, 0.25mm, 0.10mm, 0.50mm, 1.00mm and 2.00mm to meet your demands.
Measurement Object: The tester is used for non-destructive measurement of coating and paint thickness, fast and accurate. It is used to measure the thickness of plated and coated plates on metals such as paint/chrome on steel, paint and anodic oxide coatings on aluminum/copper.
Wide Applications: It is widely used in automotive ink inspection, electroplating layer, surface process, pipeline anti-corrosion layer, surface mechanical equipment anti-corrosion, chemical equipment, quality control and other fields.
Specifications:
Name: Thickness Gauge
Material: ABS
Color: white, black (optional)
Battery: 2 * 1.5V AAA battery (not included)
Resolution: 0.01mm
Measurement range: 0-2000UM
Measurement accuracy: ±(3% + 1UM)
Operating temperature: -10℃ to 50℃

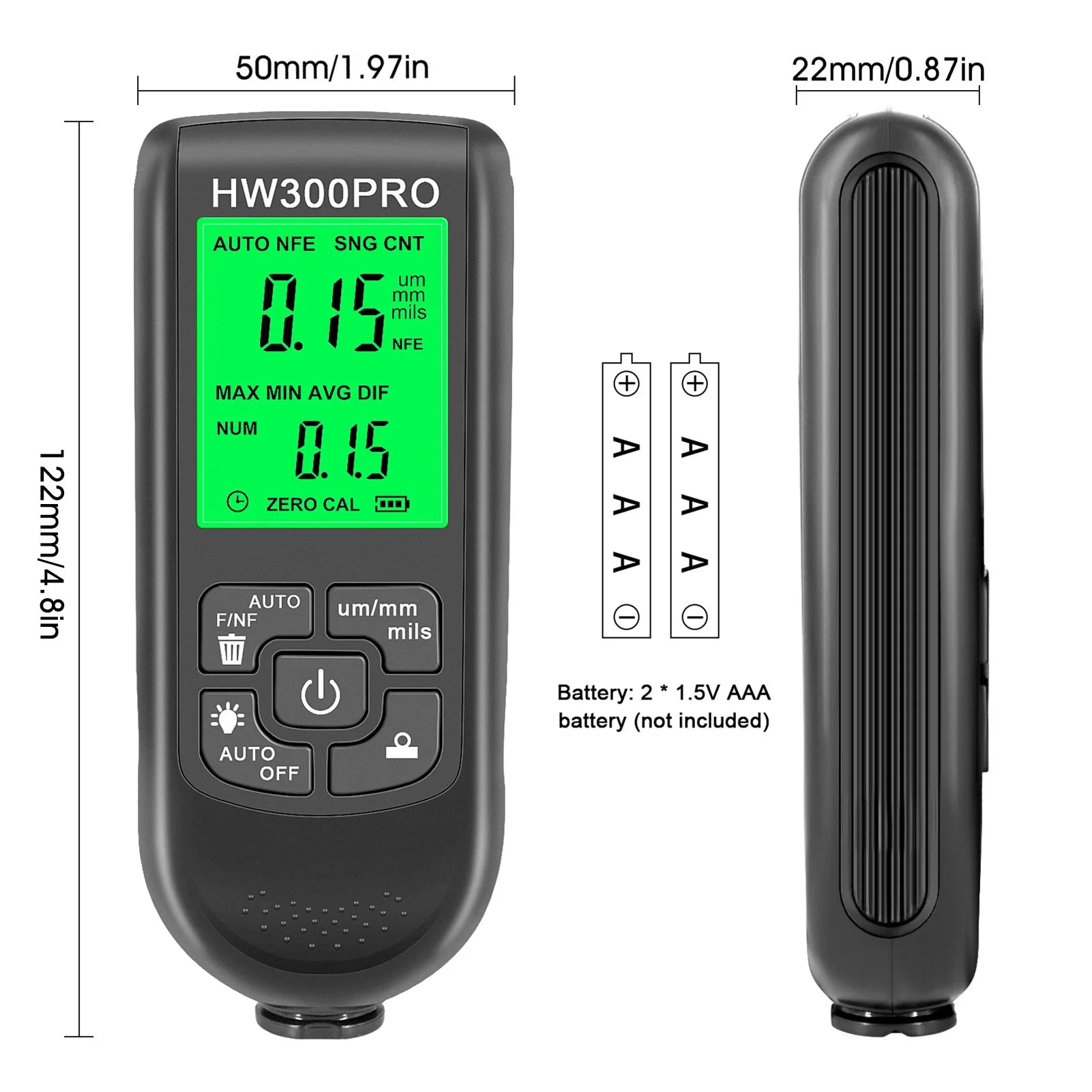

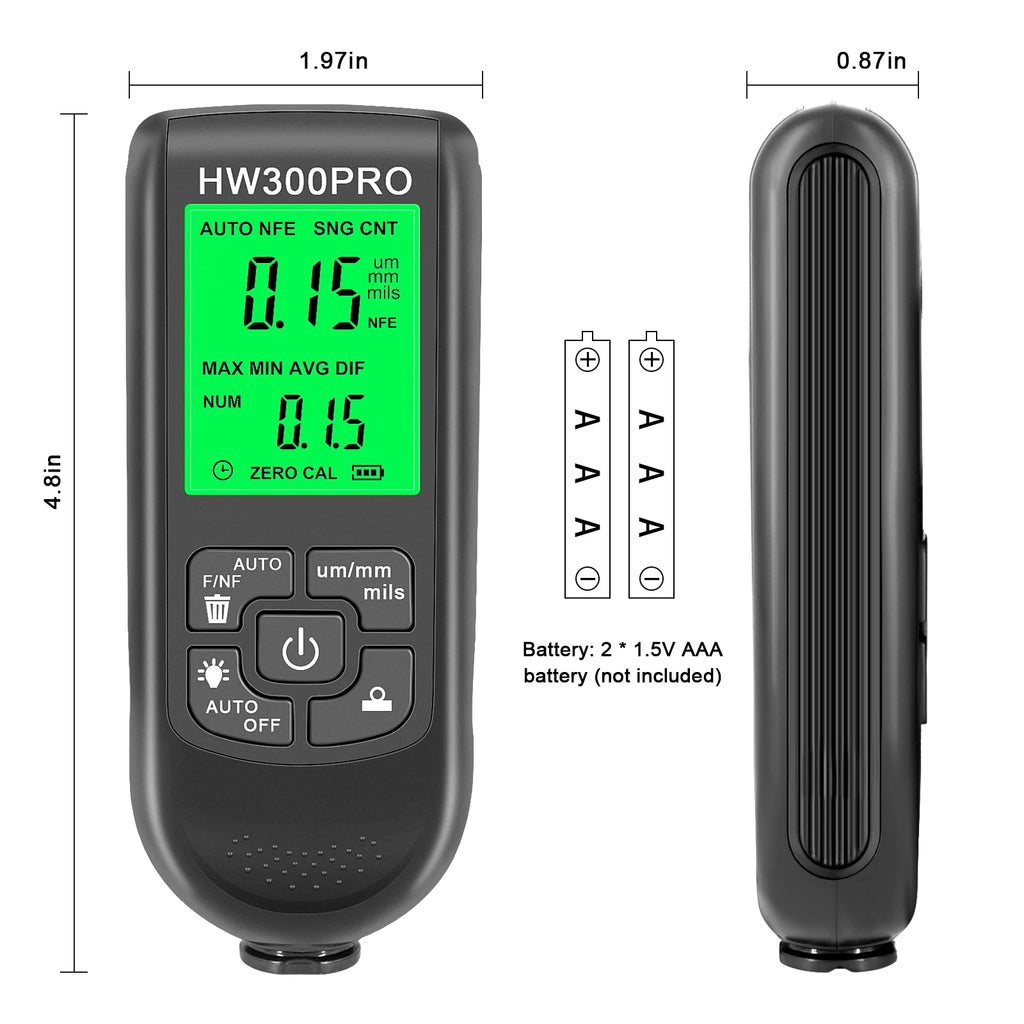

Item size: 122 * 50 * 22mm / 4.80 * 1.97 * 0.87in
Package size: 128 * 55 * 36mm / 5.04 * 2.17 * 1.42in
Package weight: 109g / 3.84ounce
Packing List:
1 * Thickness Gauge
6 * Calibration Film
1 * Base Sheet
1 * Manual

Package List:
1 * Thickness Gauge
6 * Calibration Film
1 * Base Sheet
1 * Manual
