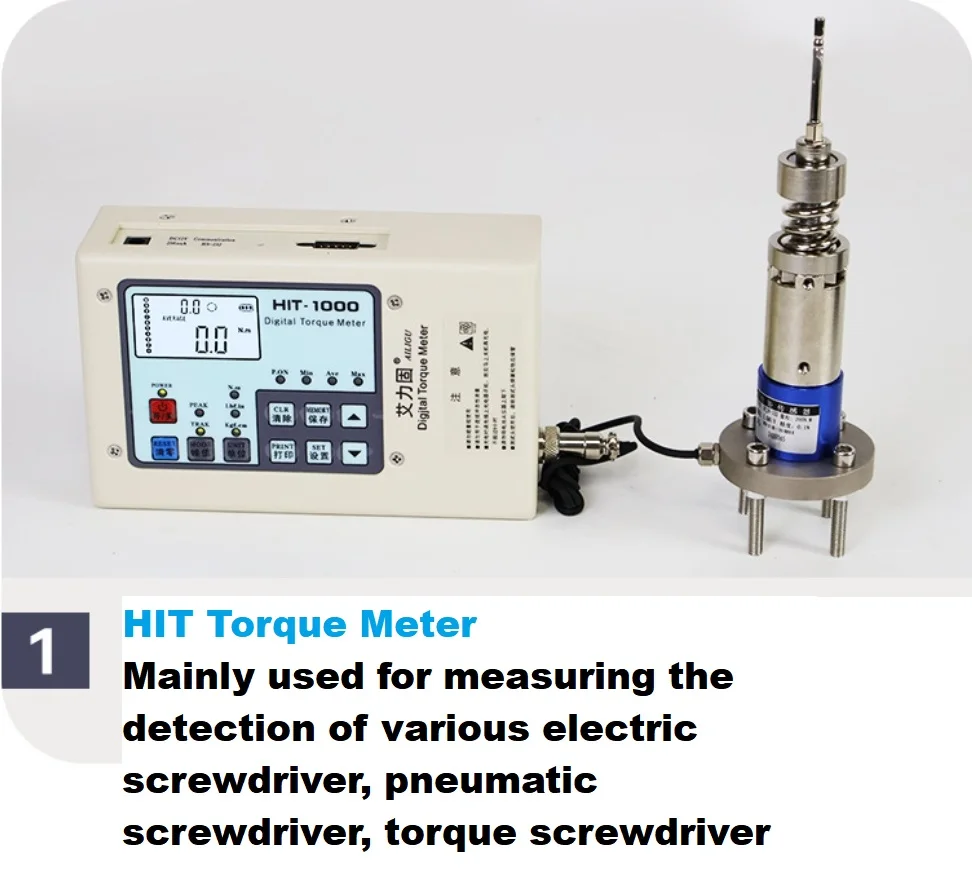

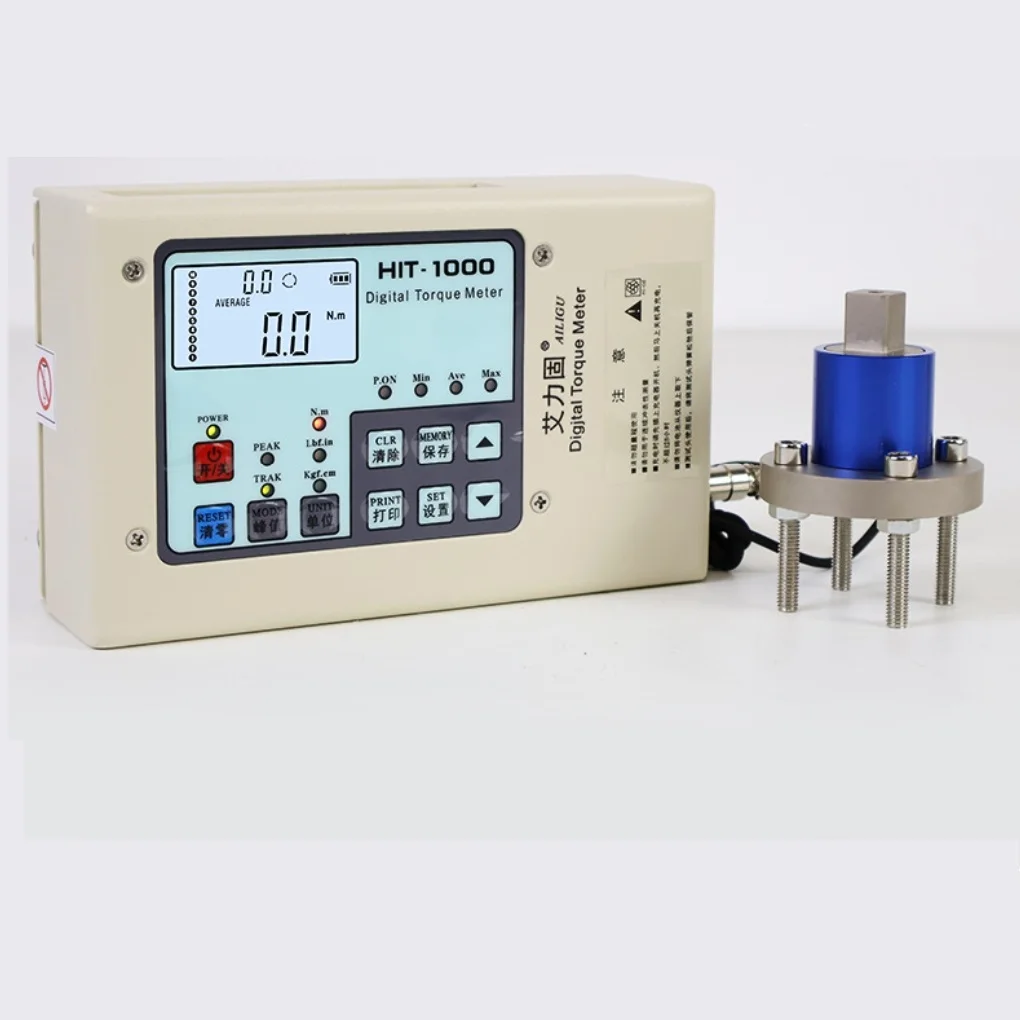

HIT-500 HIT-1000 HIT-2000 HIT-5000 HIT-10000 Torque Force Tester Split Wrench Type Large Range Digital Display 0.4-1000N.M
HIT-500 HIT-1000 HIT-2000 HIT-5000 HIT-10000 Torque Force Tester Split Wrench Type Large Range Digital Display 0.4-1000N.M
SPECIFICATIONS
Battery Included: Yes
Battery capacity 1800mAh: Model: HP-10/ 20/ 50/ 100/ 200/ 250/ 500(optional)
Brand Name: FeelElec
Certification: CE
Display Type: DIGITAL
High-concerned chemical: None
Max Load: 100N
Model Number: HP-100 HP-50 HP-20 HP-10
Origin: Mainland China
Semi-finishedproduct: No
Voltage 220V: Battery type: 3.7V lithium battery
HIT-500 HIT-1000 HIT-2000 HIT-5000 HIT-10000 Torque Force Tester Split Wrench Type Large Range Digital Display 0.4-1000N.M Large Range Digital Display High Precision
Main Features
1) Power saving design with automatic shutdown for 1-60 minutes of unmanned operation.
2) Storage and printing data function (capable of recording 10 torque values, with storage, deletion, and other functions)Calculate the maximum value (Max), minimum value (Min), and average value（Ave）.

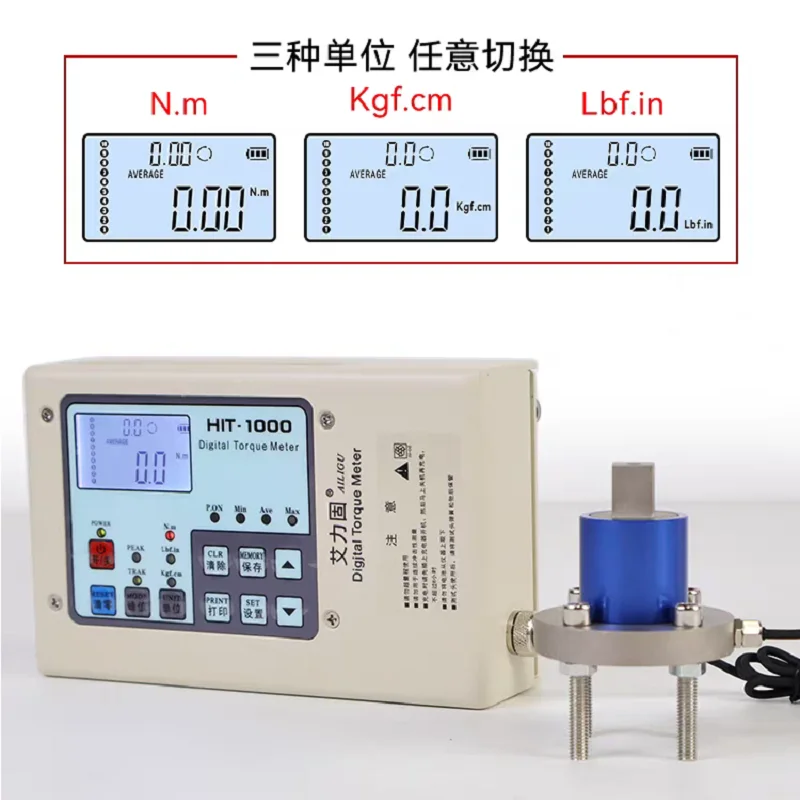

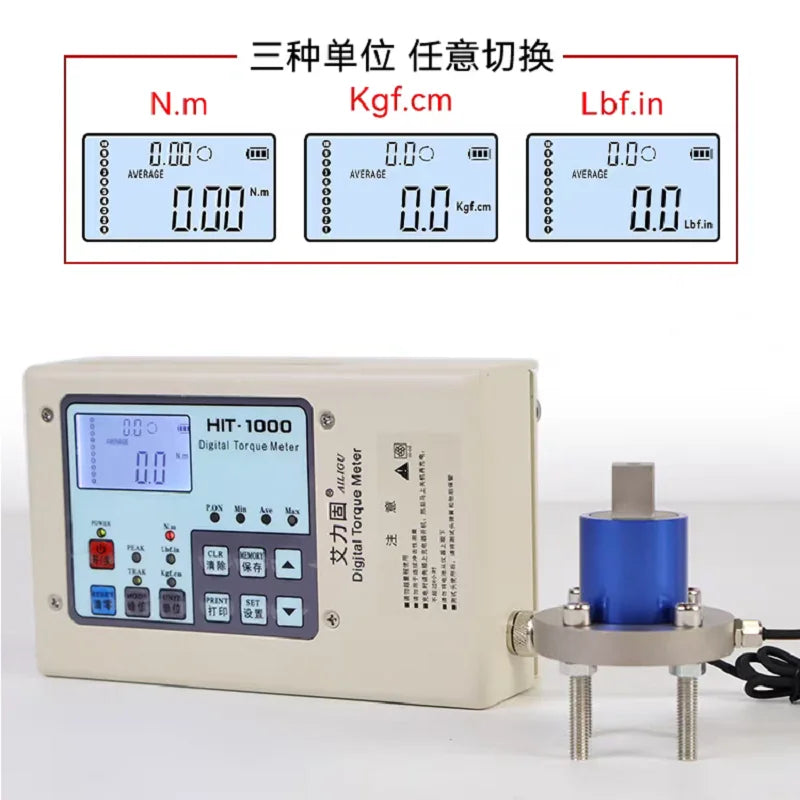

3) Free conversion of three units: Kgf. cm/Lbf. in/N.m.
4) It has peak holding function.
5) Battery level display.
6) Automatic alarm setting.
7) The AC adapter can meet a wide range of power requirements from AC100V to 240V.
8) Use environmentally friendly batteries (lithium batteries)
9) RS-232/USB interface, used to connect to a computer and display torque meter test data as curves on the computer. The curves can be converted into Excel files, and all functions in the Excel software on the computer, including printing, can be utilized (customized for connecting to PLC).
Specification:
Models |
HIT-10000 |
HIT-3000 |
HIT-500 |
HIT-1000 |
HIT-2000 |
|
Asuring rangeN.m kgf.cm |
0.4~100 5.0~10000 |
0.4~300 5.0~3000 |
0.4~50 5.0~500 |
0.4~100 5.0~1000 |
0.4~200 5.0~2000 |
Precision |
± Plus or minus±0.5% |
||||
Sampling rate |
1000HZ |
||||
Powersource |
lithium battery |
||||
Charging time |
The < 8 hours |
||||
When charged continuous use time of the battery |
50 hours |
||||
The life of the battery |
Back to 1000 or higher |
||||
Size |
1 2mm x 230rnm x 651mm |
||||
Weight |
4kg |
||||
The charger |
Input: AC50HZ100-220Voutput:DC15V 250mA |
||||
HIT-10 split type (0.4-1N. m)
HIT-20 split type (0.4-2N. m)
HIT-50 split type (0.4-5N. m)
HIT-100 split type (0.4-10N. m)
HIT-200 split type (0.4-20N. m)

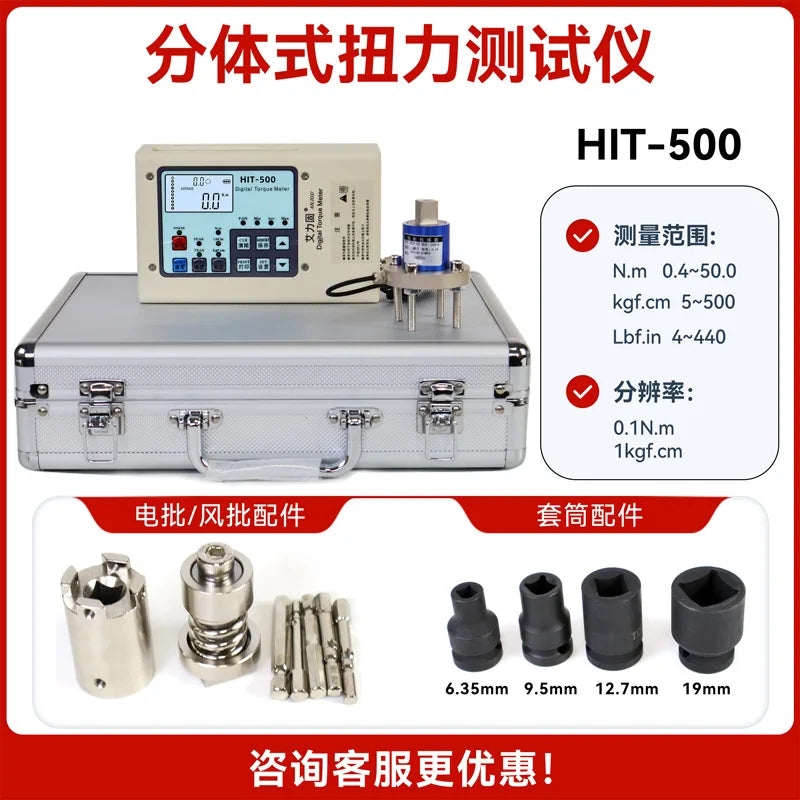

HIT-500 split type (0.4-50N. m)

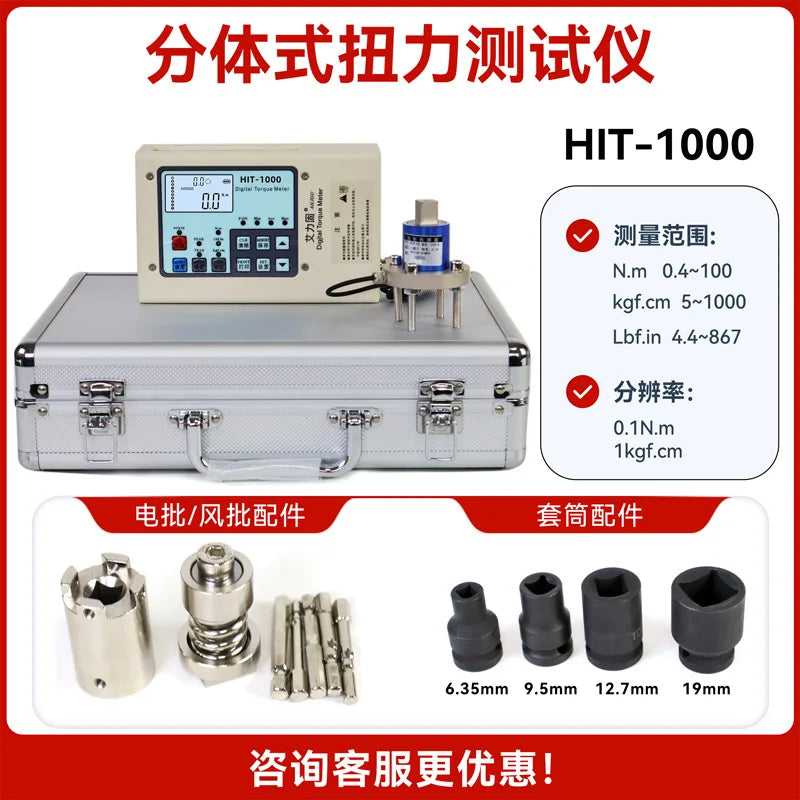

HIT-1000 split type (0.4-100N. m)
HIT-2000 split type (0.4-200N. m)
HIT-3000 split type (1-300N. m)

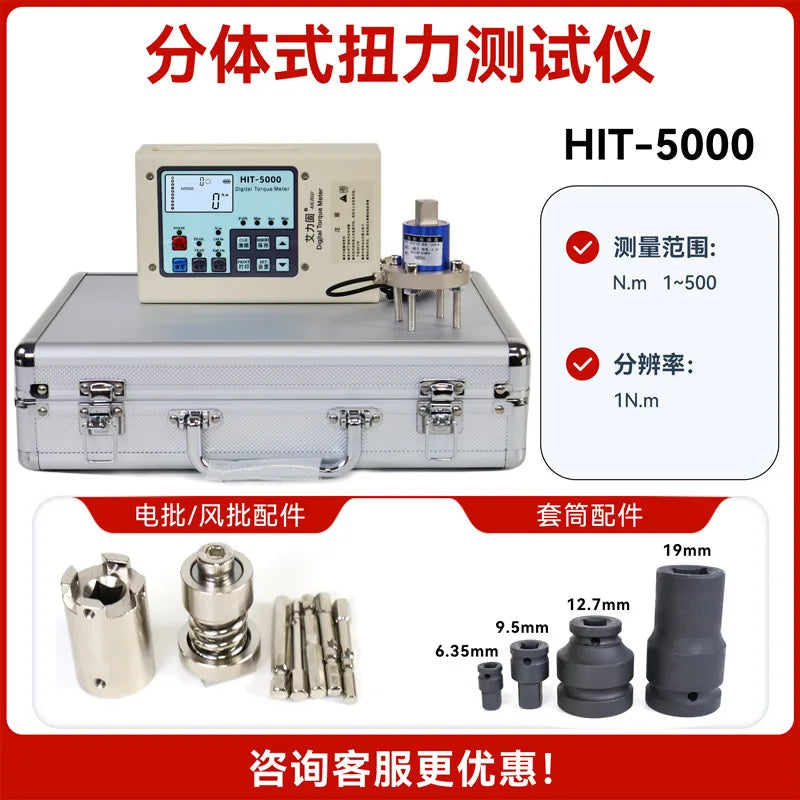

HIT-5000 split type (1-500N. m)

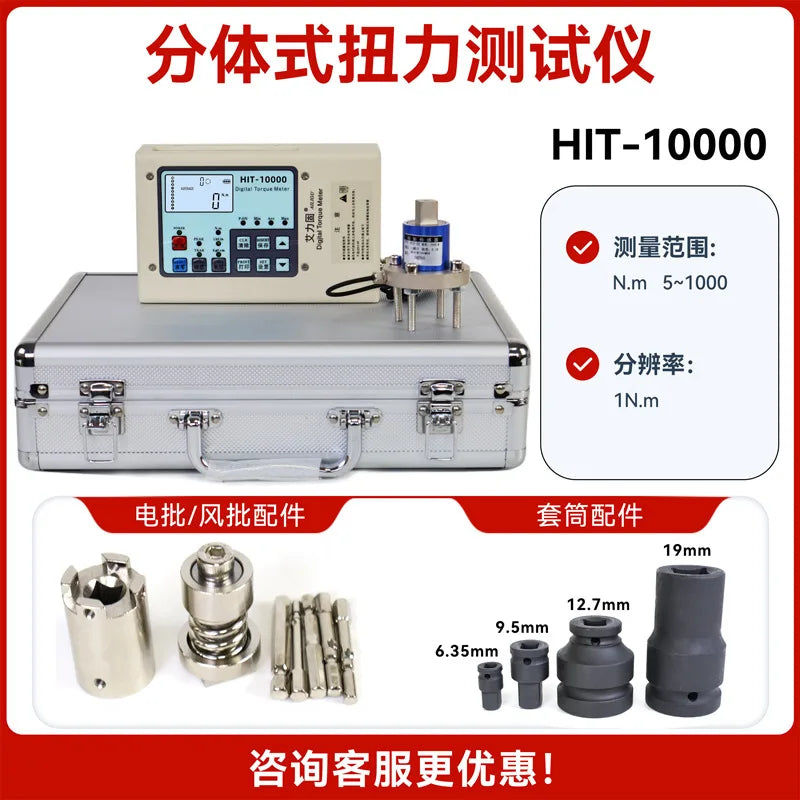

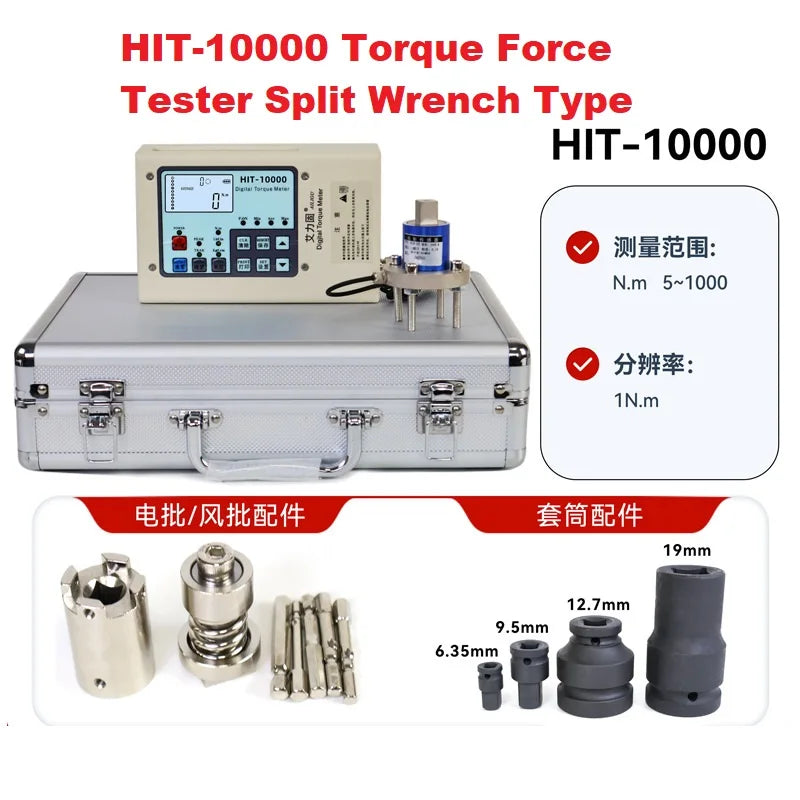

HIT-10000 split type (5-1000N. m)

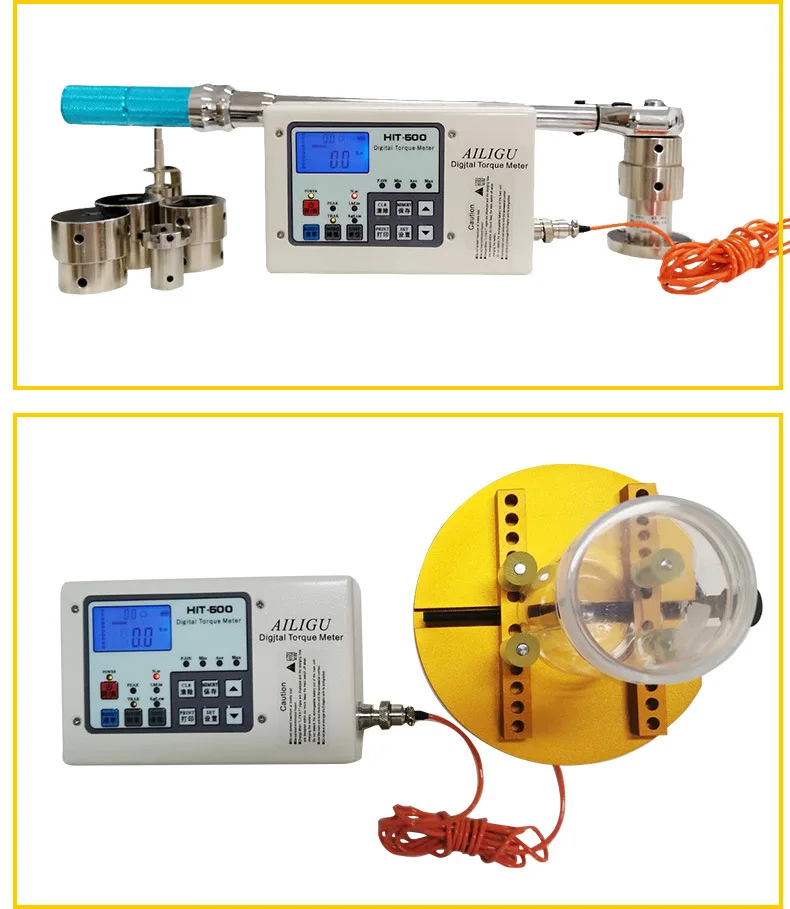

HIT split torque test procedure: (special equipment for torque wrench calibration)
1)Take out the HIT torsion tester from the box, take out the connection cable, connect the main control computer with the measuring cylinder shaft, and turn it on.

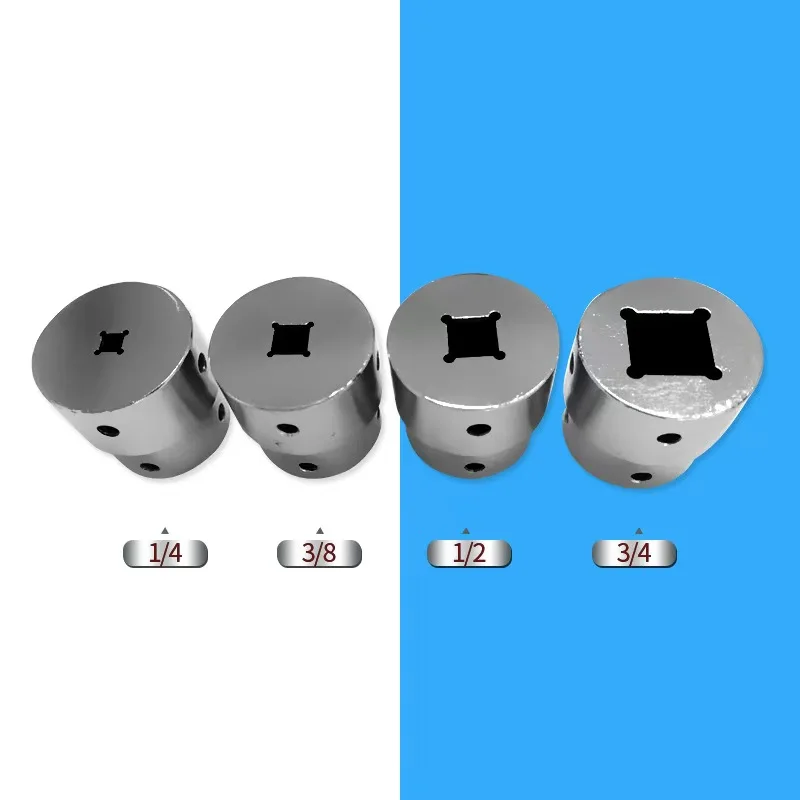

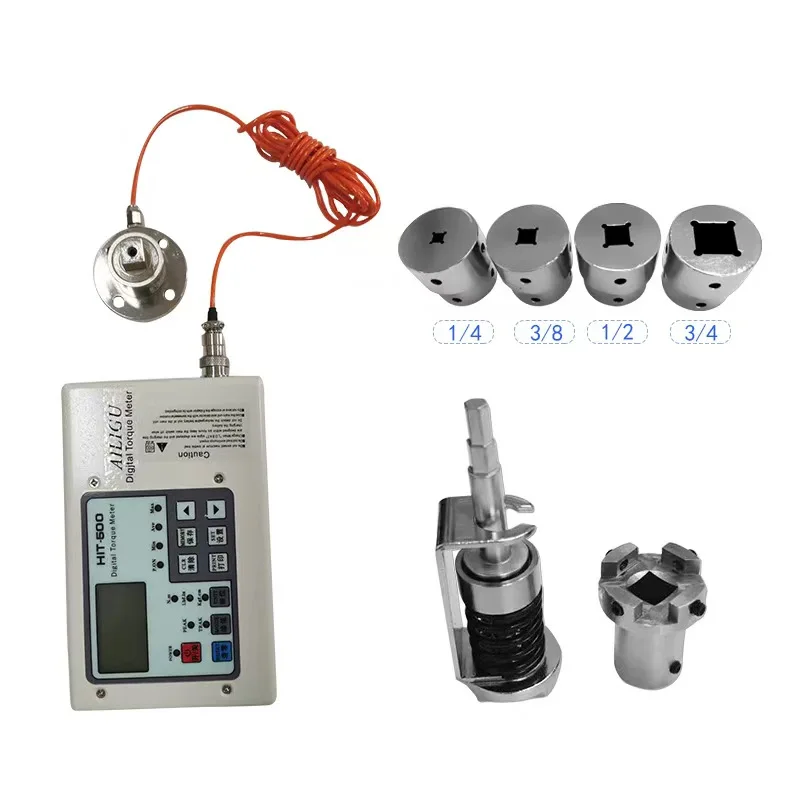

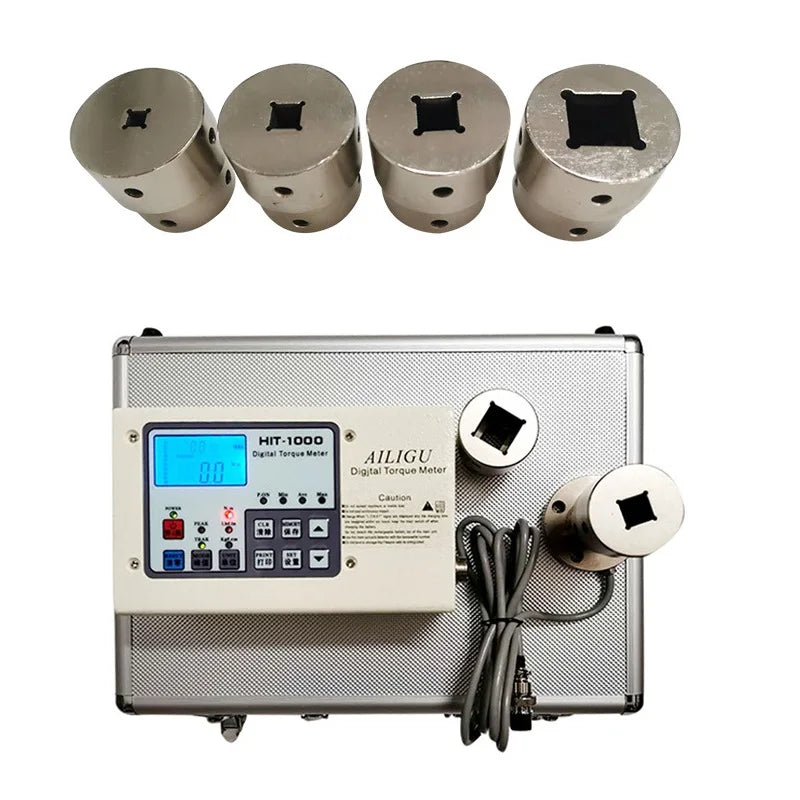

2)Set the measurement mode to peak mode. And adjust the unit, and test the head size according to the type of torque wrench to select the sleeve fixture. Attach the test head to the test bench.
3)Press the zero button, hold the torque wrench by hand and put it into the sleeve, rotate horizontally and slowly until the measurement is achieved.
4)The data recorded by the peak is the maximum torque measured. If the force exceeds the alarm value, the alarm call can also be adjusted to store the numerical state, record the measurement data and calculate the average value.
Product Details:

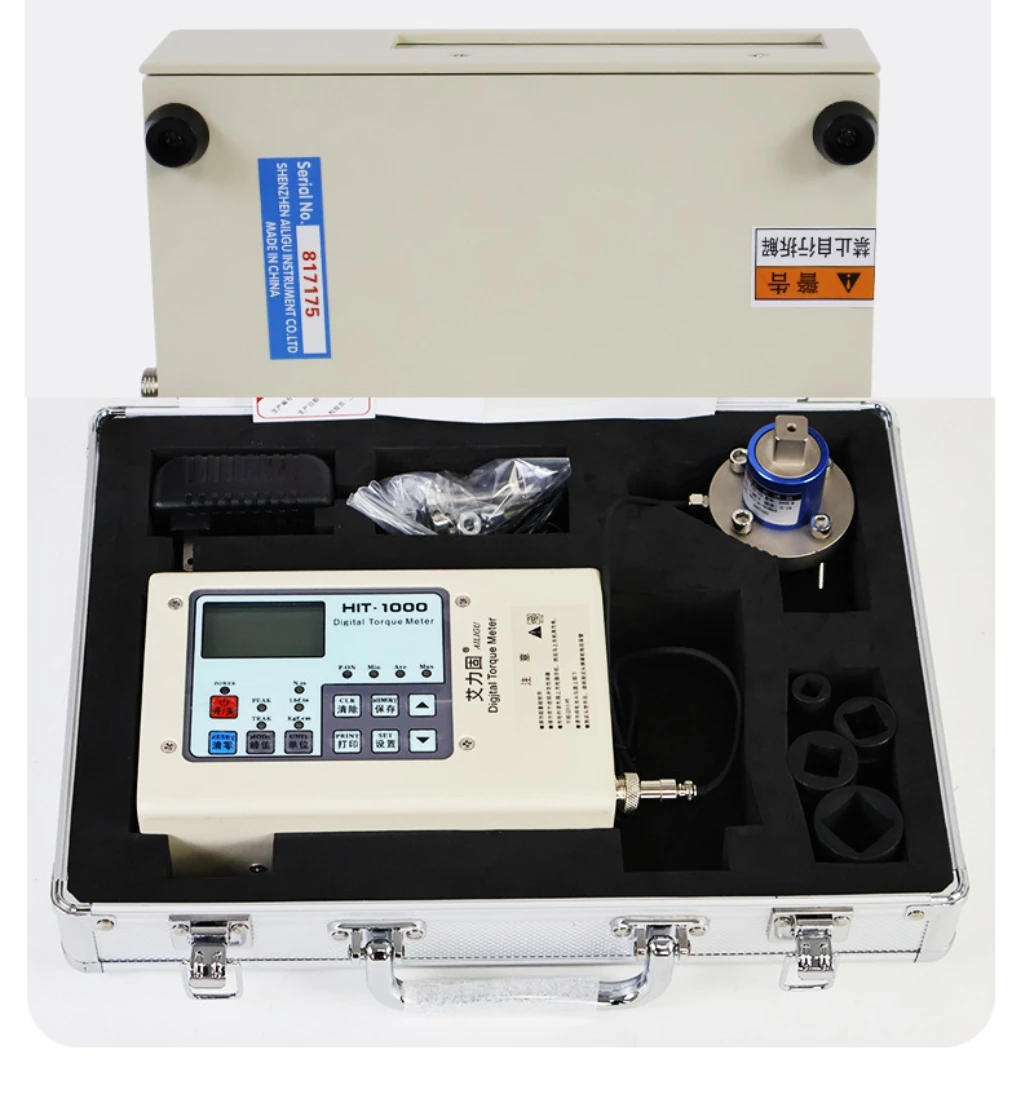

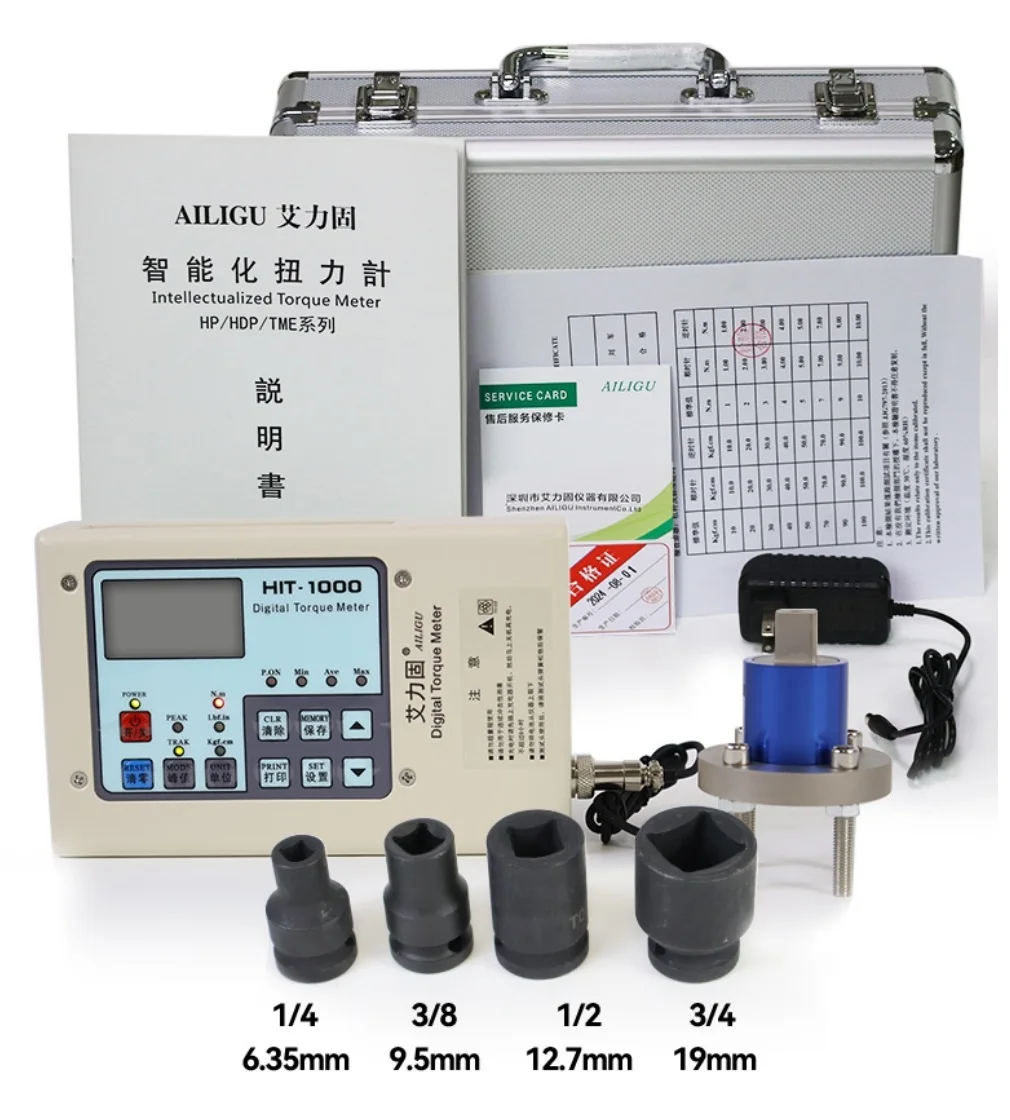

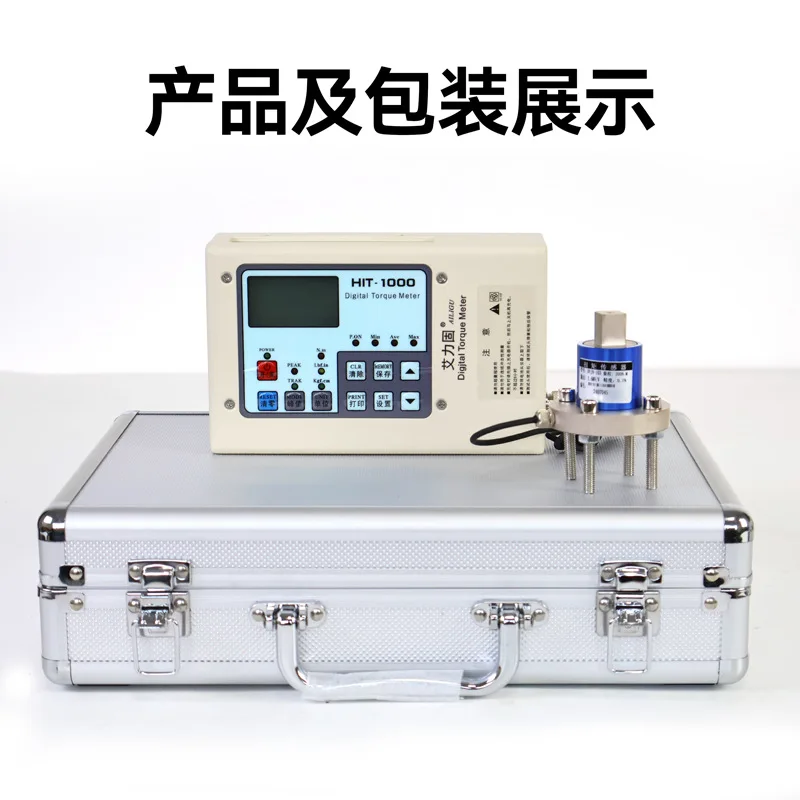

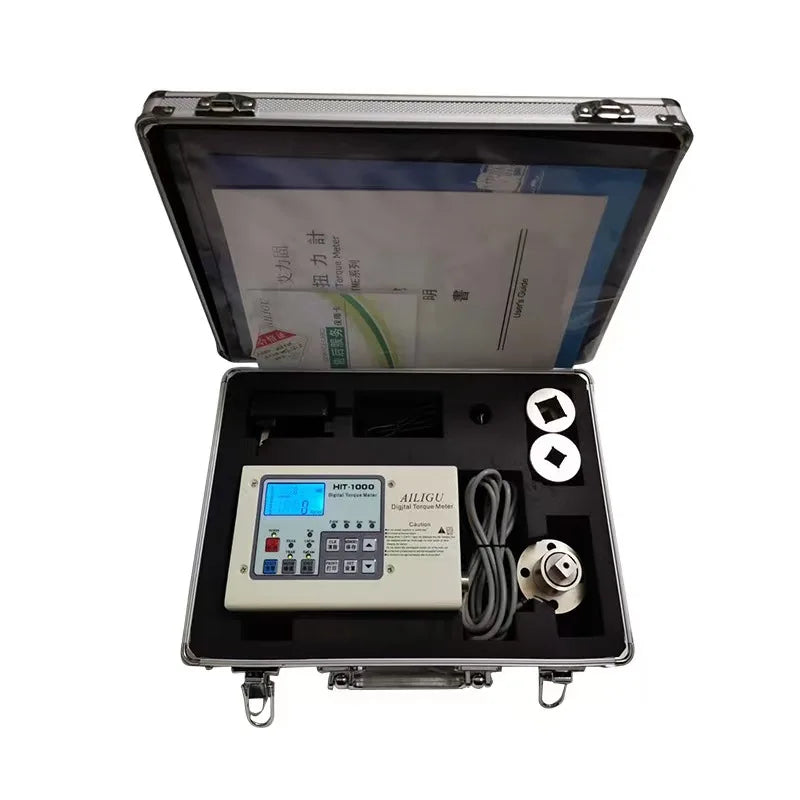

Packing List:
Digital Torque Tester*1

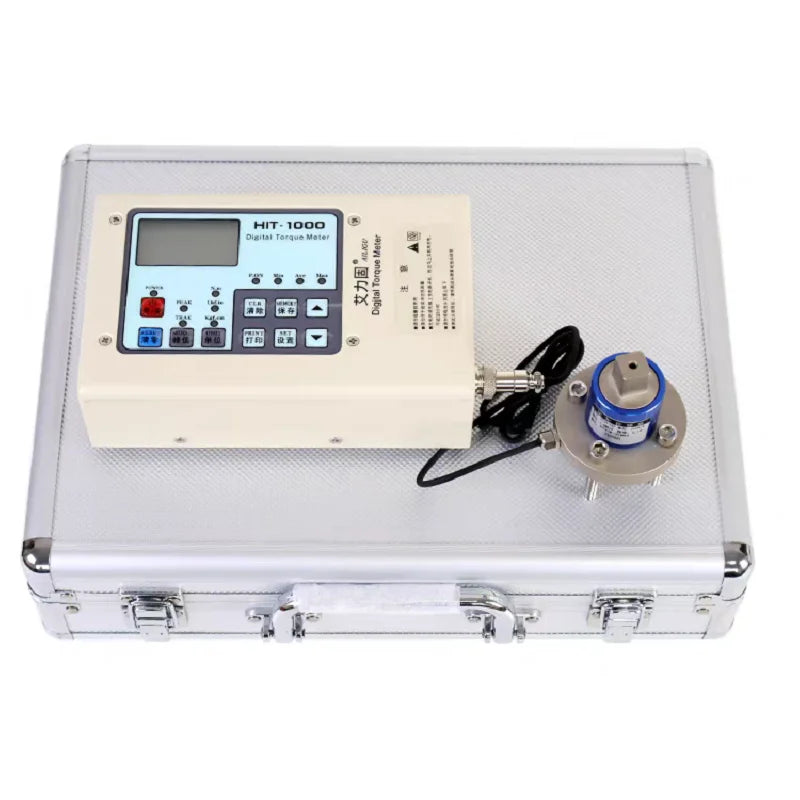

Metal Carrying Case*1

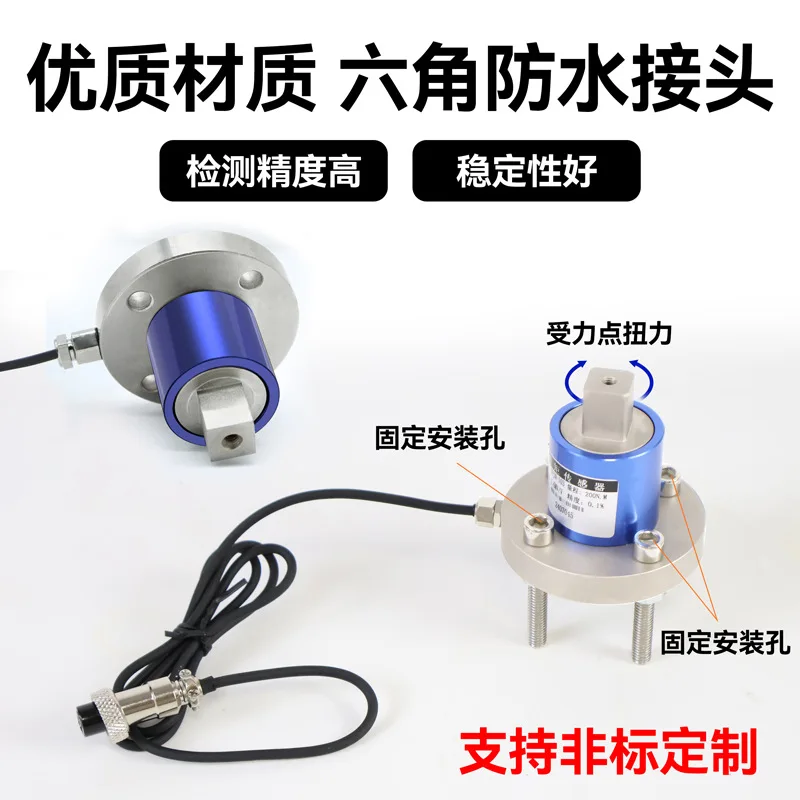

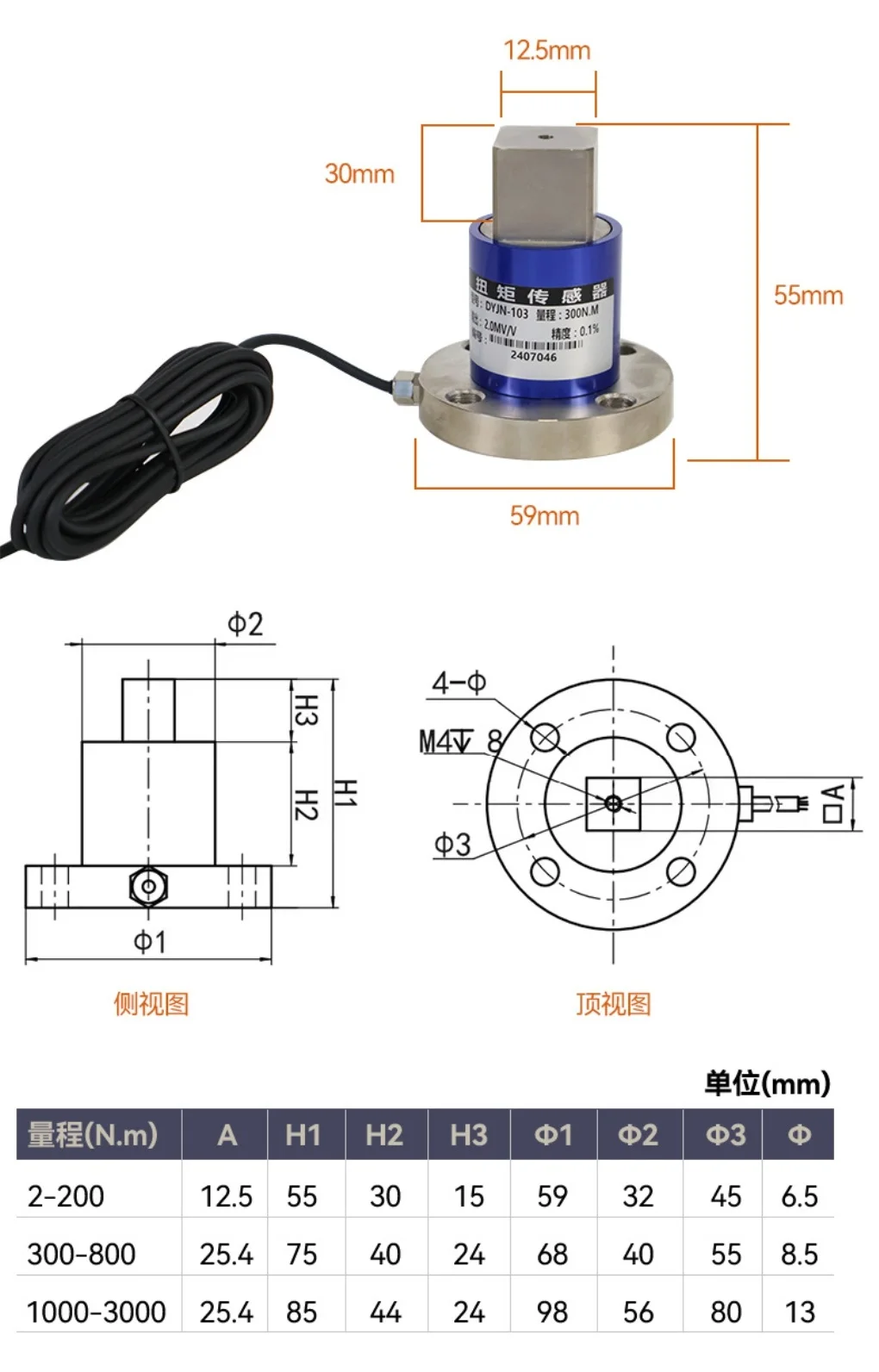

Standard Sensor *1
Carrying Case*1
Power Adapter*1
Manual*1
