W04CG 4 x 360 Green Laser Level Specifications: |
* Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
* Laser Wavelength: 505-530nm
* Screen type: LCD screen with backlight
* Horizontal/Vertical Accuracy: ±3mm/10m(±1/9 in.at 33 ft)
* Leveling/Compensation Range: ±3°

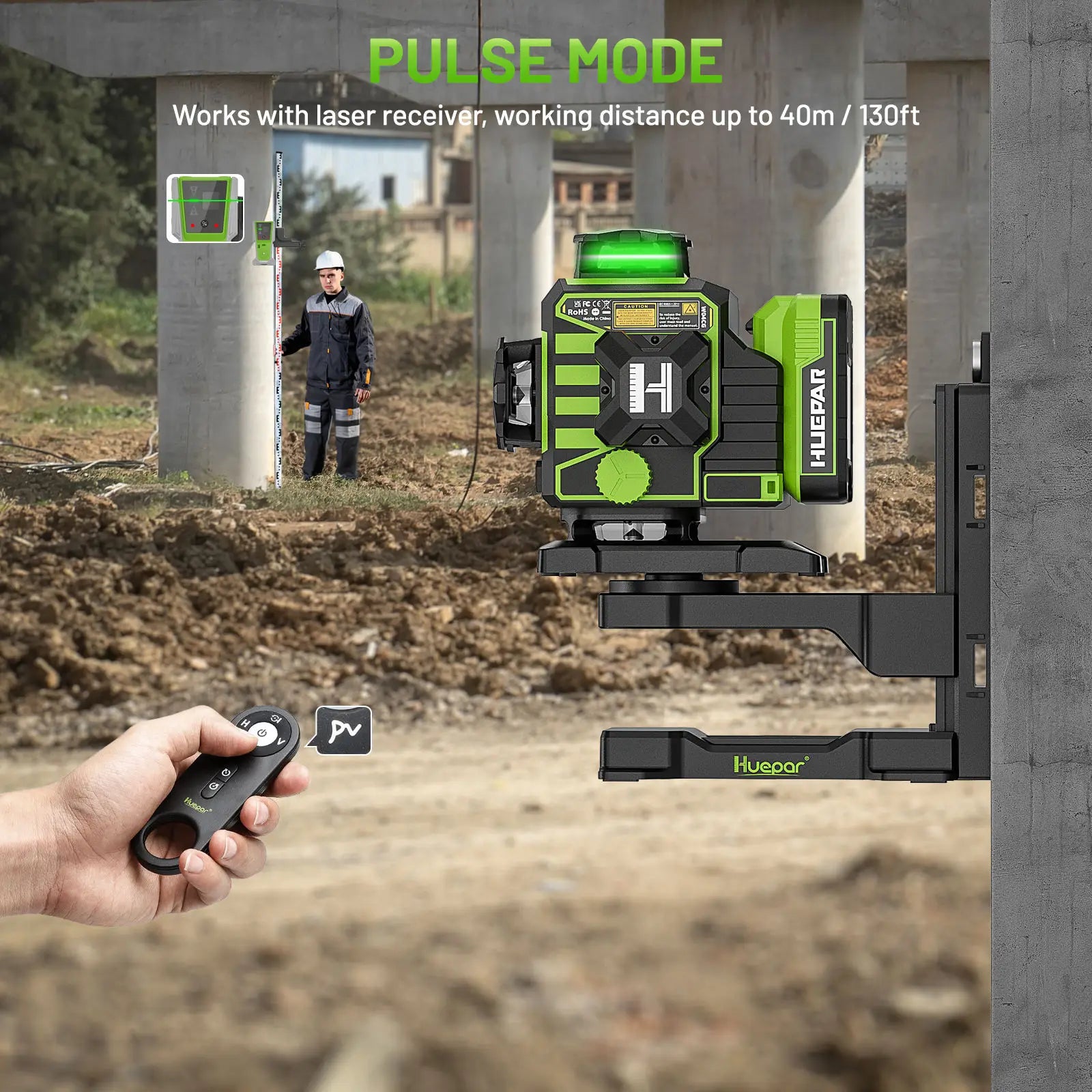

* Working Distance (Line): 20M(60-100 LUX), 40M with Huepar Receiver LR-5RG/LR-6RG
* Operating Time: 6.5 hours continual use with all laser beams on
* Power Source: Li-ion Battery 11.1V(12.6V Max)2600mAh
* Charging Time: About 3.5 hours.
* IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
* Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)
* Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)
* Mount Size: 1/4"-20&5/8"-11
|

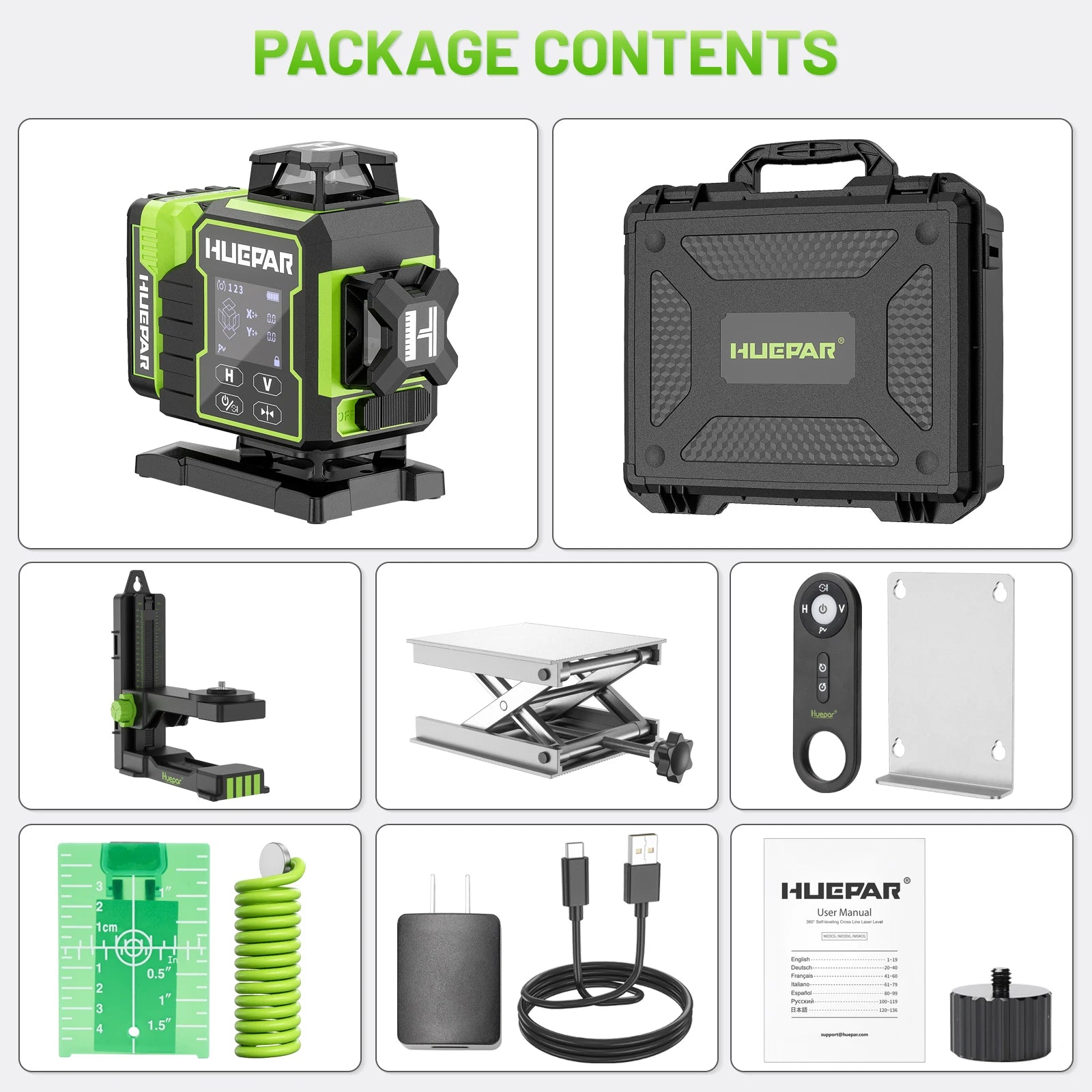

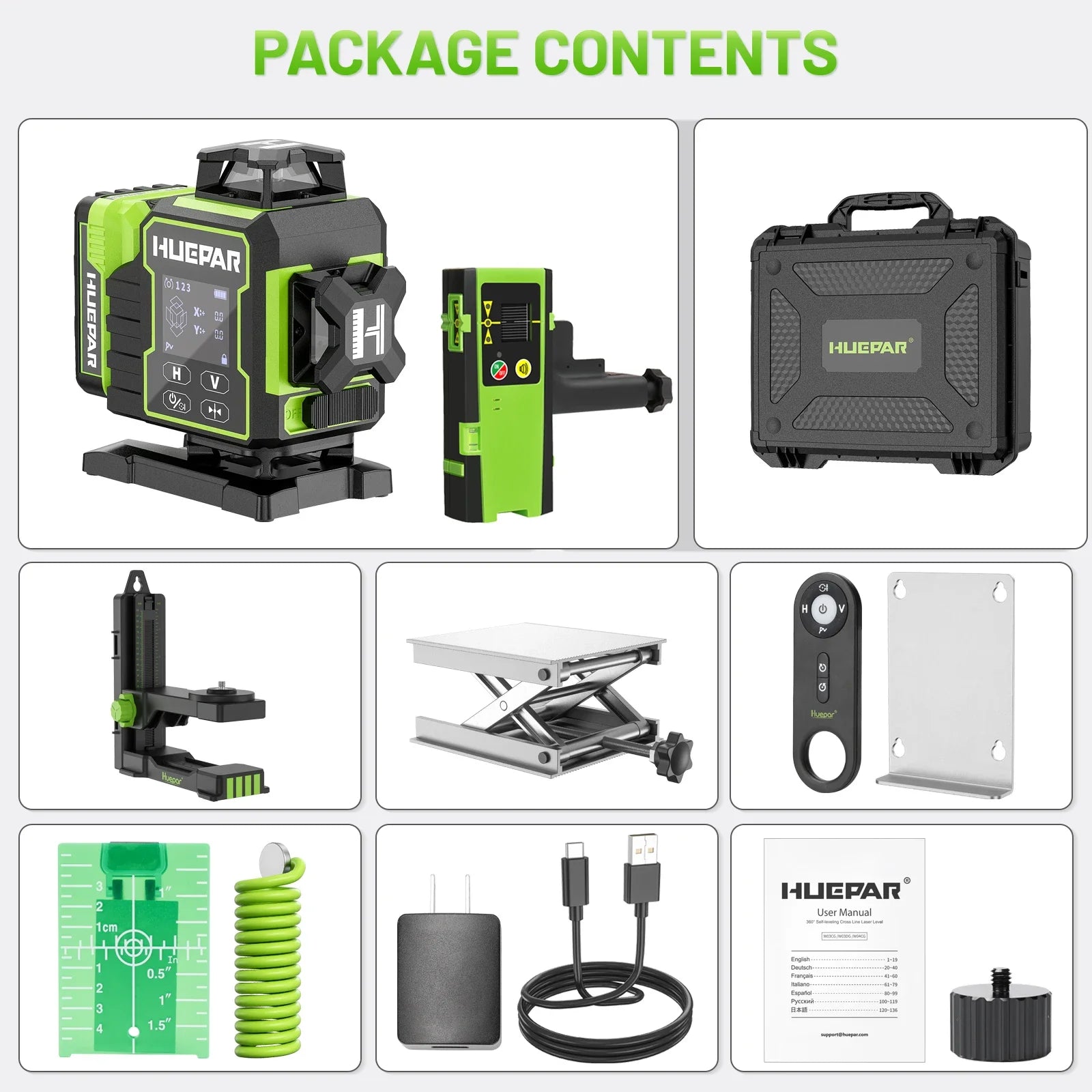

Packing items：
* 1 x Laser Level
* 1 x Bluetooth Remote Control
* 1 x Magnetic Bracket
* 1 x Power Adapter& Type-C cord
* 1 x Hard Carry Case
* 1 x Lifting Base
* 1 x Lase Level User Manual
* 1 x Steel Sheet
* 1 x Laser Target Plate
* 1 x 1/4"-20 to5/8" Adaptor
Three Speed Adjustment Electric Base
The laser level has three speed adjustments Electric Base that can be switched between different scenes.High speed 240mm/s :suitable for measurement in open areas or environments that require fast scanning, which can improve work efficiency.
Medium speed 48mm/s :
suitable for general measurement and calibration tasks, and can be flexibly used in various working environments.
Low speed 9.7mm/s :
suitable for environments that require precision measurement or alignment work, ensuring high precision and stability of measurement.
According to different work environments and task requirements, you can choose the appropriate speed gear to achieve the best measurement effect and accuracy requirements.
Convenient Charging Design
The laser level has a design with two charging ports, one can be used for charging through the side of the level, and the other can be used for charging through a battery. Meanwhile, the battery capacity of the level is 2600mAh, which means that the battery has a certain range and can support long-term use. Therefore, although the level requires battery power, due to the device's built-in charging port, it is still convenient and environmentally friendly for charging and endurance.
Infinite Remote Control Tangent

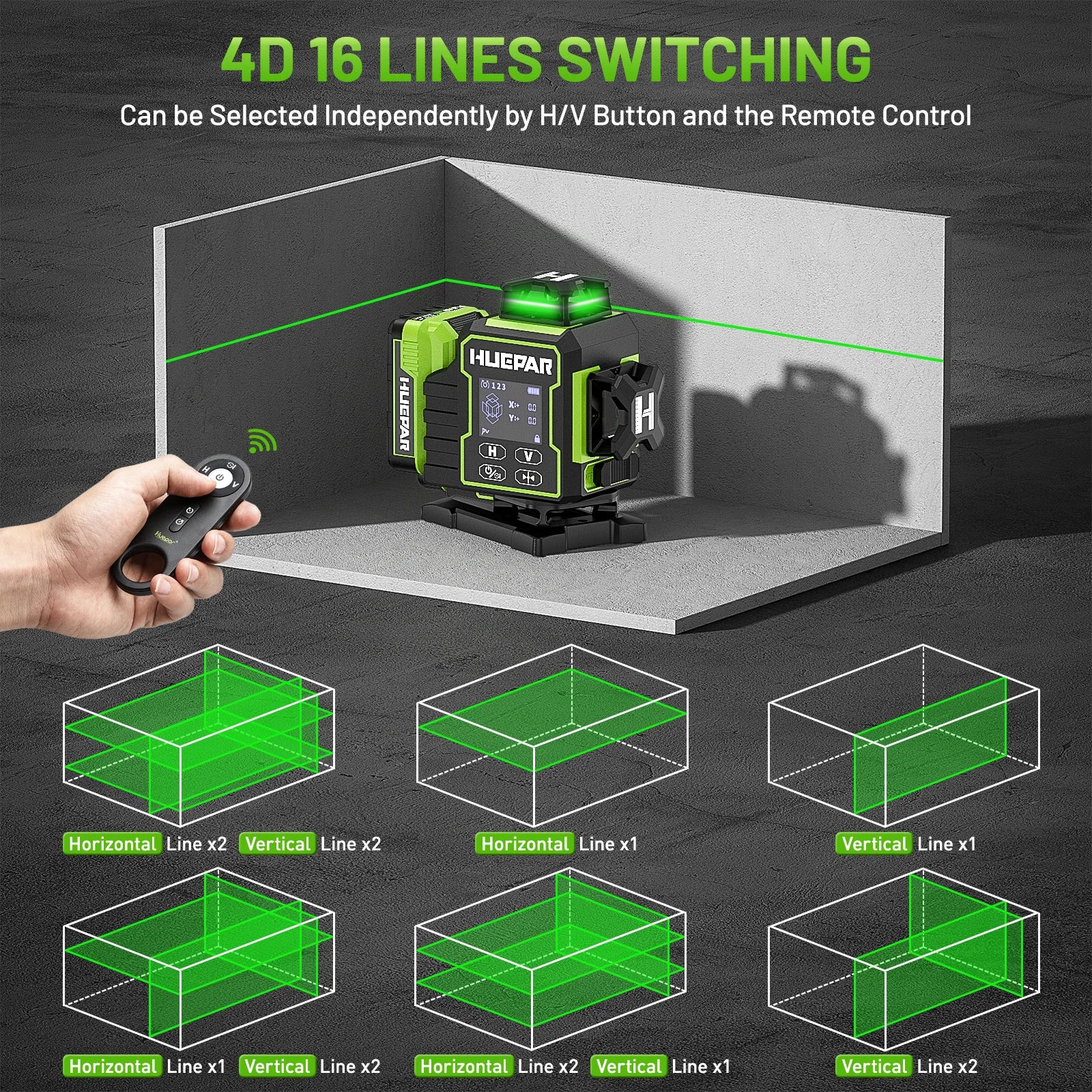

The laser level has a portable 2.4g wireless remote control, which facilitates users to switch between horizontal and vertical laser lines during work.
For example, in the horizontal and vertical positioning of indoor and outdoor walls and floors, to ensure construction accuracy. In home decoration, wall tiles, wallpaper, and installation of picture frames are used to ensure the level of decoration. Users can easily control the laser level through the remote control, achieving precise positioning and measurement. This feature makes using a laser level more convenient and efficient.
Long Distance Connection
The laser level not only has the function of accurately measuring levels, but also can intelligently connect with mobile apps through Bluetooth technology. Users can remotely operate and control the laser level within a range of up to 50 meters through the app. For example, users can adjust the working mode and parameters of the laser level through a mobile app on the construction site, without direct contact with the equipment, greatly improving construction efficiency and ensuring measurement accuracy.

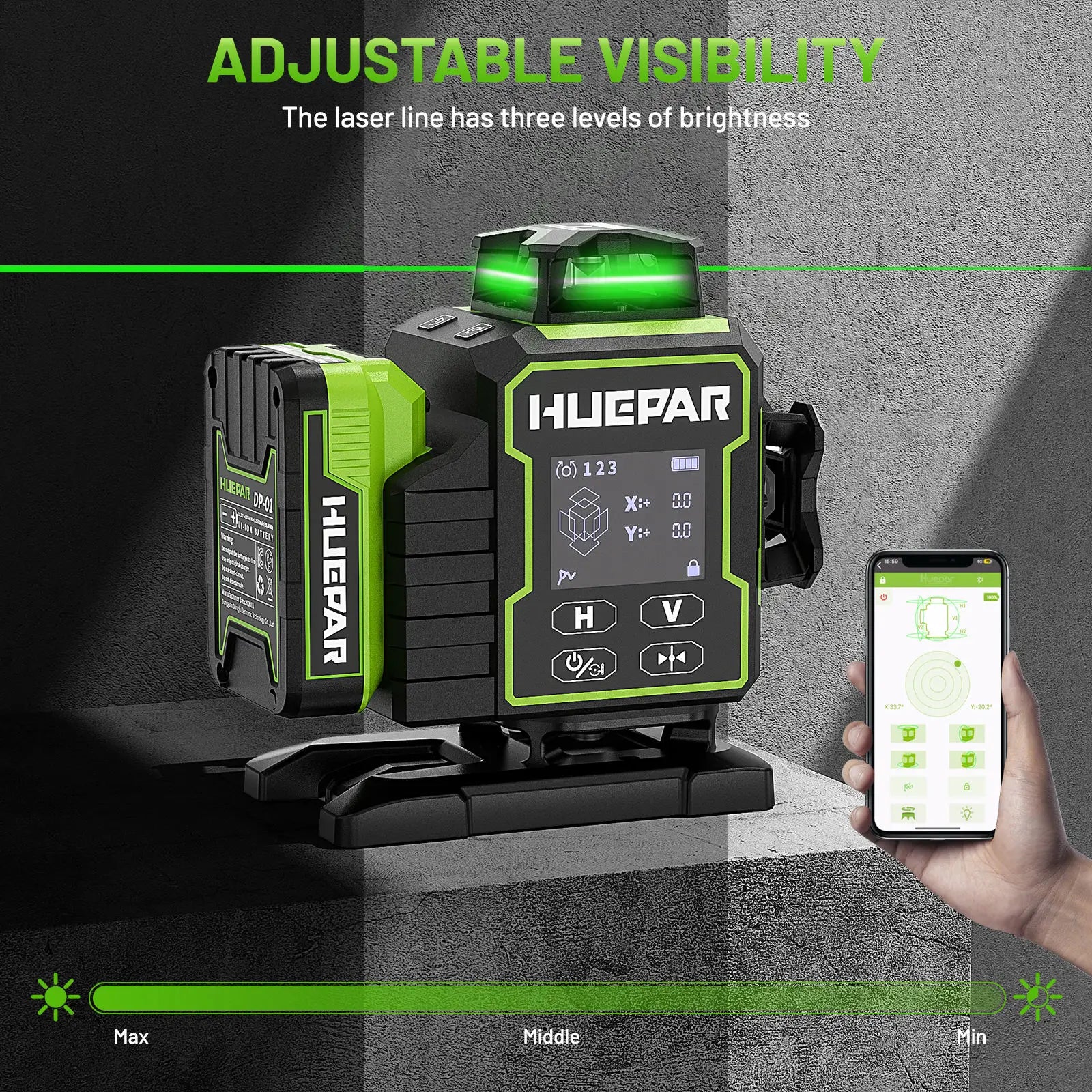

Adjustable Visibility
The laser level has three levels of adjustable brightness
Minimum brightness:In dimly lit environments, such as dim indoor construction sites or when used at night, low brightness can be chosen to ensure that the laser line is clearly visible and not glaring.
Medium brightness: In general indoor or semi bright environments, choosing medium brightness can meet the needs of most usage scenarios, which can be clearly visible without being too dazzling.
Maximum brightness: In outdoor or strong light environments, such as outdoor construction sites with direct sunlight, choosing high brightness can ensure that the laser line is clear and visible, and will not be affected by strong light and lose accuracy.
By using different brightness of light in different environments, machines can have better endurance and durability. And it can also greatly enhance your appearance.

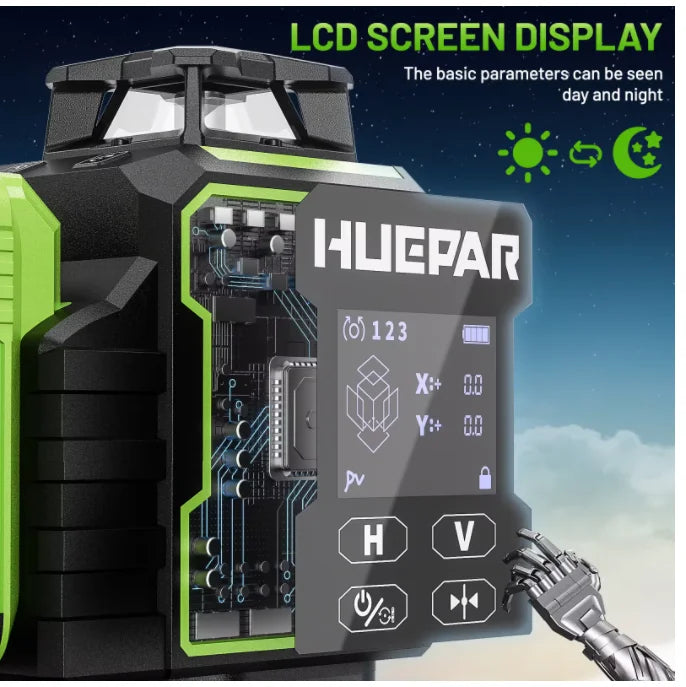

Lcd Screen Display
The laser level has an LCD screen that can provide clear information display, including horizontal/vertical accuracy, battery level, working mode, etc., making it convenient for users to monitor and adjust in real-time.
It can visually display parameters and setting options, and users can operate and adjust them through the on-screen interface, making the operation more convenient and convenient.
It enhances the user experience, making it more convenient for users to grasp the working status and parameter settings of the laser level, thereby completing work tasks more efficiently.
