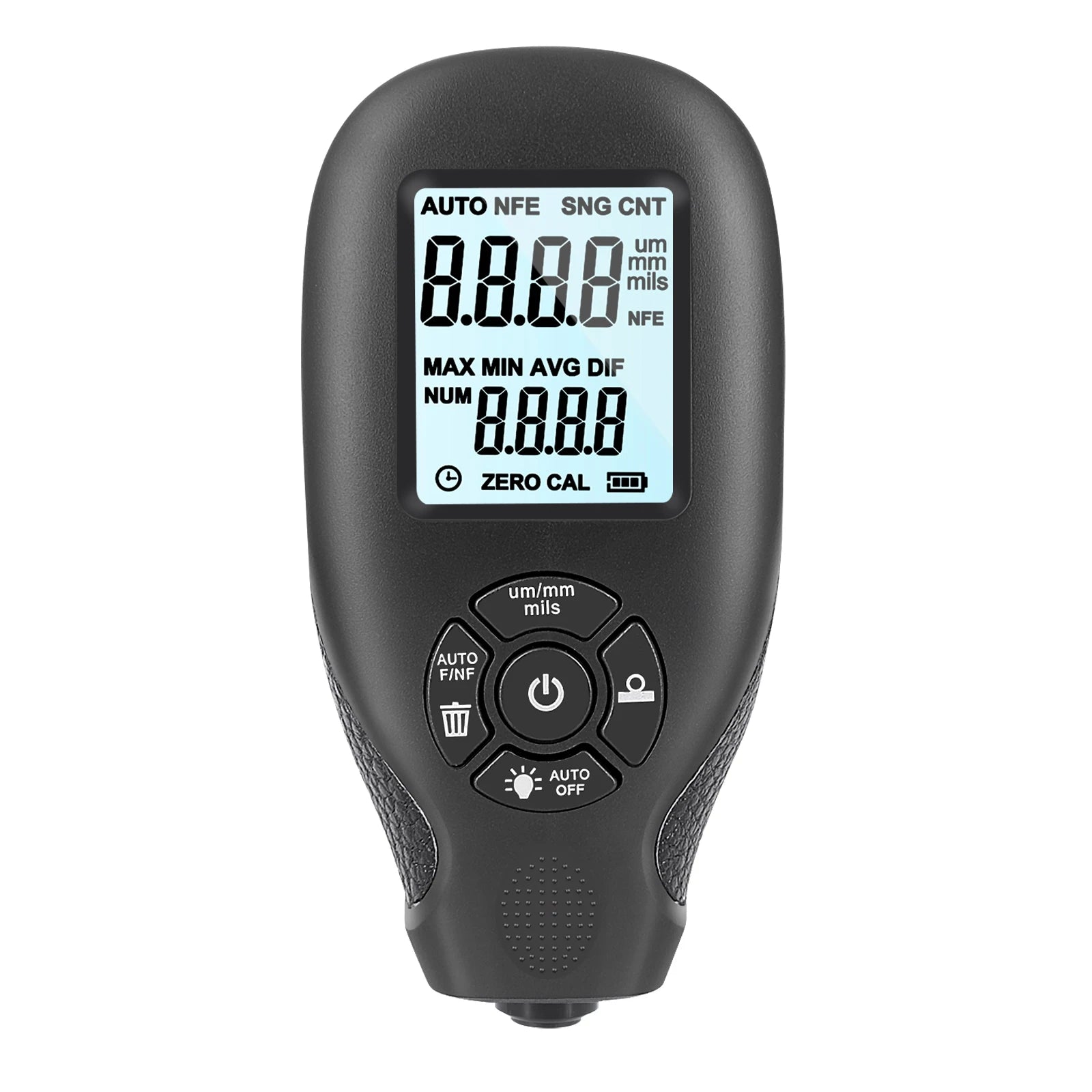

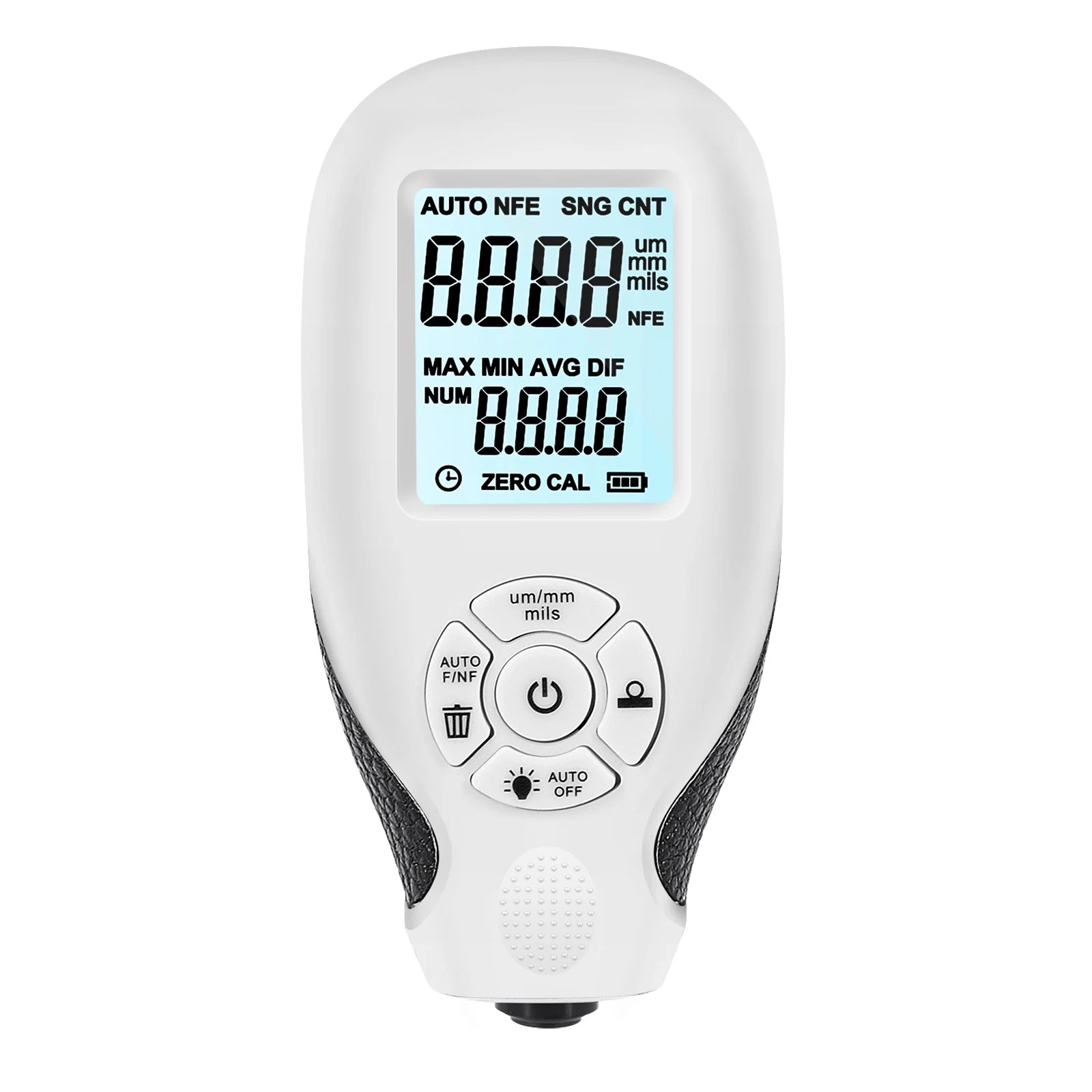

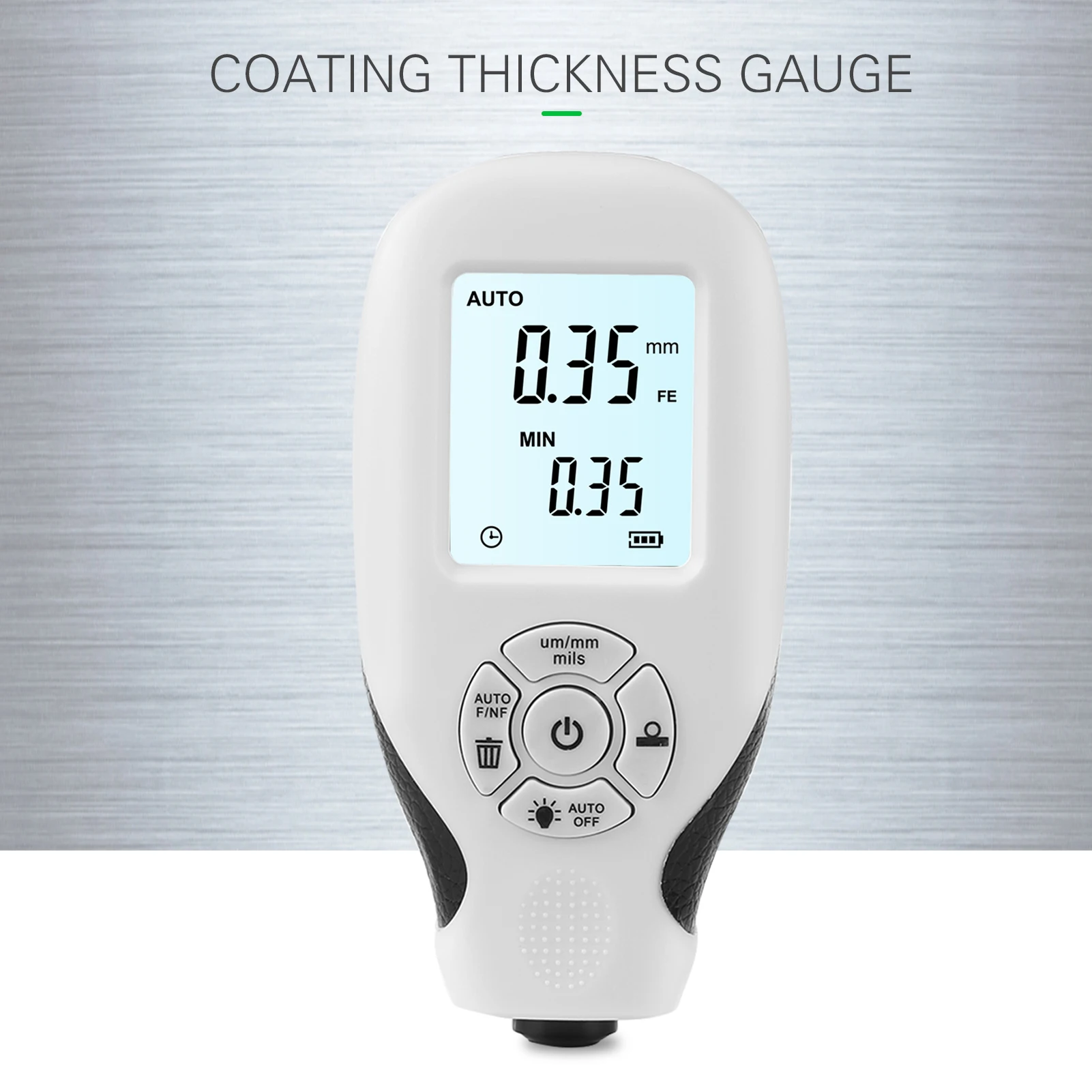

HW-300 Coation Thickness Gauge 0-2000UM Car Paint Film Thickness Tester Car Coating Measuring Tools Automotive Paint DFT Meter
HW-300 Coation Thickness Gauge 0-2000UM Car Paint Film Thickness Tester Car Coating Measuring Tools Automotive Paint DFT Meter
SPECIFICATIONS
Battery Included: no
Brand Name: JUANJUAN
Car paint thickness meter: Thickness gauge tester for cars
Certification: NONE
Choice: yes
High-concerned chemical: None
Material: ABS
Measurement accuracy: ±(3%+1UM)
Measuring range: 0-2000UM
Model Number: HW-300
Operating temperature: -10 degrees Celsius 50 degrees Celsius
Origin: Mainland China
Paint meter: paint thickness tester
Product name: HW-300 coating thickness gauge
With Backlight Or Not: Yes
car paint tester: Thickness gauge
car paint thickness gauge: thickness gauge for cars
semi_Choice: yes

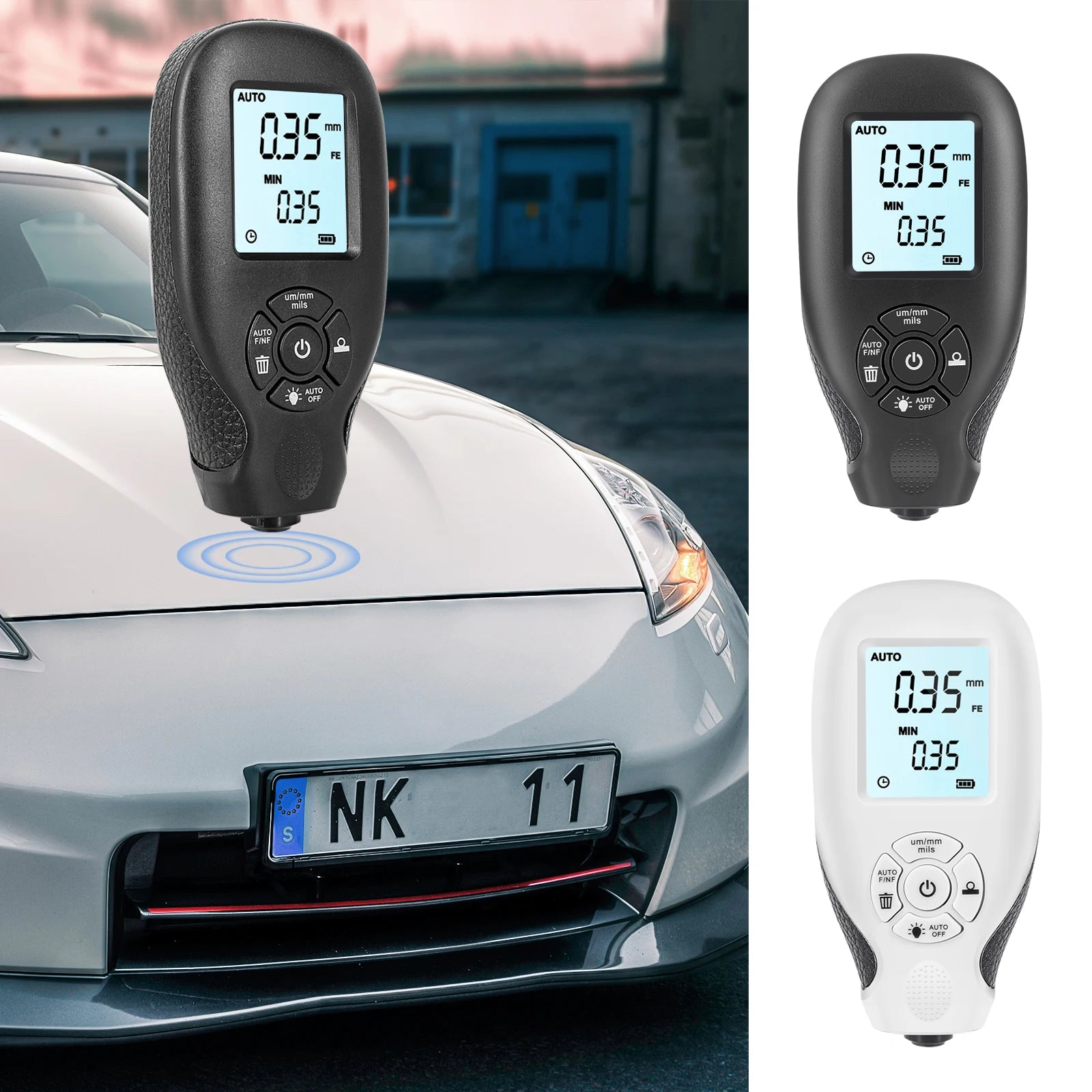

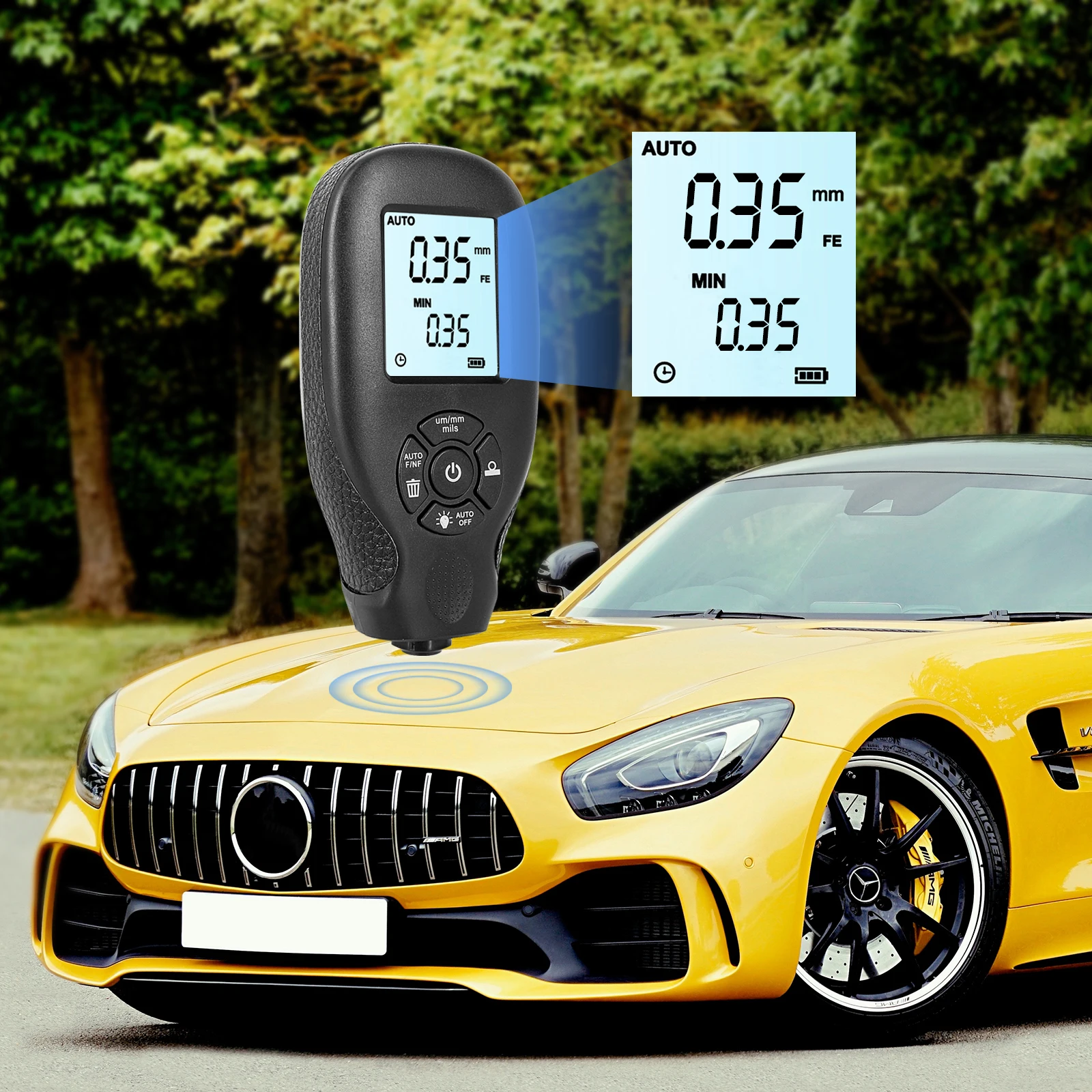

The thickness gauge is used to measure the thickness of electroplated and coated plates on metals, as well as the thickness of non-ferromagnetic coatings on ferromagnetic metals (such as iron, nickel, cobalt, etc.), such as: paint/enamel/chromium on steel, aluminum /Paint and anodized coating on copper, as well as the thickness of the paint on the car, the surface of metal parts, the thickness of the coating, etc. This product also has a built-in dual-principle probe of magnetic induction and eddy current, which can automatically identify the metal substrate to be tested. Simply place it on the surface to be tested, and the coating thickness can be automatically calculated.
Specification:
Product name: HW-300 coating thickness gauge

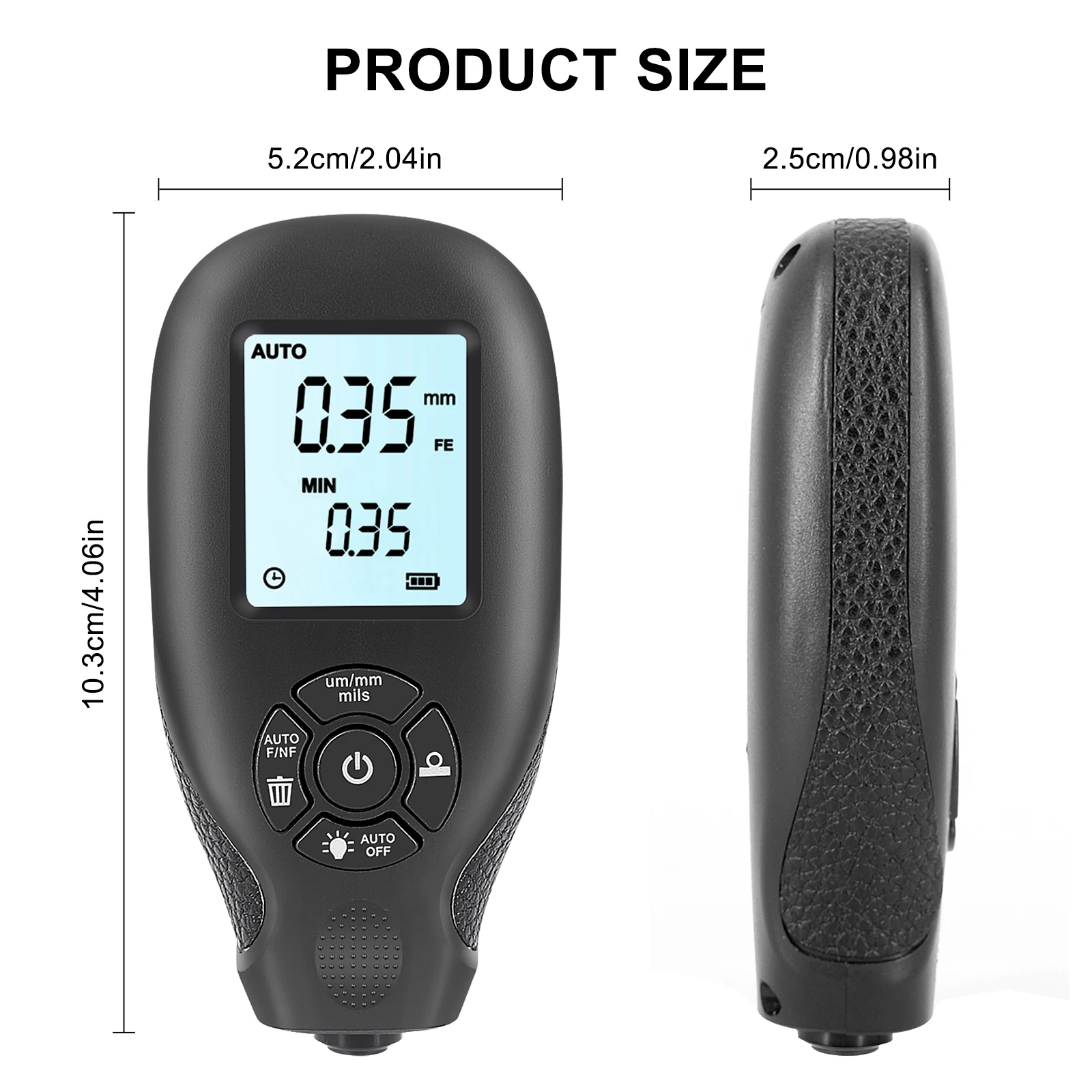

Product size: 110MM*52MM*25MM
Material: ABS

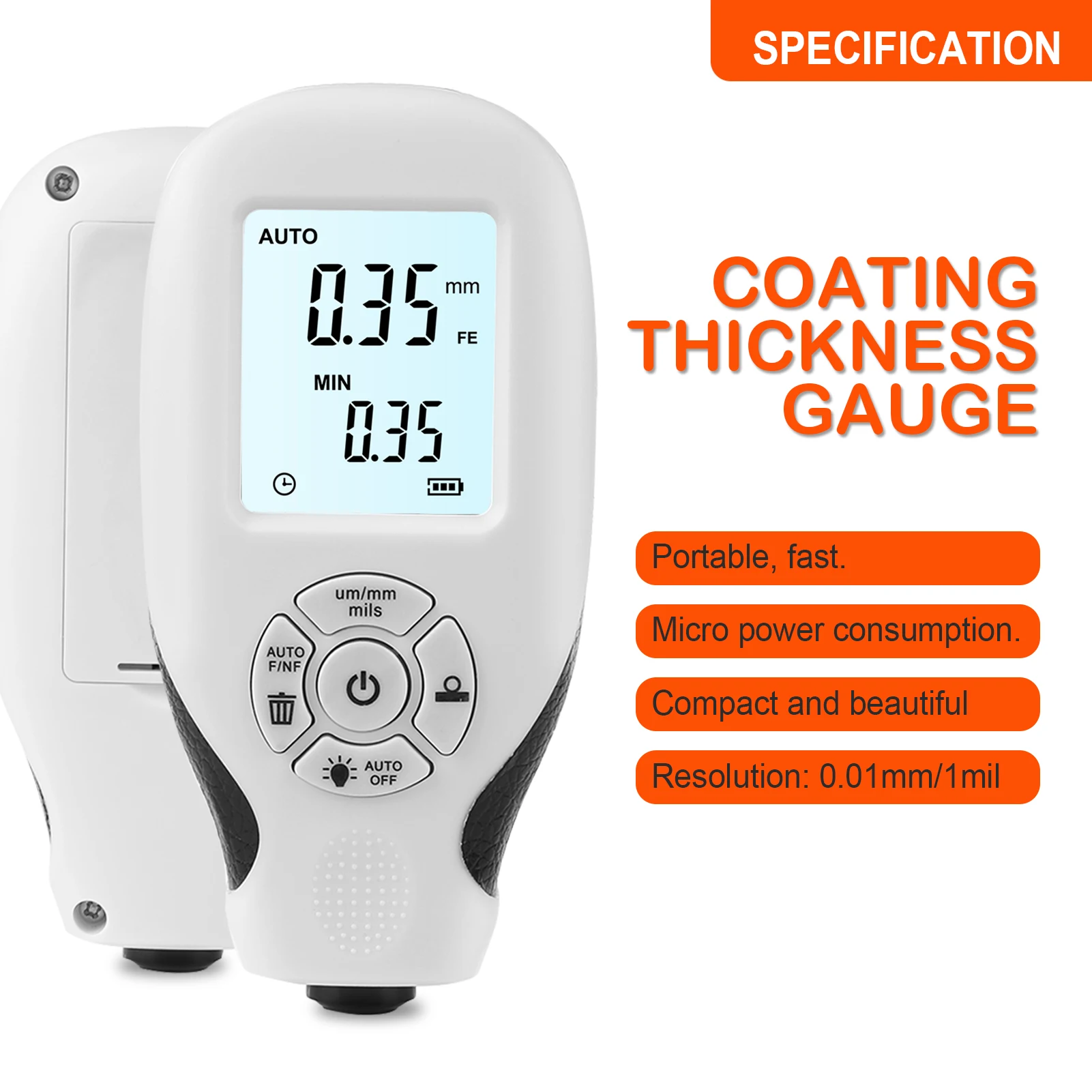

Resolution: 0.01mm/1mil
Measuring range: 0-2000UM
Measurement accuracy: ±(3%+1UM)

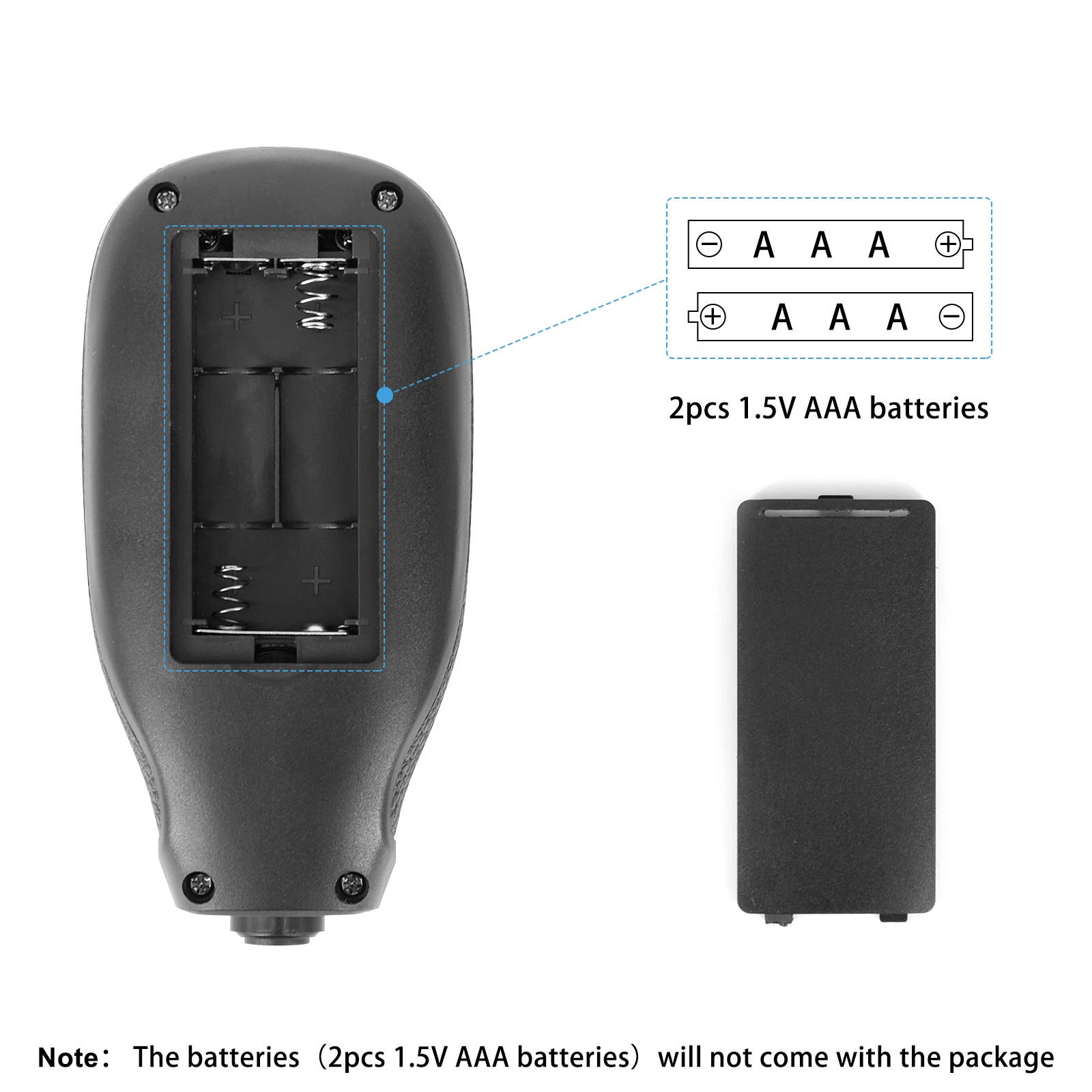

Power supply: 2 1.5V AAA batteries (not included)
Operating temperature: -10 degrees Celsius 50 degrees Celsius
Accessories: Thickness gauge 1PCS + manual + calibration sheet, white box packaging
Principle:
1.The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.
2.The Gauge is designed for non-destructively measuring the thickness of coating and painting.

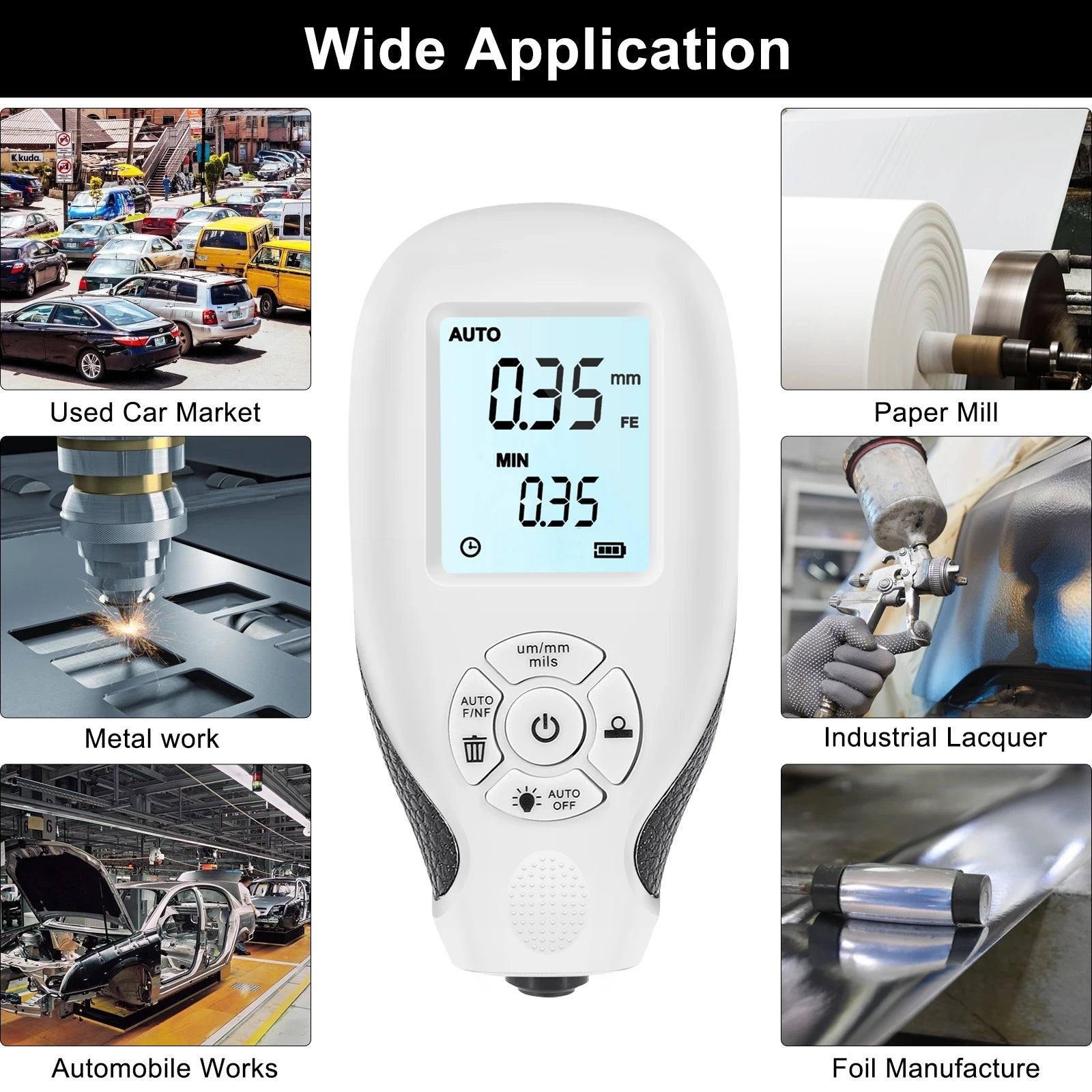

It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

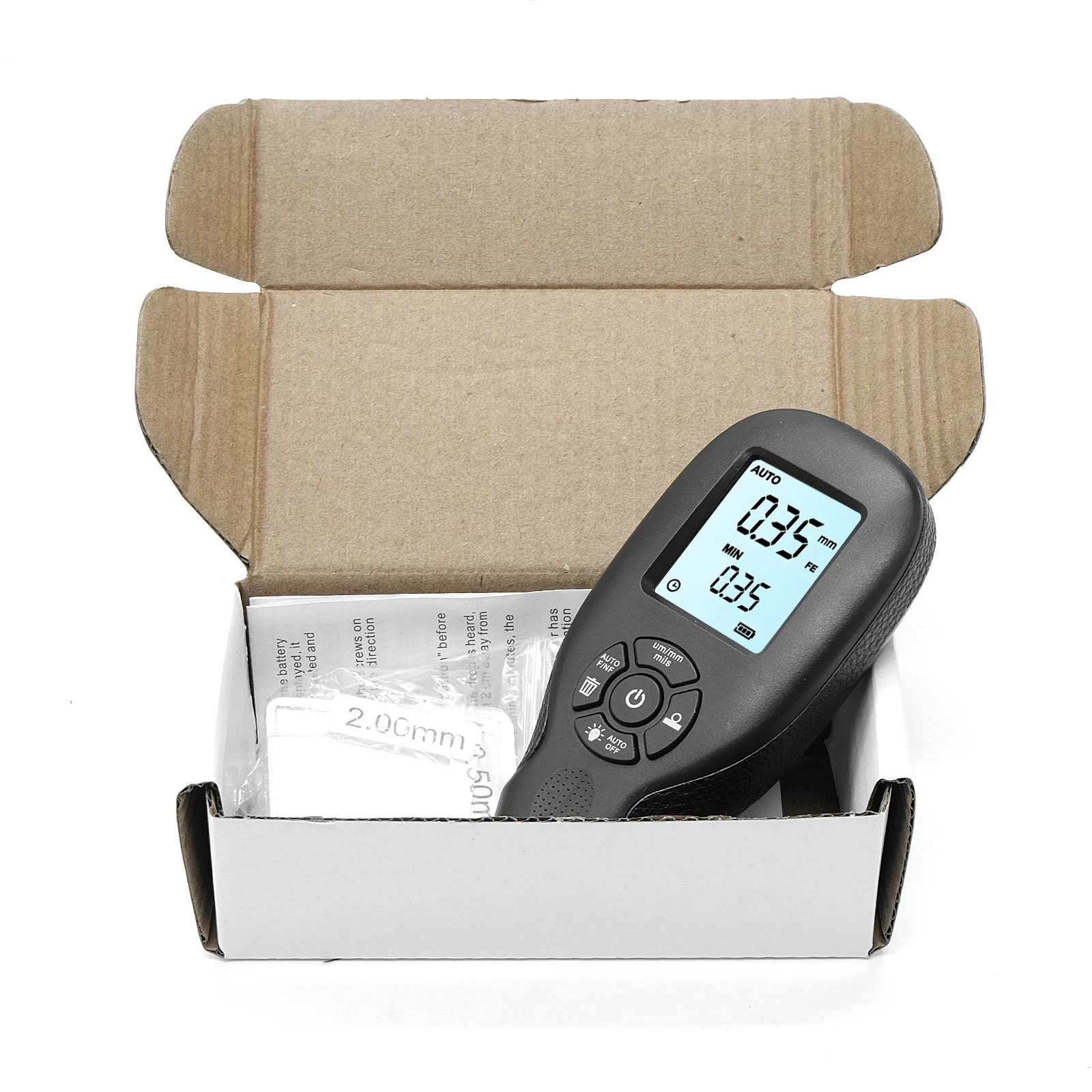

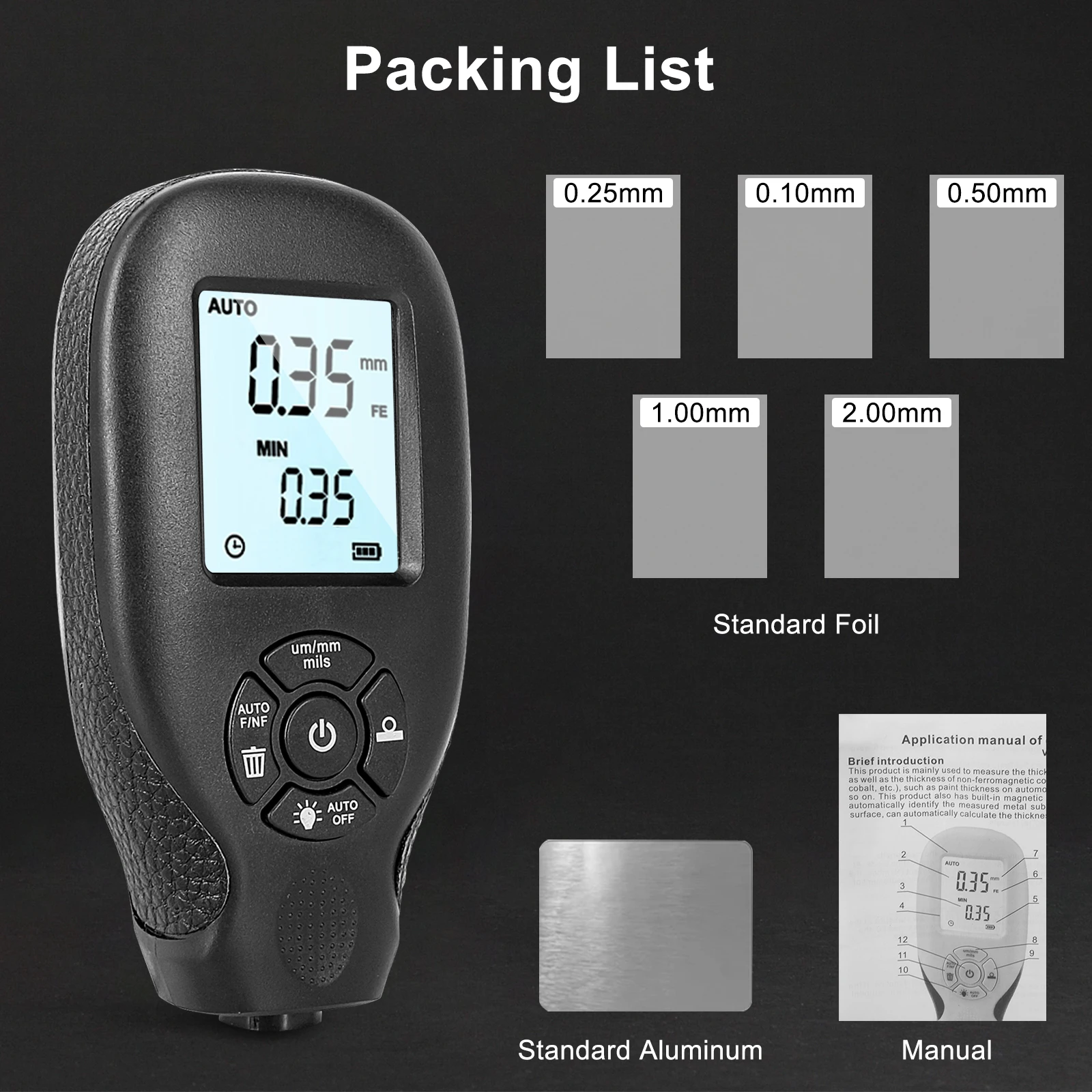

Package List
1 x Thickness gauge
1 x Manual
6 x Calibration sheets
Note:
- There might be little error of size for manual measurement.
- Due to different lighting effects and monitor settings, the actual items color may not exactly reflect the color on pictures.
-
Product Name: HW-300PRO Coating Thickness Gauge
Material: ABS
Product size: 122MM*50MM*22MM
Power supply: 2 1.5V AAA batteries (battery not included)
Probe: F probe, N probe
Magnetic induction: Measuring principle(F), Eddy current effect(N)
Measuring range: 0-2000UM
Measurement accuracy: ±(3% 1UM)
Operating temperature: -10°C~50°C
Accessories: Thickness Gauge 1PCS Manual Calibration Sheet

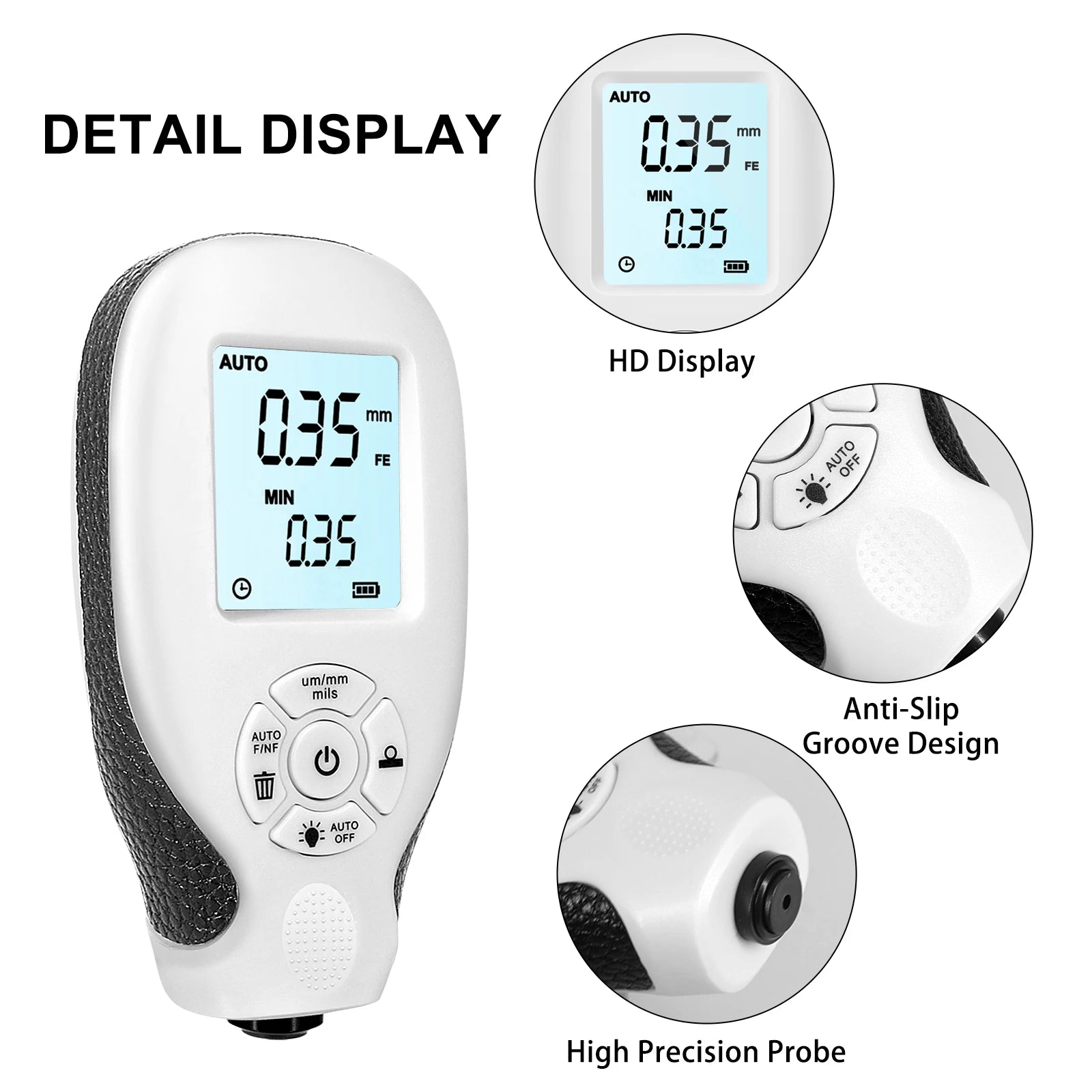

feature:
Ultra-precision resolution 1um, FE/NFE coating measurement, automotive paint 0-2000um
Small size and high precision
battery level indicator
Automatic shutdown function
for FE/NFE
