SPECIFICATIONS

Brand Name: NONE

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: None

Origin: Mainland China

description

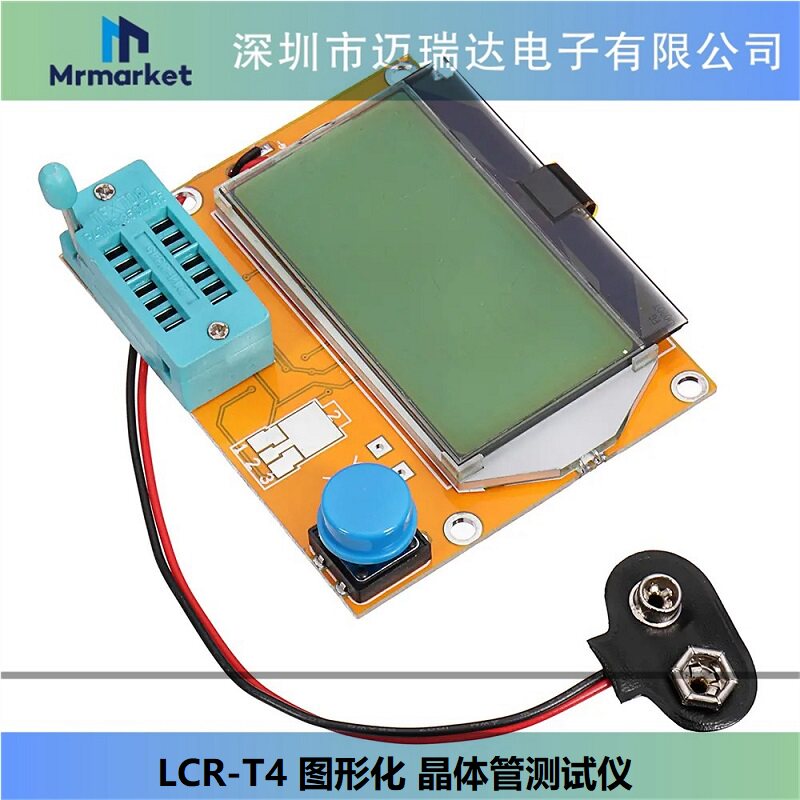

LCR-T4 12864 LCD Graphic Transistor Tester Resistance and Capacitance ESR SCR Meter

Specifications:

Resistance: 0.1 Ω -50M Ω

Capacitor: 25pF-10000uF

Inductance: 0.01mH-20H

Working power supply: DC-9V

Standby current: 0.02uA

Working current: 25mA

Material: Metal+Plastic

Size: Approximately 11.1cm/4.37 "x2.6cm/1.02" x8.5cm/3.34“

Conversion: 1cm=0.3937 inches, 1 inch=2.54cm

Feature:

1. Support startup voltage detection function

2. Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, transistors, resistors, and capacitors. Automatically test component leads and display on LCD

3. The forward bias voltage of the emitter transistor can be determined by detecting the amplification factor and number of bases of the transistor, MOSFET protection diode, etc

4. Measure the gate threshold voltage and gate capacitance MOSFET

5. Display adopts 12864 LCD (128 * 64 characters)

6. Fast testing speed, effective component testing: within 2 seconds (except for large capacitors, which also take a long time to measure)

7. One click operation, power on test.

8. Power consumption in shutdown mode: less than 20 nA

9. The automatic shutdown function can avoid unnecessary waste, save battery power, and improve battery life.

The package includes:

1 x LCR-T4 12864 LCD graphic transistor tester

描述
LCR-T4 12864 LCD图形晶体管测试仪电阻电容ESR SCR表

规格：

电阻：0.1ω-50Mω
电容：25pF-100000uF
电感：0.01mH - 20H
工作电源：DC-9V
待机电流：0.02uA
工作电流：25mA
材质：金属+塑料
尺寸：约 11.1cm/4.37"x2.6cm / 1.02"x8.5cm/3.34"
【换算：1cm=0.3937英寸，1英寸=2.54cm】

特征：
1.支持开机电压检测功能
2、自动检测NPN和PNP晶体管、N沟道和P沟道MOSFET、二极管（包括双二极管）、晶闸管、三极管、电阻和电容。自动测试元件引线并在 LCD 上显示
3、发射极晶体管的正向偏置电压可以通过检测晶体管、MOSFET保护二极管等的放大倍数和基极数来确定
4. 测量栅极阈值电压和栅极电容 MOSFET
5.显示采用12864 lcd LCD（128*64字符）
6、测试速度快，有效元件测试：2秒内（大电容除外，大电容测量也需要很长时间，1分钟内测量时间正常）
7、一键式操作，开机测试。
8. 关机模式功耗：小于20 nA
9、自动关机功能，可避免不必要的浪费，节省电池电量，提高电池寿命。
