SPECIFICATIONS

Accuracy: ≤±(3% reading+2μm)

Brand Name: PINTUDY

Certification: CE

Choice: yes

Display: 128*48 dot matrix LCD

High-concerned chemical: None

Language: English, Russian, Turkish, Ukrainian, Chinese

Measuring interval: 0.5s

Measuring principle: Fe: Hall Effect / NFe: Eddy current

Measuring range: 0.0-3500μm

Model Number: LS237

Origin: Mainland China

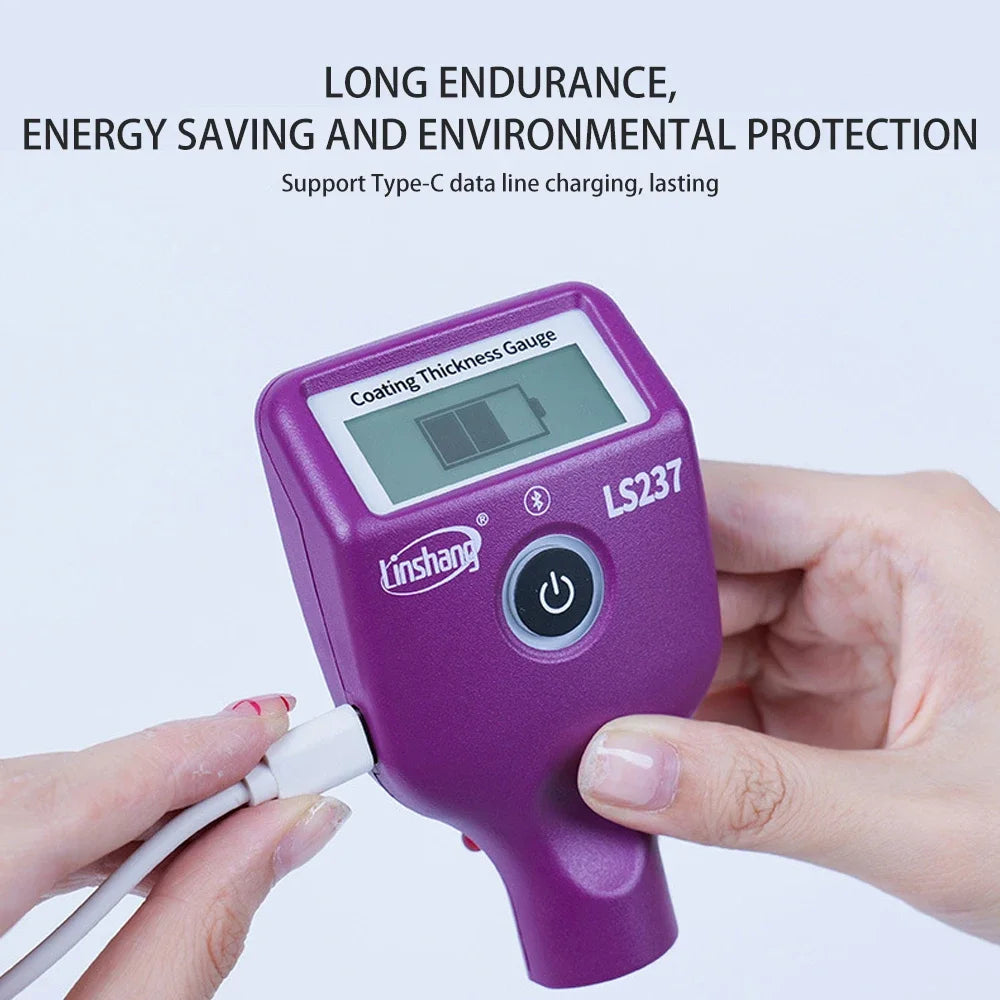

Power supply: Rechargeable lithium battery 3.7V@1200mAh

Probe tip: Ruby

Resolution: 0.1μm: (0μm-99.9μm)1μm: (100μm-3500μm)

Unit: μm / mil

With Backlight Or Not: Yes

Rechargable Car Paint Thickness Gauge Checking Auto Coating Identify Ferrous Putty With Three Color and Rotatable Screen

Description:

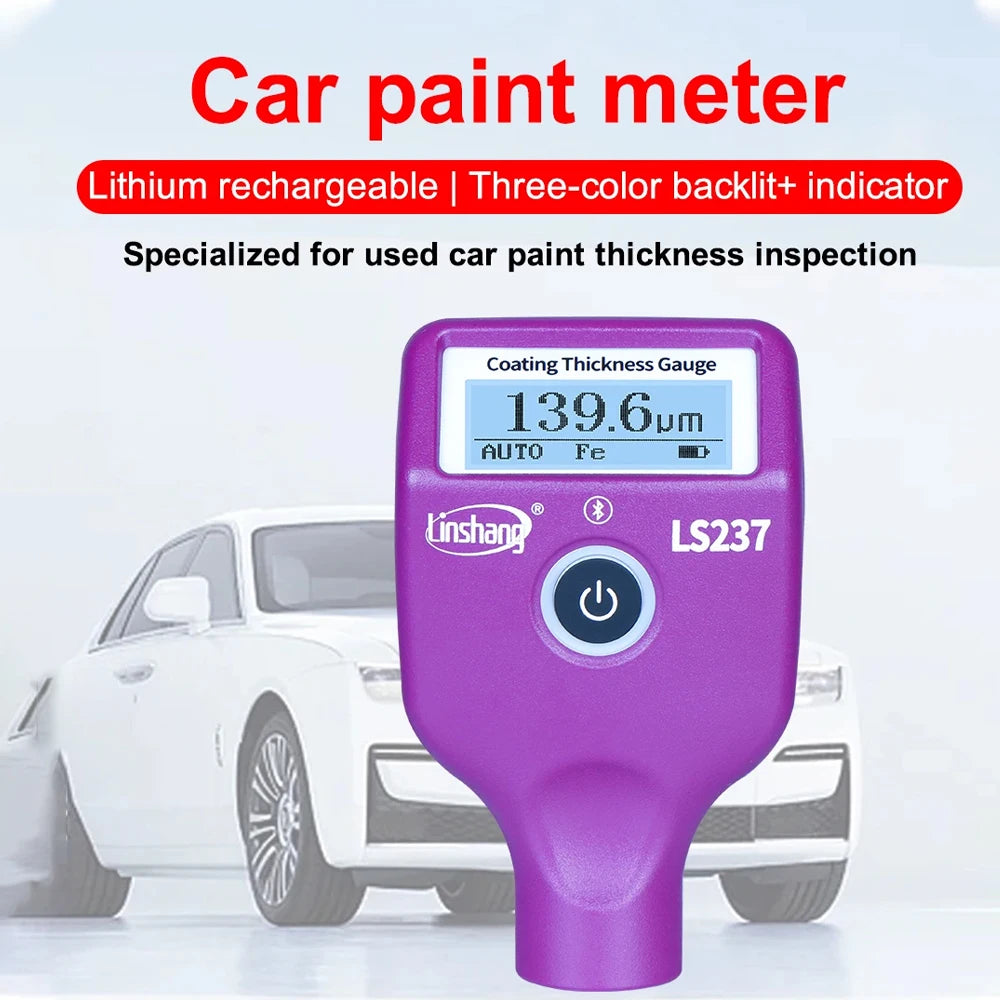

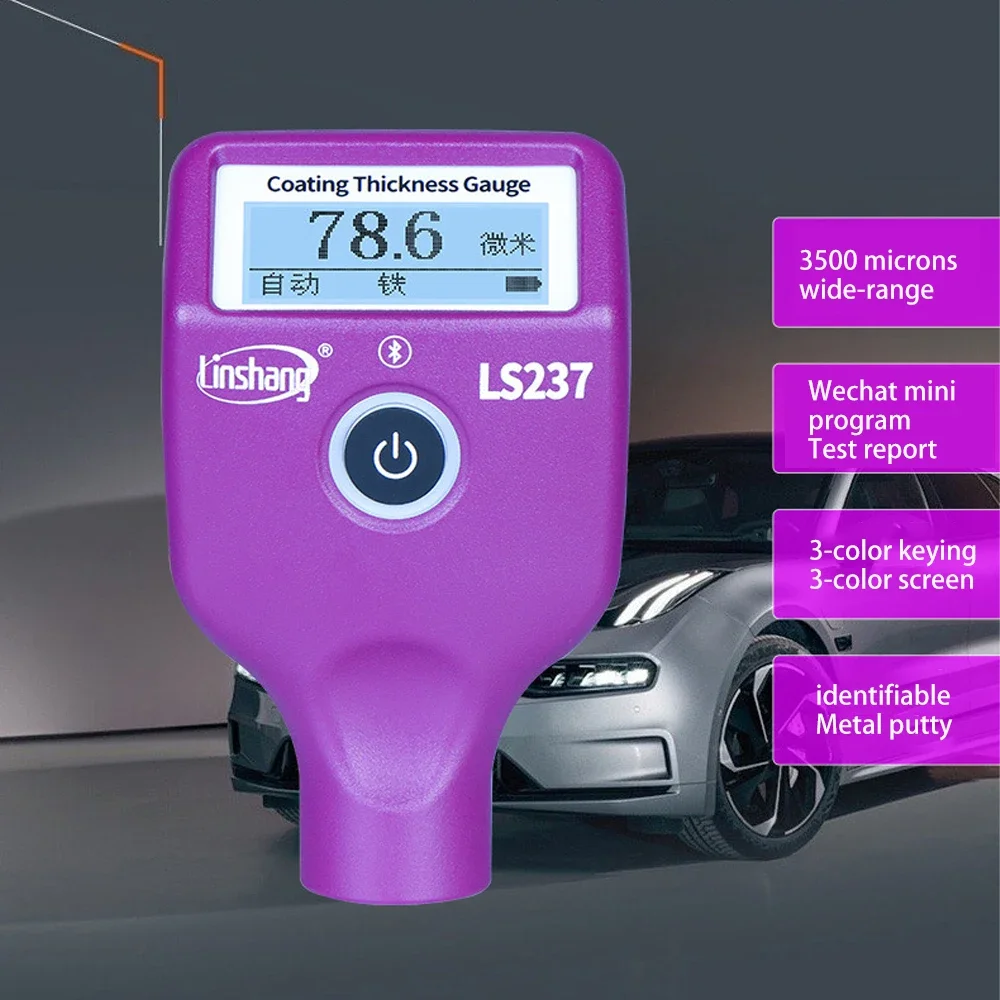

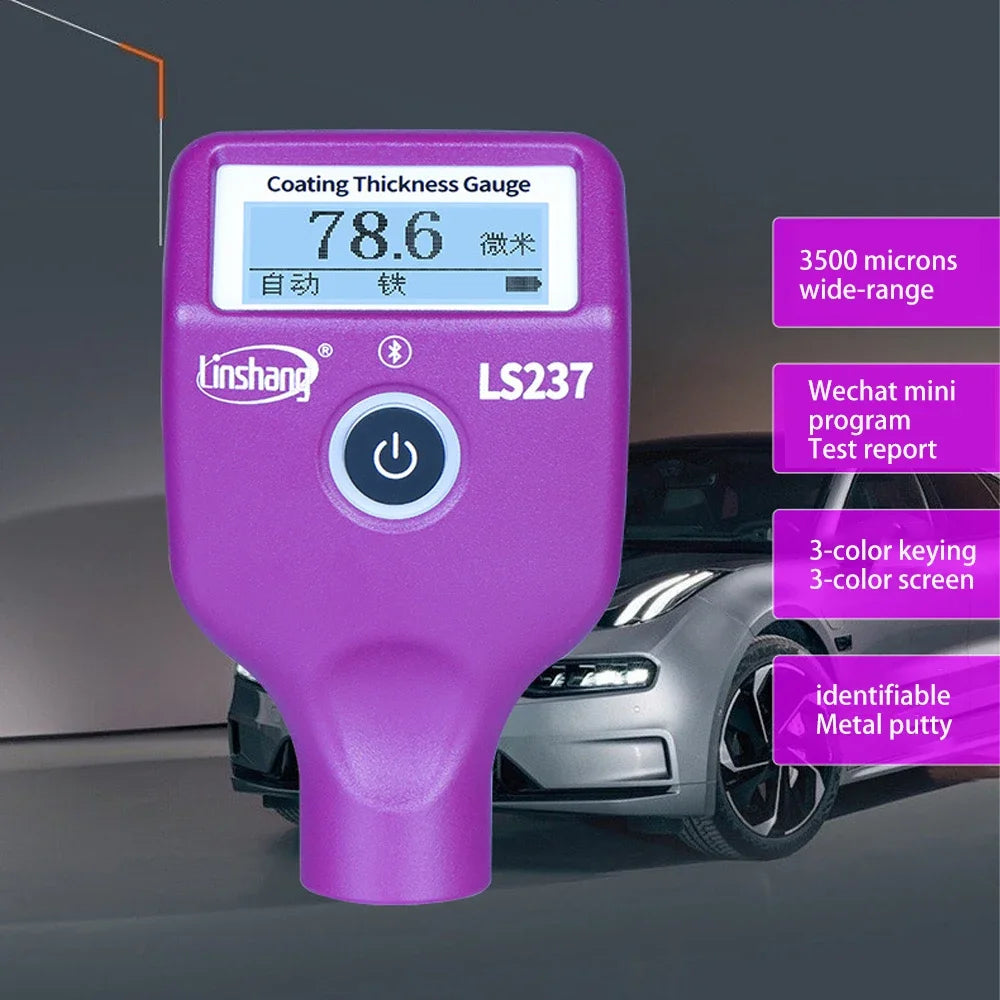

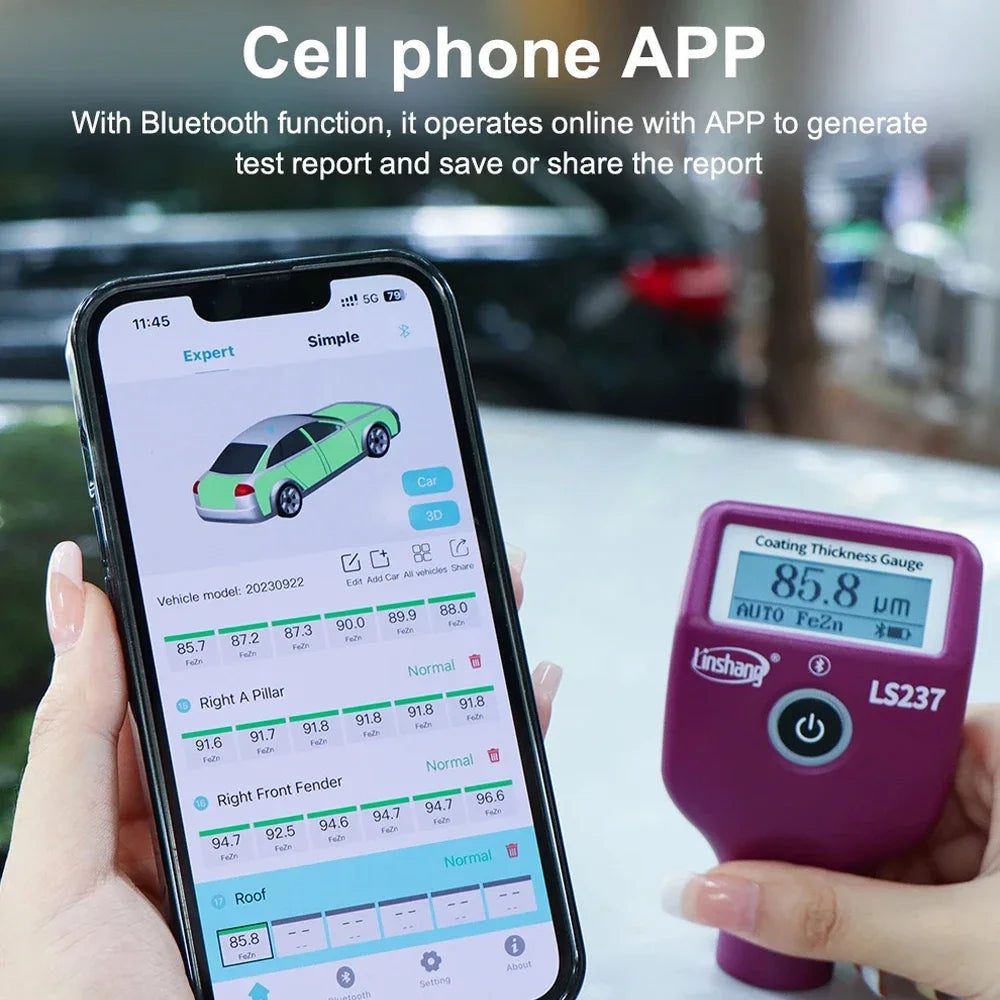

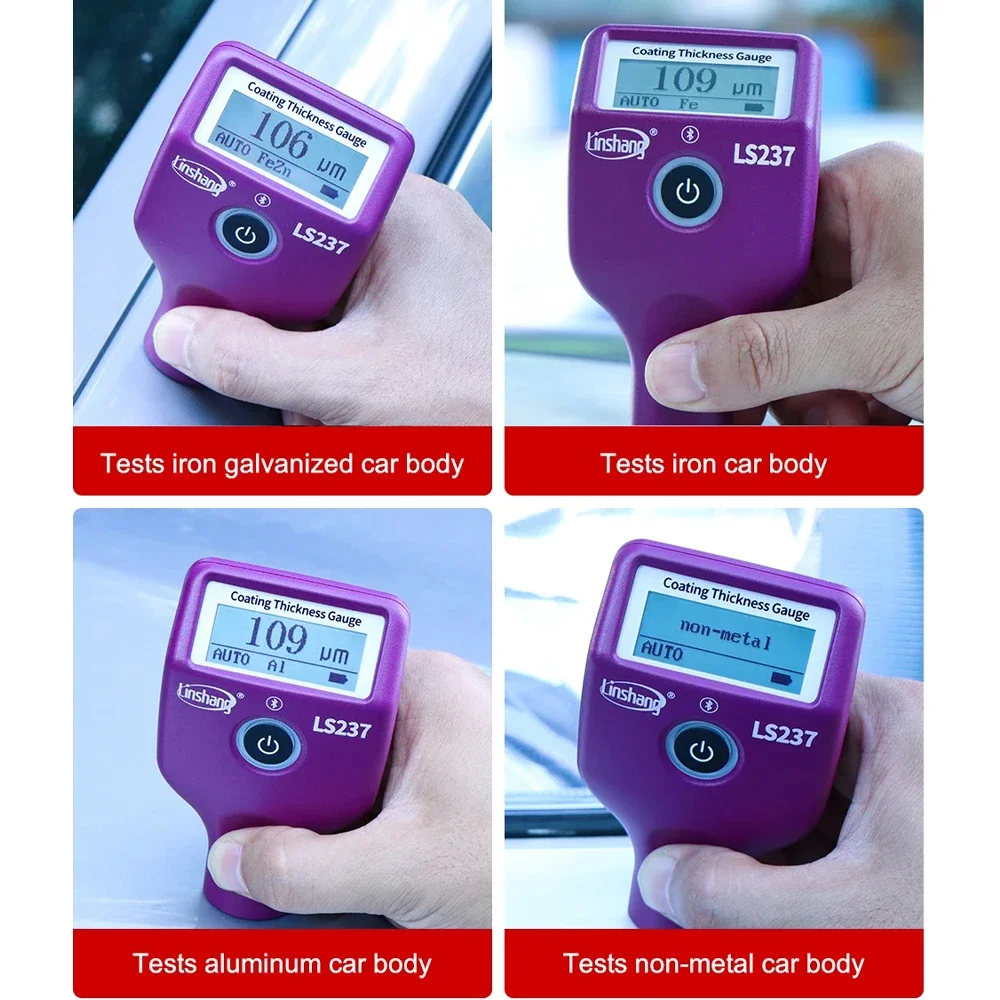

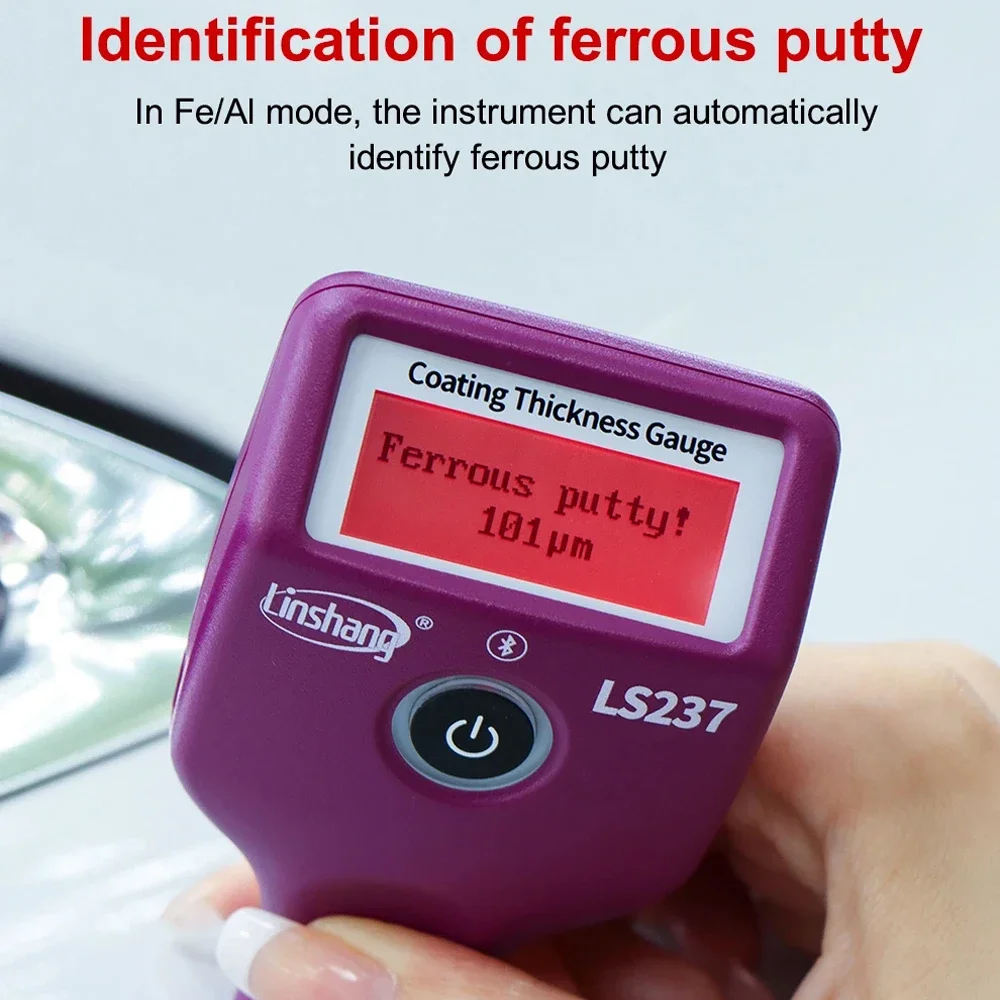

LS237 car paint meter is specialized in automotive paint thickness inspection. The instrument can not only measure the paint thickness above ferrous and aluminum materials, identify non-metallic, but also intelligently identify ferrous putty and iron galvanized. LS237 adopts three-color backlight and three-color indicator display, and according to different paint thicknesses the screen and buttons display different colors of light. LS237 paint film meter also adopts rechargeable lithium batteries to supply, with ultra-low power consumption. It also has Bluetooth function, equipped with APP, support inspection report export and sharing.

Specifications:

1. Probe tip: Ruby

2. Measurement principle: Fe: Hall effect / Al: Eddy current

3. Probe type: Integrated

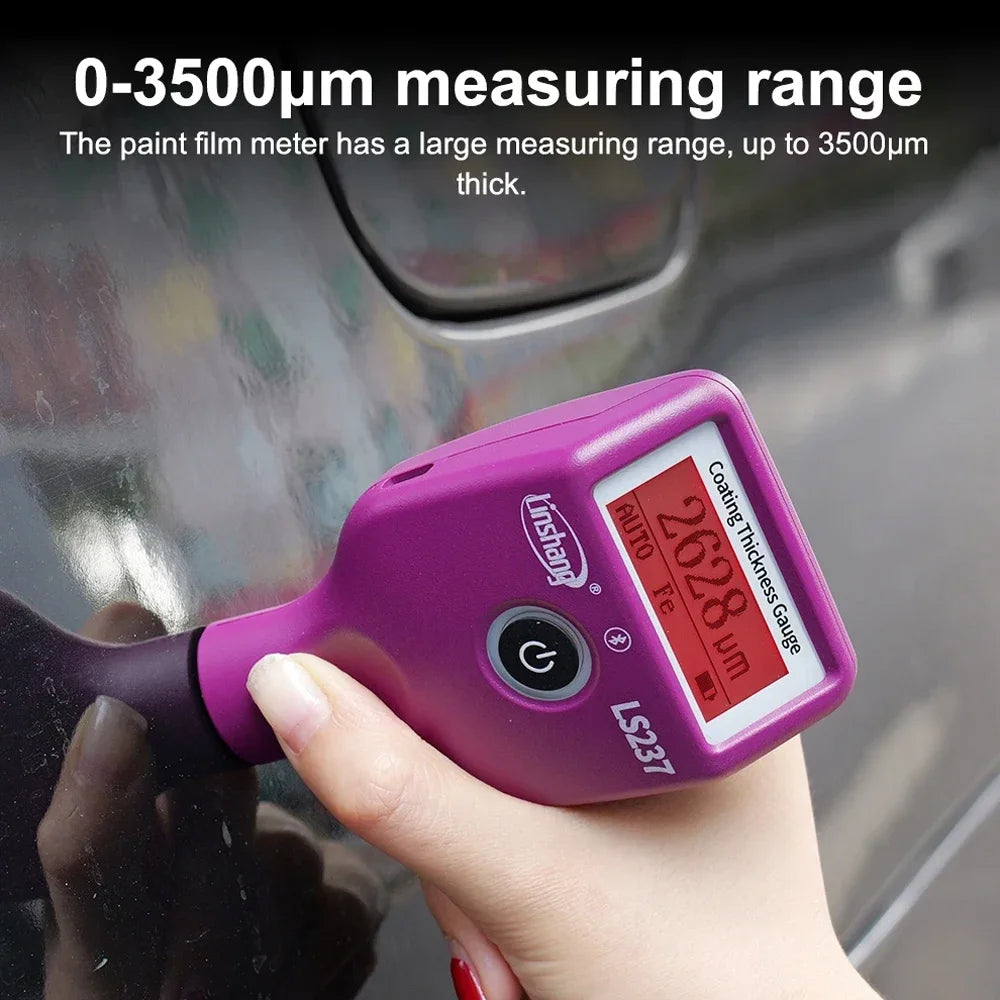

4. Measuring range: 0.0-3500μm

5. Resolution: 0.1μm: (0μm-99.9μm); 1μm: (100μm-3500μm)

6. Accuracy: ≤±(3%H+2μm), H is the standard value

7. Unit: μm / mil

8. Measuring interval: 0.5 s

9. Minimum measuring area: Ø = 25mm

10. Minimum radius of curvature: Convex: 5mm / Concave: 25mm

11. Minimum substrate thickness : Fe:0.2mm / Al:0.05mm
