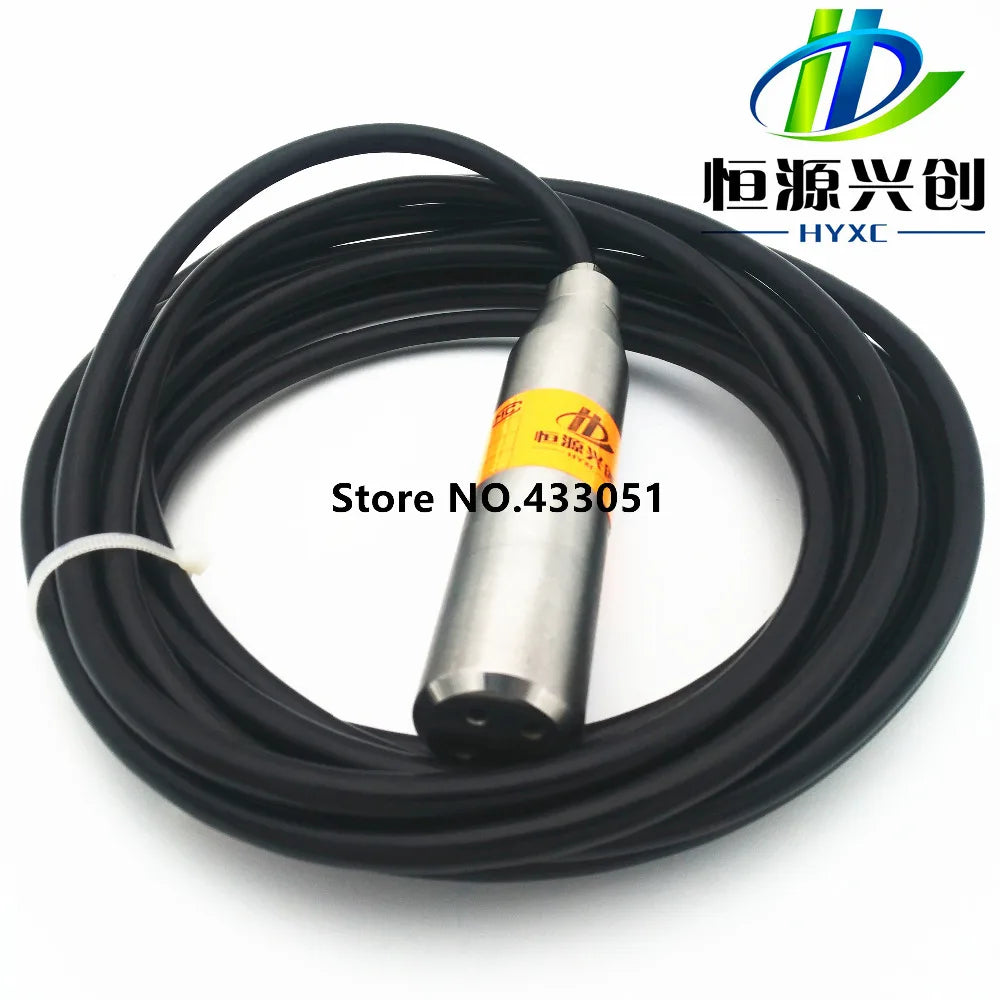

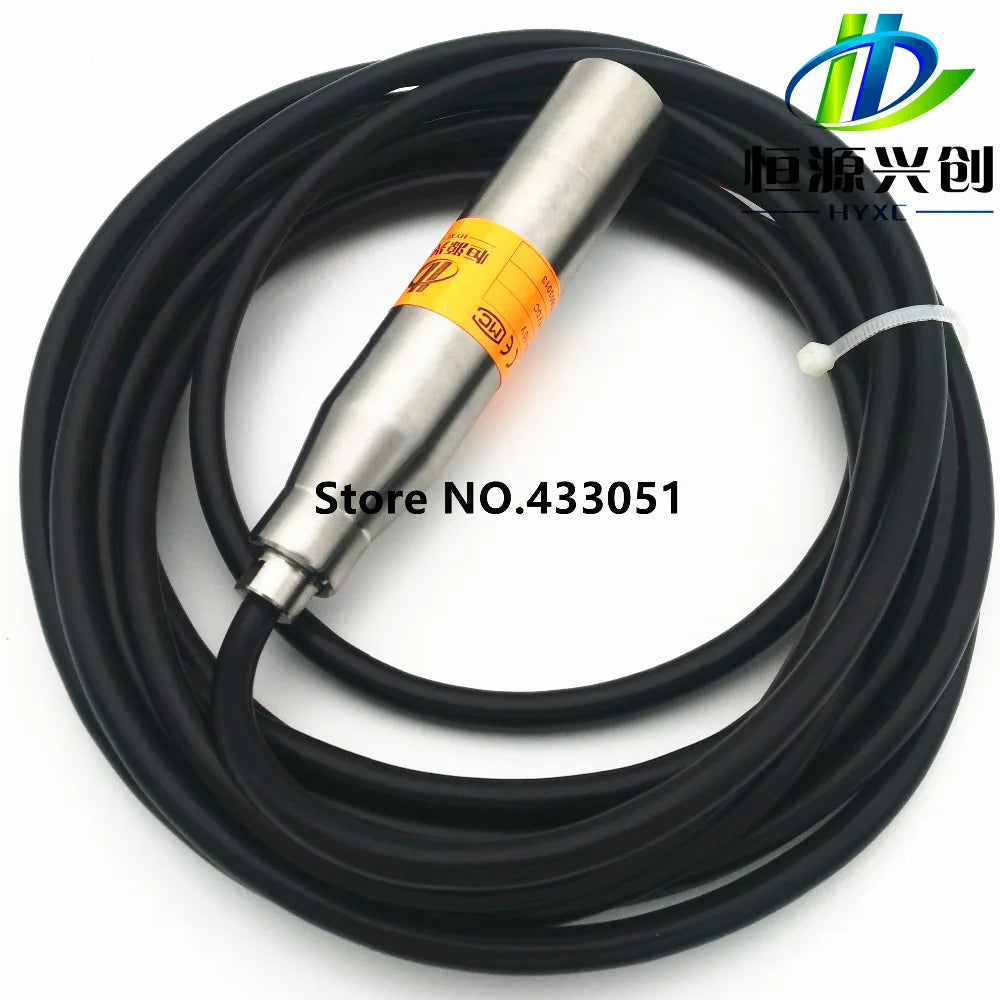

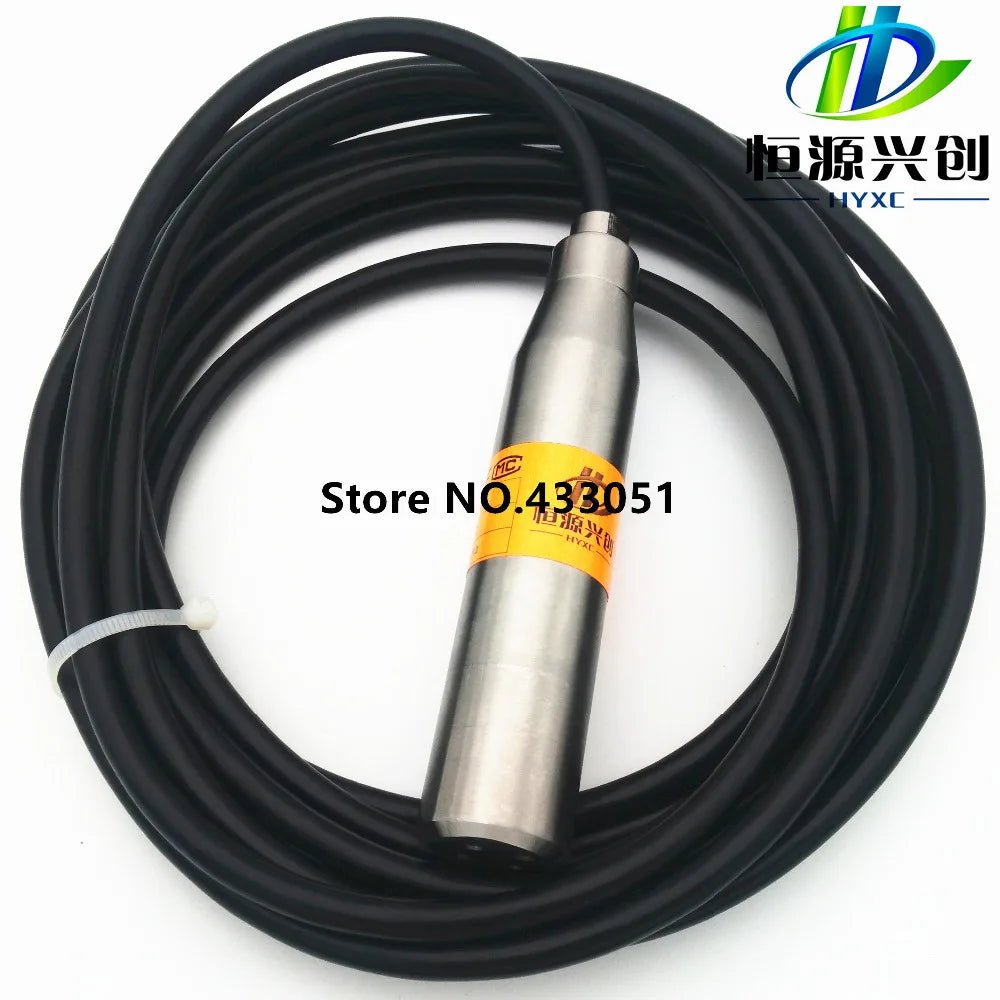

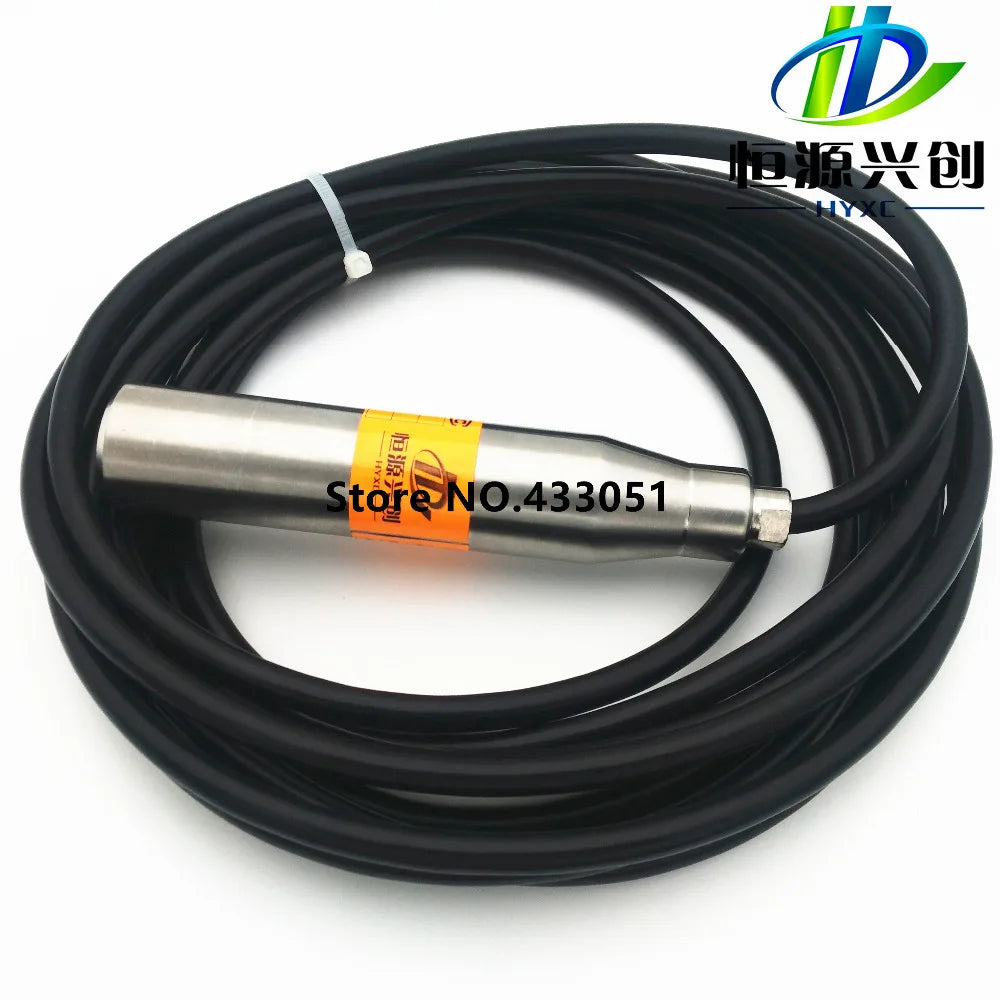

Liquid level transmitter signal 4 ~ 20 mA / Pressure sensor / 304 the material liquid level sensor / Pressure transmitter/
Liquid level transmitter signal 4 ~ 20 mA / Pressure sensor / 304 the material liquid level sensor / Pressure transmitter/
SPECIFICATIONS
Battery Included: no
Brand Name: HYXC
High-concerned chemical: None
Origin: Mainland China
Semi-finishedproduct: No
Welcome to Global electronics wholesale
We provide low price & high quality and best service.
100% Customer satisfaction is our goal
Please note that we are Wholesale products.
If you need products in large quantities,
Please contact us, to negotiate! Cooperation Happy!!
Model |
HYXC-LS |
|
Measurement of medium |
All kinds of liquids（to stainless steel without corrosive liquid） |
|
Measuring range |
0~5 m |
|
0~50 m (can choose any range) | ||
Pressure type |
Gauge pressure |
|
Accuracy |
0.25%F.S (Default) |
|
0.1%F.S | ||
Long term stability |
plusmn0.1％ FS/Year |
|
Response frequency |
le500 Hz |
|
Power supply |
24V DC (Default) |
|
9~36V DC | ||
Output signal |
4 ~ 20mA (Default) |
|
0 ~ 5V DC、0 ~ 10V DC | ||
Ultimate overload |
200%F.S |
|
Medium temperature |
-40℃～60℃(-40℉～140℉) |
|
Environmental temperature |
-40℃～85℃(-40℉～185℉) |
|
Protection grade |
IP68 |
|
Material |
Core: 316 S stainless steel |
Enclosure: 304 stainless steel |
O-Ring: Fluorine rubber |
Cable: Polyethylene air guide cable |
|
Load capacity |
current type:250～1425Omega |
|
voltage type: ge2KOmega | ||
Cable |
Polyurethane、Special guide gas cable |
|
Please read the following carefully,range is not the same, the price is different,if you do not understand, please contact our customer service staff, thank you!
If you need other ranges, please contact us to modify the price, thank you for your cooperation.

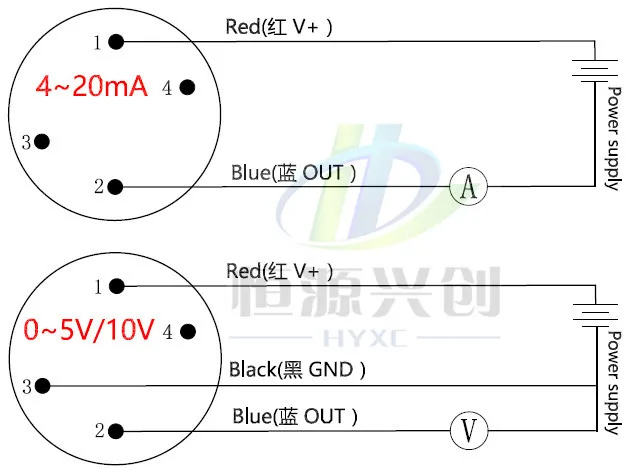

Wiring Diagran

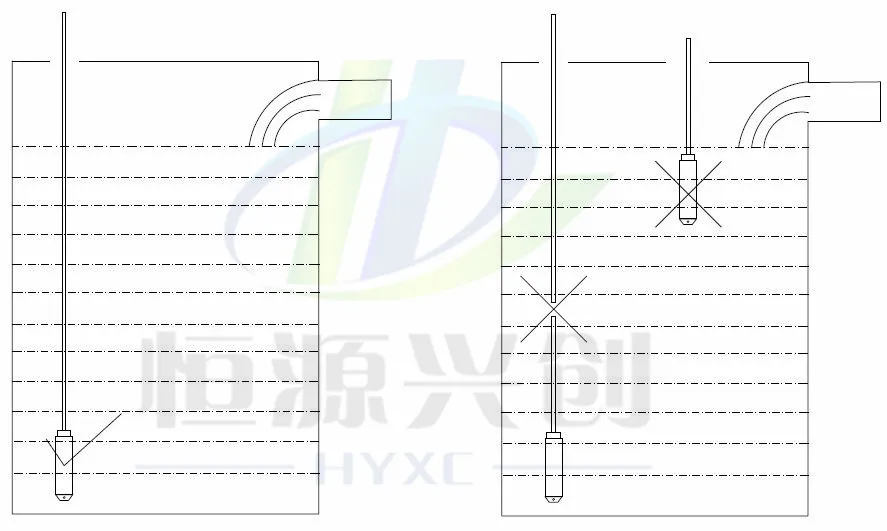

Installation
