SPECIFICATIONS

Battery Included: no

Brand Name: SMOWO

High-concerned chemical: None

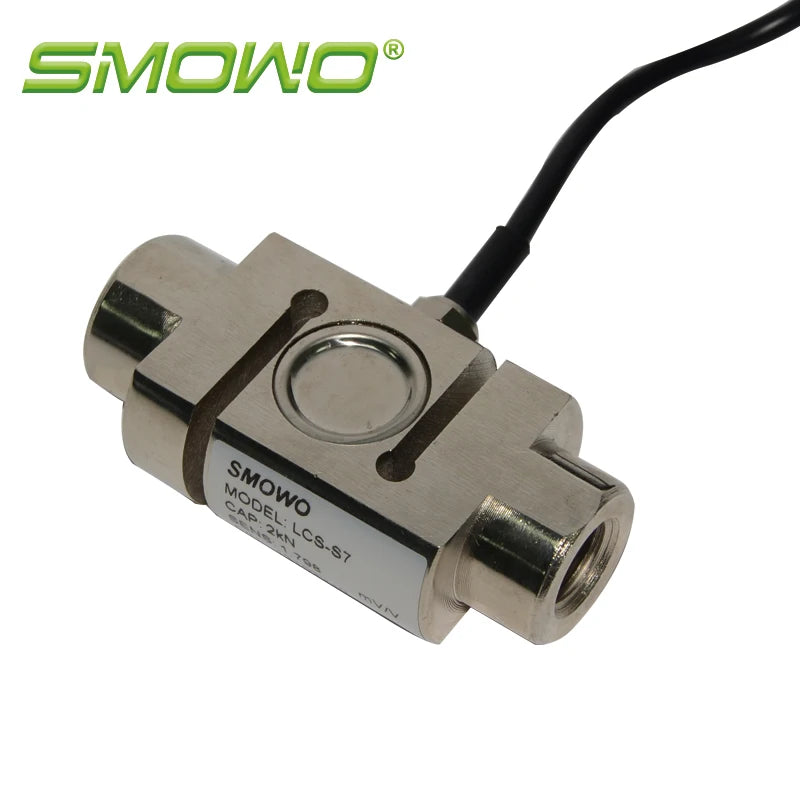

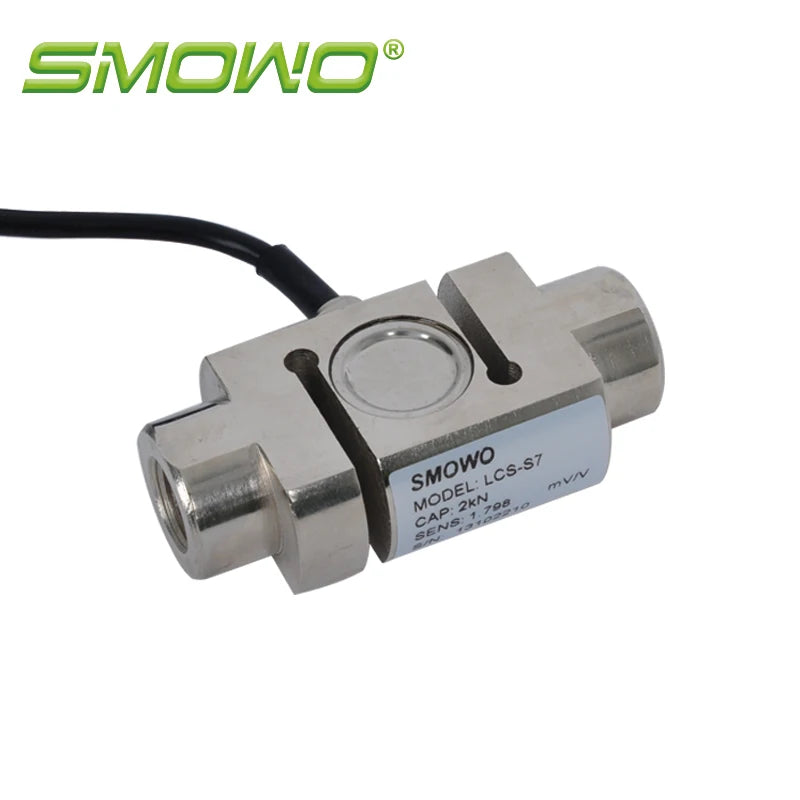

Model Number: LCS-S7

Origin: Mainland China

Semi-finishedproduct: No

material: alloy steel

output: mV signal

range: 15t,20t

sensitivity: 2.0mV/V (minus or plus 10%)

Please contact with us before order to revise payment amount link.

Reason:

Load cell capacity: different capacity with different price, weight, and express fee
Express fee: aliexpress set express automatically, high. We have our own express agent with cheaper delivery fee.

High accuracy, reliability, and stability
Tension or compression
Installing easily, and good interchangeability
Wide measurement range
Applied to batcher scale, crane scale, packing scale and so on
Optional measurement range: 1kN -200kN (approximate 100kg-20t)

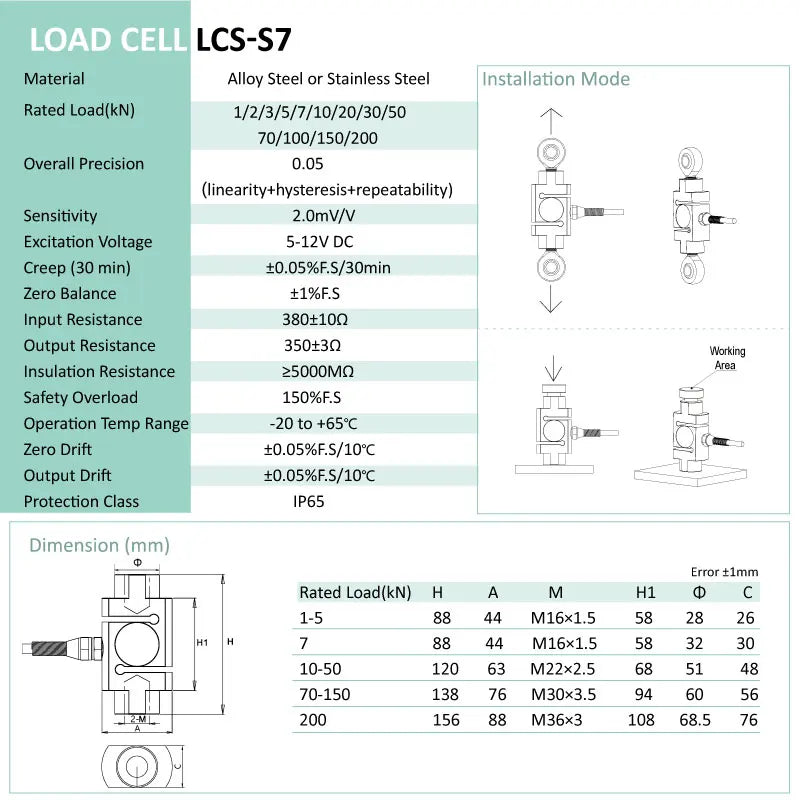

Description
Material	Alloy Steel or Stainless Steel
Rated Load (kN)	1/2/3/5/7/10/20/30/50 70/100/150/200

Performance Indicator
Overall Precision	0.05(linearity+ hysteresis+ repeatability)
Sensitivity	2.0mV/V
Excitation Voltage	5- 12V DC (recommend 5V DC )
Creep (in 30 min)	±0.05%F.S/30min
Zero Balance	±1%F.S
Input Resistance	380±10Ω
Output Resistance	350±3Ω
Insulation Resistance	≥5000MΩ
Working Environment
Safety Overload	150%F.S
Operation Temperature Range	-20 to +65ºC
Zero Drift	±0.05%F.S/10ºC
Output Drift	±0.05%F.S/10ºC
Protection Class	IP65

Optional Range	USD Price (without freight)
0-100kg/200kg/300kg/500kg/700kg	68.00
0-1t/2t/3t/5t	81.00
0-7t/10t/15t	108.00
0-20t	144.00
0-25t	211.00
Please note that price is not same for all the optional range. please leave message for us for different range. Our default price USD 68 is for 100kg/200kg/300kg/500kg/700kg

When you choose load cell, please pay attention to below:

Force direction, installing mode
Load cell capacity: Please make sure not overload. Measured load should be 50-70% of load cell rated capacity.
Sensitivity
Load cell output mV signal. Load cell cable length can affect load cell output, so please use transmitter/amplifier to transit 0-5V, 4-20mA or digital signal

Please read our manual carefully to get more info before you use our product.

The product is dealt with sealing protection in the process of producing. So if meeting any fault, please do not knock beam body or open it to maintain at your own discretion, and do not disassembly the parts in load cell.

Attention:

Load cell is high precision components. To make sure measured precision, controlling force should be transferred with any influence of eccentric load and lateral load. In the measurement, action line of outside force should coincide with load cell stressing axis. Please follow force direction on the beam of load cell to use it.
When install load cell, please avoid strong impact or wiring and beam broken caused by strong pulling. Please keep load cell in -10℃to 65℃ and relative humidity less than 75% for long-term unused condition.
Please do not make any soldering jobs on the load cell carrying device.
Not use in the water for load cell without any special treatment.
Wire should be connected reliably, and not connect to metallic conductor.
If order several load cell and transmitter, digital meter etc. and need to match each one, please follow serial number on sticker to connect them.
