SPECIFICATIONS

Battery Included: Yes

Brand Name: GOYOJO

Certification: CE,SMQ Inspection National Hi-tech Metrology Station

Error of indication: 0-100GU:±1.5 ;100-200GU:±1.5% reading

High-concerned chemical: None

Measuring aperture: LS192: 9mm*15mm; LS193: 1.5*3mm

Minimum test material size: LS192: 10*20mm; LS193: 3*6mm

Origin: Mainland China

Power supply: rechargeable lithium3.7V@1000mAh

Repeatability: 0-100GU:±0.2 ;100-200GU:±0.2% reading

Reproducibility: 0-100GU:±0.5 ;100-200GU:±0.5% reading

Resolution: 0.1GU

Semi-finishedproduct: No

Storage temperature: -10~60℃,0~85%RH(no dew)

Warranty: 1 year

Working temperature: 10~45℃,0~85%RH(no dew)

Zero error: 0.1GU

Linshang LS192 LS193 Auto Marble Paint Coating 60 Degree Gloss Meter Glossmeter with PC Statistical Software

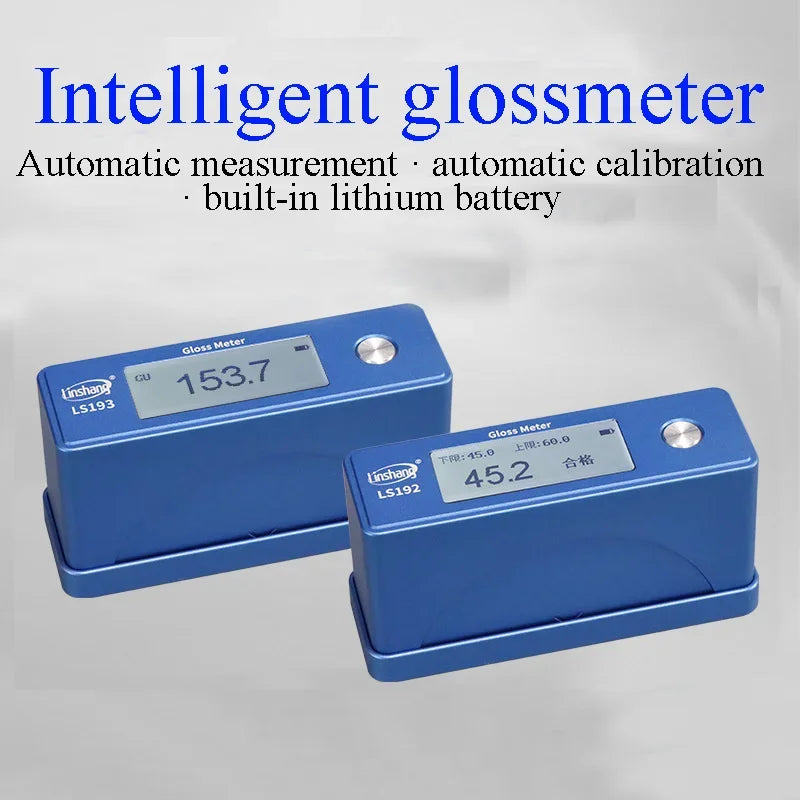

LS192/193 Gloss Meter

LS192 is a hand-held gloss meter with universal angle 60° and range of 1000GU, widely applicable to surface gloss test on paint, coating, metal, ceramics, stone, printed material, easy operation, no need to press button. QC mode is optional to conduct quick QC process. Intelligent data statistics and test report can be generated by connecting PC software.



Application

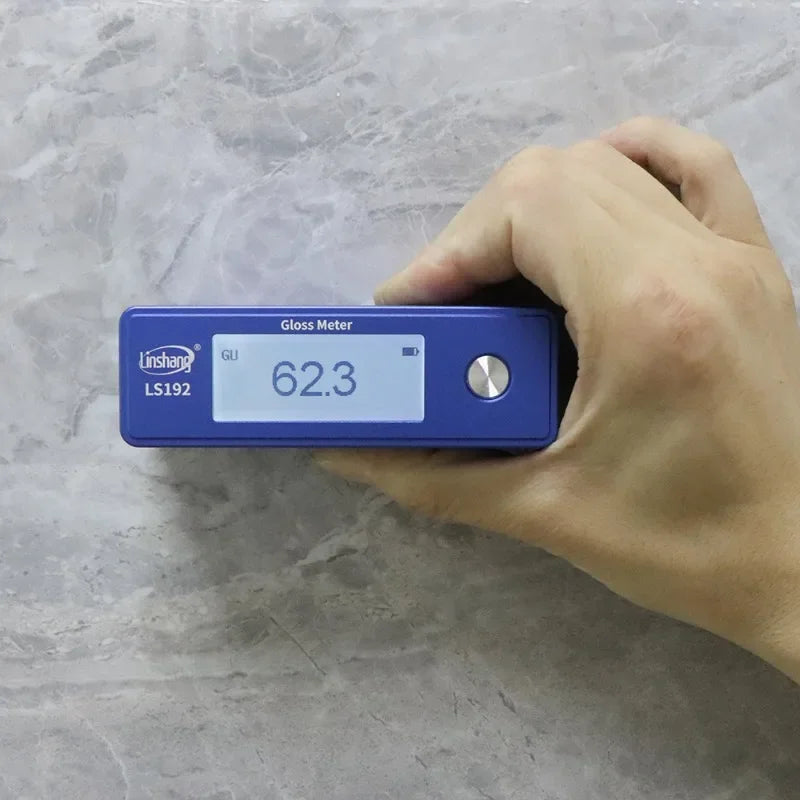

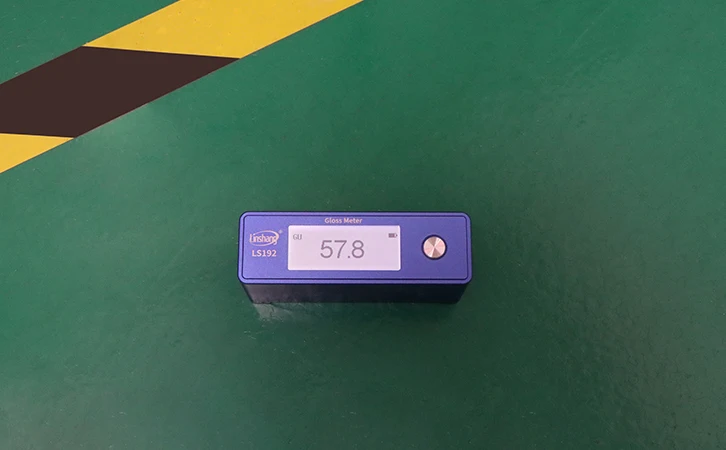

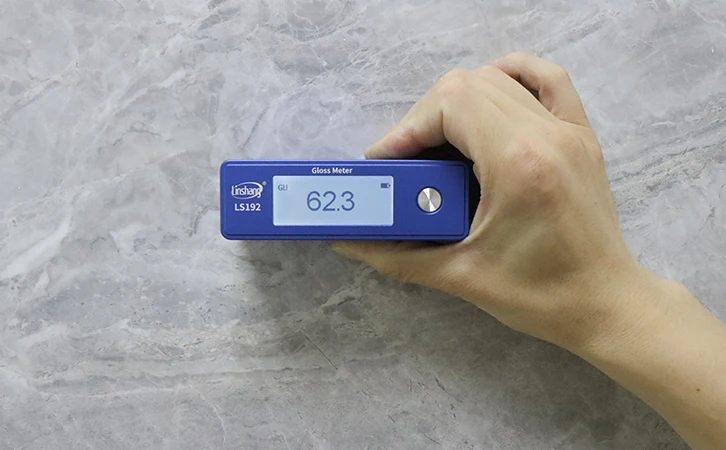

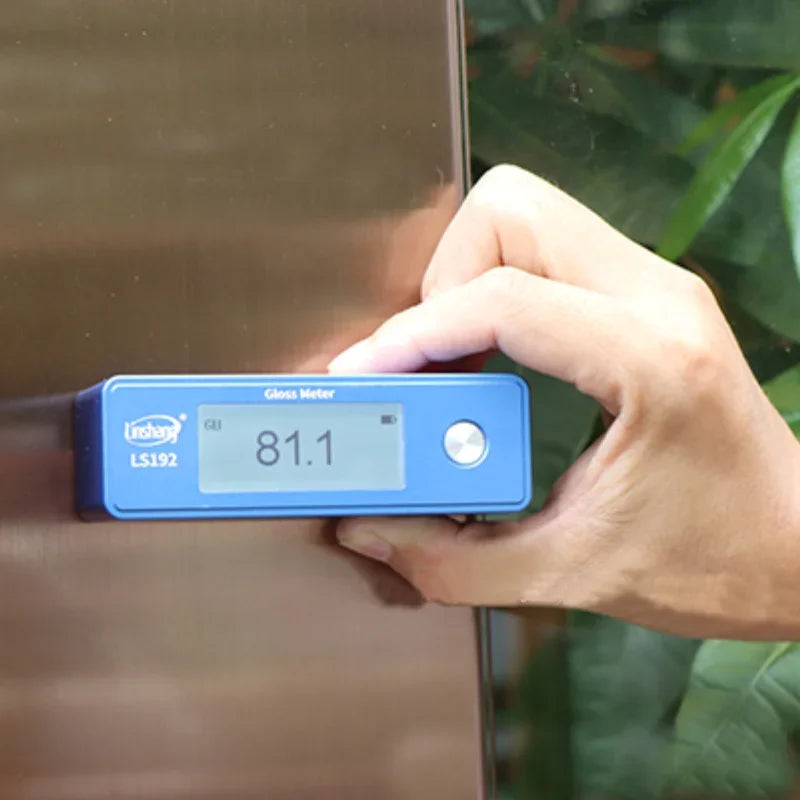

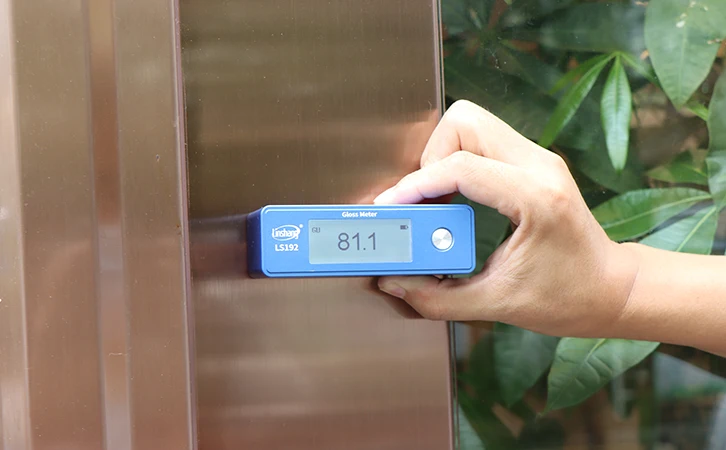

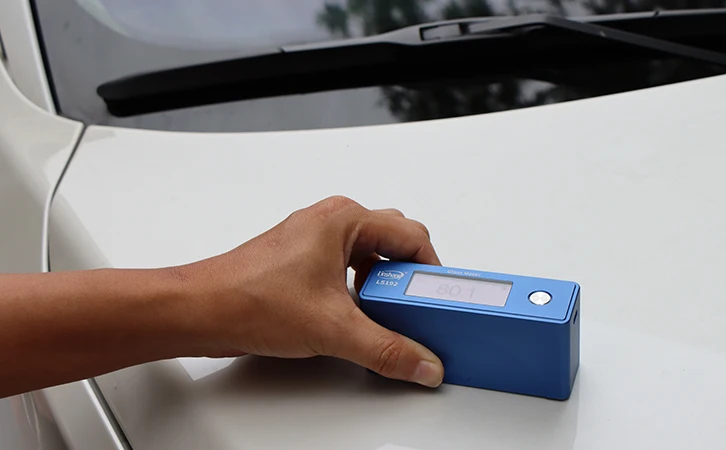

                   LS192 testing ceramics                                                    LS192 measuring car

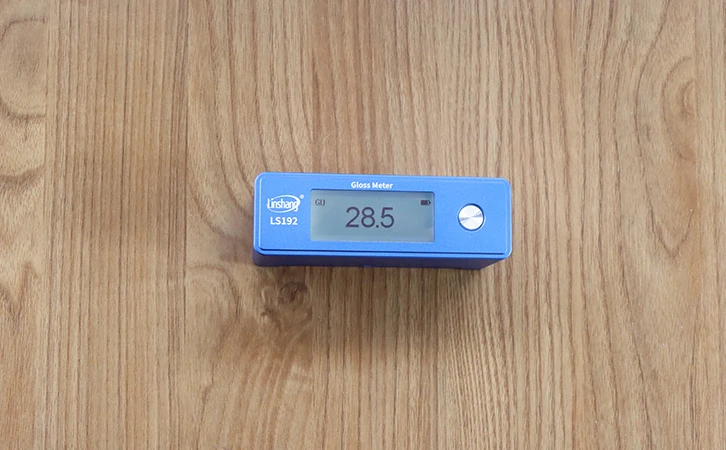

                 LS192 measuring paint                                                      LS192 measuring wood



Features

1. Easy Operation
Great Interactive design, easy operation, put and test after power-on, one-key to lock data.

2. Precise measurement
LS192 Gloss Meter could pass calibration by any national metrology institute, in line with 1st class working machine standard of JJG696-2002. Its test result can compete with that of famous brands.

Measuring instrument	Standard gloss meter	First class gloss meter	Secondary class gloss meter
Stable value	0.2GU	0.4GU	1.0GU
Zero value error	0.1GU	0.2GU	1.0GU
Indication error	±1.0GU	±1.5GU	±2.5GU

3. Stable data
The device has temperature compensation function, ensuring stable data, allowing long period calibration. Great repeatability: ±0.2GU for 0-100GU; ±0.2% reading for 100-1000GU.

4. Dual Mode

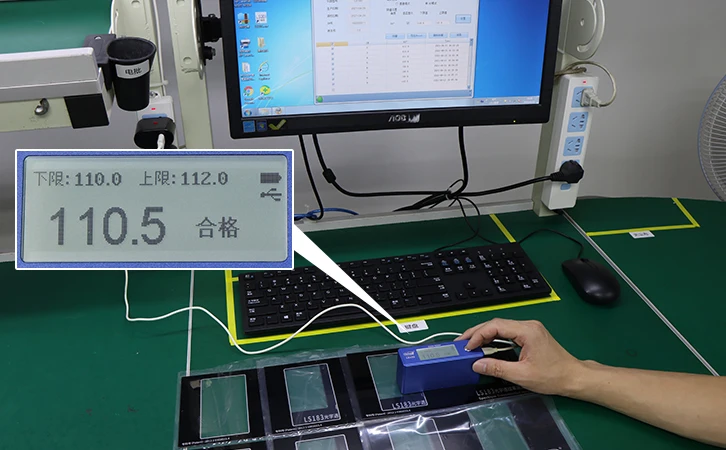

Support switch between normal mode and QC mode, applicable to different scenes. Normal mode: quick reading after put and test; QC mode: realize quick check on incoming material by setting upper and lower limit value and judge "Pass"or not.

Normal mode

QC mode

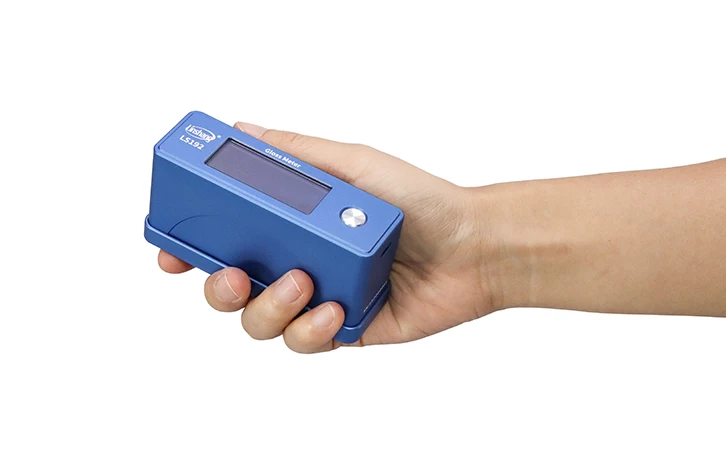

5. Portable and Smart
Portable size, aviation aluminum shell, fine design, super texture.

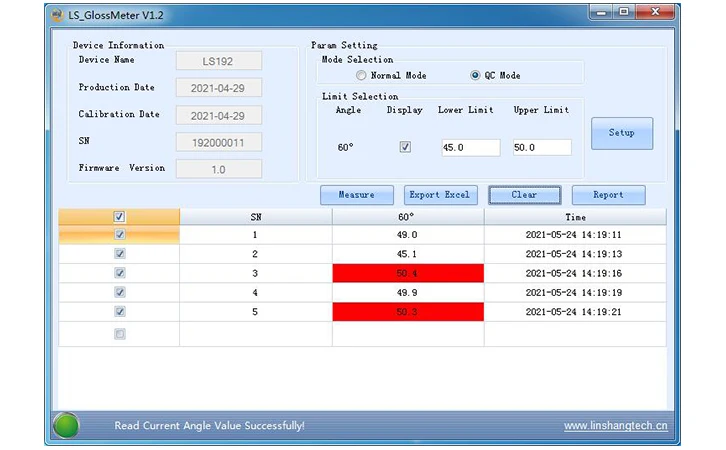

6. Powerful PC software support
Equipped with PC software ( supporting Windows only), can measure, generate and print test report by connecting PC.

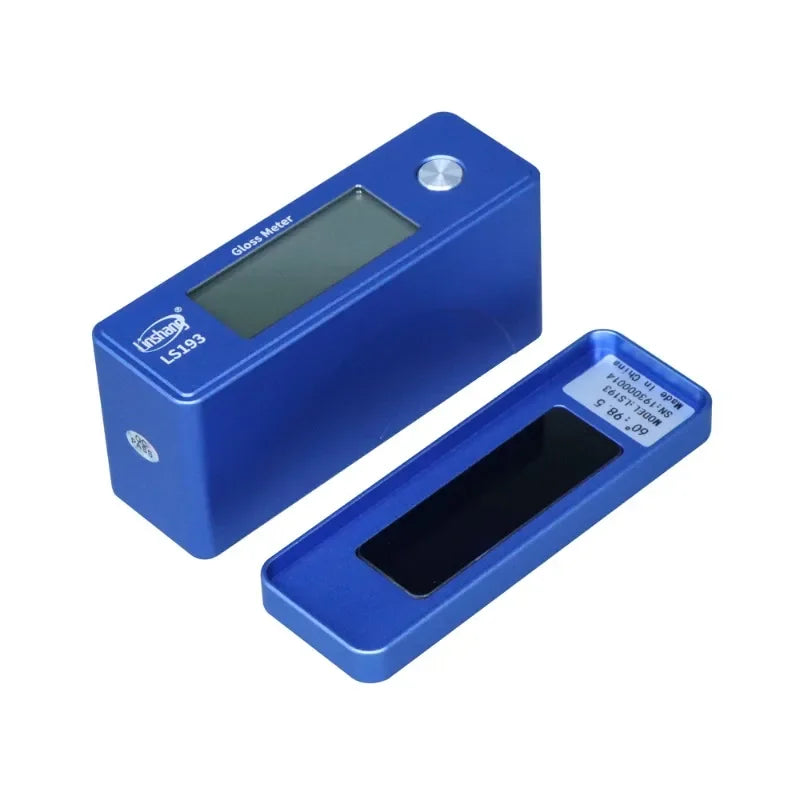

7. Standard in the bottom
Magnetic bottom design, combined with standard, no worry about the standard getting lost. Automatic calibration after powered-on.
8. Energy-saving, long navigation
Built-in high-performance rechargeable lithium battery offers low energy consumption. Once full charged the device can last for 48 hour navigation.

Paramenters

Measuring Angle	60°
Measurement range	0-1000GU
Resolution	0.1GU
Repeatability	0-100GU:±0.2 ;100-1000GU:±0.2% reading
Reproducibility	0-100GU:±0.5 ;100-1000GU:±0.5% reading
Error of indication	0-100GU:±1.5 ;100-1000GU:±1.5% reading
Zero error	0.1GU

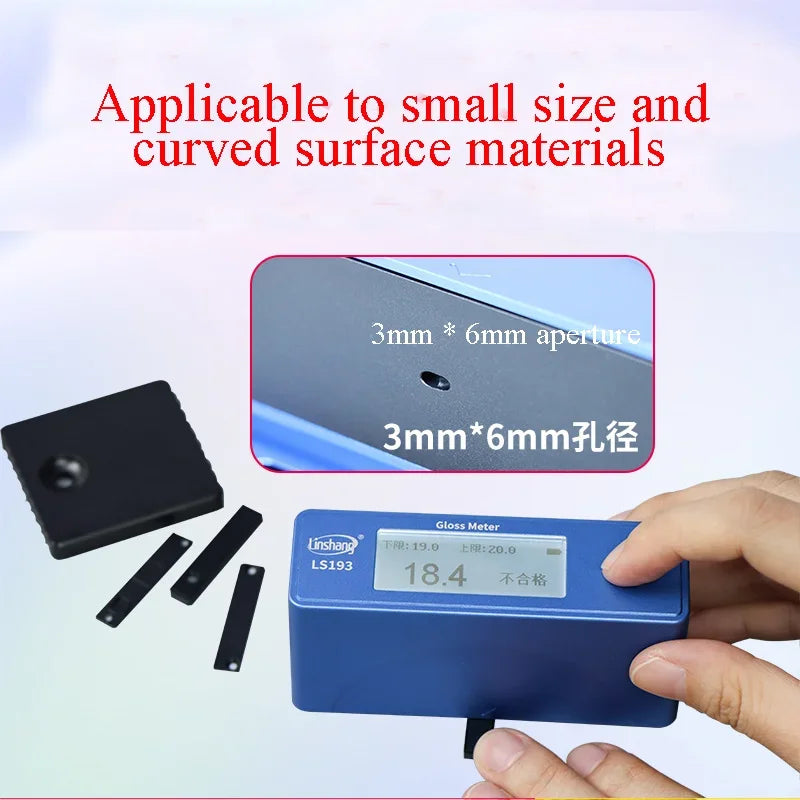

Measuring aperture	LS192: 9mm*15mm LS193: 1.5mm*3mm
Minimum test material size	LS192: 10mm*20mm LS193: 3mm*6mm
Working temperature	10℃ ～ 40℃
Storage temperature	-10℃ ～ 60℃
Relative humidity	Less than 85％, no dew
Weight	332g
Power supply	rechargeable lithium3.7V@1000mAh
Packing List	Gloss meter, USB cable, U disk with software, special lens cloth,user manual, warranty card
